Toploader Question

Discussion in 'Classic Mustang Specific Tech' started by turbinesurgeon, Apr 26, 2009.

  1. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ
    Anybody know what that little switch above the 3/4 shift lever does on a 73 toploader?

    #1
  2. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ
    No one????

    #2
  3. woodsnake

    woodsnake Active Member

    Joined:
    Jan 16, 2007
    Messages:
    1,323
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Hicksville, NY
    I can't place "a little switch"... Got a picture?

    #3
  4. Rusty67

    Rusty67 Well-Known Member

    Joined:
    Dec 3, 2002
    Messages:
    3,617
    Likes Received:
    13
    Trophy Points:
    59
    Location:
    SB, CA
    Reverse lights.

    #4
  5. D.Hearne

    D.Hearne Banned

    Joined:
    Sep 30, 2000
    Messages:
    12,124
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    south louisiana
    Neutral safety switch

    #5
  6. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ
    I have a reverse switch on the shifter which looks original. I don't think four speeds have neutral safety switch's' do they? I will get a picture of it tomorrow

    #6
  7. cupcake

    cupcake New Member

    Joined:
    Apr 22, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    sunny socal
    Interesting. Yes a picture is needed. The reverse lights should be on the case activated by the linkage rod and there is no neutral switch.

    #7
  8. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ

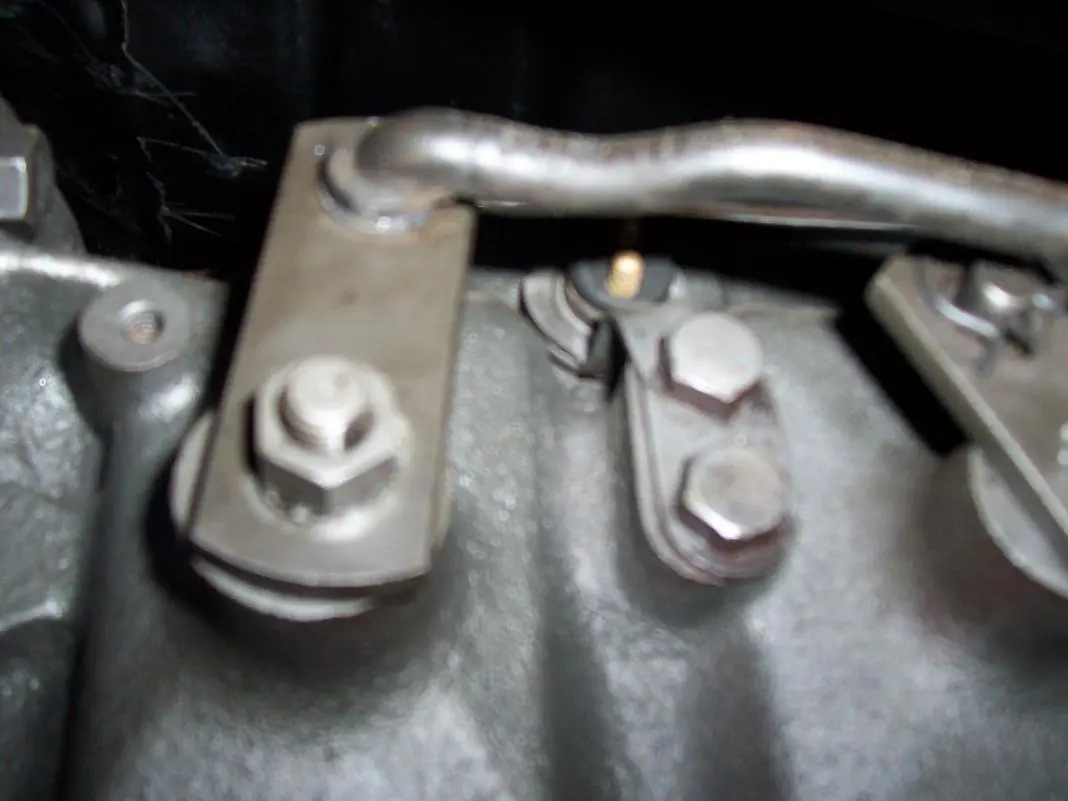

    Sorry it took so long, here is a pick of that switch.

    //http://cid-1b0b9aed00b20a35.skydrive.live.com/self.aspx/New%20album/000%7C_0044.JPG

    #8
  9. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ

    Lets try this

    #9
  10. valley firearms

    valley firearms New Member

    Joined:
    Sep 1, 2005
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    0
    your link does not work. Does it look like this?

    #10
  11. valley firearms

    valley firearms New Member

    Joined:
    Sep 1, 2005
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    0
    Are you sure that is a toploader? I have two and either of them look like that.

    #11
  12. woodsnake

    woodsnake Active Member

    Joined:
    Jan 16, 2007
    Messages:
    1,323
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Hicksville, NY
    Are there any part numbers you can see on the case or the tail shaft? I think you have a 70's 3+1 OD unit.....

    #12
  13. Rusty67

    Rusty67 Well-Known Member

    Joined:
    Dec 3, 2002
    Messages:
    3,617
    Likes Received:
    13
    Trophy Points:
    59
    Location:
    SB, CA
    I'm 100% certain that is the reverse light switch. If you want to double check me, put a multimeter with one lead on each of those two terminals and shift the trans into reverse. If the circuit completes when in reverse its the reverse light switch.

    #13
  14. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ
    Its a 73 toploader RUG HEH.

    I tested it with a multimeter today to see if it would close while in reverse and it didn't but oddly enough it closed when shifting into 3rd

    #14
  15. Rusty67

    Rusty67 Well-Known Member

    Joined:
    Dec 3, 2002
    Messages:
    3,617
    Likes Received:
    13
    Trophy Points:
    59
    Location:
    SB, CA
    Strange... its definately the reverse switch...

    How are you puting it into reverse ? From the shift levers or with the shifter handle ?

    #15
  16. 2+2GT

    2+2GT Well-Known Member

    Joined:
    Apr 25, 2009
    Messages:
    3,333
    Likes Received:
    7
    Trophy Points:
    59
    Location:
    Southeastern Pennsylvania
    Here's his link:

    [​IMG]

    #16
  17. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ
    I think the switch is something for emissions. I downloaded a wiring schematic for a 72 and it shows a switch for manual transmissions. One wire from the electronic spark control and the other goes to an emission vacuum solenoid. I don't have that stuff on my car, it must have been removed from a prior owner. The schematic says the switch is open in third and forth but when I tested it closed in third. I found a parts diagram at the same web site which had a lot of usefull info. the switch is number7E449. http://www.7173parts.com/images/tech/illustrations/9881.jpg

    #17
  18. 2+2GT

    2+2GT Well-Known Member

    Joined:
    Apr 25, 2009
    Messages:
    3,333
    Likes Received:
    7
    Trophy Points:
    59
    Location:
    Southeastern Pennsylvania
    The Ford book lists a such a switch for 73 Torino and Mustang with 4-speed manual transmission.

    D2OZ-7E449-A Switch, Seat Belt Warning Sensor (D2AR-7E449-BA)

    I'm guessing unless you are hard-core trailered show you won't bother fixing this one.

    #18
  19. turbinesurgeon

    turbinesurgeon New Member

    Joined:
    Apr 19, 2007
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Phoenix, AZ
    I guess by when you get to third gear the seat belt warning goes on, I won't be trying to hook this up. I guess people get rid of stuff like this along with those key buzzer relays.

    #19
  20. 2+2GT

    2+2GT Well-Known Member

    Joined:
    Apr 25, 2009
    Messages:
    3,333
    Likes Received:
    7
    Trophy Points:
    59
    Location:
    Southeastern Pennsylvania
    IIRC, it was supposed to buzz and illuminate in any gear. The 73 also had a sensor strip in the seat bottom, and switch in the belt buckle, to make sure both front seats had their belts on, even a bag of groceries. Remember, this was the heyday of the safety fascists. Some cars disabled the starter unless everybody had a seat belt on.

    #20
