A/C clutch replacement

Trogdor

Member
Aug 30, 2018
34
21
18
43
Anna, TX
A few weeks ago I was sitting idle when I noticed that the A/C stopped blowing cold and after some very quick investigation I found out that the rubber on the A/C clutch face had ripped. I looked around for a replacement clutch and I kept seeing made in China replacements for around $100 or more. I also thought to my self if the Ford unit lasted 28 years and 95k miles maybe I should look for some Ford parts and hope for another 28 years and 95k miles.

First up was realizing that I would need to scout eBay for the NOS parts. The A/C clutch is made of 3 main parts:

  • The clutch
  • The coil
  • The pulley
One thing that I need to point out is most part suppliers list two A/C compressors for our cars depending if the A/C was factory or dealer installed. The factory installed compressor is made in Japan by Denso and it's model number 6P148A, that apparently is also used on some 911 Porsche models. To determine which compressor you have, look for the sticker:
00-AC compressor sticker.jpg

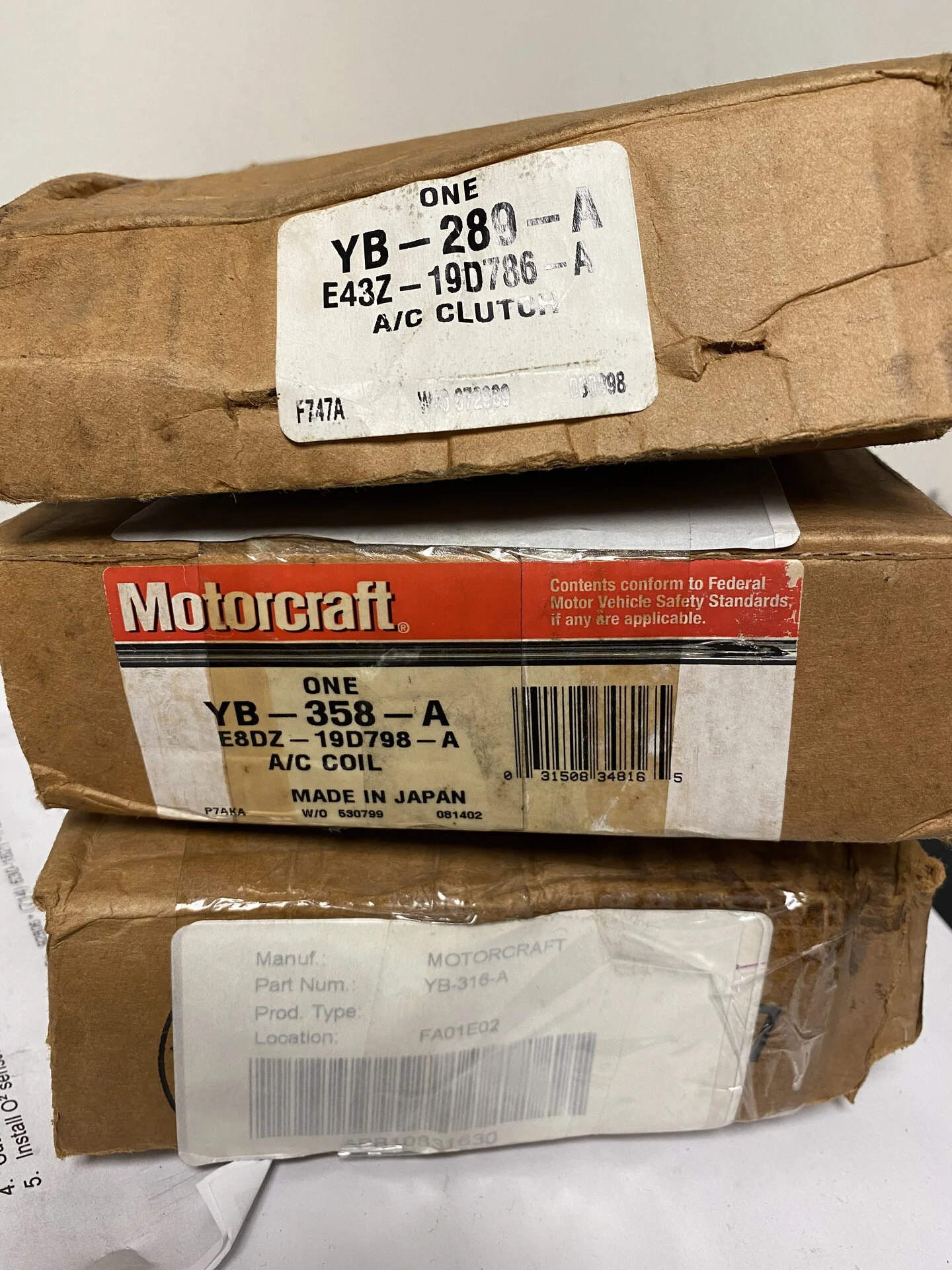

Through a lot of cross-referencing I was able to find what the FORD part numbers are for these components. As we all know Ford likes to have many part numbers for the same part, they change based on year of engineering and revision. Anyhow below is a photo of the three components I picked up from eBay for a grand total of $128.13 tax and shipping:

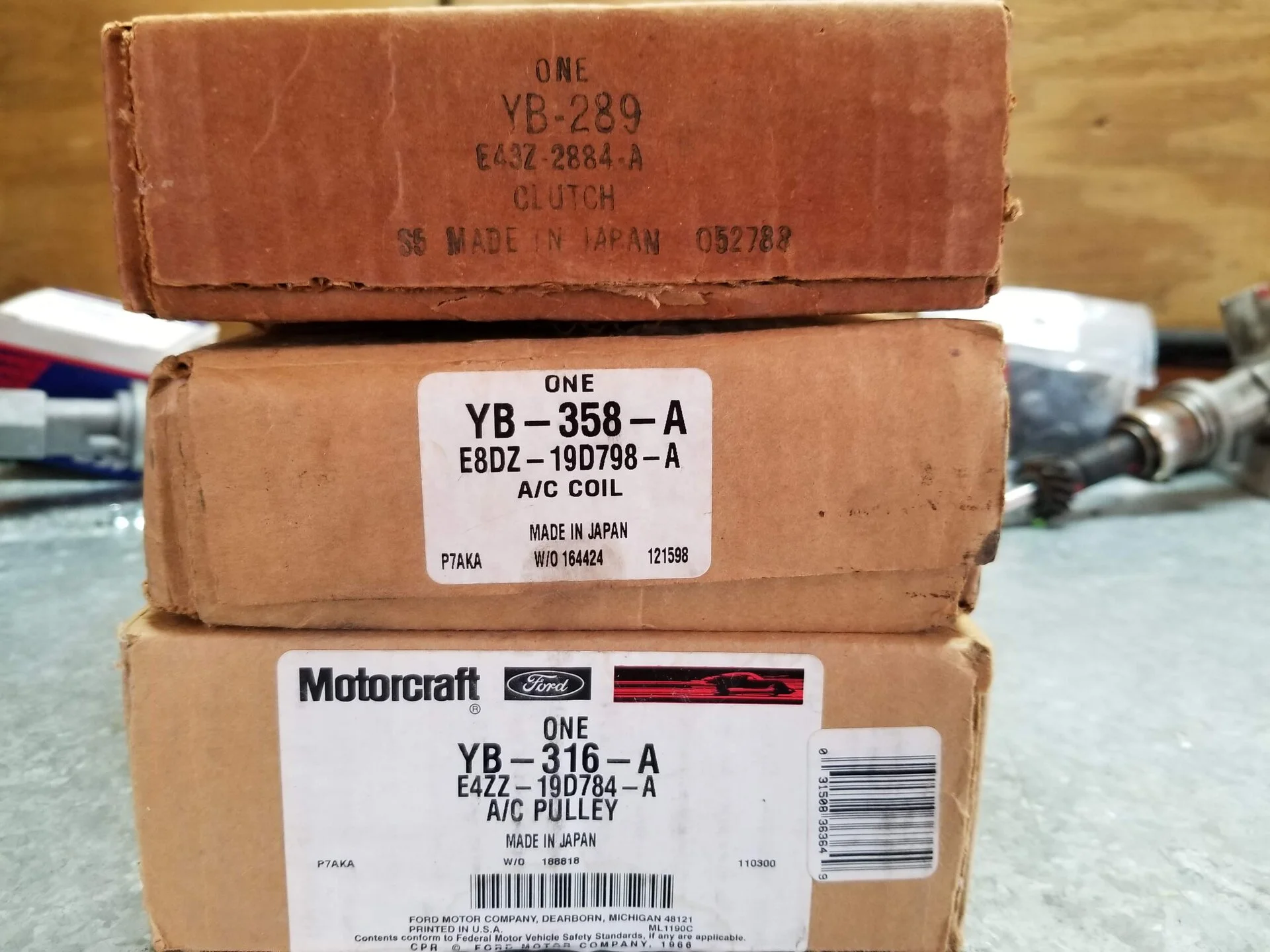

01-Part numbers.jpg

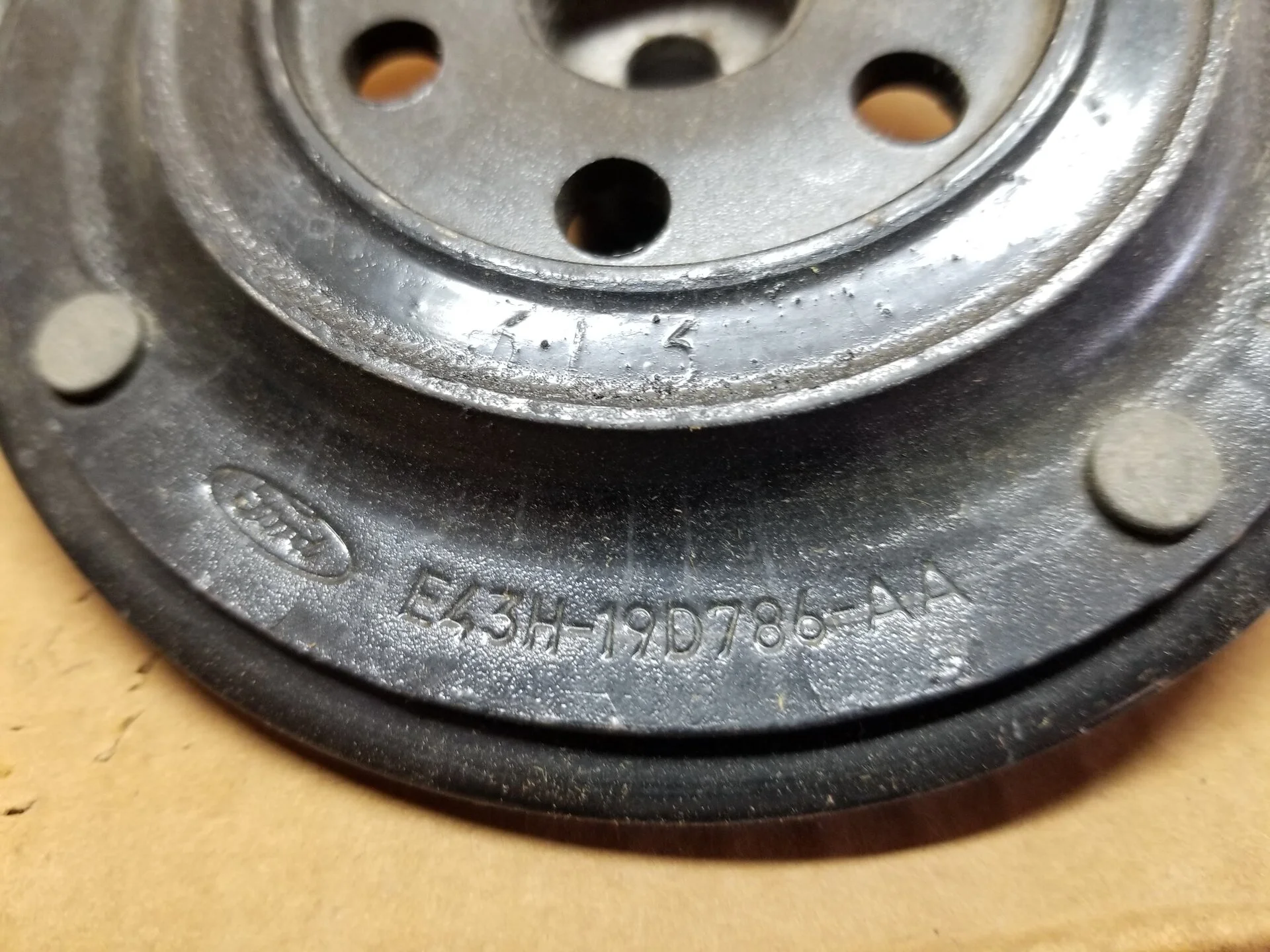

Here is a close up of the clutch and part number:

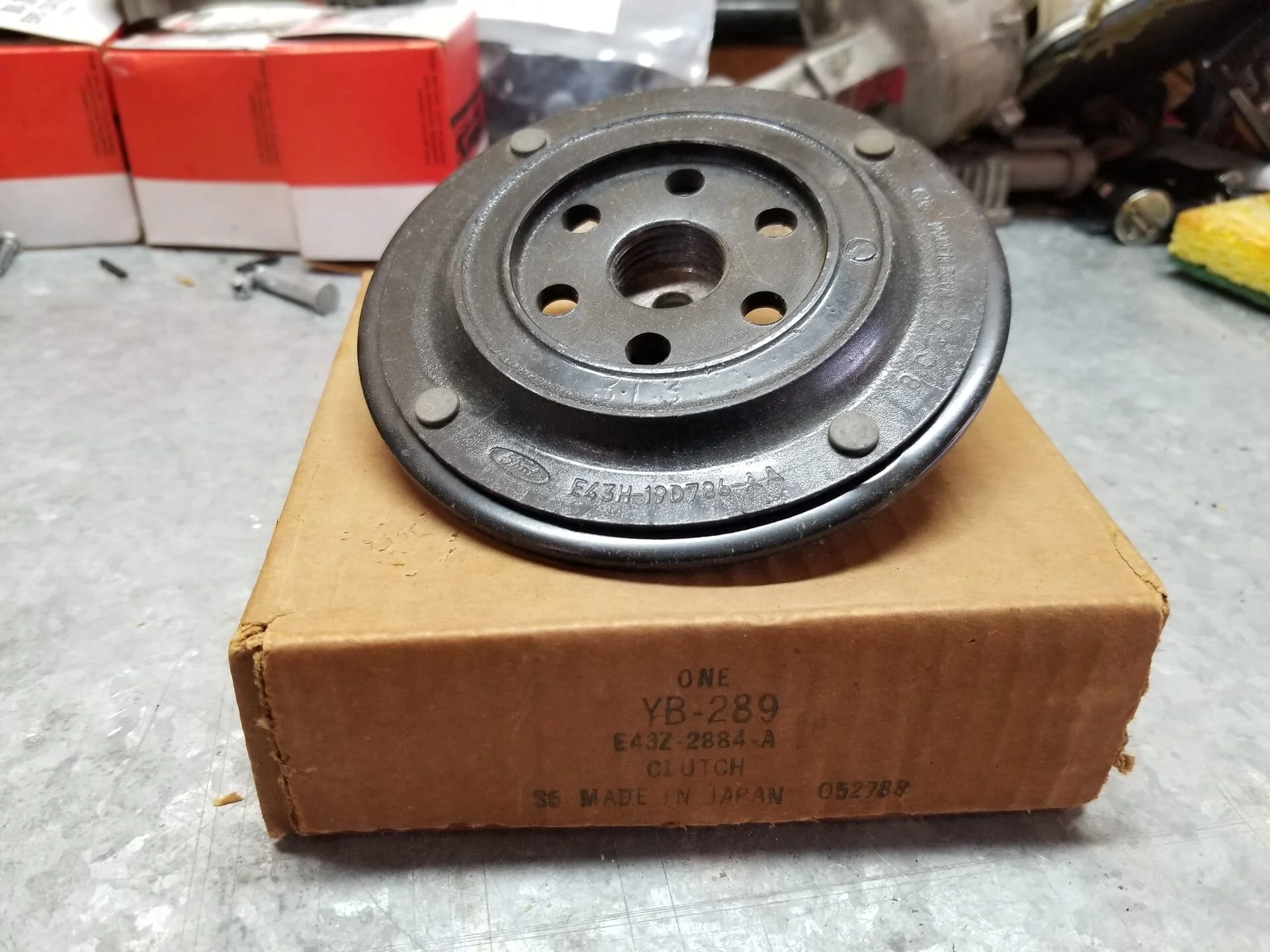

02-Clutch face box.jpg

03-Clutch face part number.jpg

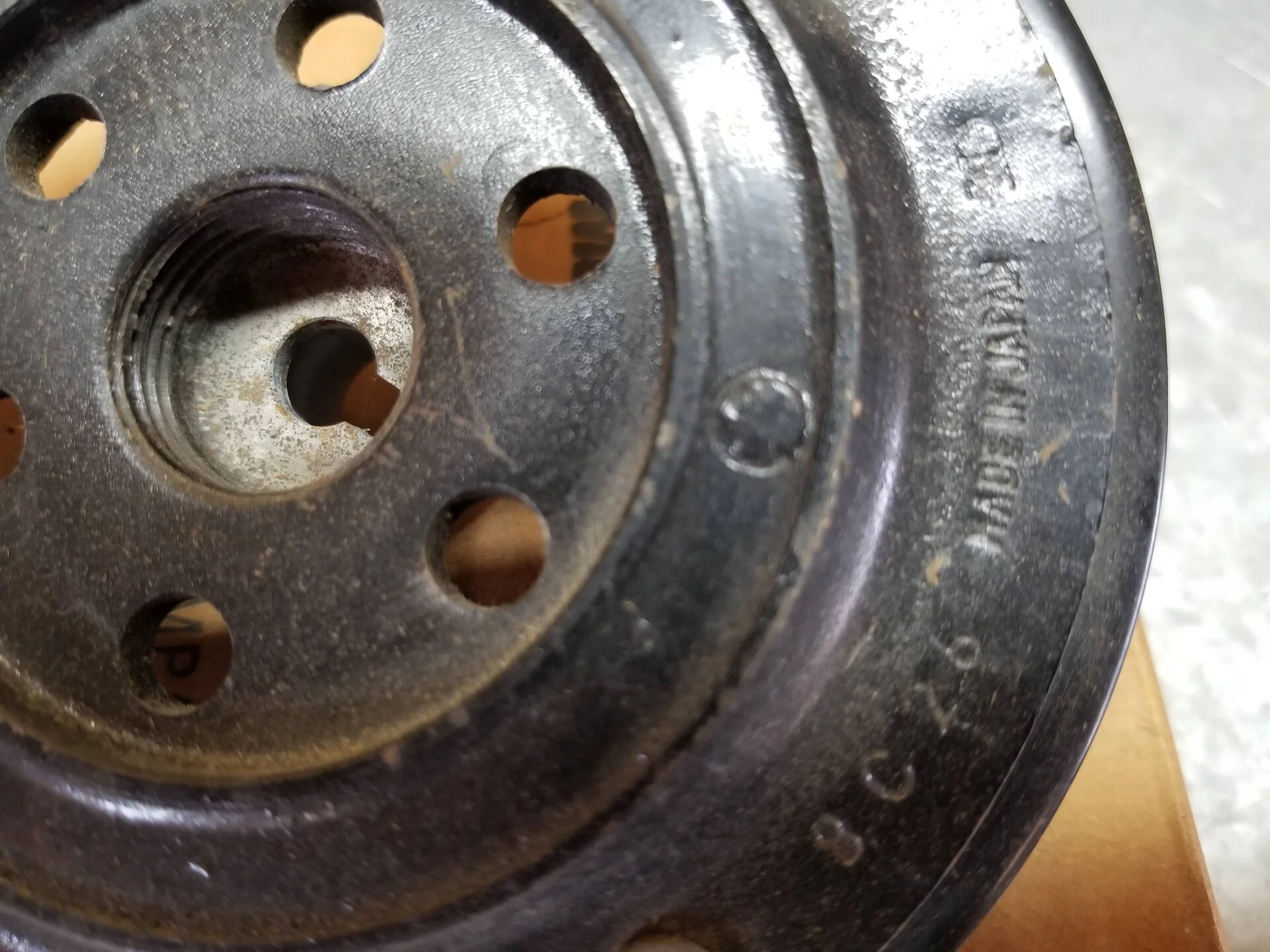

04-Clutch face made in Japan.jpg

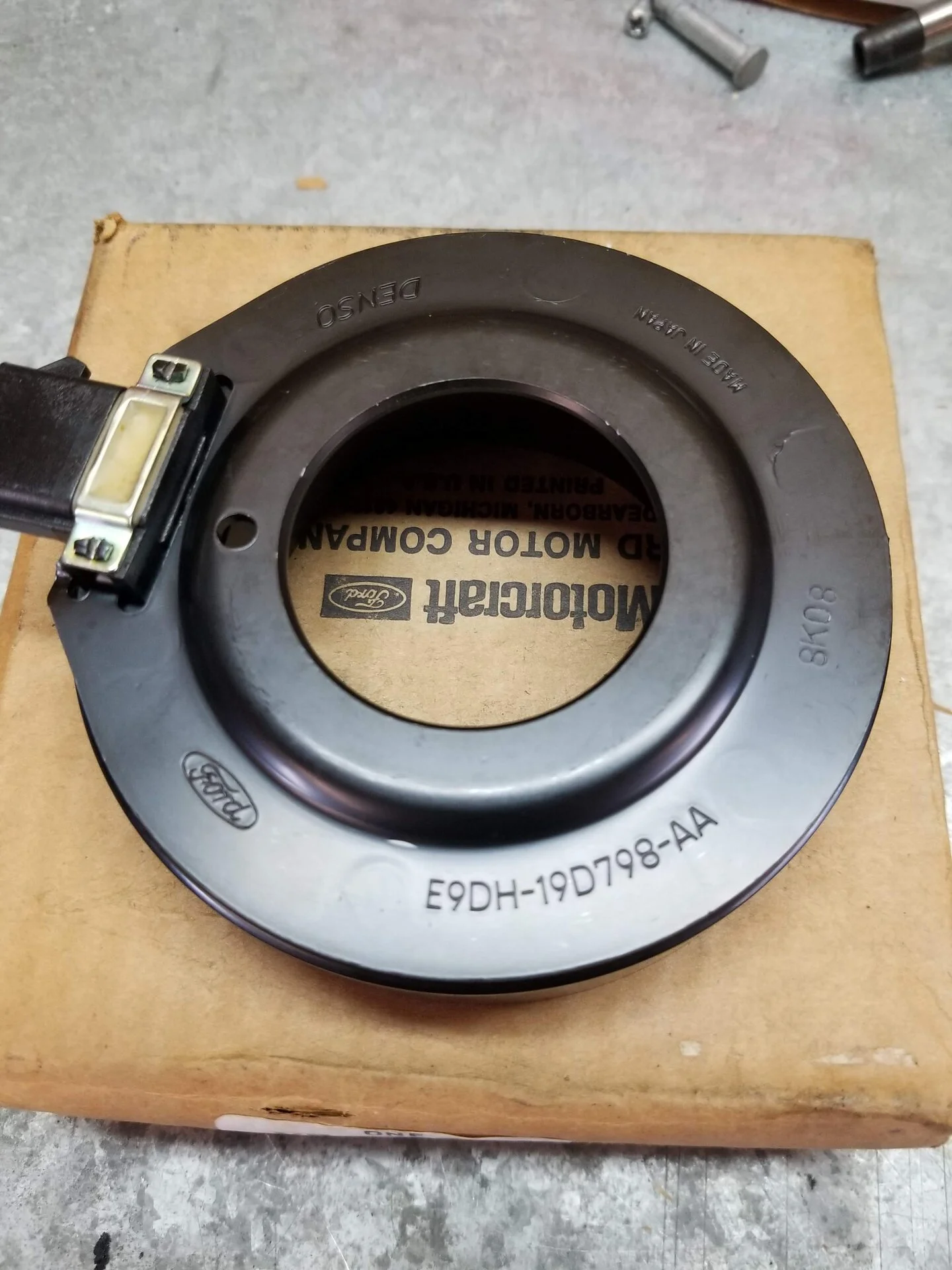

Details of the coil:

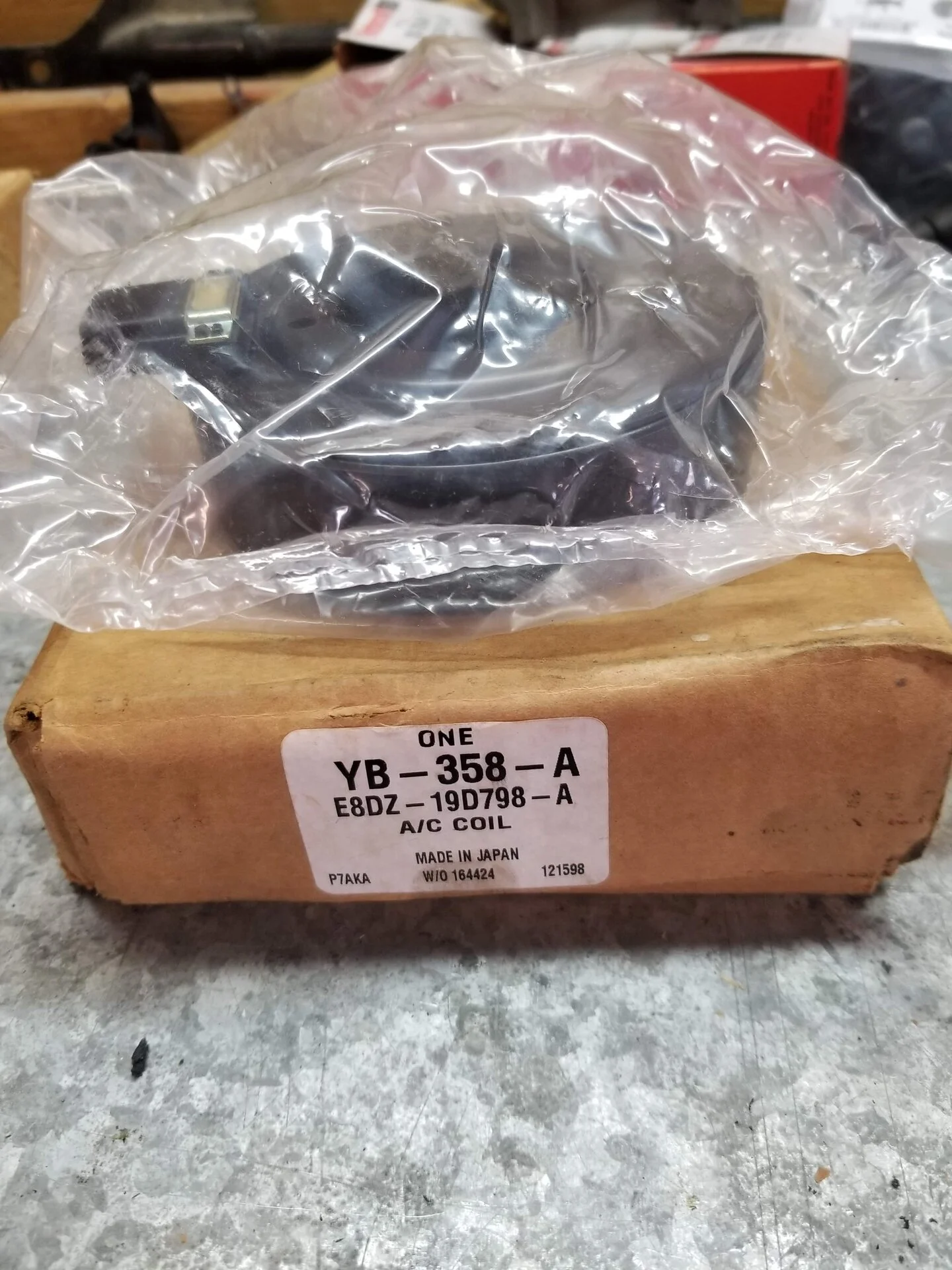

05-AC coil box.jpg

06-AC coil parn number.jpg

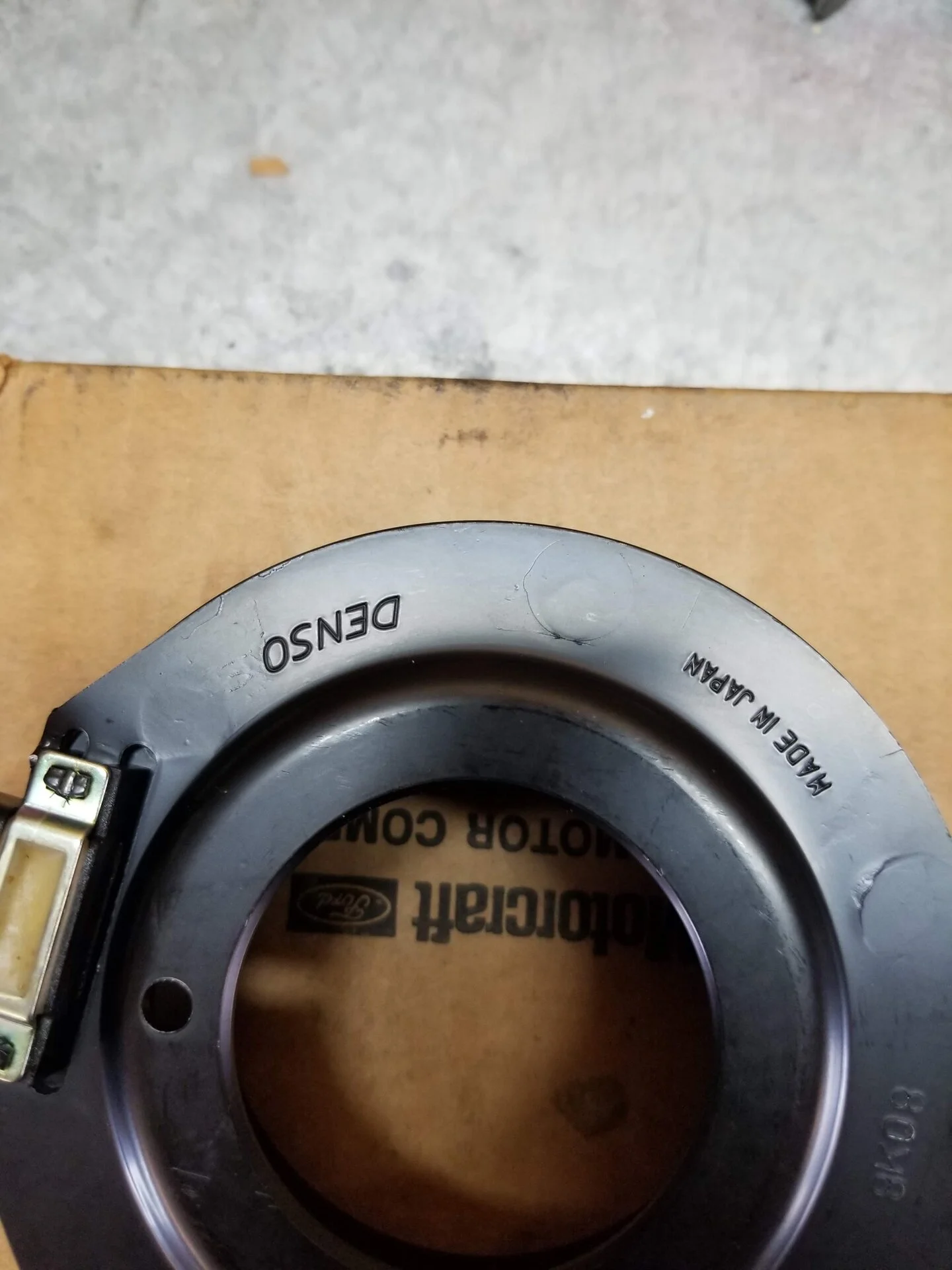

07-AC coil made in Japan.jpg

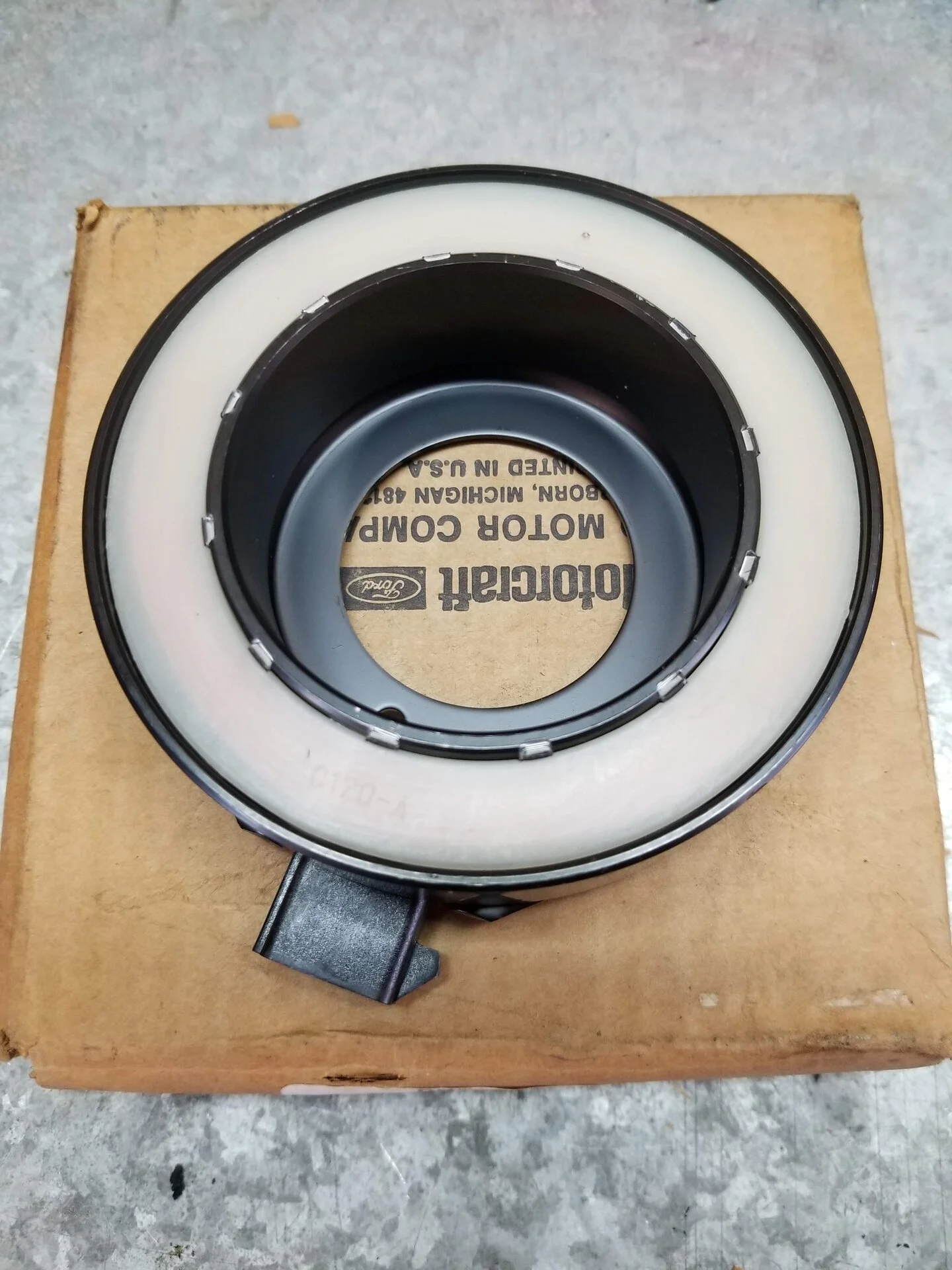

08-AC coil other side.jpg

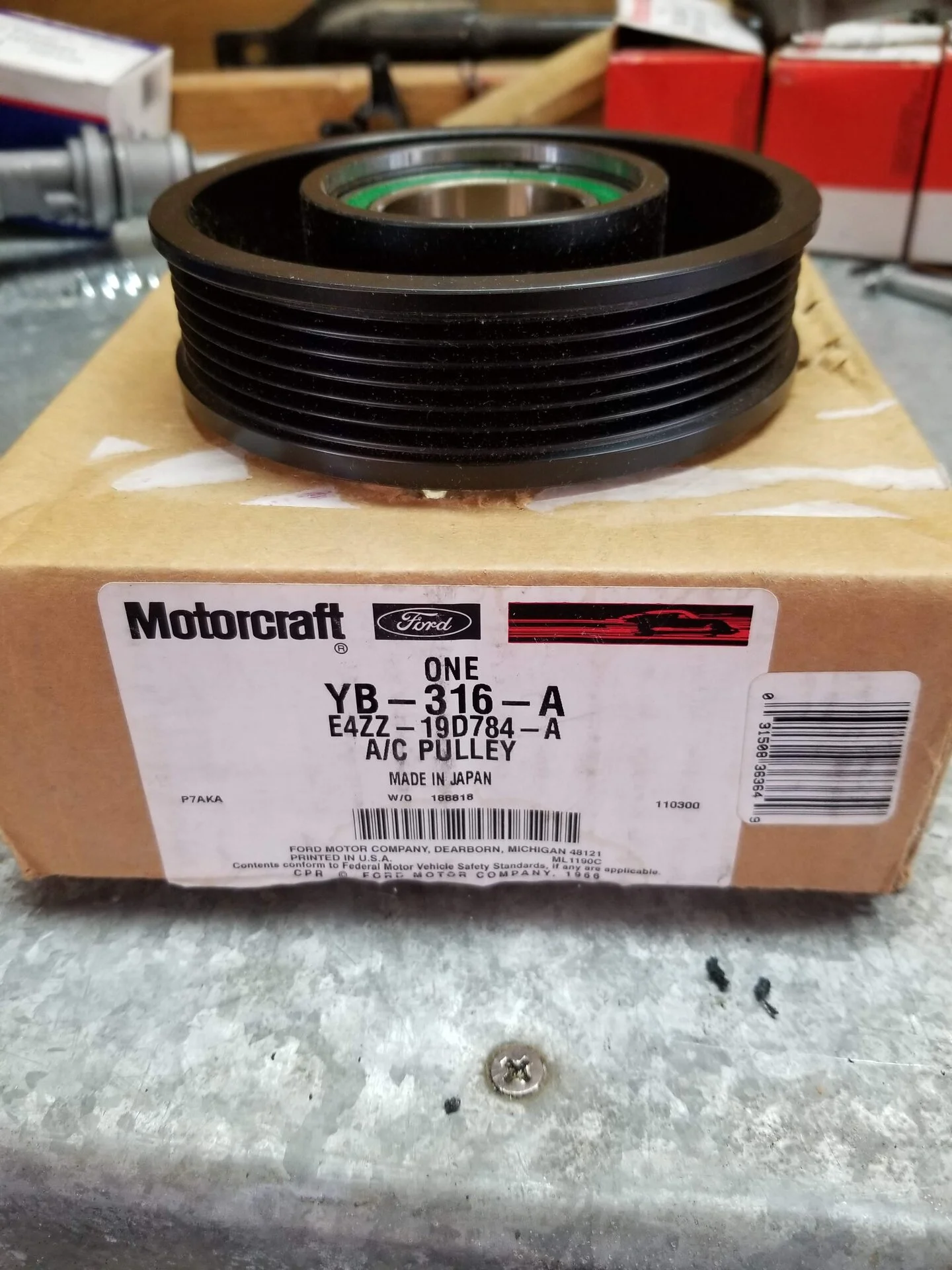

And finally the pulley. The pulley assembly includes a new bearing, so no need to purchase that separately:
09-Pulley box.jpg

Continued on next post...

  • Sponsors(?)


Trogdor

Member
Aug 30, 2018
34
21
18
43
Anna, TX
Continued from last post

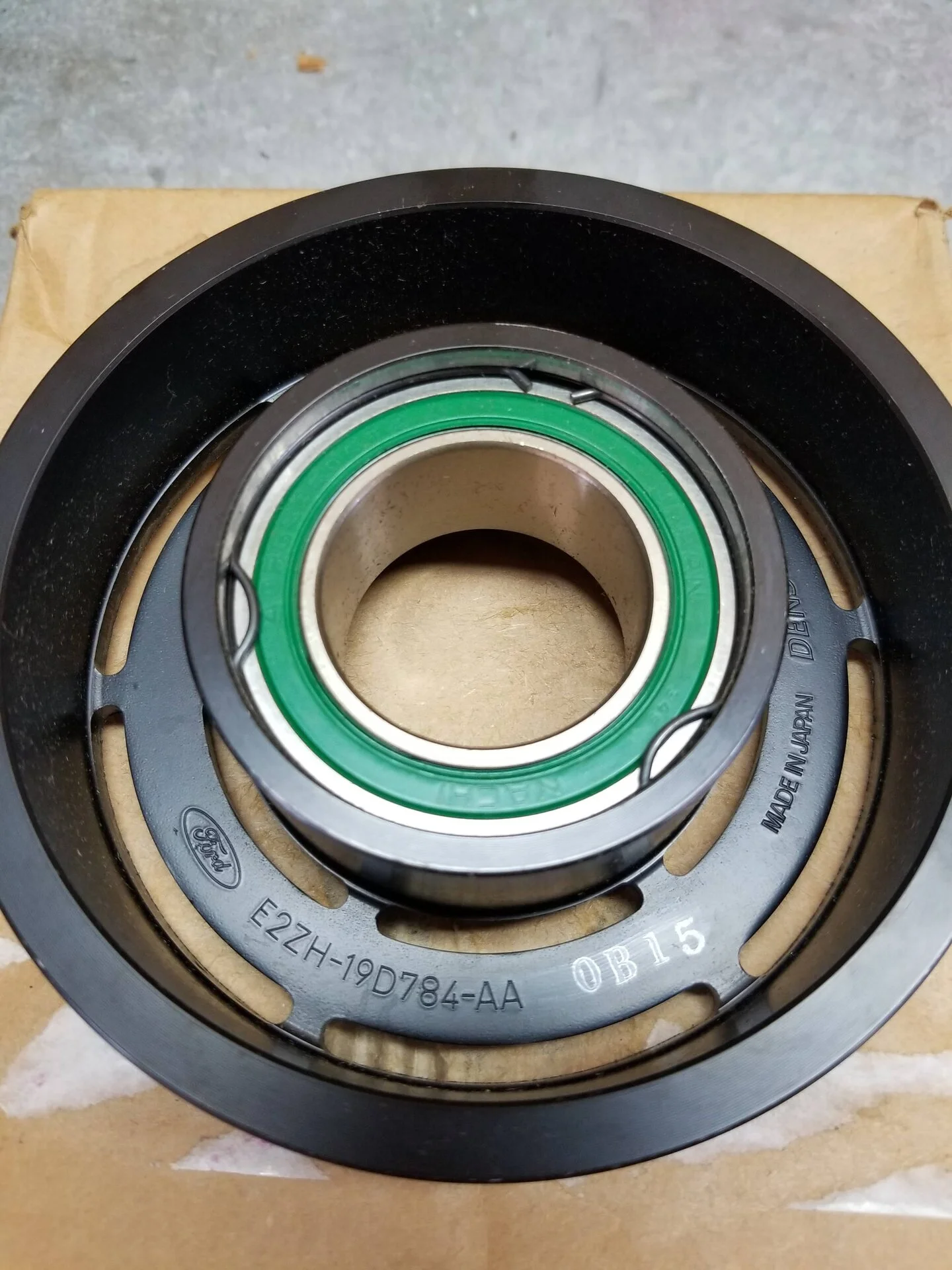

10-Pulley part number.jpg

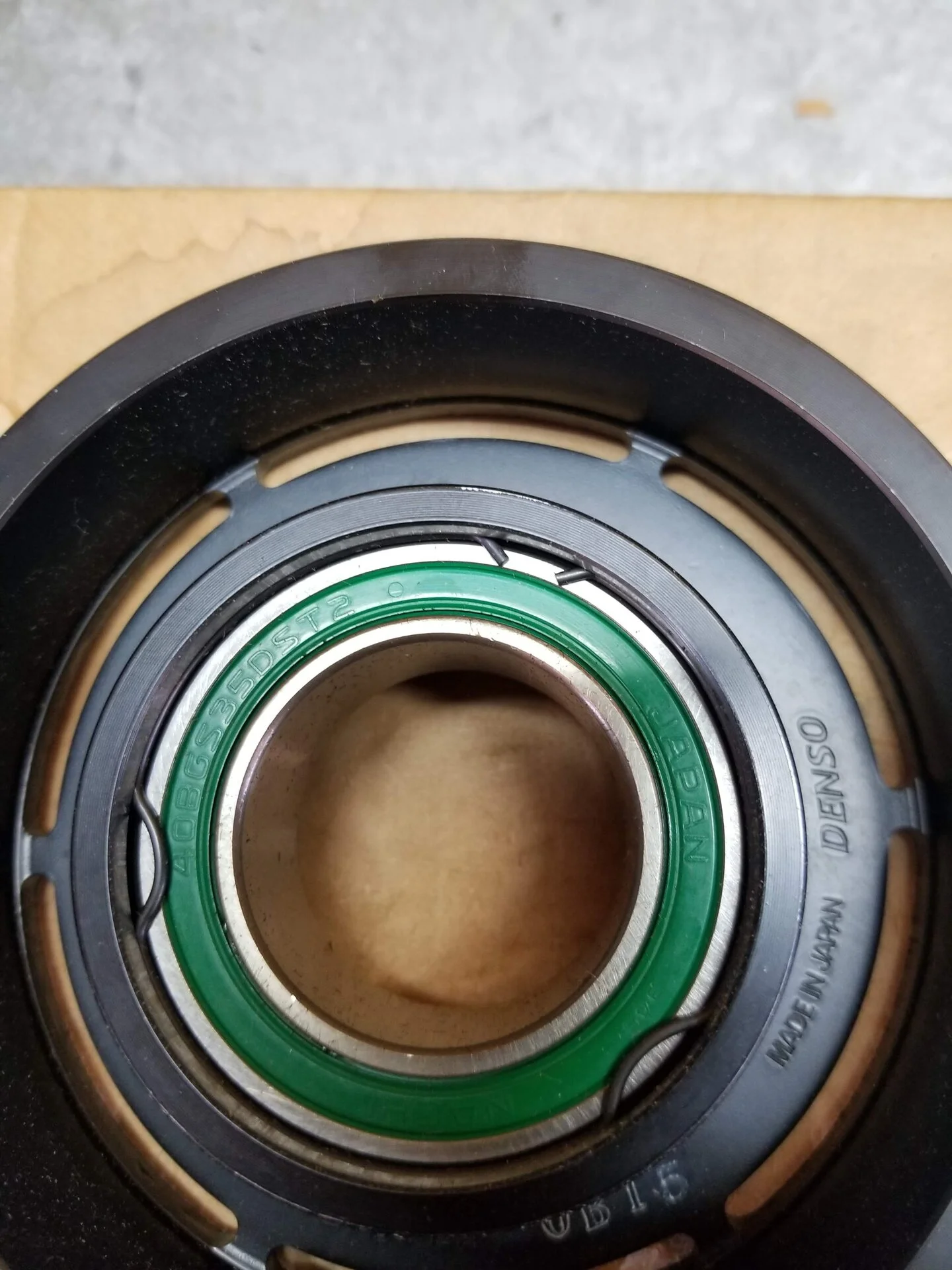

11-Pulley made in Japan.jpg


As I said the reason was pretty obvious why the A/C clutch was not engaging:

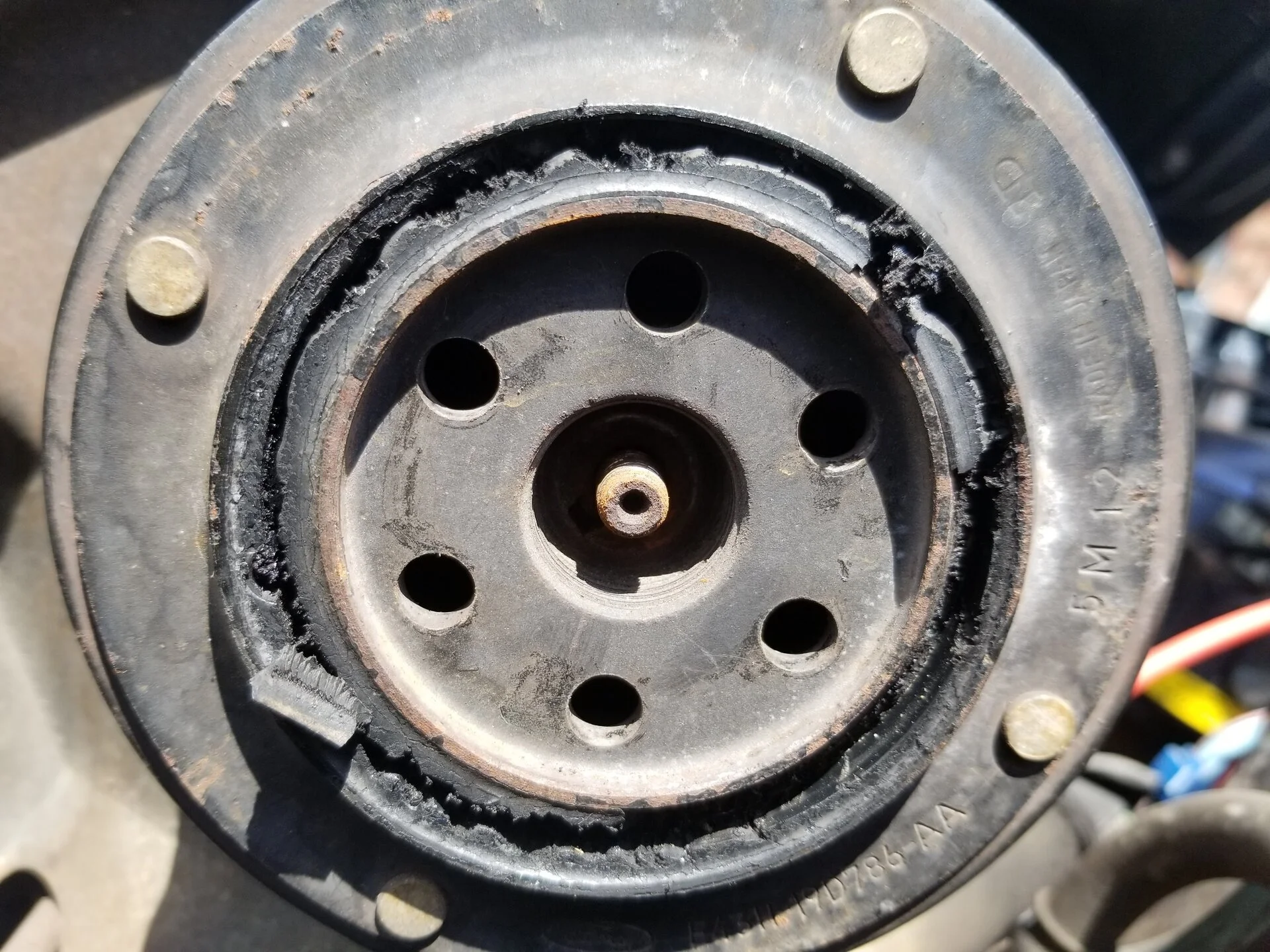

12-Borken AC clutch.jpg


Special tools needed:

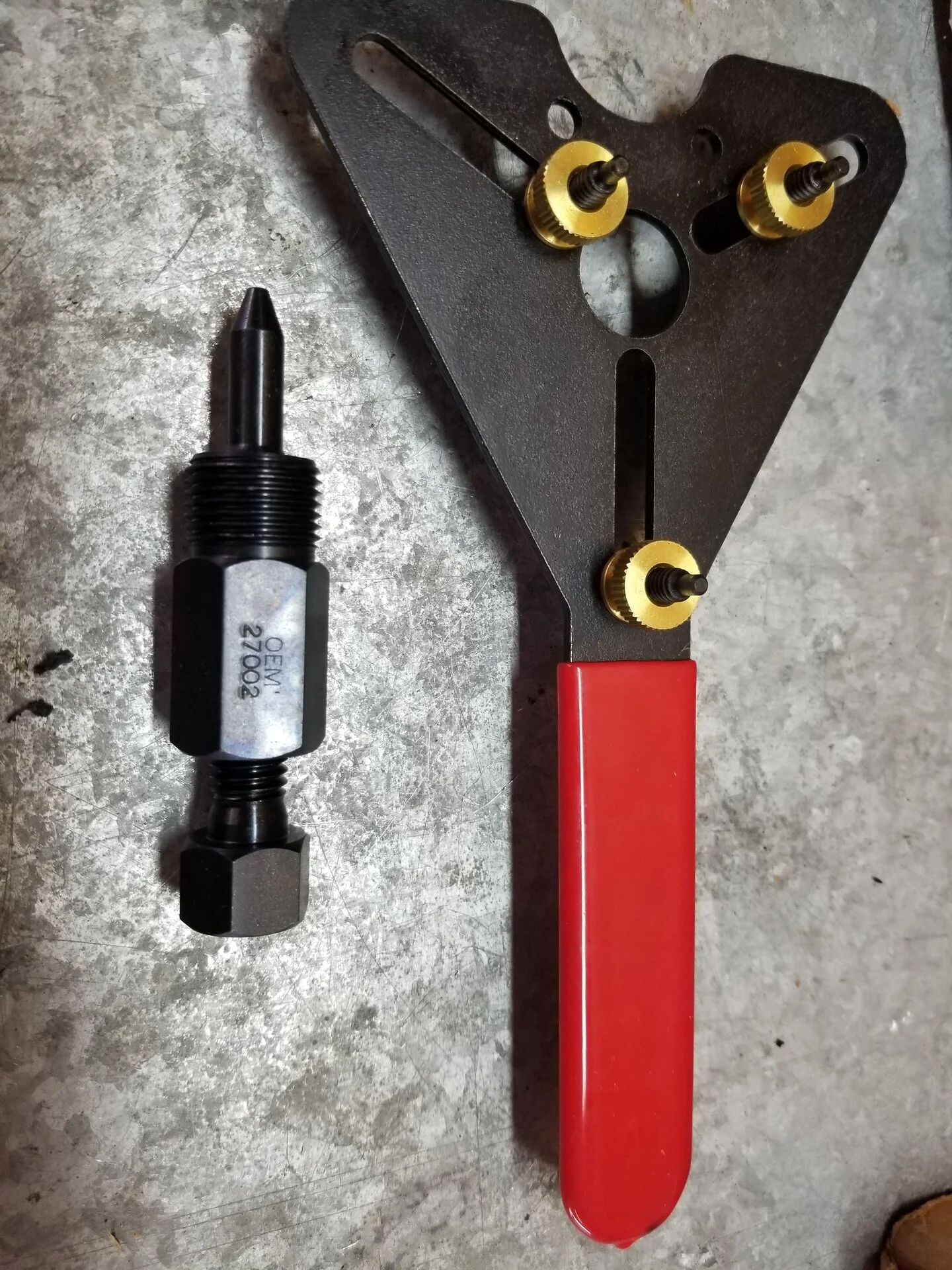

13-Tools 1.jpg

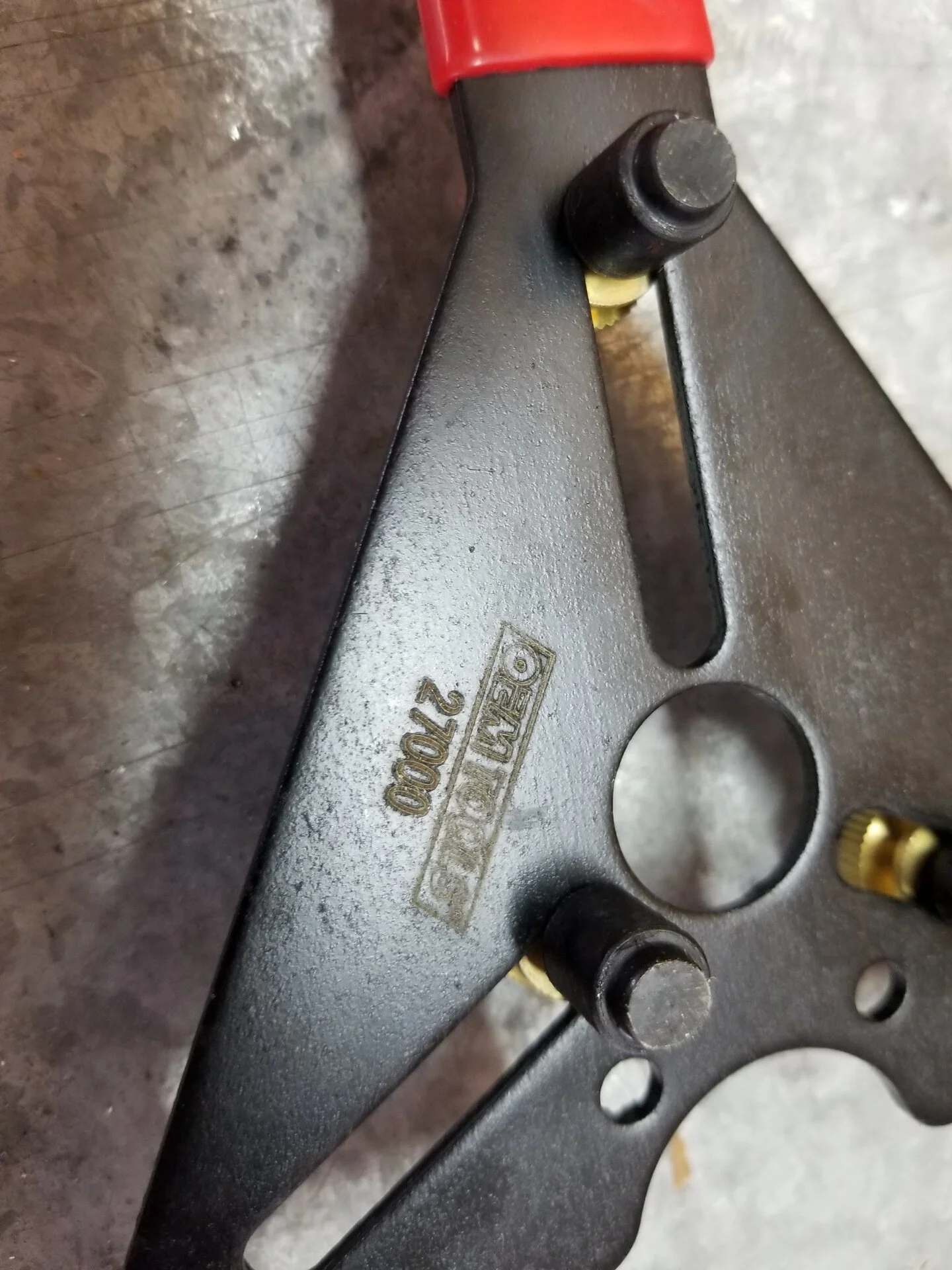

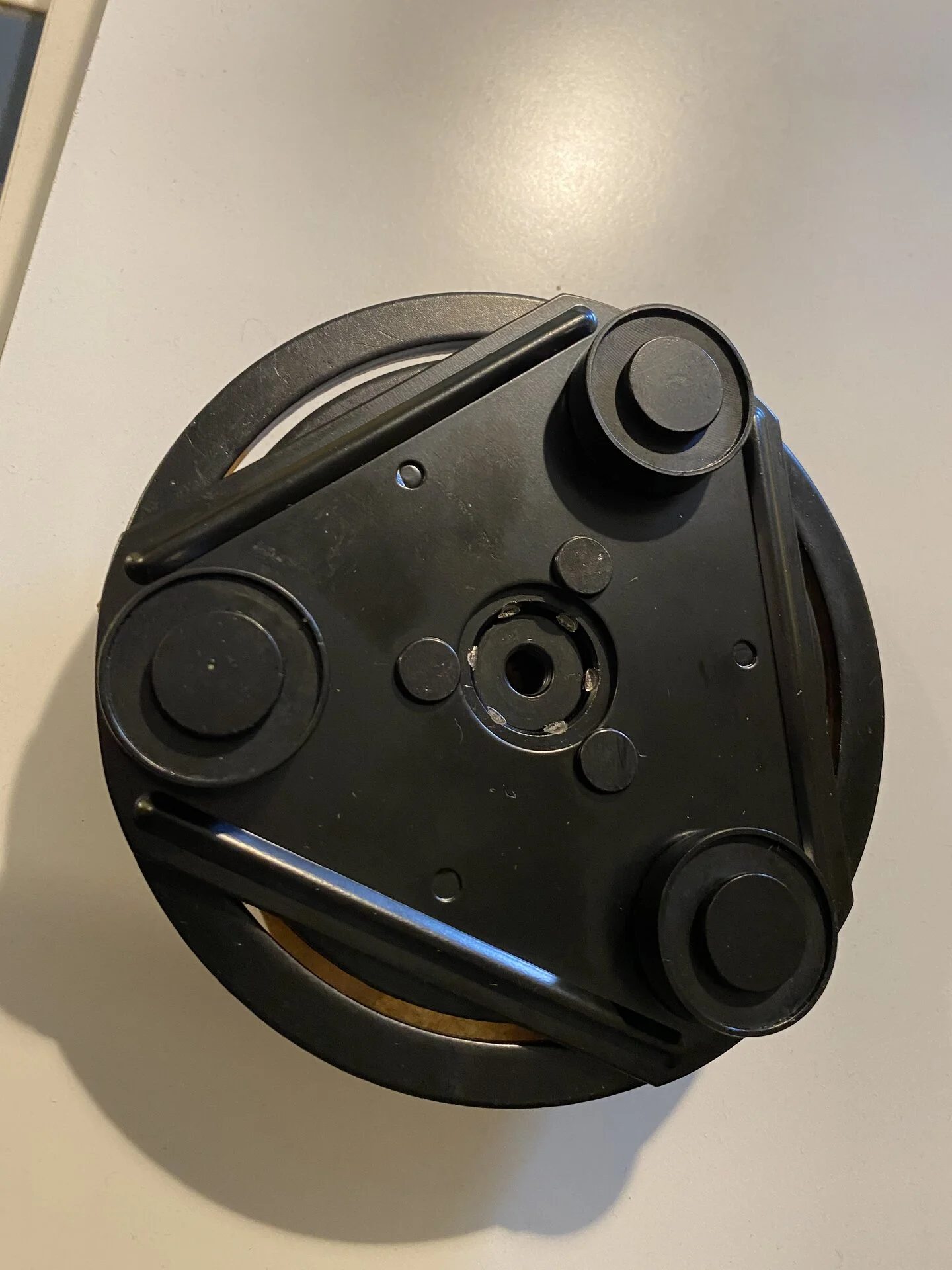

OEMTools 27000 A/C clutch holding wrench:
14-Tools 2.jpg

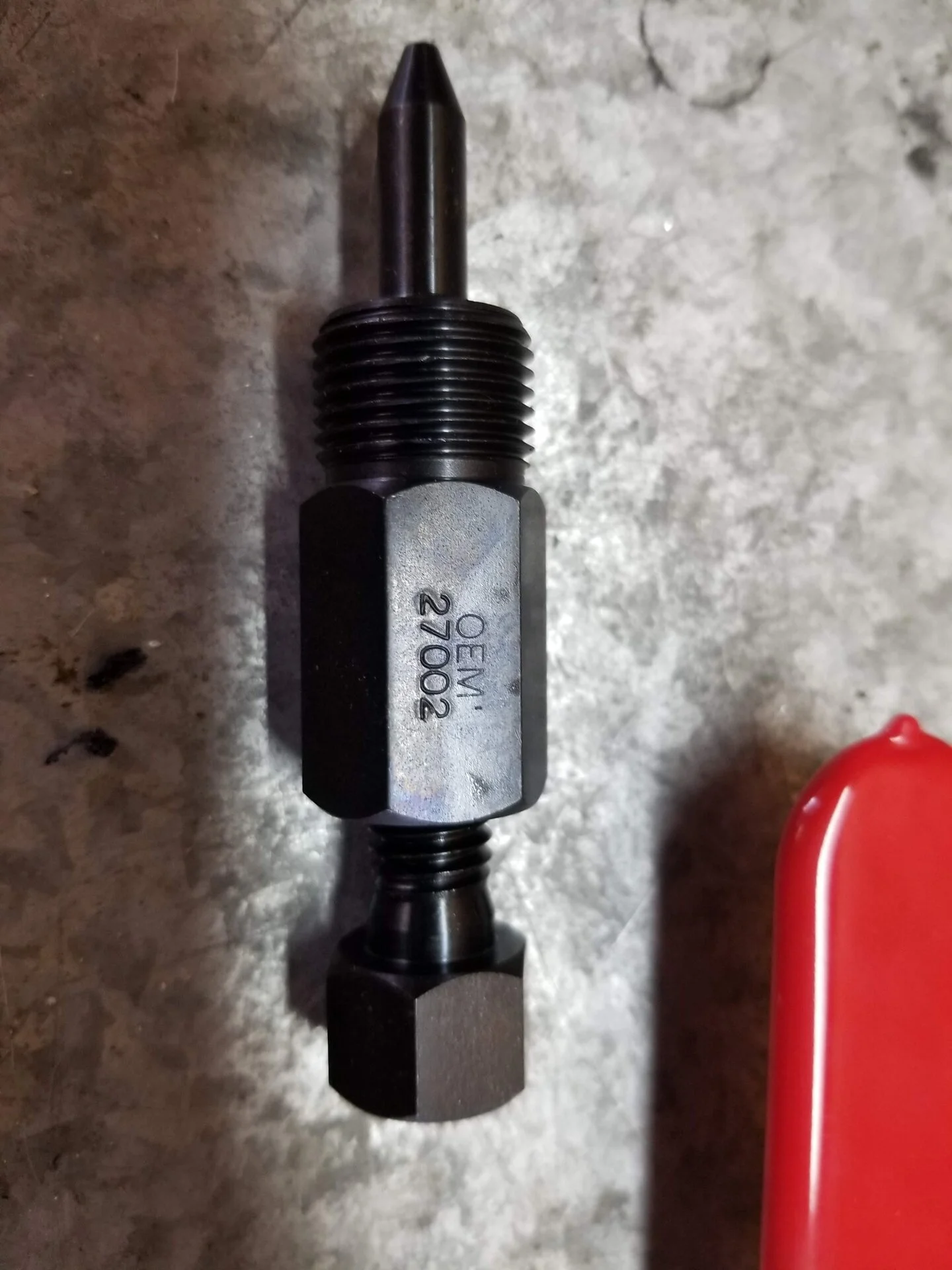

OEMTools 27002 A/C clutch puller:
15-Tools 3.jpg


As an important side note, the puller above was too small to fit the threads of me factory A/C clutch, but fit the replacement one perfectly. I had to go to O'Reilly and borrow their A/C clutch tool kit EverTough 67100. This includes a few different size pullers and one fit the old one perfectly.

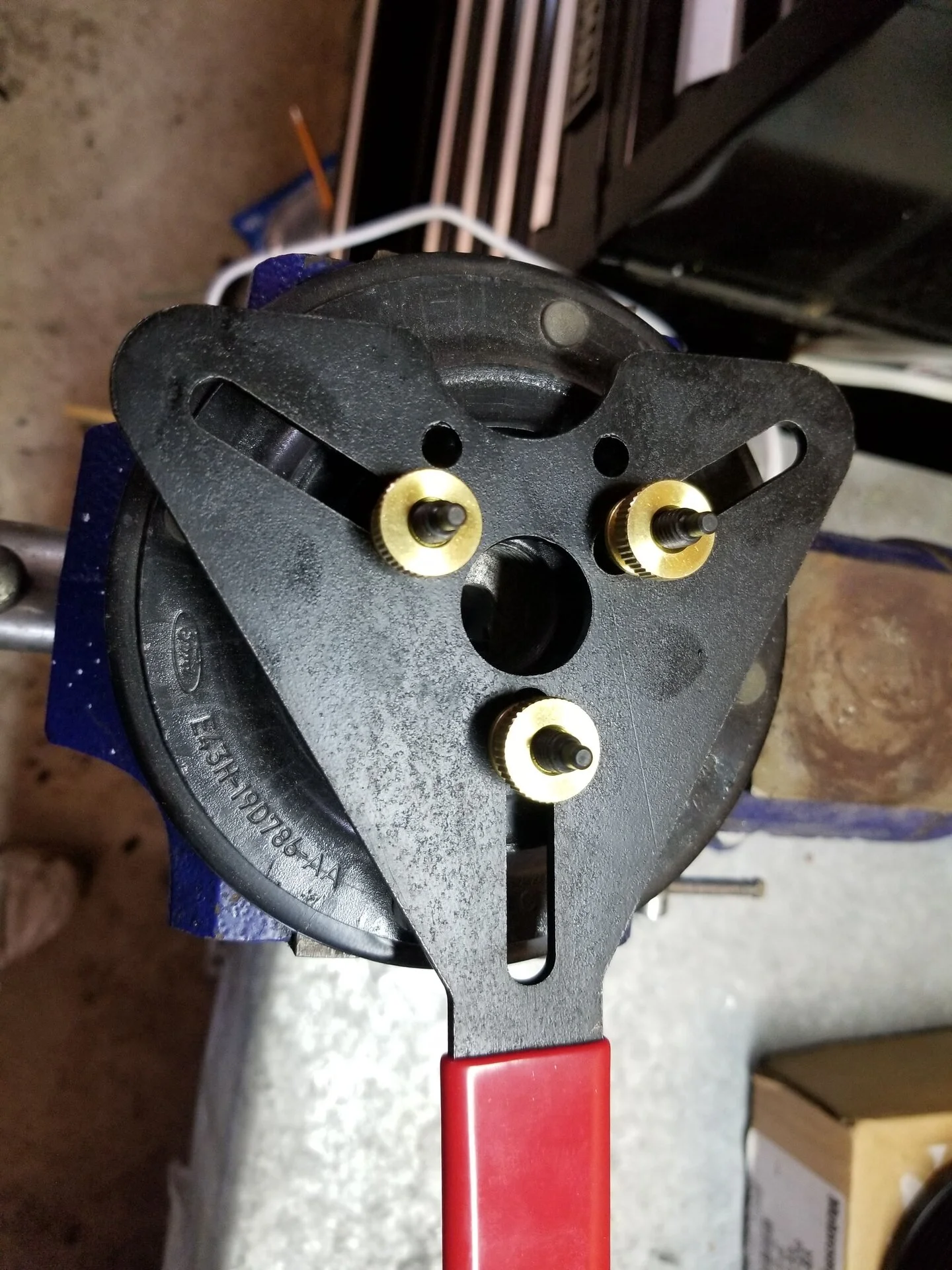

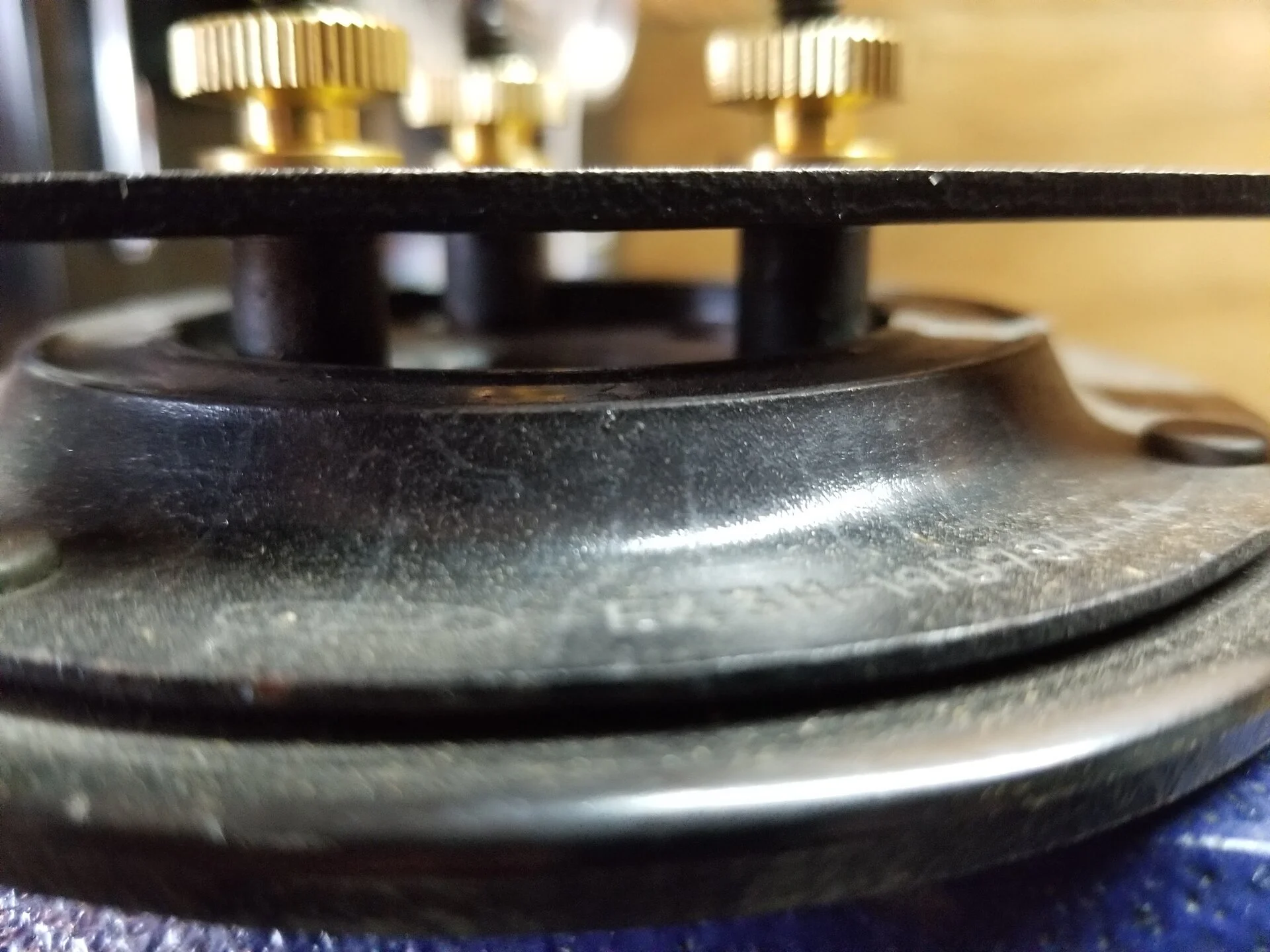

Here is how the holding wrench fits onto the A/C clutch face to hold it still while you try to loosen the 13mm (again in my case, I've read 12mm in other places) nut:
16-Tool on clutch face 1.jpg

17-Tool on clutch face 2.jpg

18-Tool in use.jpg

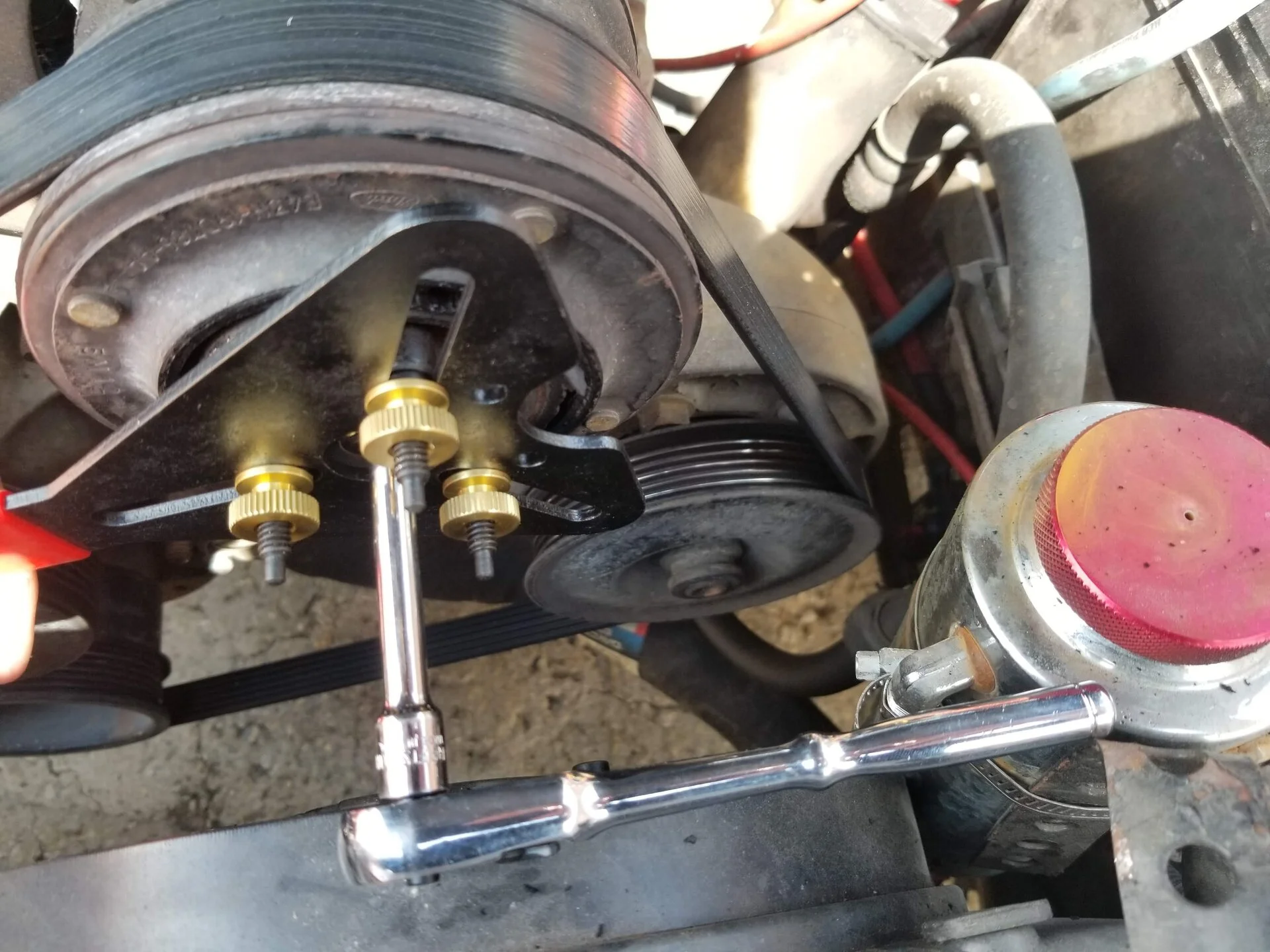

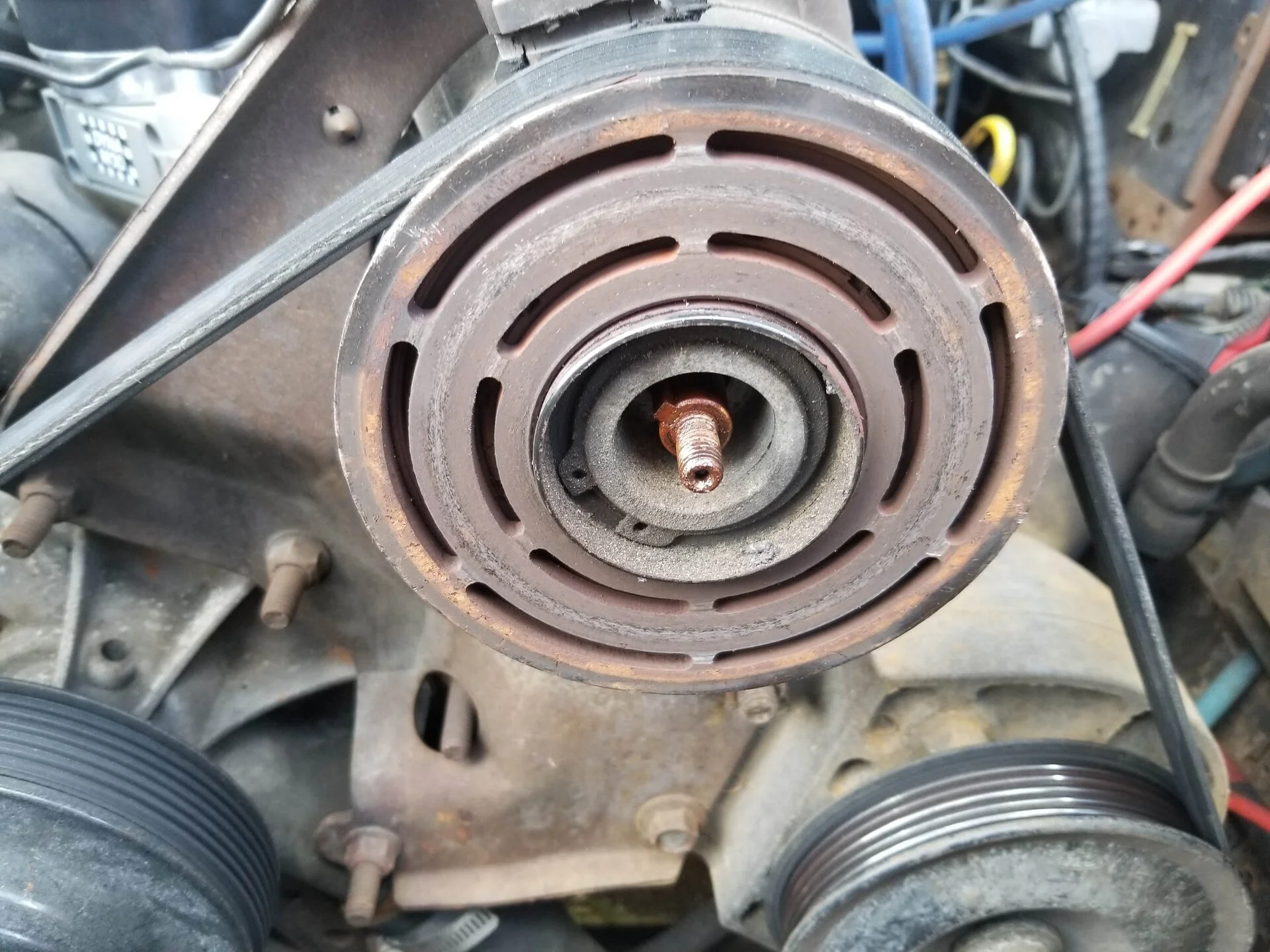

After some chosen words for the holding wrench screws that kept on coming loose, I was able to remove the nut from the center shaft and then using the puller I was able to remove the clutch:
19-Clutch face removed.jpg


Continued on next post...

  • Like
Reactions: 1 user

Trogdor

Member
Aug 30, 2018
34
21
18
43
Anna, TX
Continued from previous post.

Now you will need some circlip pliers to remove the snap ring that holds the pulley in place. attention to which side face the pulley and which side faces the clutch. It must be re-installed the same way it was removed. Once that is off the pulley just slides off:

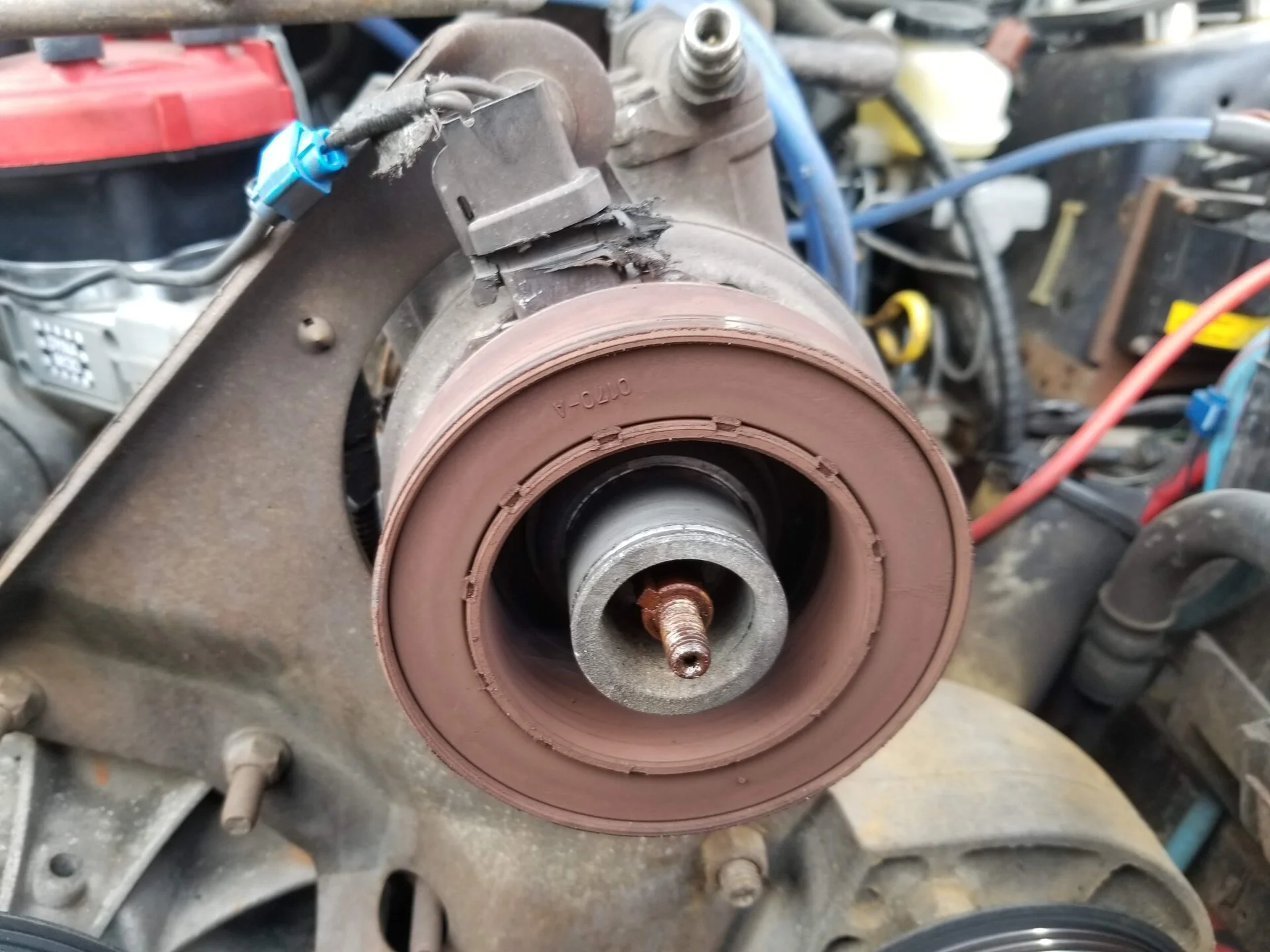

20-Pulley removed.jpg

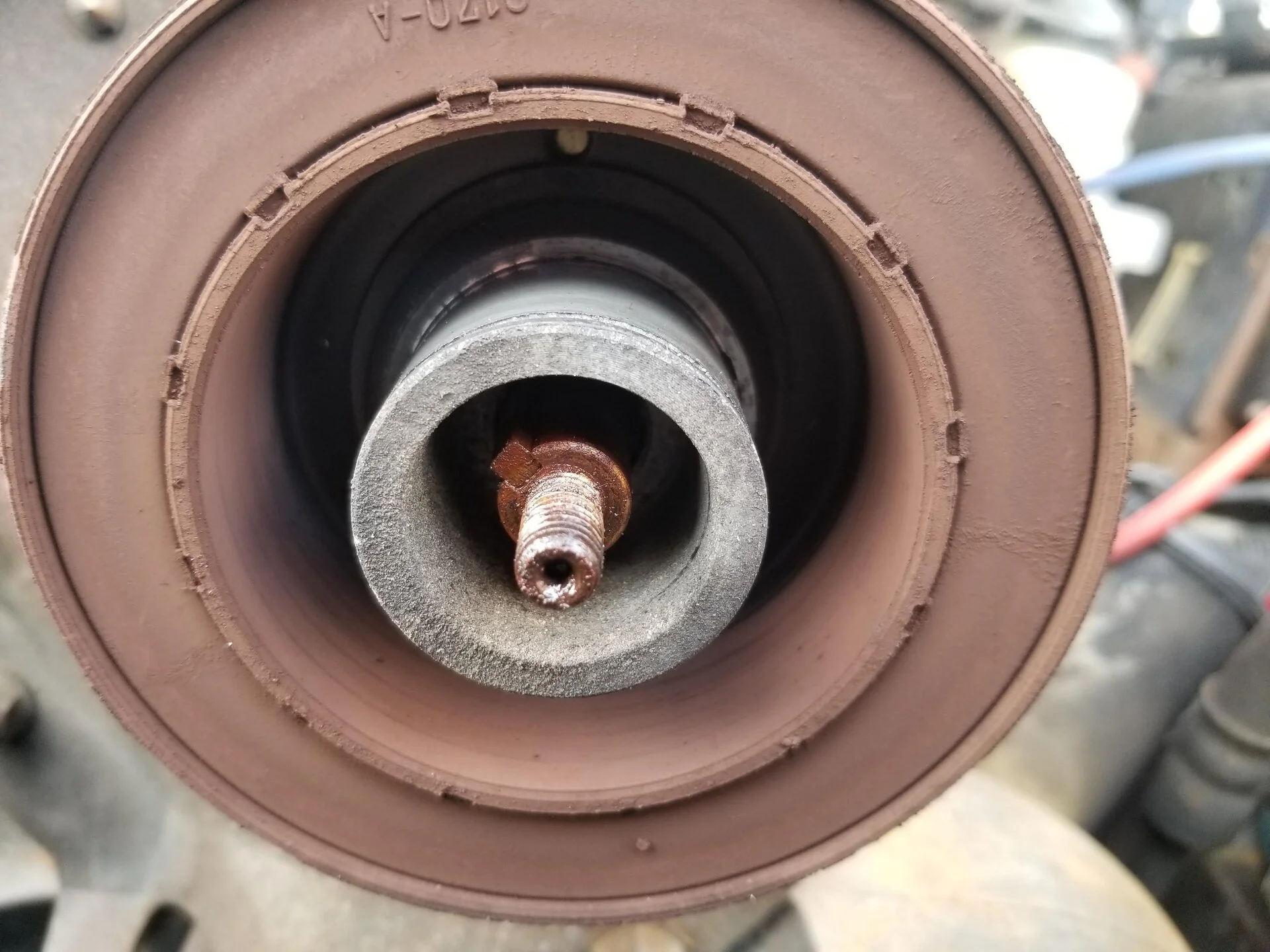

There is a second circlip that hold the coil in place. It's hard to see and I was not able to take a great picture:
21-AC coil clip.jpg


Once removed just slide off the coil:

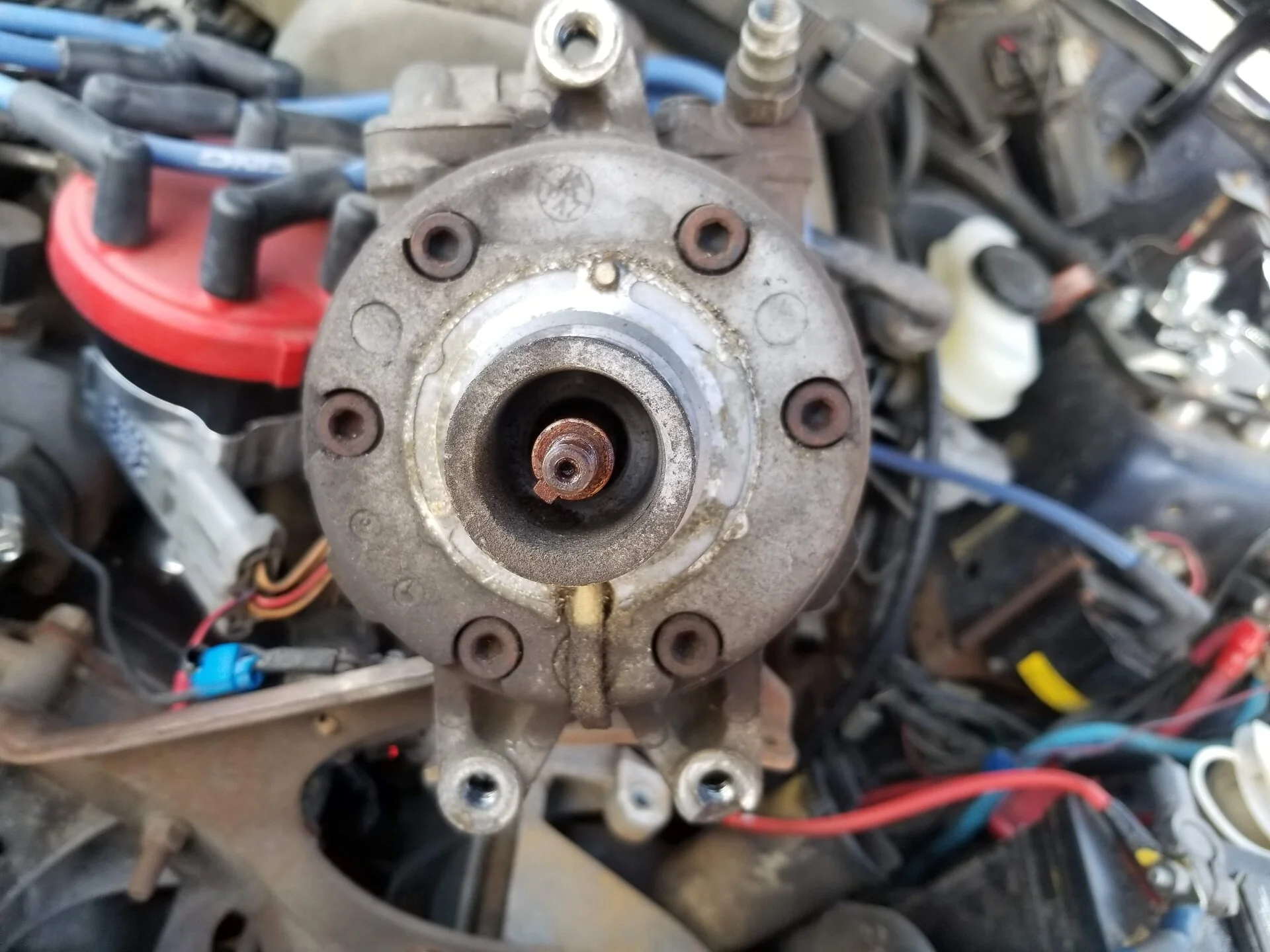

22-AC coil removed.jpg


Slide the new coil onto the shaft and secure with the circlip and repeat with the pulley:

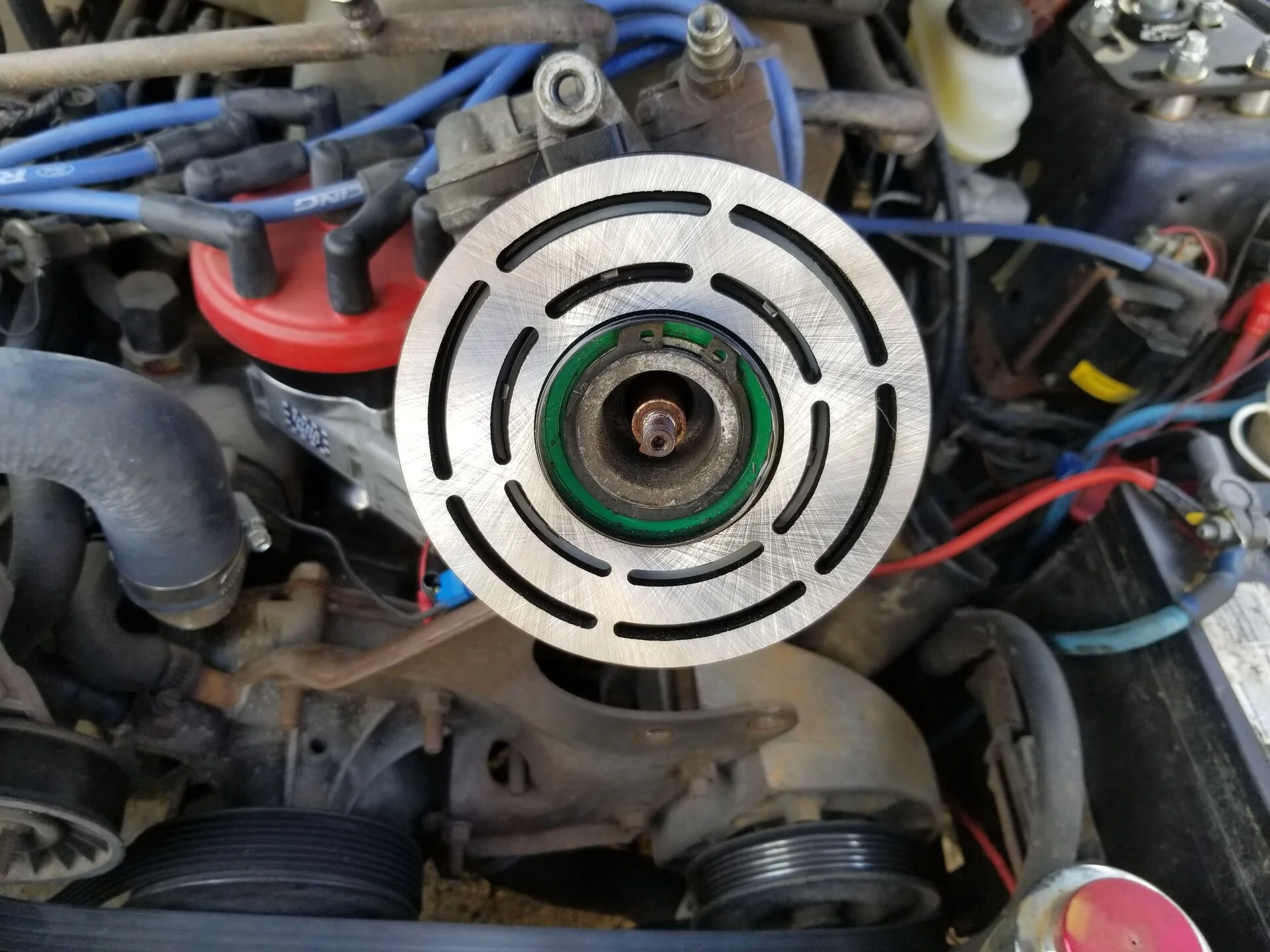

23-AC pulley installed.jpg


Trogdor

Member
Aug 30, 2018
34
21
18
43
Anna, TX
Continued from last post.

I tried checking the air gap of the clutch to pulley using the stock shim, but it was not enough. The factory manual calls for 0.021"-0.036". Here are the dimensions of the factory shim I had:

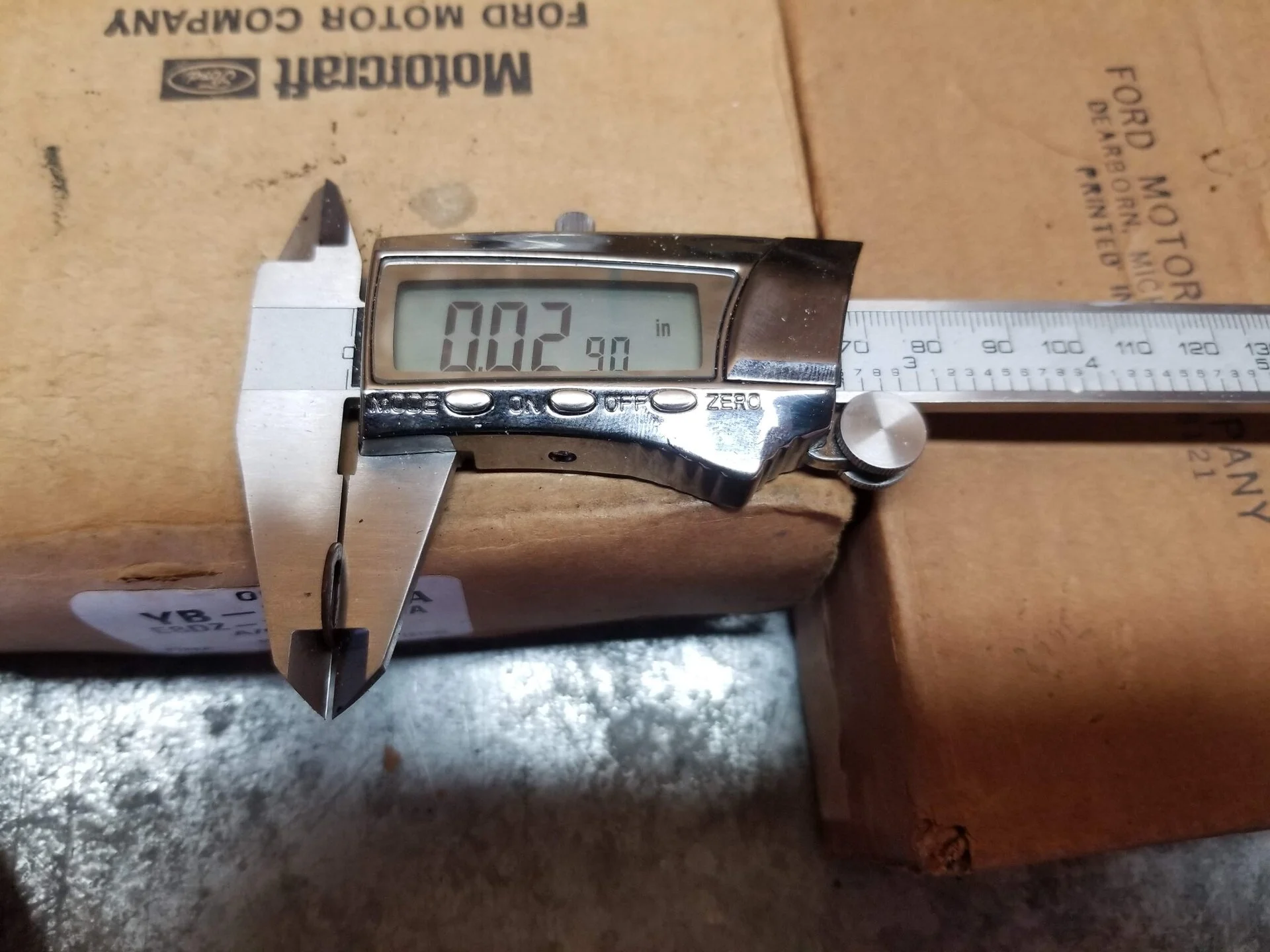

24-Original shim thickness.jpg

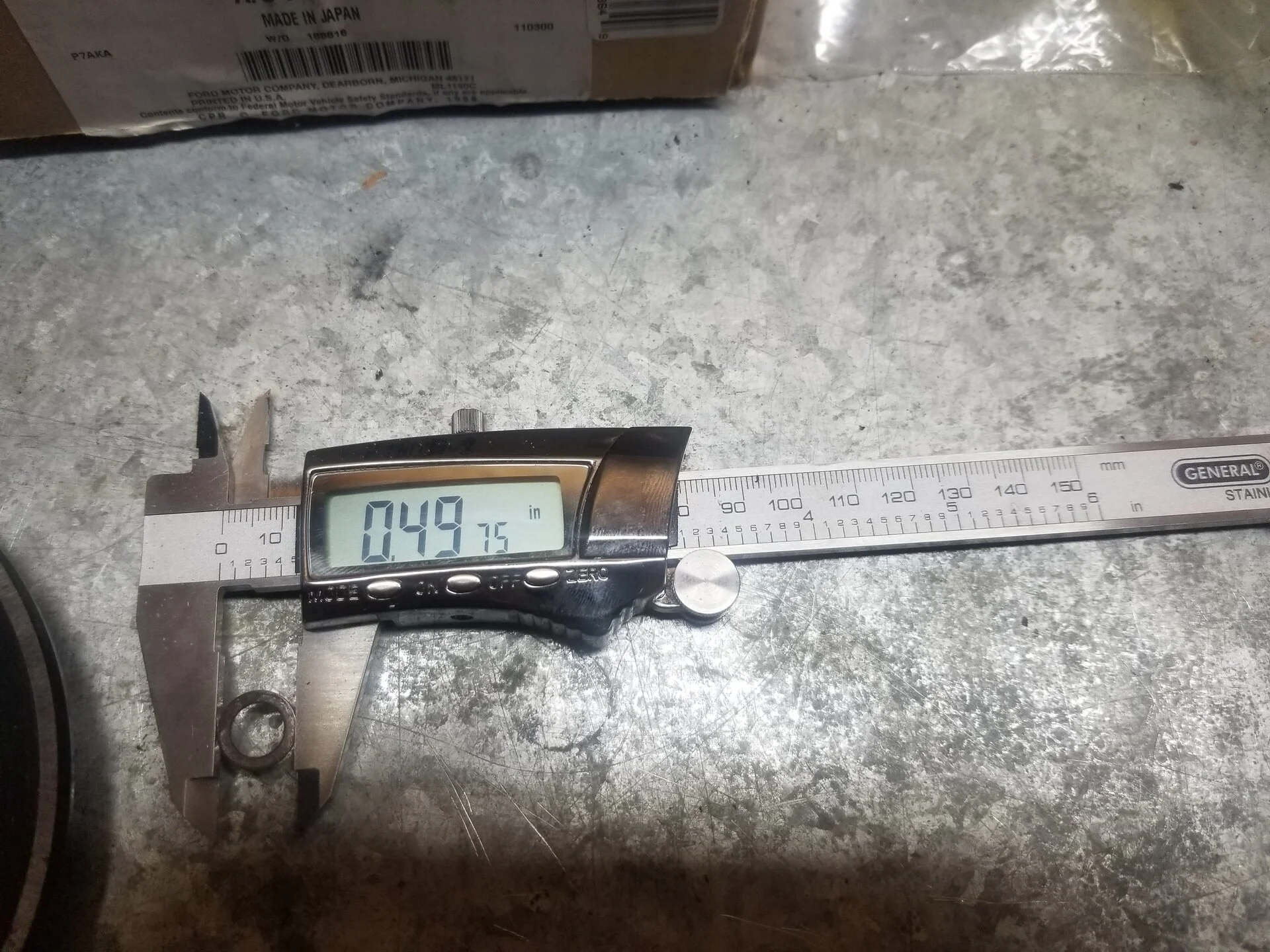

25-Original shim OD.jpg

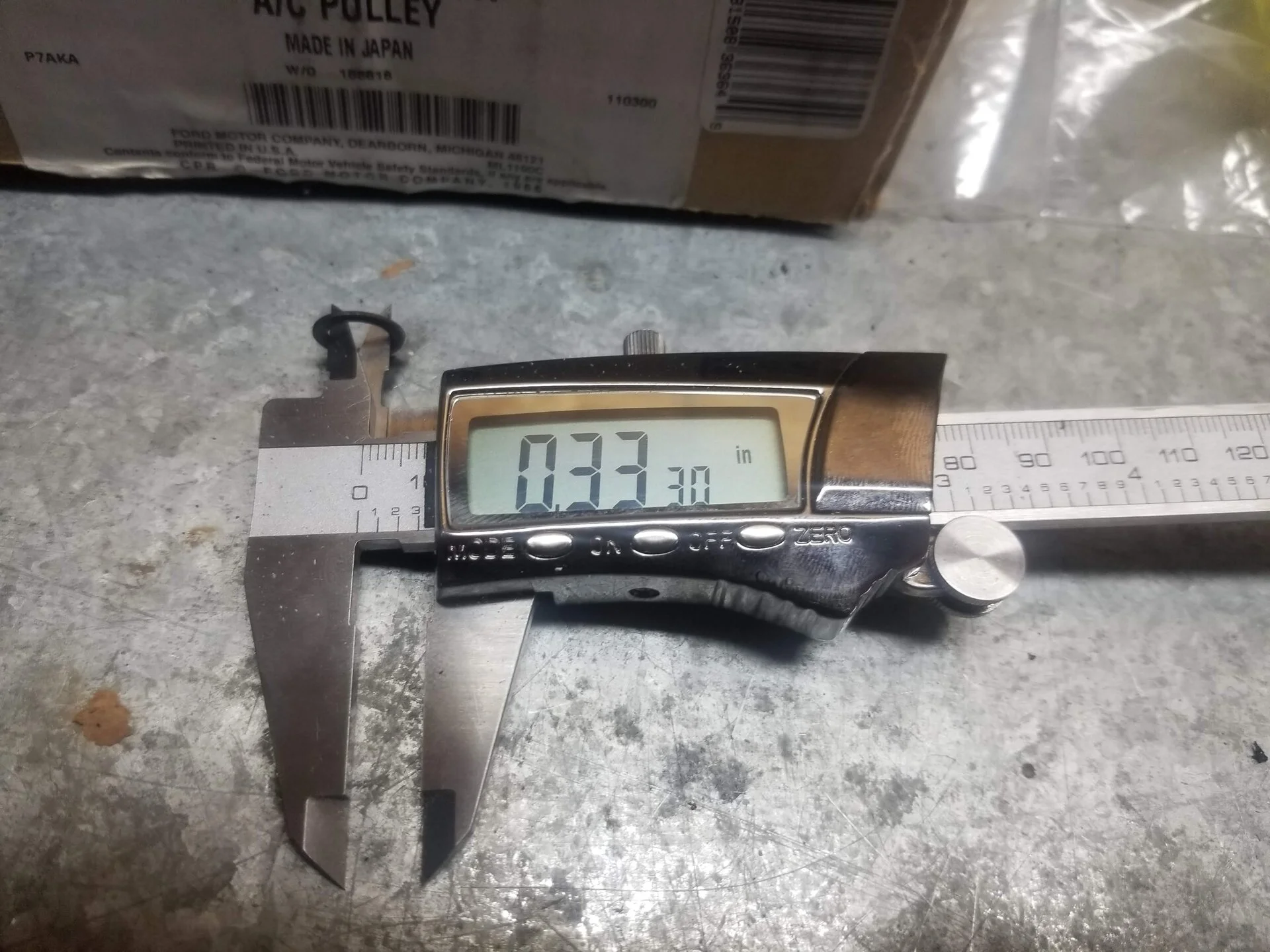

26-Original shim ID.jpg


And the ID of the new clutch shaft:

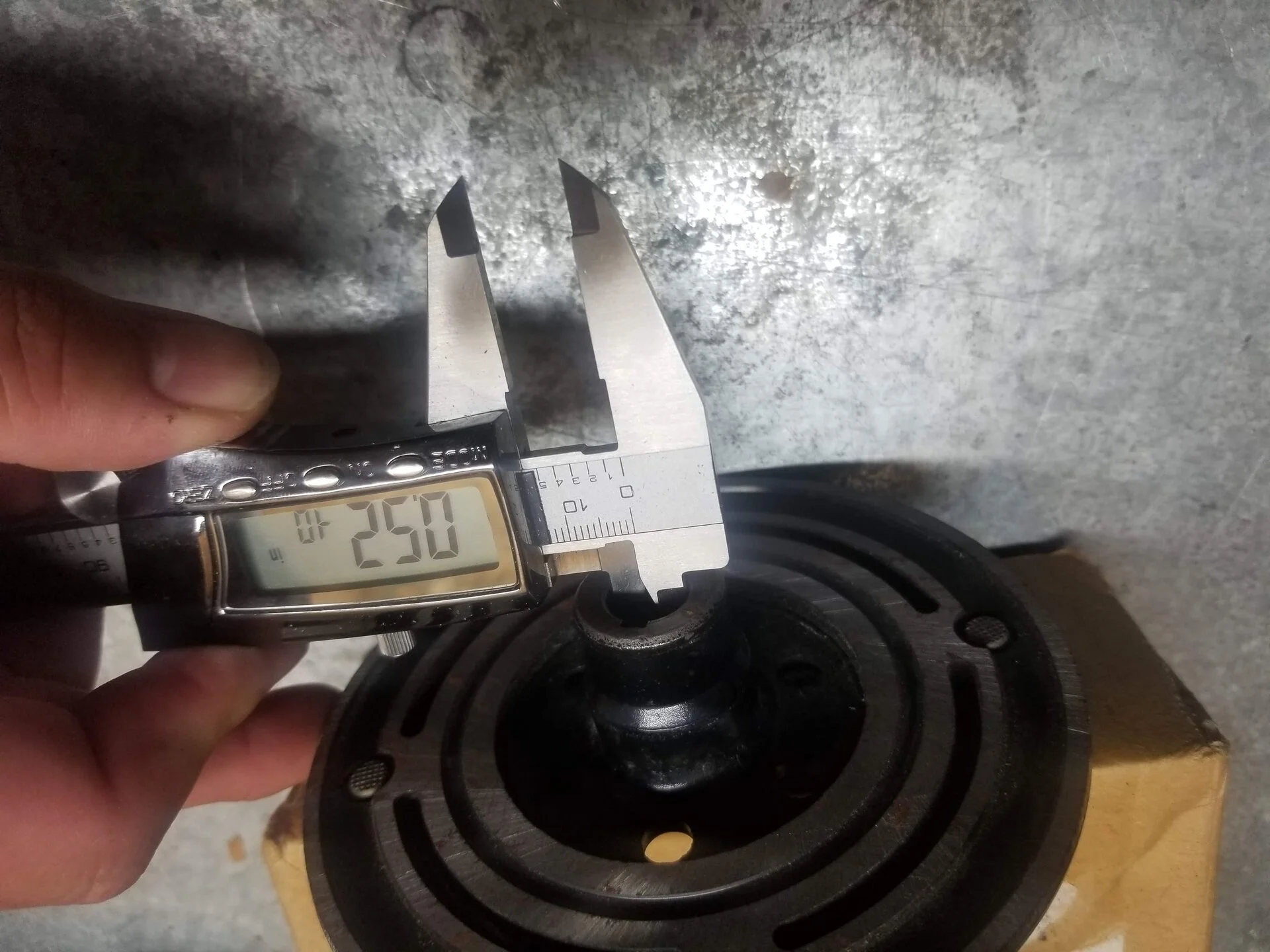

27-New clutch face max shim ID.jpg

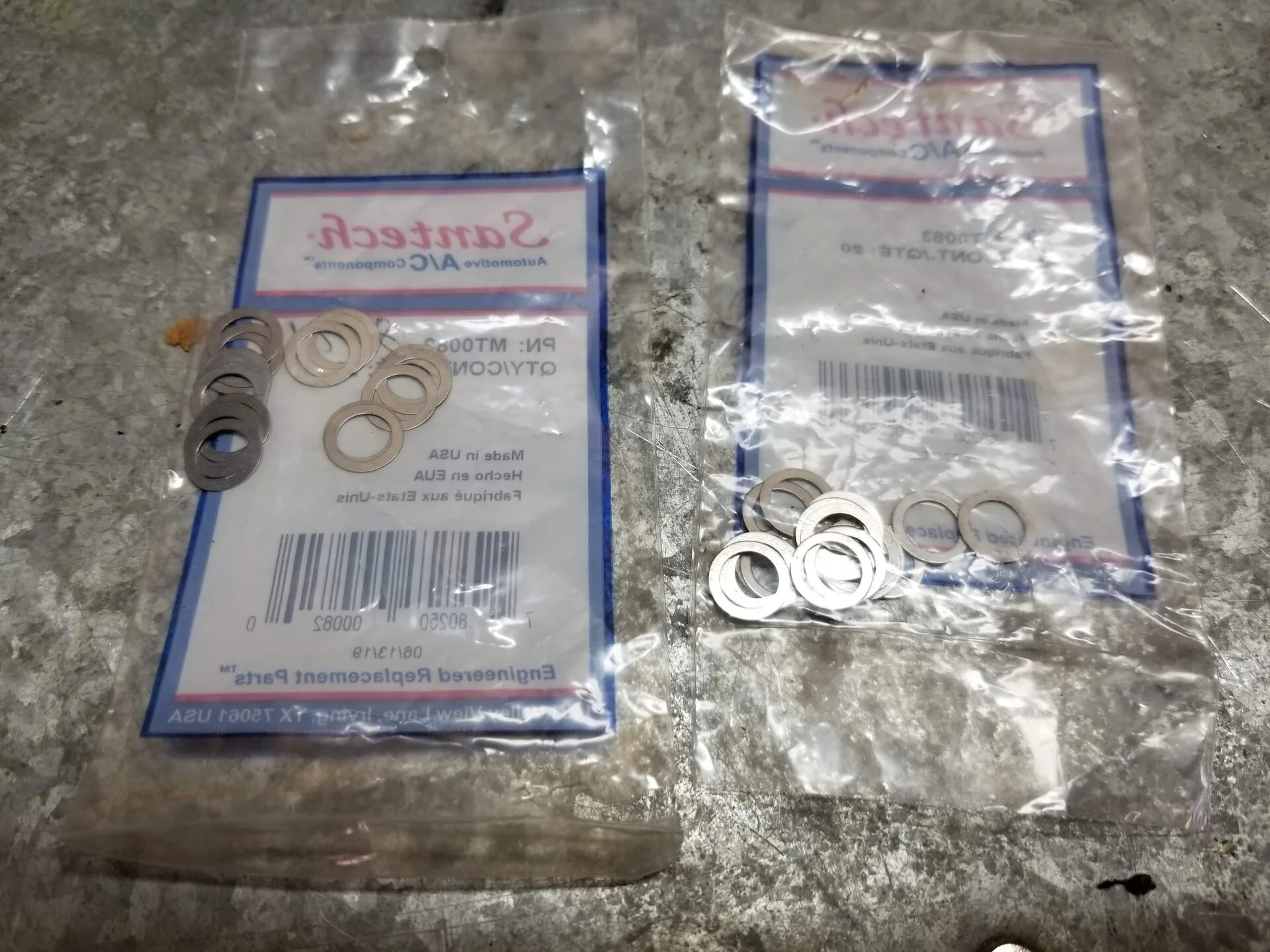

Those shims are not easy to find. Of all places Autozone was able to order them. I got two different thicknesses:
  • Santech MT0082 0.48" OD, 0.337" ID, 0.008" thick.
  • Santech MT0083 0.48" OD, 0.337" ID, 0.020" thick.

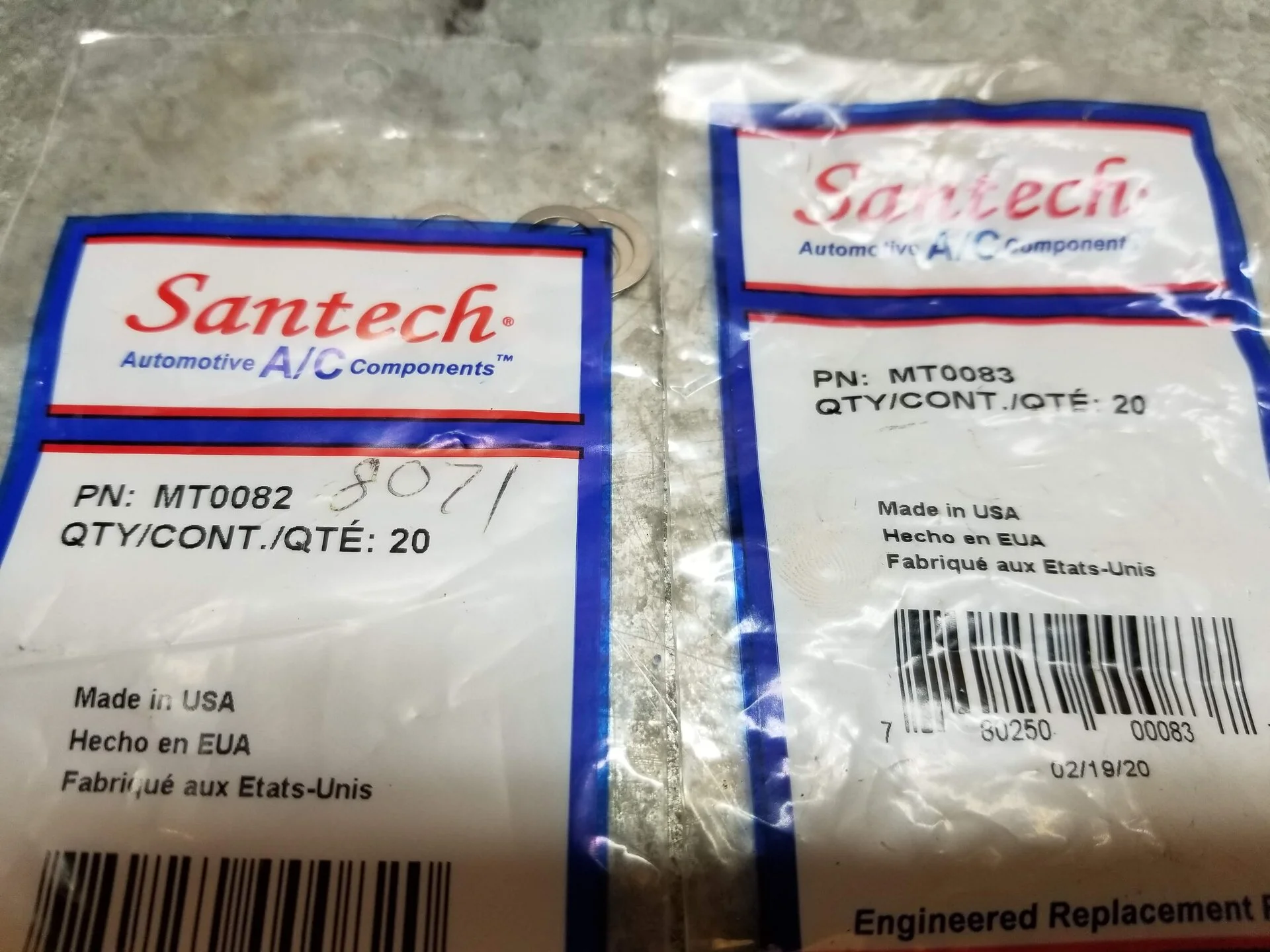

28-New shims 1.jpg

29-New shims 2.jpg

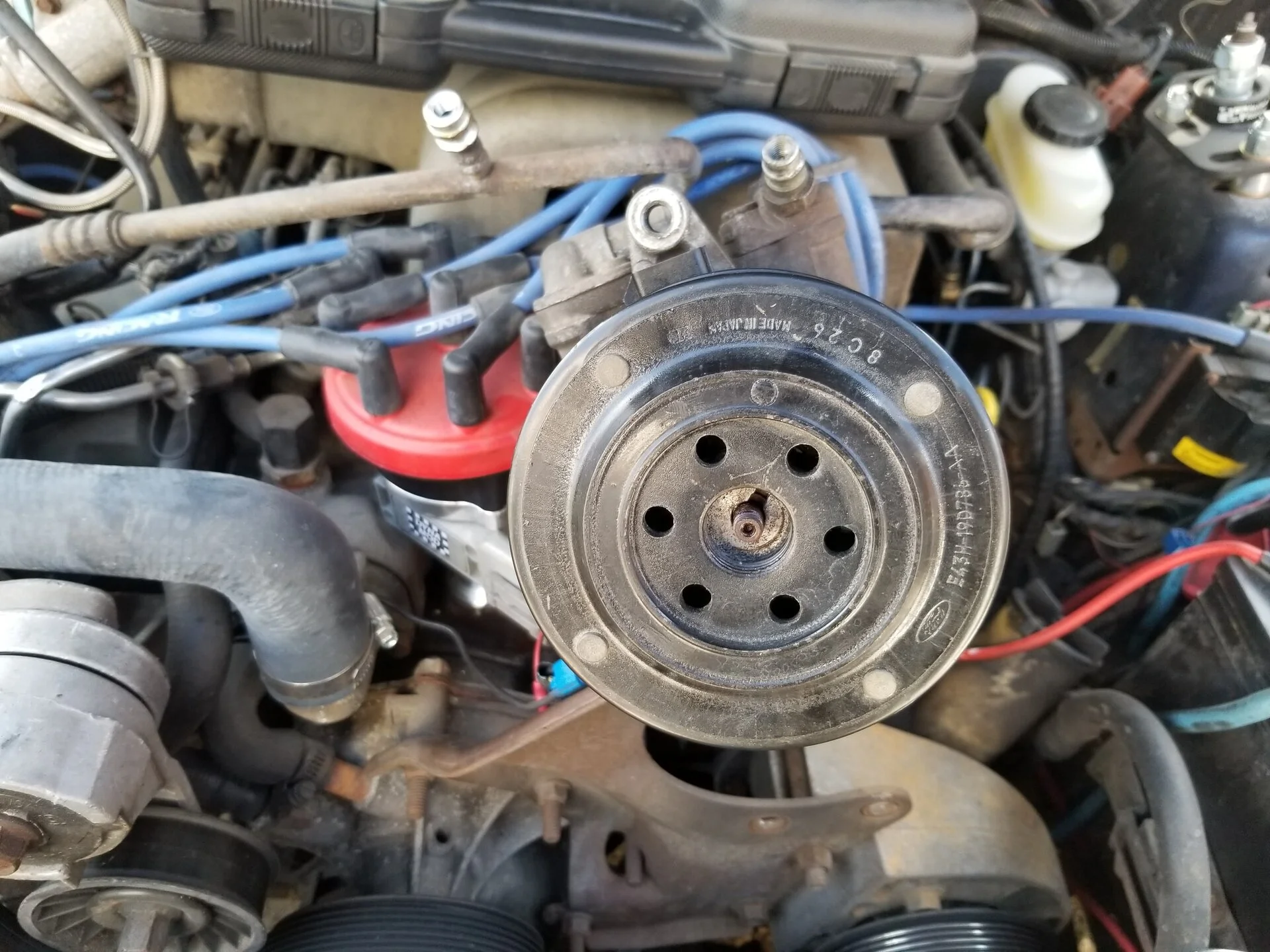

When checking the air gap with a feeler gauge be sure to tighten the shaft nut to the proper torque value with a torque wrench. I THINK the value is aorund 14 lb/ft. If you check the gap without performing this step it will get tighter with the nut installed.
30-Test fitting shim.jpg


Continued on next post...


Trogdor

Member
Aug 30, 2018
34
21
18
43
Anna, TX
Now enjoy some before and after pictures:

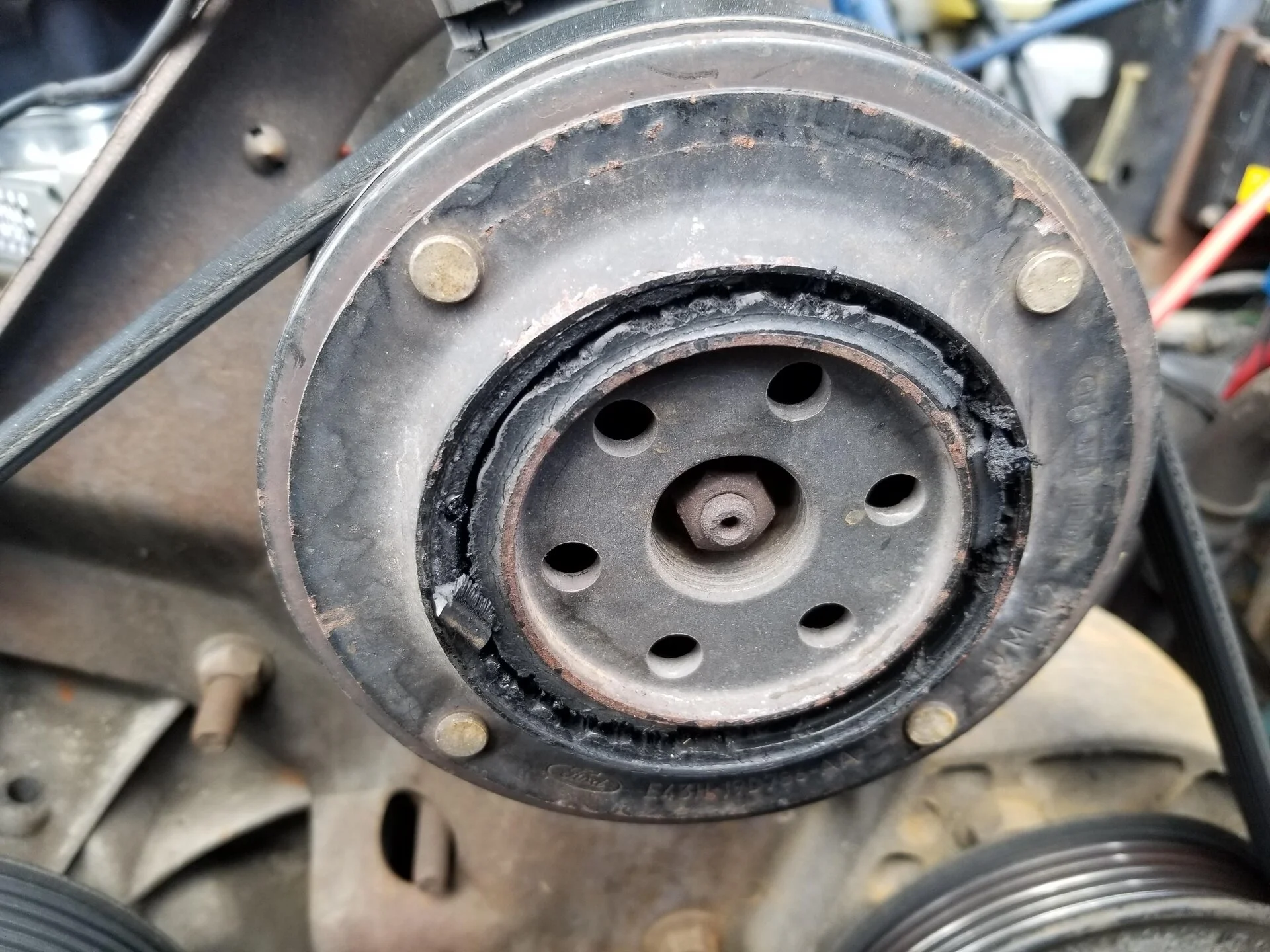

31-Old clutch face.jpg

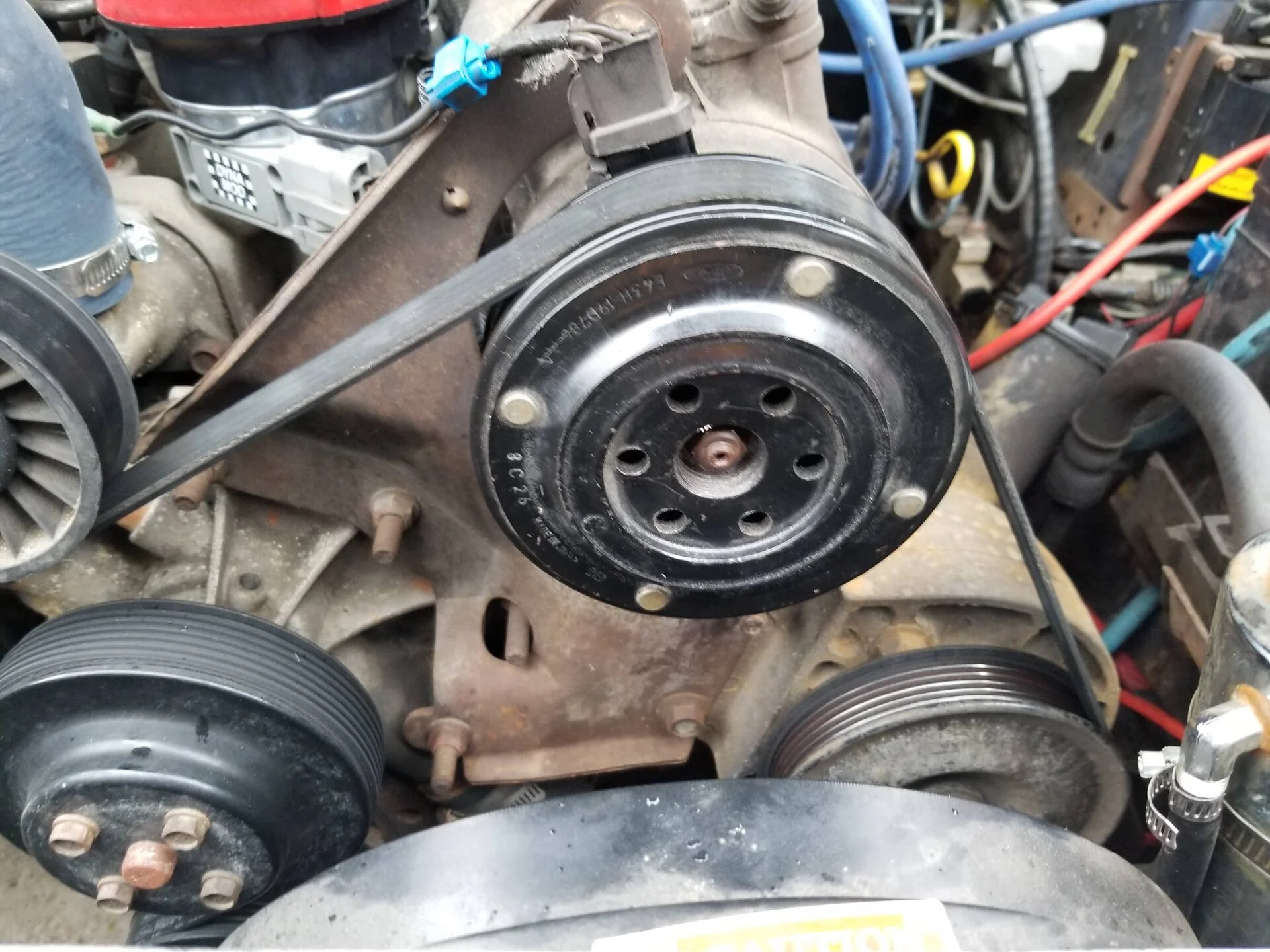

32-New AC clutch installed.jpg

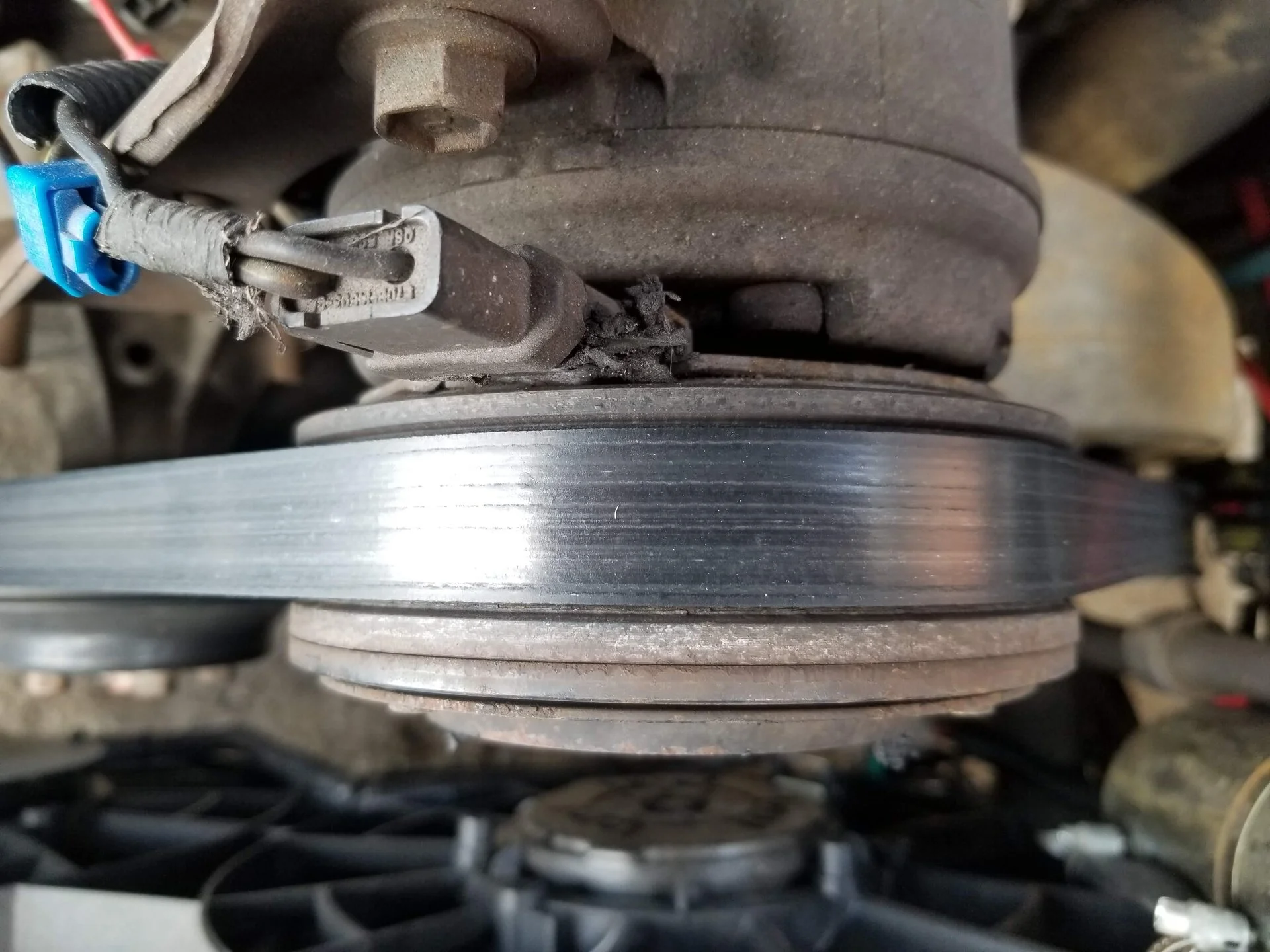

33-Old cluth plug view.jpg

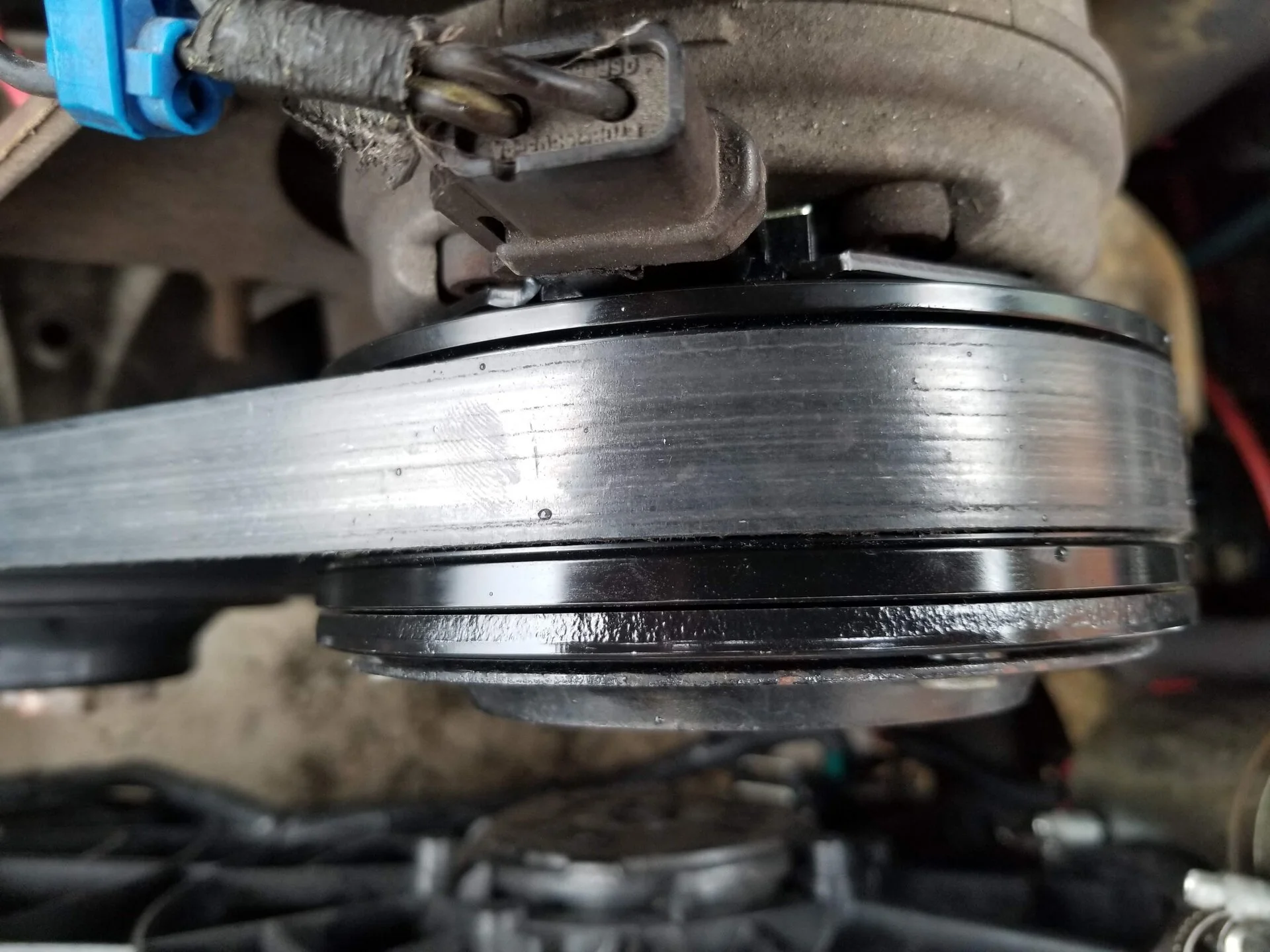

34-New clutch plug view.jpg
