gauge cluster wiring diagram?

fivemustangs

Member
Dec 22, 2007
222
0
17
Bar Harbor, Maine
Does anyone know were I can find a wiring diagram for the gauge cluster on my 02' GT? I think the main ground or power wire has a loose connection because car will not start and run without me wiggling the right side harness. When i turn the key to the on position there is no power going to the any of the gauges.

  • Sponsors (?)


GDawg

Founding Member
Mar 22, 2002
1,456
15
58
Colorado Springs, CO

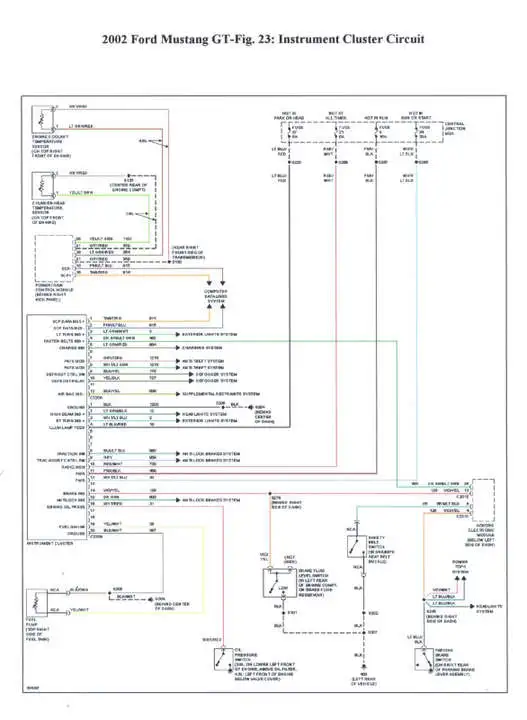

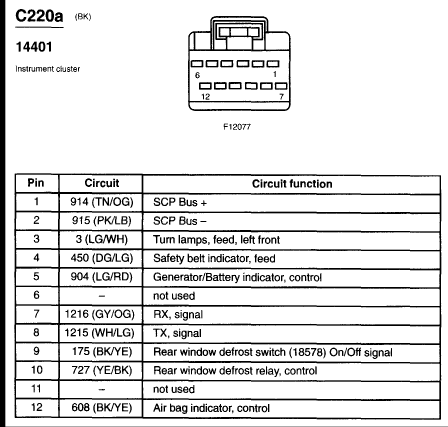

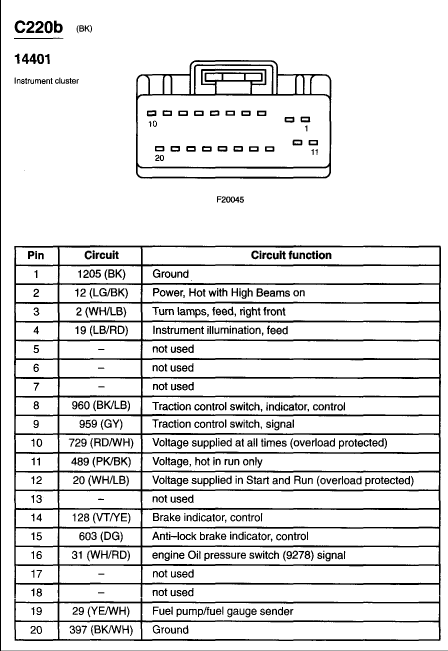

Somebody asked for this about a month ago... So I still have a link up.



Use the "View/Zoom" on your browser.

If you still can't read it, I can attach the .pdf to an email and send it to you. PM me if you need.


fivemustangs

Member
Dec 22, 2007
222
0
17
Bar Harbor, Maine
Nice that is Just what I was looking for. I pulled the gauge cluster apart today because I knew it was either a loose ground or power wire. What happened was the black connector, that the right harness plugs into pulled out of the circuit board. So I just pushed it back and re-sodired it back into place, then everything worked again and fired right up!
