Oil in upper intake from PCV hose???

I removed my upper intake this weekend and found some oil pooled in the upper intake. It was a small puddle and the car has 700 miles since installing the intake. I looked at the fresh air tube that connects the passenger side valve cover to the TB and it was dry. I found the hose from the pcv valve to the back of the intake had oil present. I am pretty sure oil is coming in from the pcv valve. The weird thing is I installed the baffle on the lower intake along with a new pcv screen and new valve. I did notice the grommet does fit loose though. Why would oil be coming in from the pcv valve? The lower was recently rebuilt and has good compression? Maybe some oil is normal

  • Sponsors (?)


Do a compression check, just to make sure the bottom end is ok.

If all is well, then install an oil separator in line with the pcv hose. This will help separate out most of the oil before it gets into the intake.

The best solution I have found is to increase the volume of air that can flow out of the crankcase. This will reduce the velocity of the air. Low velocity air cannot suspend oil vapor as readily.

I have more info on my site...


jason

  • Like
Reactions: 1 user
Yeah I would definitely get an oil separator. You can pick one up at home depot in the air tools section, buy some fittings and you are good to go. I'd replace the pcv valve too, they are really cheap.

The car has good compression. The baffle is in place in the lower intake and it also has a screen and a pcv valve. I do not understand why oil is coming out of this area. I will put in a separator if needed but why is this happening?:shrug:
I don't mean to harp on this... but did you do a compression TEST?
What were the numbers?


My opinion on "Why" has to do with the velocity of the gasses as they leave the crankcase.

I can't get to my site right now, but I have posted a writeup there which goes into more detail on this...


jason

It seems to be a pretty common problem. I would guess poor engineering is to blame.
Make sure the basket screen is nice and clean. Someone suggested running 2 pvc valves in different locations, to reduce the velocity of the air being sucked into the intake to reduce the amount of oil getting drawn into the intake. The reduced velocity might give the oil a chance to drip back down into the valley after condensing on the basket.
An oil seperator is a bandaid IMHO. If you are drawing lots of oil into the intake, you will be emptying the seperator constantly. If it isn't that bad, it shouldn't affect anything and you really don't need a seperator. Just my .02. ;)

My compression test: 1=154 5=150
2=155 6=154
3=151 7=151
4=147 8=149

I did this with the motor cold.

My plugs all look good. I still do not understand why this is happening? I am curoius if this is normal because I would never have found it if I did not have a removable cover on my upper intake? I am not burning oil and my level does not have a noticable drop on the dipstick between oil changes.

I do recall my old intake have some buildup on the runners that may have been oil being burned.

See if this helps...
http://www.freewebs.com/vristang/pcvoilcontrolissues.htm

Updated 1/7/07



Putting a Stop to Oil Consumption through the PCV Valve


Background Info on the PCV System
The PCV is an emissions device that allows the pressure and corrosive gasses in the crankcase to vent, without venting these harmful gasses to the environment. The directional valve is in place to prevent a backfire from spreading to the crankcase. In the event of a backfire into the intake manifold, the PCV is supposed to seal shut, preventing the flame front from traveling into the crankcase. Without this directional valve in place (and fully functional) a backfire could also cause a crankcase explosion.
All motors will experience some degree of Blowby. Even a freshly rebuilt motor can experience between 5-10% Blowby, as checked with a Leakdown test. (Blowby is not the only source of crankcase pressure however. Due to the reciprocation of the pistons there will be a build up of pressure due to the air not being able to flow as fast as the pistons are moving in the higher RPMs) Blowby of combustion gasses introduces fuel and other combustion by products into the crankcase. Raw fuel, moisture, and various acidic materials will all contaminate the engine oil. Moisture can also enter the crankcase due to condensation overnight.
The good news is that most of these contaminants are highly volatile, meaning they will vaporize at relatively low temps; around 200F. Once these contaminants and moisture have volatized though, they must be purged from the crankcase. This is where a crankcase ventilation system comes in.
In the old days the crankcase was vented to the atmosphere via a hose that ran under the car or into the exhaust. The downside to this is that these volatile materials were being introduced to the atmosphere, increasing environmental damage. Now a Positive Crankcase Ventilation system is in use. In a positive venting system the crankcase contaminants are purged into the intake manifold so that they can be burned in the normal combustion process. This is very effective at reducing the amount of unburned HCs that are released to the atmosphere.

Troubleshooting Your Oil Control Issues
The first step is to find out where the oil is coming from.
Pull the Throttle Body/Valve Cover hose from the TB. If it is wet with oil then this is an entry point. The normal causes of this are excess Blowby (which needs to be ruled out with a compression test), or the VC baffle has been removed for rocker clearance. Just looking down the oil filler neck should reveal if the baffle is in place. If you see rockers, then it is time to get creative and fabricate a baffle. If there is no baffle but the TB/VC hose is bone dry then you may be able to get away without using a baffle.
Next pull the PCV hose. Again if it is wet with oil, this is an entry route. A quick fix for this is a separator from Steeda, Home Depot, or Lowes. For about $25 (The Steeda unit will be more expensive) for the separator and fittings you will be able to remove most of the oil before it gets to the intake.
Also, you need to verify that the PCV screen is in place. This often forgotten part is located underneath the PCV in the back of the intake, and helps remove oil mist from the crankcase gasses.

Contributed by tmoss... www.tmossporting.com
I have seen a BUNCH of intakes (100s) and you can tell the lower intakes that were on cars whose PCV screen had been blocked - they have a very thick coat of grime on the bottom of the lower intake. You know the heads had a nice thick coat below the rockers too as the blow-by had no where to go. When you put the intake in a solvent tank and wash it, it does not cut all the crud off - reason? - the blowby gasses will not come off with safety solvent. why, I don't know.
Do your self a BIG favor and install a PCV screen once a year.

If a compression test comes back normal, and the above mentioned lines are dry, then the valve guides are suspect.

The PCV Problem
Many of the Fox Body Mustangs seem to have serious issues with oil consumption through the PCV or Throttle Body/Valve Cover line. There are 3 main causes of this problem.
1. Excessive Blowby
2. Removing the Valve Cover Baffle at the oil filler neck
3. Removing the Baffle and/or the PCV Screen on the lower intake
However, in some head/cam/intake (and possibly stroker) combinations the problem can persist.
Sometimes a small oil/air separator can be used to help filter out the oil before it gets to the intake manifold. Most who run this setup will remove the small plastic filter, as it tends to plug up and restrict airflow. An oil/air separator is a band-aid solution though, and should not be considered permanent. The goal should be to completely eliminate the flow of oil from the crankcase.

Theory
The problem seems to be that the stock PCV line does not flow enough volume to allow adequate ventilation in modified motors. The lack of volume flow creates a build up of pressure in the crankcase which forces crankcase gasses through the PCV at higher velocities. With the added velocity the crankcase gasses are able to pick up more oil vapor; carrying it into the intake manifold.
Yet another issue is that the stock single PCV system can create rather long flow paths for pressure to vent. For example gasses in the front of the crankcase would have to flow to the back of the block to exit through the stock PCV. The result of a long flow path is that it will take longer to purge the crankcase pressure.

Solution
The solution is to allow a greater volume of gasses to vent from the crankcase, at lower velocities. This can be done with a larger ID PCV hose and PCV, or by adding a second PCV line. Since larger ID PCV valves can be hard to find the easiest solution should be to add a second PCV line to the drivers side valve cover.
The stock drivers’ side valve cover can be replaced with any valve cover that has an oil filler/breather hole. What valve cover is used does not matter, so long as there is a way to mount a PCV valve to the valve cover. A stock passenger side valve cover installed on the drivers’ side would work well, or many of the aftermarket valve covers have holes intended for mounting breather caps.
The hose from your new PCV should flow either directly to the intake manifold (parallel to the stock hose), or merge with the stock hose. An air compressor oil/air separator can still be used to filter out any oil that does get out of the crankcase. However, if the system is setup right and the motor is healthy, there should be very little oil accumulation in the separator if any at all.

Secondary Benefits
The increase in the volume of air that can flow out of the crankcase means lower accumulations of harmful Blowby gasses and moisture. Also, lower crankcase pressures will allow greater efficiency and power (although this affect is probably minimal on a street car).

More Notes on Installation
1. It may be better to install the drivers side valve cover PCV toward the front of the motor. This will allow a shorter path for gasses that are trapped in the front of the crankcase.
2. It may not be a good idea to install a third PCV on the aft side of the passenger side valve cover, as this could allow fresh air from the TB/VC hose to vent directly out that PCV. This would result in no fresh air hitting the crankcase, and a greater accumulation of harmful crankcase gasses and moisture.

Extra Notes
From what I have seen, the oil accumulation in the intake will be greatest when the car is left to idle for some time (stuck in traffic or idling in the driveway), and then with some rpm the oil is picked up and thrown into the combustion chamber. If you live in a humid part of the country, or see a fair amount of condensation on the ground in the morning, then you will most likely notice some moisture in the separator, resulting in the easily recognized brown milkshake appearance of the oil in the separator. This is fairly normal, as overnight condensation will form on the inside of the engine block. Once the oil gets up to temperature, this moisture boils off, and collects in the separator.



The Ford 302 Cobra lower intake has seemed to be the cause of PCV issues. Ford has now revised the lifter valley baffle in order to reduce PCV oil consumption. The new baffle is much larger spanning nearly the entire underside of the intake. The part number is F6TZ-6L678-AA. Others have reported that Ford covers the cost of the baffle, and that shipping is all that the customer needs to pay. The Ford Tech line number is (516) 468-1356.


Hope this helps some,

References:
http://www.steeda.ca/catalogue_product_type_918.asp

Home Depot
Fram PCV Screen - # BA8113
NAPA PCV Screen - # 6978
Napa PCV - # MPF39203 / CRB29203
Fram PCV - # FV198
Purolator PCV- # PV98C
Borg Warner PCV- # PCV203

http://www.fordracingparts.com/home/home.asp

The motor does not lose any oil that I notice. It is always between the grid on the dipstick between oil changes. This must be very minimal. I am going to install a separator tonight and see what happens. :D


Jason, you have a good writ-up on this. I was curious if you have found a larger pcv valve that fits this vehicle? It seems much easier to install a larger hose and larger pcv to solve this.

The motor does not lose any oil that I notice. It is always between the grid on the dipstick between oil changes. This must be very minimal. I am going to install a separator tonight and see what happens. :D


Jason, you have a good writ-up on this. I was curious if you have found a larger pcv valve that fits this vehicle? It seems much easier to install a larger hose and larger pcv to solve this.
I never did find a larger diameter pcv...

I'm not even sure where to look for one :shrug:



jason

I installled the separator and it is indeed filling up with oil. I have driven it maybe 20 miles and there is about one ounce of oil. I checked my old intake and looked inside and guess what? Oil was puddling insidde my stock intake too. I rebuilt the lower end 4k miles ago. The plugs look good and it doesn't smoke. I am really dissappointed that this is happenning after a rebuild. My compression also seems a little low for a rebuilt lower end? Avg around 150 psi. Any ideas???

I installled the separator and it is indeed filling up with oil. I have driven it maybe 20 miles and there is about one ounce of oil. I checked my old intake and looked inside and guess what? Oil was puddling insidde my stock intake too. I rebuilt the lower end 4k miles ago. The plugs look good and it doesn't smoke. I am really dissappointed that this is happenning after a rebuild. My compression also seems a little low for a rebuilt lower end? Avg around 150 psi. Any ideas???
Since all the compression numbers were close, you passed the compression test.
However, you could still be having a large % of blowby.
This is where the Leakdown test comes in.

For example, I have had a motor go together with 'low tension' rings. The compression test gave good numbers, but the Leakdown test revealed nearly 20% blowby.

If that comes back ok (10% or less), then I suggest adding in some more vent locations to the crankcase.



jason

Thanks Jason :nice: I will do a leak down test tomorrow. I am in the process of making a leakdown tester and it will be done tomorrow. I will post the results as soon as I get them.

I bought the overhaul kit from summit and it was made by Speed Pro. http://store.summitracing.com/partdetail.asp?part=TRW-8KH273CP30&autoview=sku I do not know if the rings are low tension or not? I just would think that my compression should be a little higher? Maybe 165-170psi. Also, I broke the engine in properly in order to seat the rings but maybe they are not seated? I would think after 5k miles that they should be. I also have the AFR 165cc heads with 61cc combustion chambers that are the lower compression heads. Maybe that is why my compression seems a little low?

  • Like
Reactions: 1 user
Those numbers are pretty damn good!
A little more variation than you would like, but probably nothing to worry about.



The bottom end seems healthy.
So, the next step would be to modify the pcv system so that it can keep up with the new intake on the motor.

A second pcv on the dirver side valve cover worked very well for me.
Or
Some folks have tried enlarging the pcv hose, and eliminating the pcv valve. (I can't vouch for wether or not this will work though)

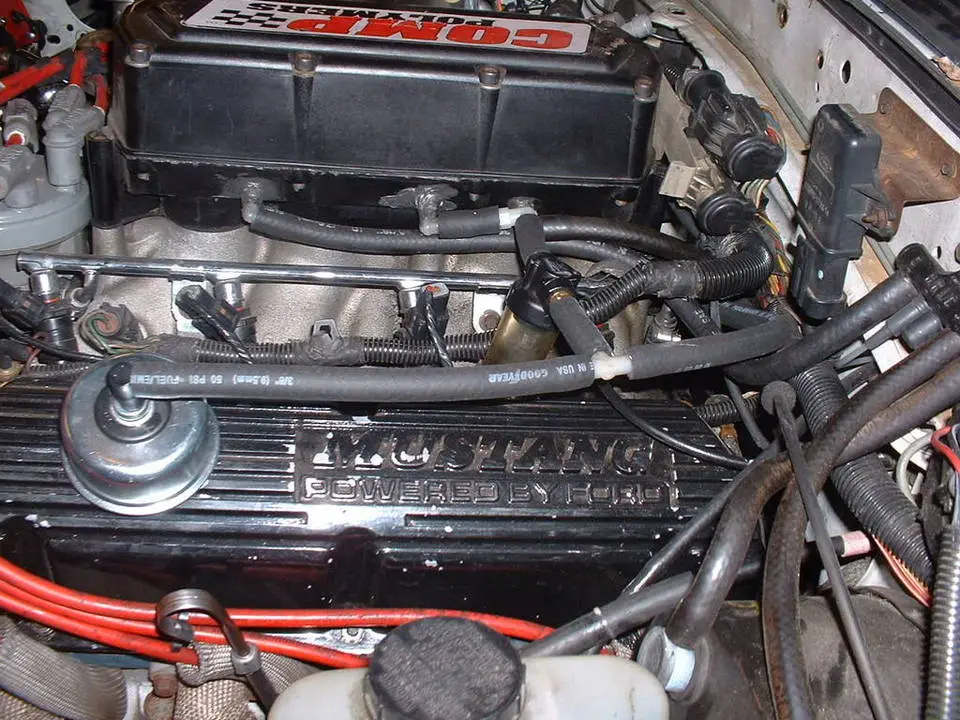

Here is a pic of how I setup my secondary pcv...
