Fox What are these connectors for? And how to remove wires?

James V

Active Member
Feb 26, 2017
409
146
53
26
Connecticut

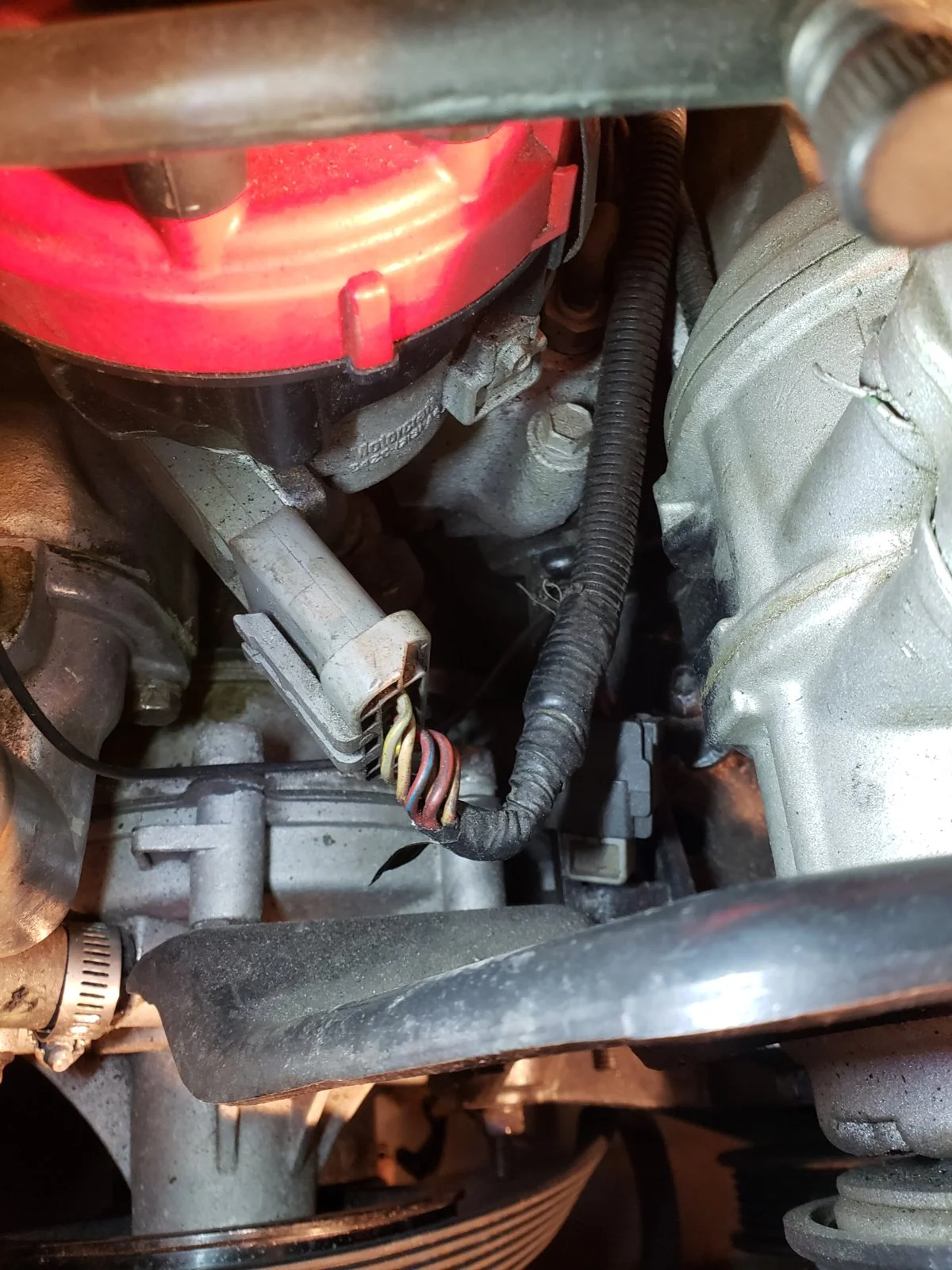

Working on putting a new thermostat housing and radiator kit on my 93 fox. Noticed this black connector under the distributor connector, what is it for since it's not plugged in?



Also while removing the old electrical fans someone else put in, I noticed one of the wires (purple) ran to this black connector and also the current thermostat sensor wire run to this too. How do I remove wires from this, they wont pull out?


  • Sponsors(?)


Rdub6

Mustang Master
Dec 29, 2017
1,453
1,051
123
Long Island, NY

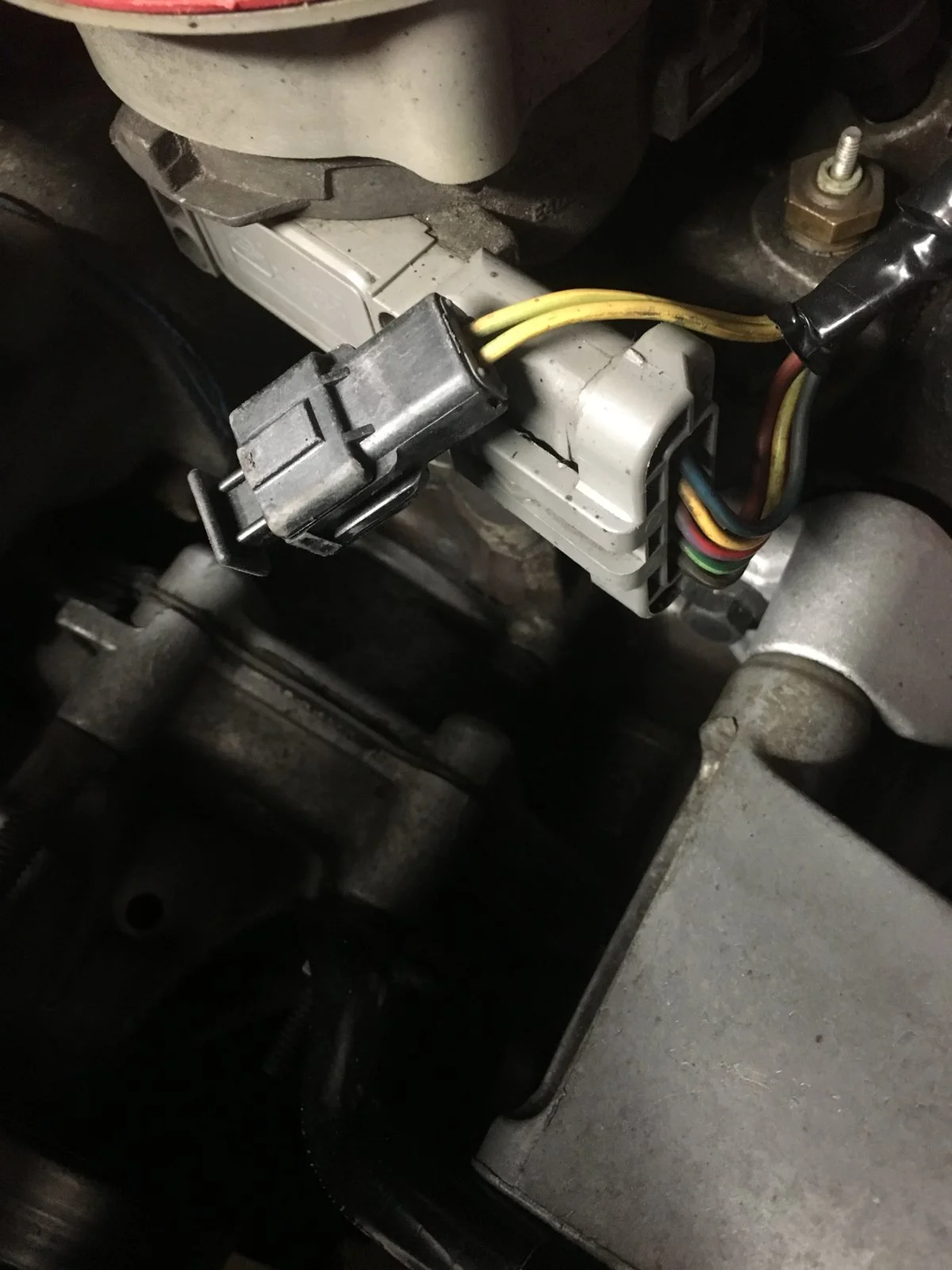

First pic, if I’m looking at what your describing, should have your spout connector coming out of it for setting your base timing.

  • Like
Reactions: James V

Steel1

Mustang Master
Aug 18, 2017
1,014
445
113
50
Connecticut
Yes first pic shows spout connection, the gray plug on the end gets removed when setting timing otherwise
it stays like it is.

  • Like
Reactions: James V

90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,316
4,357
203
42

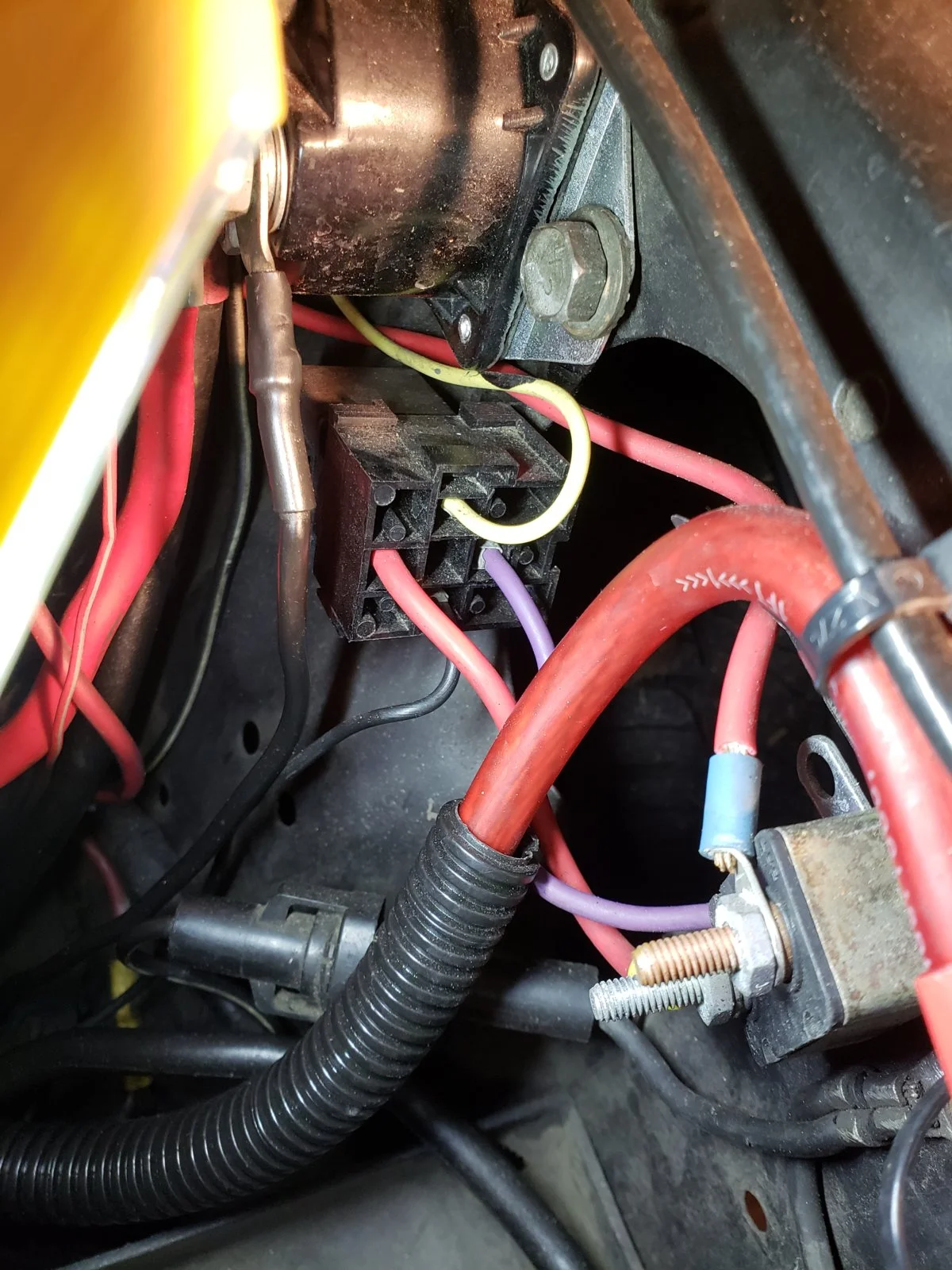

The thing the purple wire goes in to is a relay. The relay plugs into the other side of that black part. The previous owner must have a fan switch screwed into the thermostat housing to trigger the relay and cut the fan on.


James V

Active Member
Feb 26, 2017
409
146
53
26
Connecticut
The thing the purple wire goes in to is a relay. The relay plugs into the other side of that black part. The previous owner must have a fan switch screwed into the thermostat housing to trigger the relay and cut the fan on.
Thanks. That explains it. Is the relay necessary? I'm going to be wiring new electric fans, how do I take out the old wires (the purple and black from previous thermo housing) from the relay? Is there a special way, they seem tight in there.


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,316
4,357
203
42
The wires can be pulled out. First you'd have to unplug the relay. Then take a safety pin and push on the little plastic tab the holds the wire in there.

  • Like
Reactions: James V
