'65 3 speed trans rebuild

[mds65stang]

I'm near the end of rebuild, but i forgot how the shift levers are assembled to trans. Chilton's Hayne's and shop manual have confusing pictures. Are the shift levers to "point" up or down ? Do the "point' towards front of car or to the rear ? Everyone always says to take a photo before disassembly ... I'll do that next time, for sure !
Thanks for any help. M ike



[RajunCajun]

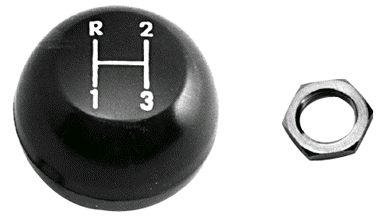

Another thing you might try if the transmission is out of the car is rotate the shaft with it in a gear and see if u can find the reverse then just determine the others in the same manner by ratio of turns or find reverse and go from there using this picture as help

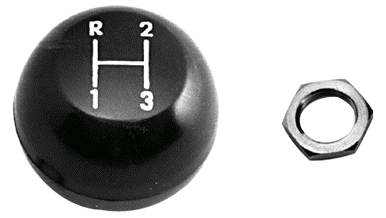

hope this helps that shift ball does match my 3 spd so I would assume its correct for yours as well



[mds65stang]

I was refering to the shift levers that bolt to the side of the trans and connect to the shift linkage at the trans, not the other end where the linkage connects to the shifter.



[RajunCajun]

what im trying to say is if the levers are installed on the wrong linkage it wont shift that pattern correctly thus u switch them and try again.

if you know which lever is reverse on your trans the front one or the rear one and which way it is pushed forward or backward then you know which lever connects to your shifter for reverse then the other one goes on the other lever and if your still wrong shift the shifter and see if u come up with that pattern by turning the trans if it dont match the pattern then change the levers



[mds65stang]

ok, I'll continue with trial and error attempts to assemble



[RajunCajun]

here ya go I went ahead and took some pics for ya this should help, just make sure your shifter is in N when you go to hook up everything including the levers on the trans

View attachment 525329
View attachment 525331
View attachment 525333



[mds65stang]

PERFECT !!!
Just what i needed, a photo.
Many Thanks !
Mike
