I have air coming out of the floor ducts and the defrost ducts, but nothing out of the dash vents. Any thoughts?
Check to make sure you vacuum canister is still hooked up. Or you could have a vacuum leak somewhere under the dash like me and need to take the whole dash off to fix it more than likely..

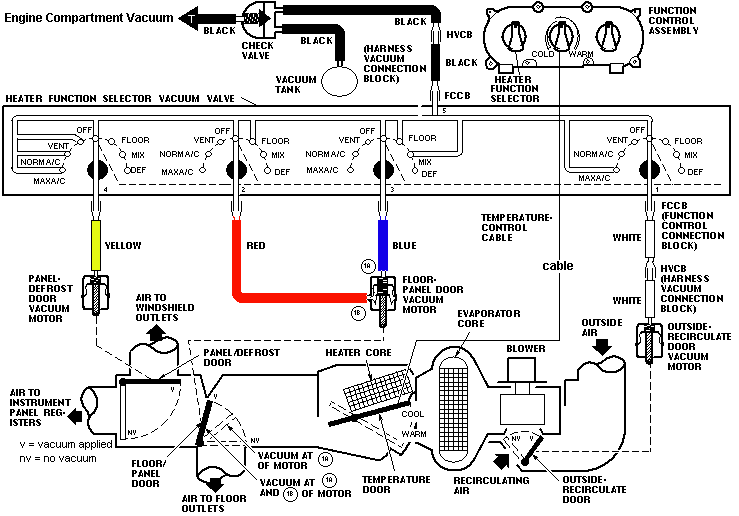

Diagrams courtesy of Tmoss & Stang&2birds See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 86-95 5.0 Mustang wiring Mustang FAQ - Engine Information Everyone should bookmark this site. Ignition switch wiring http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif Fuel, alternator, A/C and ignition wiring http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif Complete computer, actuator & sensor wiring diagram for 88-91 5.0 Mass Air Mustangs http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif Complete computer, actuator & sensor wiring diagram for 91-93 5.0 Mass Air Mustangs http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif Complete computer, actuator & sensor wiring diagram for 94-95 5.0 Mass Air Mustangs http://www.veryuseful.com/mustang/tech/engine/images/94-95_5.0_EEC_Wiring_Diagram.gif Vacuum diagram 89-93 Mustangs http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg HVAC vacuum diagram http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif TFI module differences & pinout http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif Fuse box layout http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif
No it is on the left side firewall when you are facing the car. Just behind the Trottle body but attached to the firewall. Look for a little black vaccum line.
Should be a silver color. Or mine is anyway. The tiny black hose will be running through the firewall as well.
