Auto to Manual Trans ''How to'' guide

Discussion in '2005 - 2009 Specific Tech' started by anthony05gt, Apr 23, 2009.


  1. alec231236

    alec231236 Member

    Joined:
    Nov 27, 2009
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Philadelphia
    Looks like my auto trans is done and I might end up going this route

    Always wanted a 5 sp, but not necessarily now
    #21
  2. stang200690

    stang200690 New Member

    Joined:
    Oct 8, 2010
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    2

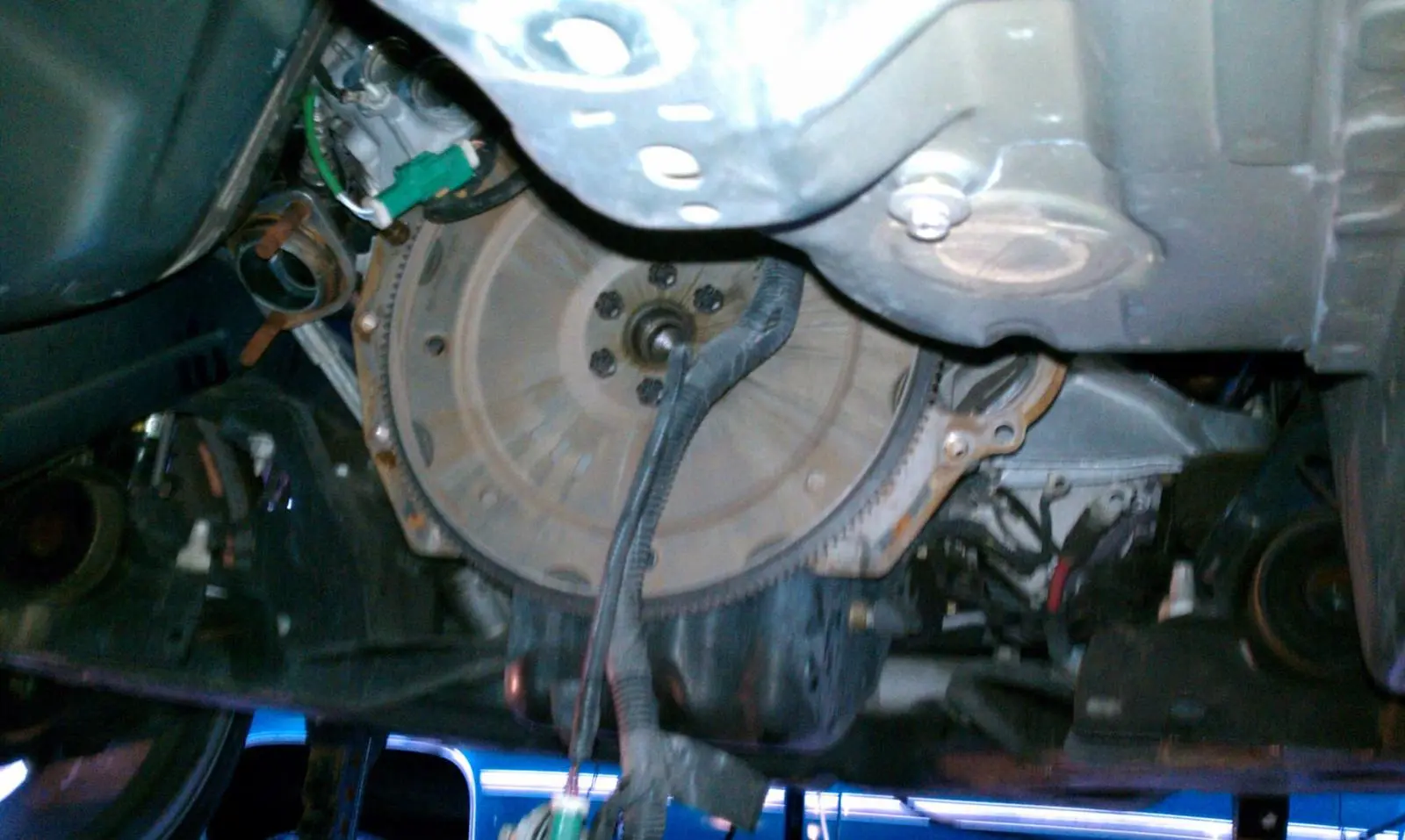

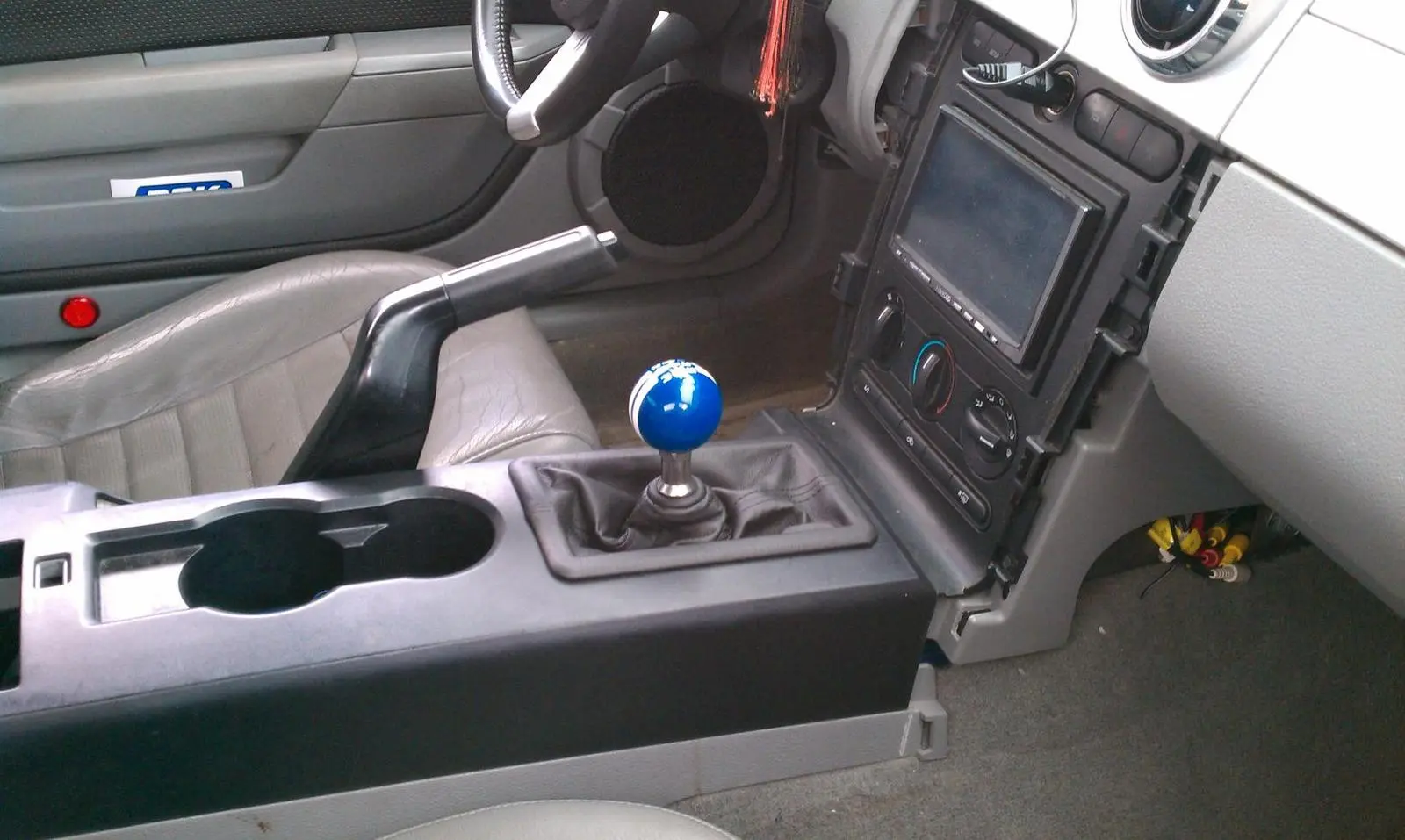

    MY SWAP IS DONE! I did it over Thanksgiving weekend. It took me and my dad two full days of work, from sunrise to sunset. it was def. worth it. shes running like a champ! :) i did it with the help of this write up and one from this website Auto to Manual Swap - The Mustang Collective Forums also the service manuals on the top of that post helped alot. I want to thank you anthony your write up was very help full also to temugen from the mustangcollective.
    If anyone has any questions or need adivce about the swap id be happy to help. To anyone thinking about doing it, its not hard but you need to be some what mechanically inclined. any DIYer with the right amount of research can do it.
    just giving back to the community. :)

    Attached Files:

    #22
  3. anthony05gt

    anthony05gt Active Member

    Joined:
    Mar 19, 2006
    Messages:
    1,267
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Maryland
    That's great. I helped Temugen do his over the net. If I remember correctly he was 17 years old and NOT a mechanic. I was proud of him.
    #23
  4. dacian

    dacian New Member

    Joined:
    Jun 27, 2011
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Can you tell me if there are TSB's for the 2007 Mustangs? If you can provide me with the titles of the 41 TSB's, I would appreciate that, too. I am interested in buying a new GT. I just want to know what I am buying.

    Poker
    #24
  5. eddieval5

    eddieval5 New Member

    Joined:
    Aug 23, 2011
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    katy,tx
    Sure glad this is stickied will be tackling this in the near future.
    #25
  6. Dan Harper

    Dan Harper New Member

    Joined:
    Dec 15, 2012
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    can you post pictures on how to put the clutch pedal in???
    #26
  7. stang200690

    stang200690 New Member

    Joined:
    Oct 8, 2010
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    2
    It goes in just like the brake pedal assembly for the auto came out. Only this time the back part of the clutch pedal side goes through the hole in the fire wall.
    #27
  8. Justinsmt88

    Justinsmt88 New Member

    Joined:
    Jan 14, 2013
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Mansfield, Ohio
    Is it just easier to swap harnesses out or to modify the existing one? I'm having issues locating a manual PCM :/ Can anyone point me in the right direction on the electrical side of things. I'm worried about losing my cruise control and the whole brake light fiasco. I have a 2006 GT auto.
    #28
  9. stang200690

    stang200690 New Member

    Joined:
    Oct 8, 2010
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    2
    Just follow the write up. Either way you go with the harness your gonna lose cruise control, I havent found anyone who has been able to get it to work.
    #29
  10. Justinsmt88

    Justinsmt88 New Member

    Joined:
    Jan 14, 2013
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Mansfield, Ohio
    Quick question. Do I need a new crossmember for the 3650 or will the one for the 5r55s be able to be reused?
    #30
  11. speed1972

    speed1972 Founding Member

    Joined:
    Mar 14, 2002
    Messages:
    892
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Denver, CO - Buckley AFB
    You can reuse the same cross member. I actually did this swap last fall, thanks to Anthony's write up. As a note, I've got an '06 and I replaced the wiring harness and pcm from another '06. It did require a tune to get it working properly, but no issues and with proper tools and a lift, I was able to complete the swap in a day.

    Thanks for leading the charge on this so many years ago Anthony
    #31
  12. Justinsmt88

    Justinsmt88 New Member

    Joined:
    Jan 14, 2013
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Mansfield, Ohio
    Question for anyone who replaced the harness and computer. How and where do you hook up or bypass the clutch position switch? I cant locate the wiring for it an have had to start my car by jumping it in the fuse box every time I want to start it.
    #32
  13. stang200690

    stang200690 New Member

    Joined:
    Oct 8, 2010
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    2
    were you able to get cruise control to work?
    #33
  14. anthony05gt

    anthony05gt Active Member

    Joined:
    Mar 19, 2006
    Messages:
    1,267
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Maryland
    What year is your car? On the '05 -'06 cars there's a jumper already in place and ready to run under the dash on the driver's side. I know on '07 cars I found a plug under the dash that needed the wires cut and connected together because there wasn't the dummy plug inserted already making the connection.
    #34
  15. Justinsmt88

    Justinsmt88 New Member

    Joined:
    Jan 14, 2013
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Mansfield, Ohio
    Could you possibly take some pictures to show me what you are talking about and or what wires to connect?
    #35
  16. eddieval5

    eddieval5 New Member

    Joined:
    Aug 23, 2011
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    katy,tx
    Transmission went out yesterday need some guidance and the neutral safety switch. i read the plug is under the dash (mines an 06) anyone have the part number the wiring harness? Im still gathering the little things
    #36
  17. 3.7cyclone

    3.7cyclone New Member

    Joined:
    Feb 17, 2014
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    Normally there may be a connector up under the dash probably above the brake pedal or clutch pedal location, you may not see it but it should be there, what I would do is use a flash light and look for a black bundle looks like black foam tape, on the 10-14s S197s it is wrapped up with a black very sticky tape off another connector. It could be located on the side of a larger connector up there too. It will be very obvious. Check each bundle you see but it should be around that location just follow the other wires in there. (on 2010 and newer it is connector # C215) I am not sure about 05-09s.

    Regarding 05-14 S197s PCM etc. The CPP and cruise control deactivation harness (neutral safety switch if you will) needs to be used if you want to make use of the factory setup, however you will still need your PCM either tuned, or reflashed by ford. According to my sources you cannot reuse the MT PCM if you swap a T5 or MT82 or whatever to an AT transmission you will need the PCM from the AT. However if you are going from AT to MT you can re-use the AT PCM. You will need to have Ford or someone with IDS to re-program the PCM as a MT unit (initialize it as a manual transmission vehicle so it knows what controls to use) and flash it with the correct MT strategy code, as built data, your vehicle info (VIN# and mileage) and program two car keys for PATS(so the car will start). You can also just get a MT PCM and have them just do the flashing of the correct MT strategy code(if needed but should not be), as built data, your vehicle info (VIN# and mileage) and program two car keys for PATS.

    If you do not use the CPP/Cruise disable jumper, the MT wire harness, and a MT PCM or reprogrammed PCM initialized as a MT the PCM though module communications network, other components will not know how to use the reverse lights or cruise control or neutral lockout features. For example my car I swapped out my 6R80 auto for the MT82. I had the PCM retuned so the car runs but the PCM is still looking for a signal from pin 39 on the upper plug of the PCM harness to tell the body control module to complete the circuit to turn on my reverse lights. However since I am running the MT harness now there is nothing on pin 39 the reverse switch is actually now on pin #17 which the PCM does not know about and is not programmed to do anything with it. This is because it is still initialized as an AT transmission vehicle. When you reinitialize it and tell it that it is a MT it will properly function as it should as far as to look for a signal on pin 17 now and then will communicate with the rest of the network through the can bus and tell the BCM that it can turn the light on with the switch is closed. Same deal with the cruise control as it does not know how to communication with the transmission now for things like speed etc since the auto was removed. It also needs to know there is a clutch pedal switch now too.

    Usually the easiest thing to do it replace the PCM if you do not want to wire up fixes. A good tuner may be able to get everything going but replacing or re-configuring the AT pcm is the way to go.
    #37
  18. 3.7cyclone

    3.7cyclone New Member

    Joined:
    Feb 17, 2014
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2

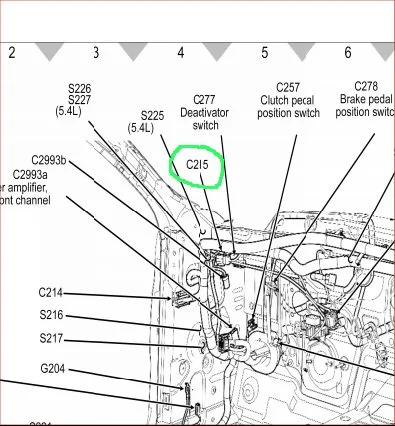

    According to the workshop manual 05-09 does use the same connector for the Clutch pedal for neutral lockout and cruise control deactivation on connector C215 under the dash board, see pic below for location to look... (it is a rough location but its there.)

    [​IMG]
    #38
  19. 3.7cyclone

    3.7cyclone New Member

    Joined:
    Feb 17, 2014
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    BTW the pigtail that plugs into C215 also goes to C277 and C257 which are the switches on the clutch pedal. It is the same setup as the 10-14s.
