Custom CAI...What Looks Better PICS

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by 95strokerPSU, Jan 21, 2007.

  1. 95strokerPSU

    95strokerPSU Member

    Joined:
    Jul 29, 2004
    Messages:
    987
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Sacramento from Philly

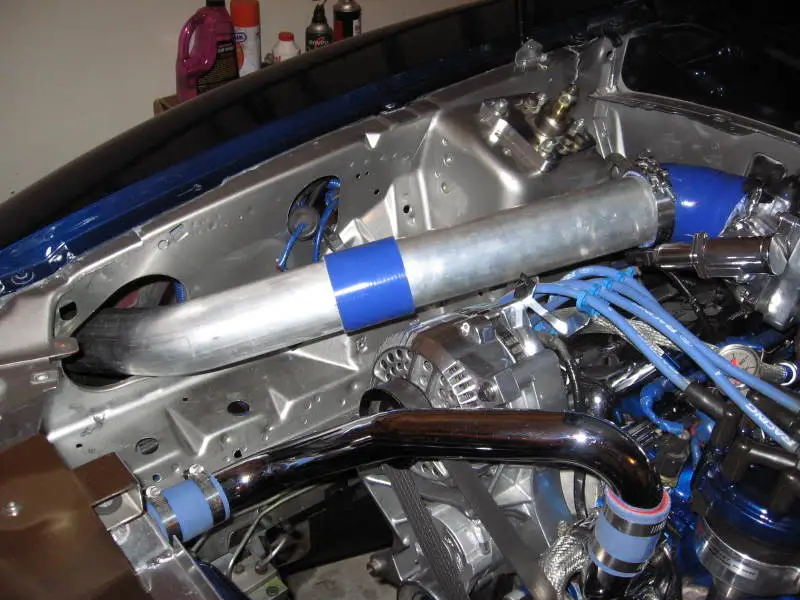

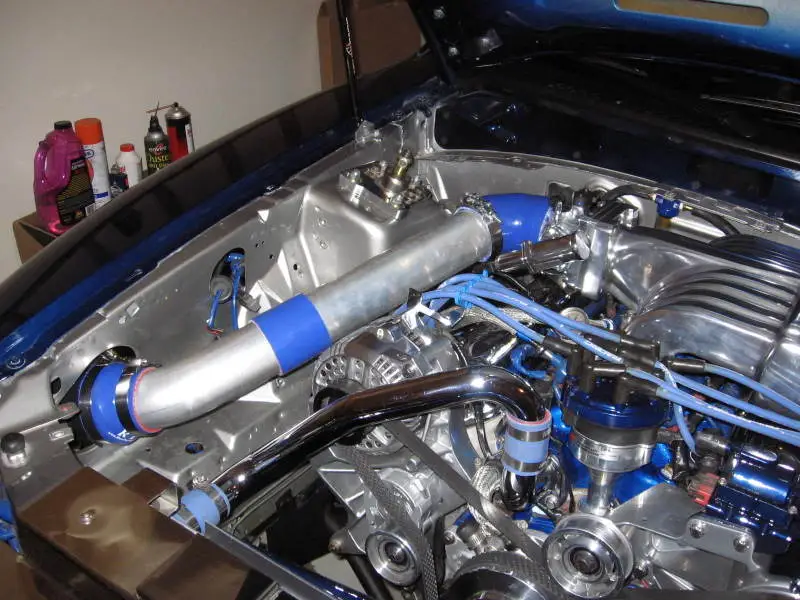

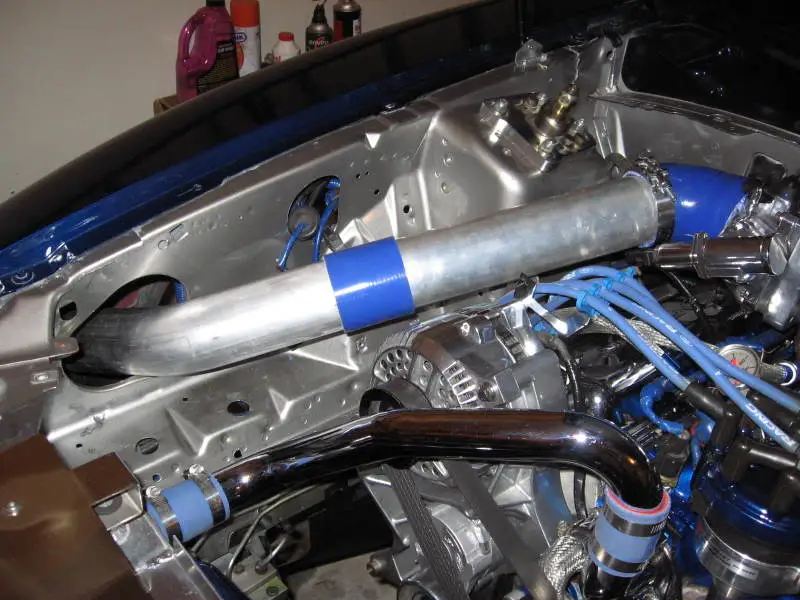

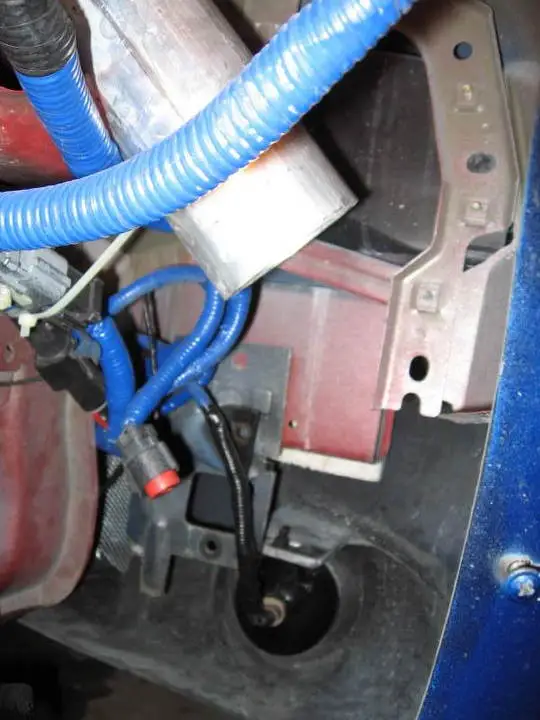

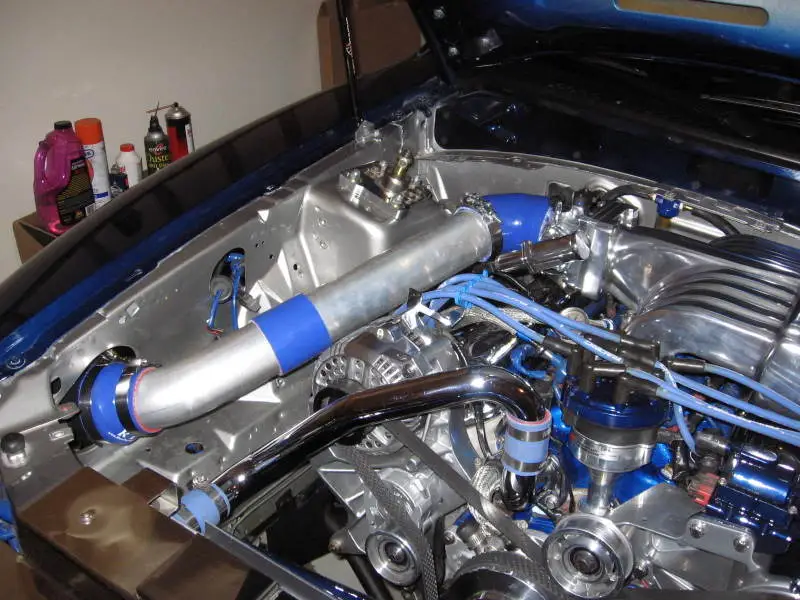

    I got everything back together, I just need to figure out where to put my LMAF and filter. Here's the first set-up, the meter is right inside the fender parallel to the ground....
    [​IMG]
    [​IMG]

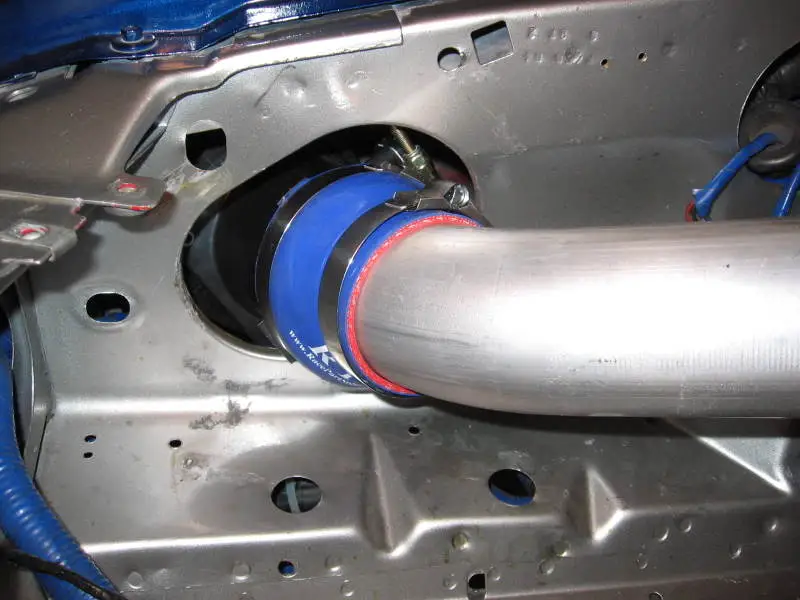

    And then this way would have it the meter upside down, but completely out of sight...
    [​IMG]
    [​IMG]

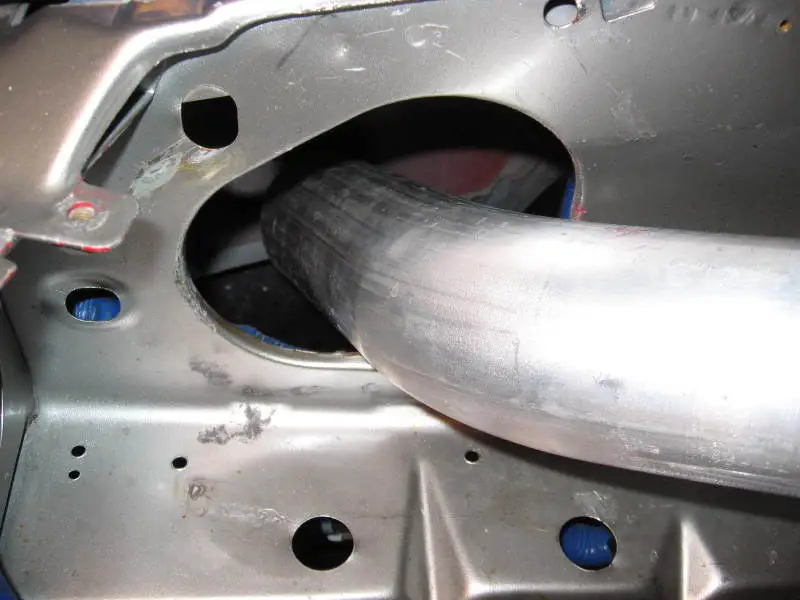

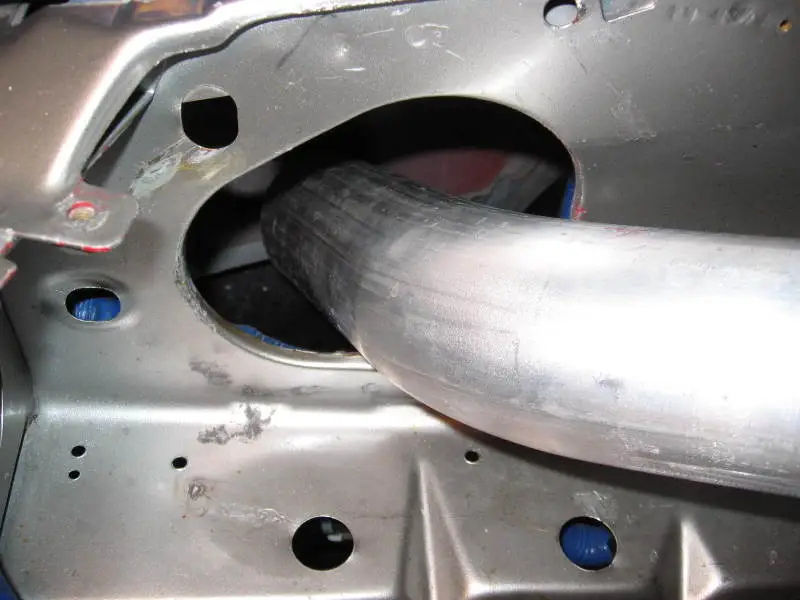

    It would attach to the end of this pipe (pic is sideways)...
    [​IMG]

    Thoughts?

    #1
  2. urban96

    urban96 bubb rubb says:"woo woooooo"
    Founding Member

    Joined:
    Sep 25, 2002
    Messages:
    4,231
    Likes Received:
    1
    Trophy Points:
    69
    Location:
    Syracuse, NY
    i would go with the shorter one and maybe make a plate to cover where the pipe goes into the fender


    something like this one (bottom right)

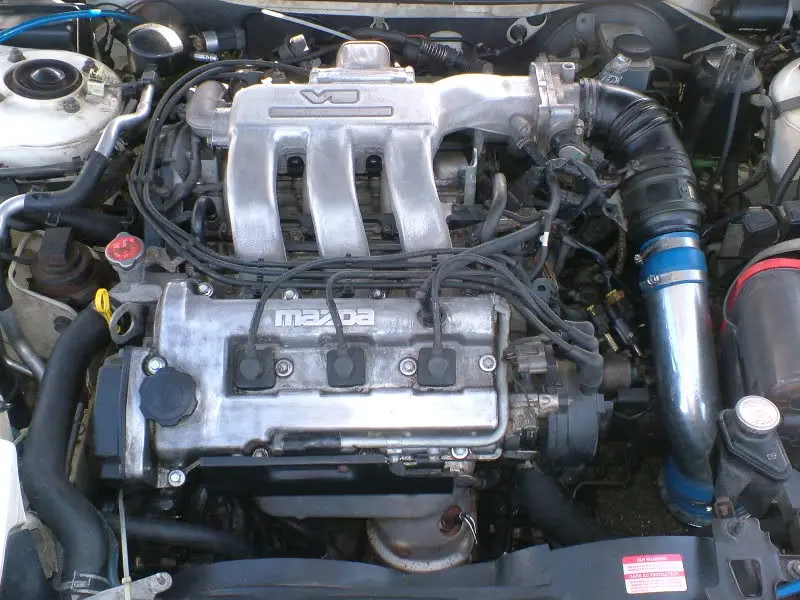

    [​IMG]

    #2
  3. bimmertech

    bimmertech New Member

    Joined:
    May 4, 2005
    Messages:
    1,129
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    merriam, ks
    i like my air filter in the stock location with a heat shield over it.

    #3
  4. carbed87

    carbed87 New Member

    Joined:
    Jun 5, 2005
    Messages:
    367
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    denver co
    where did you get those silicone connectors

    #4
  5. Guero

    Guero Active Member

    Joined:
    Oct 12, 2005
    Messages:
    2,194
    Likes Received:
    0
    Trophy Points:
    47
    Bling Bling! All I see are shinny pretty things!

    #5
  6. Synned

    Synned took tubgirl on a date and got banned

    Joined:
    Mar 31, 2005
    Messages:
    997
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Philly
    You have a freakin' sexy car.

    #6
  7. Dan95-5.0

    Dan95-5.0 Active Member

    Joined:
    Jun 14, 2003
    Messages:
    1,112
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Manitoba, Canada
    i like the first.

    1- less piping
    2-easier to clock the maf if needed

    are you going to use that coupler right in the middle between the 2 pipes? i would weld them together for a cleaner look

    that would look great chromed

    what size piping did you use?

    #7
  8. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,158
    Likes Received:
    14
    Trophy Points:
    79
    I kinda like the first way also.

    That engine bay is hot mang! I hate to go OT but where did you stuff the CCRM and what was involved (I'd like to get mine out of the way)?

    #8
  9. BlackVert

    BlackVert Mustang Master

    Joined:
    Oct 3, 2003
    Messages:
    5,614
    Likes Received:
    7
    Trophy Points:
    78
    Location:
    Bethesda, MD
    i like the one with no bends between the maf and the air filter. if neither has any bends, i like the 2nd one more.

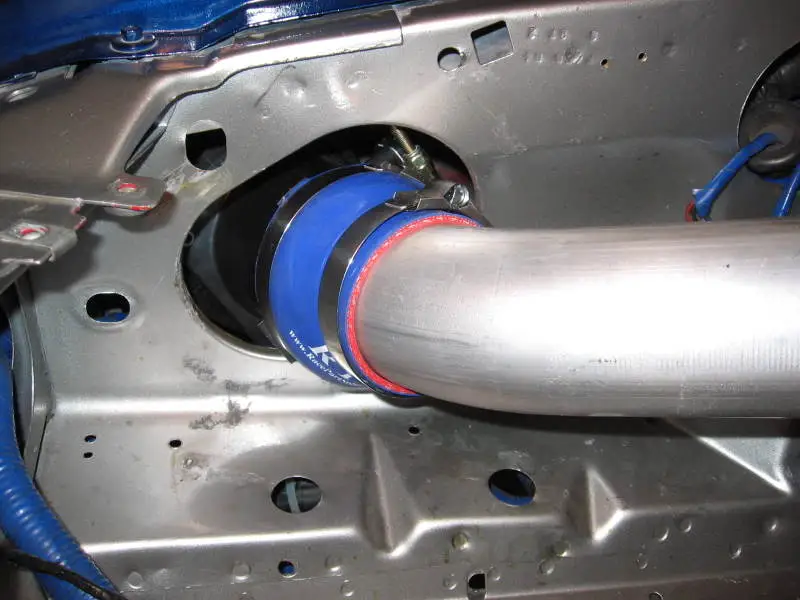

    for the connector, if you aren't planning on welding it, check out the connectors i used. i know that my engine bay is extremely ghetto, but i really think these connectors are a little classier than the normal blue silicone connectors. and they have them at home depot ...

    but it looks like you have a blue and polished/chrome thing going, so probably never mind

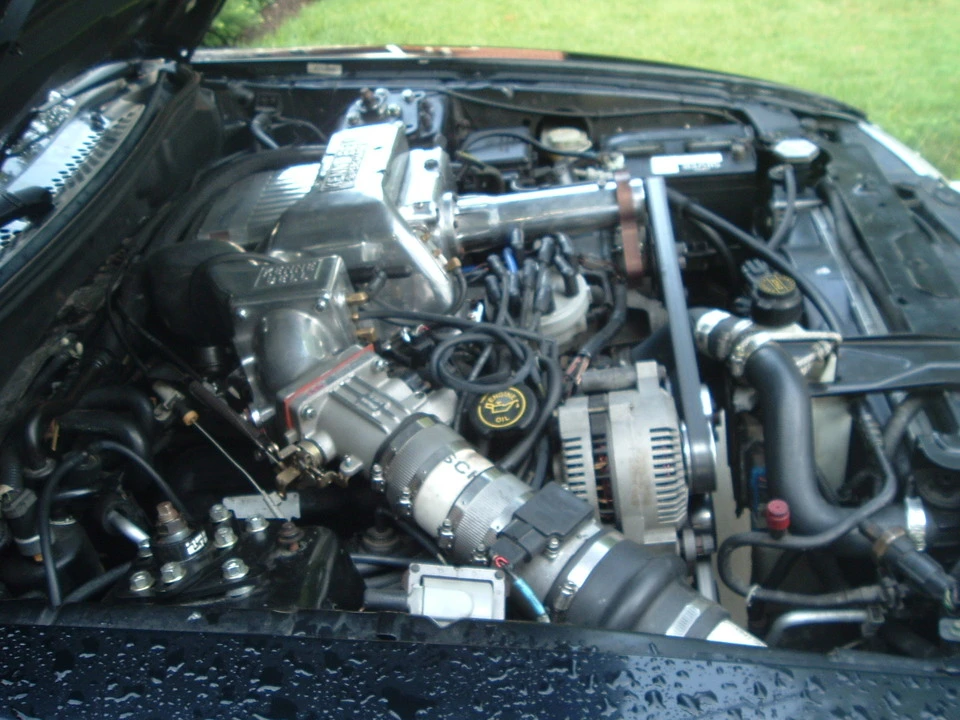

    [​IMG]
