Instrument Cluster Lighting - Led's?

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by cdurbin, Nov 11, 2012.


  1. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Has anyone used LED's in their stock instrument cluster?
    I was thinking about trying it but not sure if it can be done or if it even is worth it.
    Anybody done this?
    Thanks

    #1
  2. jadigen

    jadigen Member

    Joined:
    Feb 23, 2012
    Messages:
    131
    Showcase:
    11
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    19
    Location:
    S.Jersey
  3. larrym1961

    larrym1961 Active Member

    Joined:
    Dec 18, 2010
    Messages:
    491
    Showcase:
    1
    Albums:
    1
    Likes Received:
    27
    Trophy Points:
    29
    Location:
    Idaho Falls Id
    I have LED's in mine. They are almost to bright for me, but I also have the white gauge inlays in mine. Personally I like the traditional fillament bulb better. I will probably go back to them if I have instrument cluster out again. With the LED in the bright light indicator it is almost blinding.

    #3
  4. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    I think there's a guy on this forum that deals with that sort of thing. Diode Dynamics Send him a PM and see what he's got.

    #4
  5. aar0s

    aar0s Founding Member

    Joined:
    Dec 20, 1998
    Messages:
    2,408
    Likes Received:
    95
    Trophy Points:
    69
    I wouldnt mind seeing some before and after pics if anyone has any.

    #5
  6. danond

    danond Member

    Joined:
    Jun 20, 2011
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    7
    I did this conversion. Looks amazing. Got all my lights from superbrightleds.com. I would post pix but honestly the camera doesn't show much difference.

    #6
  7. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC
    I have to pull the cluster to install a new speedo cable anyway so I thought I might look into the LED conversion.
    Thanks for all the replys and information.

    #7
  8. Mintsick

    Mintsick Active Member

    Joined:
    Jan 7, 2007
    Messages:
    565
    Likes Received:
    26
    Trophy Points:
    38
    Location:
    West Lafayette, IN
    I used LED's from the same website in my otherwise stock 93 cluster and the improvement was very nice, it isn't overbearing looks just right to me.

    #8
  9. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Which bulbs did you order? Do you happen to remember the part # and quantity?

    #9
  10. jadigen

    jadigen Member

    Joined:
    Feb 23, 2012
    Messages:
    131
    Showcase:
    11
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    19
    Location:
    S.Jersey
    from the link i posted above



    #10
  11. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Duh, it would help if I read..:bang:

    Thanks

    #11
  12. Dizzy_ax

    Dizzy_ax Member

    Joined:
    Mar 27, 2008
    Messages:
    94
    Showcase:
    4
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Troutdale Oregon

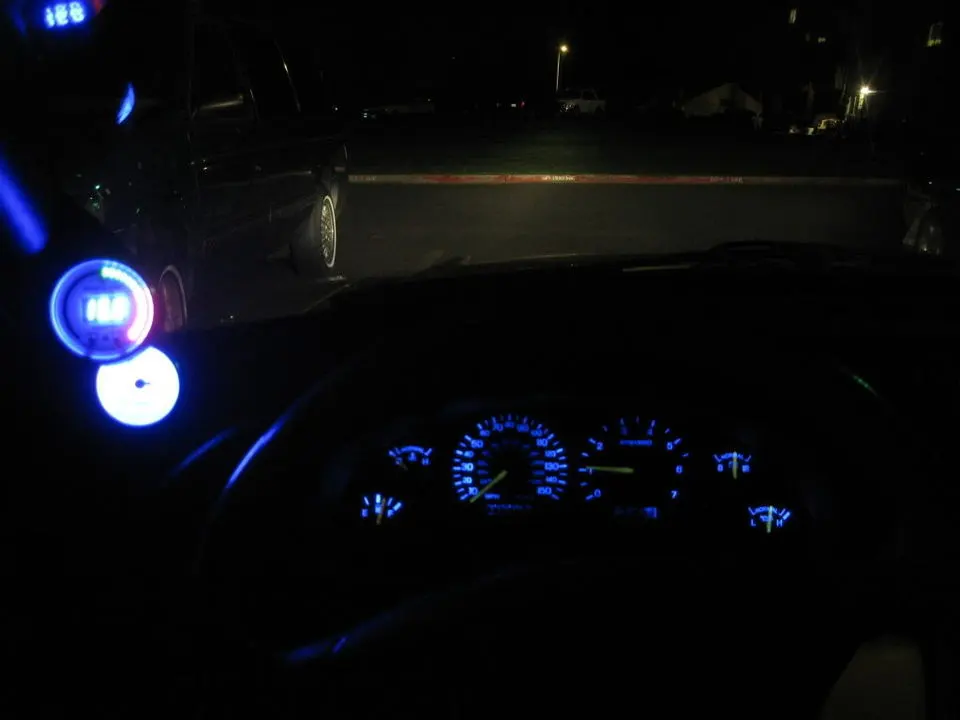

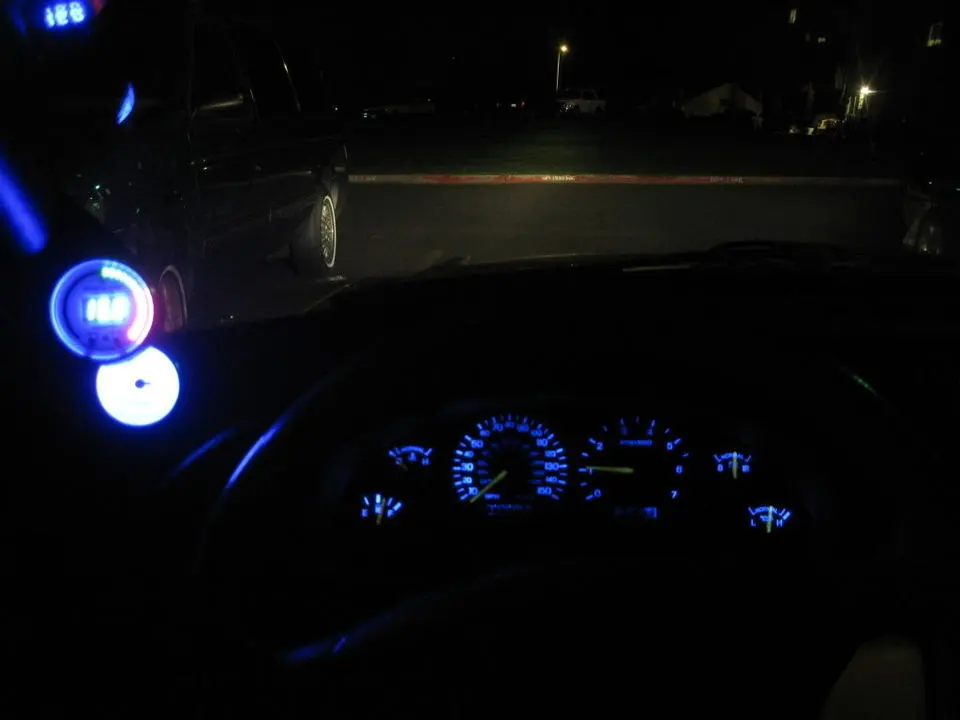

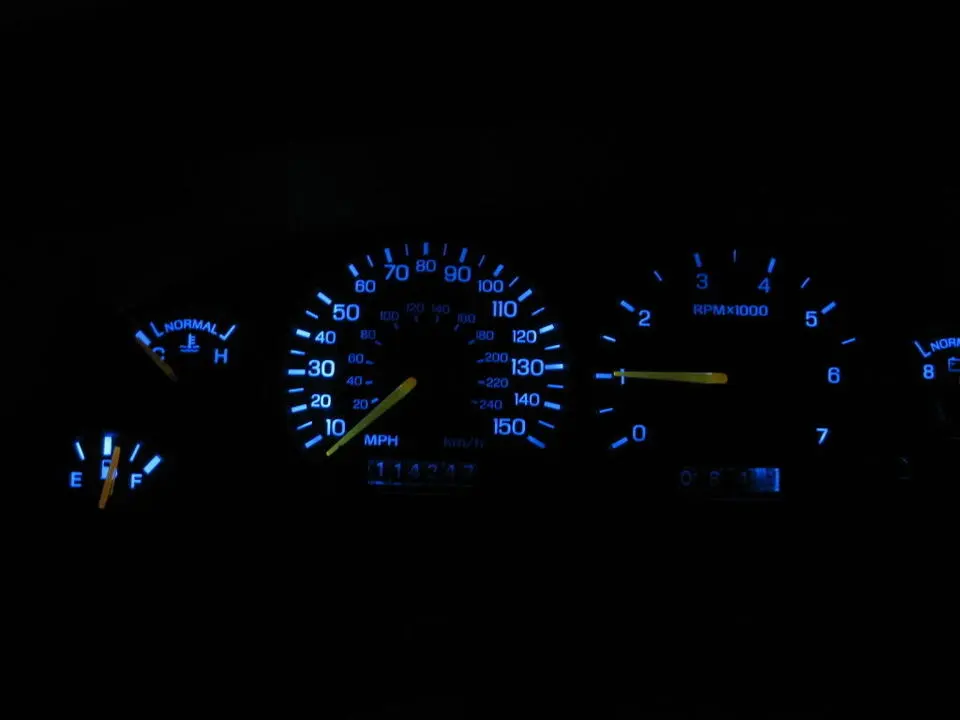

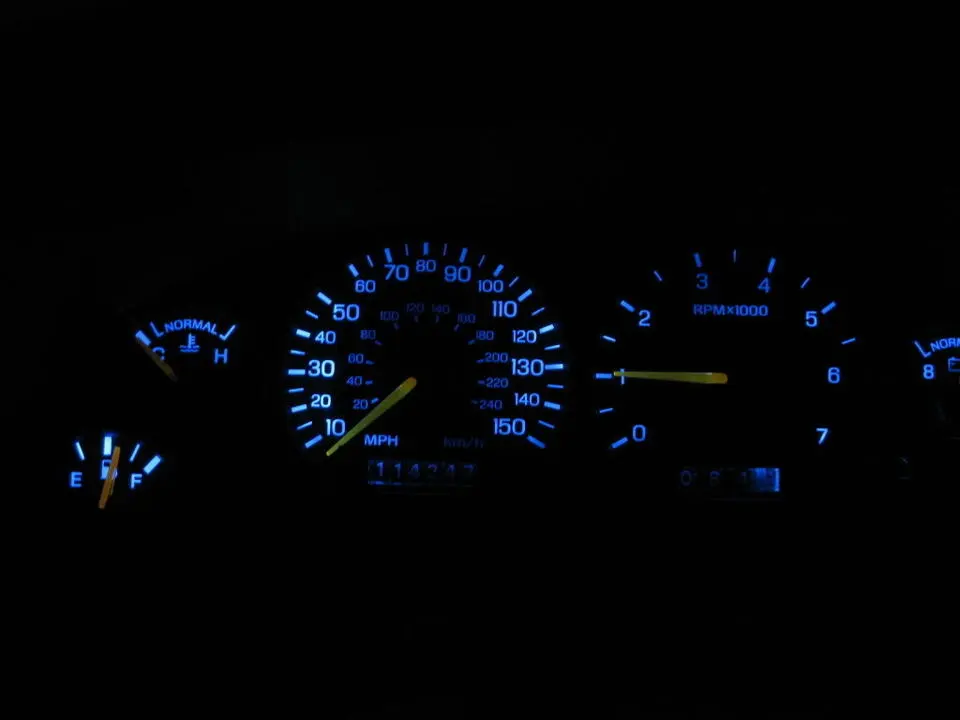

    hey, this is a 95 but i did the same thing :D

    [​IMG]
    [​IMG]

    Its dark in some spots but overall i like it :) Post some pics if you do it.

    #12
    Vaz88GT likes this.
  13. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC
    I ordered all the required bulbs today. I went with the cool white. I kind of like the "blue" glow they give off.
    I'll post before and after pics when I get it done. It won't be until next weekend though.
    I'm going out of town for Thanksgiving to visit family.
    Thanks again for everyones input and photos.

    #13
    jadigen likes this.
  14. Mintsick

    Mintsick Active Member

    Joined:
    Jan 7, 2007
    Messages:
    565
    Likes Received:
    26
    Trophy Points:
    38
    Location:
    West Lafayette, IN
    Mine have a couple dark spots as well in the fox cluster which is just a result of the bulb locations themselves I think, still far better than stock.

    #14
  15. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC

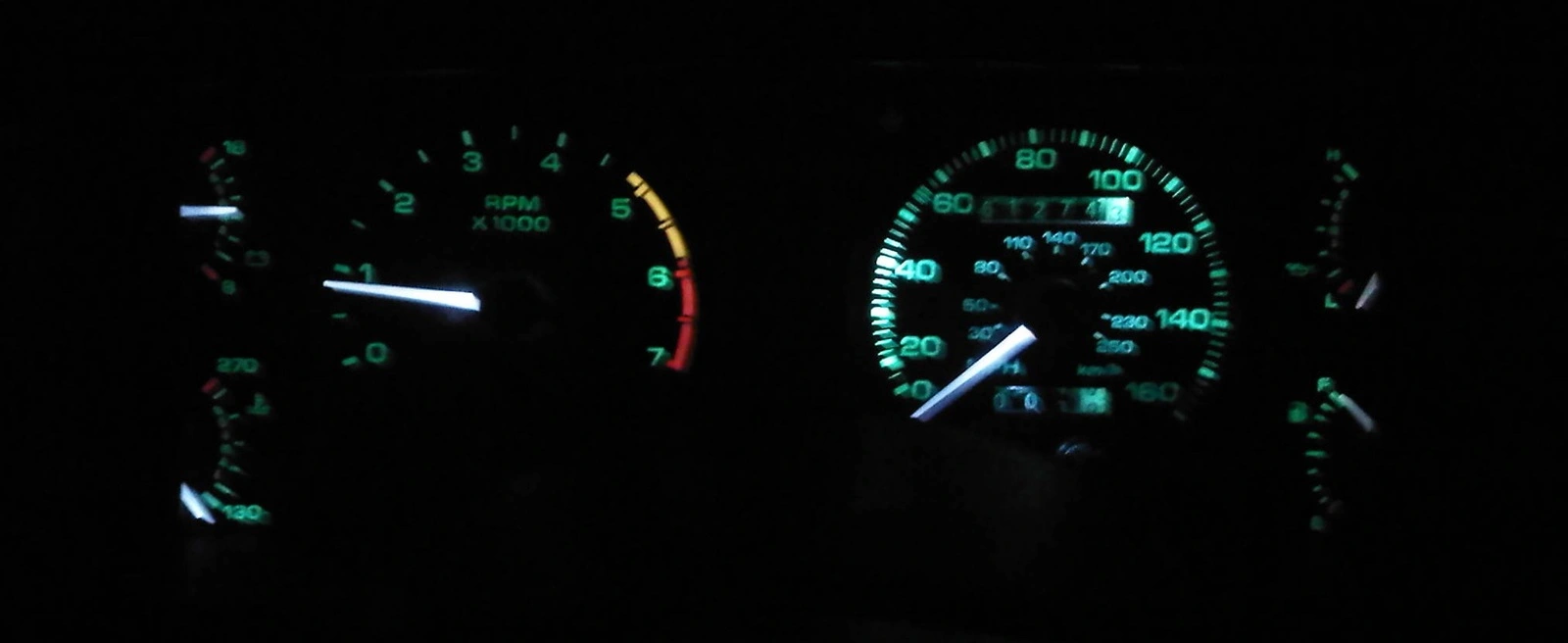

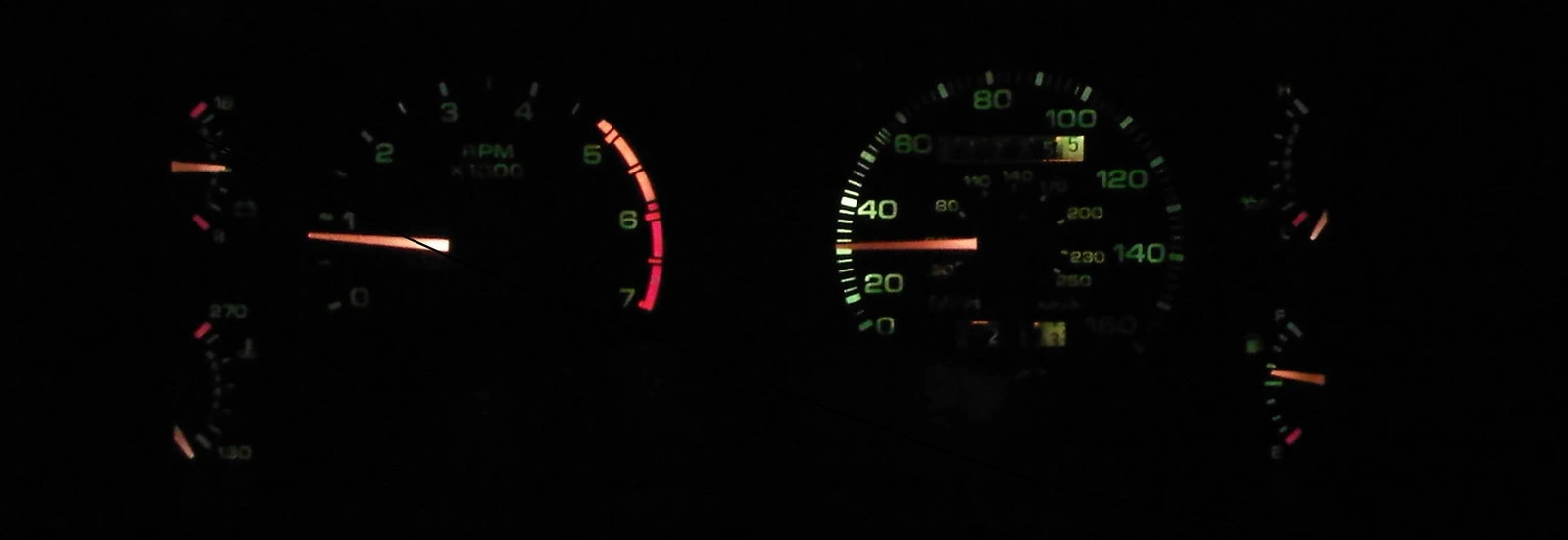

    Did my LED install over the weekend and as promised, here are the before and after pictures. My crappy cell phone pictures don't do it justice. Looks really clean in person but you can get the idea of the difference. Thanks


    #15
    Vaz88GT likes this.
  16. Mikey1968

    Mikey1968 Member

    Joined:
    Nov 2, 2003
    Messages:
    232
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Kommiefornia
    Looks like your red needles went white? Is that just the photo? The top of my speedo is pretty dark with the stock lights. Was wondering if a bulb is out...can't remember if one is located just above the mileage counter....anyone know?

    #16
  17. TOOLOW91

    TOOLOW91 Mustang Master

    Joined:
    Nov 30, 1999
    Messages:
    2,707
    Likes Received:
    801
    Trophy Points:
    144
    Location:
    S.I.NY
    what did it cost? List of parts, and where you got them from ? I did this once on my 00gt in purple and it looked good but 6 mos later my cluster barley lit.

    #17
  18. 93project

    93project Active Member

    Joined:
    Apr 22, 2009
    Messages:
    555
    Likes Received:
    43
    Trophy Points:
    38
    Location:
    El Paso, tx
    That looks great! I ended up trashing my cluster for a Florida 5.0 setup.. And autometer phantoms... LEDs would be too much for me...

    #18
  19. 88LX5.Oh

    88LX5.Oh Advanced Member

    Joined:
    Dec 31, 2011
    Messages:
    1,455
    Likes Received:
    210
    Trophy Points:
    74
    Location:
    Arkansas
    I'm jealous of the 160 MPH speedo...
    But the LED's make it all look awesome. And I love how the needles changed color too.

    #19
  20. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    547
    Likes Received:
    102
    Trophy Points:
    54
    Location:
    North Charleston, SC
    I bought the LED's from www.superbrightleds.com

    Qty | Product / Options | Price/ea |
    ============================================================
    9 | WLED-x-x: 194 LED Bulb - 1 LED Wedge Base| $ 1.39 |
    WLED-W-120: Cool White 120 Degree
    ------------------------------------------------------------
    6 | WLED-x5: 194 LED Bulb - 5 LED Wide Angle Wedge Base| $ 3.94 |
    WLED-CW5: Cool White
    ------------------------------------------------------------

    Total cost was $41.65

    #20
    toolow91 likes this.
