my subframe connectors (56K Killer)

Discussion in '1974 - 1978 Mustang II Talk & Tech' started by parthos, Jul 9, 2003.


  1. parthos

    parthos Founding Member

    Joined:
    Sep 22, 2000
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Bismarck ND
    Hi All! Well I snapped some subframe pics cause the car is up high due to putting in a new tranny. While it was up high, I thought maybe a few folks would like to see my home made subframe connectors. Total cost $14, along with some welding wire, welding gas, and time. They fit nice and snug up against the floor pan all the way through, they are pretty much hidden. They work awsome, gone is the squeaks from the interior, and the car doesn't twist anymore. BTW the quick grip is holding up my exhaust so I have room to work if anyone wonders what the heck is going on.
  2. 78CobraII

    78CobraII Moderator

    Joined:
    Jul 31, 1998
    Messages:
    1,807
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Birmingham, AL
    Are they welded to the floorpan? If not, they were SO tight that I couldn't tell! ;)

    Great job!

    78CobraII
  3. Vince

    Vince Vince the Fabricator Founding Member

    Joined:
    Feb 22, 2000
    Messages:
    623
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Vancouver, Canada
    Very impressive. Did you need to re-route any brake lines or fuel lines?
  4. parthos

    parthos Founding Member

    Joined:
    Sep 22, 2000
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Bismarck ND
    the only thing that had to be re-routed was the fuel line, but I was going to do that anyhow, so that's it. It's not welded to the floorpan, but you're giving me ideas.
  5. strangeice69

    strangeice69 New Member

    Joined:
    Nov 3, 2003
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    johnstown, pa
    i could really use those for this spring:)
  6. 77sleeper

    77sleeper GO BUCS! Founding Member

    Joined:
    Oct 11, 1999
    Messages:
    7,491
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Napalm, AZ
    I am retarded, where is the pic?
  7. strangeice69

    strangeice69 New Member

    Joined:
    Nov 3, 2003
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    johnstown, pa
    i couldnt find it either, but the whole thought sounds sweet
  8. 78CobraII

    78CobraII Moderator

    Joined:
    Jul 31, 1998
    Messages:
    1,807
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Birmingham, AL
    I'm suspecting that posted pics "go away" after a while. The original post was dated 07/08/03.

    78CobraII
  9. parthos

    parthos Founding Member

    Joined:
    Sep 22, 2000
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Bismarck ND

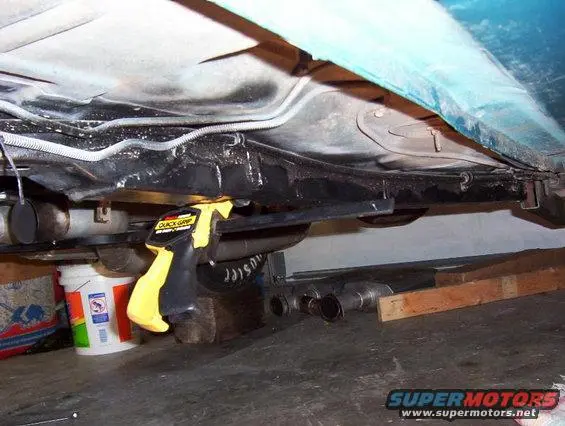

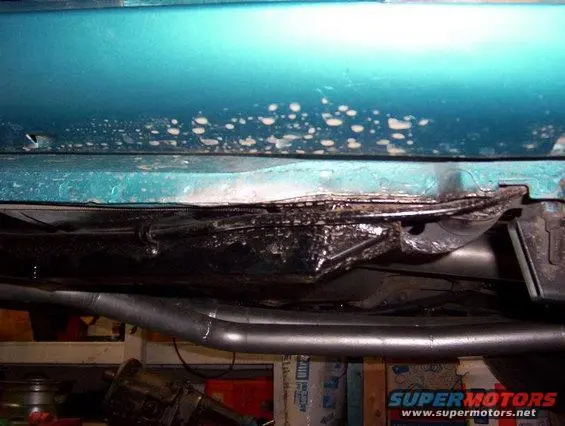

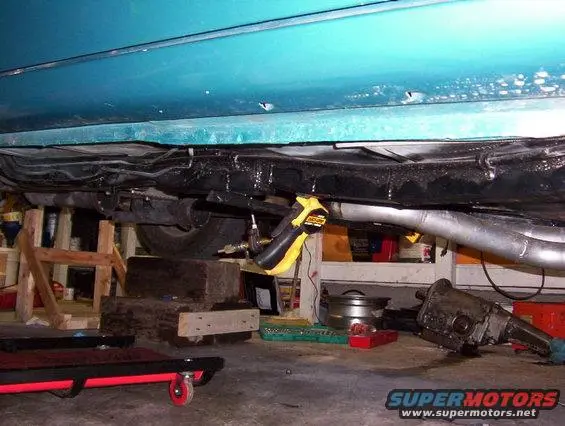

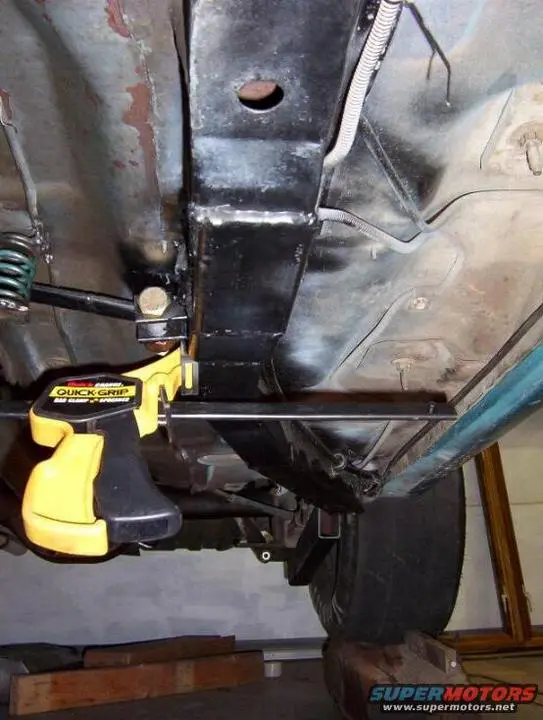

    Ok, I have uploaded pics to a different site, the quickgrip is holding up the exhaust pipes, as I have removed the mufflers to work on some stuff back when these photos were taken.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  10. jrCobra

    jrCobra Founding Member

    Joined:
    Dec 15, 2001
    Messages:
    795
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Wichita, KS sometimes Austin, TX
    How did you bend it? I bought some pretty heavy duty box steel and it's tough, 1" x 2" - 1/8" sidewall.
  11. parthos

    parthos Founding Member

    Joined:
    Sep 22, 2000
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Bismarck ND
    I didn't bend it, every bend was made by cutting and welding at angles. I did a stress test on a piece that I measured wrong, the welds are strong, I would say stronger than the parent metal, using my 22.5 ton press, the square tubing will distort and bend but the welds never gave.
  12. jrCobra

    jrCobra Founding Member

    Joined:
    Dec 15, 2001
    Messages:
    795
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Wichita, KS sometimes Austin, TX
    I see now. Very good work. I found some pretty detailed sites on how to do it the way you mentioned.

    Soon, very soon. :)
  13. Stang78

    Stang78 New Member

    Joined:
    Dec 6, 2003
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    0
    jrCobra,
    could you list some of those detailed sites on making the subframe connectors you've found. thanks

    -Stang78
  14. jrCobra

    jrCobra Founding Member

    Joined:
    Dec 15, 2001
    Messages:
    795
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Wichita, KS sometimes Austin, TX
    Sure, here ya go:

    http://www.geocities.com/ranchero50/subframe.html
    and
    http://www.oldwestracing.com/index.html?http://www.oldwestracing.com/articles/subconn/subs.htm

    Hope this helps. I've got the steel ready, just need some time off work to do the work. $13 for 2 sections of 64" length 1" x 2" - .125" steel is pretty good. $13 + a few dollars or lunch for a friend to weld them in for me is better than dishing out $100-150 plus cost of welding by a shop. I'll take the DIY route. ;)
