New Griffin Radiator

Discussion in '1974 - 1978 Mustang II Talk & Tech' started by James75, Dec 27, 2010.

  1. James75

    James75 Member

    Joined:
    Jan 14, 2008
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    SD

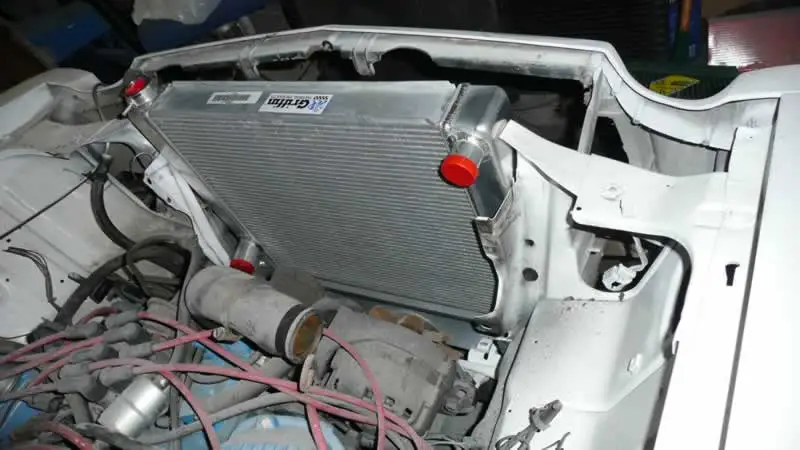

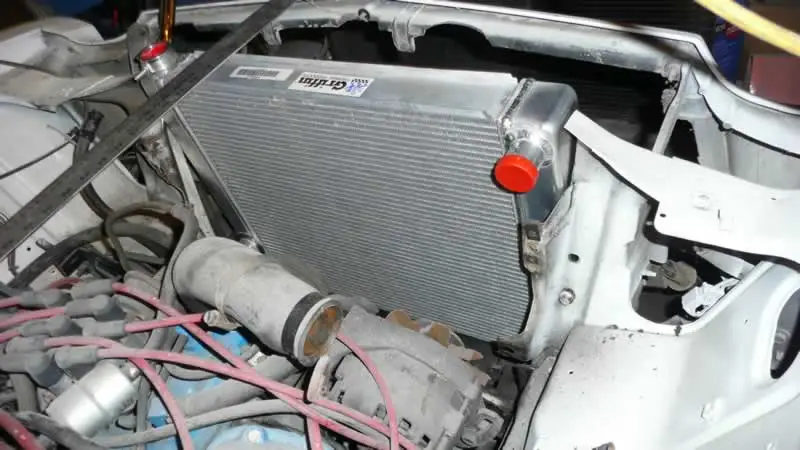

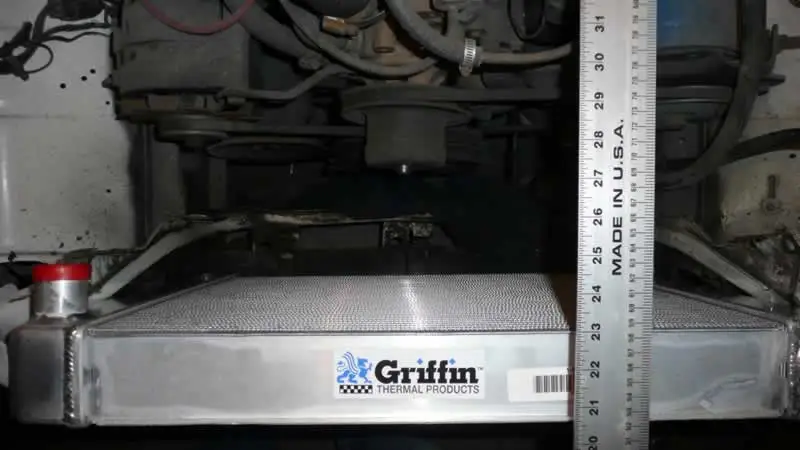

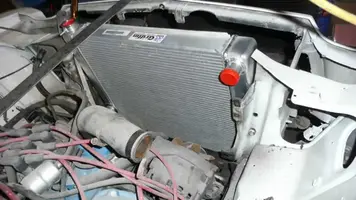

    I wanted to install the biggest crossflow radiator I could fit in and with some cutting I managed to squeeze it in there :) Now I just have to make brakets on the top and bottom to hold it in there. With the radiator all the way forward up against the grill/headlight support, I have about 4" clearence from the water pump. No trans cooler Summit part GRI-1-56222-X


    Attached Files:

    #1
  2. James75

    James75 Member

    Joined:
    Jan 14, 2008
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    SD

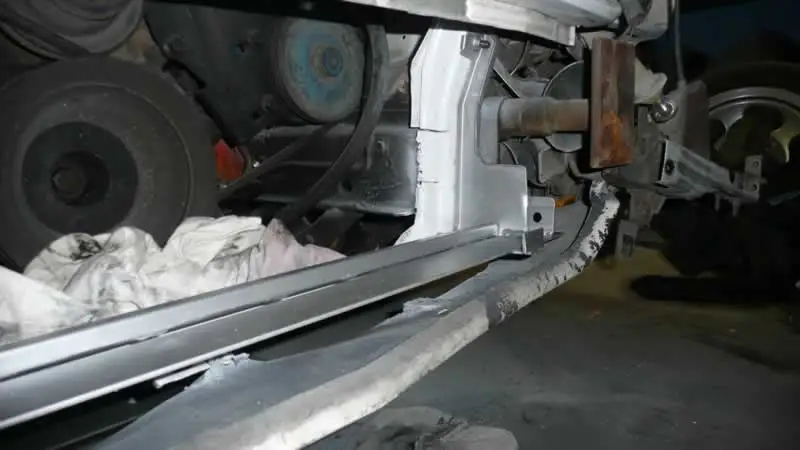

    Made the bottom support using the brackets on the side with some 1/8x3 and 3/4x3/4 steel welded onto them and made a notch to clear the bottom hose. Nothing was attached to them when I disssembled the front. What were these brakets used for originally?


    Attached Files:

    #2
  3. 76mach1

    76mach1 New Member

    Joined:
    Oct 14, 2008
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    1
    with all the brackets gone, how are you gonna hold the hood down?

    #3
  4. Jeffrey

    Jeffrey New Member

    Joined:
    Dec 30, 2010
    Messages:
    35
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Spokane, WA
    Maybe Velcro? :rlaugh:

    #4
  5. James75

    James75 Member

    Joined:
    Jan 14, 2008
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    SD
    Hehe, hood lock. Still don't know what the brackets on the side were used for, maybe the air condenser that was long gone when I got the car? Don't remember, it was about 20 years ago.

    #5
  6. 76mach1

    76mach1 New Member

    Joined:
    Oct 14, 2008
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    1
    i thought the hood lock was attatched to the piece you cut out to install your rad, how are you gonna reattach it?

    #6
  7. James75

    James75 Member

    Joined:
    Jan 14, 2008
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    SD
    Oops, meant to write hood pin.

    #7
  8. James75

    James75 Member

    Joined:
    Jan 14, 2008
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    SD

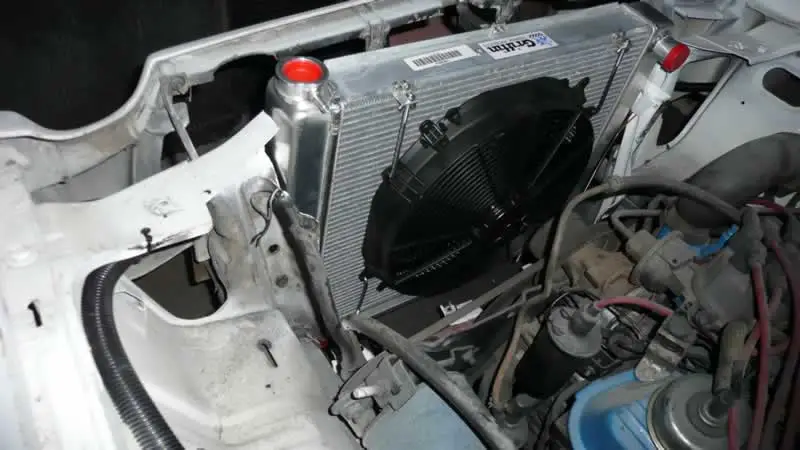

    I mounted a 16" Spal fan with some $2.99 battery hold downs. It's solid, the car wiggles as I pull on it in any direction.

    #8
  9. Mstng2

    Founding Member

    Joined:
    Jun 27, 2002
    Messages:
    797
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    - - Zion - -
    How much was that Radiator? I know Ron Davis makes a custom fit aluminum for the II with no mods required.

    #9
  10. rufus

    rufus New Member

    Joined:
    Feb 19, 2000
    Messages:
    35
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago
    Those brackets were indeed for the A/C condenser. My brackets are still attached to the condenser sitting on the shelf.

    #10
  11. feeble

    feeble Member

    Joined:
    Jul 31, 2000
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Yankton, SD
    Griffin makes radiators specifically for the II as well.

    #11
  12. James75

    James75 Member

    Joined:
    Jan 14, 2008
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    SD
    It's a fairly low cost radiator, this one's a little higher cost because of the 1 1/4 in. tube size.
    Code:
    Griffin Thermal Products 1-56222-X $269.95
    Radiator, Universal, Aluminum, Natural, 26 in. Wide, 19 in. High, 3.0 in. Thick, Each
    Radiator Style		Crossflow
    Overall Width (in)	26.000 in.
    Overall Height (in)	19.000 in.
    Overall Thickness (in)	3.000 in.
    Row Quantity		Dual-row
    Radiator Finish		Natural
    Radiator Material	Aluminum
    Transmission Cooler	No
    Inlet Location		Upper passenger side
    Inlet Size		1 1/2 in.
    Outlet Location		Lower driver side
    Outlet Size		1 3/4 in.
    Tube Size		1 1/4 in.

    #12
