Nitrous Install Wiring...

Discussion in 'Fox 5.0 Mustang Tech' started by sen2two, Dec 31, 2013.


  1. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29

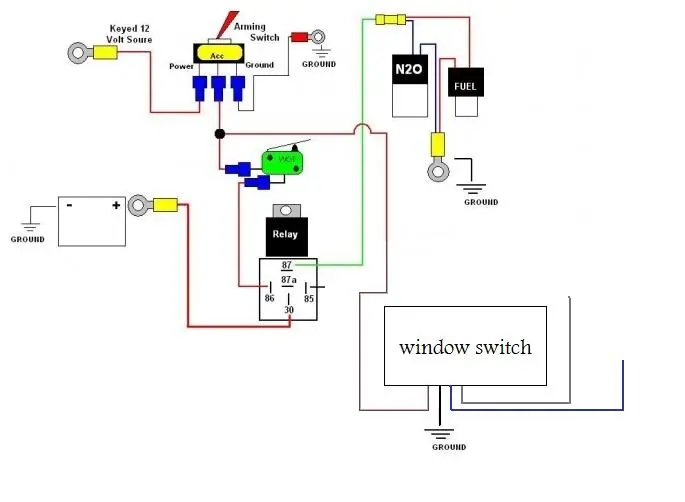

    I pulled this diagram from Google and changed it slightly to fit my parts and car. But I am not 100% it is correct and not sure where to put the blue and grey wire from the window switch...

    The grey wire goes to input for the tach signal. (Not really sure where is the best place to get splice in to?)

    The blue wire goes to the negative/ground side of the device that I want to activate. (Does this go to the ground of the solenoids?)


    Any help?



    [​IMG]

    #1
  2. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29

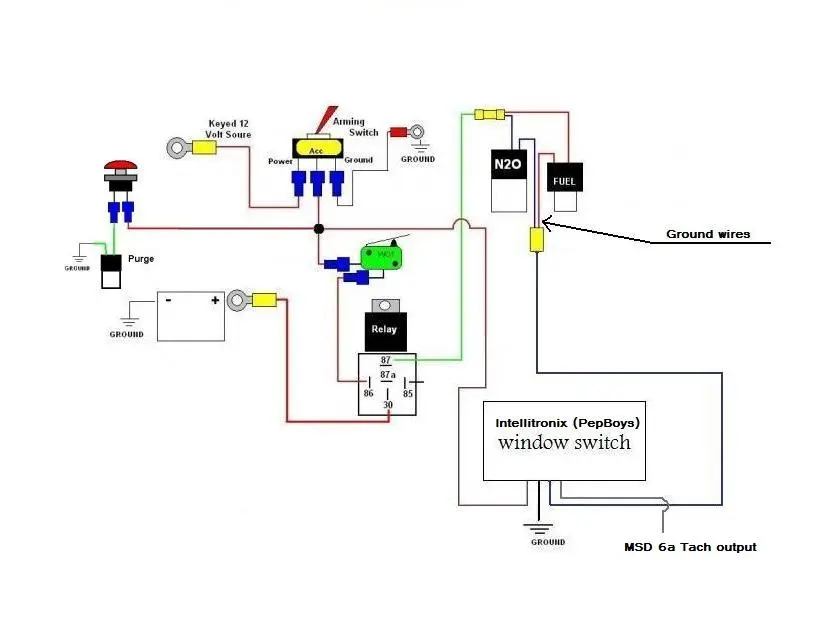

    This is my updated version of the previous posted diagram... I am only really worried about how I have the solenoid grounds ran through the window switch. I am not 100% sure this is correct. Any help?

    [​IMG]

    #2
  3. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,303
    Likes Received:
    1,393
    Trophy Points:
    144
    Location:
    South Jersey
    #3
  4. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,303
    Likes Received:
    1,393
    Trophy Points:
    144
    Location:
    South Jersey
    Both from the Leash Electronics Website:

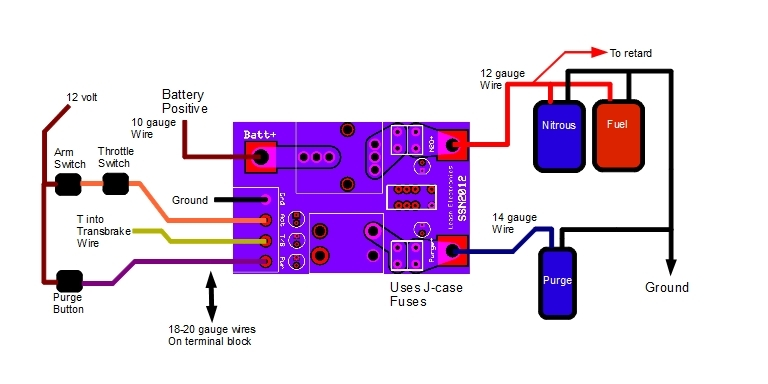

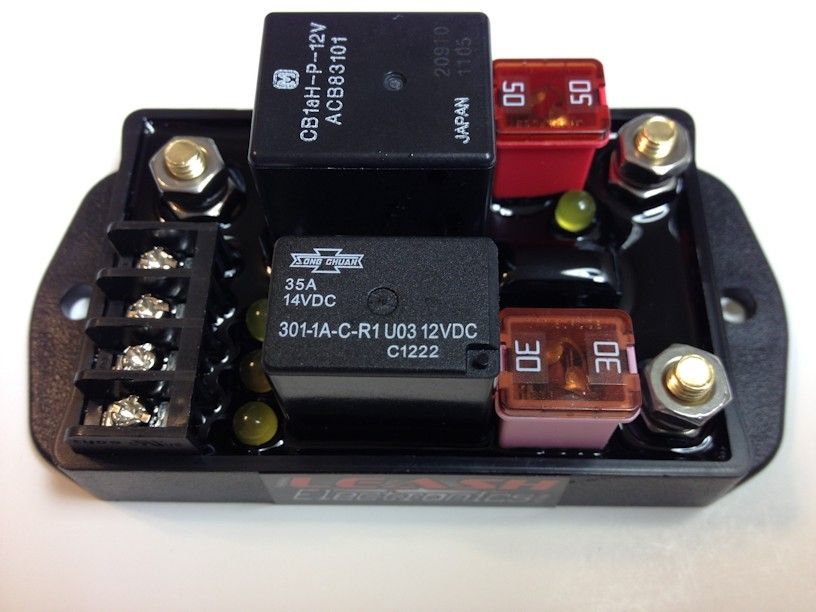

    smugshot_5234609.jpg SingleStageNitrousDiagram.jpg

    I am in no way affiliated with this guy, just really like his stuff and use it in my car and customers cars personally!

    #4
    85rkyboby and A5literMan like this.
  5. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29
    That is a really nice set up. But not only am I cheap, I am poor. lol. I get 99% of my parts through trading. I doubt he's in for a trade.

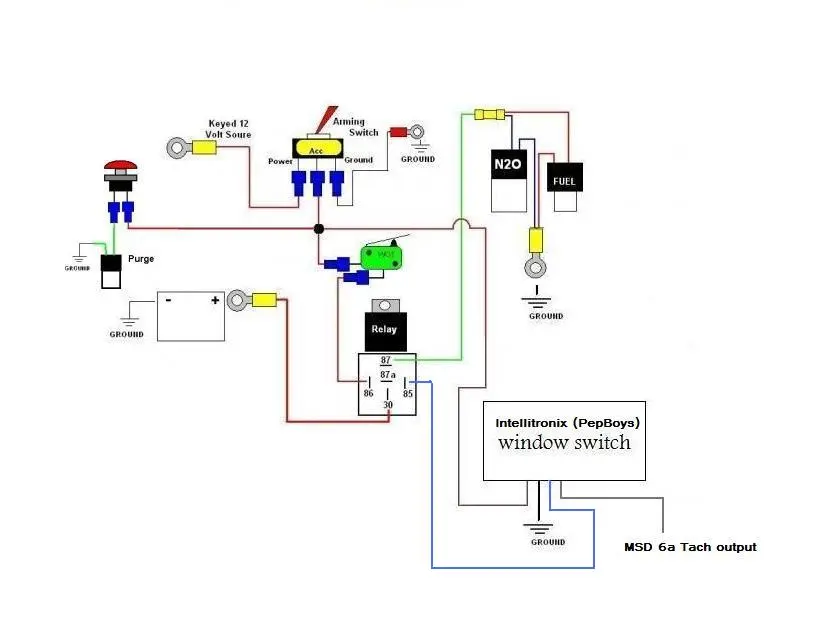

    So this is how I am currently (half way through it rained on me) wiring it up... Should work out nicely. Unless you or anyone else spy's something wrong?







    [​IMG]

    #5
  6. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,501
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,242
    Trophy Points:
    174
    Location:
    a van down by the river
    cheap, poor and hotrod don't mix well, just sayin

    #6
    84Ttop likes this.
  7. 85rkyboby

    85rkyboby Active Member

    Joined:
    Mar 3, 2011
    Messages:
    830
    Showcase:
    59
    Albums:
    2
    Likes Received:
    83
    Trophy Points:
    39
    Location:
    South ATL
    Sounds like most cl adds.

    #7
  8. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29
    I understand the modo:

    Cheap, Fast, Reliable. You can only pick two.

    I do have above average trading skills. I also weld, machine, fabricate, and install all my own parts. Making the amount of money needed much less than most.

    Either way, does my diagram look correct for those experienced in nitrous installs with window switches?

    #8
  9. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,303
    Likes Received:
    1,393
    Trophy Points:
    144
    Location:
    South Jersey
    The schematic you have looks good, how big of a relay did you plan to use on the solenoids? Also what is the amp draw on the purge solenoid? (I just would be concerned about circuit wire sizing)

    #9
  10. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,303
    Likes Received:
    1,393
    Trophy Points:
    144
    Location:
    South Jersey
    I think the controller I posted is only 55$ for what it's worth and it makes a super nice clean install.

    #10
