Schematic and routing for Short Belts

Discussion in 'Fox 5.0 Mustang Tech' started by Roland69, Jul 4, 2006.

  1. Roland69

    Roland69 Sergeant Tangnet

    Joined:
    Sep 17, 2005
    Messages:
    3,102
    Likes Received:
    3
    Trophy Points:
    58
    Location:
    Port Elgin, Ontario
  2. Mendez33

    Mendez33 New Member

    Joined:
    Jan 27, 2006
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    0
    Thanks for posting that! I've been looking for the belt routing schematic for some time now. I recently bought a 87' mustang and the previous owner deleted the smog pump and the A/C. If you saw how the belt is being ran now you would laugh. The belt runs on both sides of the tensioner. I don't know how he did it, but when I looked at it I knew something didn't look right. Now I have something to go off of. Thanks again.

    #2
  3. Roland69

    Roland69 Sergeant Tangnet

    Joined:
    Sep 17, 2005
    Messages:
    3,102
    Likes Received:
    3
    Trophy Points:
    58
    Location:
    Port Elgin, Ontario
    no prob's

    #3
  4. Nasty Nate

    Nasty Nate New Member

    Joined:
    Jan 31, 2006
    Messages:
    67
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Portland, OR
    Can you take the AC off too?

    #4
  5. whtnotch

    whtnotch New Member

    Joined:
    Jan 8, 2007
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago
    Is there a kit to remove the a/c, p/s ,and using smog idler pulley? It don't seem that you can?

    #5
  6. Roland69

    Roland69 Sergeant Tangnet

    Joined:
    Sep 17, 2005
    Messages:
    3,102
    Likes Received:
    3
    Trophy Points:
    58
    Location:
    Port Elgin, Ontario

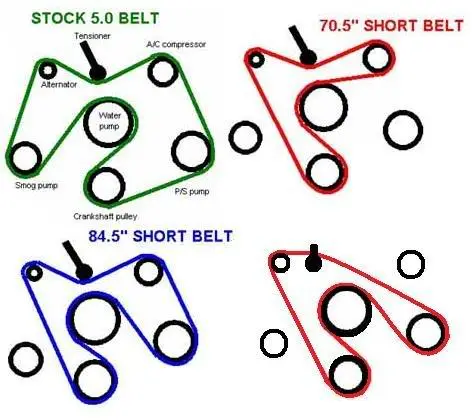

    [​IMG]

    dont know what happened to the other pic

    #6
  7. dcurtis

    dcurtis Active Member

    Joined:
    Jan 20, 2006
    Messages:
    633
    Likes Received:
    1
    Trophy Points:
    29
    Wont the stock vs. the no smog routing cause reverse water pump rotation? Never mind I got it now, just looks funny in the pic.

    #7
  8. BONE_STOCK

    BONE_STOCK New Member

    Joined:
    Jun 28, 2003
    Messages:
    70
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Massachusetts
    What size belt would I need if I went with that bottom right pic? The no smog and no ac. Looks like the belt is on the opposite side of the tensioner? How's that work?

    #8
  9. speedtrip

    speedtrip Member

    Joined:
    May 22, 2005
    Messages:
    93
    Showcase:
    2
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    9
    Location:
    Jerkwater, U.S.A
    Belt goes under tensioner. I have non ac car and i deleted smog like pic in lower right. I have underdrive pulleys and needed 72 inch belt.

    #9
  10. redstang50

    redstang50 New Member

    Joined:
    Feb 13, 2009
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Grants Pass, OR
    how does the belt go under the tensioner without hitting the water pump?

    #10
  11. korywiesner

    korywiesner New Member

    Joined:
    Sep 29, 2007
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Gray, tn
    Very close.....I had this setup on an 83 vert. Still though...it don't hit.

    #11
  12. 1SIKSOL

    1SIKSOL New Member

    Joined:
    Nov 14, 2010
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    0
    mine is the bottom left with under drives on the crank and water .76in was mine and there is like 3/16ths between the tensioner and the water pump. i might try the bottom right. this week some time

    #12
  13. Bullitt95

    Bullitt95 Active Member

    Joined:
    Jun 13, 2007
    Messages:
    1,306
    Showcase:
    4
    Albums:
    1
    Likes Received:
    25
    Trophy Points:
    49
    Location:
    Al Ain, United Arab Emirates

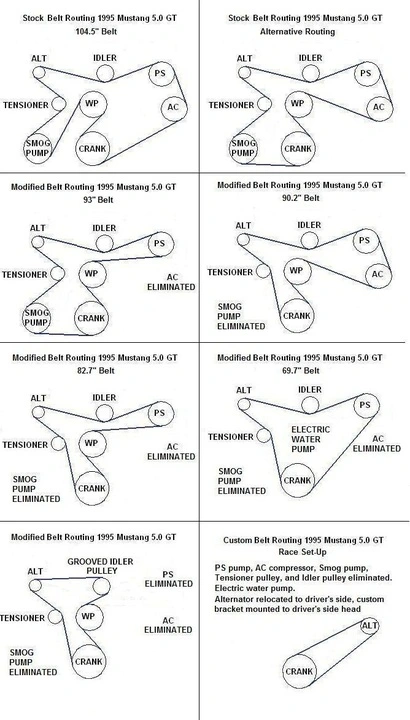

    Here are my schematics for the SN95 5.0 (belt lengths assume stock pulleys):

    [​IMG]

    #13
  14. 1SIKSOL

    1SIKSOL New Member

    Joined:
    Nov 14, 2010
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    0
    so i looked a at my and it seems my belt stretched and is dangerous close to touchin it self any one know how to make the tensionor go up instead of down?

    #14
  15. Illuminator

    Illuminator Active Member

    Joined:
    Nov 30, 1999
    Messages:
    220
    Showcase:
    8
    Albums:
    2
    Likes Received:
    10
    Trophy Points:
    29
    Location:
    So. Cal
    Just put a ribbed Idler pulley on mine. Will test and take pix tomorrow. Looks like the alignment is a little off from the ribbed idler, not sure of how to fix that short of machining something.

    #15
  16. KyleEBK

    KyleEBK Member

    Joined:
    Jan 27, 2008
    Messages:
    139
    Likes Received:
    5
    Trophy Points:
    19
    think theres some pictures missing from this thread now, I have a 92 5.0 engine with the smog deleted and the ford racing ac delete bracket that relocates the PS pump to old AC position. think I was using a 73 inch belt, I have a new alternator with a 1.8 inch pulley on it now,should i use a 72.5 or 72 incher? wonder if they make em that size

    #16
  17. KyleEBK

    KyleEBK Member

    Joined:
    Jan 27, 2008
    Messages:
    139
    Likes Received:
    5
    Trophy Points:
    19
    forgot to mention it has a 3g alt in it now

    #17
  18. Stay Shady

    Stay Shady Member

    Joined:
    Mar 28, 2014
    Messages:
    22
    Likes Received:
    6
    Trophy Points:
    14
    Location:
    Litchfield, IL
    If the 73" belt is loose go for a 72", or string it and measure.

    #18
  19. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt"
    SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,809
    Likes Received:
    346
    Trophy Points:
    124
    Location:
    Massachusetts
    You would use the RED belt routing in the very first pic (a couple down from original post)

    As for belt lenght....FAR too many variations in what pulleys everyone is using. Stock, aftermarket, mixed and matched alternators, etc.

    Best way to find a belt lenght is to get a peice of string, wrap it around the pullies in the appropriate pattern and measure it. I'd buy a few belt sizes and go from there. Settle on one on the "tight" side of the tensioner range as the belt will stretch slightly.

    #19
    7991LXnSHO likes this.
  20. 7991LXnSHO

    7991LXnSHO Well-Known Member

    Joined:
    Sep 1, 2010
    Messages:
    1,354
    Showcase:
    5
    Albums:
    1
    Likes Received:
    109
    Trophy Points:
    64
    Location:
    North Platte, NE
    You can take an old belt that is longer, route it, Gorilla tape it over itself and go to the parts store. If they do not have the belt measuring tool (or give you a dumb look when you say you need one this size), go elsewhere or ask for the old guy behind the counter.

    #20
