Tail light lens install help

Discussion in 'Fox 5.0 Mustang Tech' started by xherdlr, Nov 9, 2007.


  1. xherdlr

    xherdlr New Member

    Joined:
    May 20, 2003
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    0
    Im replacing a broken passenger taillight lens. I ordered one from 50 resto and it came with mounting clips and stickey weather strip....Do I need to clean the old adhesive off or not? Has anyone done this? Any tips will help....

    Kelly
    #1
  2. 4G-KDMP

    4G-KDMP Member

    Joined:
    Jul 23, 2005
    Messages:
    920
    Likes Received:
    3
    Trophy Points:
    19
    as long as you were sent new butyl sealer so seal the lens and the housing i'd go ahead and use it. the old butyl sealer will probably work fine but why take a change.

    remove the old---install the new it's just that simple.
    #2
  3. bloopbloob

    bloopbloob Member

    Joined:
    Sep 27, 2006
    Messages:
    628
    Likes Received:
    4
    Trophy Points:
    16
    i just did this (AGAIN:rolleyes: ) like 2 days ago. definitely use the new butyl tape, and get that old stuff off. my lenses were starting to pull away from the housing, so i took them off again, peeled the old stuff off, bought some new tape, and they are good to go now.
    #3
  4. xherdlr

    xherdlr New Member

    Joined:
    May 20, 2003
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    0
    Thanks, so clean the old and use the new....Did you put the tape on the housing or on the lens before installing?

    Kelly
    #4
  5. 4G-KDMP

    4G-KDMP Member

    Joined:
    Jul 23, 2005
    Messages:
    920
    Likes Received:
    3
    Trophy Points:
    19
    it's easier to put the tape on the lens, i think.
    #5
  6. xherdlr

    xherdlr New Member

    Joined:
    May 20, 2003
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    0
    what did you all use to clean the old adhesive off??

    Kelly
    #6
  7. talladam

    talladam New Member

    Joined:
    Apr 3, 2007
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    0
    patience, a flathead screwdriver and 20 minutes each lens. paint the inside of the housing a nice bright silver, you'd be amazed at how much better and brighter the lights turn out.
    #7
  8. MahFiVeOh

    MahFiVeOh Founding Member

    Joined:
    Apr 26, 2002
    Messages:
    551
    Likes Received:
    2
    Trophy Points:
    29

    I wouldnt worry about removing all of the old adhesive, just clean the majority of the old stuff off and use the new stuff.
    #8
  9. bloopbloob

    bloopbloob Member

    Joined:
    Sep 27, 2006
    Messages:
    628
    Likes Received:
    4
    Trophy Points:
    16
    i disagree. if you try and lay new butyl tape over the old stuff, it will be too thick, and the clips won't reach the lens. you want more than just the tape to be holding the lens on. all i used to remove it was a flathead screwdriver also. It helps if the tape is cold when removing it also, helps it stick together and peel off in 1 piece ( well, bigger pieces). removing the old lens is easier when its hot. i think its easier to put the tape into the grooves in the housing, personally.
    +1 on painting the housing silver! i have clear lx covers, and it makes a huge difference, since you can kind of see through them.
    heres mine
    [​IMG]
    [​IMG]
    #9
  10. xherdlr

    xherdlr New Member

    Joined:
    May 20, 2003
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    0
    Thanks for the advice....I dont think Im gonna paint the inside. Just replacing one lens..Not both...but good advice for the future..

    Kelly
    #10
  11. magnj

    magnj New Member

    Joined:
    May 31, 2007
    Messages:
    145
    Likes Received:
    0
    Trophy Points:
    0
    I just had to do the same thing. I cleaned off the old goo with a flathead and applied the new. Word to the wise, don't use too much. 50resto gave me enough for 2 lenses and the first time I did it I couldn't get it sealed up all the way, so I took it off, took about half the new goo off and now it fits but I couldn't get it sealed properly, I have water in the assembly :-/
    #11
  12. SVT32VDOHC

    SVT32VDOHC waiting for the next hack atta Founding Member

    Joined:
    Nov 23, 2001
    Messages:
    4,486
    Showcase:
    18
    Albums:
    1
    Likes Received:
    21
    Trophy Points:
    69
    Clean the old stuff....get a good beutel tape and put the stuff in around the backing. Paint the lens silver as suggested. You don't want any condensation building in there....so take the time and do it right!
    #12
  13. Flavadave4

    Flavadave4 Active Member

    Joined:
    Nov 29, 2003
    Messages:
    1,082
    Showcase:
    1
    Albums:
    1
    Likes Received:
    16
    Trophy Points:
    49
    Clean the old stuff with a heat gun or a hair drier and install new.
    #13
  14. bloopbloob

    bloopbloob Member

    Joined:
    Sep 27, 2006
    Messages:
    628
    Likes Received:
    4
    Trophy Points:
    16
    i think that would make it harder to get it off. when its cold, its solid and tends to peel off in strips. iwhen hot, it just stretches and is a gooey mess.
    #14
  15. ALMOST STOCK

    ALMOST STOCK Founding Member

    Joined:
    Sep 23, 2000
    Messages:
    1,248
    Likes Received:
    3
    Trophy Points:
    38
    I've done 3 different tail light lens swaps.

    1st time ...I used new butyl.
    2nd time ...I used new butyl.
    3rd time ..reused the butyl from the 2nd time, no leaks in 5 yrs.

    It is easier however to remove all the butyl rope when it's cool rather than warming it up.
    #15
  16. magnj

    magnj New Member

    Joined:
    May 31, 2007
    Messages:
    145
    Likes Received:
    0
    Trophy Points:
    0
    And now my brake light is out. Guess I'm gonna have to redo that...
    #16
  17. bloopbloob

    bloopbloob Member

    Joined:
    Sep 27, 2006
    Messages:
    628
    Likes Received:
    4
    Trophy Points:
    16
    you dont mean take the lense off again do you? you should be able to change the bulb from the backside of the housing, from inside the trunk/hatch
    #17
  18. jfman

    jfman New Member

    Joined:
    Jan 13, 2006
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    0
    Anybody ever tried to use windowbond for a permanent seal? (the black caulk windshield installers use)
    #18
  19. faststang90

    faststang90 Member

    Joined:
    Nov 6, 2007
    Messages:
    507
    Likes Received:
    0
    Trophy Points:
    17
    lights

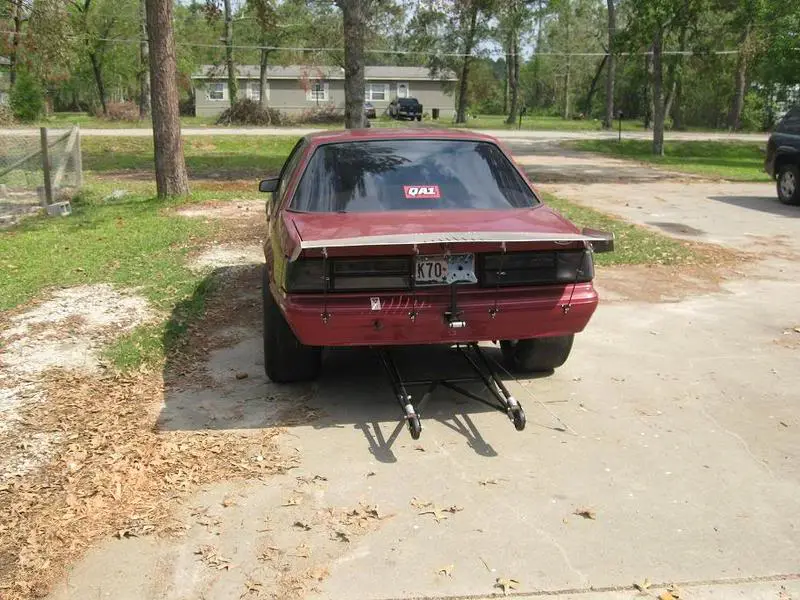

    i did the smoked lights on my car and i used the old stickey weather but its a race car and its in the shop most of the time

    [​IMG]
    #19
  20. eljefe

    eljefe New Member

    Joined:
    Jun 9, 2009
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    0
    sorry to bring back an old thread,

    i was looking at the tailight lense kit on late model, and my question is what r the clips for? anyone got picture of them? and how r they installed?

    i can z the use of the butyl tape, but cant z how the clips would be installed, thanx

    [​IMG]
