    Hi G,

    Reen and myself are going to race for titles when complete. I better get that Ford racing twin screw supercharger on order ASAP. :D

    OBTW, reen is doing just a fantastic job on this car. I really want to get our two cars together for at least one photo op.

    Keep up the good work

    SN65

    #42
  3. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    That would be killer to have some photos taken together. Side-by-side moving shot emphasizing that these are "go" cars, not just "show" cars. :nice:

    Things are a bit slow this week as I've got a customer car here for a MII setup and perhaps a Cobra IRS. Gotta pay the bills! :p

    #43
  4. 84convertablegt

    84convertablegt New Member

    Joined:
    Nov 6, 2004
    Messages:
    590
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Columbus, OH
    off topic, but i had my whole engine rebuilt by kar. very nice people, im lucky i live in columbus, oh so i can just drive on down. its one of those places where they call u by your first name and a place you want to spend your money.

    #44
  5. bgs66

    bgs66 Member

    Joined:
    Oct 28, 2003
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Jax.,FL
    Very nice work. Any updates?

    #45
  6. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    Spent the last several days doing a MII setup in a customer's car. 13" 6-piston Wilwoods, QA1 coilovers, the works. It's pretty friggin' sweet. Next up on that car is a Cobra IRS followed by an '04 Cobra engine and 6-speed.

    Anyway, I'll be back on the convertible this week. I got the parts to convert it to a return-style fuel system and to do most of the braking system, as well as boring stuff like the complete weatherstrip kit. I'm also itching to crack into the Painless chassis harness.

    #46
  7. BB1966

    BB1966 New Member

    Joined:
    Dec 1, 2004
    Messages:
    297
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Beaufort , NC USA!!!!
    How about some pics of that MII set up you just did Reen???

    #47
  8. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    Ask and ye shall receive:

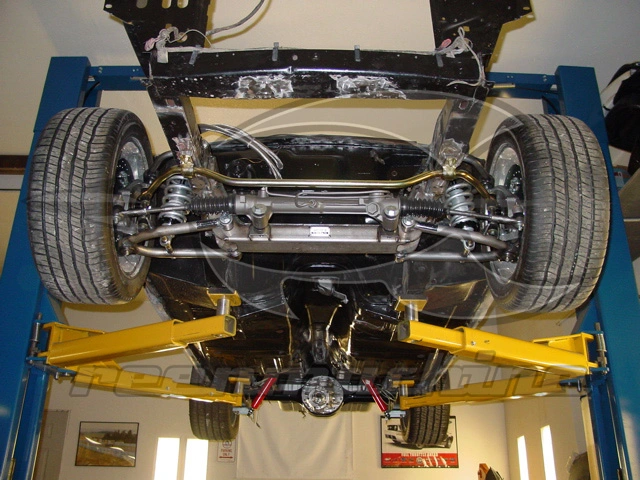

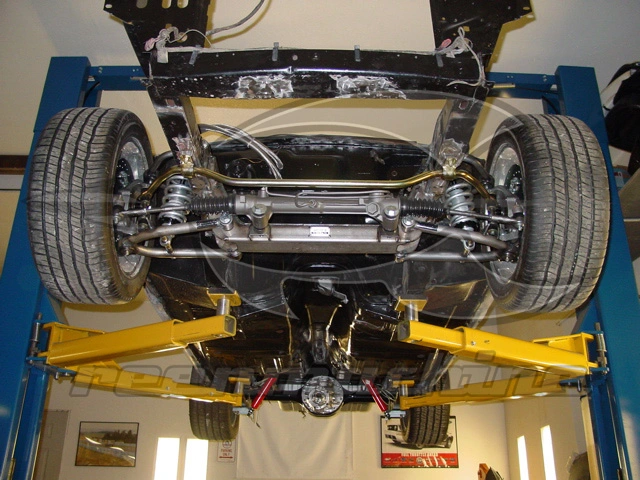

    The finished product:
    [​IMG]

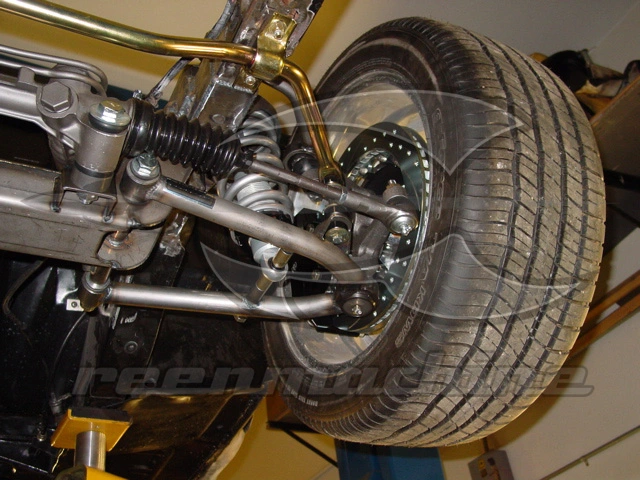

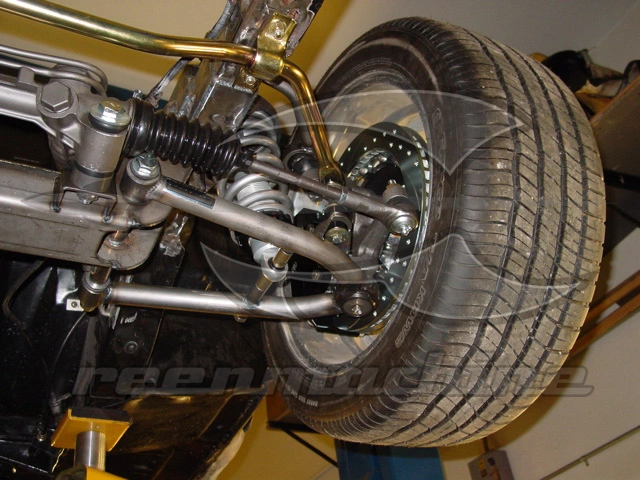

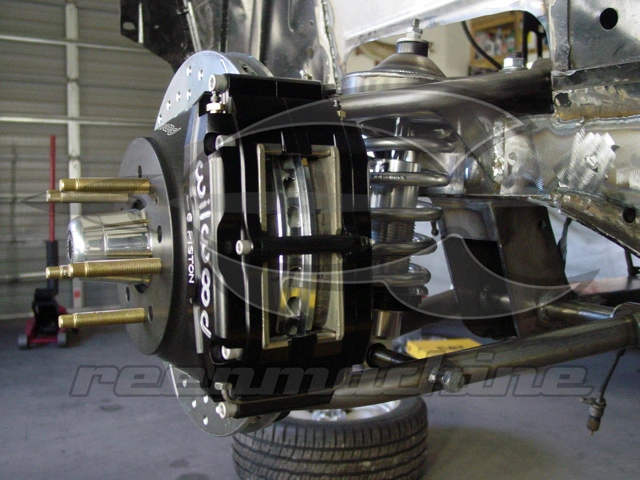

    The 13" big brake kit fits nicely in the 17" wheels:
    [​IMG]

    He wanted long wheel studs and he got them :D:
    [​IMG]

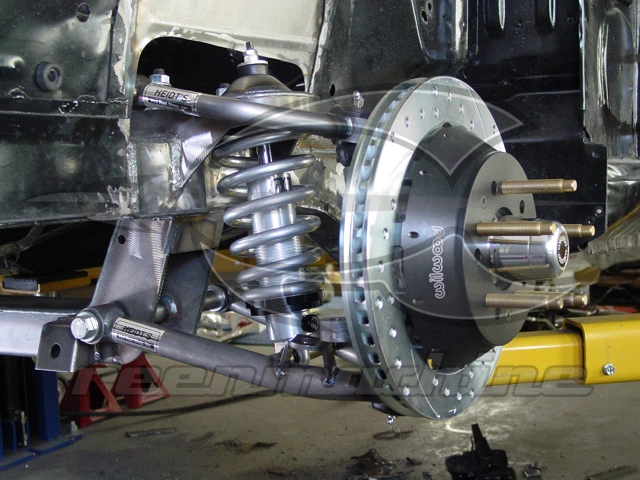

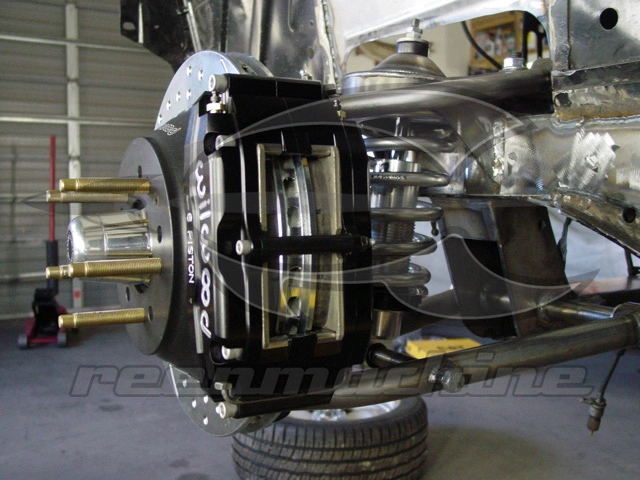

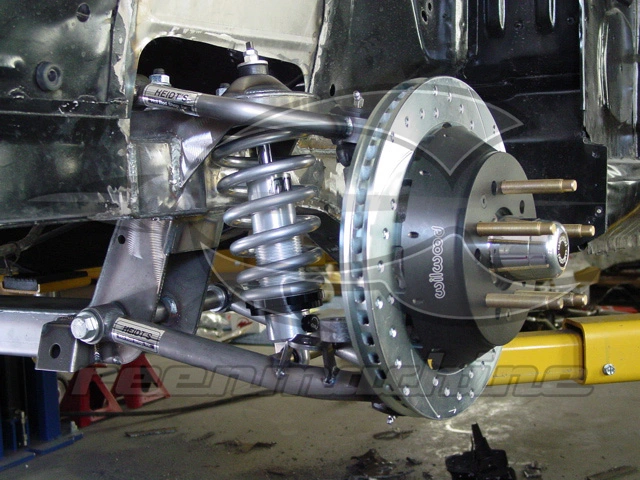

    The brakes are monsters:
    [​IMG]

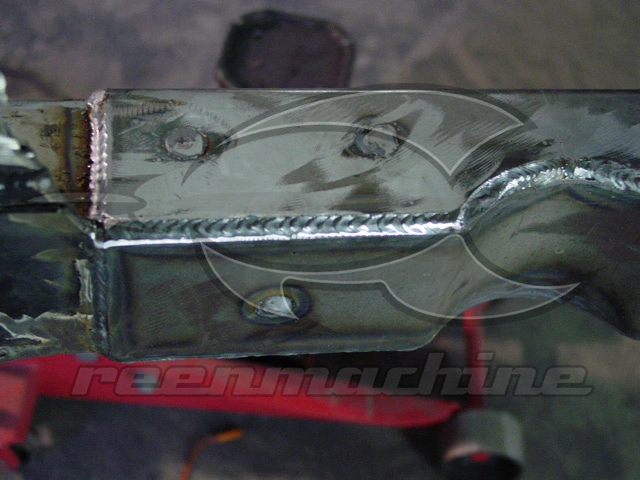

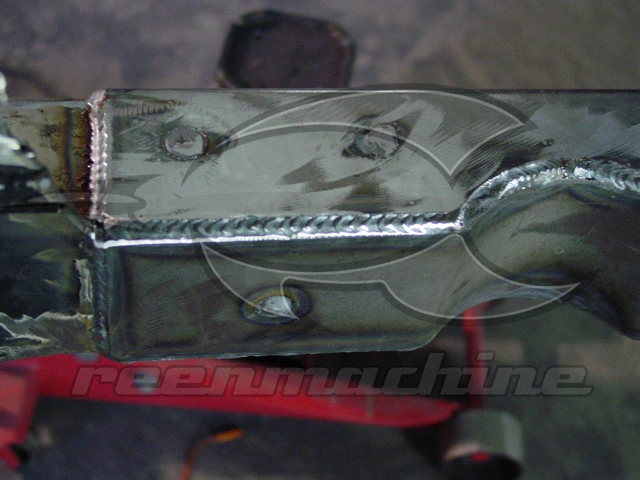

    Just had to show off the welds on the frame rail boxing plates:
    [​IMG]

    #48
  9. MustangMatt1966

    MustangMatt1966 New Member

    Joined:
    Mar 11, 2004
    Messages:
    1,019
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Orlando Fl.
    wow, that is amazing work!!!!! i am very very impressed

    #49
  10. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    Bonus points for anyone who can pick out what's out of place on a '67 unibody in the first picture...

    (besides all of the MII stuff of course)

    #50
  11. MustangMatt1966

    MustangMatt1966 New Member

    Joined:
    Mar 11, 2004
    Messages:
    1,019
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Orlando Fl.
    shoot, hell if i know lol i am not familiar with all this new state of the art stuff :)

    #51
  12. Jester67

    Jester67 New Member

    Joined:
    Sep 21, 2004
    Messages:
    903
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    TN
    Torque box on passenger side. :D
    So what did I win? :banana:

    #52
  13. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    You got it. You win a free set of hacked-up original shock towers for just $39.95 S&H. :p :p

    #53
  14. 96 DOHC Cobra

    Founding Member

    Joined:
    Oct 15, 2001
    Messages:
    545
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Cerritos, CA
    I sent you a PM about a week ago regarding some similar work. Haven't heard back.

    #54
  15. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    Sorry -- I missed the PM. I'll reply right now.

    #55
  16. samwe

    Founding Member

    Joined:
    Jun 18, 1999
    Messages:
    985
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Eagle River, Ak, USA
    Nice looking MII swaps.
    I MII'd my '70 back in '99. It was a junkyard sourced set up, and worked well.
    In '02' I redid it with parts from Street Rod Engineering. and now it works good, but looks better!
    Mine has a completely custom built front subframe.
    One issue is that with a 203 we all use the Fox body pan to get a rear sump, but even that pan has a sump up front to clear the oil pump.
    I have placed mine as low as I could without moving it forward to much.
    It seems to me that with a rear rack the Engine could go back and down a lot.
    In order to do this we would neeed the right rack, and aproporiate spindles.
    It looks like the Heidts superride rear steer would be teh perfect spindle for this.
    Any coments?

    #56
  17. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    On my fastback, I put the original 289 back in for now with the Heidt's MII setup. I put on the rear sump pan and still was able to get the engine pretty much in the original position. I left about 3/8" clearance between the pan and the rack.

    Interesting idea about the Superride setup with the rear rack. I looked at the pics and it may be doable. There'd be a bit more fab since it's not made to go in a Mustang, but so what. I'll ask them about it next time we speak.

    #57
  18. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    I've been messing with the fuel system and electrical system mods to the DOHC engine. I'm converting it to a return-style fuel system and there is a bit of a fitment issue with the Aeromotive fuel rails (see pics). I can probably make it work by bending the mounting tabs but I'm going to talk to them tomorrow to see if I was shipped the wrong thing or something. Anybody use these, or any other aftermarket fuel rail on a DOHC that fit?

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #58
  19. samwe

    Founding Member

    Joined:
    Jun 18, 1999
    Messages:
    985
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Eagle River, Ak, USA
    Looking at the geomtry, I am almost positive I could just mount a correct rack, those spindles, and make new motor mounts. I see no reason to use the whole superride suspension. Heidts makes it sound like it is more than a MII, but look at the geometry, they just use different mounts. It is rear steer MII.

    One thing I have found is that these hot rod companies aren't much for innovation. The can see somthing done once, and make some shiny implementations, but coming up with new ideas, that is rare.

    #59
  20. NasaGT

    Founding Member

    Joined:
    Sep 19, 2002
    Messages:
    2,008
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    Virginia
    Wow, beautiful work reen. :drool:

    This is one of projects I have dreamed about, classic vert, Cobra mod motor, MII and IRS. Someday....

    :nice:

    #60
