VSS POLARITY

Discussion in '1994 - 1995 Specific Tech' started by moosetang408w, May 31, 2010.


  1. moosetang408w

    moosetang408w New Member

    Joined:
    Jul 13, 2005
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Alberta, Canada
    So on my current harness i have my VSS input signal hanging by my transmission. I don't have a plug for my vss sensor and was going to solder/shrinkwrap/dielectric harderner to fill it. Then on the wires to use a weatherpack connector. I have done this lots before and never had a problem. My problem is the VSS sensor I am using is from my old 94 mustang gt transmission and the existing wire harness has since left my garage. i was wondering if anyone could tell me the polarity of this sensor? A pic pointing at which pin is +vss and -vss would be excellent! I want to get this done because my ecu has gear detection and I want to include this with my traction control algorithm. Plus I would like to know how fast I am going....

    Cheers:)
  2. moosetang408w

    moosetang408w New Member

    Joined:
    Jul 13, 2005
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Alberta, Canada
    All I need is someone to say "when looking at the back of the sensor with the pins at the top. The left one is ____ color and the other one on the right is ____ color" I can test it on an oscilloscope when I get home but this would save me some time.
  3. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,270
    Likes Received:
    40
    Trophy Points:
    49
    Location:
    CA

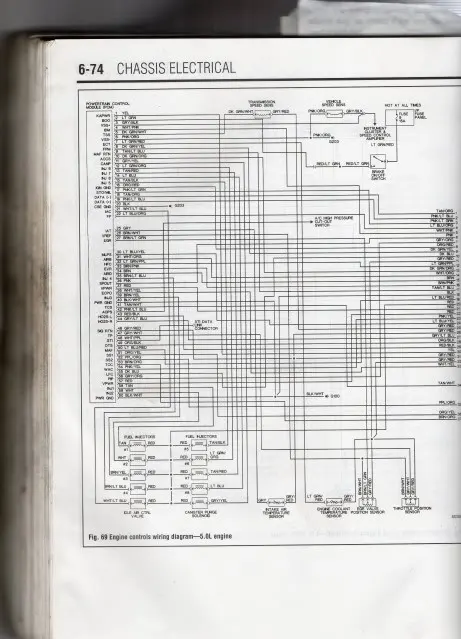

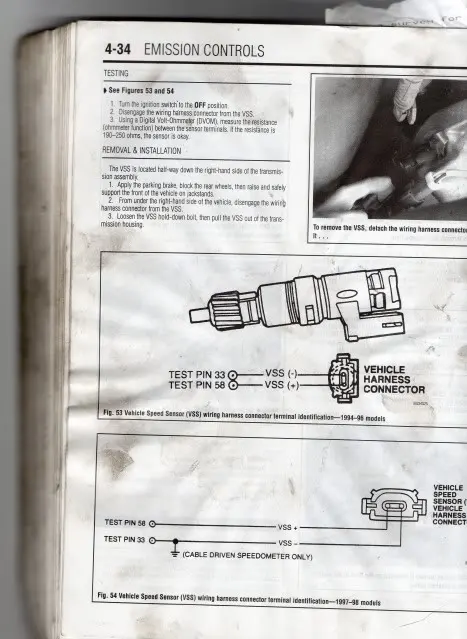

    according to the manual,

    pink/orange= VSS-

    gray/black= VSS+

    just save the pics,and zoom in if you cant see it clearly.

    [​IMG]

    [​IMG]
  4. moosetang408w

    moosetang408w New Member

    Joined:
    Jul 13, 2005
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Alberta, Canada
    Thanks dude man!
  5. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,270
    Likes Received:
    40
    Trophy Points:
    49
    Location:
    CA
    Its a good thing I posted that.
    I forgot myself.

    Removing the SpeedCal for the LRS 3.73 speedo gears.
