1988 Mustang GT Restoration/Modification

The car is a 1988 GT. I've owned it since 2003, but it hasn't seen the road since 2009. Life got in the way and she sat on the back burner for a while. Earlier in 2011, I decided that I wanted to rebuild the car... the right way. It was always a solid "5 foot" car, but like many foxes, it had a lot of little quirks. Years of mismatched modifications and bolt-ons created a lack of reliability and performance issues. Not to mention the stock 100k mile bottom end had seen better days.

So, this is where I am now. Nothing but a shell and some jackstands. I'll spare all the boring disassembly pictures. After all, we all know how to take a car apart. It's the putting back together part that is interesting :).

I smoothed the engine bay a few years ago, but for some reason, the paint didn't take to the primer in some spots. I decided it's best to take it down to the metal and let my painter redo it all correctly.

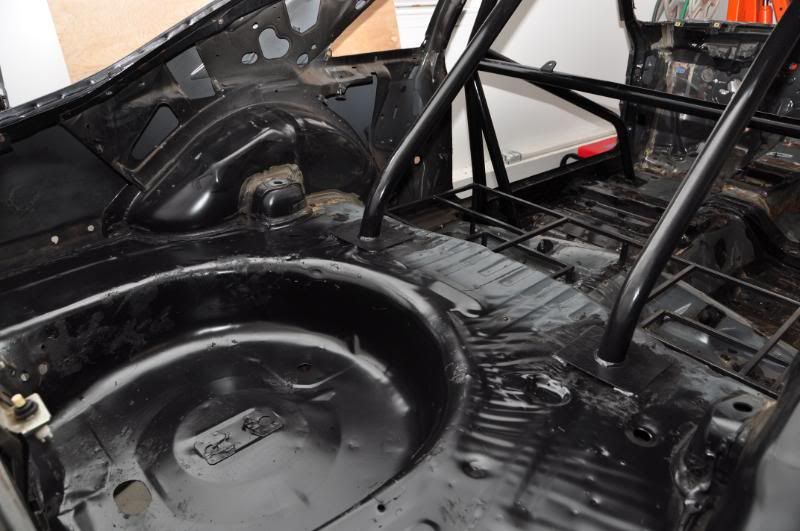

I rid the interior of the factory sound deadening. I'll be laying down my own at some point down the road. I'll explain the purpose of the racks in the rear seat area later on.

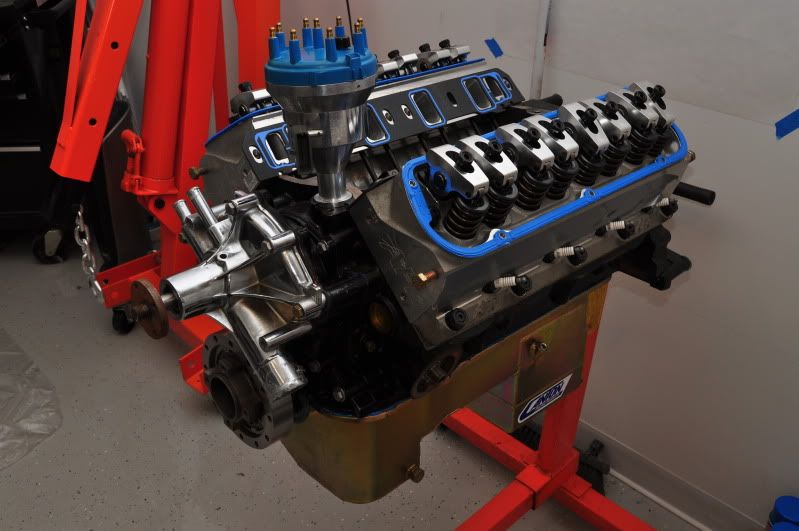

Here's the new powerplant. Dart-based 331 w/ AFR 185 heads and an FTI turbo cam. 9.3:1 CR. Engine built by Rick @ RNH Performance

I'm still in somewhat of a teardown mode on the car. I need to clean up the interior a little more and then I need to strip the paint off the exterior. I have a couple of rust areas to cut and repair. Once all that is done, I'm building a rotisserie to flip the car on its side so the underside can get as much attention as the rest of the car.

The factory sound deadening was removed with dry ice.

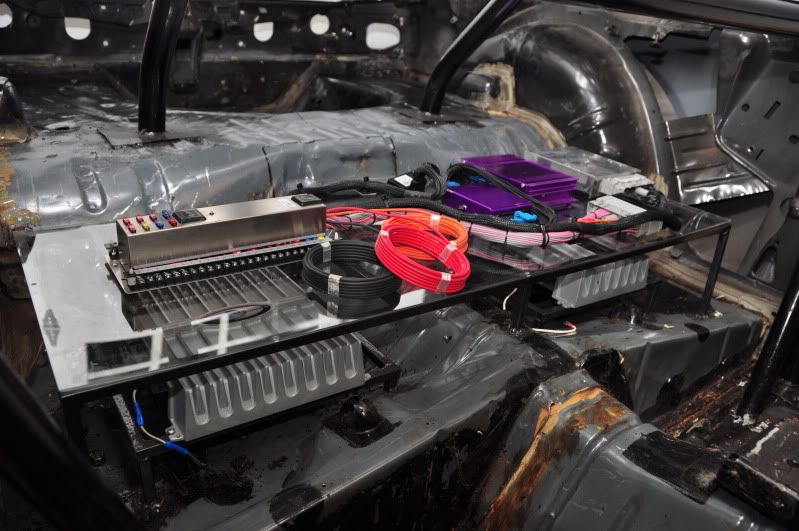

So here is what the setup will look like for all the electronics. The large fused terminal block will be where all the sensors for the engine get connected. I'll be welding together a false floor frame that MDF and carpeting will eventually attach to. The frame will hinge after the roll bar mounts and I'll install some small gas struts so I can easily access the all of the components on the rack.

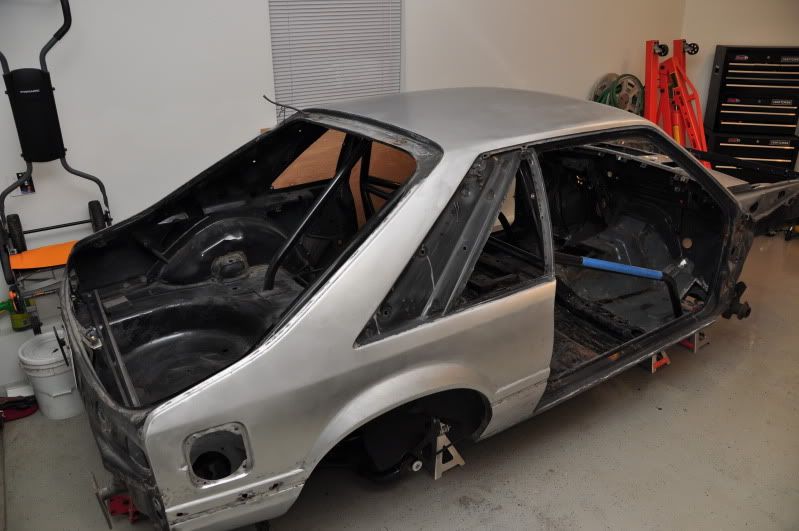

All paint removed:

Found some filler in spots I didn't expect. The car must have been hit in the driver side rear quarter at some point in its life. It's not bad at all, just obvious that repairs were made.

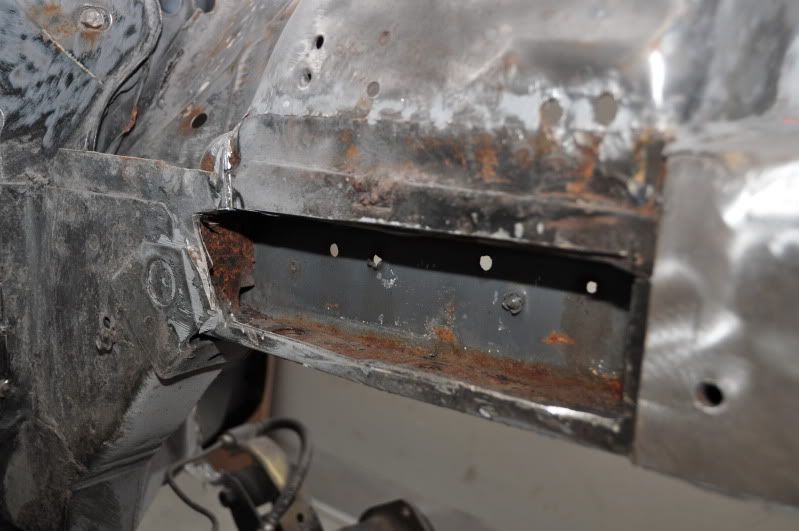

I also cut out the rusted areas of the car. Luckily there aren't many. I knew the frame rail was bad when one of the stock k-member bolts looked like it was being chewed on by a rabbit for 2 decades. I'm going to have to weld in some sectons of pipe to replace the original reinforcements.

The footwells were bad enough to make me cut out some of the floorpan.

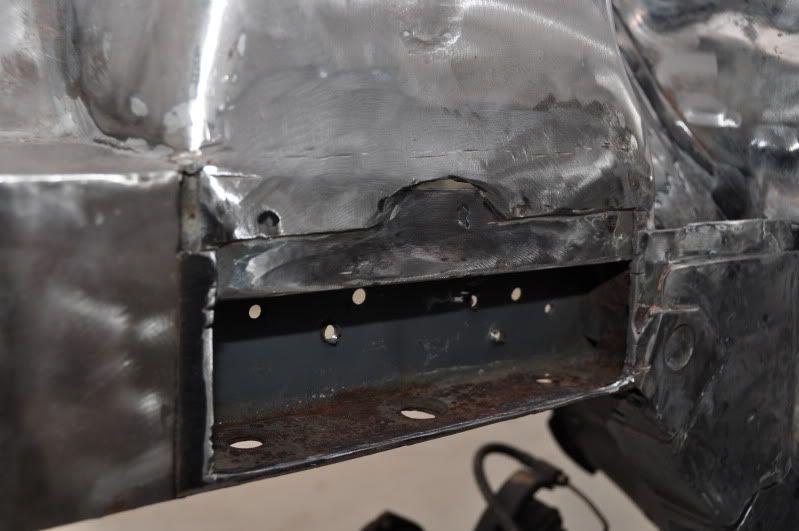

I'm glad I decided to cut open the passenger side framerail. Surprise surprise:

The supports were on their way out. Not as bad as the driver side though.

Cleaned it all up. Just have to order some tubing and metal plate to button it all back together.

First release
Last update
5.00 star(s) 1 ratings

Latest updates

  1. Fuel delivery setup and IRS clean-up

    BBRC 14 gallon aluminum fuel tank I had the tank powder coated in the black. I was...
  2. Undercarriage rotisserie restoration

    First thing I needed to do was repair the footwell damage. I cut out all the rust-infected area...
  3. Engine bay welding and smoothing

    So after I had already welded the large holes near the brake booster location, I decided that I...
  4. Inner fender apron welding and repair & finished engine pictures

    Just to recap, here's the mess I had to make of the inner fender apron to get the turbo to fit...
  5. Turbo mounting and piping modifications

    Here's the turbo. Comp 76mm triple ceramic ball bearing, water cooled, 0.96A/R...
  6. False floor/hatchback area modifications

    I wanted to mount the battery in the rear to keep the engine bay clean, but I didn't want it in...
  7. 03 Cobra IRS installation

    This is essentially the original write-up that I saw regarding the IRS install...
  8. Header modifications and breather can

    It didn't take long for me to run into my first snag. I temporarily bolted up my MM k-member and...
