1991 LX Convertible - Fuel tank will not go back in

Blueinfan

Member
Mar 18, 2021
74
6
18
20
Temecula
Hi Stang Community,

Well this weekend I decided to continue on my mods on my 1991 Ford Mustang LX 5.0 Convertible. I ordered a new fuel tank from LMR. Tank, fuel pump was upgraded to 255LPH, Fuel pump module, fuel level, Fuel Tank Harness, etc. Everything was going smoothly until we tried to install the tank back. Now for some reason the straps are not long enough. And also the fuel filler tube is not properly secure.

What am I doing wrong?

thanks!


Attachments

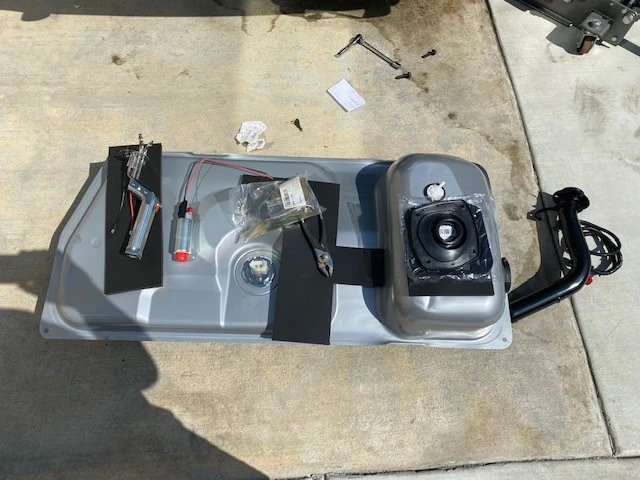

  • Fuel tank.jpg
    Fuel tank.jpg
    98.4 KB · Views: 28

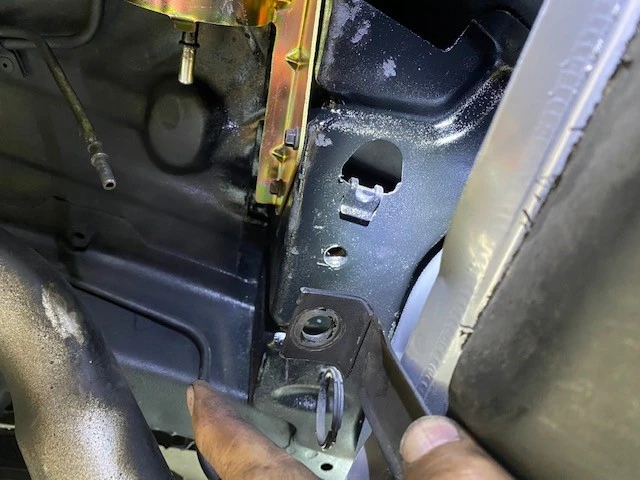

  • short.jpg
    83.5 KB · Views: 26

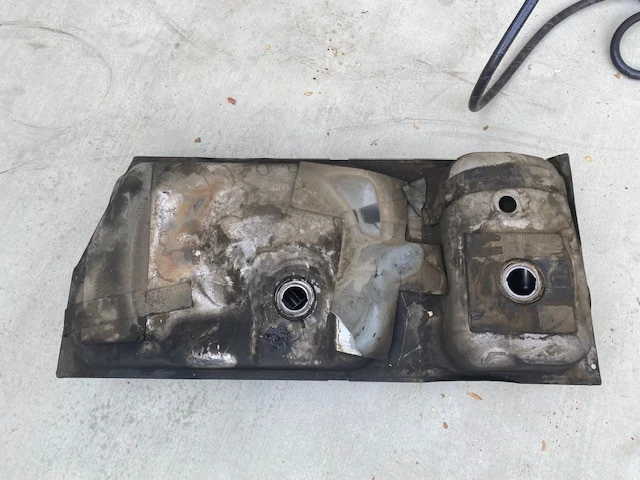

  • old tank.jpg
    old tank.jpg
    93.9 KB · Views: 26

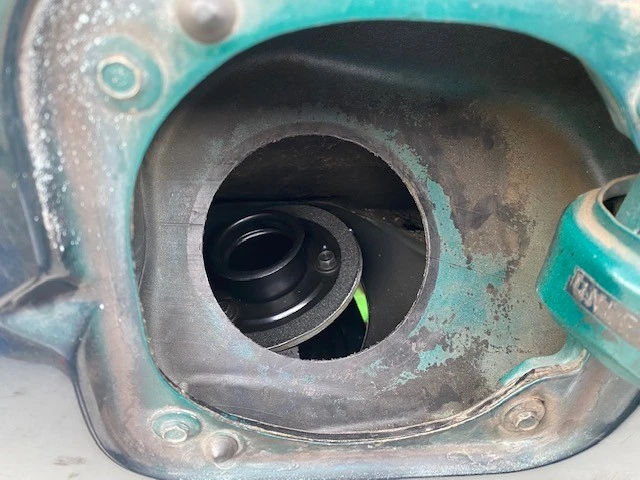

  • fuel filler.jpg
    fuel filler.jpg
    88.7 KB · Views: 37
  • Sponsors(?)


Blueinfan

Member
Mar 18, 2021
74
6
18
20
Temecula
WOW - Thank you! MAN, I tried it several times, and looked and measured the tank several times. I was like, WTF! Did the troll come out and move something. I fought it for 3 hours. I eventually gave up before i got pissed and broke something. These little things are something that LMR doesn't tell you.

Thank you!

I just ordered those Fuel Tank Strap Stud Kit.

Another question, do you know why the fuel filler tube is not secured? I didn't remove anything.


Attachments

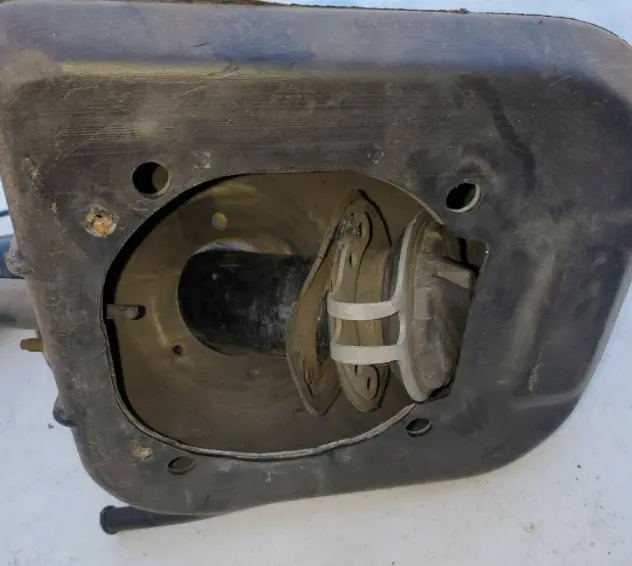

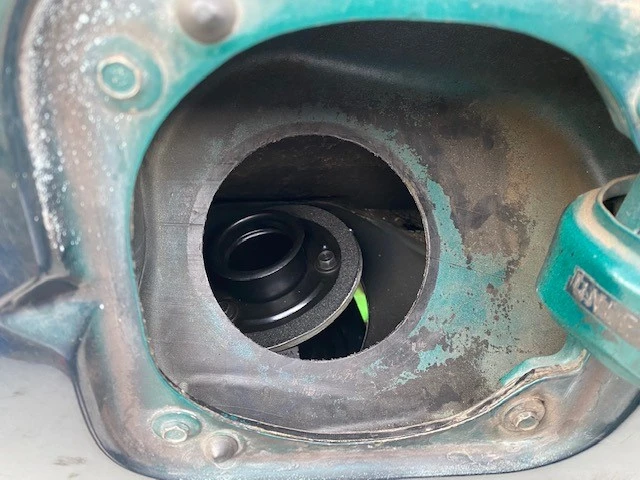

  • fuel filler.jpg
