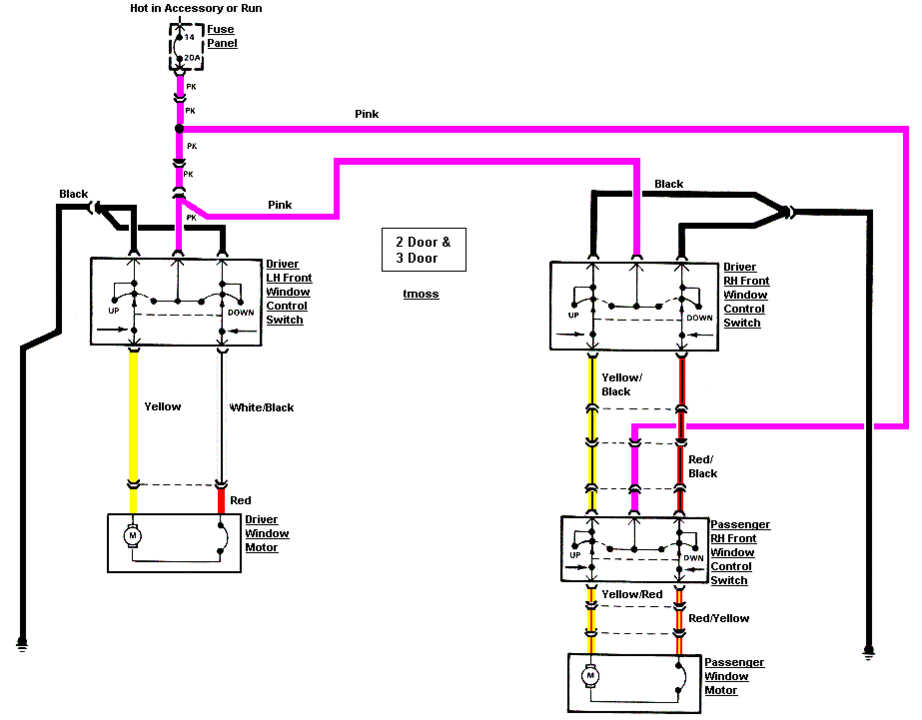

Diagram courtesy of Tmoss & Stang&2birds
Power window circuit
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring
http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.
Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif
Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif
Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif
Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg
Use a test light in the socket of either the window motor or door lock actuator to verify power and switch operation. If you have good power to the motor and actuator, then the switch and wiring are OK. That leaves the door lock actuator and window motor as culprits.
Door lock actuator fix
Follow this link to fix your door lock actuator problems
http://bellsouthpwp.net/l/r/lrichker/Mustang_tech/door_actuator_fix/1_of_8_door_actuator.htm
Stuck with door lock actuators that don't work and don't want to pay the $50+ for a new one? Tried the junkyard ones and found that they last six months and freeze up?
A new actuator for less than $5. Fix one side for $18, do both sides for only $25.
I don't sell parts, I don’t make any money off of the upgrade, I just tell you how to do it cheaply and easily.
Power window motor replacement
Remove the door mounted speaker & the upholstery panel to gain access to the motor. There are 3 screws (5/16" hex head, I think) that secure the motor in place. Remove them and the motor comes out without any problems. Once you remove all the screws from the motor, and it falls away from the gear teeth on the arm for the glass, the glass will move up and down. You may need a helper to hold the glass once the motor screws are out, since the gear on the motor holds the glass from sliding up or down
The motor is the same for left side or right side, only the gearboxes are different. If you can't find the complete assembly for the side you want, you can get either side and use the old gearbox on the new motor.
