HSCAN wire location?
- Thread starter White5Hoe
- Start date
-
Sponsors (?)
What is being run on the high speed can network and what is being run on the low speed network?
All can wires are a twisted pair, usually a white wire and a white with a blue tracer wire, although that can vary.
High speed can is usually for ABS, SRS, Side object detection and some engine functions. Low speed can is usually back up camera and other mundane functions like interior lights.
There really is no "tapping" into these wires as you would throw off the resistance value which will render the network into an error and set codes. You can repair these wires, but you can not add on to or tap into these without causing problems.
All can wires are a twisted pair, usually a white wire and a white with a blue tracer wire, although that can vary.
High speed can is usually for ABS, SRS, Side object detection and some engine functions. Low speed can is usually back up camera and other mundane functions like interior lights.
There really is no "tapping" into these wires as you would throw off the resistance value which will render the network into an error and set codes. You can repair these wires, but you can not add on to or tap into these without causing problems.
What kind of signal does the transmission controller use for information?
Raw data? Like the firing of a ignition coil?
Or does it have to be CAN/BUS?
Raw data? Like the firing of a ignition coil?
Or does it have to be CAN/BUS?

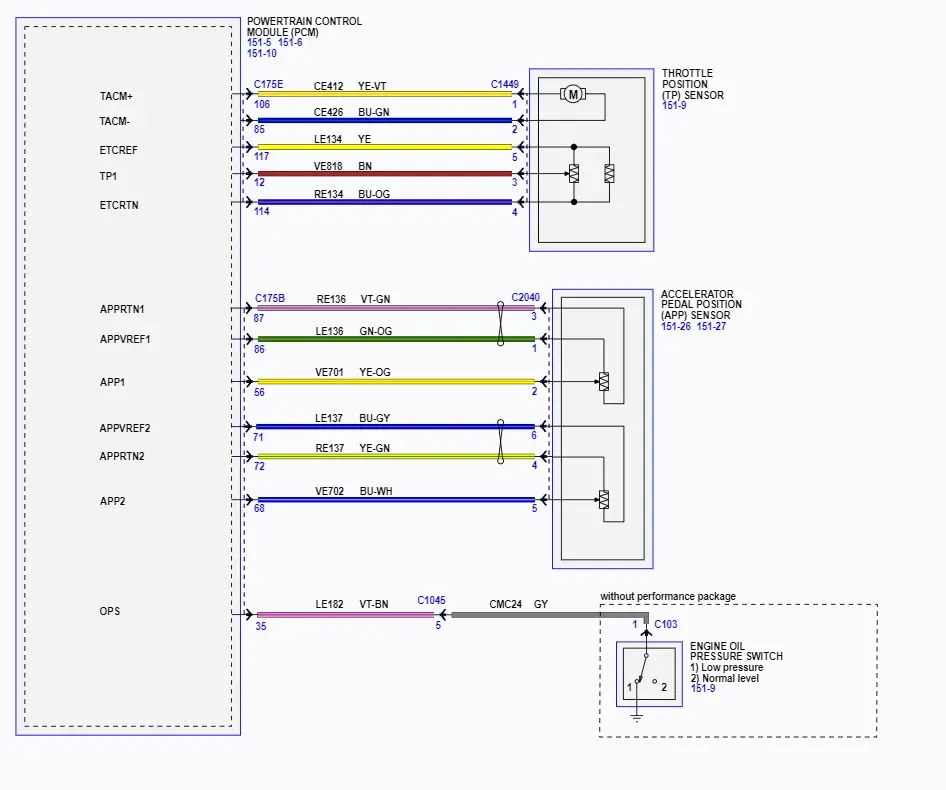

Take the above TP sensor for example.
It has a TACM+ which is Throttle Motor open
A TACM- which is Throttle Motor close
A Electronic Throttle Control Reference wire
A Electronic Throttle Control Return wire
and A Throttle Position Signal wire.
Which on of those do you get the information that you want from?
It has a TACM+ which is Throttle Motor open
A TACM- which is Throttle Motor close
A Electronic Throttle Control Reference wire
A Electronic Throttle Control Return wire
and A Throttle Position Signal wire.
Which on of those do you get the information that you want from?
You may notice from the above diagram that the TP or Throttle Body does not have CAN/BUS communication, but that the Accelerator Pedal Position Sensor does.
From what I've gathered the company I've gone with for the transmission controller doesn't have support for the can-bus system for mustangs yet. So I need to tie in somewhere and get RPM and pedal position. I've seen posts of people tapping into a single coil wire for RPM without any issues but as far as getting pedal position i'm unsure of that. The harness they've supplied has a single wire for RPM readout and a single wire for pedal position readout.
