Interior and Upholstery Need wire diagram

[Slaterdude92]

Hey stang net. Does anybidy know where i cann get a full woring diagram for interior and instrunent cluster on my 1991 mustang lx convertible. Im trying to see where these random connectors go. ( bith passengers and driver seat under ? Under cluster there are unhooked connectirs as well



[a91what]

you can try
www.veryuseful.com



[Mustang5L5]

You want an EVTM.

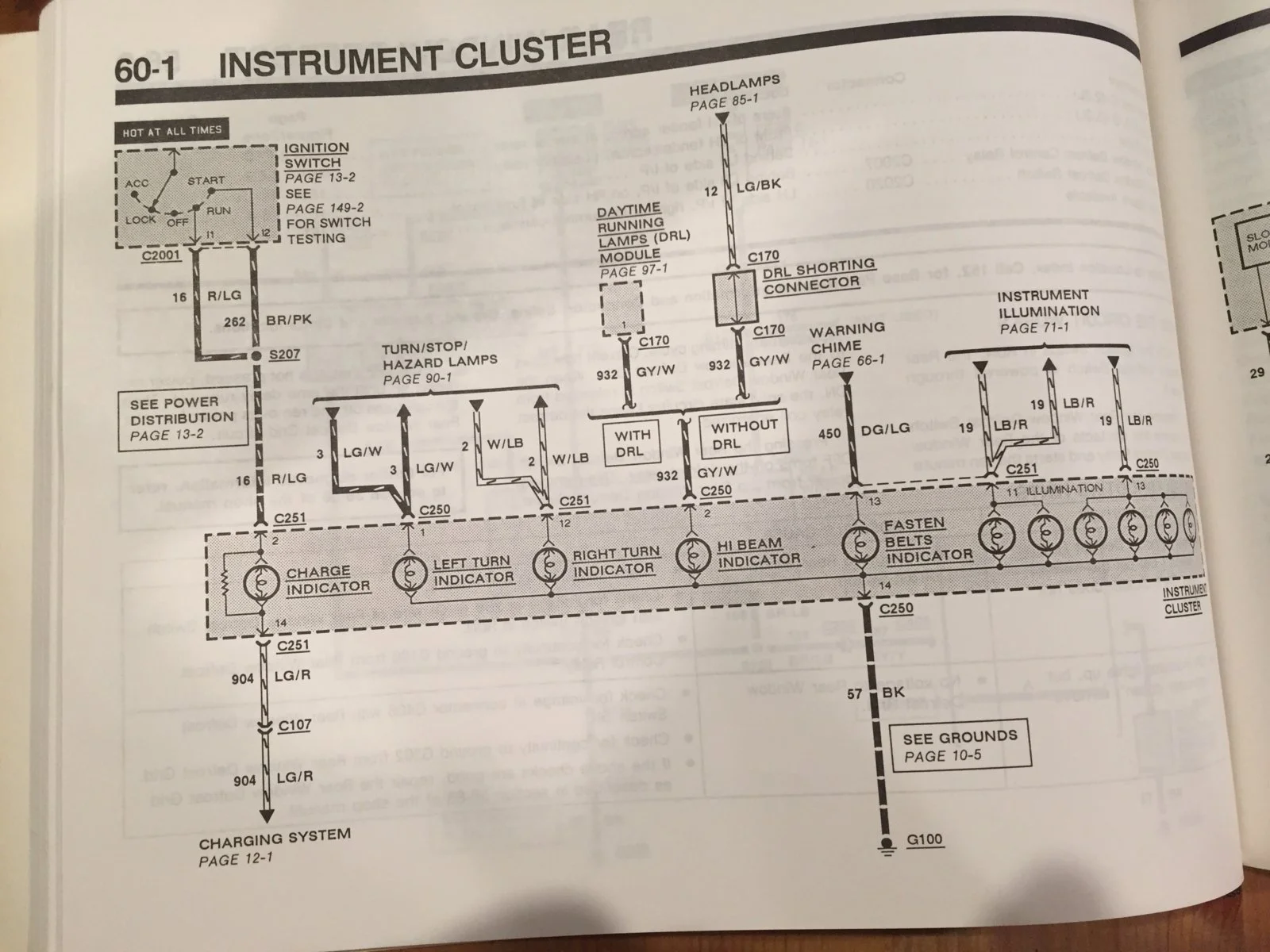

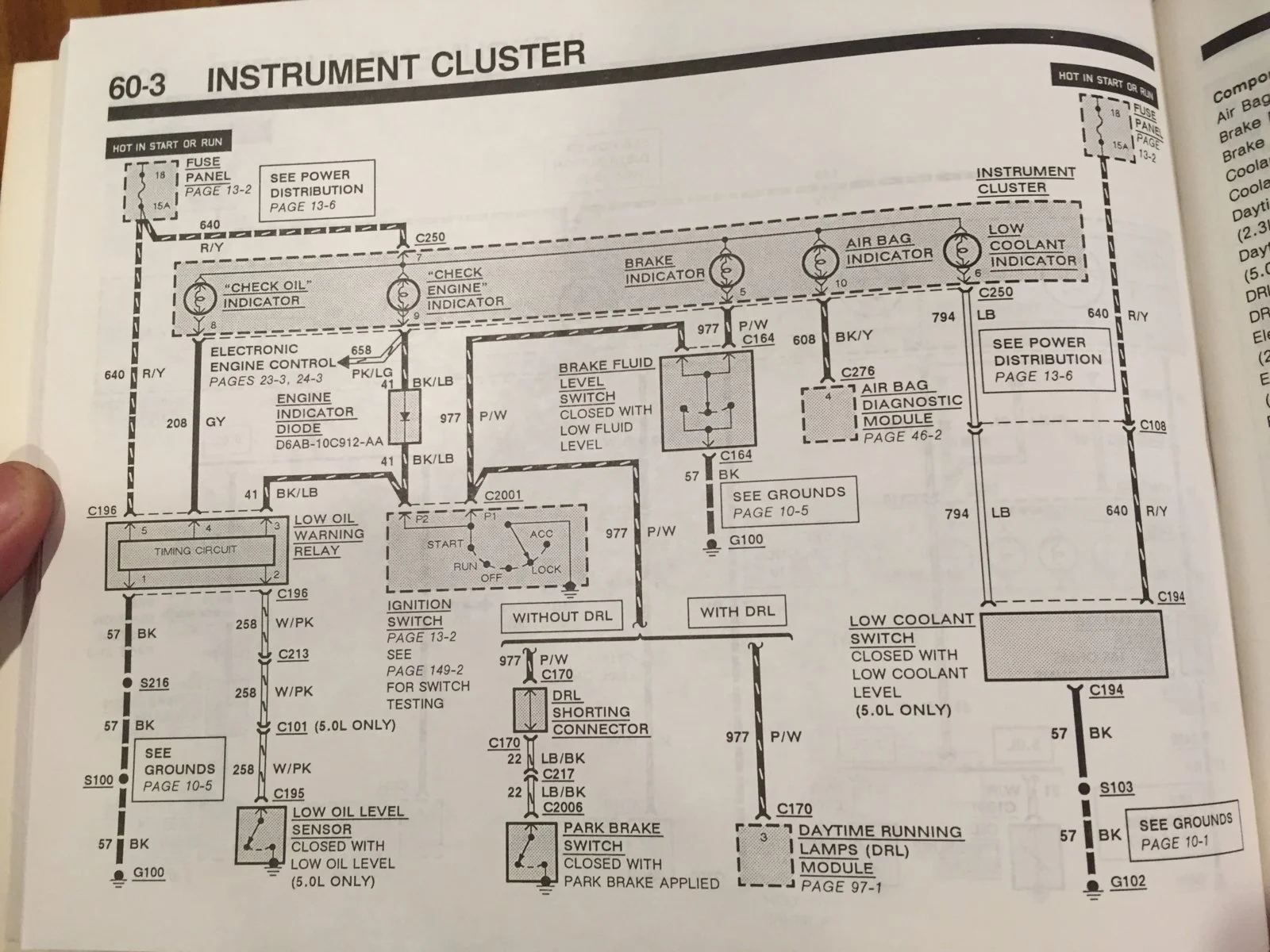

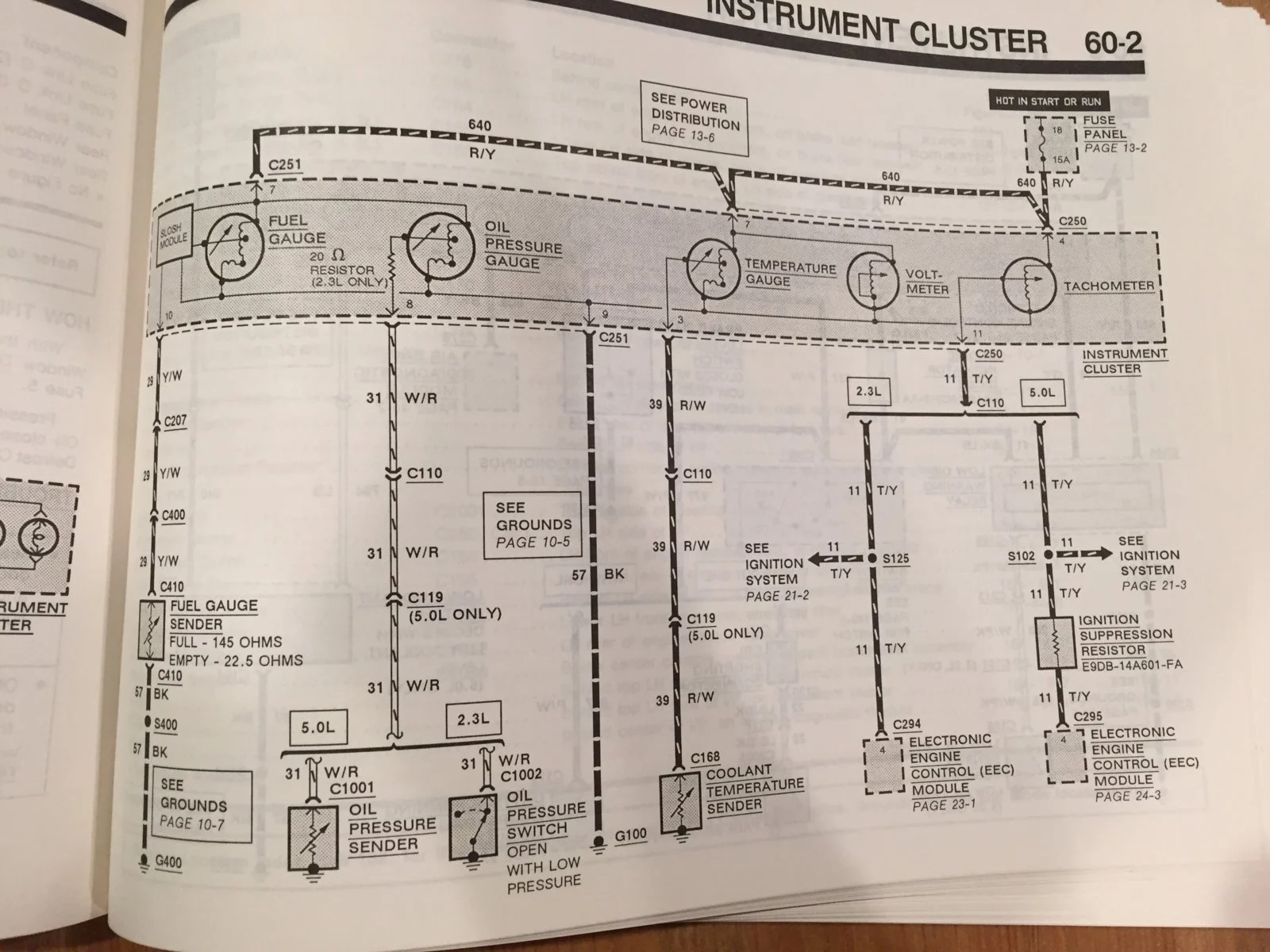

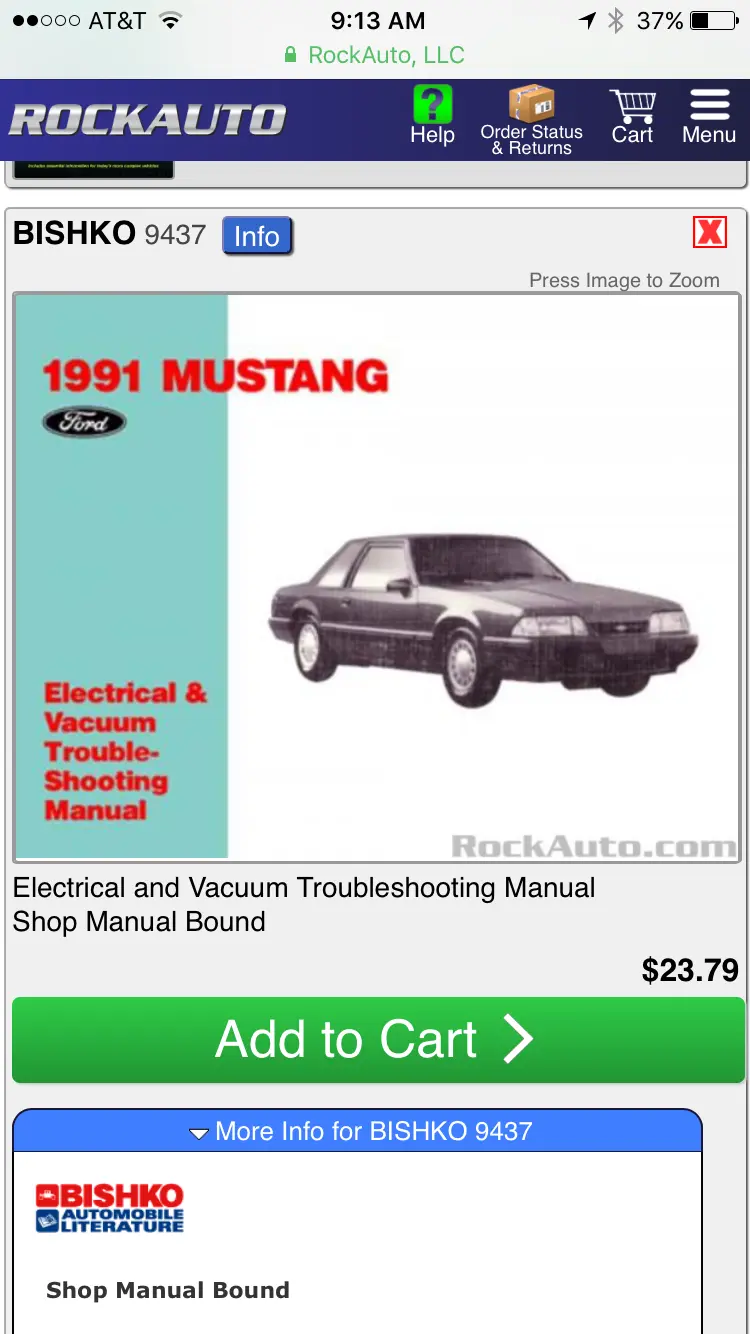

You can get some used originals on eBay but rockauto sells new reprints. Worth every penny if you need to do any electrical troubleshooting.

I have a 1991 EVTM I can take a peek at and see if the info you need is on a single page or two



[Slaterdude92]

You want an EVTM.

You can get some used originals on eBay but rockauto sells new reprints. Worth every penny if you need to do any electrical troubleshooting.

I have a 1991 EVTM I can take a peek at and see if the info you need is on a single page or two

Greatly appreciated



[Mustang5L5]

Greatly appreciated

Unfortunateky it's 162 pages with many that might be important to you. Can you clarify what you are looking for exactly?
