Stupid Question Time

CarMichael Angelo

clearly, I’ve got something going on in that hole
15 Year Member
Nov 29, 1999
9,311
7,194
234
62
Birmingham, al
m.imdb.com
Im sitting here thinking.

Instead of installing some hokey looking T so i can install both temp senders in the same hole,.

Why cant i splice both the gauge, and ecu into the same sender?

  • Sponsors(?)


killer5.0

5 Year Member
Oct 8, 2009
725
85
59
Most gauges require their own dedicated sender....i know my autometer and dakota digital did...as stated above bc of the resistance


John Dirks Jr

there is enough sticking out to grab on to
5 Year Member
Jun 28, 2013
2,775
1,181
174
56
Maryland
Is it important in this case to have both senders in referencing the same location? If not can you find two different locations and result in a cleaner look?


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
17,427
5,611
193
polk county florida
I'm thinking there is a difference in resistance between the two senders, they are in the same water flow right? Measure the resistance between the two senders when the engine is cold and you'll likely find they have different numbers, but what do I know. :shrug:


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,269
2,622
234
74
Dublin GA
lowendmac.com
Hmmm... maybe not sure if that will affect the resistance having 2 sources atratched without an opamp

I know who will know.... @jrichker
A simple op amp would buffer the load, : see the PWM controller diagram I sent and look for IC7 input from ECT sensor; its output drives the 3 comparator IC's.

It is an op amp with 1:1 gain and a very high input resistance. One data line is a direct connection from the sensor to the computer. The op amp input connects into the sensor output in parallel with the data line that goes to the computer. Both circuits share the same signal ground.

You need to remember that a well filtered power supply is required for the op amp to keep the electrical noise out of the circuit. See the power supply diagram for the PWM controller for design details.

Last edited:

Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
29,111
10,921
224
Box behind Walmart
www.stangnet.com
A simple op amp would buffer the load, : see the PWM controller diagram I sent and look for IC7 input from ECT sensor; its output drives the 3 comparator IC's.

It is an op amp with 1:1 gain and a very high input resistance. One data line is a direct connection from the sensor to the computer. The op amp input connects into the sensor output in parallel with the data line that goes to the computer. Both circuits share the same signal ground.

You need to remember that a well filtered power supply is required for the op amp to keep the electrical noise out of the circuit. See the power supply diagram for the PWM controller for design details.


I was going to say that.

:leaving:

  • Like
Reactions: tannerc91gt

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
17,427
5,611
193
polk county florida
Main article: Operational amplifier
A non-ideal op amp's equivalent circuit has a finite input impedance, a non-zero output impedance, and a finite gain. This article illustrates some typical applications of operational amplifiers. A real op amp has a number of non-ideal features as shown in the diagram, but here a simplified schematic notation is used, and the reader is reminded that many details such as device selection and power supply connections are not shown. Operational amplifiers are optimised for use with negative feedback, and this article discusses only negative-feedback applications. When positive feedback is required, a comparator is usually more appropriate. See Comparator applications for further information.
Written by people that just wanted to confuse karthief and further prove he is, in fact a boob.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,269
2,622
234
74
Dublin GA
lowendmac.com
I can draw up a solder together deal-e-o with a power supply needed for it(more soldering junk to junk) or you can run 2 senders

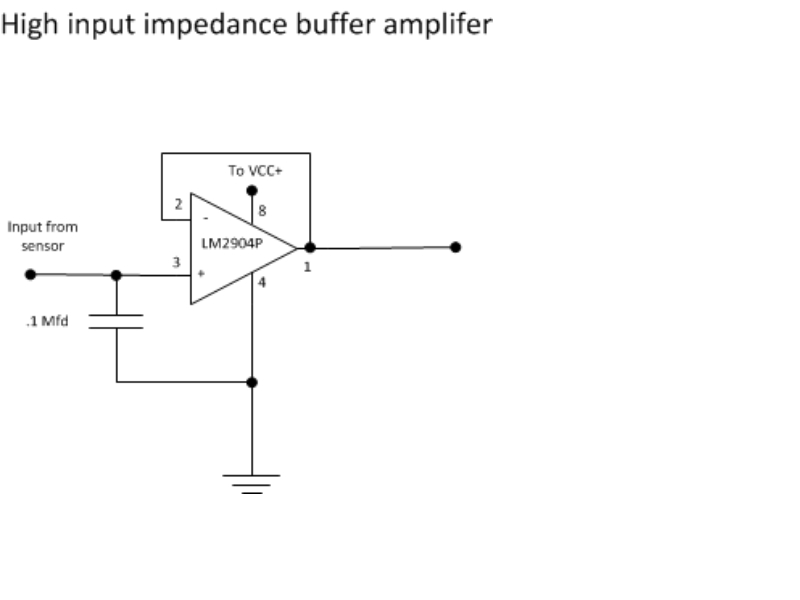

Buffer amplifer


5 volt power supply...
Use either the top or bottom half of the diagram, you don't need both...


Attachments

  • High input impedance buffer  amplifer.jpg
    High input impedance buffer amplifer.jpg
    36.7 KB · Views: 90
  • PWM Fan Control Power Supply Rev 1.jpg
    PWM Fan Control Power Supply Rev 1.jpg
    18.4 KB · Views: 91

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,548
9,827
224
Massachusetts
1 Mh inductors on top, with two different capacitors (10 and 0.1 mfd) on sides and grounding to classis on bottom

LM 7805 is voltage regulator

1n4003 is a diode
