Where can I find a TPS voltage

[markavalenti]

I am going to be installing a LM-1 A/F ratio computer with the rpm converter, and I would like to know where the best/easiest place to tap into the TPS sensor for a voltage signal is. I know I can go directly to the TB, but I was wondering if anbody knew where inside the car I can go, I also have an Anderson PMS, I don't know if it has an output for this? Any help would be great. Thanks.



[vristang]

Tap in near the computer, that should be the easiest place.

I have a voltmeter tapped in there.

jason



[wht93gtEd]

you can get it from the TPS report...

sorry, couldn't resist



[jrichker]

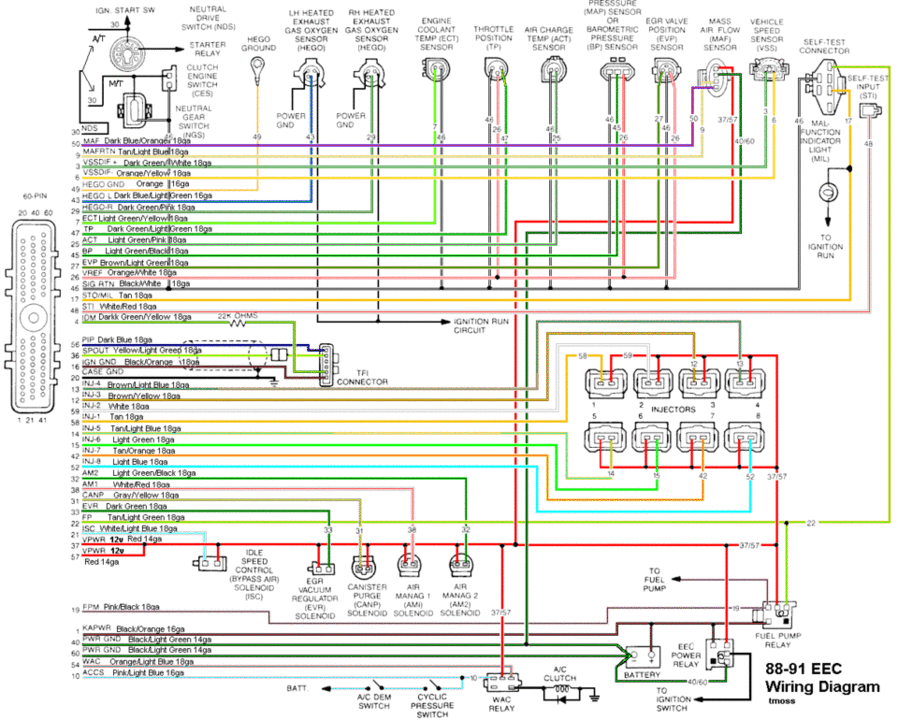

Follow this diagram. The computer lives under the passenger side kick panel.
Do your wiring there rather than in the engine compartment.
See http://fordfuelinjection.com/?p=7 for the proper method to splice any
wiring that you do.

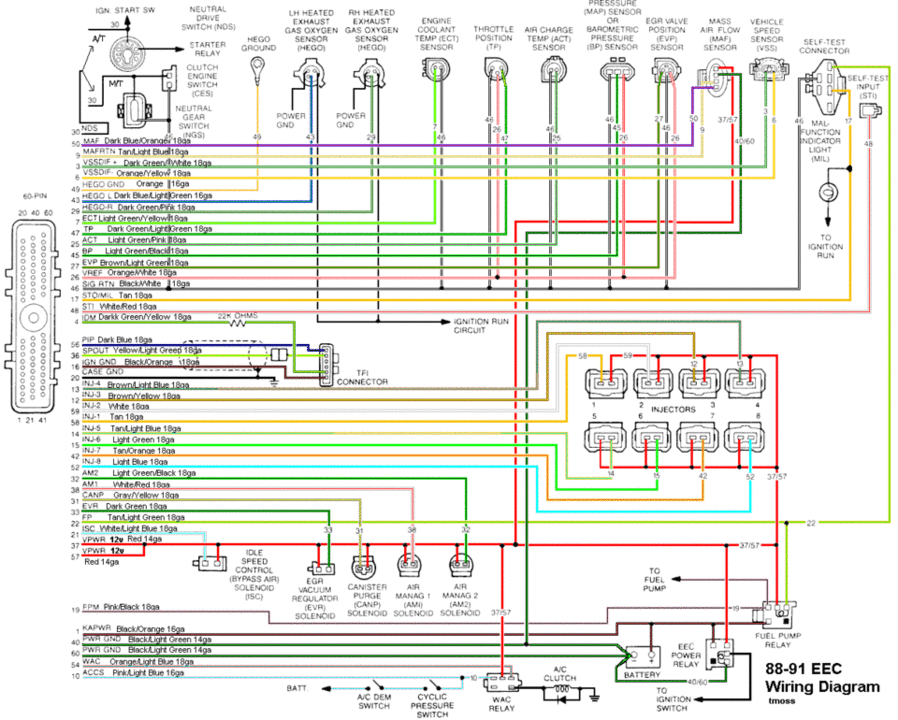

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2
Birds (website host) for help on 88-95 wiring

http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

http://www.veryuseful.com/mustang/tech/engine/images/88-91eecPinout.gif



[markavalenti]

Thanks jrichker, thats what I was looking for
