Will this shorter belt routing work? (pic inside)

[Wi Stang]

I am looking to bypass my smog and A/C pulleys with a shorter belt. If I route the belt the way that I have it in the picture, will I have enough contact with the crank pulley? It is only going to be driving the alternator, and the power steering pump. I have an electric water pump, so I don't need to drive that. Plus in the pic I have the tensioner pulley rotated a little so that it have more tension on the belt. I didn't drill a new hole for the tensioner yet, so is why it is sticking out a little bit.

If that is not going to be enough contact, do you have a suggestion on how I could route it?

Thanks,

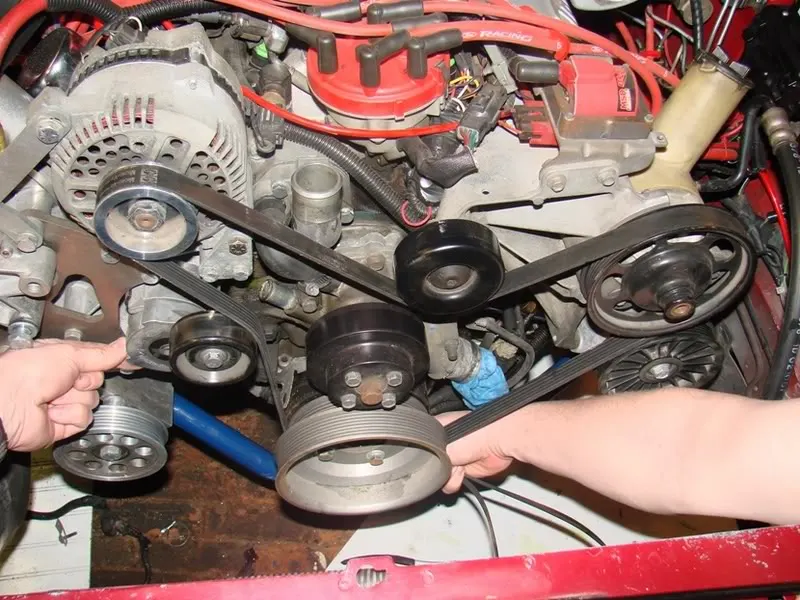

Here is the belt routing pic

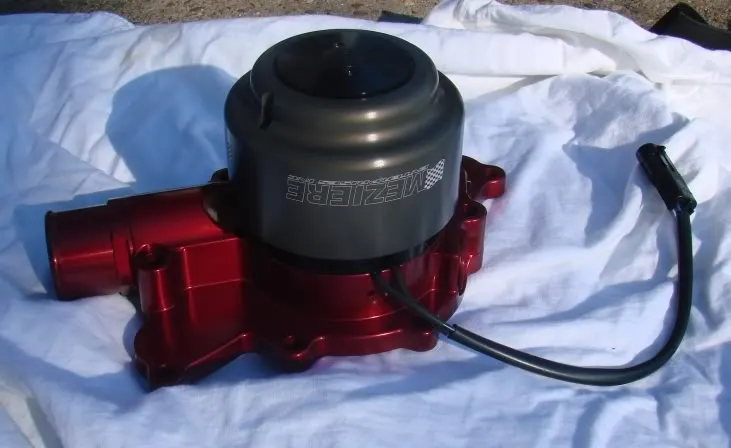

Here is my bran spankin new electric water pump that I had to wait over a month for since it was on backorder



[AznStanger3v]

yeah, thatll work. as long as you dont try to reverse the rotation of any of the accessories, you are good as gold.



[Wi Stang]

Cool, I just measured the belt to be about 66.5". Hopefully I can find someone that has one in stock.



[milewsky80]

Can you explain more about drilling a new hole for your tensioner? Ever since I deleted my smog pump the belts haven't been lasting too long because the tensioner is at the end of it's rotation . Thanks



[Wi Stang]

If you take the tensioner off and look at the back of it, there is a peg that sticks about 1/2" out of the back. That peg goes into a hole on the bracket so that once the tensioner is tightened down, the whole assembly is locked into place. I am planning on rotating the tensioner assembly counter clockwise, and drill a new hole for that peg to fall into.
I am planning on doing it tonight, so I'll take some pictures.



[ProKiller]

subscribing....



[Green 94 5.0]

Cool, I just measured the belt to be about 66.5". Hopefully I can find someone that has one in stock.

you should be able to find that belt fairly easily. advance autp parts had the 58.5" belt i needed in stock and seemed to have everything longer than that as well. (i made about 5 trips before i found the right size)



[Green 94 5.0]

and i am definitely interested in finding out more about drilling the bracket for the tensioner. if that works well for you i can go ahead and delete my smog pump pulley as well.



[milewsky80]

If you take the tensioner off and look at the back of it, there is a peg that sticks about 1/2" out of the back. That peg goes into a hole on the bracket so that once the tensioner is tightened down, the whole assembly is locked into place. I am planning on rotating the tensioner assembly counter clockwise, and drill a new hole for that peg to fall into.
I am planning on doing it tonight, so I'll take some pictures.

That makes a lot more sense now. Pics would definitely be a plus



[95Vert]

subscribed



[2muchtime]

the only reason he needs to do it that way is cause of the waterpump.
you can remove the a/c and smog..and run a shorter belt with the stock w/p..
i have for the last 2 yrs on the same belt with not 1 squeek yet.



[2muchtime]

Cool, I just measured the belt to be about 66.5". Hopefully I can find someone that has one in stock.

try a KO60665 belt #
the 60665 numbers mean 6 rib 066.5 belt length..



[Wi Stang]

Well after multiple trips to the parts store, I decided I am not that good at measureing for belt length. I ended up getting a KO60653 belt to work. (65.3") I had to use a screwdriver for a little leverage to get the belt on.

I drilled a new hole for the tensioner and got that rotated, but when I did that it made the belt too tight. So I am just going to use the original location for the tensioner. That makes it plenty tight. If the belt stretches a little bit, I can always rotate the tensioner then.

I have pictures of what I tried to accomplish with the tensioner that I can post up after I get out of work.



[ProKiller]

please do so. pics of the finally product then too

and 2muchtime, do you have a vortech on there? if so pics too please.



[trav_19]

im curious about the electric waterpump what does that harness plug into and do they work well for heavy daily driving i keep getting junk w.p. and i hate replacing them maybe i will give a ecectric one a try



[Wi Stang]

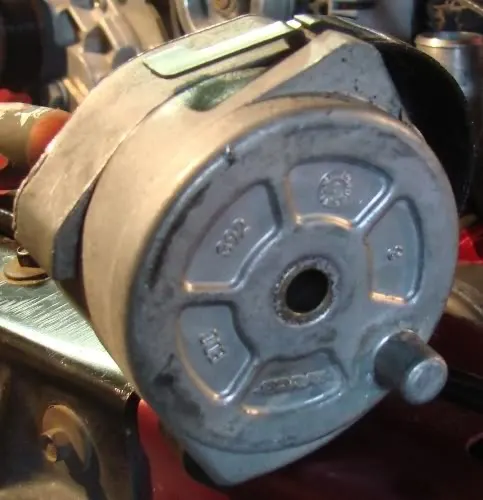

Here is the peg on the back of the tensioner. It is about 1/2" in diameter

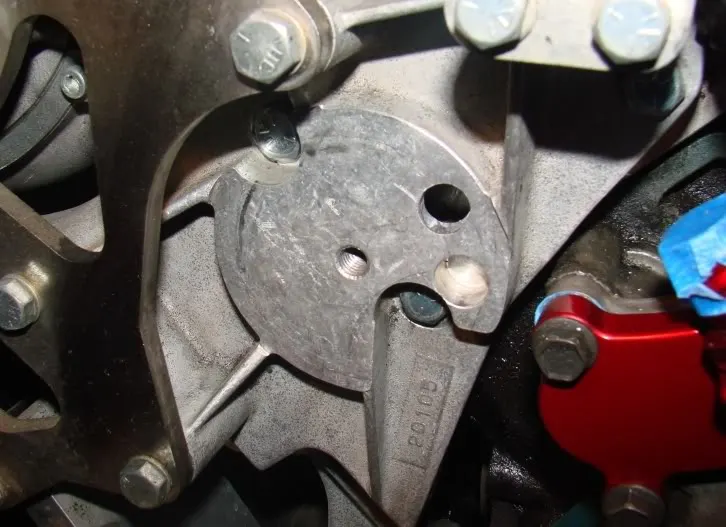

Here is the new hole that I drilled for the tensioner. It would have worked out pretty good, but it put a little too much tension on the belt, so I am just going to use the original hole. I can always rotate it if the belt stretches a bit.

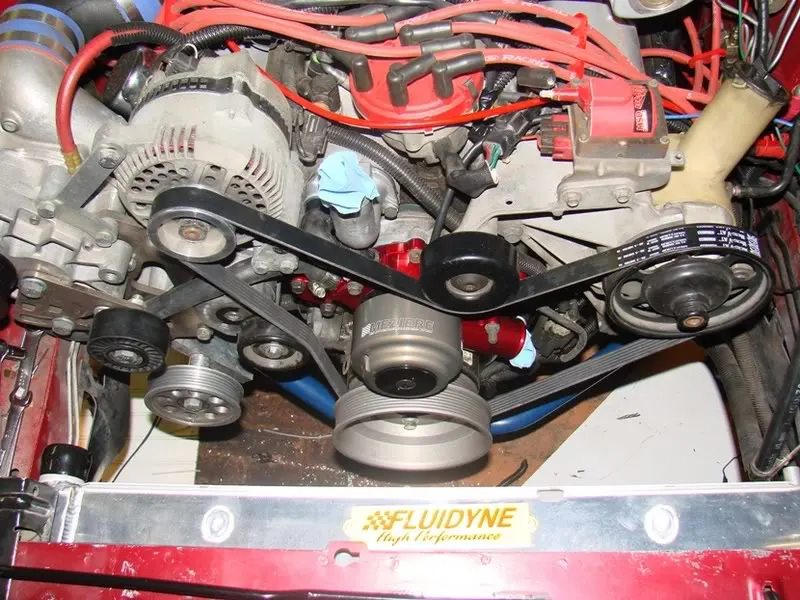

And here is the final result.

trav_19
im curious about the electric waterpump what does that harness plug into and do they work well for heavy daily driving i keep getting junk w.p. and i hate replacing them maybe i will give a ecectric one a try

The water pump only needs 12V and ground. I ordered the relay kit with it also, so I wired the coil of the relay into a key on power source, and I connected one side of the output to the fuse box under the hood, and the other side to the water pump.
I just have to finish putting in my coil over setup, do a few other little things, and then I should be able to take it out, and see how everything works. The weather is finally nice here, so I am pretty antsy to get it out.



[95Vert]

I searched for the price but couldn't get a definite one, if you don't mind me asking, how much was it?

Thanks



[Wi Stang]

I got the water pump from Summit for $430. I think it was on backorder for almost a month. They sell them in red, black blue, and chrome. I drive my car pretty much every day, and they say they have an estimated life of 10,000 hours, so it should hold up for quite a while.

http://store.summitracing.com/egnse...94908282+4294924500+4294838996+115+4294822055



[95Vert]

I got the water pump from Summit for $430. I think it was on backorder for almost a month. They sell them in red, black blue, and chrome. I drive my car pretty much every day, and they say they have an estimated life of 10,000 hours, so it should hold up for quite a while.

http://store.summitracing.com/egnse...94908282+4294924500+4294838996+115+4294822055

Thanks man.

and they better last a while for that price.



[trav_19]

cool that dont sound to bad and seems like its got a good life span i might start looking into one
