Build Thread 1990 Lx 5.0 Restomod Build

Discussion in 'Fox 5.0 Mustang Tech' started by boostfrk, Aug 6, 2012.

  1. 68stang351

    Founding Member

    Joined:
    May 16, 2002
    Messages:
    872
    Likes Received:
    8
    Trophy Points:
    39
    Location:
    Savoy TX

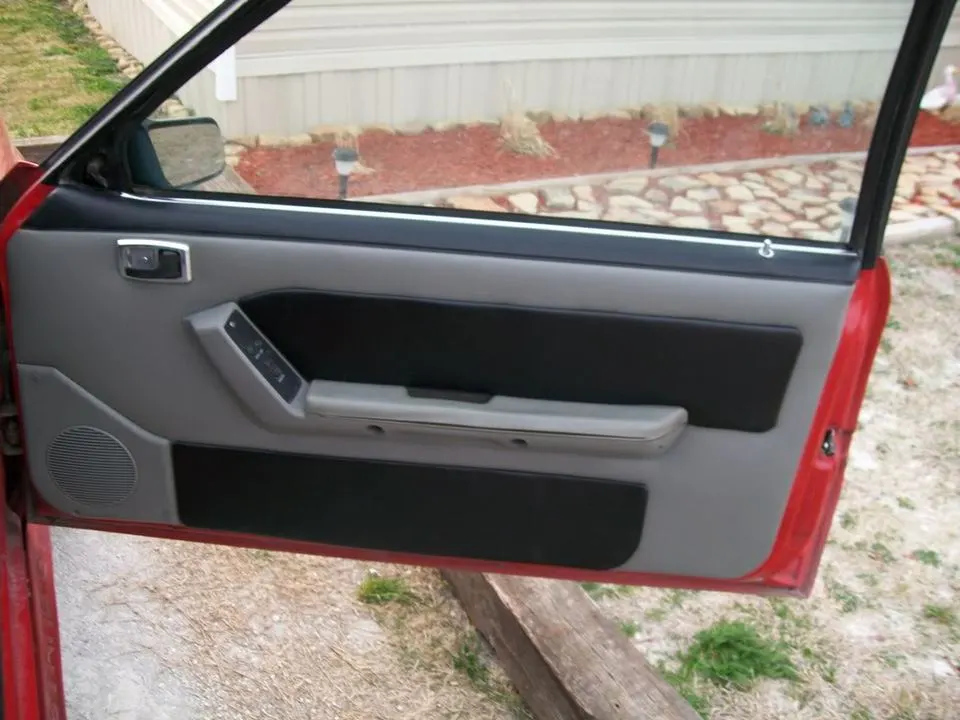

    Not trying to hijack the thread, but a few years back I did away with my map pockets and covered it in black vinyl, as well as the inserts above the armrest. I'm still going to replace the speaker grill and armrest pad with black pieces also, just haven't done it yet.



  2. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Looks sweet. I'm looking at doing the same areas in black carpet. I can't make up my mind though. My car is silver with black interior so I though of adding a little silver to the all black.

  3. David Pepiton

    David Pepiton Active Member

    Joined:
    Dec 17, 2011
    Messages:
    662
    Likes Received:
    68
    Trophy Points:
    49
    Location:
    Laveen, Arizona
    God I want door panels so bad.

  4. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC

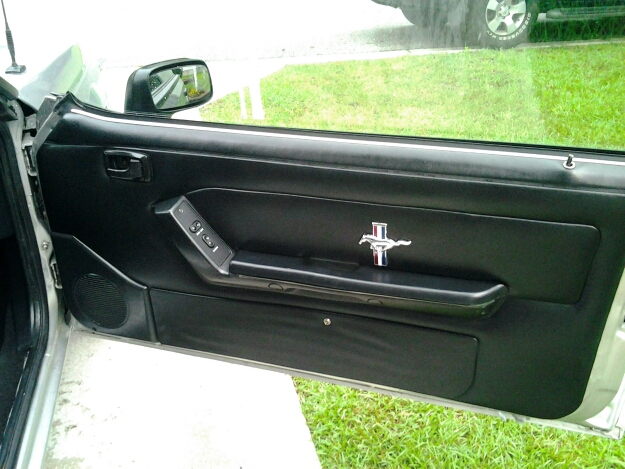

    Heres my current door panels. Just seems a little plain to me.

    Door panel.jpg

  5. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    Door Panel Inserts

    As I said before my map pockets were long gone, and the vinyl which covered the map pocket insert was just barely hanging on. I don't really care for the map pockets, and besides, who uses maps anymore? Your phone can tell you where to go, where to turn, how much further until your next turn and then "strongly encourage" you to make a u-turn when you've f-ed up.

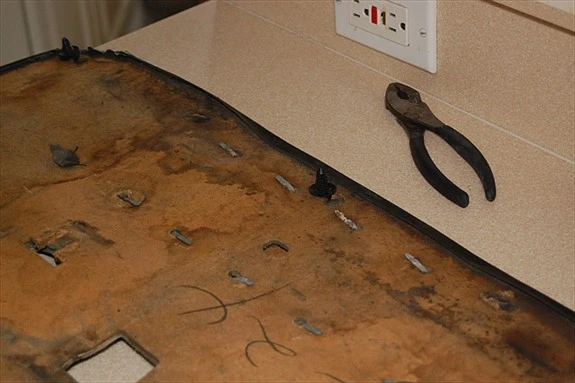

    Once the door panel is off, flip it over. There are a bunch of metal tabs along the back.

    0_0_96c3d25ed328762e797c98049277148f_1

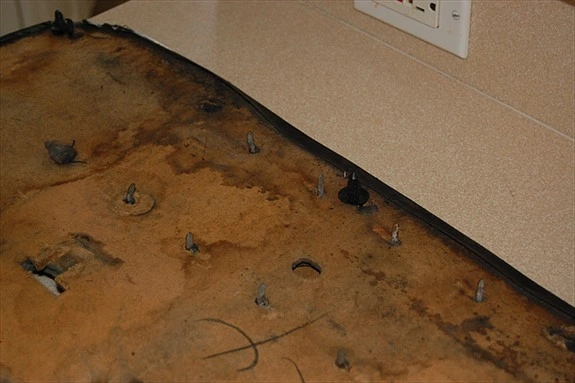

    Bend those so they stick straight out. This will allow you to remove the insert from the door panel.

    0_0_e88f4b7546dea09202761ce3fc699d19_1

    I bought some black carpet from Autozone for $9.99 for a 3'x6' roll. I bought 2 rolls since I'd be doing my trunk also. They call it "replacement carpet" and it's right by the floor maps/Betty Boop steering wheel covers. I also bought 2 cans of Permatex Fabric/Carpet Adhesive spray from Autozone for $10.99.

    Set up a good workspace, well ventilated and where you don't mind if excess adhesive falls on the ground as you spray it.

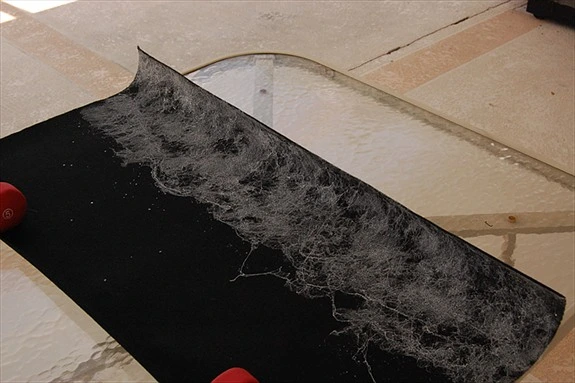

    Spray the back of the carpet and the door panel insert with the adhesive and let it dry for about 5 minutes. For the second coat, go in the opposite direction of the first (first coat is left and right then second coat is up and down). This will ensure there aren't any places without adhesive. After the second coat let dry another 3-5 minutes.

    0_0_6af70d714ac6a258233422a7e9e2538f_1

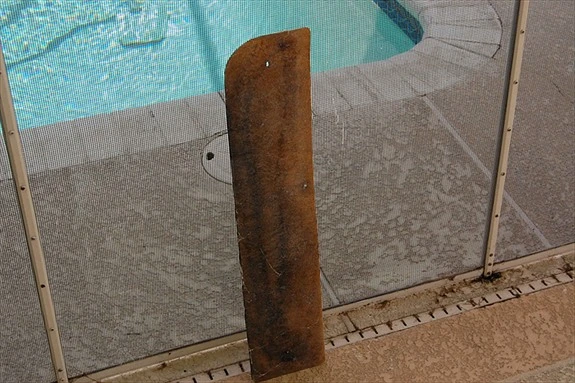

    0_0_bfc556f6bbff0effb09f69ddaebc027f_1

    Both surfaces should now be tacky. You've only got one good shot to get this lined up. Pulling the two pieces apart if things are misaligned is a pain in the ass. I usually lay the carpet on a table, then lay the piece I'm carpeting on top of it. After you do this, spray a bit more adhesive around the perimeter of the back of the piece. This will give the carpet something to stick to as you fold it over.

    Carefully fold the edges of the carpet over the back of the piece. You'll have to trim at the corners since the carpet will overlap.

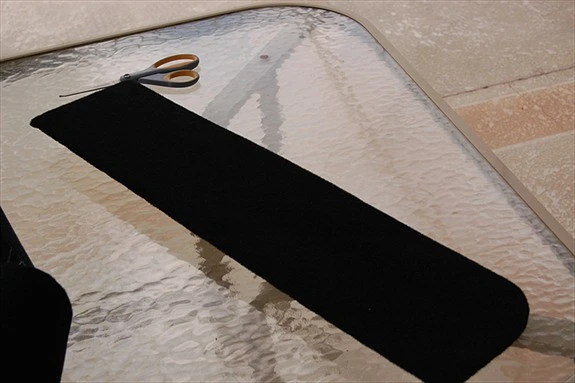

    Once you're done you have a finished carpeted door panel insert.

    0_0_1ff979249c9f8c911c25efc20f8ea200_1

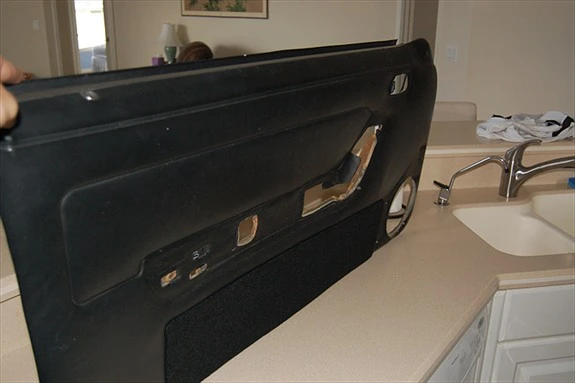

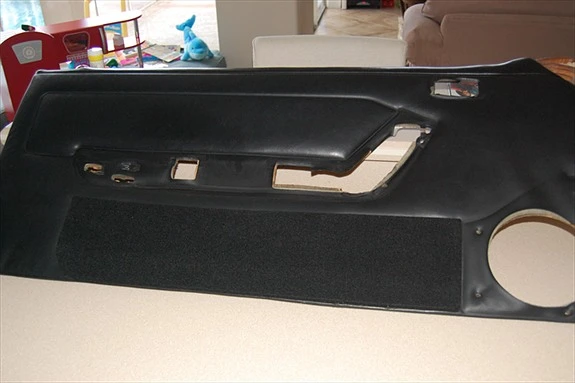

    Installation onto the door panel is the reverse of removal. Line up the metal tabs with the holes in the door panel and slide the insert in. Flip the door panel so the back is exposed to you (do this on a table also). As you start bending the metal tabs over make sure and push down on the door panel. This will make sure you get a tight fit between the panel and the insert.

    0_0_3fc8e37c53dc728f0234f0014382d7c2_1

    0_0_5aa304ba92ff8f3cdb680b1e0d7b139c_1

    Hopefully I'll be ordering new armrest pads, door handle bezels, and mirror trim pieces next week. This should allow me to get the door panels back on and the majority of the interior finished.

  6. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    Building a new trunk floor

    Previously mentioned, I hate the flimsy OEM carpet that slides around in the back of trunks. It gets dirty, smelly, and generally looks like poo. The below steps give, what I believe to be, a far superior looking trunk floor surface in just about any car.

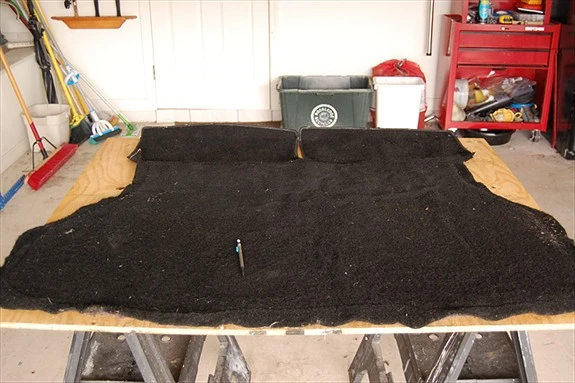

    Start with a piece of plywood, minimum 4' x 3'. I used 1/2" thick. Lay the plywood on a couple sawhorses (or something flat) and then lay the OEM carpet over the top of it making sure the carpet is relatively centered on the wood. Trace around the perimeter of the carpet to give you an outline for where to cut the wood. The carpet that was in my trunk was a bit bigger than the actual space so it stuck up on the sides a bit. Obviously this means that when I cut the wood to the same size the wood would be too big. That's OK. Remember, measure twice and cut once. In this scenario it's measure once, trim a bunch of times, then success!

    0_0_2ab74db4bcc8495bb4679a27c7fbb607_1

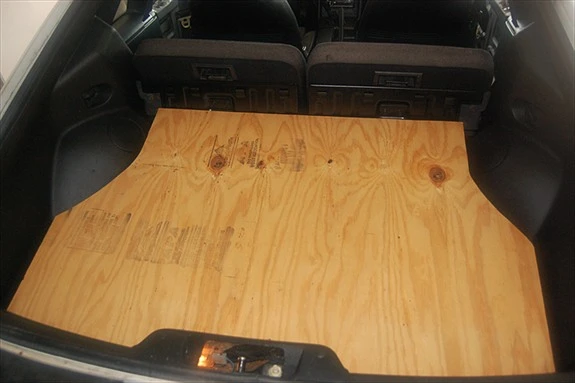

    It took me probably 5-6 times of trimming before I could even get the piece of wood to sit in the trunk relatively flat. Again, I trimmed in small increments. Nothing worse then trimming too much and ending up with a big gap.

    0_0_ae297b66a2bb91ca69f63f85077eb111_1

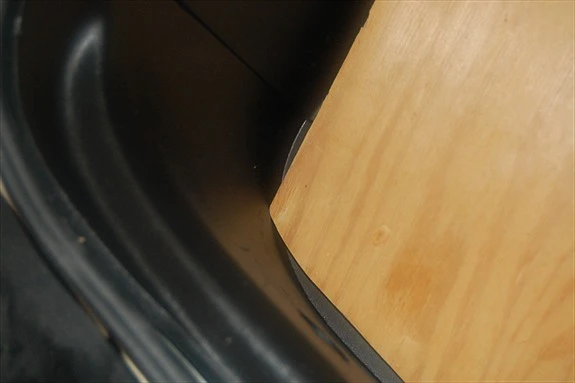

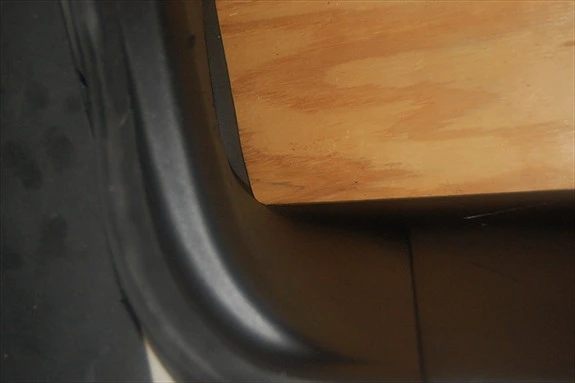

    You can see in the next pictures that the majortiy of my trimming needed to be against the front of the trunk (where the tail lights are)

    0_0_3f7325d822c004a24d113a2a49401fa4_1
    0_0_b5ad430f193f291d15470e133852825c_1

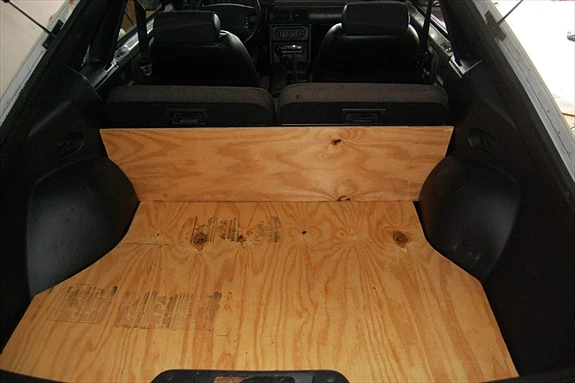

    Once I got it all trimmed I was able to set the piece of wood flat in the trunk.

    The OEM carpet is one big piece that has a section which travels up against the back of the seat and clips onto the metal "brackets" that the rear seats snap into. I didn't like this. Since I don't plan on putting my rear seats up and down really at all, I was OK with a more permanent solution. I cut a trapezoidal piece of wood that would cover these metal brackets. We'll get to how I made the transition between the wood, carpet and brackets later. I believe this piece measured 43-3/4" at the top and 40-1/8" at the bottom. This allowed for a snug fit without the carpet so I knew it was going to be nearly perfect after it was carpeted.

    0_0_8a7d02b4fcb50a5a010e073c515a4fa3_1

    Next is carpeting...

  7. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC

    I bought the exact same black carpet at Autozone yesterday! I'm glad to see it turned out looking so good. I ordered some new door panel hardware from latemodelresto which should be here tomorrow. I also picked up some nice dark gray vinyl from a local fabric shop. I'm going to try and do some gray inserts on mine as well. I'll post some pics once I get it done this weekend. Thanks again for taking the time to share all this information. Nice work.

  8. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado

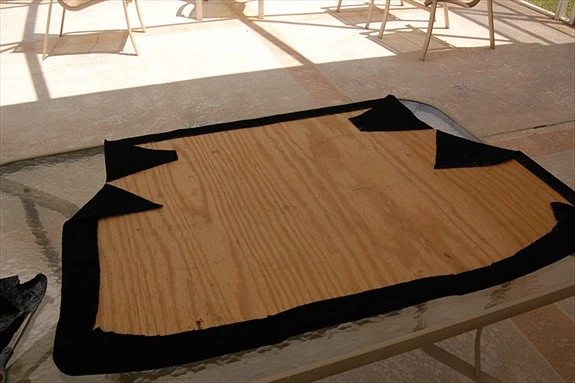

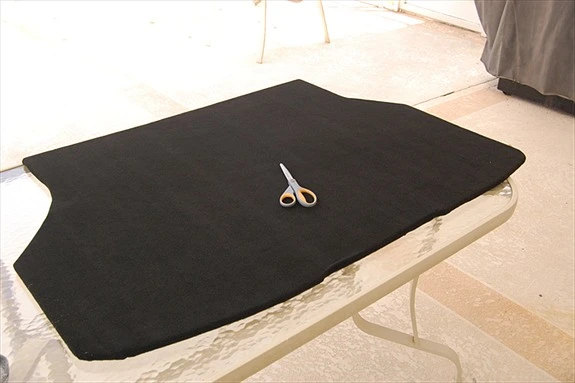

    Process is the same as the door panel inserts. Roll the carpet out on a table or flat surface, spray both pieces with adhesive twice, then put the piece on top of the carpet. Spray the edges of the back of the piece and fold the carpet over to complete.

    0_0_44b56acb84427255e341157492b3c35e_1
    0_0_b2823b5e72e7d2dca4fd0a075176770a_1

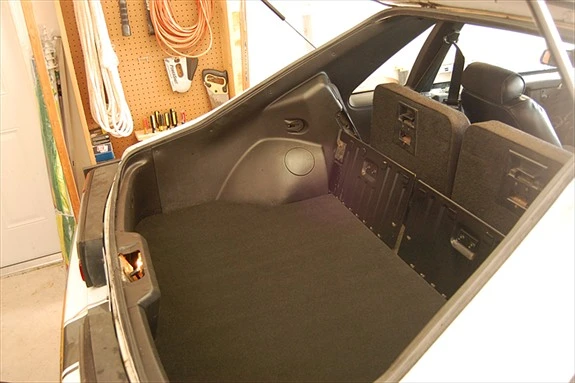

    Here's the finished floor back in the trunk.

    0_0_7f69046aab52dc8fa6063063af5969dd_1

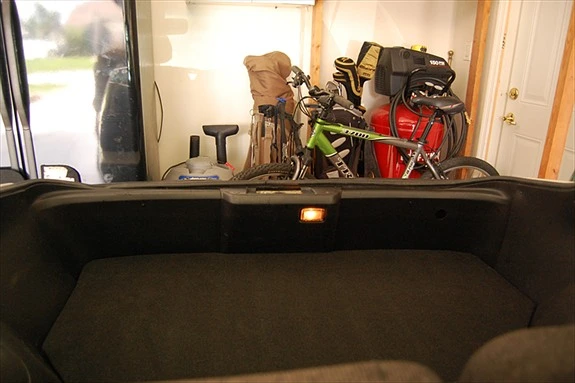

    0_0_e1dd0eaea76123a02db705f8dfcd409a_1

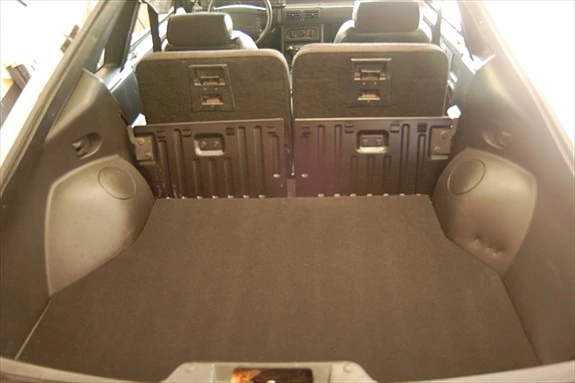

    0_0_0076058c1611d23ae8619468c08d435e_1

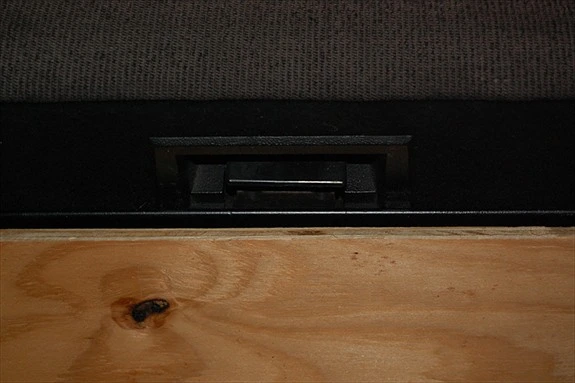

    I had about a 1.25 - 1.50" "top" to overcome where the piece of wood met the top of the metal seat backs.

    0_0_2de37cf9e62ba831b8746eb06255567e_1

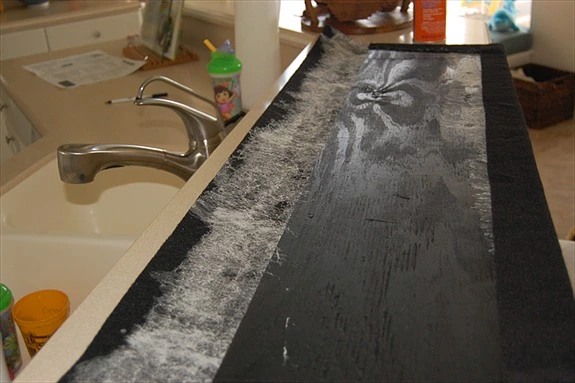

    My plan was to carpet the piece of wood and leave enough carpet at the top that I could fold it over both the top of the wood and the metal seat back essentially attaching the wood to the metal seat back via the carpet. I left about an extra 4-5" of carpet off the top of the piece of wood. Again, more is better. You can always trim the carpet if it's too much.

    0_0_3f7c9969cb2b36e34e8082848fc34bcb_1

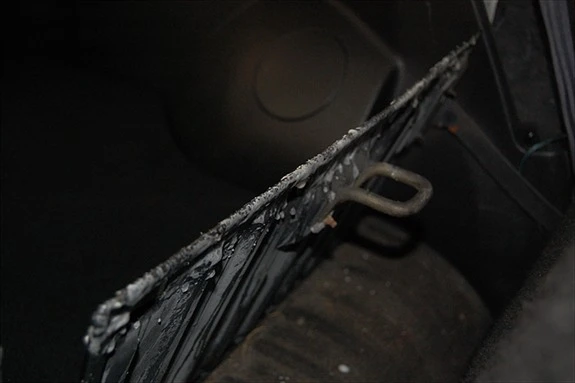

    Carefully, and I mean carefully, spray the top portion of the metal seat back which faces the back of the rear seats. You don't want to spray the interior panels with the adhesive. This is where the carpet will fold over and adhere to.

    0_0_17d296db3b961f1078a620f2b37a9ee6_1

    Install the carpeted piece of wood into the trunk as it's going to sit. Obviously the extra flap of carpet will be at the top. The next part is a bit trick. Squeeze the metal seat back and the piece of wood together. While holding them together fold the carpet over and stick it to the metal seat back. Squeezing these pieces together will ensure a nice tight fit at the top where the carpet transitions over from the wood to the metal seat back.

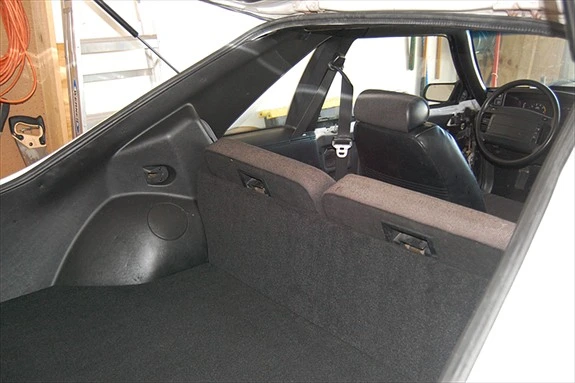

    Finished product

    0_0_96fe94f396e50f36986e82792c74742c_1

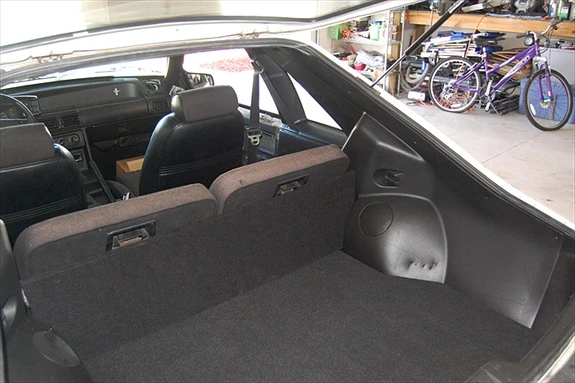

    0_0_37d8b528d437673e8a29501a2fa7ae02_1

  9. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    You Sir have mad skills. Nice!

  10. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    Lastly today I finished up installing new door lock actuators. I followed jrichker's how-to on this process and it worked out great. There were a couple of things that differeed in my install.

    1. At the beginning of the write-up he details how to fabricate the actuator linkage. The dimensions indicate that each hole is to be 1/4" from the end of the tube stock. For the end which attaches to the plastic eye on the actuator, 1/4" is too much. The centerline of the hole needs to be closer to 1/8" away from the end of the tube stock. I don't know if the company has slightly changed the design of the actuator eye mounting point or what, but things didn't line up with the hole 1/4" from the end.

    2. My actuator mounts were out of the car. At one point during his write up a bit more than halfway through he talks about drilling a hole in the side of the door. I think this has to do with if the mount is still inside the door. I didn't do this. I did have to use 1/4" bolts and fender washers to hold the actuator in place and bolt it together since I have the plastic actuator mounts. I also put a bit of Locktite on the threads before I tightened the nut up. I'm hoping that holds everything together. I did use nuts with nylon inserts everywhere else as he recommends.

    They work great and lock/unlock the doors as they're supposed to. The driver's switch doesn't work, so I'm guessing perhaps the switch is bad. I've already cleaned up the terminals with no luck so I'll replace the switch and see if that fixes it.

  11. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    Thanks. It's really not hard, but it makes a world of difference in appearance. Not to mention a stronger floor and clean smelling carpet!

  12. StreetsideStig

    StreetsideStig Active Member

    Joined:
    Feb 22, 2011
    Messages:
    1,015
    Likes Received:
    48
    Trophy Points:
    48
    This is looking amazing! Great work!

  13. JordanB21

    JordanB21 Active Member

    Joined:
    Feb 6, 2012
    Messages:
    804
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Killeen, Texas
    This really is great, I love the trunk look, I would only suggest a pull hole cut for lifting it up easy. Bookmarking this thread as a future project for sure because of that.

  14. StreetsideStig

    StreetsideStig Active Member

    Joined:
    Feb 22, 2011
    Messages:
    1,015
    Likes Received:
    48
    Trophy Points:
    48
    Good idea!

  15. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC

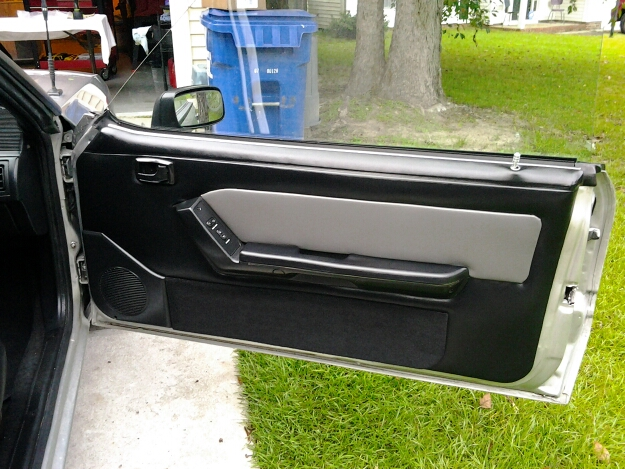

    well I finished mine this evening. what do you think? After.jpg

  16. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    cdurbin - Looks great! I wasn't sure I was going to like the two tone, but with just one panel being grey/silver it looks good. Very clean as well.

  17. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    thanks. I wanted just a touch of color to kind of set it off.

  18. RacEoHolic330

    RacEoHolic330 I like to dress like a pretty girl
    SN Certified Technician

    Joined:
    Mar 4, 2003
    Messages:
    3,691
    Likes Received:
    955
    Trophy Points:
    153
    Location:
    Allentown, PA
    Looking great boost. Hell of a transformation from where you started. I'm probably going to use your prep/paint method to freshen up a couple of the black pieces that I have as well. Well done.

  19. StreetsideStig

    StreetsideStig Active Member

    Joined:
    Feb 22, 2011
    Messages:
    1,015
    Likes Received:
    48
    Trophy Points:
    48
    Very nice, cdurbin!

  20. cdurbin

    cdurbin Active Member

    Joined:
    Jul 27, 2012
    Messages:
    565
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Thanks!
