99-04 V6 Windstar Manifold Swap

Discussion in 'SN95 V6 Mustang Tech' started by onebadsixxx, Sep 13, 2009.


  1. onebadsixxx

    onebadsixxx New Member

    Joined:
    Jul 13, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    North Las Vegas, Nevada
    Ok, so alot of people were curious on how and why I did this. The WHY is easy; its different. I AM the black sheep with things it seems now-a-days, so it was a perfect project to get done. I originally got the idea from Tom Yentzer himself at Super Six Motorsports. Its bolted on to his 4.3L /w nitrous. I hit him up with an email sometime back, asking what was up. The perfect bolt on for a boosted/nitrous applicated motor, he said. Its plastic, lightweight, can hold some serious boost [up to 18psi] and it looks great. So I bought mine and took about 4 days and alot of running around to get it done.

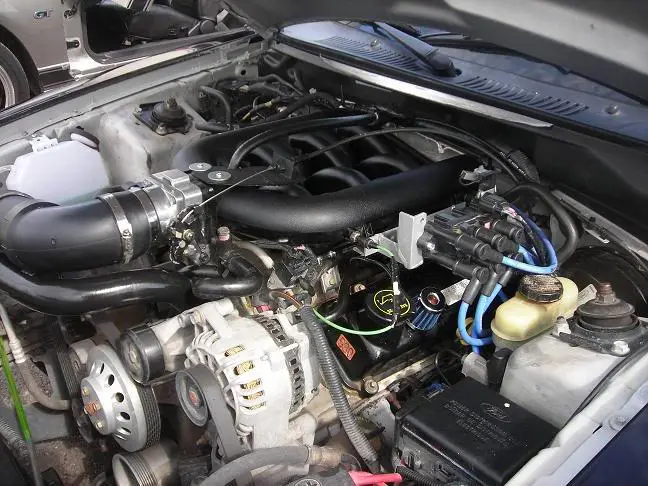

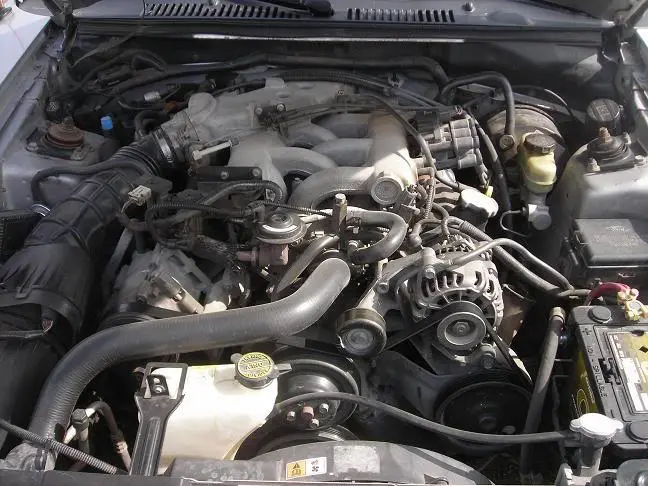

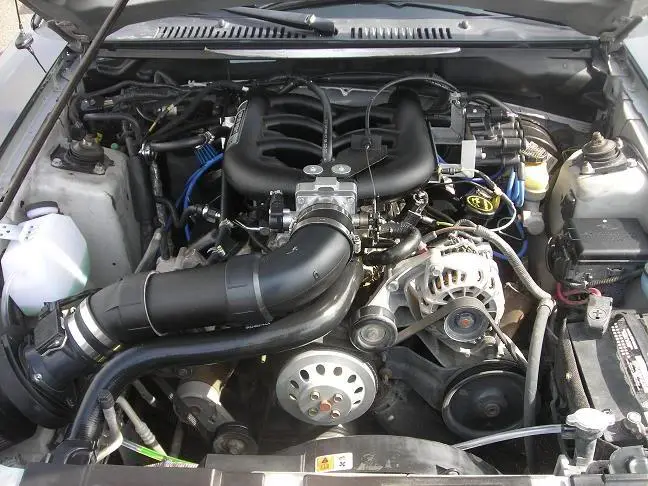

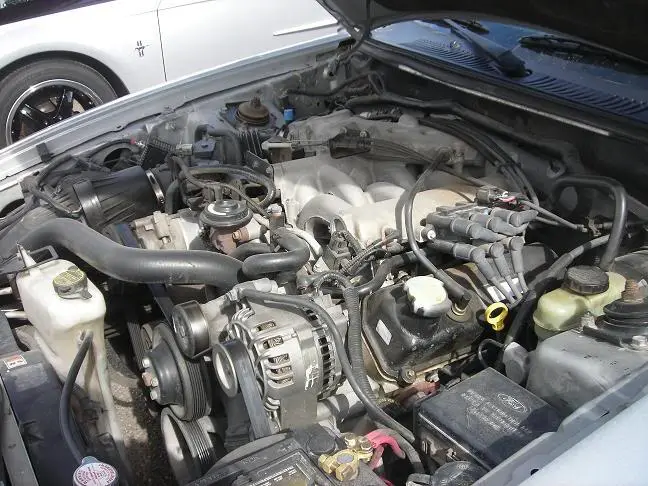

    Mine came off a 1997 Windstar minivan. Looks a little bit something like this...

    [​IMG]

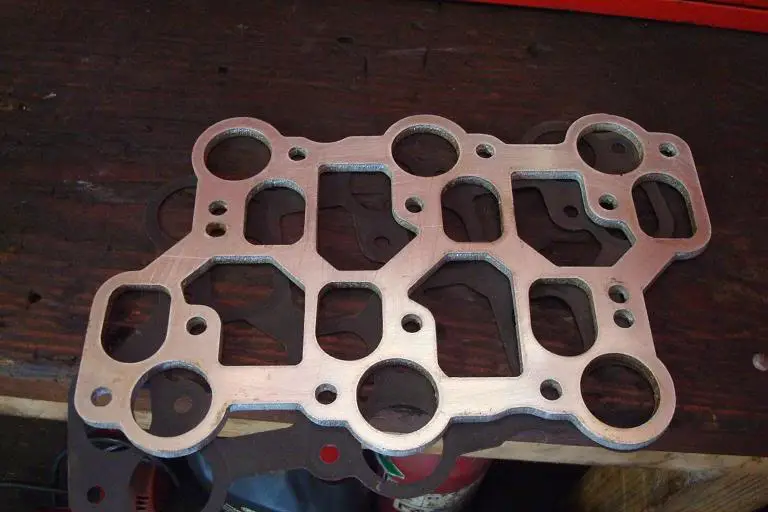

    Its a direct bolt on, meaning nothing on the lower intake manifold had to be messed with or fabbed. However, comma, during installation, we saw that it was going to sit a good bit lower, so the fuel rails had to be "bent" out of the way a tad bit for a good fit with the help with some spacers. You can look around online and find some pre-made durable G10 Phenolic spacers. http://www.vapauto.com is a good site for that. I didnt buy one of these. So I just took an intake gasket and had it sent to a local machining shop near by my house. Had them cut me two 1/4" aluminum spacers, and the guy did a SWEET job. Couldnt have been more perfect.

    [​IMG]

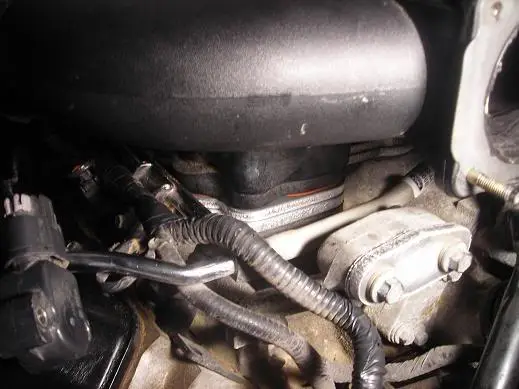

    Also, the EGR must be deleted in order to do this [requiring a tune, but thats later]. That took a good bit, that mofo would NOT come off. Some extra muscle and cans of WD40 did the trick trying to disconnect the line from the bung on the manifold. The EGR attachment up from had to be deleted as well. Took that gasket to the same shop, and he made me another little "plate" to bolt on there.

    [​IMG]

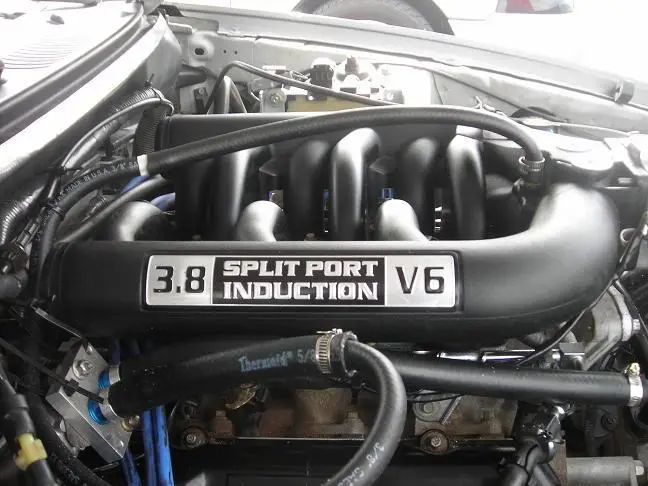

    Now, it was time to fit the intakes onto each other. Nice and easy....

    [​IMG]



    So after the main work is done, time to get some of the extra stuff done. The IAC and TPS had to be fabbed apart and relocated in my setup. The coilpack and throttle cables needed special brackets to be customly handcrafted to be get installed.

    *NOTE* Theres a spot on the Windstar manifold where the IAC can be bolted to the top of the manifold itself, where its supposed to go originally. If you can find a manifold where you dont have to fab anything, just makes things a ton easier. The very first picture of this topic actually shows what its supposed to look like.

    Pics:

    Heres myself and someone elses setup to show the brackets for the coilpack.

    [​IMG]

    [​IMG]



    Heres the relocated IAC. It was basically just constructed of a small square block with two bolt holes, and two larger holes with hose-bungs on one side. It bolted to the IAC via the two bolt holes and all you did was connect the respective hoses to the bungs and bingo. I had to ziptie mine to the rear [where you see in the pic] so that it didnt move around everywhere.

    [​IMG]



    The TPS is going to need the wires lengthened, so some soldering will have to be done, so itll reach your throttle body. This is the other guys setup, he had a better picture. lol.

    [​IMG]




    The bracket that the other guy made to get his throttle cables installed. Mine was fairly different. I didnt install my cruise control cable, so mine only had one adaption.

    [​IMG]



    The MAF cable had to be lengthened as well, so those will need some soldering action too. By this time, you should see how everything goes, where you can probably do some tweeks in your setup. The way you do everything else from here on out would be all up to you, cuz after the main stuff is done, youll need to reconnect your air induction system, wether you can fab up your stock one or you use a CAI you already have. Mine? I did something I did with my 5.0 I had in Alaska. I went to Home Depot and bought some white PVC pipe. Spray painted it black, and fabbed a neat little setup. I wanted to keep using my K&N filter, but I didnt have an adapter, so I had to make one. I got creative and I made one out of the stock housing on our V6 air intake tubing, where the MAF housing originally bolts up to, cuz on the other side, you can slide on a filter [since thats where your stock filter slides on to], so it worked out quite well. That should do it, really. It took me about 4 days to do, since I didnt have alot of the needed materials on hand. Though, if I did, it woulda took me a weekend no problem.

    The power increase? Dyno results on one guys stock 3.8L Mustang gave him an increase in 10rwhp and 26rwtq. After a tune and advanced timing, his final result was an increase of 22rwhp and 35rwtq. Mine? I didnt dyno my car before this, so I didnt know what I was making, but at the time, I wasnt making much. After the Windstar intake, I dynoed at 180rwhp / 215rwrq. I also had underdrive pullies, longtube headers, and some minor stuff done. So with some bolt ons and the Windstar, I was able to make a good 50rwhp increase on a six-banger. Impressive.

    And thats about it!!!



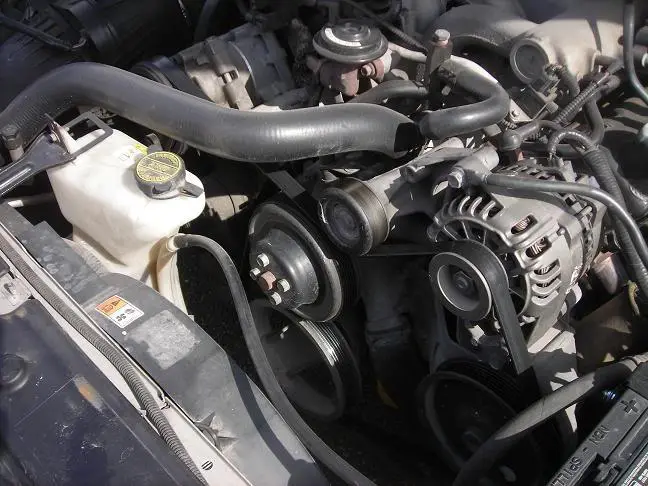

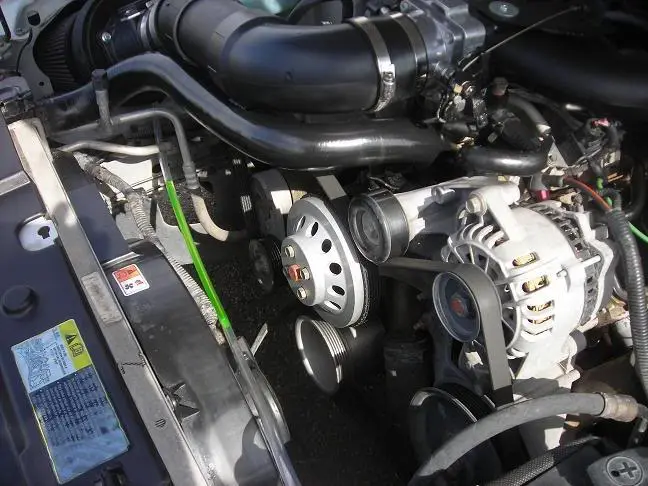

    **BEFORE/AFTER PICTURES**

    [​IMG]

    [​IMG]



    [​IMG]

    [​IMG]



    [​IMG]

    [​IMG]
    #1
  2. shine1stang

    shine1stang New Member

    Joined:
    Sep 9, 2009
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    0
    nicely done my friend. So the windstar can only support up to 18psi? hmm that could be a problem then. Has that be proven or just a ball park est?
    #2
  3. shine1stang

    shine1stang New Member

    Joined:
    Sep 9, 2009
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    0
    I think the windstar on a mustang is just sexy!!!! my dad has one and if i was split port i would too!!
    #3
  4. onebadsixxx

    onebadsixxx New Member

    Joined:
    Jul 13, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    North Las Vegas, Nevada
    Honestly, I dont know the limit. I really thought it may have been able to withstand less, though a guy off V6P claimed he was able to dyno his setup up to 18 pounds of boost. So thats where I got my numbers from.

    Had to edit some minor stuff on the write up. It was fun to do!
    #4
  5. MustangLX-5.0

    MustangLX-5.0 Founding Member

    Joined:
    Dec 3, 2000
    Messages:
    1,518
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Lehigh Acres Fla.
    That's damn GOOD work man! Just friggin cool as hell that you did that. You...have a LOT of patience and determination.

    That intake looks like it would only fit on 99 and up Mustangs. The intake runners on a 94-98 3.8 are straight parallel with each other. The intake you used has offset runners. So perhaps maybe the lower could be used along with it? Or do the cylinder heads have a different intake port location and size?

    Is that your heater hoses on the passenger side, right above the PCV breather? The hose that says "Thermoid" on it. If those are heater hoses, DITCH the Thermoid for Goodyear or better stuff. The Thermoid hose is WAY TOO WEAK. I had problems with that brand constantly splitting like a sausage after I revved up the engine past 4000 RPM. Went through 4 friggin ass hose repairs until I finally figure out it was the crappy ass hose quality. When I replaced it with a Goodyear hose, it never brke again. Take note, this is on a bone stock 96 3.8 motor. No mods or anything. If you want, take a piece of Thermoid and then a piece of Goodyear hose and place them side by side. Compare the stiiff and durable Goodyear hose to the soft and flimsy Thermoid hose. You'll feel the difference right away.

    I like the clear hose going to the coolant overflow reservoir. Looks cool how you can see the coolant within it.
    #5
  6. onebadsixxx

    onebadsixxx New Member

    Joined:
    Jul 13, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    North Las Vegas, Nevada
    Ill definately look into the hoses!! About the intake and what years they can be used for. The "1999-2004" can be a tad bit misleading. Only reason I gave the years is because of the fact you pointed out, its a splitport manifold. Which V6s had the newer splitport setup? The 1999 thru 2004. So, that being said, if you were to take your 94-98 V6 and do your splitport swap, then youd be able to use the Windstar manifold.

    Keep in mind, for the record, youd have to swap everything basically. If using the splitport lower and upper, youd have to take the heads made for a splitport engine as well.
    #6
  7. uniquestangsd

    uniquestangsd New Member

    Joined:
    Apr 6, 2010
    Messages:
    2
    Showcase:
    2
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    SAN DIEGO
    #7
  8. notoriousRH

    notoriousRH New Member

    Joined:
    May 6, 2010
    Messages:
    5
    Showcase:
    1
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    POMONA CA
    this looks like a bad ass set up. any way i can retain my egr valve. i live in California were the smog laws are super strick
    #8
  9. xscmanns

    xscmanns New Member

    Joined:
    May 21, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Does it flow better, also wouldn't the plastic run cooler?
    #9
  10. onebadsixxx

    onebadsixxx New Member

    Joined:
    Jul 13, 2009
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    North Las Vegas, Nevada
    Yes, and yes. Sorry I took long.
    #10
  11. Carnage11b

    Carnage11b New Member

    Joined:
    Aug 15, 2010
    Messages:
    2
    Showcase:
    11
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Sumner Wa
    so was there any actual hp gain from doing this?
    #11
  12. KarbinFourteen

    KarbinFourteen New Member

    Joined:
    Nov 21, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Couple of questions for you
    1. Your radiator hose looks very close to your belts, any rubbing issues with this modification?
    2. What type of clear tubing did you use for your overflow?
    3. Any issues with the PVC intake holding up to the heat?
    4. Where did you put your coolant overflow when you relocated it? What type of overflow container did you use?

    Nice work, I am hoping to do this to my 99 3.8
    #12
  13. driftcris

    driftcris New Member

    Joined:
    Aug 17, 2014
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    [QUOwhat length hoses are needed or what all is needed to do this swap already bought the intake just trying to get more info before i go at it TE="onebadsixxx, post: 8010914, member: 151734"]Honestly, I dont know the limit. I really thought it may have been able to withstand less, though a guy off V6P claimed he was able to dyno his setup up to 18 pounds of boost. So thats where I got my numbers from.

    Had to edit some minor stuff on the write up. It was fun to do![/QUOTE]
    What
    #13
  14. driftcris

    driftcris New Member

    Joined:
    Aug 17, 2014
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    What throttle body did you use?
    #14
  15. Joelbixler

    Joelbixler New Member

    Joined:
    Aug 19, 2014
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    I am un able to open links could some one please list a parts list? I pretty much have everything together except the hoses I am unsure of the length and size. Before I dive in I want to make sure I have everything cause it's my only car and running out to pick up something that I may have forgot will become bothersome. Thanks
    #15
