Electrical EFI Harness question

Husky44

10 Year Member
Sep 27, 2006
865
107
74
Tacoma, WA
I'm putting all new loom on my EFI harness (old stuff was brittle and looked like crap). I came upon an interesting issue, and not sure what to do with it. Would really appreciate some input from those who either have significant wiring experience, or have been inside the EFI harness before. I can speculate that this isn't right, but am looking for more than speculation:

Just downstream from the center section on the driver's side, all of the red wires are stripped of insulation, bundled together, and the entire stripped of all of the wires is wrapped up in a tar-like substance.

Is this the way it's supposed to be, or did someone create some sort of monstrosity after the fact? Since each injector has a red wire connected to it, I guess it's possible that Ford wanted them all to join together, but it sure looks funky.

This harness came off a running car, so it didn't appear to impact how it ran.

Also posting this in the main 94/95 section where I normally hang out, but though I'd post here as well to get more feedback. Harness is from a 91 LX, going into my 67.

Thanks, and Merry Christmas!

  • Sponsors (?)


Don't know this particular harness that well but I am awake and will offer my opinion. It sounds like a factory splice, the correct term eludes me right now. The goo is probably antique tape or the like for insulation. My guess is black tape it good and add your new loom and forget about it. Maybe someone else has seen this particular splice before and will know for sure.

  • Like
Reactions: 1 user
The more I think about it the more I'm convinced that it is factory-- it just doesn't look like something the factory would do. The goo was definitely not tape, it was some sort of putty. I'll put it back together tomorrow.

Thanks!

Sounds like a factory mess, but it probably came that way.
Here's some diagrams to show where all the red wires go in case you have any problems.

Diagram courtesy of Tmoss & Stang&2birds





See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

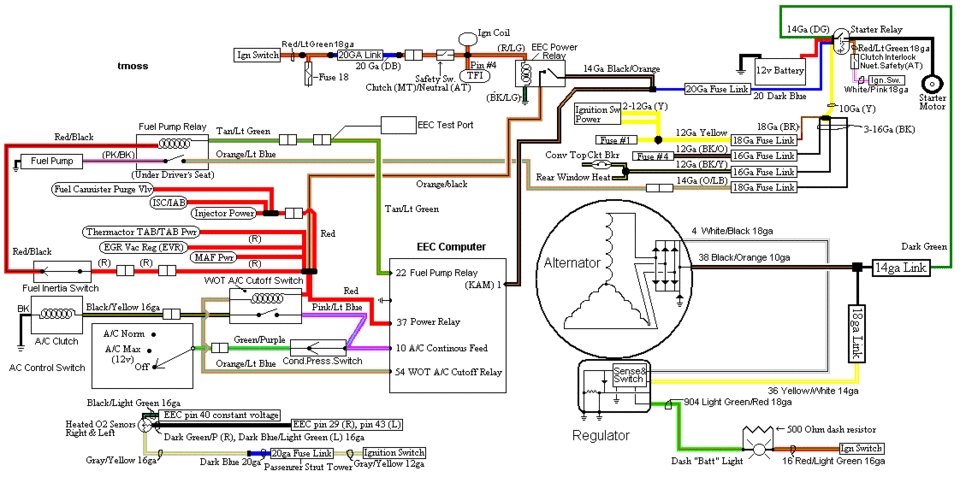

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

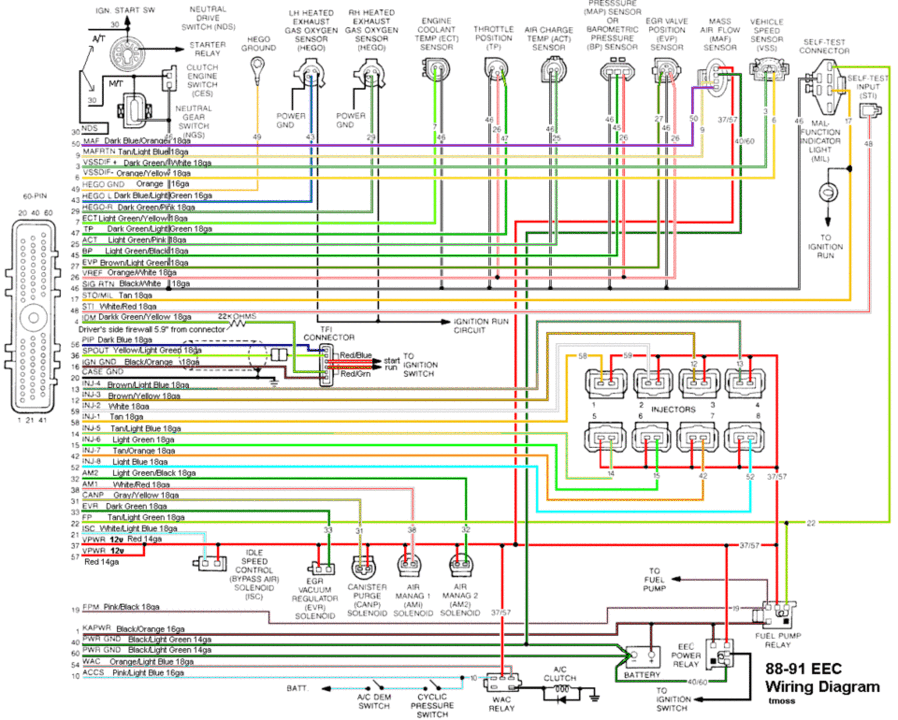

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
