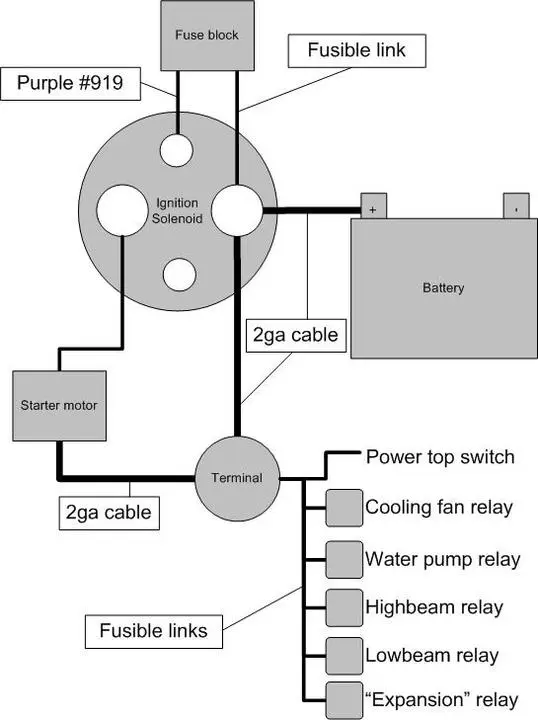

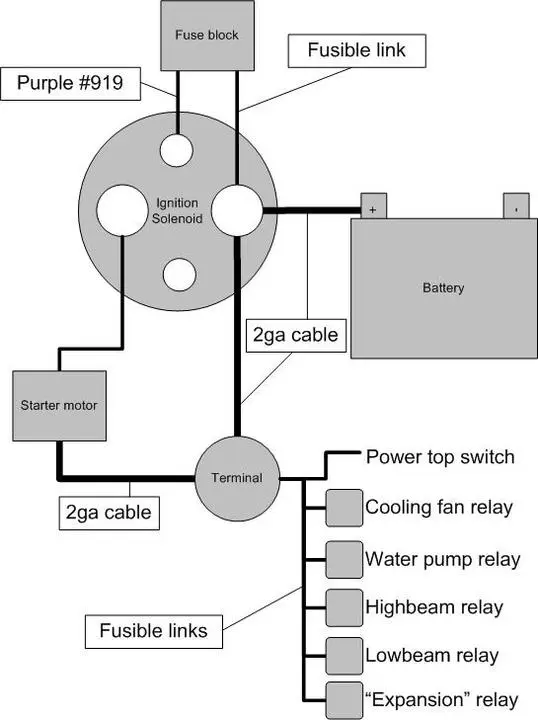

Do you think it wise to run the 6AL box off of a relay? I am planning on having a ditribution block or terminal screwed into the side of my engine compartment. From there I'll have at least 4 and likely 5 relays as shown in the following diagram. I want the electric fan and the electric water pump to have power regardless of the ingition condition, headlights too I guess.
GP, what do you think of this arrangement? I want the fusible links on everything but the starter motor (one with "permanent magnet") and battery itself for safety. Also, does anyone know of a good source for quality relays that don;t cost an arm and a leg?
That term "purple #919" refers to one of the wires in my 18 circuit kit from painless-performance.
