How To Install-Poly Axle Housing Bushings ***Pics***

Discussion in '1994 - 1995 Specific Tech' started by davis3, Oct 18, 2009.


  1. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,329
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA
    Today i'm installing Prothane's Poly Axle Housing Bushing's.
    Ordered from Summit Racing,$26.94 shipped.
    Part # PTP-6-309BL.

    After much searching,it's about 50/50 for or against poly bushing's.
    Some have had binding issue's,others have not.
    I decided to give these a try.
    Maybe i'll get some torque box reinforcements soon.

    Tool's Needed.

    1-Prothane Poly Axle Housing Bushing Set #PTP-6-309BL,Summit Racing $26.94
    1-jack
    2-jack stand's
    1-drill
    1-selection of drill bit's
    1-19mm wrench(may be different)
    1-18mm socket(may be different)
    1-9/16 deep socket
    1-ratchet
    1-knife
    1-small wire wheel attachment for drill
    1-can WD40

    Here we go.

    REMOVAL

    1.place wheel chock's in front of front wheel's.
    raise rear,support with jack stands.
    place under frame,not axle.

    2.remove rear wheels.
    you might not need to,but i like lots of room to work in.

    3.here's the upper control arm(passanger side).
    give it a shot of WD40,let it sit awhile.
    just remove the axle side bolt.
    rotate up and out of the way.
    i used an 18mm on a ratchet and 19mm wrench,may be different if stock arms.
    [​IMG]

    3.mine were ready to go.
    cracked rubber and the metal sleave came out easily.
    [​IMG]
    [​IMG]
    [​IMG]

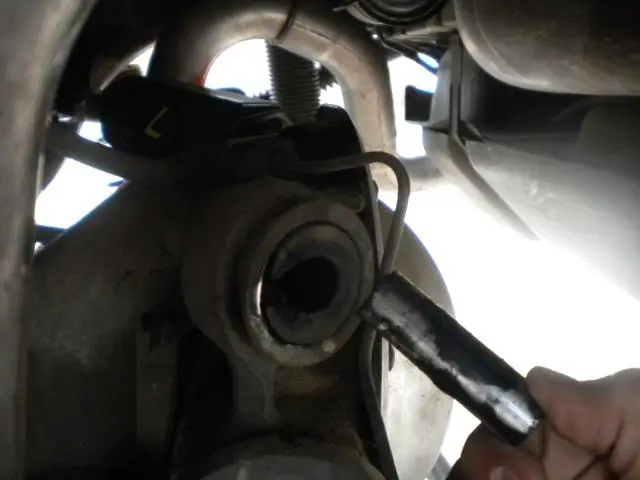

    4.Do One Side At A Time!

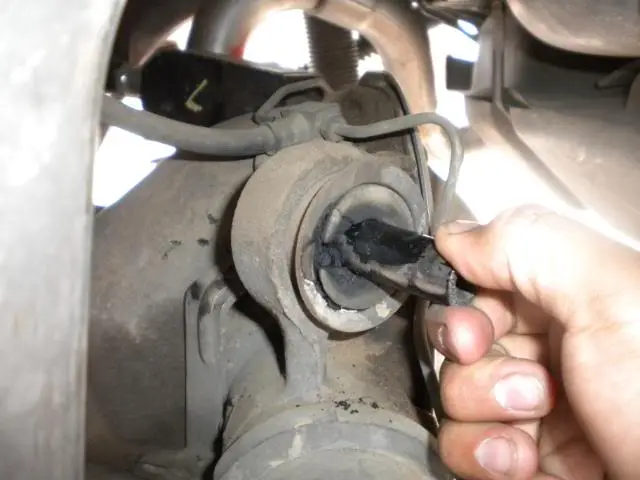

    the poly bushing's reuse the stock bushing shell's,so we'll need to cut out the rubber.

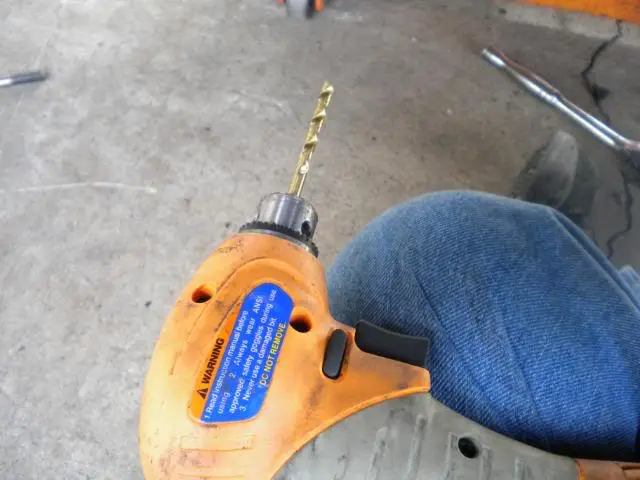

    i used a drill to remove most of the rubber.
    (some burn the rubber out.i have no torch,so i went this way.)
    than,a knife to cut out enough to get my wire wheel in.
    [​IMG]
    [​IMG]

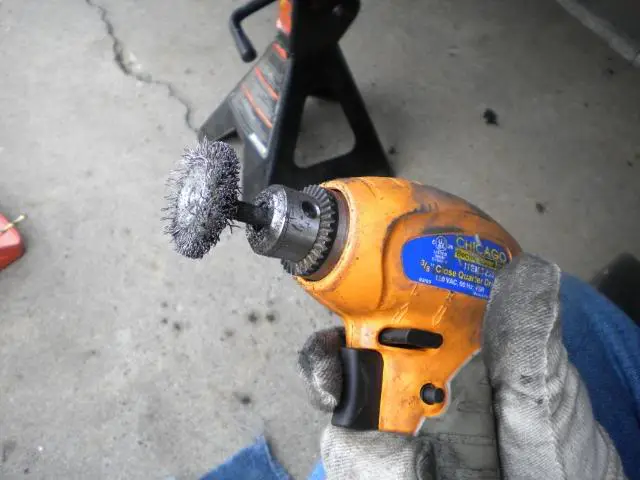

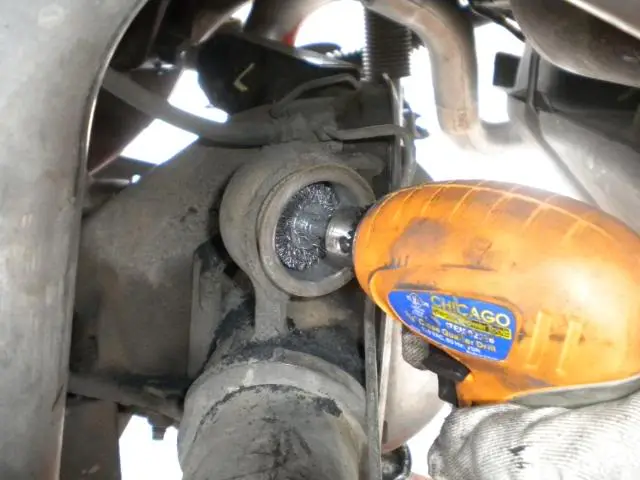

    5.next,i used a small wire wheel attachment on my drill to remove the rest.
    [​IMG]
    [​IMG]

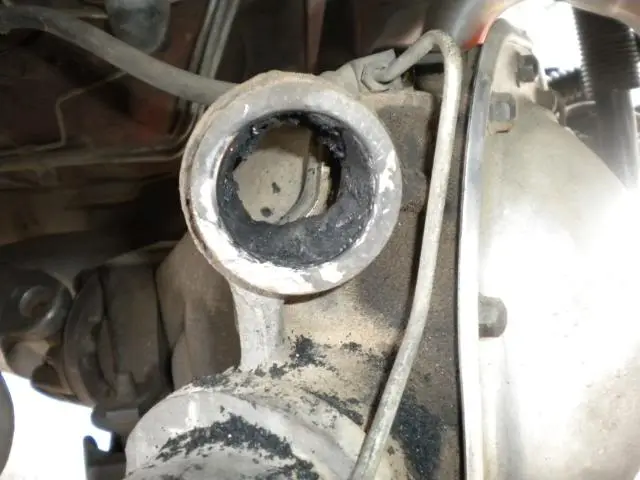

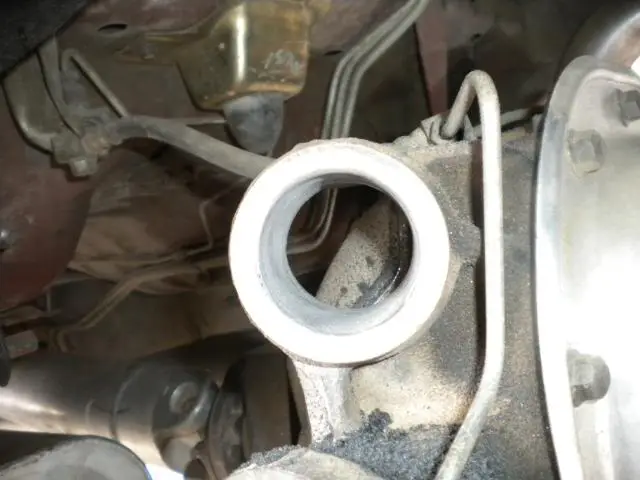

    6.here it is all cleaned out.
    [​IMG]
    and here's the mess.
    [​IMG]

    INSTALL

    7.for driver side install,first disconnect brake line brace.
    need to move to the side to install poly ring.
    loosen and remove 9/16 nut.
    [​IMG]

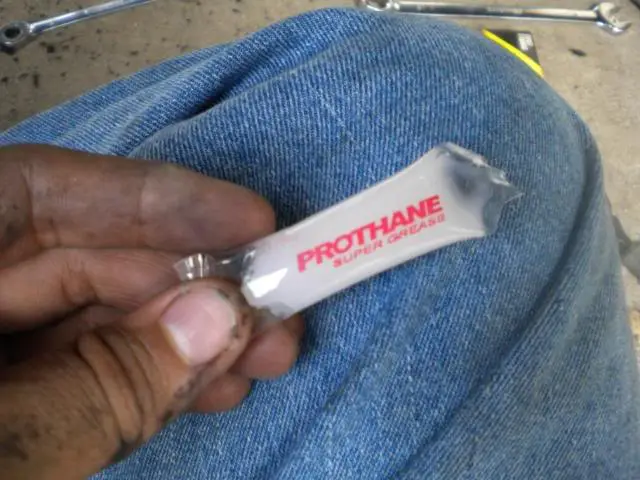

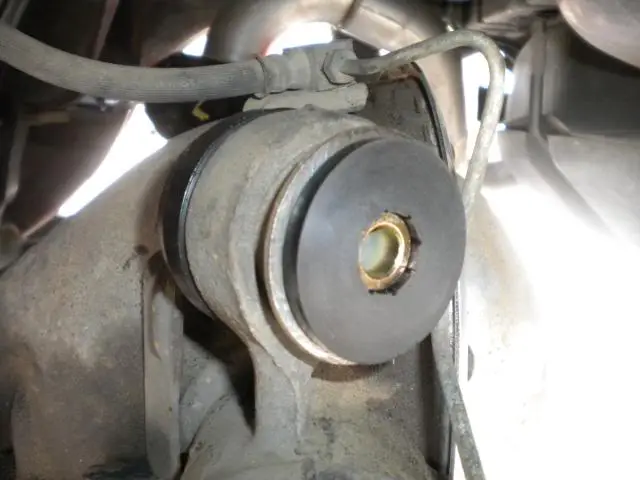

    8.with supplied lube,lube up the poly ring and install on small end of bushing shell.
    [​IMG]
    [​IMG]

    9.lube inside the bushing shell,make sure you save enough for the other side.
    [​IMG]

    10.place poly bushing in shell.
    i used a small metal mallet to drive it in.
    use medium blows,right in the center.
    smear some lube on the face of the bushing.
    (sorry about the dark pic's,flash did not go off.)
    [​IMG]
    [​IMG]
    [​IMG]

    11.wrestle control arm back on,insert bolt and leave loose.
    reattach brake line brace.

    12.repeat on other side.

    13.with both sides done,and control arms loosely installed.
    place jack under center section of axle,slowly raise until it raises car a fraction off the jack stands.
    the reason for doing this,is that the suspension must be loaded before tightening control arm bolts.

    LEAVE JACK STANDS UNDER CAR,INCASE JACK FAIL'S!

    14.tighten control arm bolts

    15.reinstall wheel's.

    16.place car back on ground.
    make sure you tighten your lug nuts!

    17.all done!

    #1
  2. 94gtfreak

    94gtfreak Active Member

    Joined:
    Oct 19, 2008
    Messages:
    1,206
    Likes Received:
    3
    Trophy Points:
    39
    Location:
    your moms house
    Awesome! Did you notice a difference after doin this?

    #2
  3. Labora

    Labora Founding Member

    Joined:
    Jun 11, 2000
    Messages:
    1,801
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Dallas, Texas
    Also my question.

    #3
  4. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,329
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA


    Posted via Mobile Device
    have not driven it much yet.
    i'll report back later.

    #4
  5. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Another nice write-up Harvey. :nice:

    #5
  6. Celeb

    Celeb SuperMod Super Mod

    Joined:
    Sep 8, 2002
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Here and there
  7. BlownFiveLiter

    BlownFiveLiter have car, will race....wait, it doesn't run

    Joined:
    Nov 30, 1999
    Messages:
    5,504
    Likes Received:
    25
    Trophy Points:
    88
    Location:
    Chicagoland
    #7
  8. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,329
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA
    thank's guy's
    driving around last night,the rear did not feel as loose as it was before.
    definetly felt more solid back there.before i could really feel the rear end moving around in tight turns.
    i did not notice any binding.

    here's a link that i think does a pretty good job describing what exactly suspension bind is.

    ELEPHANT RACING Tech Topic, Suspension Binding

    we all know the upper control arm control the vertical(up down)motion aswell as trying to control lateral (side to side) movement of the axle.
    the rubber bushings do a good job of absorbing this lateral movement.
    the poly bushings are much harder and will not deflect as the rubber bushings do.
    from everything i've read,this will put increased stress at the weakest point.
    this being,the torque box's.
    there are weld in,and bolt in Torque Box reinforcment's available from a number of sources.

    #8
  9. Adam95GT

    Adam95GT New Member

    Joined:
    Aug 14, 2006
    Messages:
    2,600
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Burlington, NJ
    once again nice write up! burning them out is defiantly easier and faster we do it when we make out probe gt poly filled mounts.

    [​IMG]
    [​IMG]

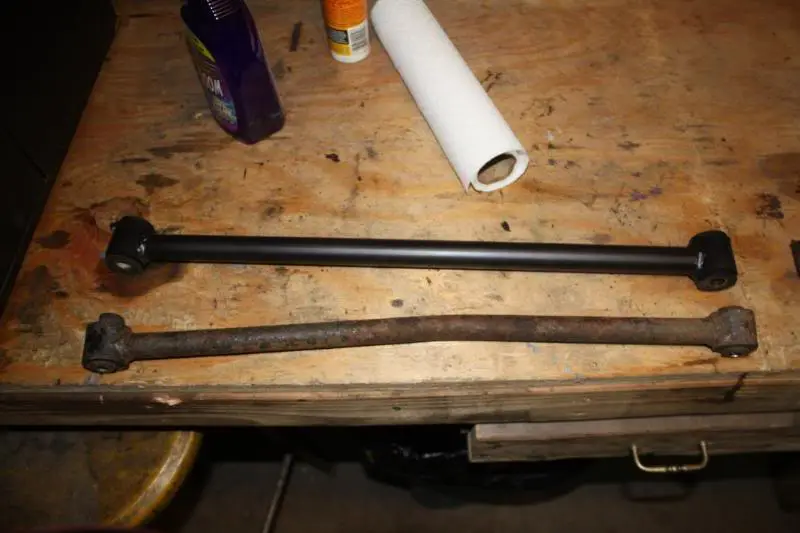

    We also burn out the bushings to make some trailing arms for probe GT's all the stock ones bend
