Installing tach sunday HELP

[Ryan91Saleen]

im putting in a autometer tach tomorrow and is there any precautions that i should know about? and can i put the red wire the goes to the igniton switch somewhere else? thanks for the input



[Black331Stang]

pretty straight forward, have fun!.
red-12v power..and yes, anywhere/anything that turns on with the key..ive hear dof people running to the fuse box and pinching it behind a fuse (one that goes on with ignition) ive heard and seen it works good but i dunno, i guess thats just not my style of doing things
Black-ground
White- illumination (ac/heater controls)
Green- Neg side of coil

good luck



[Ryan91Saleen]

anybody have any pics? of it mounted



[Mavrick]

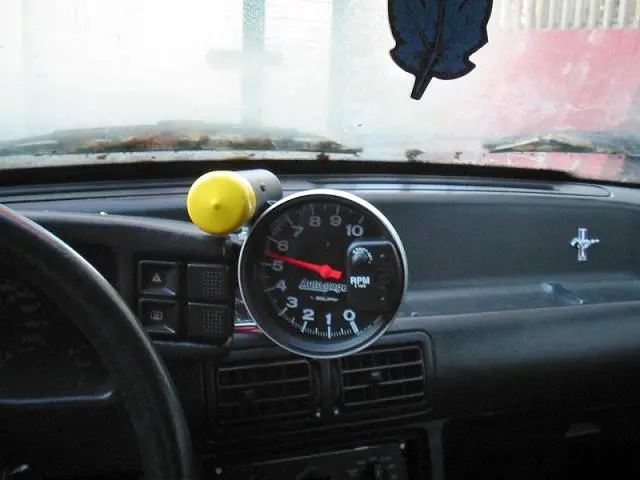

Here's mine, just a regular autogauge



[IndyBlk5.0]

http://www.50tech.com/articles/display_article.php?catid=3&id=14
