Main Harness Question

Discussion in 'Fox Engine Swaparoo' started by VAFOX, Jan 17, 2012.


  1. VAFOX

    VAFOX Member

    Joined:
    Apr 13, 2011
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    7
    Is there a way to tell what year a main harness is off of? I am collecting parts for an EFI swap and need an 89' harness. Someone locally has one for $30, but doesn't know what year it is off of.

    Thanks!
  2. txstang84

    txstang84 Active Member

    Joined:
    May 21, 2005
    Messages:
    1,633
    Likes Received:
    27
    Trophy Points:
    49
    Is there a part number wrapper somewhere on it? Pictures?? Let me do some looking and I'll get back to you...

    Where the ECU harness would connect to the chassis harness (by the master cylinder), there are a couple differences, and it involves the number and color of the round connectors...something like 89-92 had two, but 93 only had one...
  3. VAFOX

    VAFOX Member

    Joined:
    Apr 13, 2011
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    7

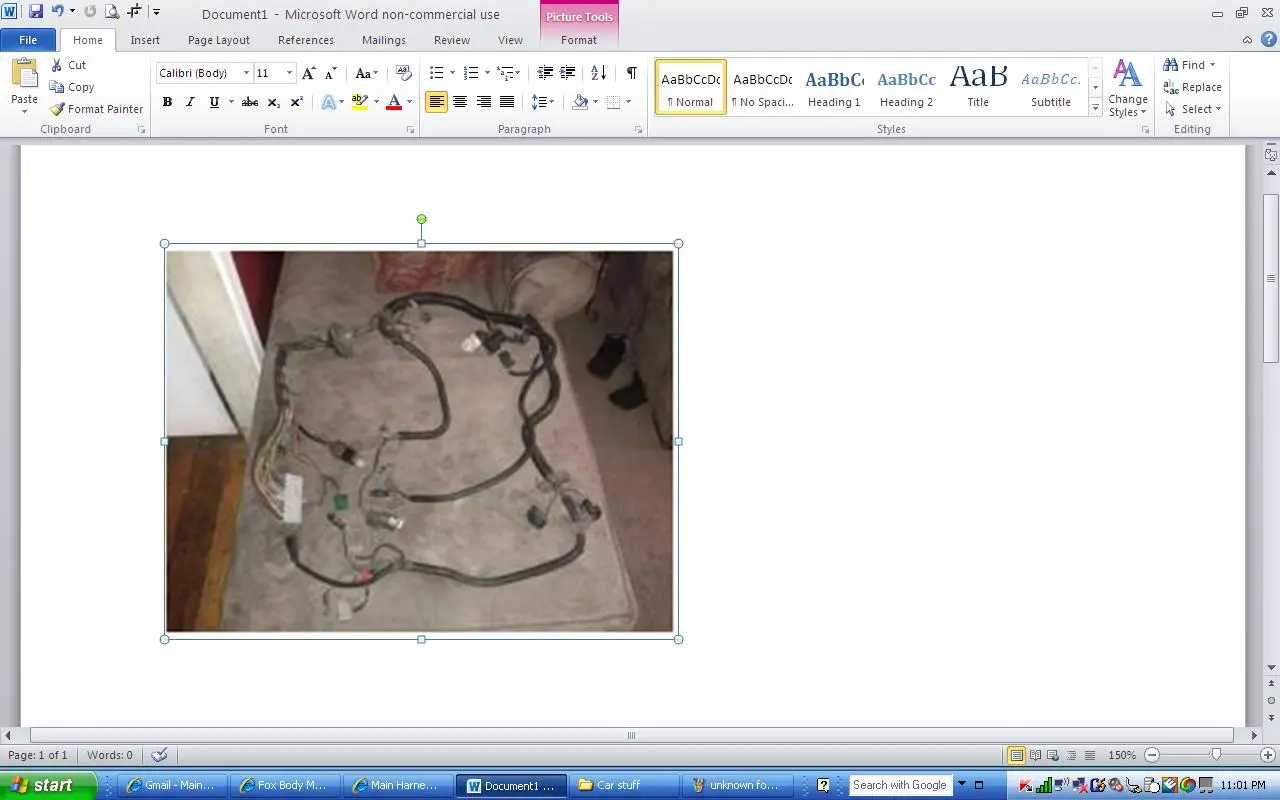

    The guy said no part numbers were evident. I will try to attach a picture:
    Best I can do for now.

    Attached Files:

  4. txstang84

    txstang84 Active Member

    Joined:
    May 21, 2005
    Messages:
    1,633
    Likes Received:
    27
    Trophy Points:
    49
