My take on a 2.3L cold air intake kit...on my '93 Fox

Discussion in '2.3L (N/A & Turbo) Tech' started by billet works, Mar 7, 2010.

  1. billet works

    billet works New Member

    Joined:
    Sep 9, 2009
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    DFW
    Well, first off, I'm new here...so I thought I'd share something different with my first tech post.

    While I'm building a 2.3t for this beast, I wanted something to help free up a few ponies and mpg's. The obvious fix to me was to install a cold air and eliminate the restrictive air silencer setup.

    Here's what I did:
    1. Took apart the stock system and took necessary measurements.
    2. Got my hands on a 3" diameter 45 degree and a 3" 90 degree aluminum intake tube.
    3. Ordered up some 2.5-3" intake couplers with clamps and a 3" coupler with clamps.

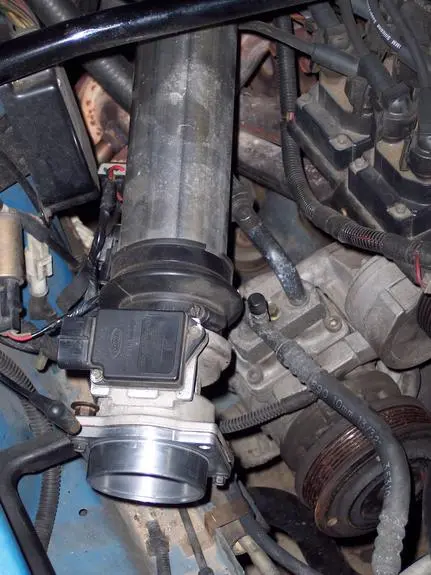

    4. Modeled up the components I needed to attach a cone filter to the MAF sensor while keeping the other stock sensor and vacuum line in tact utilizing Alibre. These consisted of a spacer and a flange.
    5. Wrote a lil CNC code and cut the parts I modeled from 2 blocks of 6061 T6 aluminum.
    6. Pressed in a piece of 3/16 brass tube for the stock vacuum line and tapped the other hole for the pre MAF sensor.

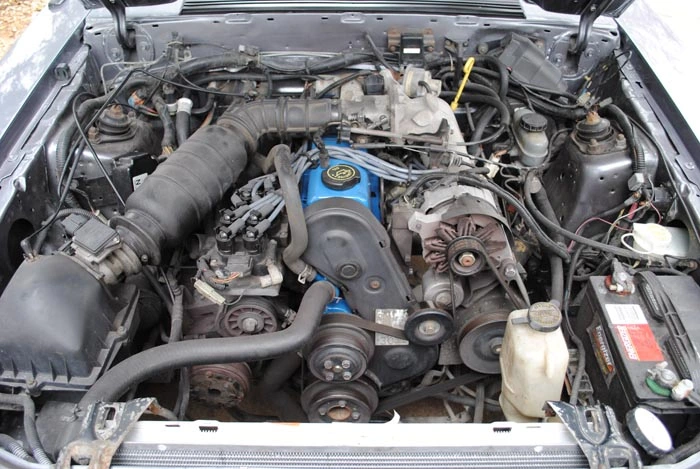

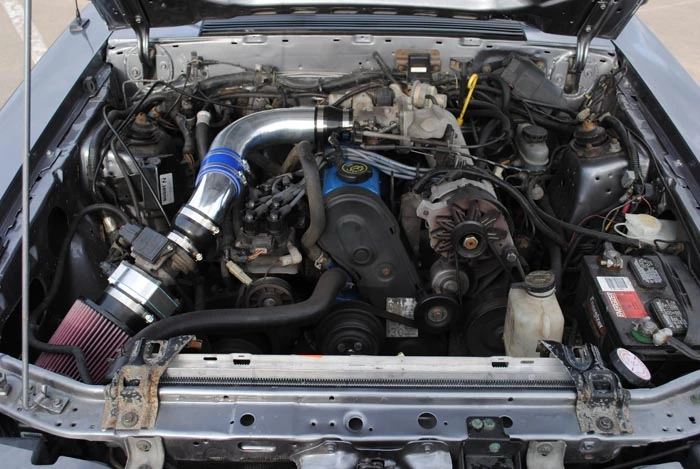

    7. Bolted all the parts together and here's what I ended up with comparing to stock.

    Thanks for looking...more mods to come including a ranger header and a T5 swap.

    Don


    Attached Files:

    #1
  2. RICESKI

    RICESKI New Member

    Joined:
    May 22, 2007
    Messages:
    2
    Showcase:
    3
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    2.3 air

    I see you have a great idea for the cold air - you could share the code or better yet - cut a few of those blocks - add some good install pics - and make a little package to help others.
    What do you think of that?
    Gary
    :nice::flag::nice:

    #2
  3. barhopper

    barhopper New Member

    Joined:
    Mar 15, 2010
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    I would love to have one of these set ups !!!! I agree w/Riceski that you should make a few (since no one else makes them for 2.3)

    #3
  4. Dr_EluSivE

    Founding Member

    Joined:
    Apr 24, 2002
    Messages:
    2,387
    Likes Received:
    0
    Trophy Points:
    56
    Location:
    Central Illinois
    that looks good, I wish I had access to a CNC machine...


    Dr.

    #4
  5. billet works

    billet works New Member

    Joined:
    Sep 9, 2009
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    DFW
    Thanks guys. I've been driving this setup a few weeks now that I got my orings in for the spacer and it makes a very noticeable difference. I am going to make a few spare sets and already have the spare hardware and orings for a few kits.

    I did discover a blown transmission mount and toasted motor mounts...and am having trouble finding motor mounts for this thing.

    #5
  6. imthaman01007

    imthaman01007 New Member

    Joined:
    Feb 26, 2010
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    WMass
    Gimme a price and Ill pay for the CAI, I don't care what it is... I don't have the know-how to build one myself, and am getting VERY cranky at a lack of parts for this motor.

    #6
  7. Jax Rhapsody

    Jax Rhapsody Member

    Joined:
    Apr 13, 2009
    Messages:
    74
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Louisville,KY
    Pretty nice, but I'd like to see somebody come up with like a shaker or something. I love how you put all that work into it and got something that works. CAI's are just turning into the norm. It does look better than most and is probably the cleanest home-built I've ever seen.

    #7
  8. 2.3beastLX

    2.3beastLX New Member

    Joined:
    Apr 2, 2010
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Dallas
    no kidding

    No kidding its way difficult to find parts..
    any who.. great work, wouldnt mind getting one of those...:nice::nice:

    #8
  9. Crovax

    Crovax Type O Danzigative the Dark
    Founding Member

    Joined:
    Sep 4, 2000
    Messages:
    5,572
    Likes Received:
    27
    Trophy Points:
    98
    Location:
    Vinland
    Looks better than pvc pipe.

    #9
  10. Dan P.

    Founding Member

    Joined:
    Apr 27, 2002
    Messages:
    483
    Likes Received:
    0
    Trophy Points:
    27
    Location:
    N.C.
    LOL Cro you old dog long time no see..... You still got the old stang?

    I did something like this when I was in college I took an old MAF and milled it down in a lathe.

    [​IMG]

    #10
  11. 65ShelbyClone

    Founding Member

    Joined:
    Sep 9, 2000
    Messages:
    4,734
    Likes Received:
    15
    Trophy Points:
    69
    Location:
    Antelope Valley, SoCal
    I know this is a downer, BUT...

    It looks to me like the "CAI" replaced the stock cold air intake with what is actually a hot air intake. The stock airbox was drawing air from outside the fender. The new one has the filter sitting in the engine bay getting hot air from the radiator. On top of that, the MAF was the biggest "restriction" and it's still there.

    #11
  12. yukonstang

    yukonstang New Member

    Joined:
    Apr 13, 2009
    Messages:
    11
    Showcase:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    there was a big reducer on there after the MAF to thou. I think there would be more air flow goin to the engine after you put the CAI on regardless of if you use the stock MAF. yah there may be heat from the radiator but how hot do you think it gets inside the airbox from the same heat from the rad im sure it'll still be cooler with the CAI. You can also put the CAI filter lower or into the fender. I think you can use CAI kits for the 94 V6 stang on the foxes i was looking at pictures of it and you can probably bolt it right onto the MAF. From my understanding if someone can built a piece that isnt as restrictive as the stock MAF all you would have to do is make sure the sample tube to the sensor is the same size as the stock one.

    #12
  13. yukonstang

    yukonstang New Member

    Joined:
    Apr 13, 2009
    Messages:
    11
    Showcase:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    it takes know effort what so ever to built that part to bolt onto the MAF i built it in about a half hour all that took time was measuring. if you have access to a drill press, oxy acetylene or plasma cutter, a welder, and a grinder you should be able to make it. you could probably go to a welding shop and find junk pieces to make it like i did. ill put some pics up at a later point in time

    #13
  14. Joe Jr.

    Founding Member

    Joined:
    Nov 16, 2001
    Messages:
    198
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Longmont area of Colorado
    looks nice. and nice work !

    #14
