Updated Member's rides

Discussion in '1974 - 1978 Mustang II Talk & Tech' started by 77sleeper, Jul 29, 2003.


  1. 77sleeper

    77sleeper GO BUCS!
    Founding Member

    Joined:
    Oct 11, 1999
    Messages:
    7,491
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Napalm, AZ
    Due to the receint board updates many of the attachments were lost, besides, it seems as though everybody is getting their rides painted

    post 'em again

    "Please ask questions in a PM or seperate thread"

    #1
  2. Power Surge

    Founding Member

    Joined:
    Jul 20, 2002
    Messages:
    1,519
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Palm Coast, FL
    Ok, here goes..

    My baby is a 76 Cobra II, 302/4 speed car. I am in the process of restoring it back to as factory original as humanly possible. I am on a neverending quest for NOS and good factory correct used parts and I have probably already spent as much as I paid for the car on NOS parts for it. I am not looking to win shows, be judged, or compete with my car (although I may do so from time to time), I just want a proper "correct" car that I can be proud to drive. People love the car wherever I go, and I won a first place trophy at the first car show I attended this year. Here are some pics, hope you enjoy them as much as I do!

    Engine Bay 1
    Engine Bay 2
    Interior
    Show Pic
    NOS Battery
    Side Pic

    #2
  3. IICrazy

    IICrazy taken away

    Joined:
    Mar 28, 2003
    Messages:
    1,417
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Maple Valley, Washington
    Here she is the new baby 76 cobra with a beefy 302 dual exhaust, headers and thats about it.

    Soon to come within the next few months

    Paint (hapening in a week)
    Window louvers (just got some today)

    far off in the distance

    Roller motor ( :D )

    [​IMG]

    [​IMG]

    #3
  4. Dano78

    Founding Member

    Joined:
    Nov 1, 1999
    Messages:
    2,636
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    Vancouver, WA
    Ok here's my 78 Fastback:

    The Blue Fastback is my 363 hp Tunnel Ram car that was in a recent accident. The pics are of it at a weekly car show in town before the accident. And yes, it is factory Dark blue with Red Interior. The rugs and seats have been changed.

    Engine Vitals-
    '67 289 bored .030 with Speed Pro Cast pistons. All stock lower end with HV oil pump and ARP drive rod. Edelbrock Performer RPM cam, lifters and Timing chain. The heads are '66 Hi-Po 289's fully ported and has 1.94/1.60 Chev valves with Edelbrock Torker Springs and Isky Valve locks. Custom length Trickflow Chrome Moly pushrods and Crane Energizer Full roller rockers finish off the valve train. Currently it has a Weiand Dual Quad Tunnel Ram with 2 450cfm Holley manual secondary 4bbls. Ignition- for now, I'm running a Pertronix Mr. Ignitor and Mallory Promaster Coil with Accel 8.8 wires (not in picture) Previous Owner butchered the wiring so I have yet to fiddle with making the DuraSpark work again.

    Exhaust- Dynomax headers feed through 2.5" pipes to Dynomax Super Turbos and 3" exits the muffs out the back.

    Trans- Currently Stock C4 trans with Stg 2 B&M shift kit. Unaffortunately this C4 has the pinto valvebody and i fear it's light duty at that.

    Other mods- I have a 3.50:1 spooled rear and SSM lift bars and also the SSM Subframe Connectors. Up front, shortened stock front coils and a 1 1/8" front sway bar with Monroe shocks. Manual R&P steering, Racing bucket seats, Moroso sealed Batt box, Scummit remote batt cut-off and all "0" (single ott) Battery cable. Keeping it somewhat cool is a 16" perma-cool fan and a 4 row (small tube) radiator.


    Attached Files:

    #4
  5. Dano78

    Founding Member

    Joined:
    Nov 1, 1999
    Messages:
    2,636
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    Vancouver, WA
    Here's my '76 Cobra II. It's a V6 4 speed car and all original as you see it. It'll be getting a full resto down the road.

    Mods so far- 14" Outlaw wheels, 3.40 trac lok rear with rear sway bar. Absolutely NO exhaust!.....actually, only about 2 feet of pipe on each side!!!


    Attached Files:

    #5
  6. Dano78

    Founding Member

    Joined:
    Nov 1, 1999
    Messages:
    2,636
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    Vancouver, WA
    I guess i'll replace this spot were my '75 Ghia was with my newest accusititon, a '78 Ghia. I paid $100 for it in Nov '03. A guy came by with it on the trailer was referred to me from another car buddy of mine. He said the crusher would give him $75 for the hulk so i offered him $100 and that he can dump'er in my back yard. Originally it was a black exterior red interior car but someone started changing the interior over to black. The V6 is mostly dis-assembled and in the trunk. It has the C4 auto trans and an 8" rear. I'm debating on what to do with it right now. i have a spare, sweet running V6 in the garage and a spare auto trans if need be. The car is not rusty, not one bit at all. The vinyl top is in fair shape and the body is really straight except for a dent in the right front fender. I'll figure out what to do with it soo enough. It's such a soild car, I'd hate to part it out. :shrug:

    I'll have a pic up soon. (too many other pics on SN already- past my quota!)

    #6
  7. a351Must2

    a351Must2 Windsor II
    Founding Member

    Joined:
    Mar 12, 1999
    Messages:
    4,317
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Snohomish, WA

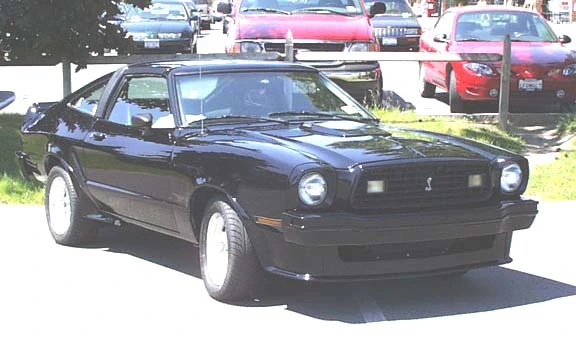

    '78 Mustang II T-Top, 351W 5spd

    '78 T-Top

    Engine/Drivetrain:
    '72 351W, 0.060" overbore (362ci), 11:1 compression, balanced
    Edelbrock Performer RPM Aluminum heads 1.90"I/1.60"E
    Port matched Edelbrock Performer RPM intake
    Holley 750cfm 4160 vacuum secondary 4-bbl converted to 4150
    Custom ground Crower cam
    Edelbrock AccuDrive gear drive
    Proform roller rockers
    Milodon 8qt oil pan
    large high flow headered oil cooler
    Oberg remote oil filter
    re-curved Ford Duraspark distributor
    MSD Blaster coil
    Taylor 8mm spiral core wires
    FMS King Cobra clutch and pressure plate
    Tremek 3550 5-spd transmission
    Drivelines NW shortened and balanced driveline with Spicer u-joints
    '59 Galaxy 9" housing and 5-lug axles
    3.70:1 9" trac-lok differential
    Hooker Super Competition long tube headers
    custom 3" X-Pipe and 3" dual exhaust with 3" mufflers and 2.5" tailpipes
    custom 4-row core radiator

    Suspension/Brakes:
    900lb/in 2" lowering springs (Racer Walsh)
    1" front anti-roll bar (Racer Walsh)
    7/8" rear anti-roll bar (Stock)
    SSM Lift Bars
    SSM Subframe connectors
    11" Granada disc brakes
    11" '59 Galaxy rear drum brakes with '64 adjusting hardware
    1" Lowering blocks
    245/45-17s on 17X8 Roush Mustang alloy wheels
    Urethane control arm, rack, strut-rod, and sway-bar bushings
    Tubular upper control arms
    Monroe gas shocks

    Best of 13.68 @ 105.6mph at Pacific Raceways on street tires.
    309hp, 353ft/lb at the wheels.

    [​IMG]

    #7
  8. MustangIIGirl

    MustangIIGirl New Member

    Joined:
    Jan 5, 2003
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chehalis, WA
  9. kcobra302

    Founding Member

    Joined:
    Mar 22, 2000
    Messages:
    864
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    latham ny
    nothing really new since last fall. i will take some pics of the new seat covers and carpet soon.

    here are a couple of cleaner photos 11-5-03


    Attached Files:

    #9
  10. Eos

    Eos Oh Heather Oh yeah... I want your pink taco

    Joined:
    Jun 13, 2003
    Messages:
    1,264
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    oklahoma
    You can check out my car here http://www.cardomain.com/id/mustangii

    I get tired of writing the same thing over and over. It says pretty much everything on the site. The car is still in the shop, I think it is finally being worked on now engine is getting rebuilt and 2nd gear is out so that is being fixed. I got the car sometime around May 7th, was when I made the page. So I think that is the day I got it. Anyway the car has been smoking really bad since the day we got it, and several people told me the rings were fryed. It still ran, we put like 1,000 miles on it maybe less. The mileage is kinda messed up, doesnt count right. Anyway we would end up having to put oil in it about every 100 miles. So anyway..yeah look I wrote a whole paragraph all though I said I wasnt going too. lol Anyway check out the site for pics.

    #10
  11. Project 77

    Founding Member

    Joined:
    Jun 30, 2002
    Messages:
    546
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Bernville PA
    this is my beast....351W soon to have a set of ported and polished heads. might swap the C4 for a T5 conversion and MAYBE a 393 stroker. i'll get some interior pictures up soon.

    #11
  12. jshcobra

    Founding Member

    Joined:
    Jul 5, 2000
    Messages:
    720
    Likes Received:
    0
    Trophy Points:
    0
    Here's the latest incarnation of my Ghia.

    Specs: 289 v8 4bbl w/ t5 tranny and 3:00 8"
    65 Mustang front bumper/modified 69 Camaro rear bumper
    67 Cougar Luggage Rack
    CobraII hoodscoop
    [​IMG]

    #12
  13. Power Surge

    Founding Member

    Joined:
    Jul 20, 2002
    Messages:
    1,519
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Palm Coast, FL
    Here are some pics of my brothers Pro-Street 74. We JUST finally finished it, and he drove it for the first time yesterday :banana: ....

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #13
  14. Gael

    Founding Member

    Joined:
    Jan 26, 2002
    Messages:
    653
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Tucson, AZ
    1978 Ford Mustang Cobra II

    • 302 V8 bored .060 over
    • 4 speed manual transmission
    • Edelbrock Torker II intake
    • Holley Street Avenger 670cfm double pumper carburetor (too much carburetor for the engine)
    • Crane Cams roller rockers
    • '66 289 heads
    • Cranecams 268 High Energy cam
    • 2 1/4" Flowmaster 40 series mufflers
    • Headers (don't know brand)

    Future plans/wishes:
    • Positraction with better street/strip gearing
    • New heads, or port the heads I have now

    Best 1/4mile time of 15.732 @ 87.80 mph. Hope to drastically improve that after I finish what I want to do.

    [​IMG]

    #14
  15. CanadianCobra

    CanadianCobra New Member

    Joined:
    Jan 21, 2003
    Messages:
    177
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    I'd love to settle down if I could afford it.

    Attached Files:

    #15
  16. roadsterII

    Founding Member

    Joined:
    May 4, 2001
    Messages:
    345
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    West Michigan

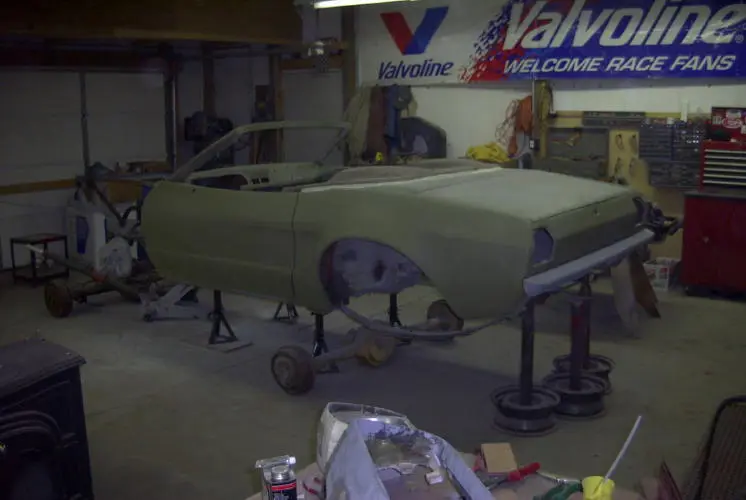

    roadster shot from this last year.


    Attached Files:

    #16
  17. perce111

    Founding Member

    Joined:
    Feb 29, 2000
    Messages:
    629
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Bellingham, WA
    How do you just put picture in.......not attach?

    #17
  18. 90lx

    Founding Member

    Joined:
    Mar 13, 1999
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    You have to have your images hosted on the net somewhere, like your own website or a web hosting service. Some are free but limit how much linking you can do. Use the yellow box icon above the reply window to insert an image. A dialogue box will pop up for you to put in the web address of the image you want to post. It will then show up in your reply instead of a link.

    #18
  19. Max Power

    Max Power New Member

    Joined:
    Jul 31, 2003
    Messages:
    1,776
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    St Paul

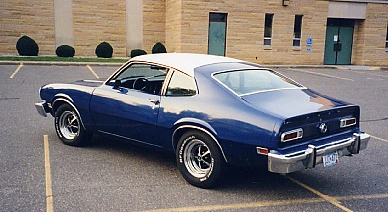

    OK, wrong ride, I know, I know!!!!


    Attached Files:

    • Mav2.jpg
      File size:
      43.3 KB
      Views:
      266
    #19
  20. UnbridledFury

    Founding Member

    Joined:
    Oct 22, 1998
    Messages:
    165
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Parkland, WA
    1975 Mustang II

    Purchased in 1981
    [​IMG]

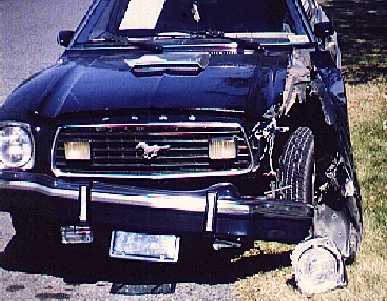

    Run over by a military police Hummer in 1993.
    [​IMG]

    Photo taken in July 2001.
    [​IMG]

    #20
