Wiring issue

Discussion in 'Fox 5.0 Mustang Tech' started by bgoins, Mar 6, 2011.


  1. bgoins

    bgoins Member

    Joined:
    Feb 24, 2009
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    hampton roads, virginia

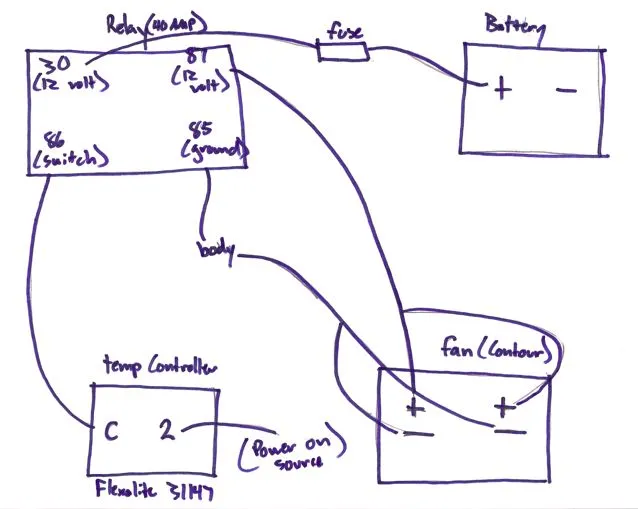

    I know this won't get many views because everyone seems to hate wiring, I have done some searches which didn't turn up what I need, so here's a schematic of my electric fan wiring. I have upgraded my alternator, I have an adjustable fan controller and a 40 amp relay switch. I'm wiring up a Contour dual electric fan as a single speed on/off. Here's my schematic. Thanks in advance for any input. I'm really hoping to get this thing in this weekend (I've been putting it off for weeks!)

    Attached Files:

    #1
  2. 90stang5speed

    90stang5speed Member

    Joined:
    Jan 19, 2009
    Messages:
    584
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Columbus Ga
    I'm not an expert on wiring but, as long as you have the wires going to the right spots on the relay, that should work. I dont use a controller with mine & only have a single Mark VIII fan.
    #2
  3. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,561
    Likes Received:
    350
    Trophy Points:
    134
    Location:
    Dublin GA
    You don't seem to have much expectations... But here it is....

    [​IMG]

    Attached Files:

    #3
  4. bgoins

    bgoins Member

    Joined:
    Feb 24, 2009
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    hampton roads, virginia
    Ha. It has been kindof a drawn out upgrade. Hey, on your diagram, I'm confused with the 85 and 86 pin. The 85 pin is the ground and you have it going to the Fan temp controller. The 86 pin is the "switch" and looking at the diagram you posted I'm not sure where it's going, but it looks like it is going to the battery+. Thanks for the help man.
    #4
  5. bgoins

    bgoins Member

    Joined:
    Feb 24, 2009
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    hampton roads, virginia
    Any help out there?
    #5
  6. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,561
    Likes Received:
    350
    Trophy Points:
    134
    Location:
    Dublin GA
    The diagram stands as it is drawn - no changes. See Relay 101 for some more help with relays.
    #6
  7. bgoins

    bgoins Member

    Joined:
    Feb 24, 2009
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    hampton roads, virginia
    Thanks man! The relay tutorial clears it up. I hate putting something together without understanding it. Thanks for posting it.
    #7
  8. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,622
    Likes Received:
    305
    Trophy Points:
    124
    Location:
    Massachusetts
    Most fan controllers work by switching the ground, rather than hot leg. In fact all the controllers I have dealt with do this.
    #8
  9. 4rdnut

    4rdnut Member

    Joined:
    Dec 14, 2010
    Messages:
    188
    Showcase:
    9
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    16
    That fan controller you have, if the number in the drawing is correct, is only 20 amps rated. I know everybody likes dc controllers, the so called company would not reply to my e-mails, so i went with the flexalite VSC (variable speed) controller that turns the fan on at 60 percent, then gradually goes up to 100 percent fan speed so you don't have that big 40 plus amp surge that those contour fans will give.
    #9
  10. bgoins

    bgoins Member

    Joined:
    Feb 24, 2009
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    hampton roads, virginia
    Good call man. What is the part number of ur VSC. I'm gonna go ahead and use the one I got but I'll check urs out if mine burns up. I got mine because that's what they used in the article I'm copying for my project.
    Thermostatically Controlled Electric Fan Upgrade - Muscle Mustangs & Fast Fords Magazine
    #10
  11. 4rdnut

    4rdnut Member

    Joined:
    Dec 14, 2010
    Messages:
    188
    Showcase:
    9
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    16
    The vsc controller i have is flx-31163 from summit racing, I bought this model because it comes with a temp probe that you insert in the upper radiator hose, you will need a radiator hose adapter, the vsc comes with the fitting and probe. Flexalite sells two radiator hose adapters but they are too big for the mustang upper radiator hose, you need an adapter with 1-1/4" inlet-outlet to fit inside the hose, do a radiator hose adapter search and you will find one, i forget where i got mine but it comes with the threaded hole for the temp probe and fitting. This model vsc comes with a redesigned heavy duty fuse holder. I installed the temp probe, fitting and probe wire under the radiator hose so its hidden and looks clean.
    #11
  12. bgoins

    bgoins Member

    Joined:
    Feb 24, 2009
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    hampton roads, virginia
    Thanks man. Sounds like a nice setup.
    #12
