Electrical 90 lx cant find service port

ReyRey

New Member
Nov 4, 2018
7
0
1
51
Texas

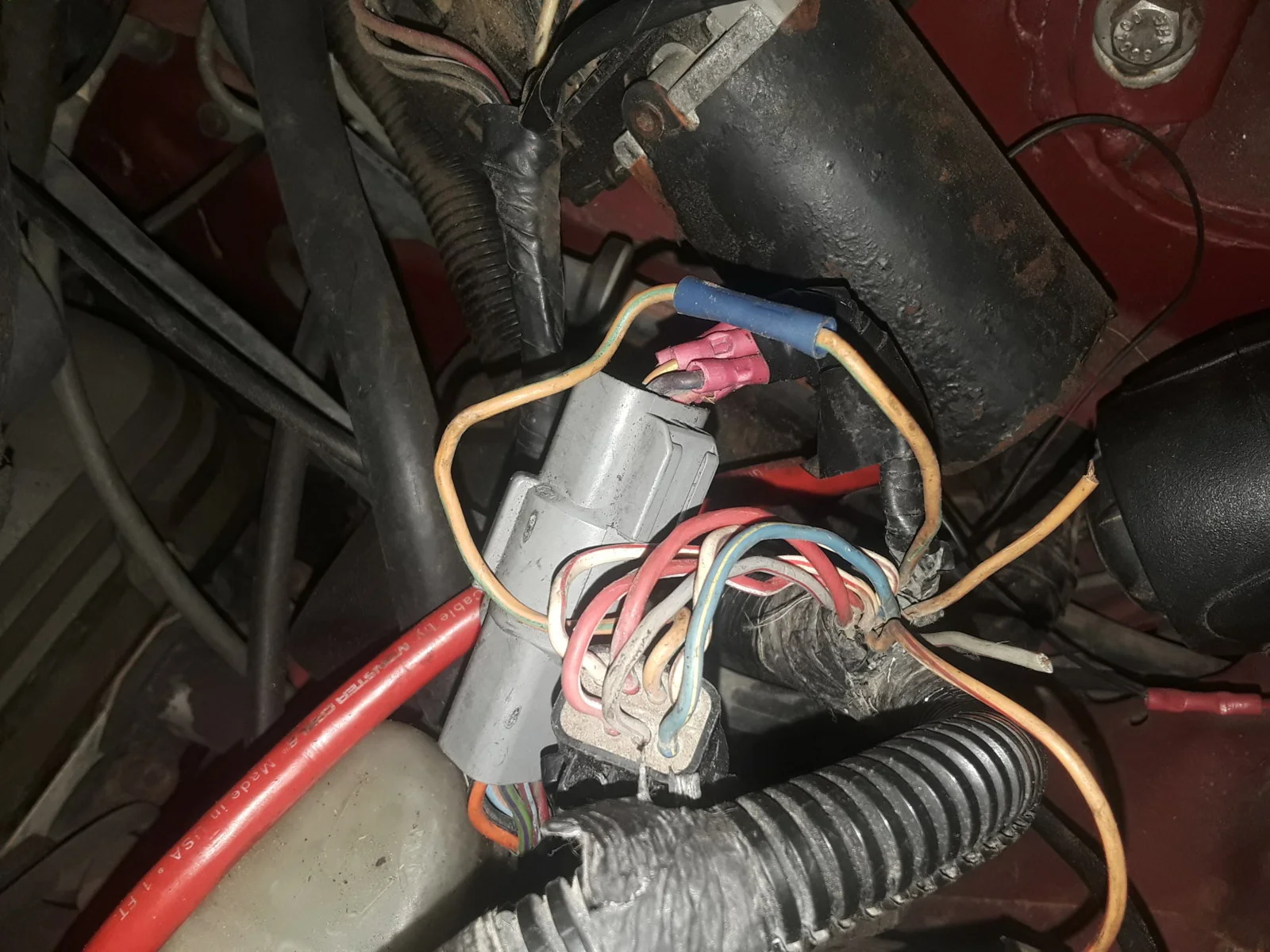

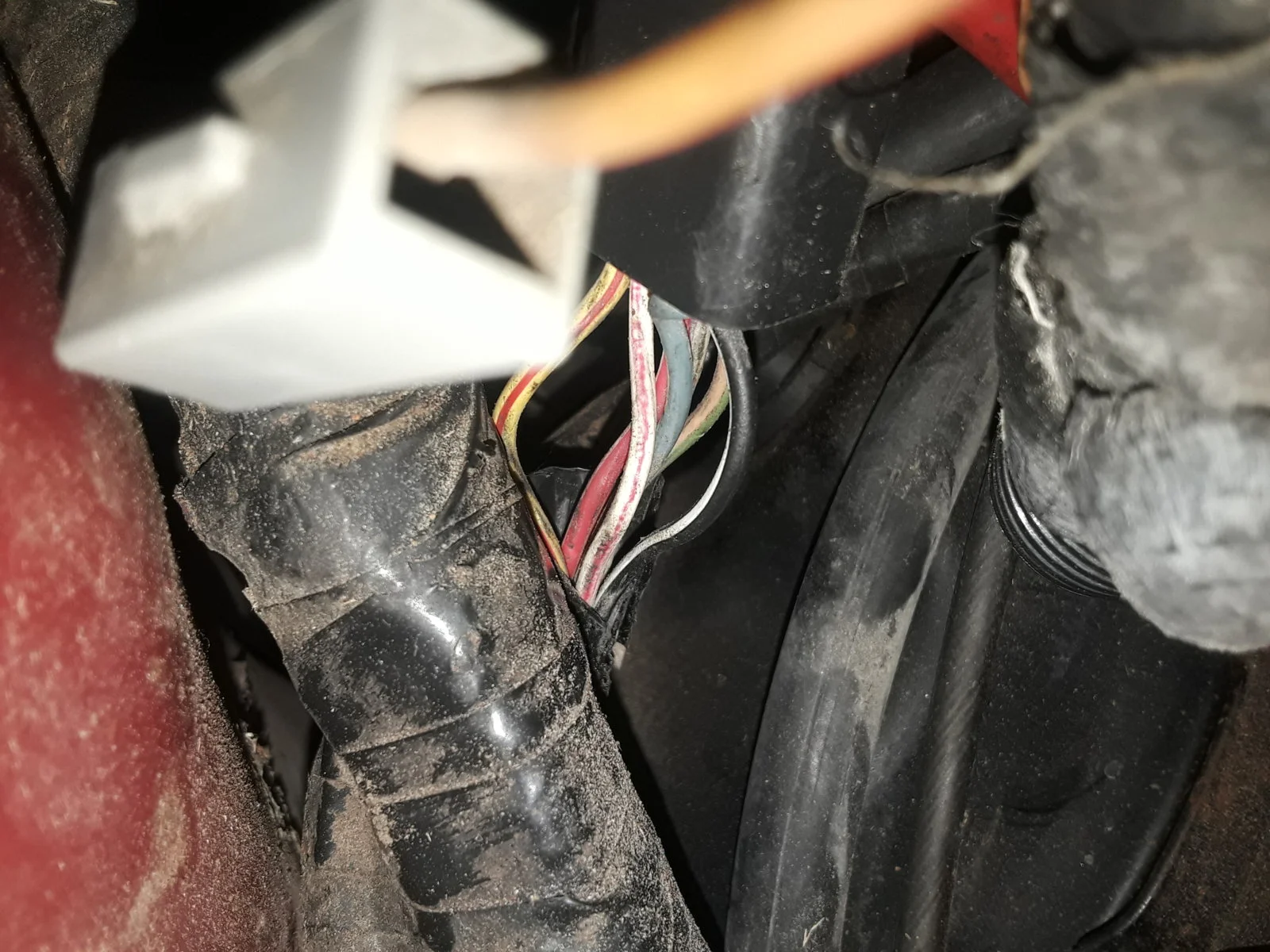

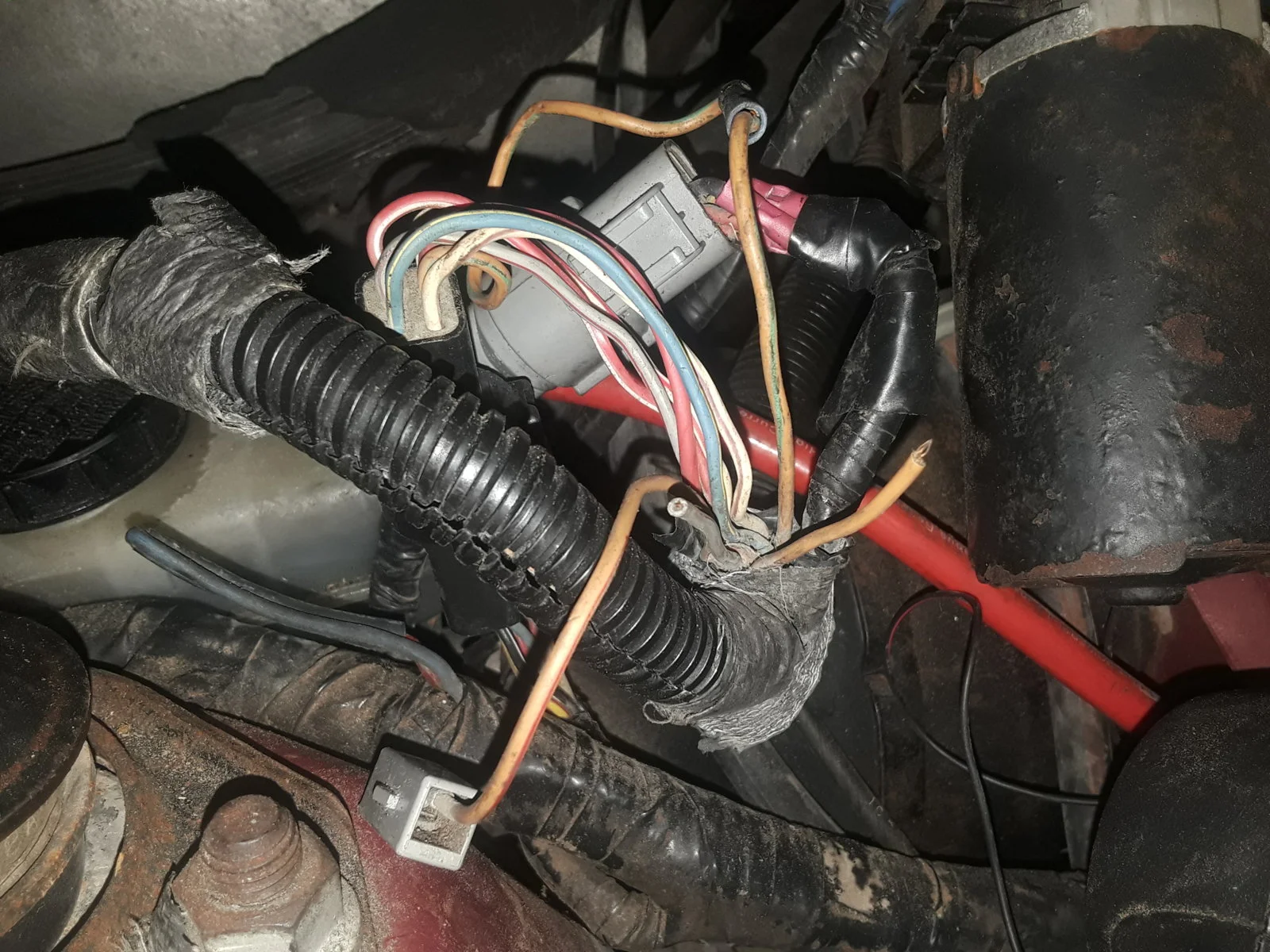

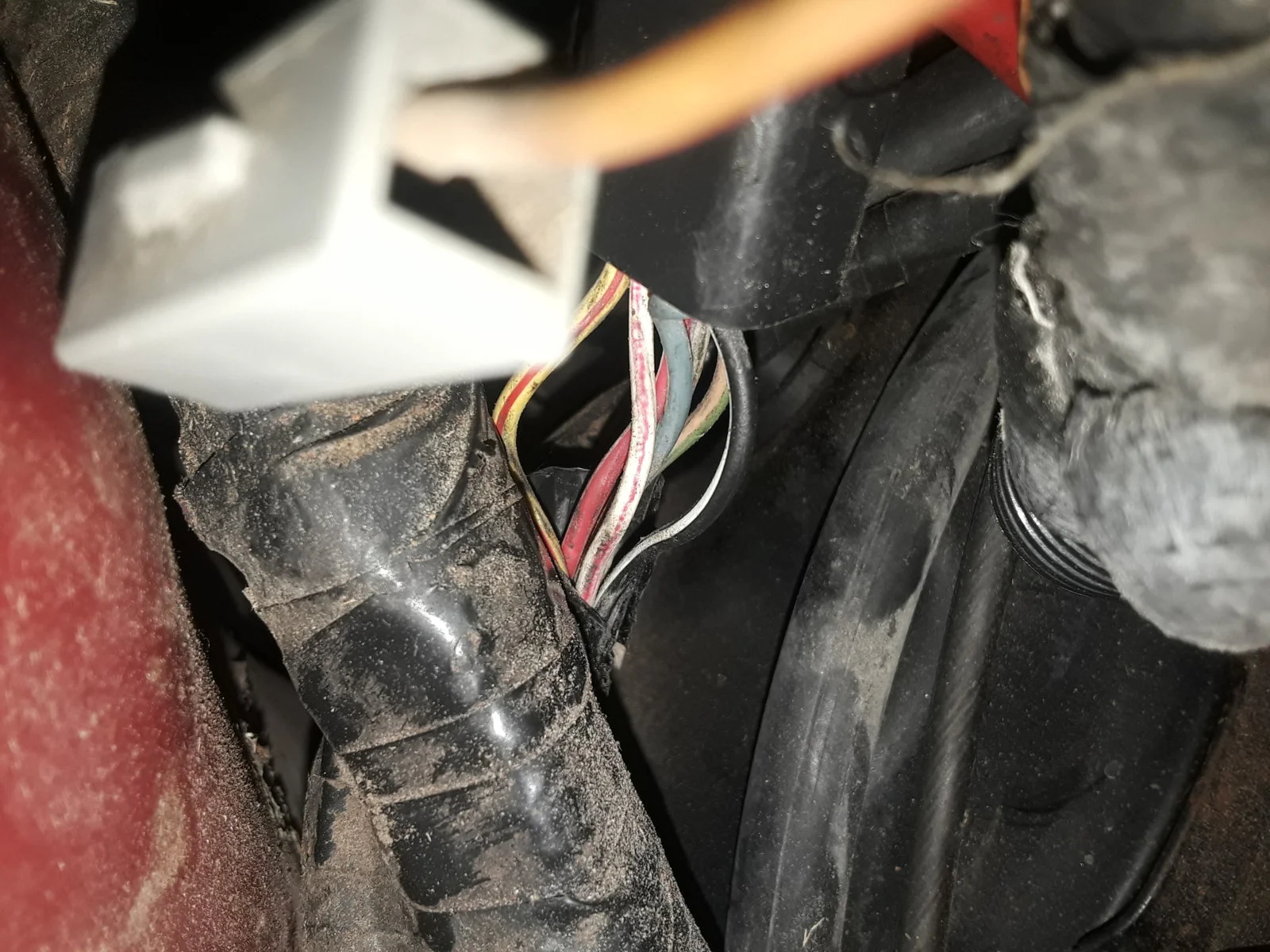

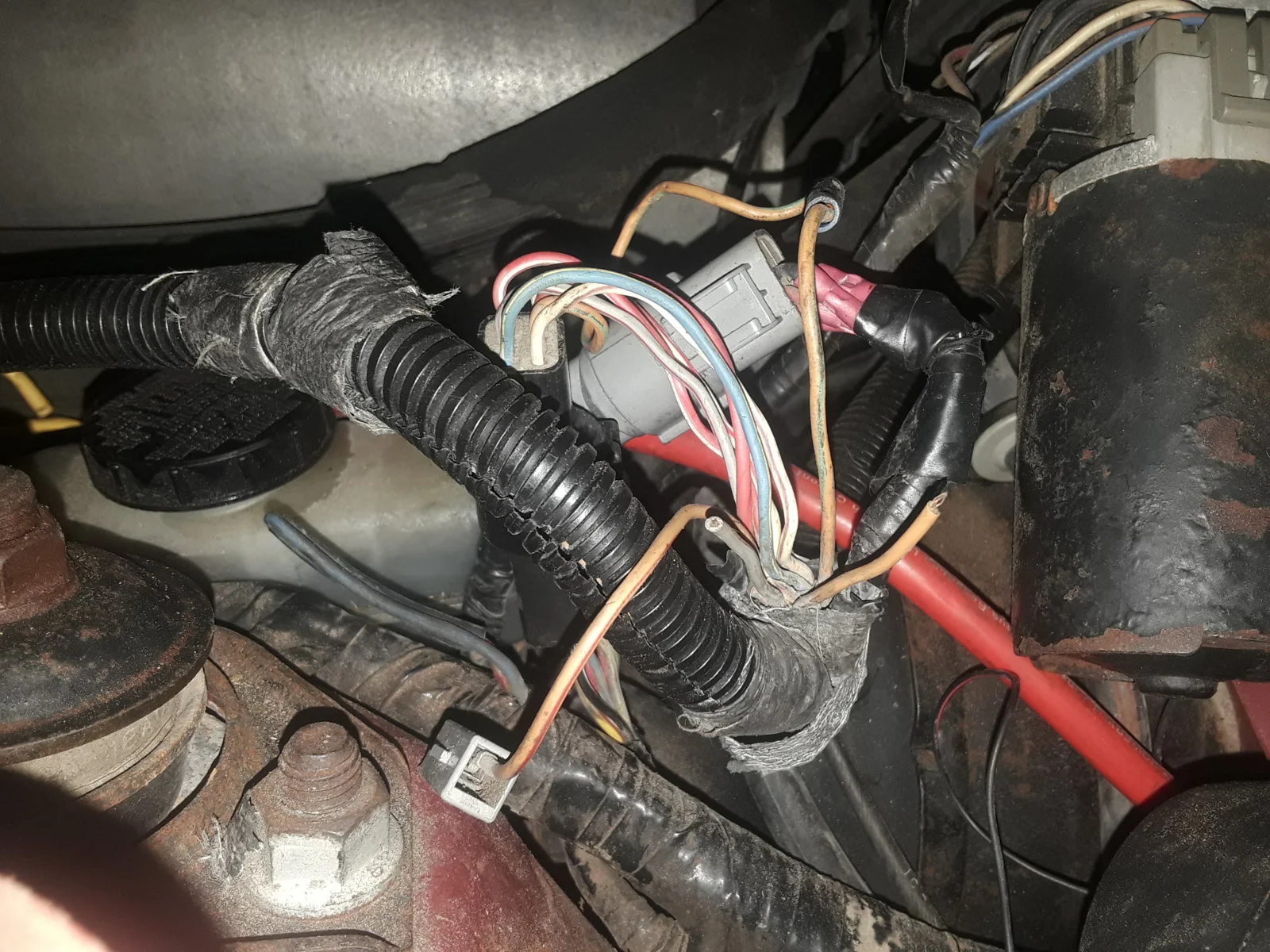

I cant seem to find the service port to retrieve codes checked all over engine bay however i did find these loose and cut wires

  • Sponsors(?)


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
16,243
5,177
193
polk county florida
See if you can find these wires by color
89 through 95 cars have a working Check Engine light. Watch it instead of using a test lamp.




The STI has a gray connector shell and a white/red wire. It comes from the same bundle of wires as the self test connector.
I suspect someone has connected these wires up or just cut them off in an attempt to make the car run.
Is it originally a V8 car?


ReyRey

New Member
Nov 4, 2018
7
0
1
51
Texas
I can't find the black w/white wire
Checked Vin and is an original v8 car

Last edited:

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
16,243
5,177
193
polk county florida
It's there you'll just have to dig for it, I doubt they took the harness apart to remove it, likely it is discolored from heat cycles and age.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
16,243
5,177
193
polk county florida
Hunt around the web and find some wiring diagrams for the 90 model year, veryuseful.com is a good place to start, I like printed stuff but I'm a little old. You will need to trace that harness to put the port wires back together.


Blown88GT

Founding Member
Nov 13, 1999
1,960
445
124
Palm Beach Gardens, FL

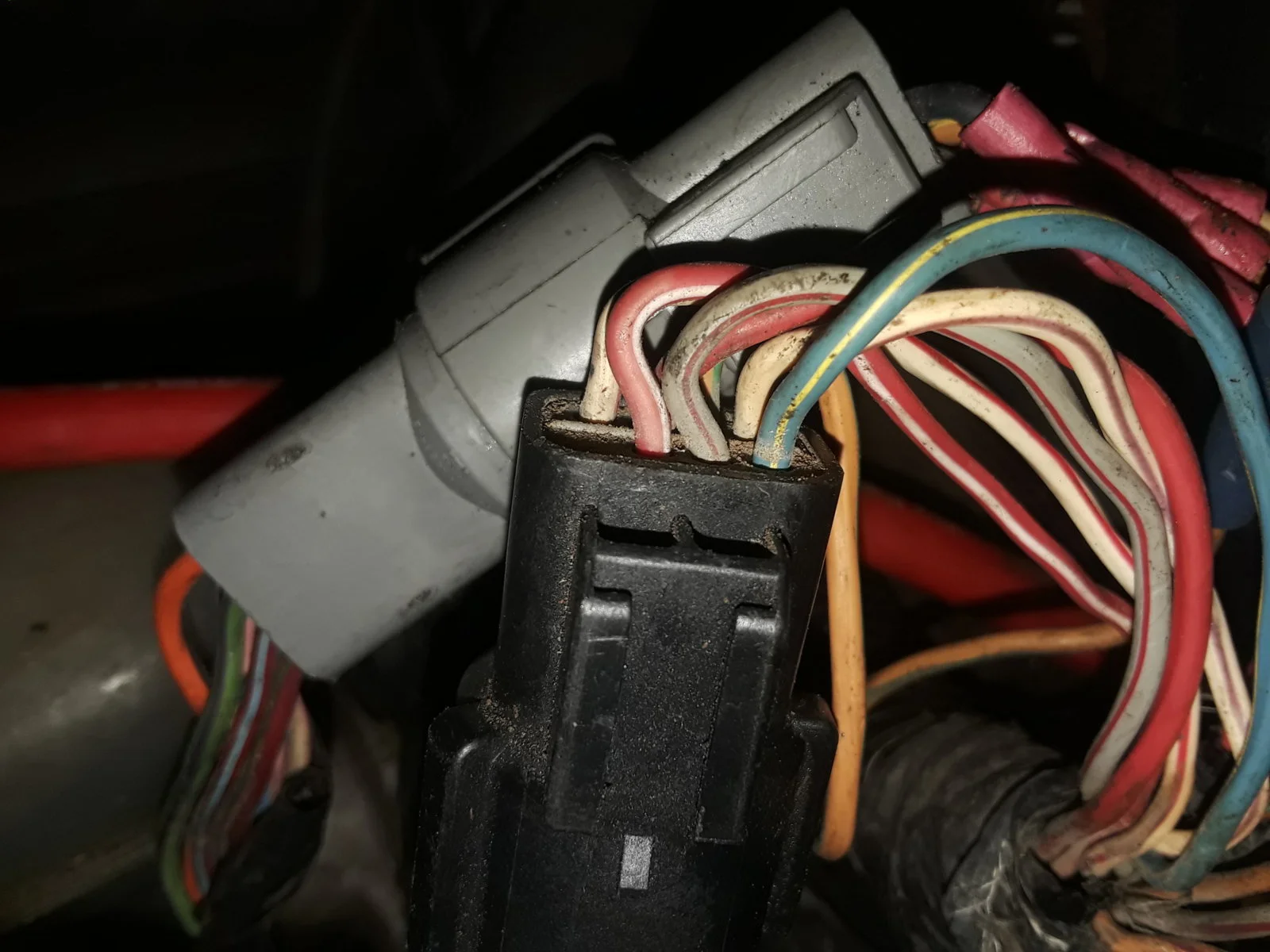

Look for the shape of this connector. Nothing should be plugged into it. It's nothing in your pics.
I see a few cut off wires. Why would anyone cut anything off?



Last edited:

ReyRey

New Member
Nov 4, 2018
7
0
1
51
Texas
Look for the shape of this connector. Nothing should be plugged into it. It's nothing in your pics.
I see a few cut off wires. Why would anyone cut anything off?


I have looked for that plug my guess is it has been cut off at some point gonna have to find a donor car so I can get that plug and wire it in myself and the wiring diagram is a huge help thanks


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,031
5,950
204
31
Hillsborough county
You gotta find an old Ford in a junkyard.
If you do, use this splice:

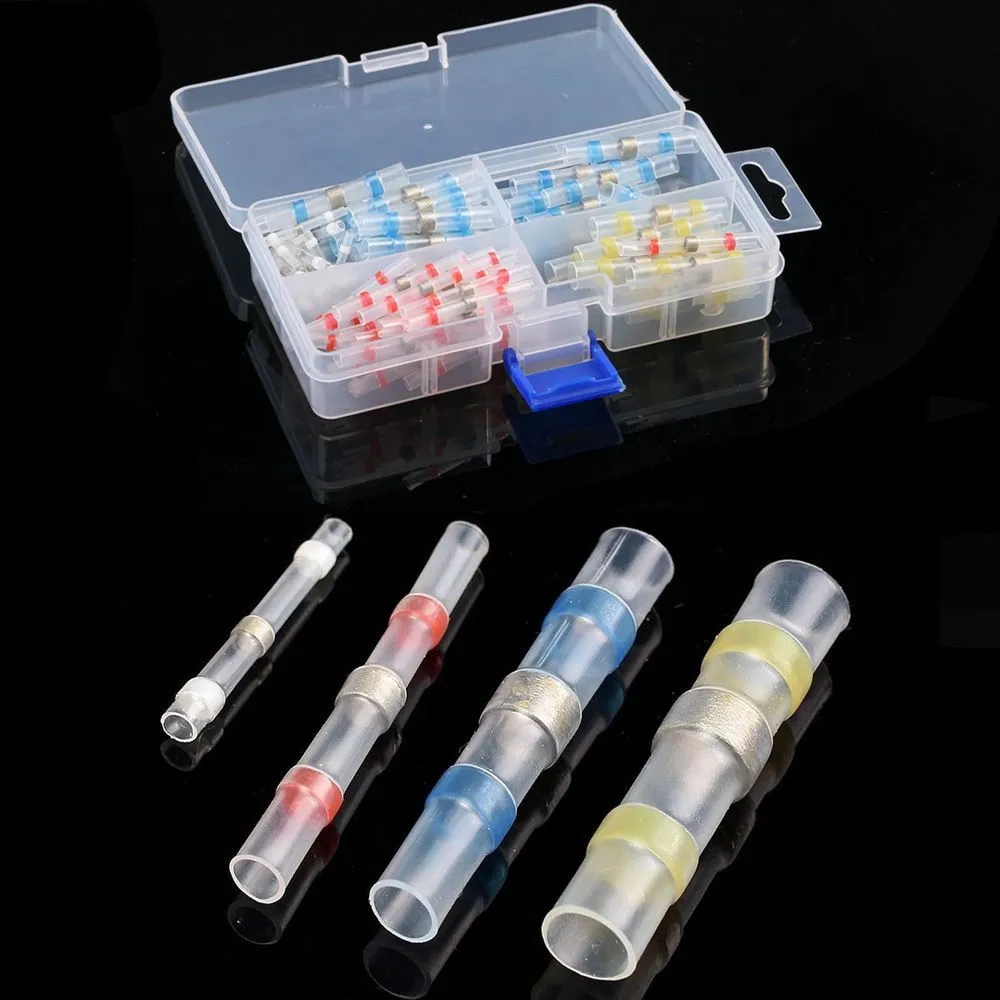

Heat Shrink Solder Sleeve Butt Splice Wire Connector Waterproof
I do not suggest using these anymore after I had multiple failures and was forced to open my wiring harness and replace every one of them. The solder joint would brake and give an intermittent connection, I simple use a cold weld connector and heat shrink all connections now.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,347
2,822
234
74
Dublin GA
lowendmac.com
There is a repair kit consisting of the plastic connector shell and the necessary short pigtail leads with the terminals crimped on. It is available at Advance Auto Parts or AutoZone or maybe O'Riley's Auto parts. The most difficult thing will be getting the parts person steered in the right place to look it up... Electrical pigtails seems to ring a bell for me...

BWD EEC Test Plug Connector Part # PT763

https://www.autozone.com/catalog/co....com/znetcs/product-info/en/US/wl2/429/image/

Foxbody Diagnostic connector



Foxbody Diagnostic connector close up view[/b]


  • Like
Reactions: ReyRey
