Need Pics Of S March Alternator Bracket Installed

hoopty5.0

mechanicus terribilis
Mod Dude
Dec 14, 2010
7,337
6,252
204
SW Houston
Trying to put a 302 kit on a 351 with a modded bracket. The spacers make no sense though. If you have a top view looking down, that's what I need.

Thanks!

  • Sponsors(?)


Boosted92LX

It's only an inch or two. What's the big deal?
SN Certified Technician
Dec 19, 2010
6,085
4,528
214

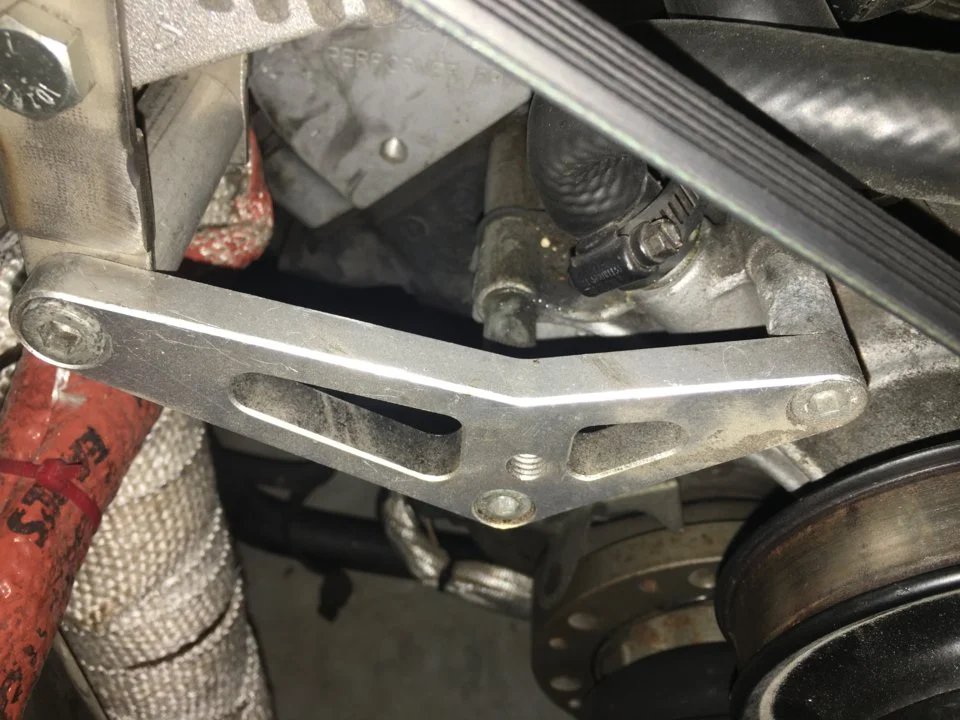

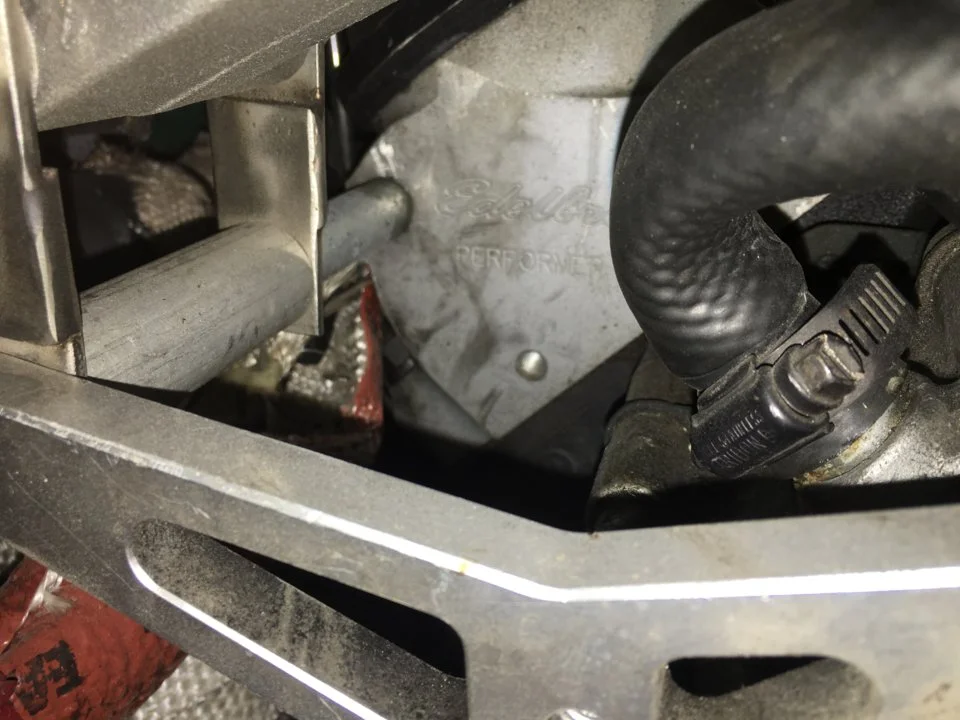

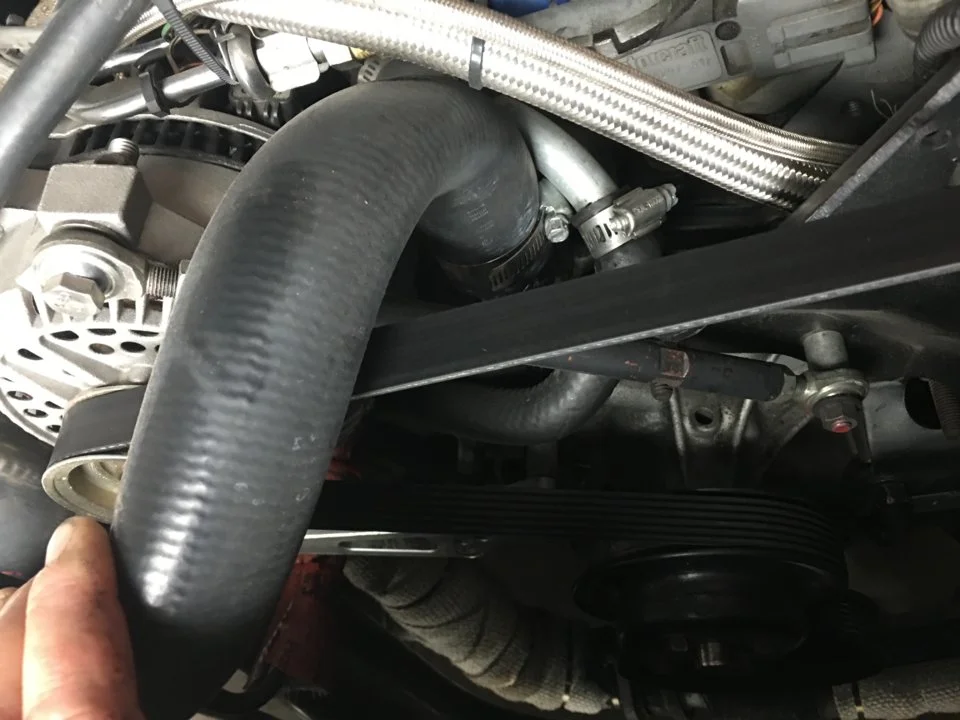

My alternator is raised because it was hitting my turbo, so the flabar bracket is where the alt typically goes. I just put a spacer in there. The bolt usually runs thru the alt with the spacer on the back of the bolt, screwing into the head. The other two are self explanatory.
