Pictures Of Charcoal Canister Routing

[Black1987]

I in search of pictures of how the vent line for Charcoal Canister is routed.

I found the vent line busted and have ran a new up to the engine bay, just need to connect it to the sensor and canister correct? Or is there any vacuum lines connected to it.



[mikestang63]

a line goes from a vaccum port on the upper intake to the cannister solenoid, then the cannister solenoid to the cannister, then the cannister to the tank.

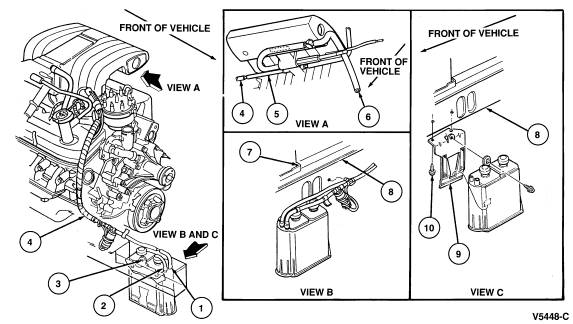

Item

Part Number Description
1 - Engine Evaporator Hose to Large Nipple
2 - Tank Evaporator Hose to Small Nipple
3 40920-S2 Screw
4 9C987 Fuel Vapor Return Hose and Valve Assy
5 9E455 EGR Vacuum Control Connector
6 6A886 Crankcase Hose to PCV
7 - Battery Tray
8 - Sidemember
9 9D665 Fuel Vapor Canister Bracket
10 381877-S2 Screw (2 Req'd)



[billison]

Related question, where would the factory hose be routed back to the tank?
