Not the brackets, just the nuts and bolts. Anyone recall the size/length of the bolts?

Can't seem to locate my old hardware. Putting the quads back on and need to gather up some hardware. Hoping someone can save me 3-4 trips to the hardware store

  • Sponsors (?)

Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,869
5,172
224
Massachusetts
#3
No. Not that one. That is installed. I need the nut that threads onto that stud, and then the bolt that threads into the mount on the axle.


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
24,597
7,967
224
Box behind Walmart
www.stangnet.com
#4
Rear Shock 12mm x 1.75 x 70mm or you can use a 1/2" x 1.50" long bolt.

Quad shock axle housing mounting bolts(12mm x 1.75 x 70mm)


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,869
5,172
224
Massachusetts
#5
Interesting that they went metric here. Ok thanks i'll grab some


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
25,950
2,159
224
72
Dublin GA
#7
Oddly enough, it seems that most of the body & suspension nuts and bolts are metric, while the engine is all SAE.

I suspect that the reason for the engine being SAE is because the tooling was all designed before metric became the standard for most of the world outside the USA.


Shakerhood

10 Year Member
Oct 28, 2004
3,194
146
114
Ohio
#8
If I remember I will try and grab my Ford Service Manual but I think it will only list the Part Numbers, I recall doing that to buy NOS Ford Hardware for my Front A Arms.


2000xp8

SN Certified Technician
Aug 8, 2003
6,245
672
194
NJ
#9
I think i'm going to see if I can put a set of quads back on too. What are you using for replacements? I'd love to use the koni's, but $350 for a set of shocks I've lived without for 20 years is a bit steep. I see chain store replacements for like $100 set.


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,869
5,172
224
Massachusetts
#10
I think i'm going to see if I can put a set of quads back on too. What are you using for replacements? I'd love to use the koni's, but $350 for a set of shocks I've lived without for 20 years is a bit steep. I see chain store replacements for like $100 set.

Gabriel's from rockauto.com. $15 each


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,869
5,172
224
Massachusetts
#12
Rear Shock 12mm x 1.75 x 70mm or you can use a 1/2" x 1.50" long bolt.

Quad shock axle housing mounting bolts(12mm x 1.75 x 70mm)

Just confirming this was correct.


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,869
5,172
224
Massachusetts
#14
I meant to say Bought the hardware listed and confirming it does the trick

Last edited:

2000xp8

SN Certified Technician
Aug 8, 2003
6,245
672
194
NJ
#18
It does look really good under there. I've been saying for years I was going to have the brackets and calipers powder coated or swap them for a set that has been. Did you have them done or do an exchange? Mine have like 15 year old paint on them and it's pretty worn out. I have a good powder coat place near by, but if the prices are close, I think the exchange is a no brainer.


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,869
5,172
224
Massachusetts
#19
It does look really good under there. I've been saying for years I was going to have the brackets and calipers powder coated or swap them for a set that has been. Did you have them done or do an exchange? Mine have like 15 year old paint on them and it's pretty worn out. I have a good powder coat place near by, but if the prices are close, I think the exchange is a no brainer.

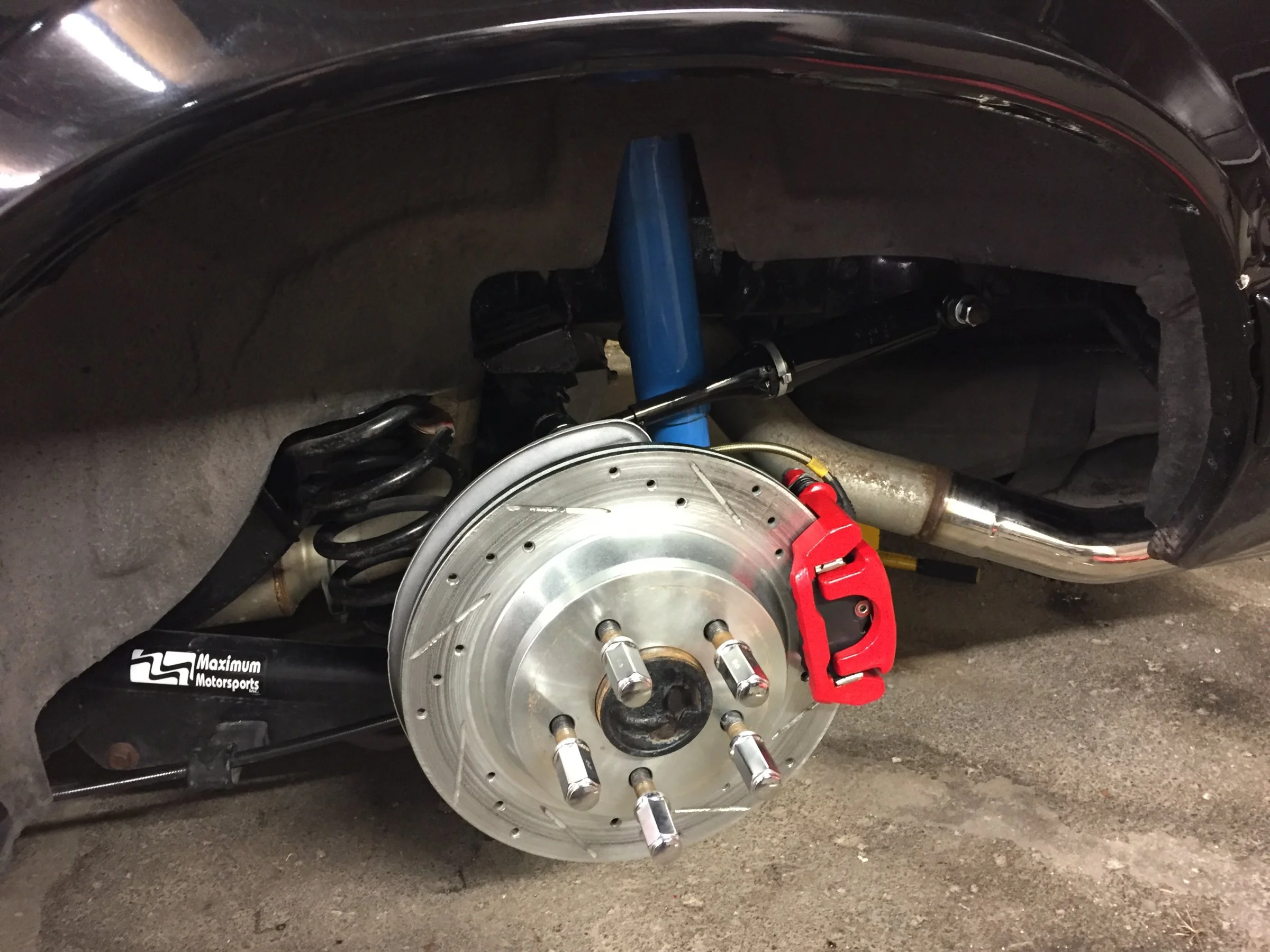

The calipers are Powerslot powdercoated calipers I got from Rockauto.com. They were $50 each, plus $22 core. So $70 each plus shipping. They came with all new hardware, boots, clips, copper washers. I just added a set of pads, and reused the banjo bolts from my original calipers.

Rather than send my old set of Cobra calipers back for $40 core minus shipping (so probably $25-30 returned), I tossed them on ebay and sold them for $100shipped. So at the end of the day, it only cost me $60 or so.


2000xp8

SN Certified Technician
Aug 8, 2003
6,245
672
194
NJ
#20
Thanks to this post, I was motivated to reinstall the quads today.
Rock auto was out of them, so I just got them from amazon.
Gabriel 14309

Thanks for the bolt sizes noobz, fit correctly.
My hardware store only had them in 80mm length, little long, but doesn't pose any clearance issues.

I managed to get mine on without removing the tires, by jacking up each side.
Took about 20 minutes (remember I have a car lift)

Project left me feeling like an idiot.
I took off the quads to run southside bars like 20 years ago, never tried to reinstall them.
Even with my 275 35 18 drag radials, there really is plenty of room, and these tires are really wide.

I'd also recommend anyone reinstalling them put some kind of rust killer on the studs and in the holes first.
