    We will be installing DSE mini tubs, subframe connectors, front and rear suspension in this 1965 Fastback.

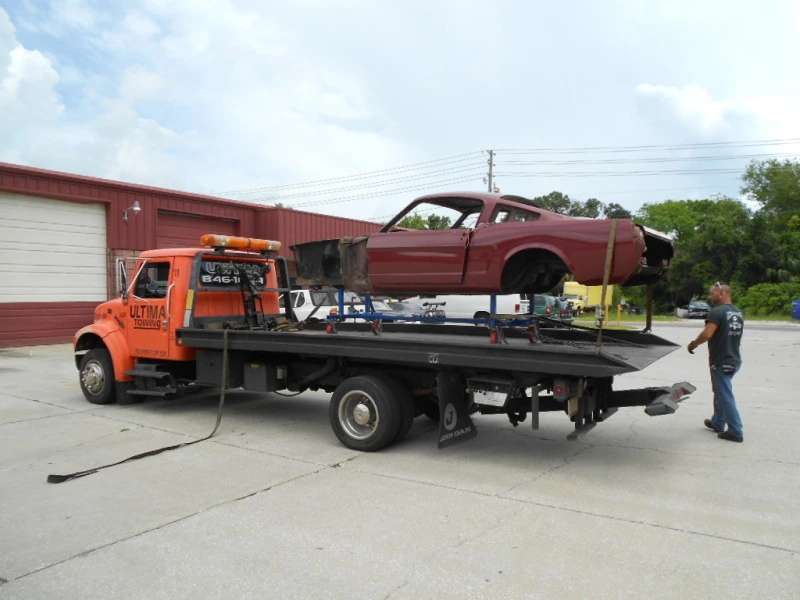

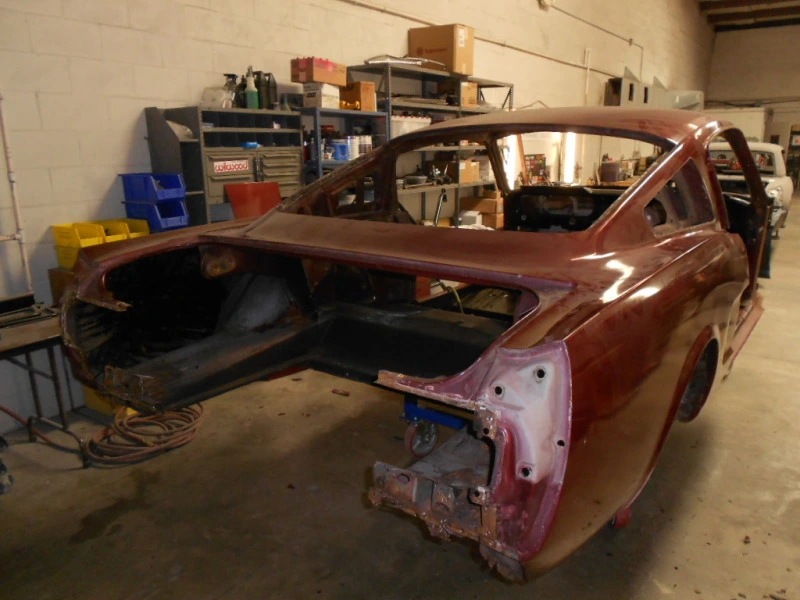

    This is what we are starting with.

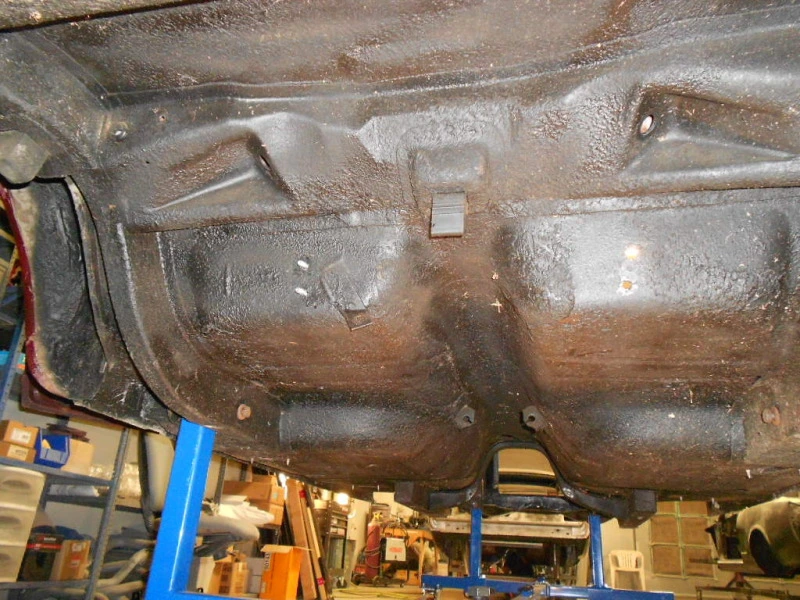

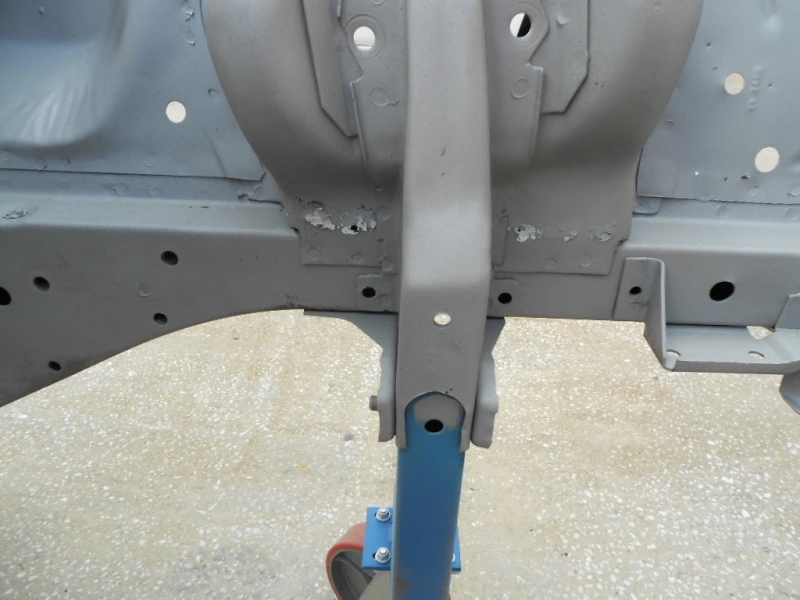

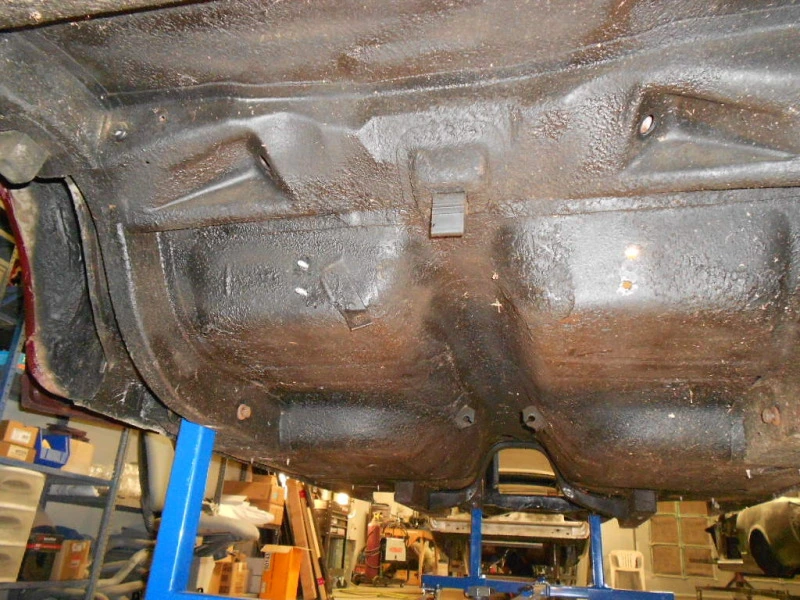

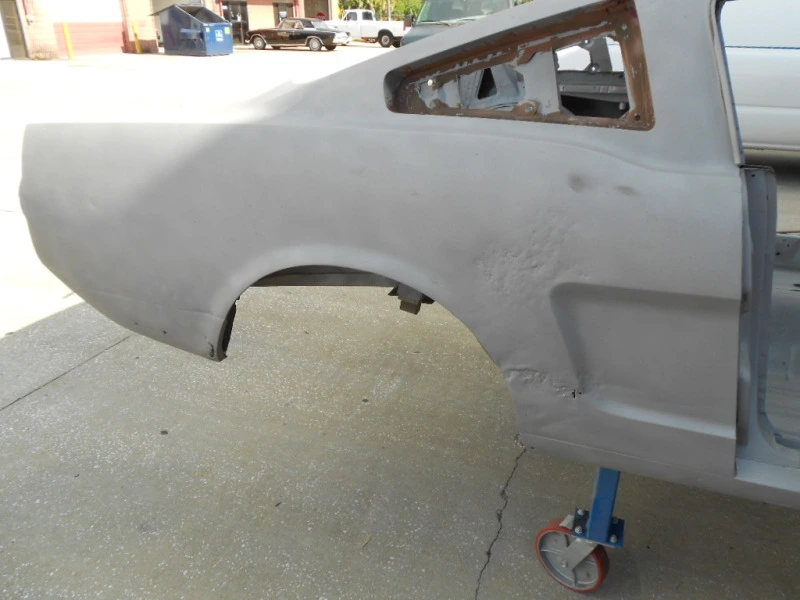

    The first step is to remove the undercoating before it goes to get media blasted. I have never seen so much undercoating.

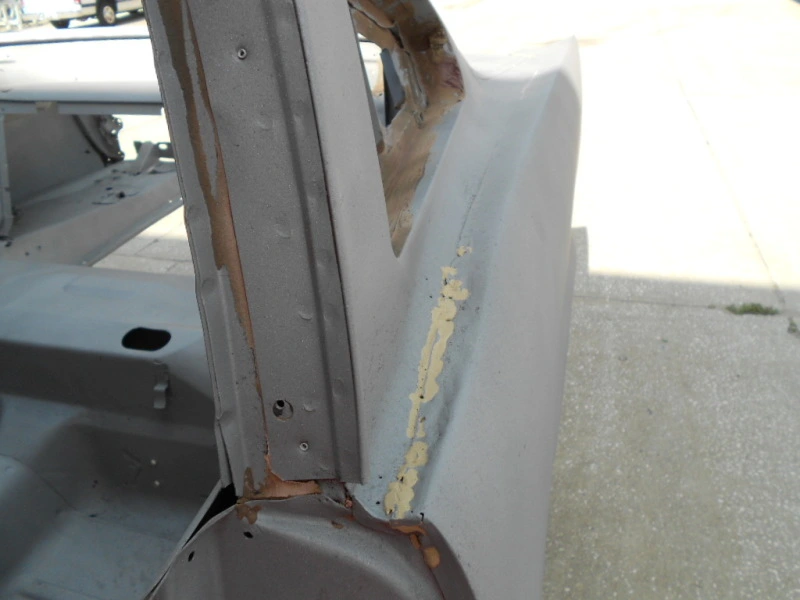

    You never know what you will find under the paint





    Attached Files:

    • 01.jpg
      File size:
      109.3 KB
      Views:
      3
    • 10.jpg
      File size:
      119.2 KB
      Views:
      1
    • 07.jpg
      File size:
      192.5 KB
      Views:
      2
    • 19.jpg
      File size:
      108.2 KB
      Views:
      2
    • 23.jpg
      File size:
      98 KB
      Views:
      3
    • 25.jpg
      File size:
      93.5 KB
      Views:
      2
    #1
  2. crane550

    crane550 Member

    Joined:
    Sep 17, 2007
    Messages:
    122
    Likes Received:
    3
    Trophy Points:
    19
    Definitely a worthy project! I will be watching closely!

    #2
  3. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

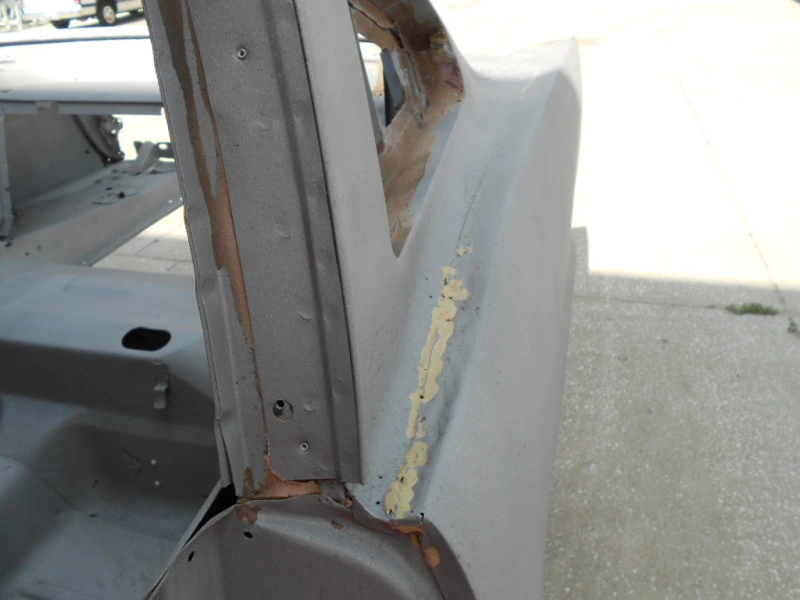

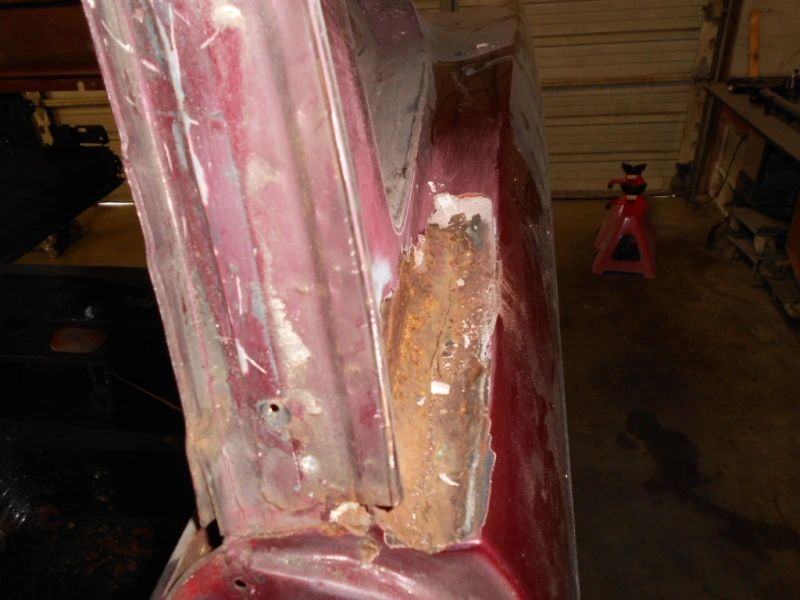

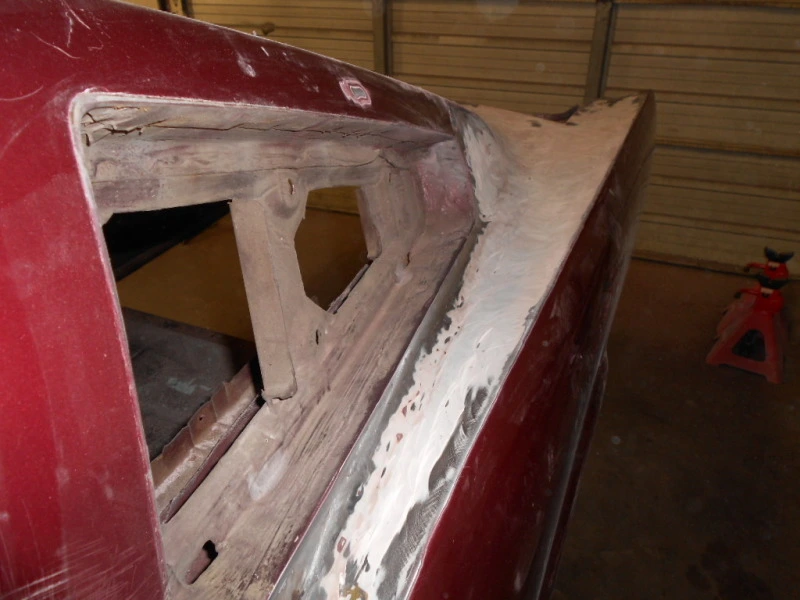

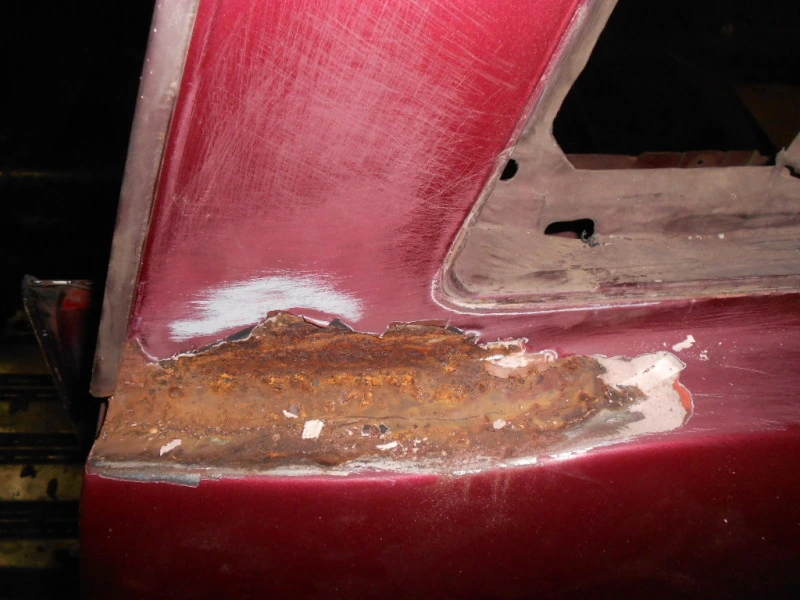

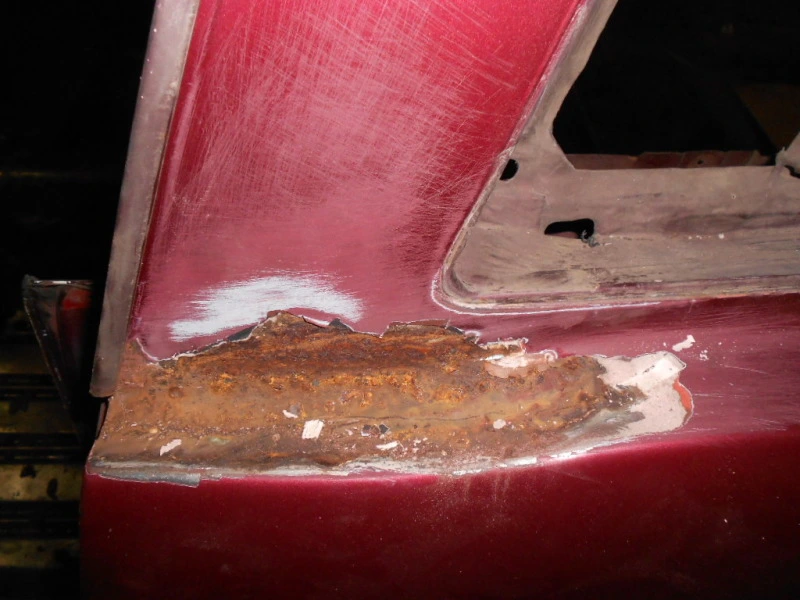

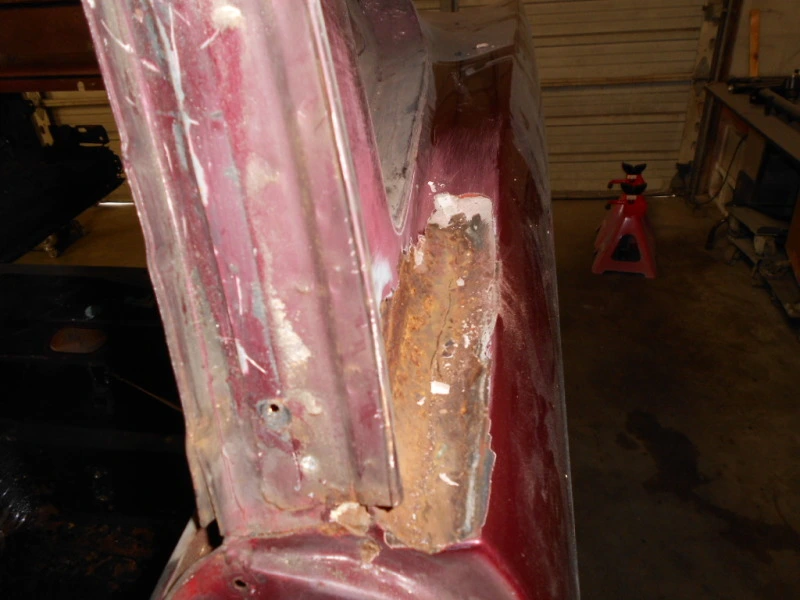

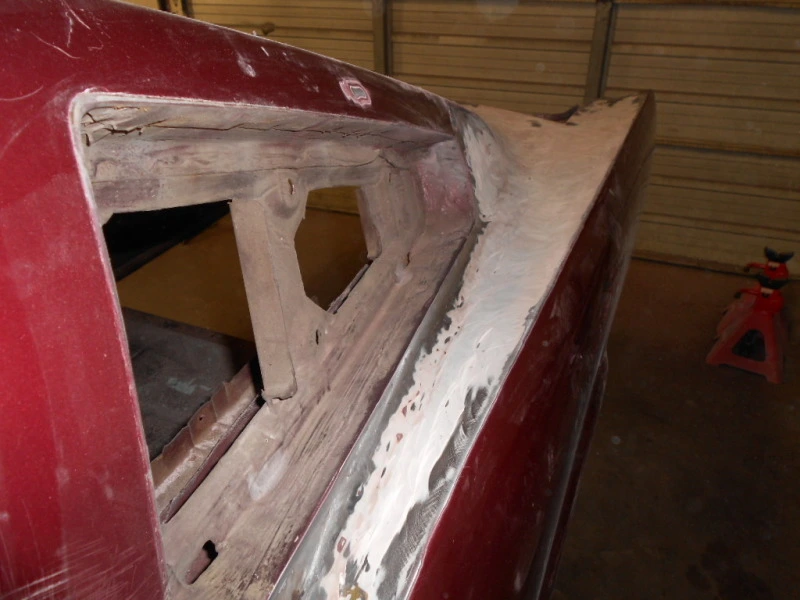

    There was a lot of bubbles and paint coming off so I decided to investigate before sending it to be blasted.





    Attached Files:

    • 13.jpg
      File size:
      112.6 KB
      Views:
      2
    • 14.jpg
      File size:
      125 KB
      Views:
      3
    • 15.jpg
      File size:
      115.7 KB
      Views:
      2
    #3
  4. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    We have repairs to do before we install the DSE mini tubbs.

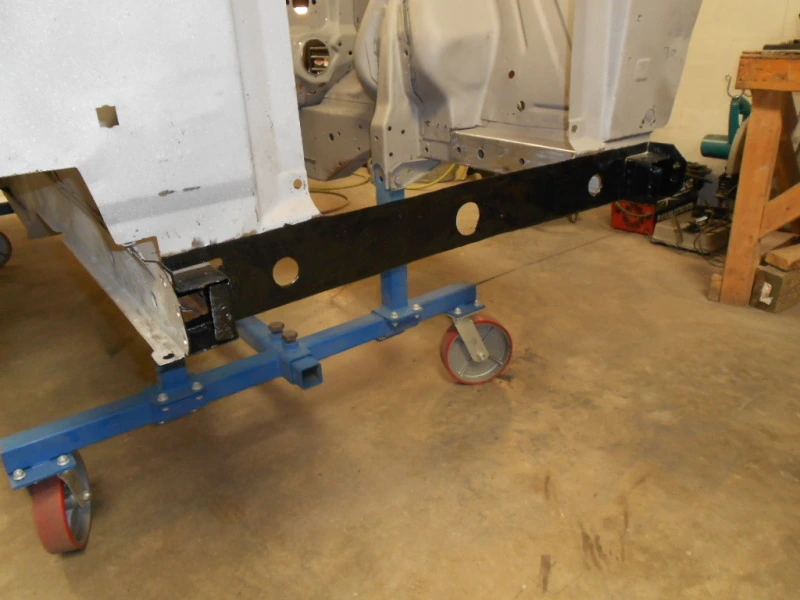

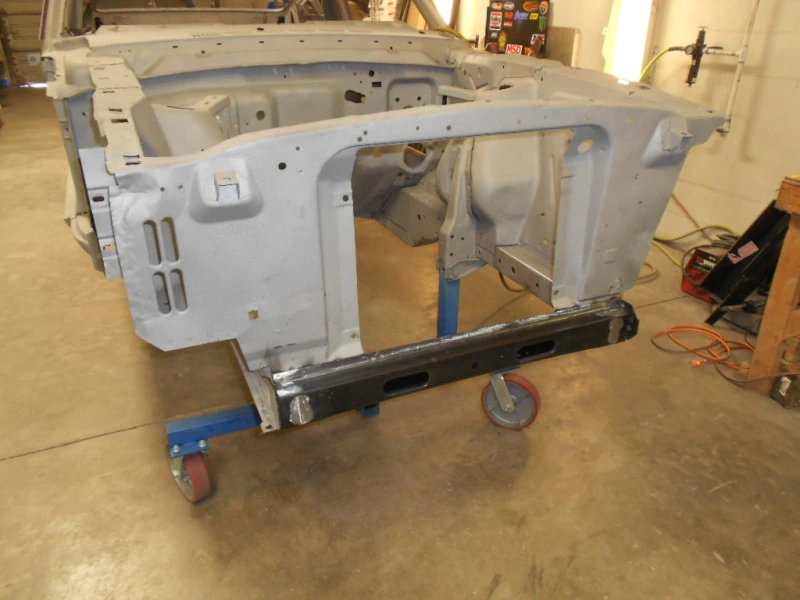

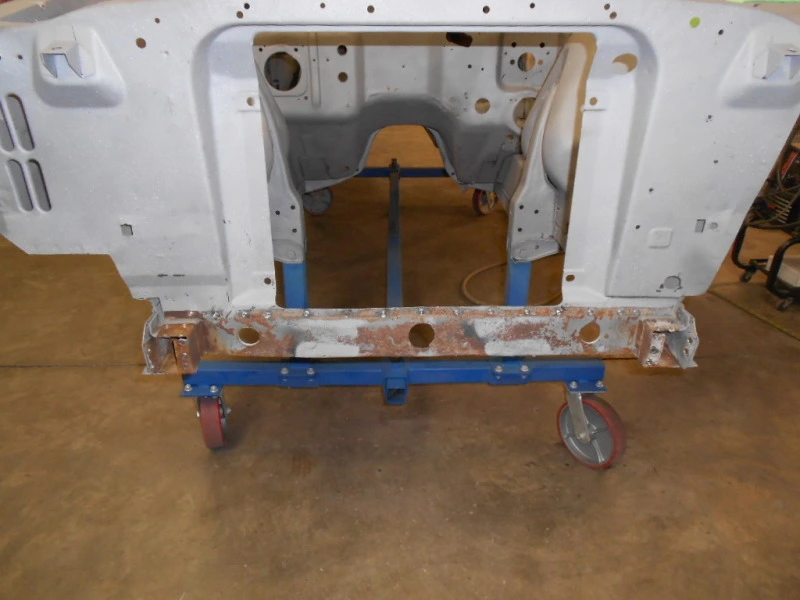

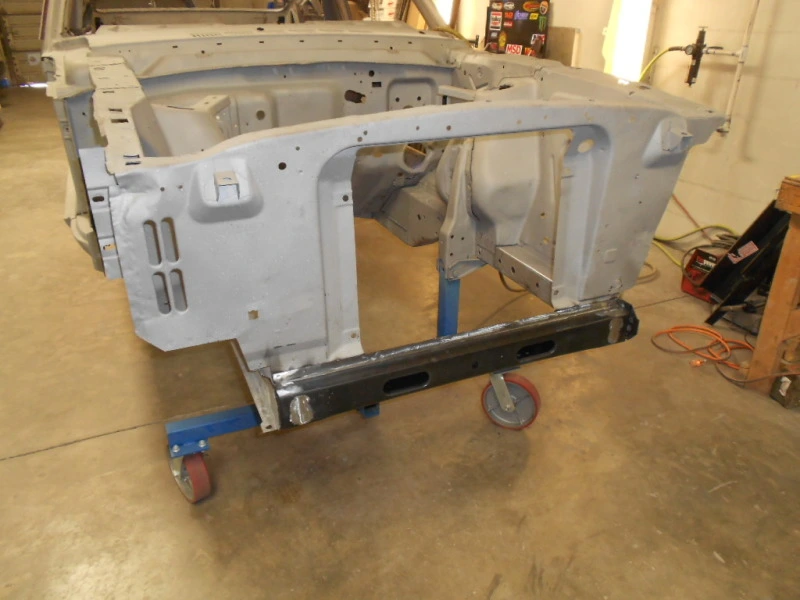

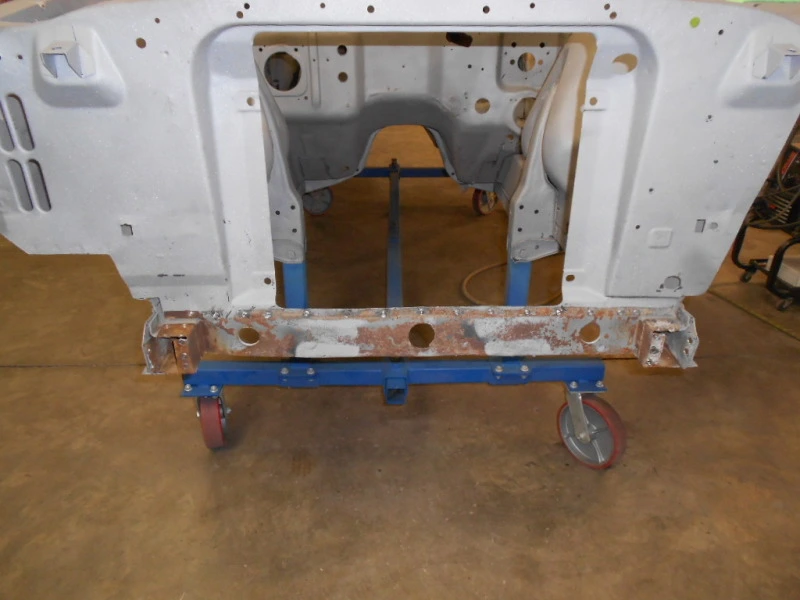

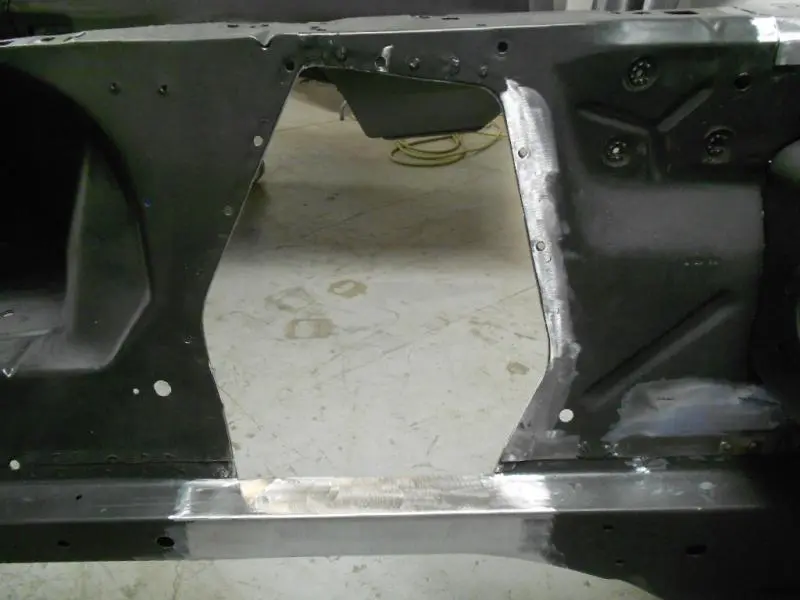

    The front crossmember had been hit so we replaced it

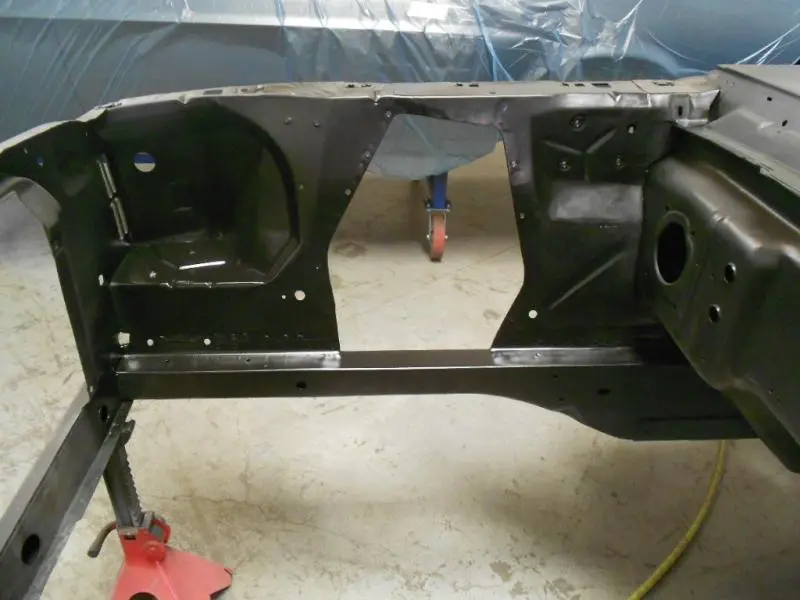

    Before we installed the new one Brian cleaned up the surface rust than brushed a coat of SPI epoxy



    The left front apron has a little rust so Brian cut it out

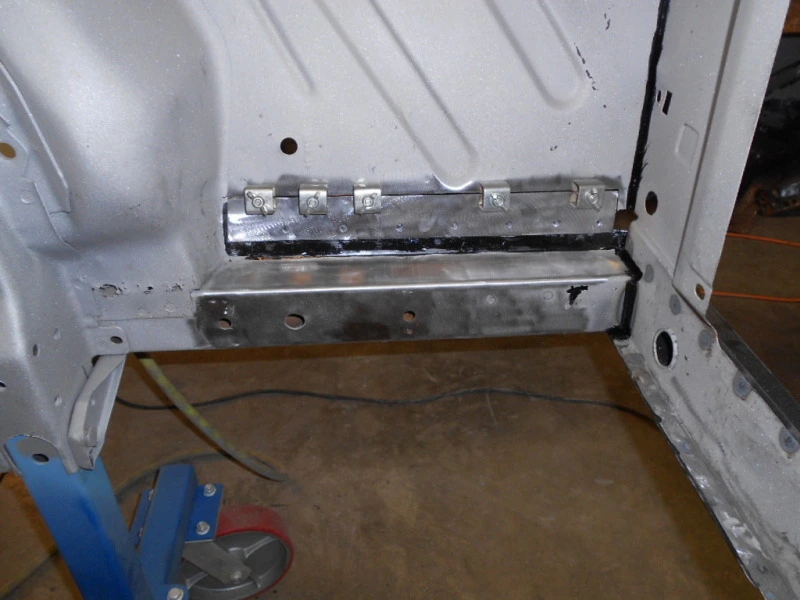

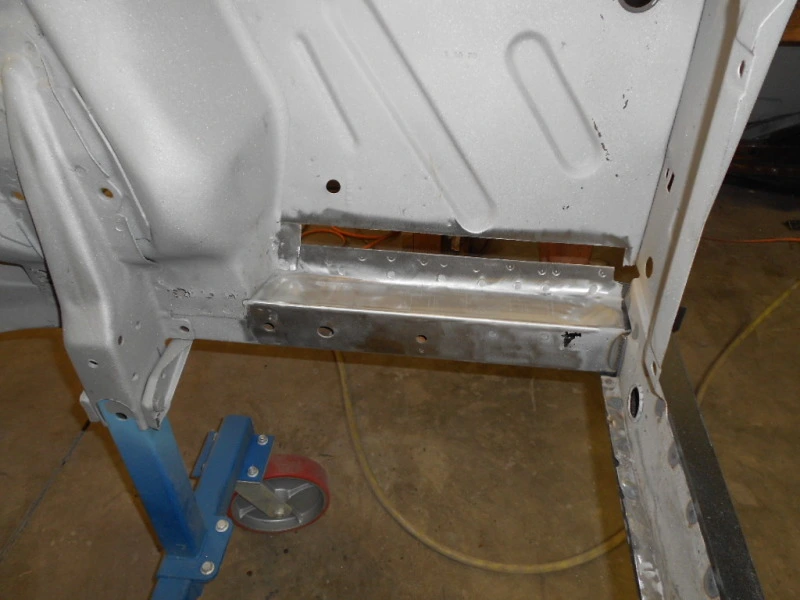

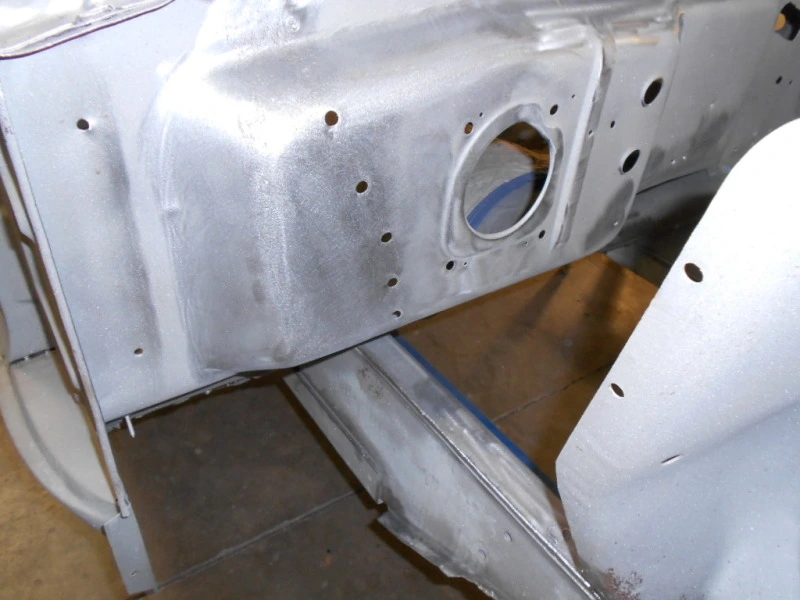

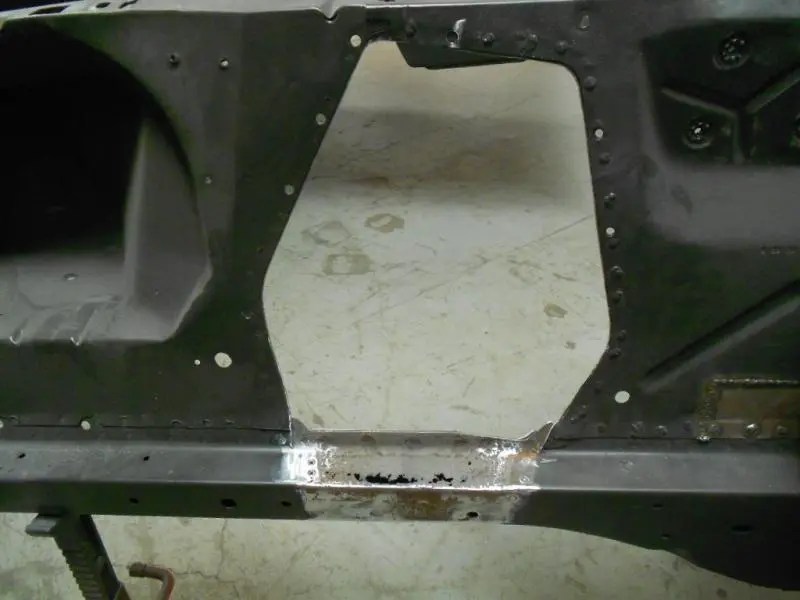

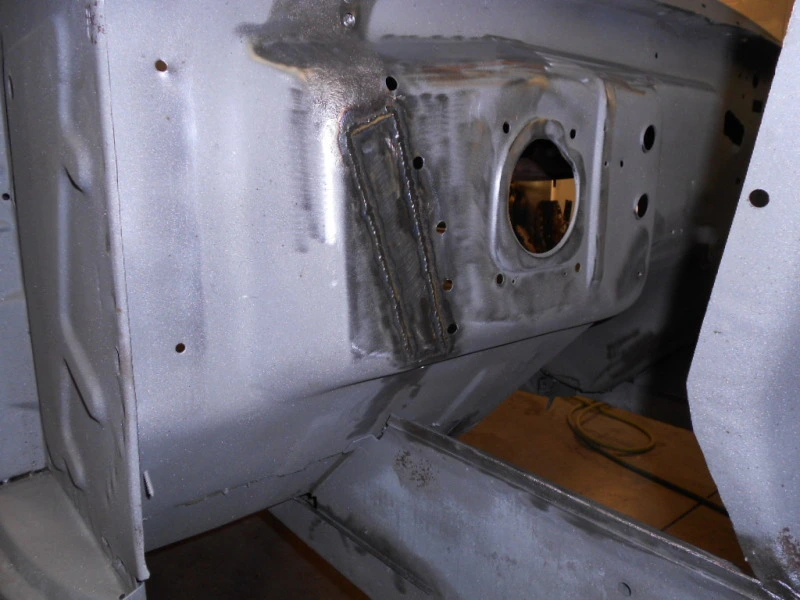

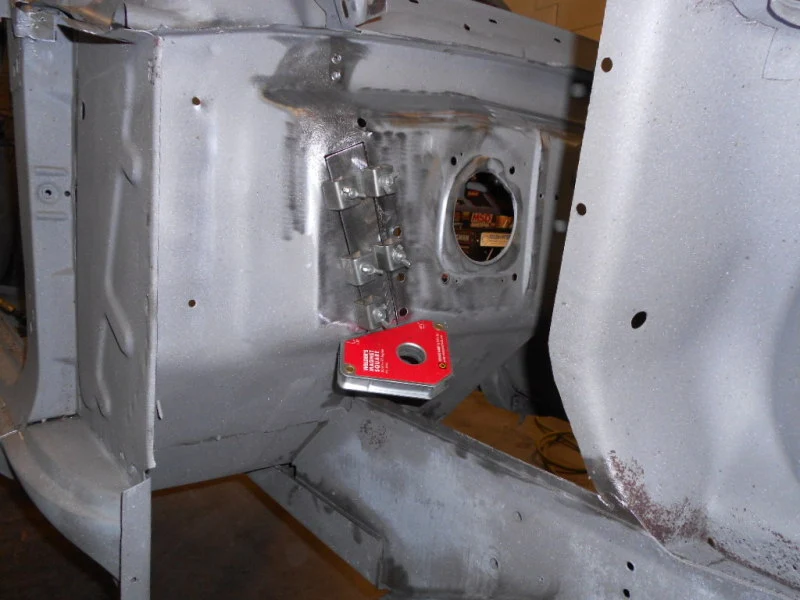

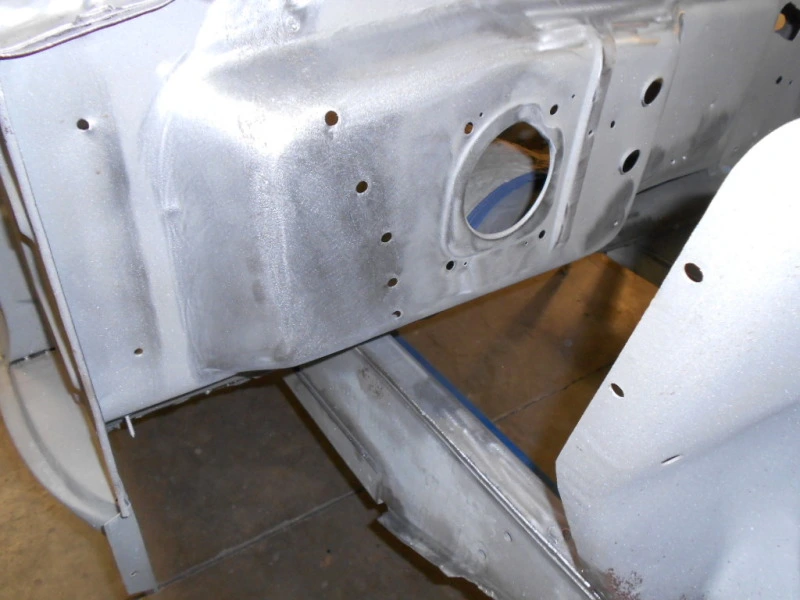

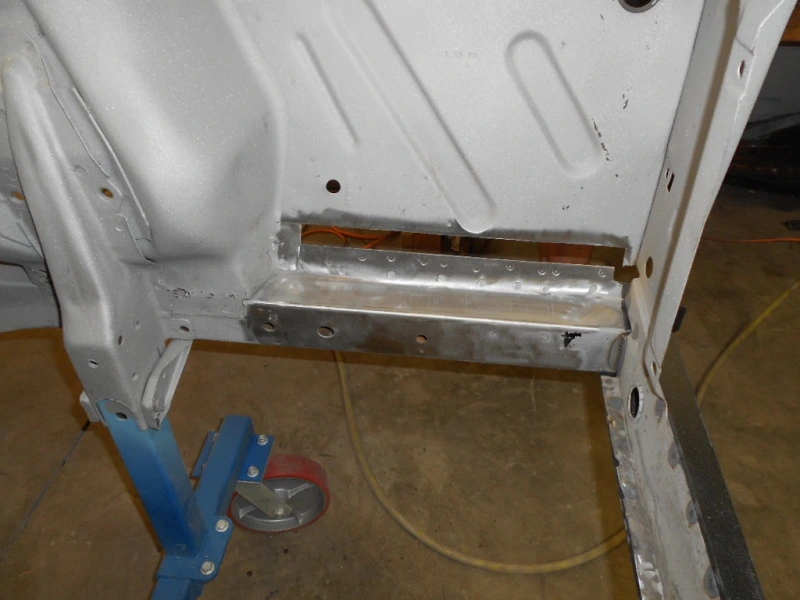

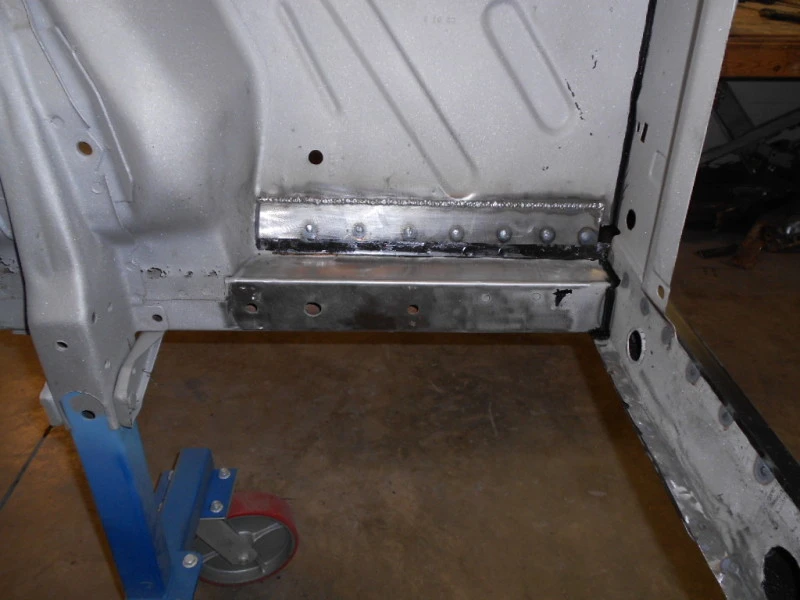

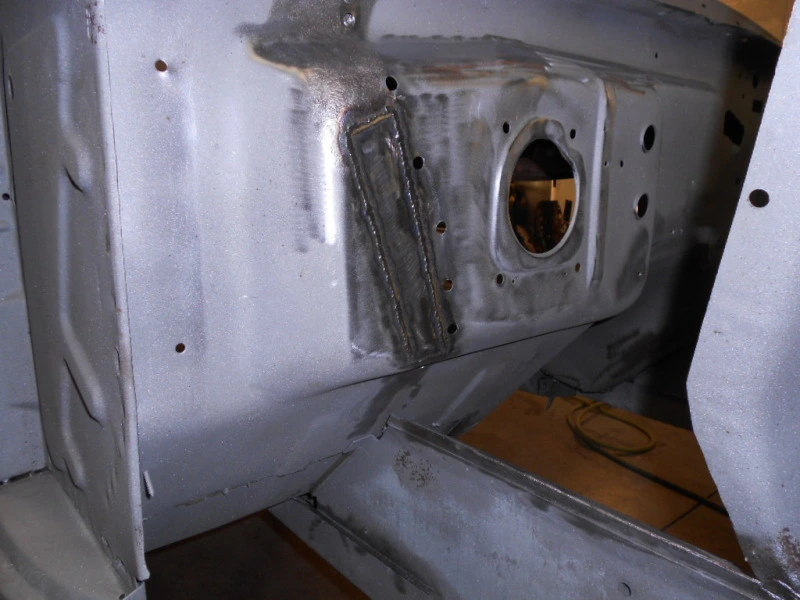

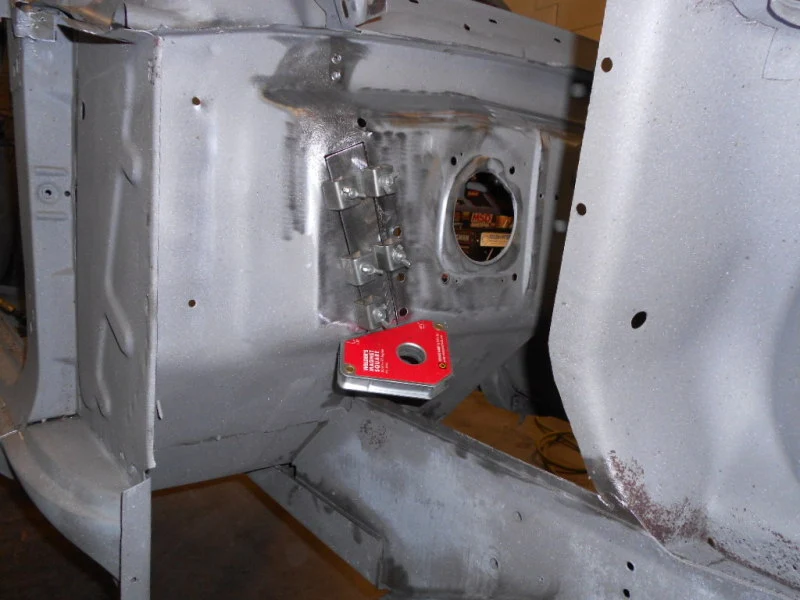

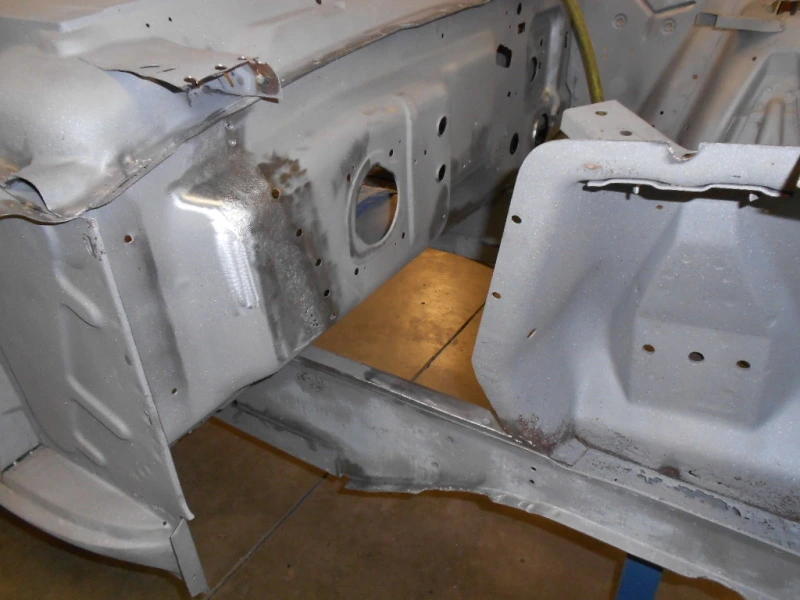

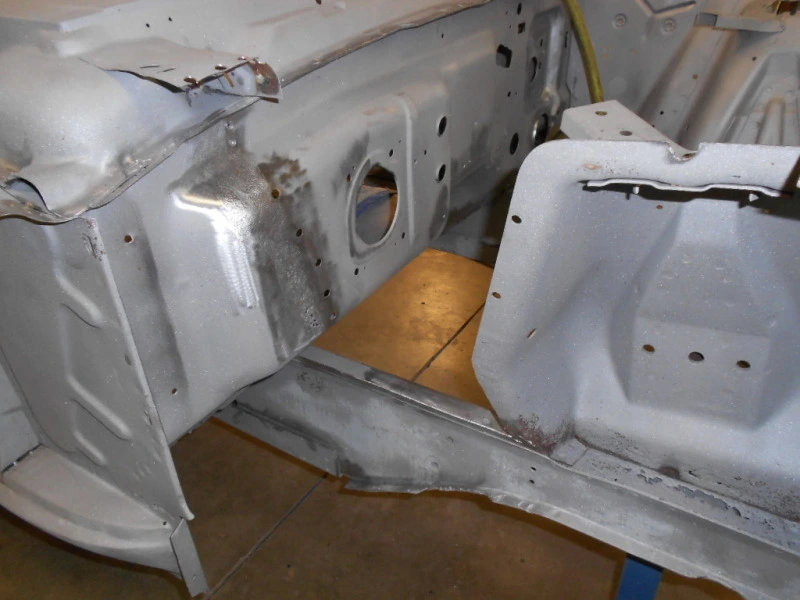

    There was also a little rust on the firewall. After drilling out the spot welds on the fender apron Brian patched it.






    Attached Files:

    • 31.jpg
      File size:
      101.5 KB
      Views:
      3
    • 34.jpg
      File size:
      102 KB
      Views:
      3
    • 36.jpg
      File size:
      109.6 KB
      Views:
      2
    • 38.jpg
      File size:
      102.9 KB
      Views:
      3
    • 39.jpg
      File size:
      110.4 KB
      Views:
      2
    • 41.jpg
      File size:
      95.2 KB
      Views:
      3
    • 42.jpg
      File size:
      105.1 KB
      Views:
      3
    • 43.jpg
      File size:
      91.3 KB
      Views:
      2
    • 44.jpg
      File size:
      114.7 KB
      Views:
      3
    • 45.jpg
      File size:
      109.1 KB
      Views:
      2
    #4
  5. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

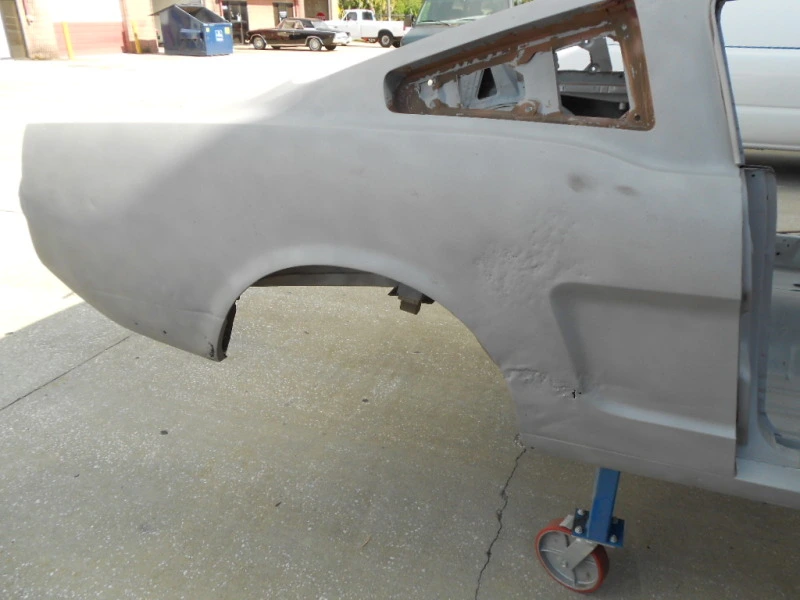

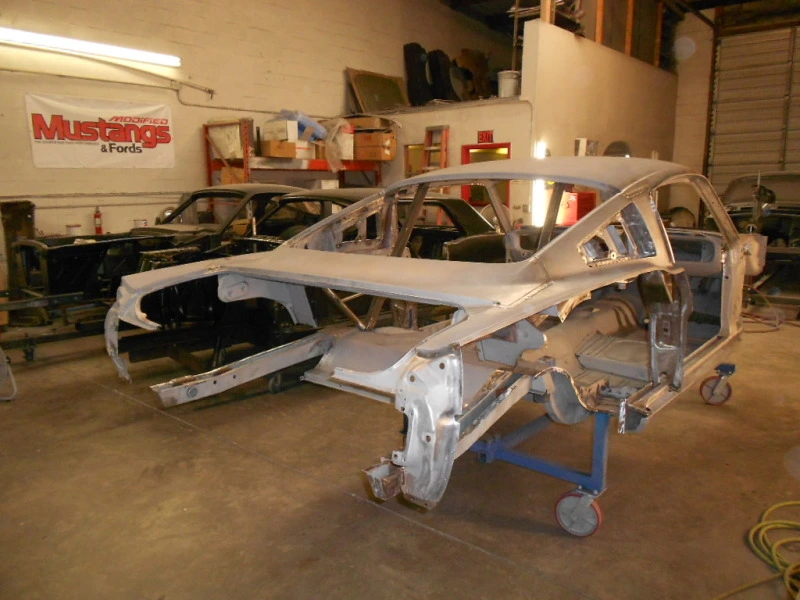

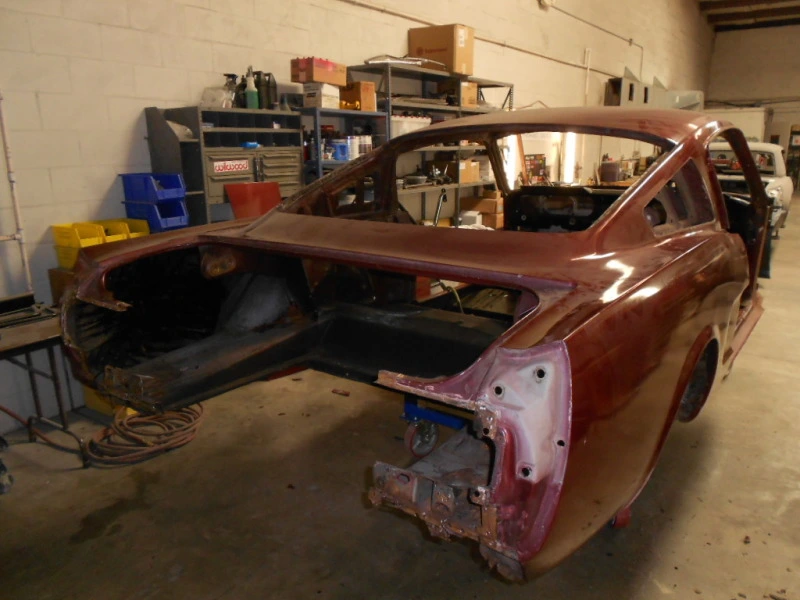

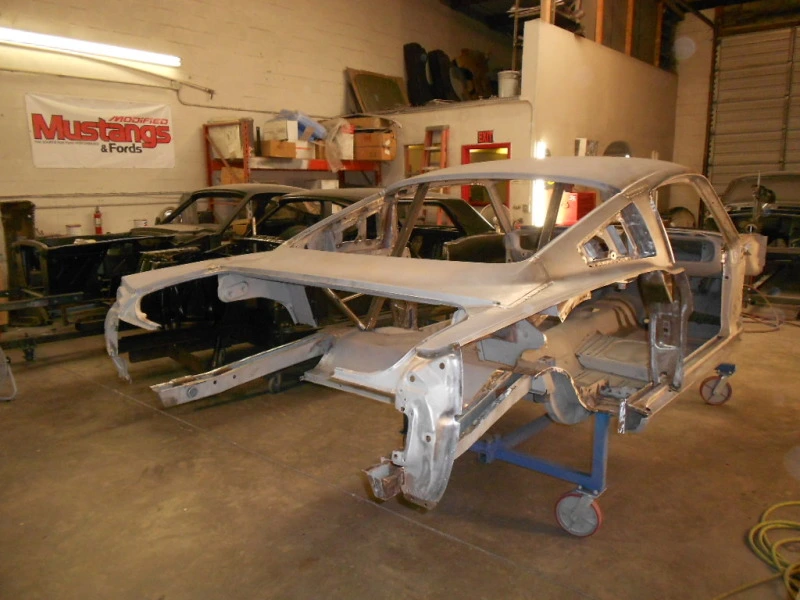

    Both quarter panels need to be replaced.

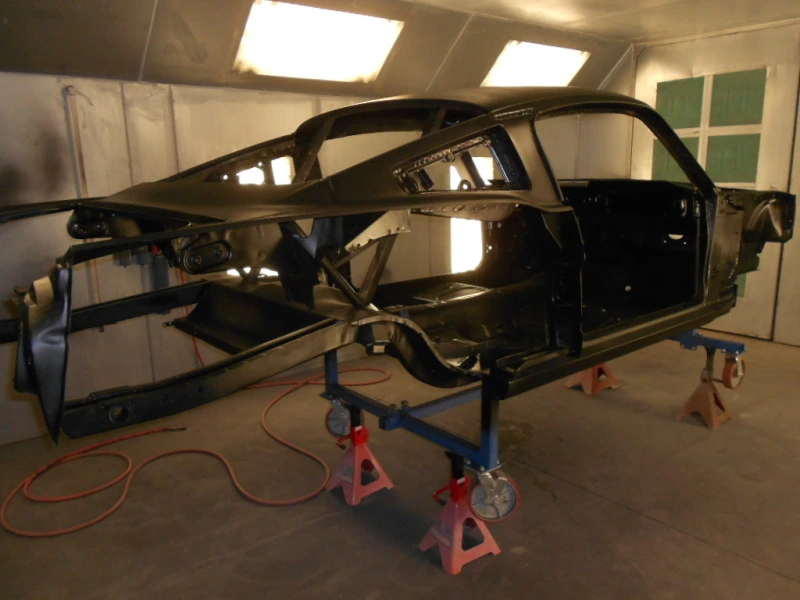

    After they were removed everything was epoxy primed

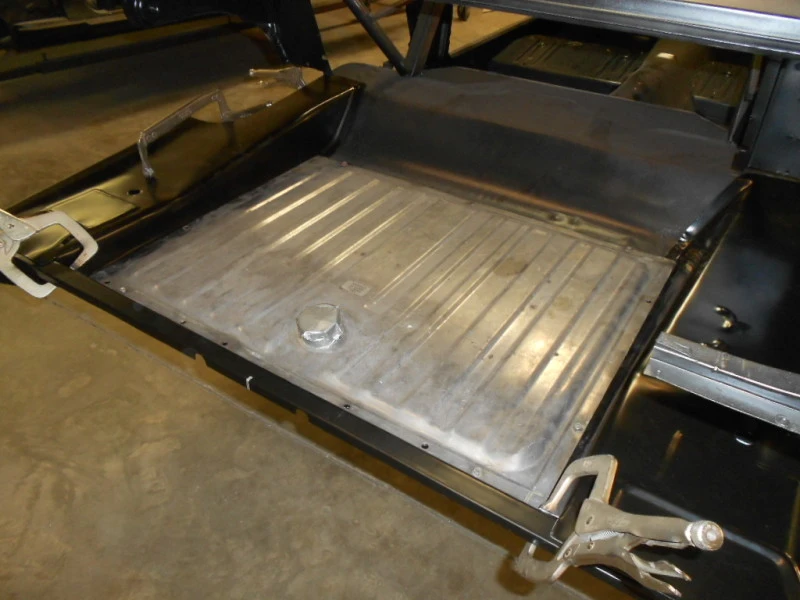

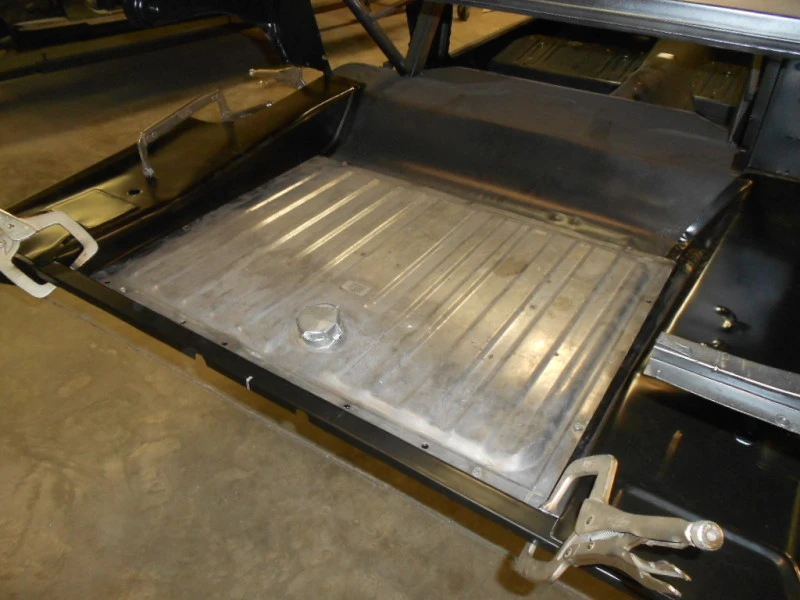

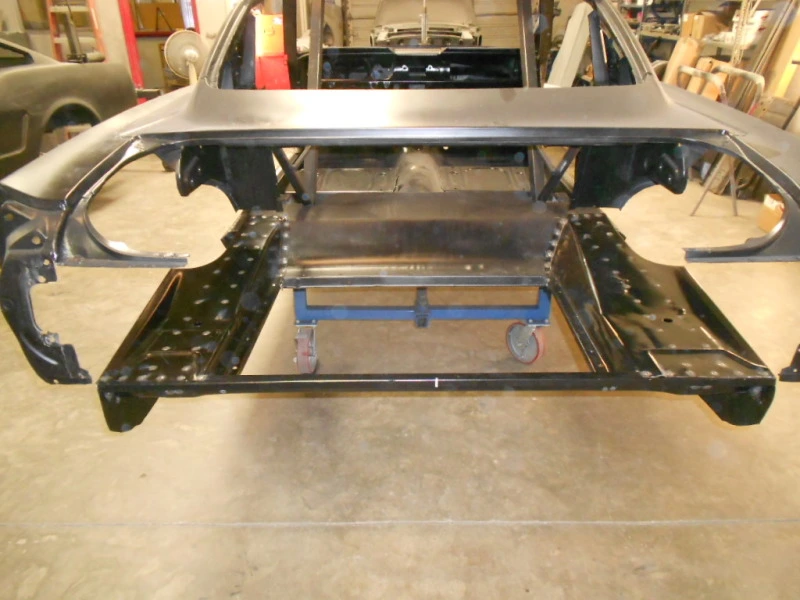

    Lining up the new trunk floor




    Attached Files:

    • 50.jpg
      File size:
      132.4 KB
      Views:
      2
    • 51.jpg
      File size:
      106.6 KB
      Views:
      2
    • 57.jpg
      File size:
      106 KB
      Views:
      2
    • 58.jpg
      File size:
      125.5 KB
      Views:
      2
    #5
  6. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

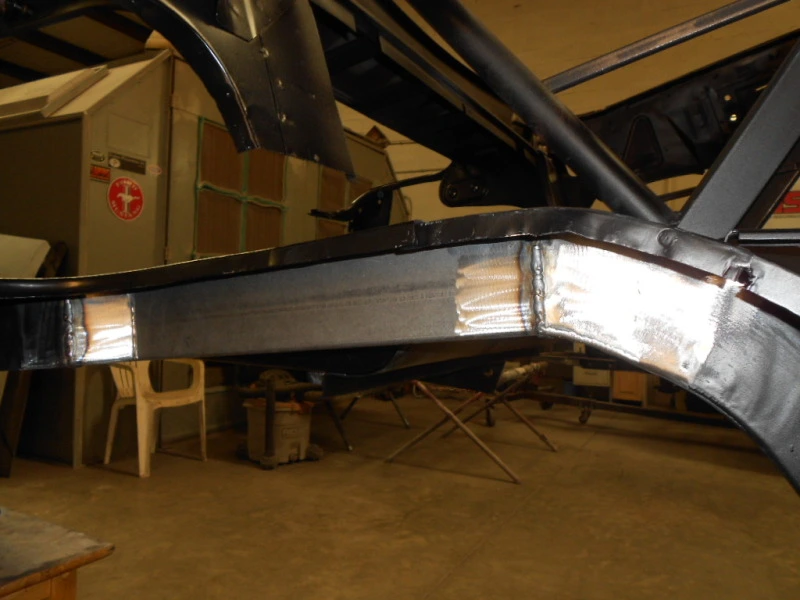

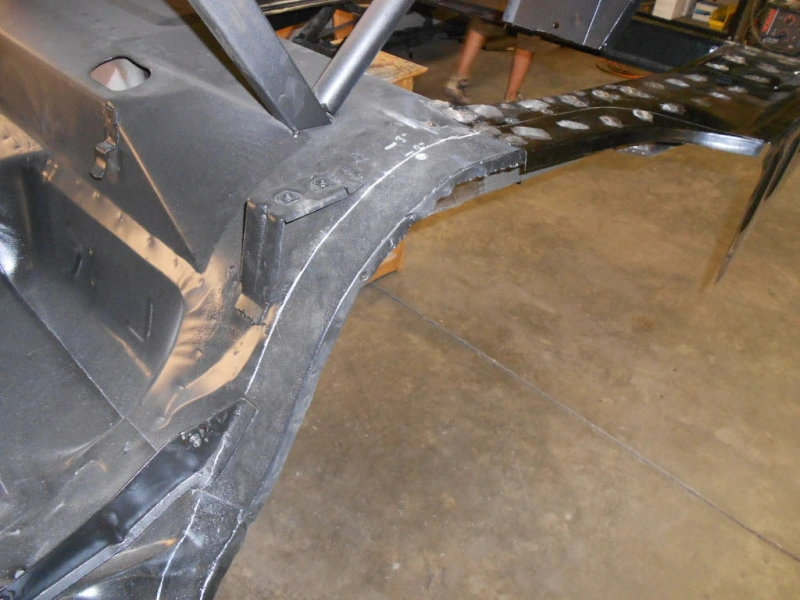

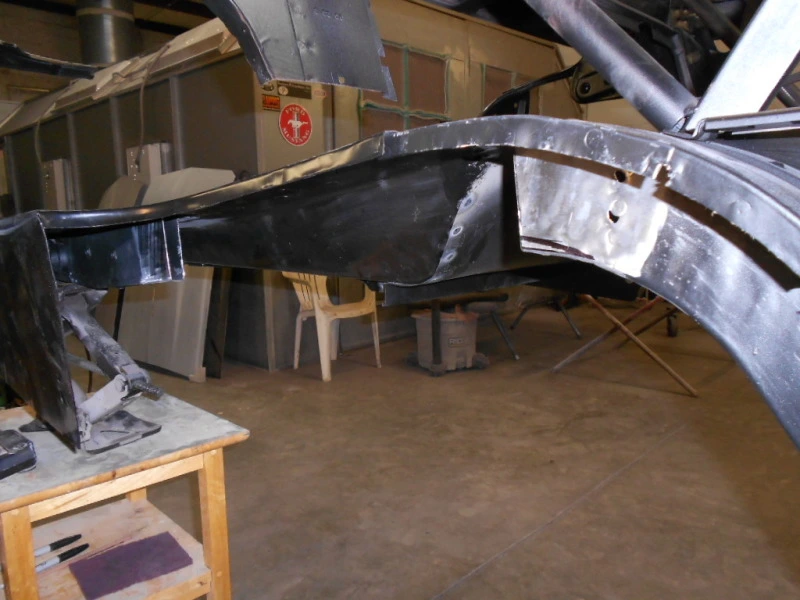

    Brian wanted to fit the mini tubs before installing the quarter panels the first thing he did was cut out the frame rail to make room for the new one that come in the kit.



    These braces come with the kit

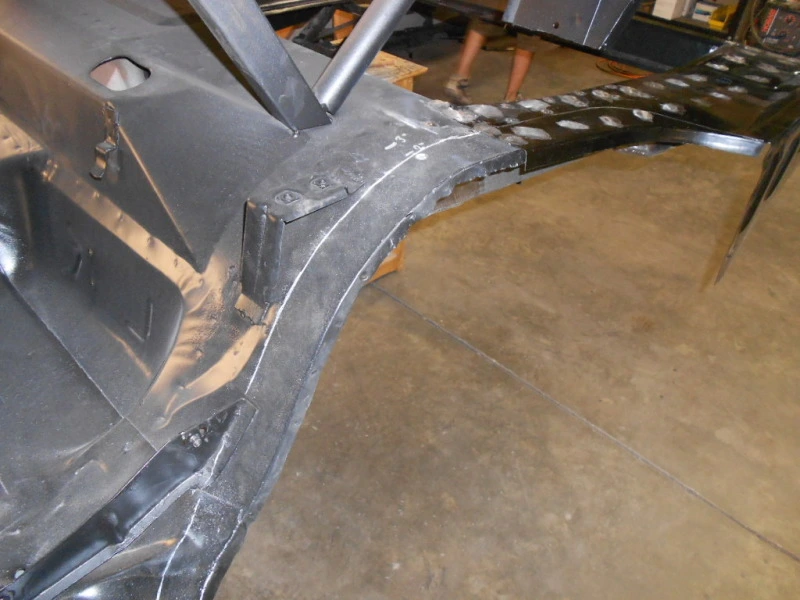

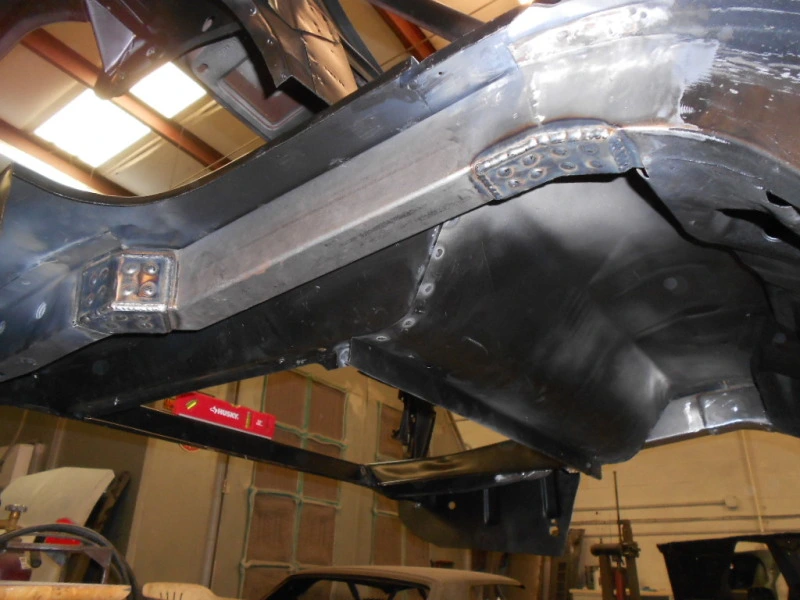

    This is what needs to be cut out for the new mini tub. You can go in 2" or 3" we chose 2" because in you go 3" you have to narrow the supplied frame rail 1"



    Attached Files:

    • 63.jpg
      File size:
      121.2 KB
      Views:
      3
    • 64.jpg
      File size:
      110.1 KB
      Views:
      3
    • 65.jpg
      File size:
      120.4 KB
      Views:
      3
    • 66.jpg
      File size:
      124.4 KB
      Views:
      2
    #6
    car_kent likes this.
  7. mtaqua

    mtaqua Member

    Joined:
    Oct 7, 2006
    Messages:
    345
    Likes Received:
    4
    Trophy Points:
    19
    very cool, wish I would have had this kit. you keeping the rear seat?

    #7
  8. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    I'm sorry I have forgotten to update

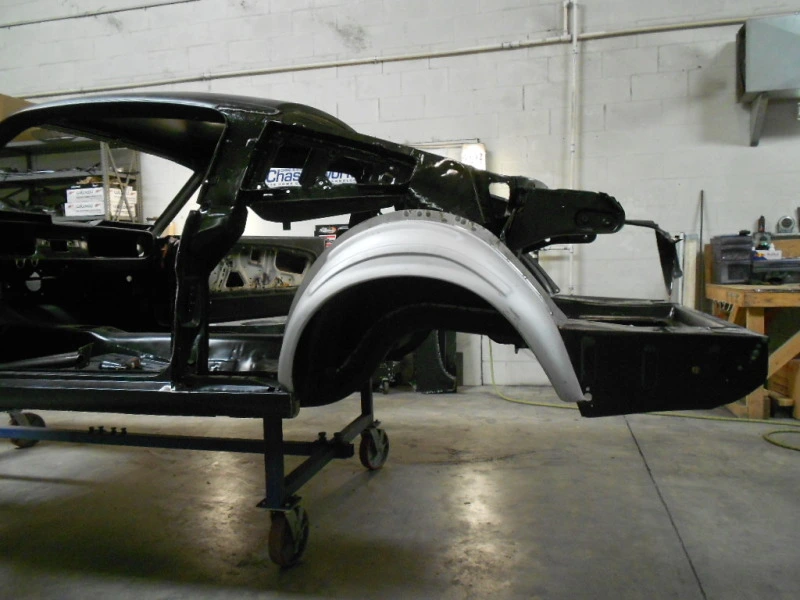

    Test fitting the mini tub and quarter

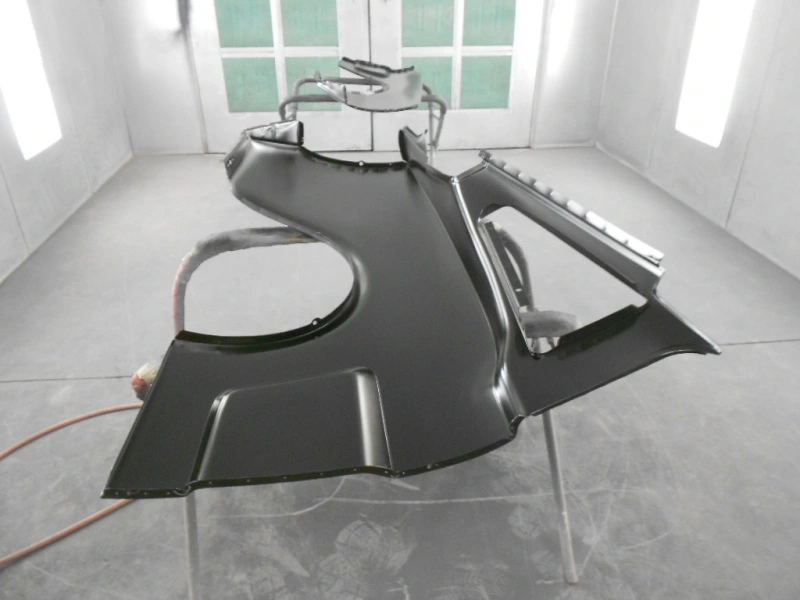

    Epoxy primed the inside of the quarters

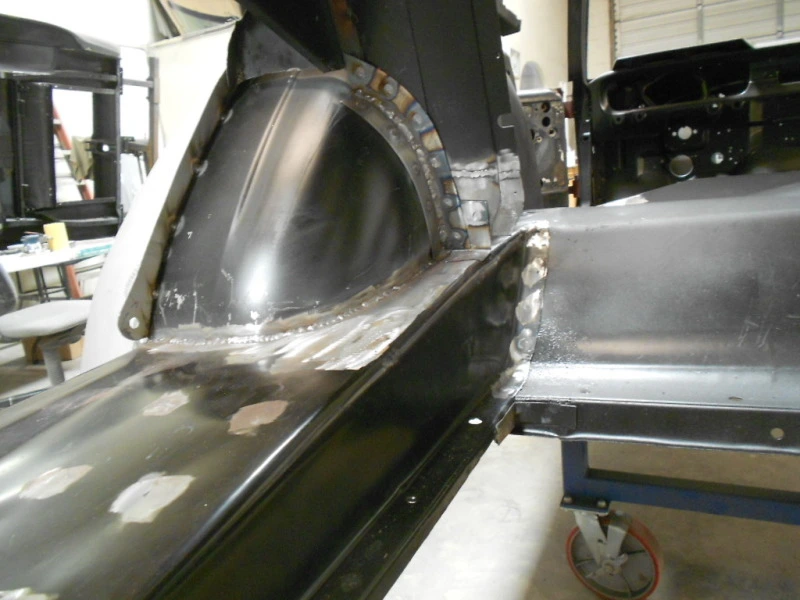

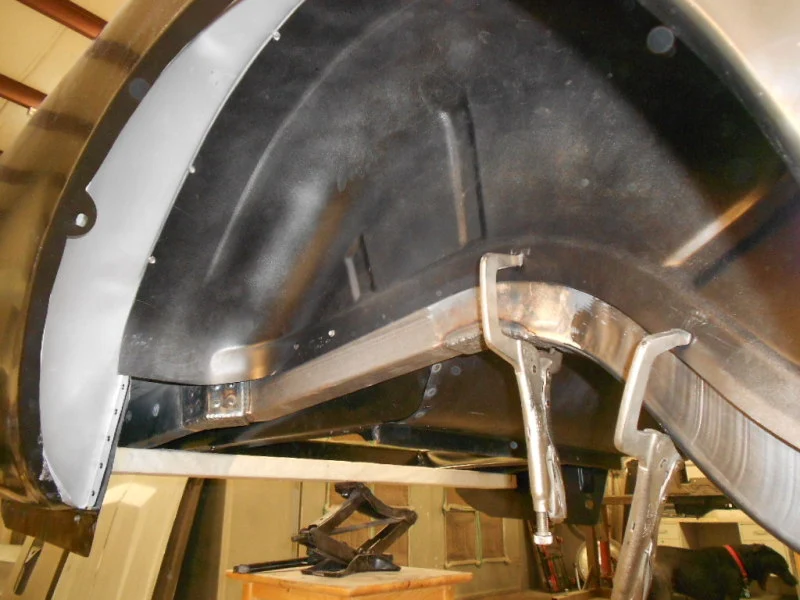

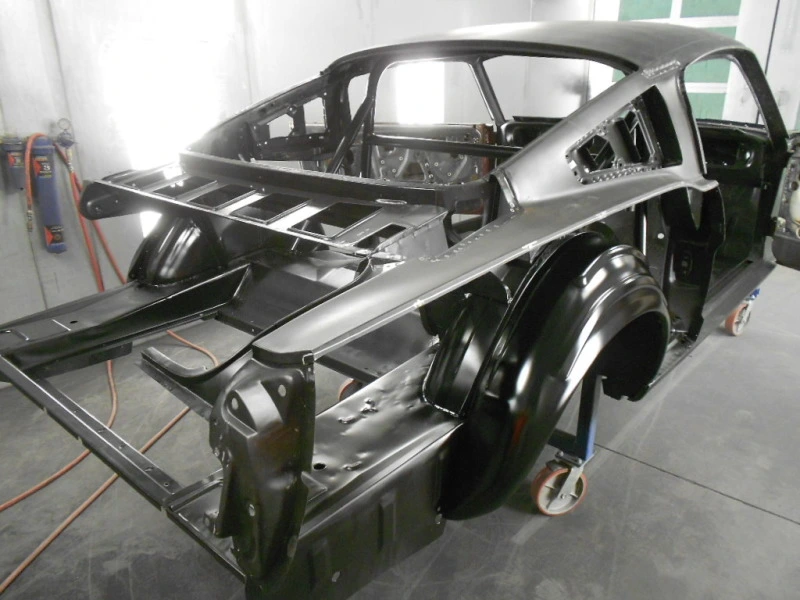

    Installing the DSE mini tubs

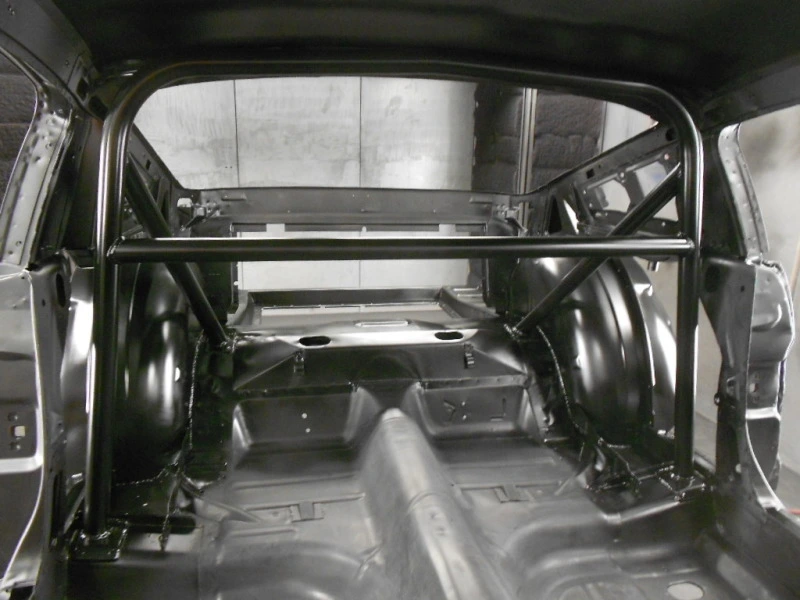

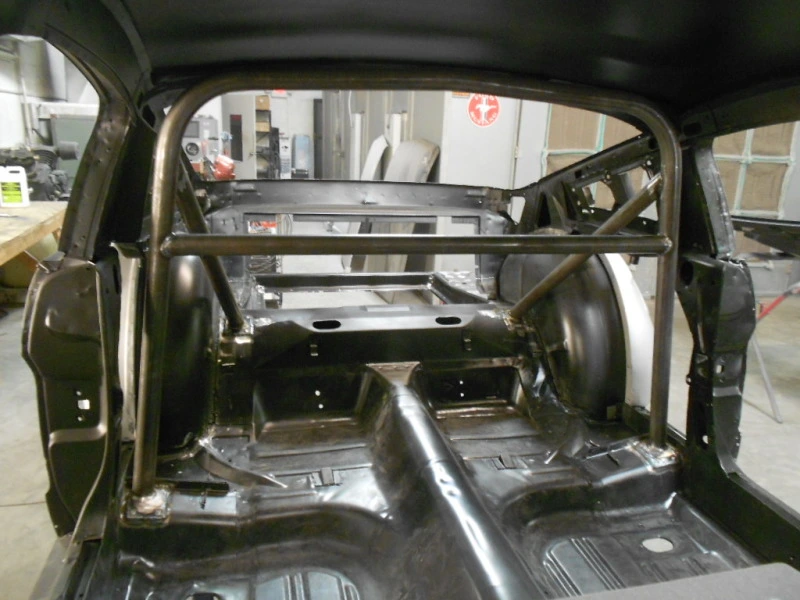

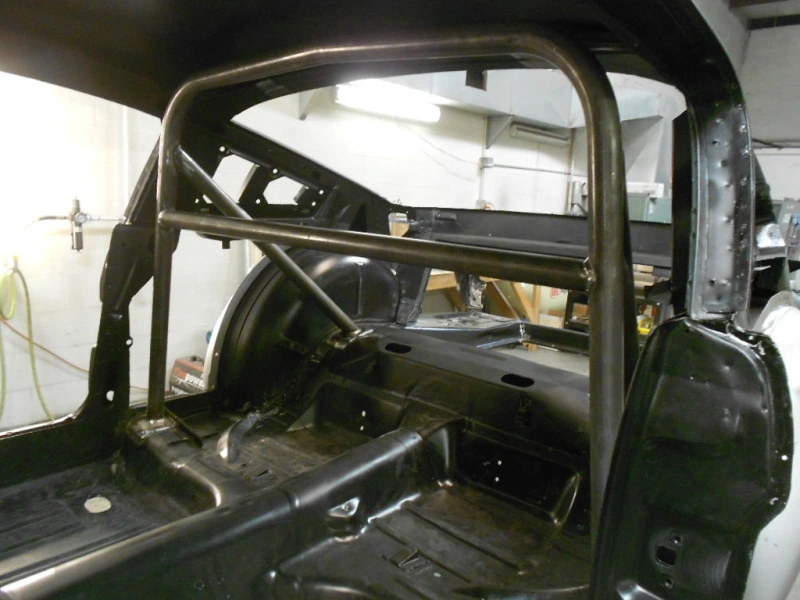

    Roll bar installed before the quarters



    Couple of coats of SPI epoxy

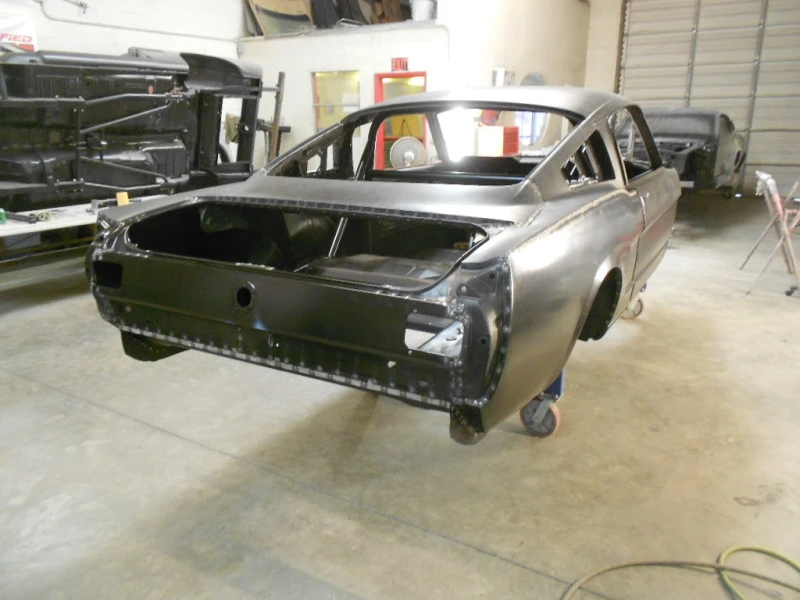

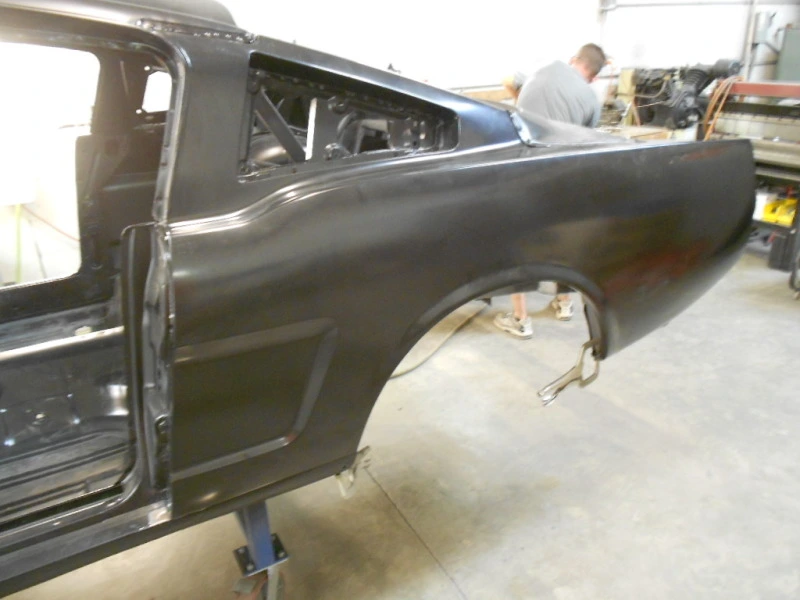

    Quarters and taillight panel installed


    #8
  9. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

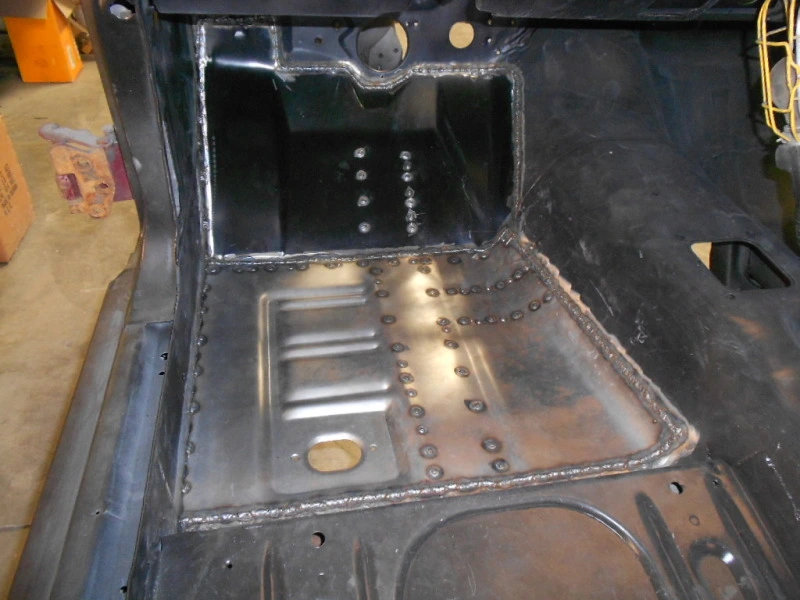

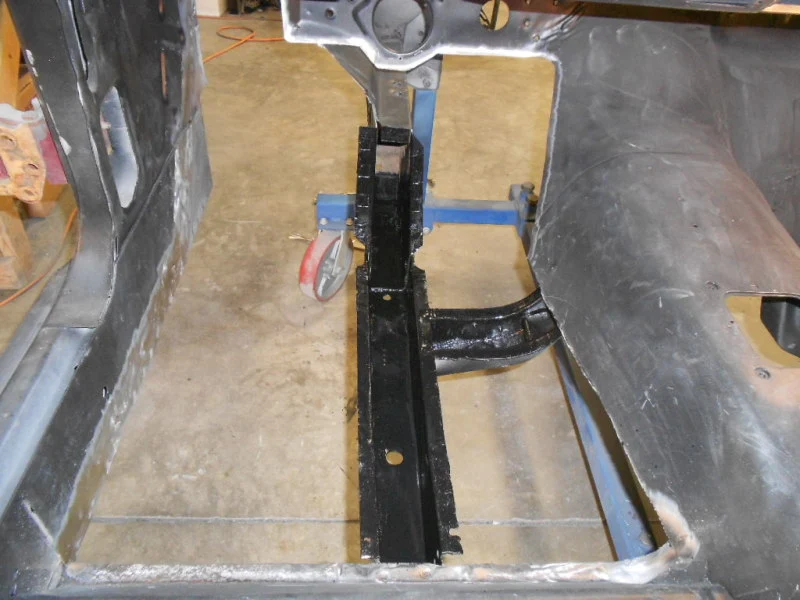

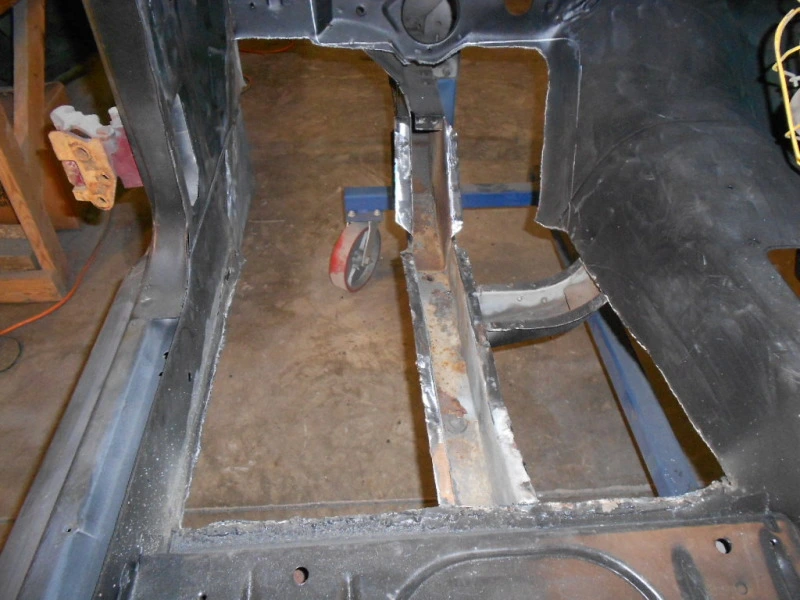

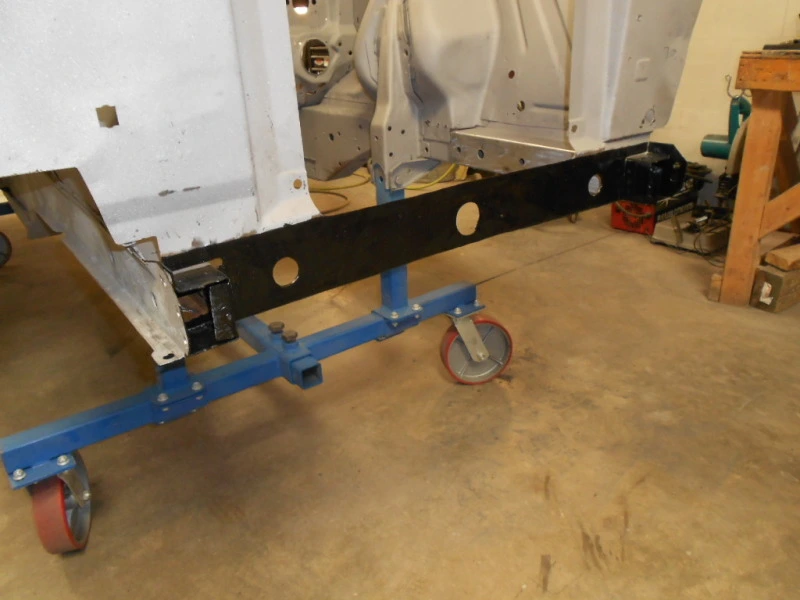

    The floor pan had to be replaced


    Brushed epoxy

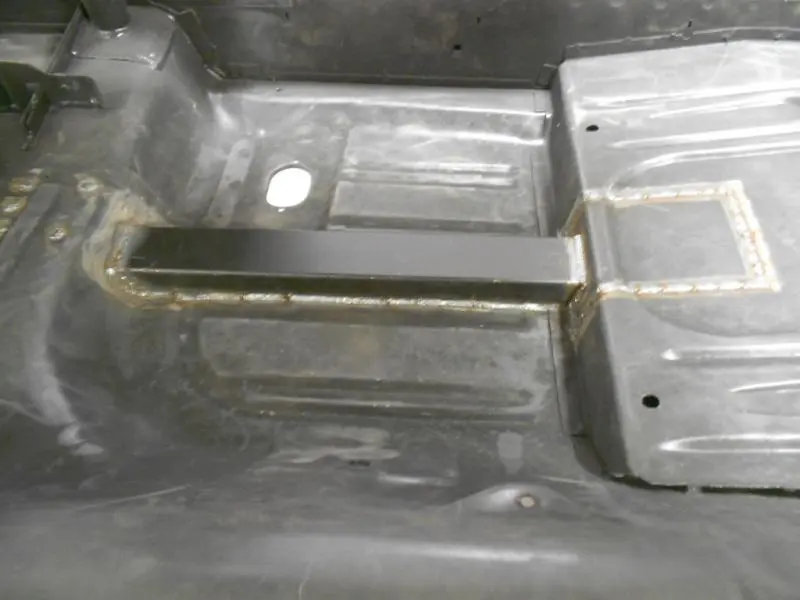

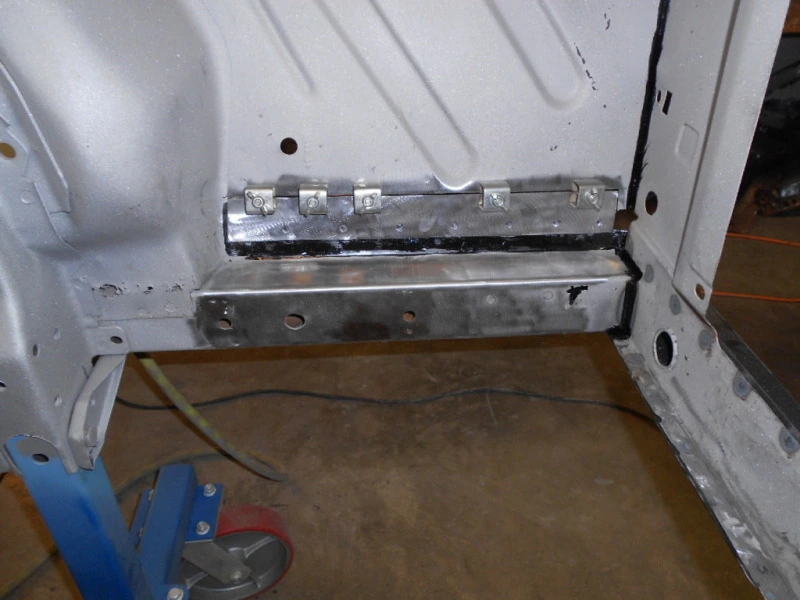

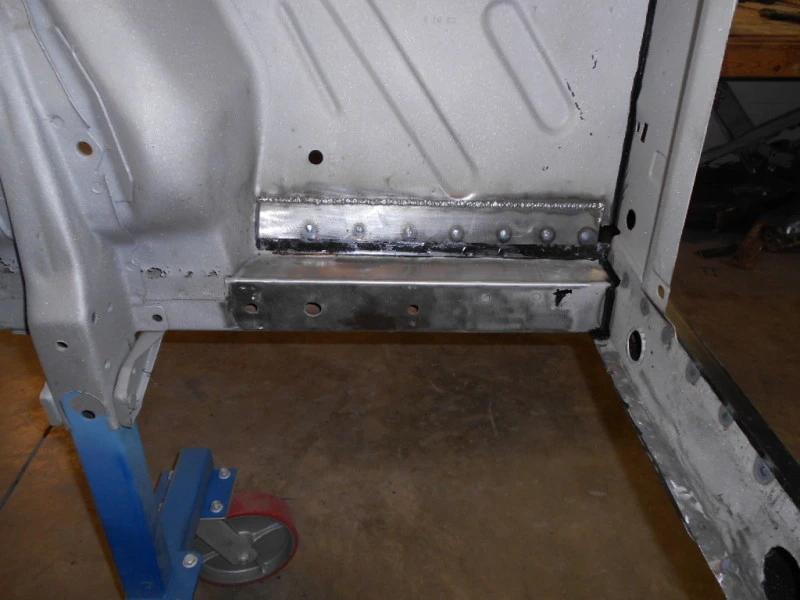

    Installed torque boxes



    Test fitting

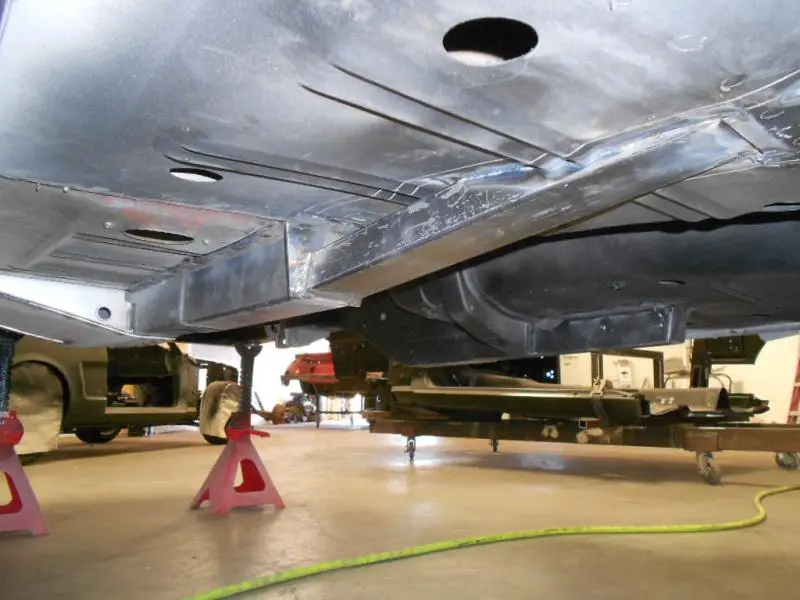

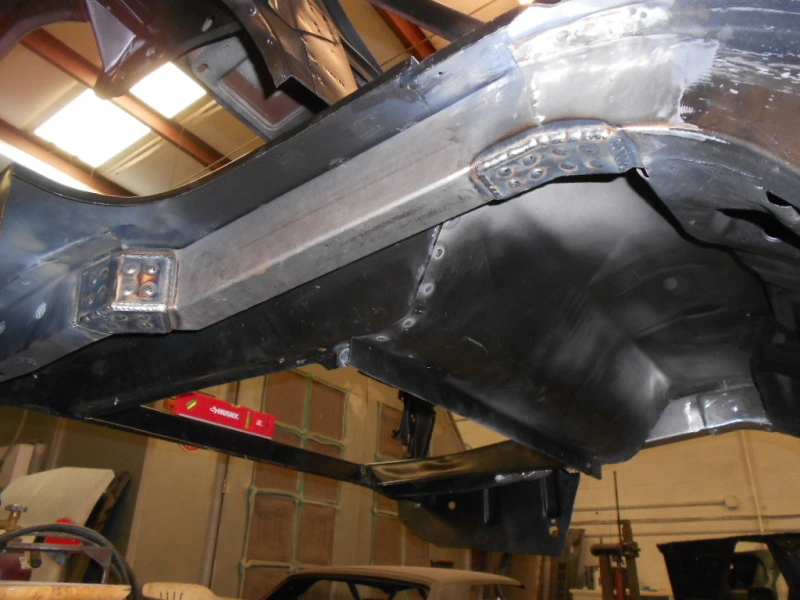

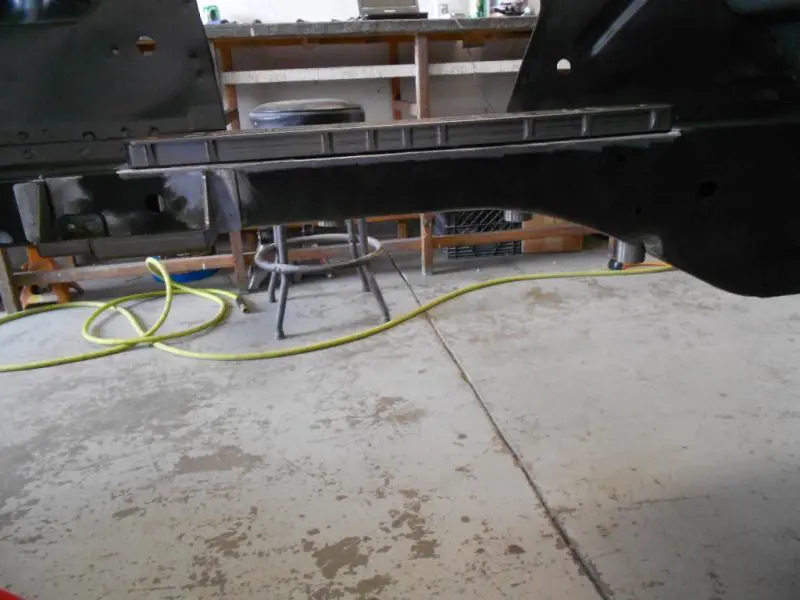

    Installing DSE subframe connectors

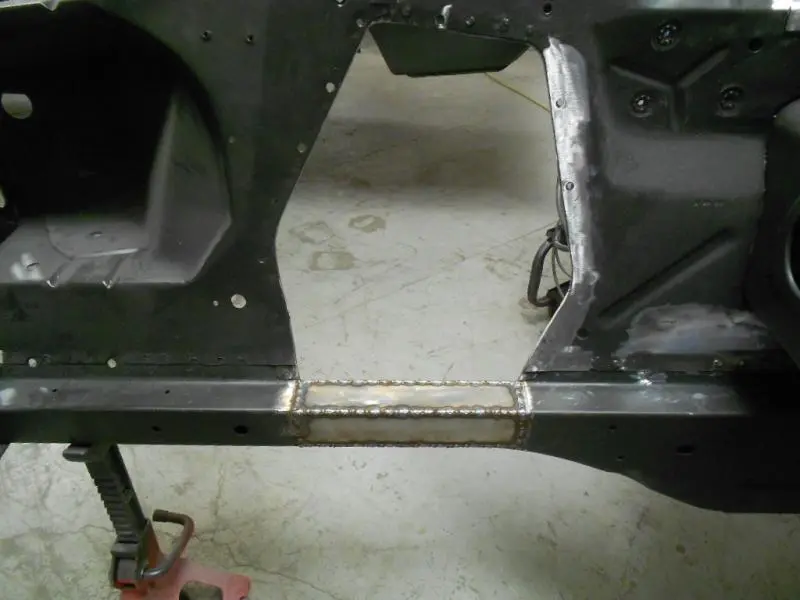

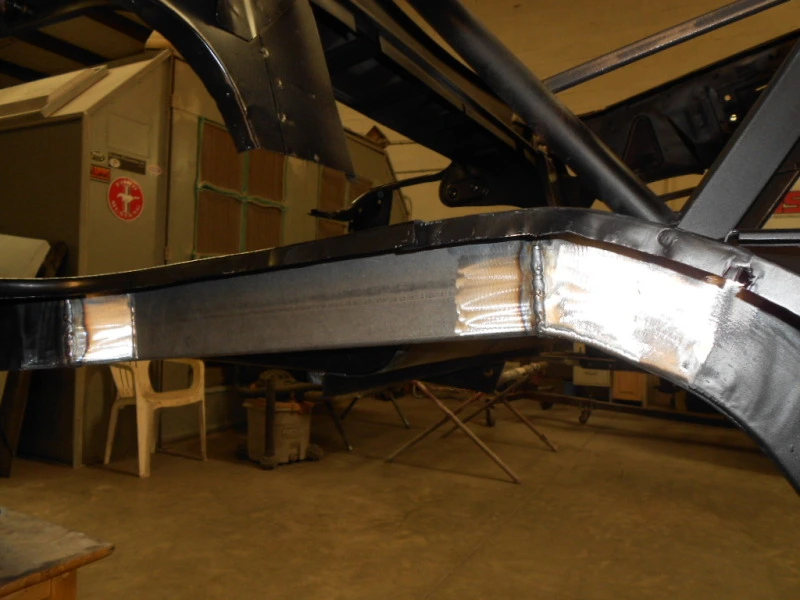

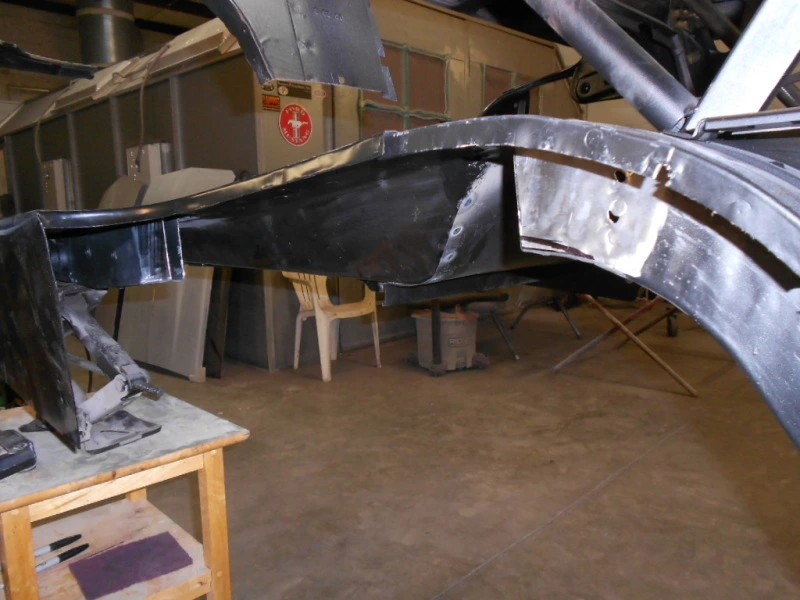

    Both front frame rails had a little rust





    We are waiting for the DSE rear suspension


    #9
  10. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

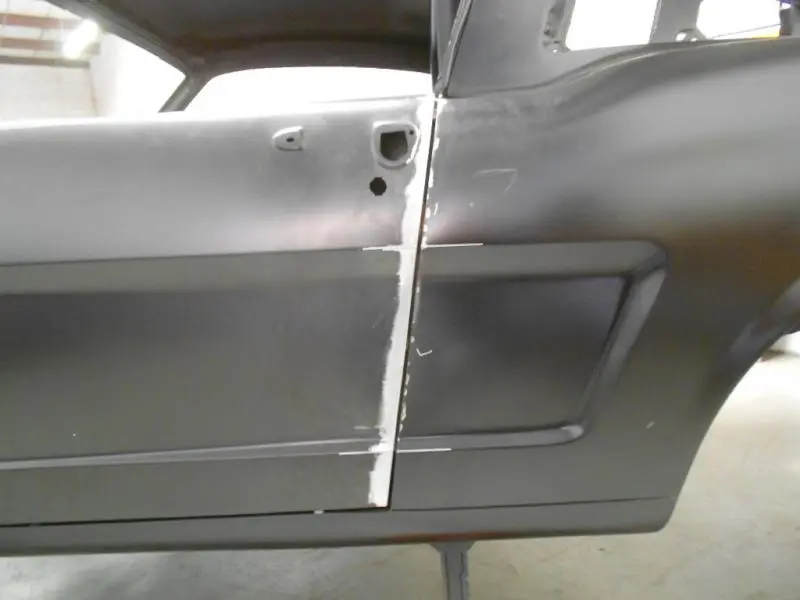

    Fixing the door gap

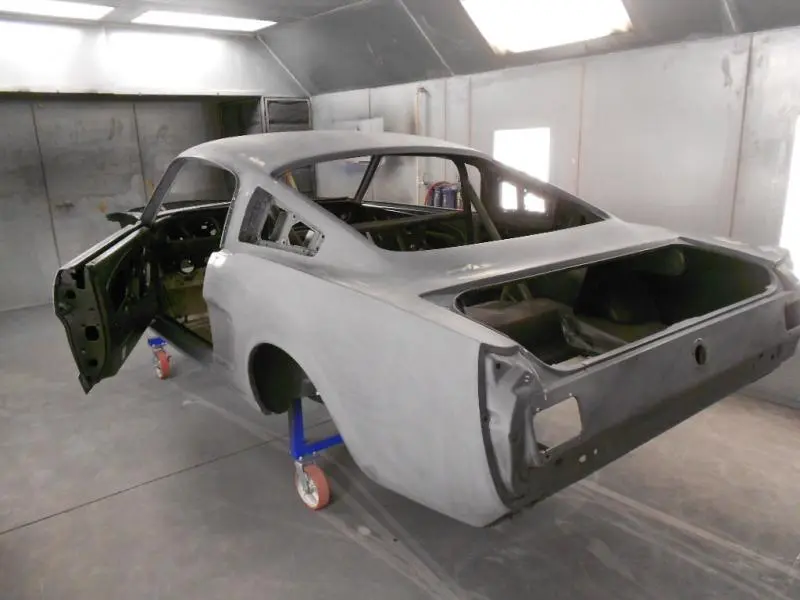

    Block sanded and ready for more primer

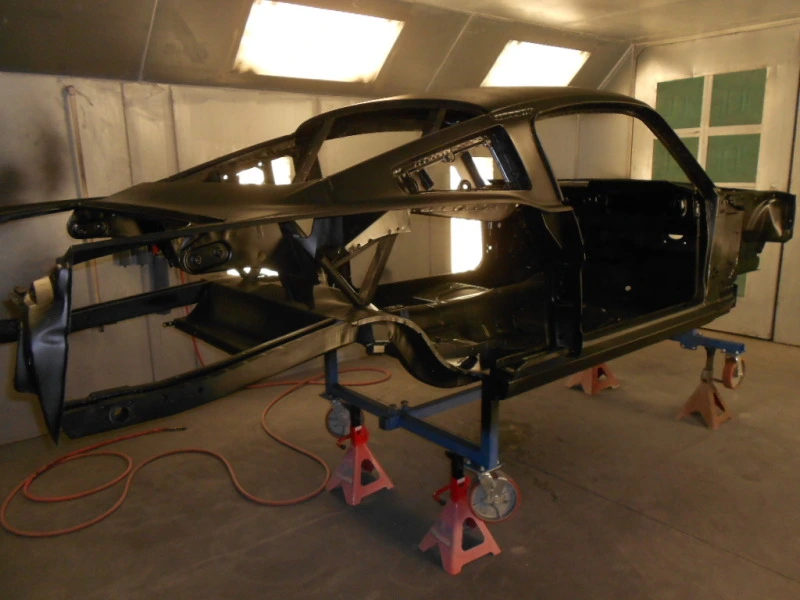

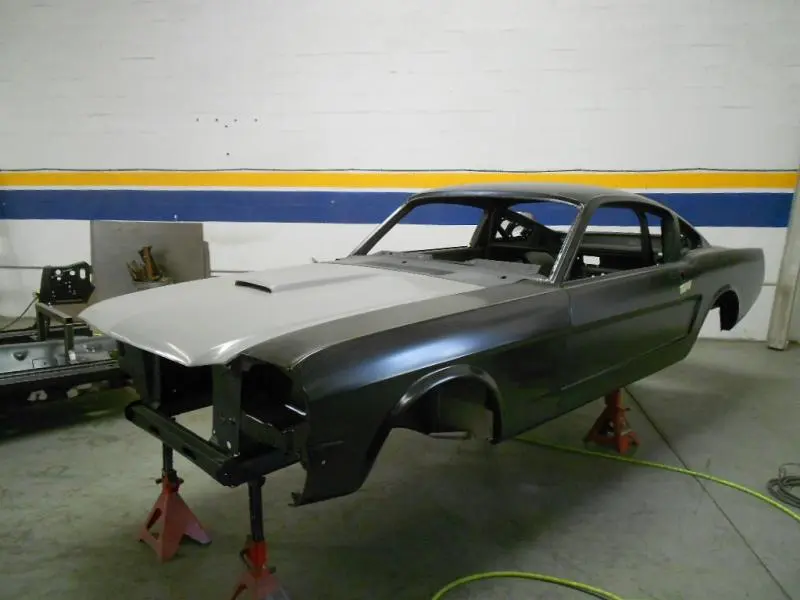

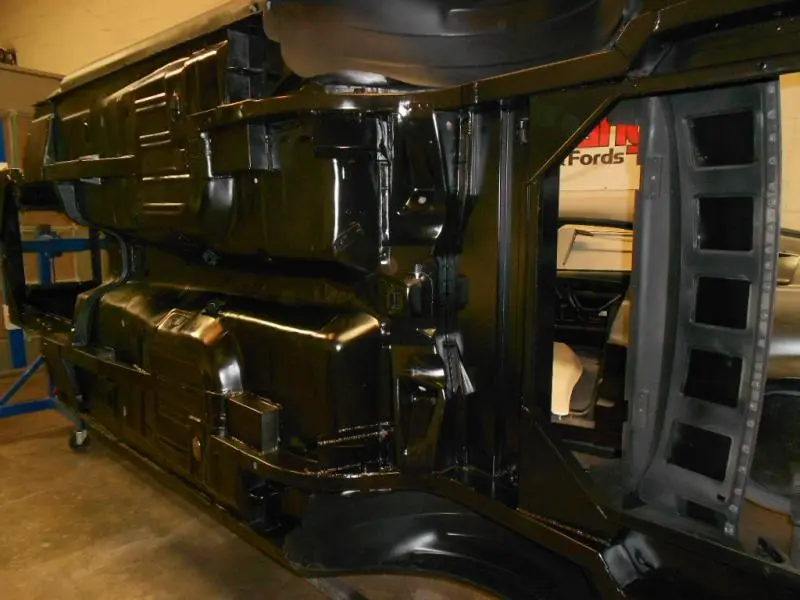

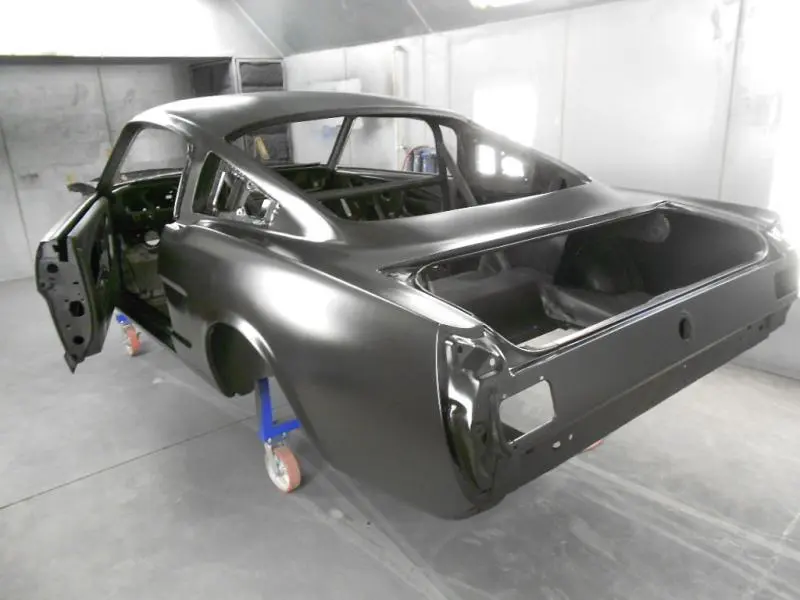

    Two coats of SPI epoxy

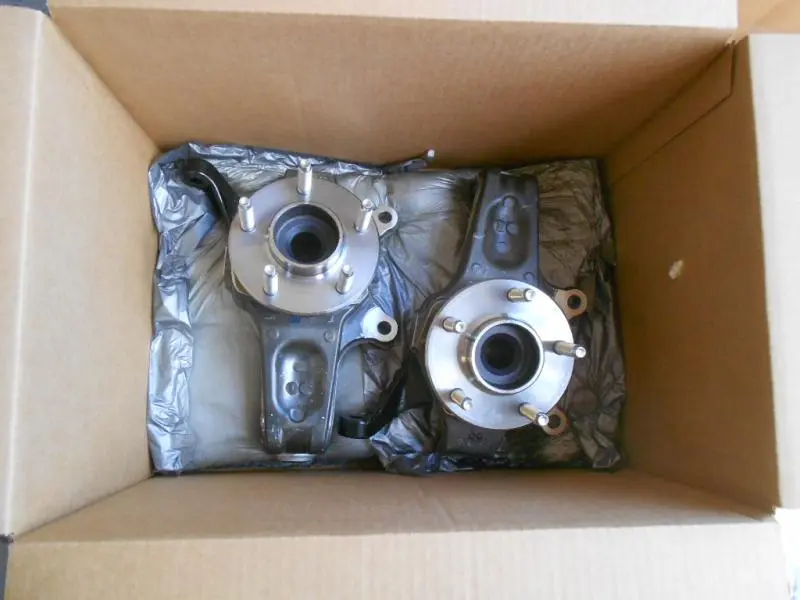

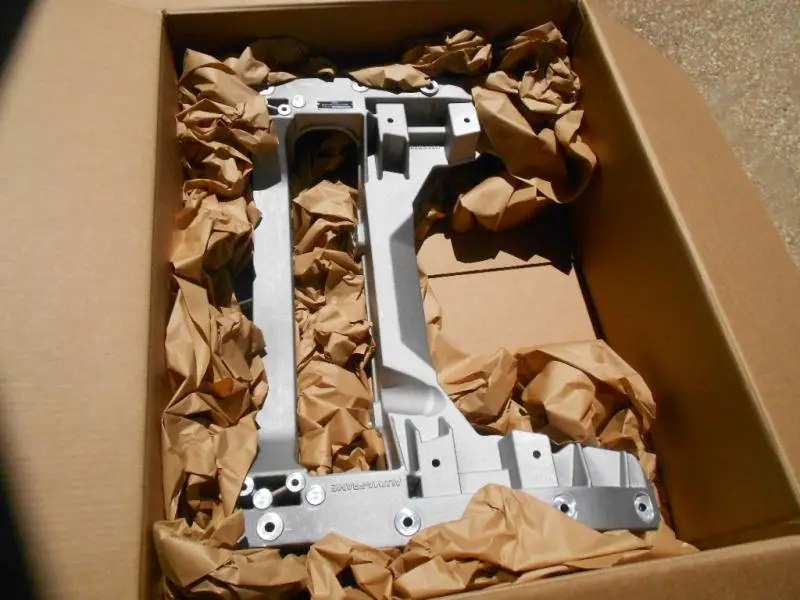

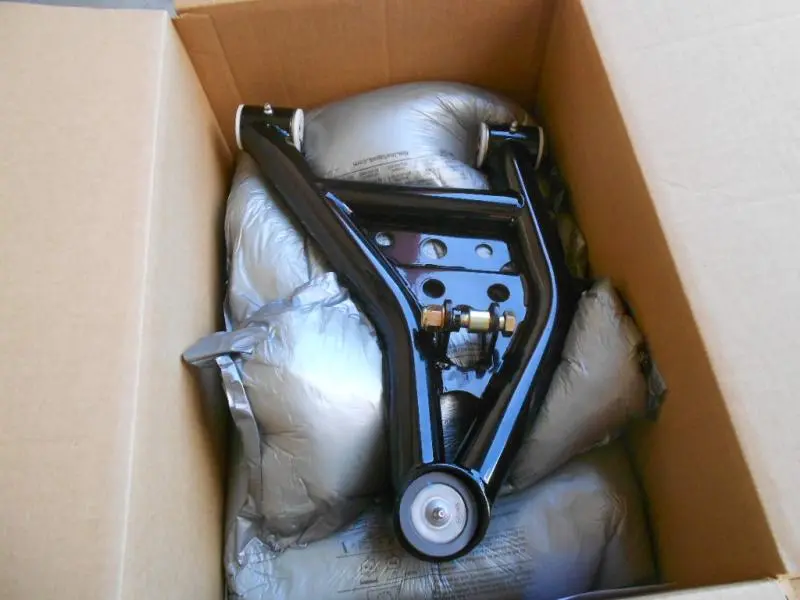

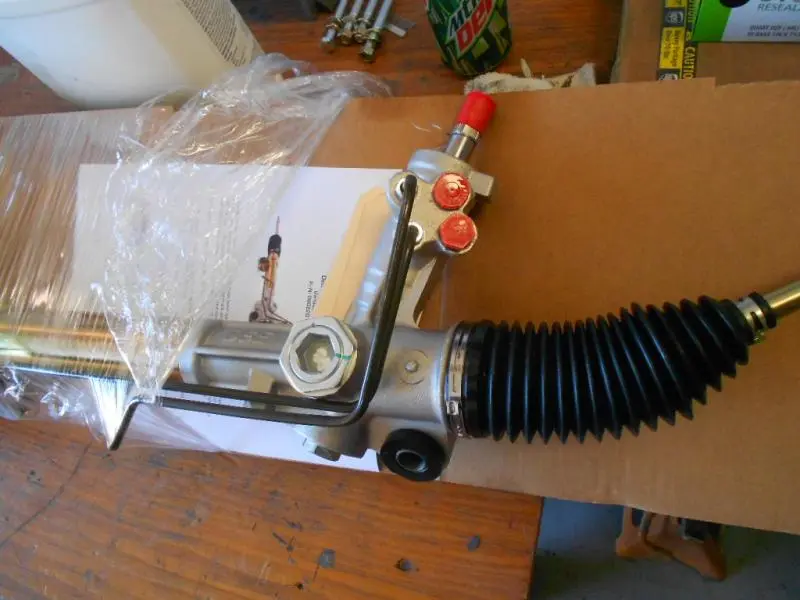

    DSE parts came in except the rear housing. Now we just need to find the time to install all these cool parts.








    #10
  11. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

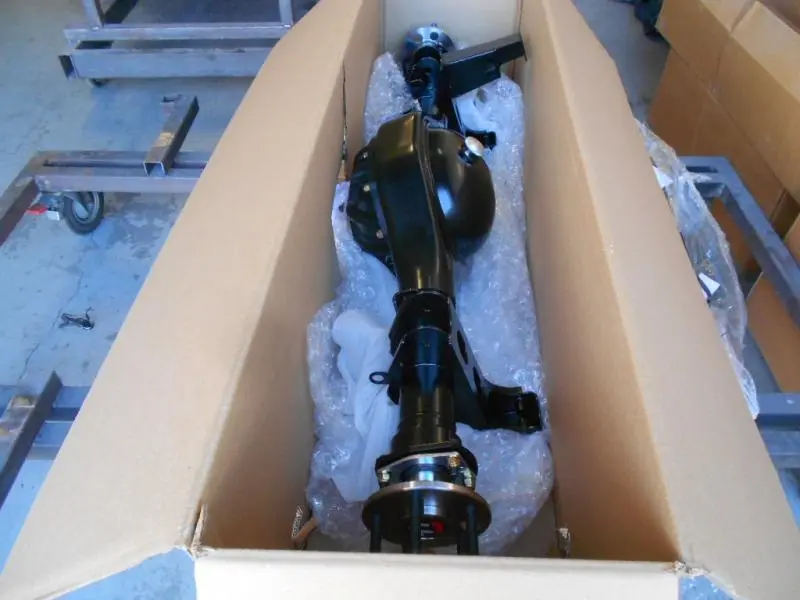

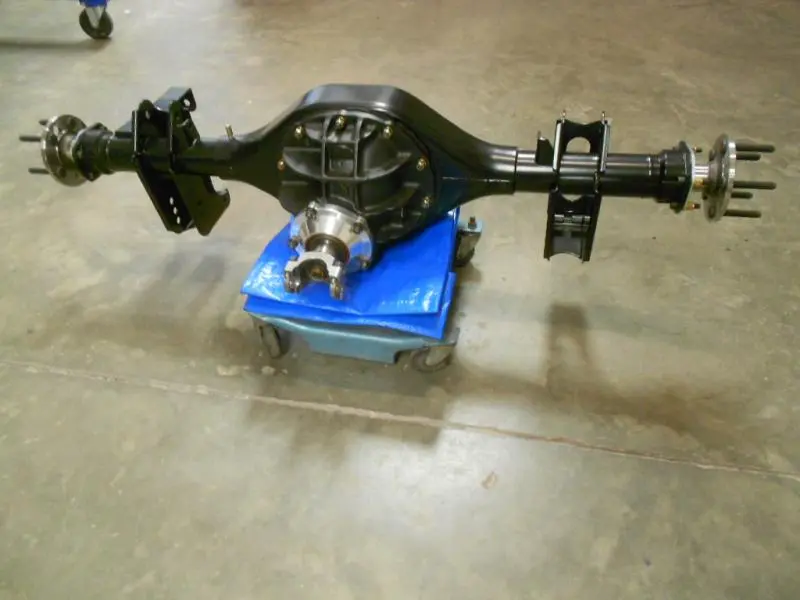

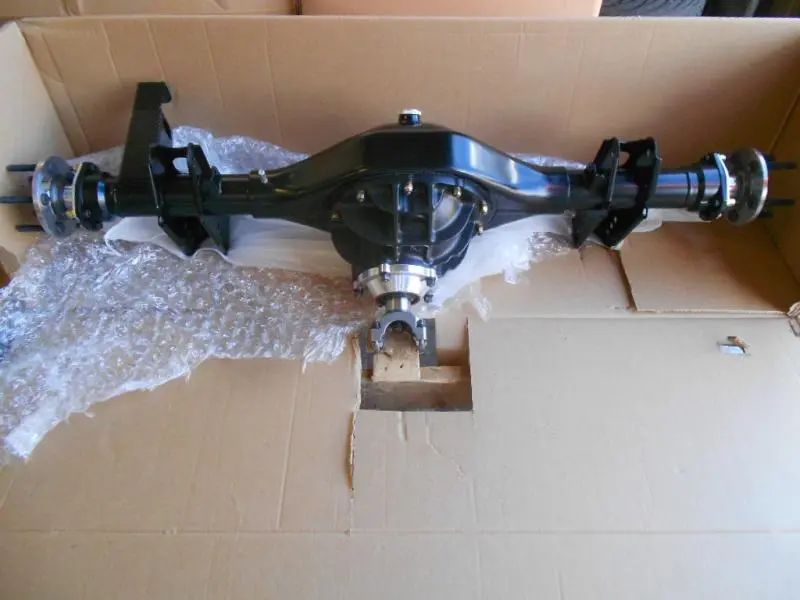

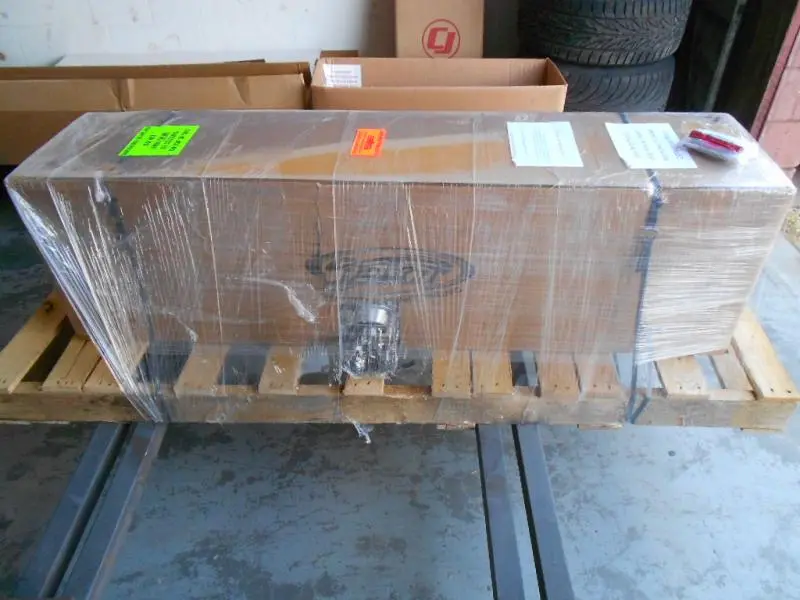

    The rear end from DSE came in with the Quadra link brackets. Moser 9" 3.89 with 31 spline Truetrac




    #11
  12. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

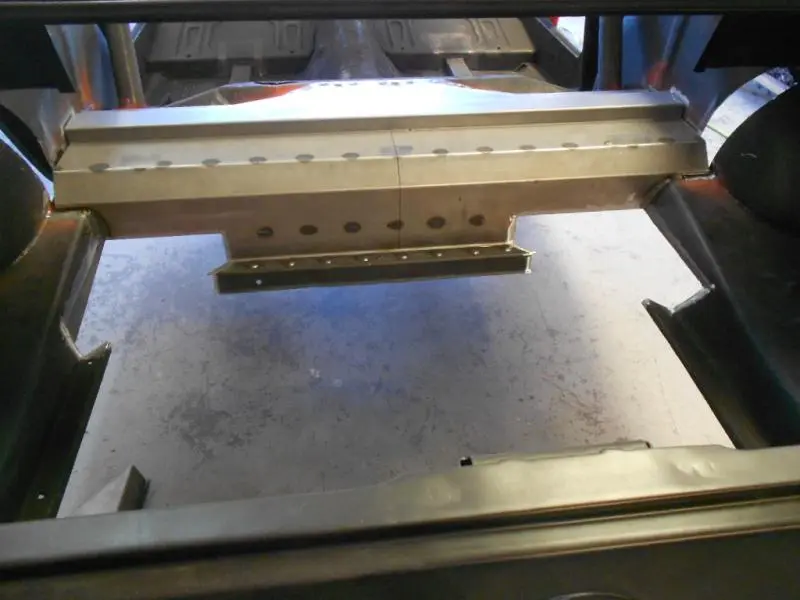

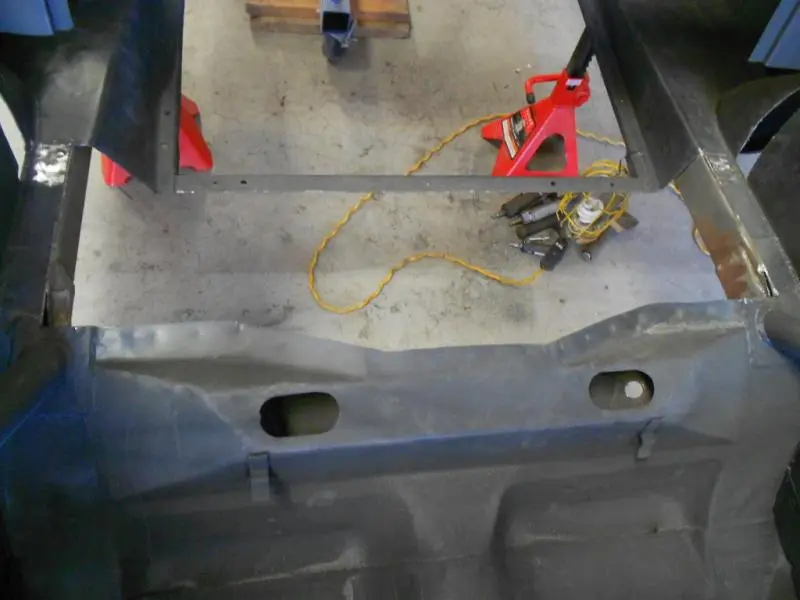

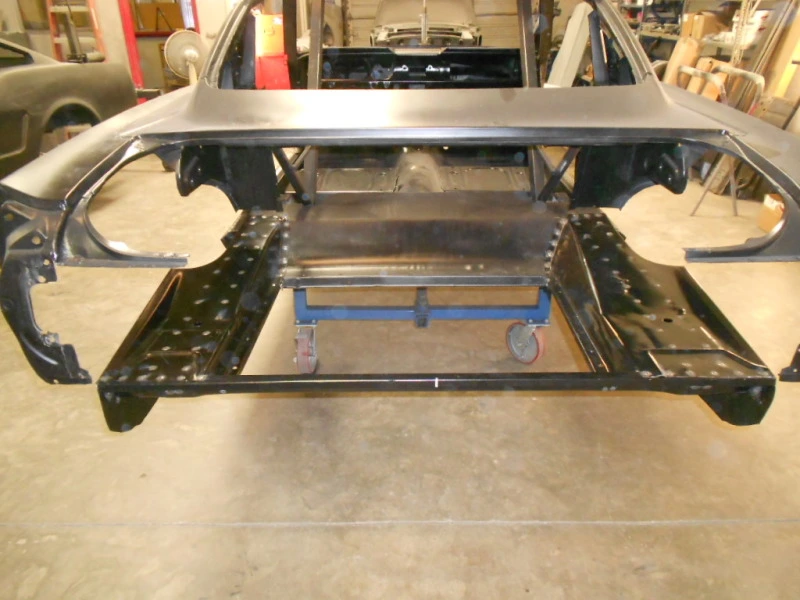

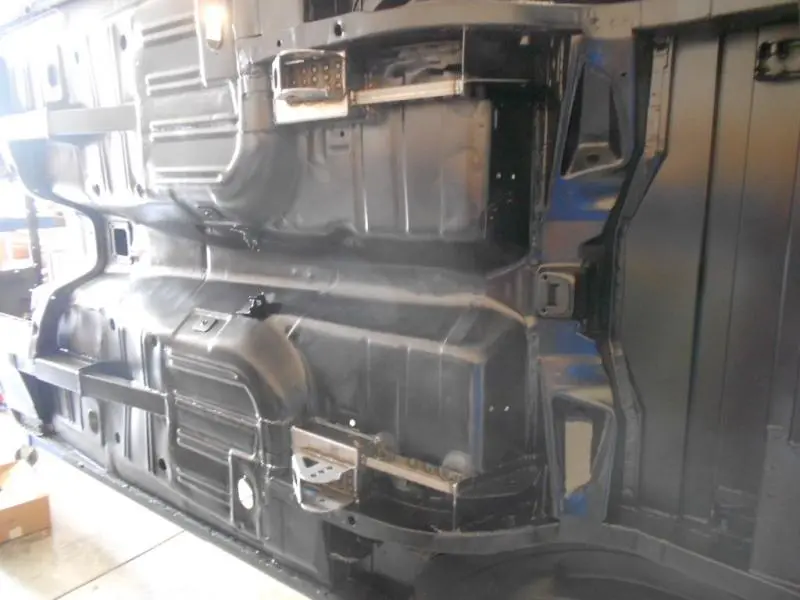

    Brian wanted something fun to work on so he started installing the DSE rear suspension. Part of the trunk floor has to be cut out.

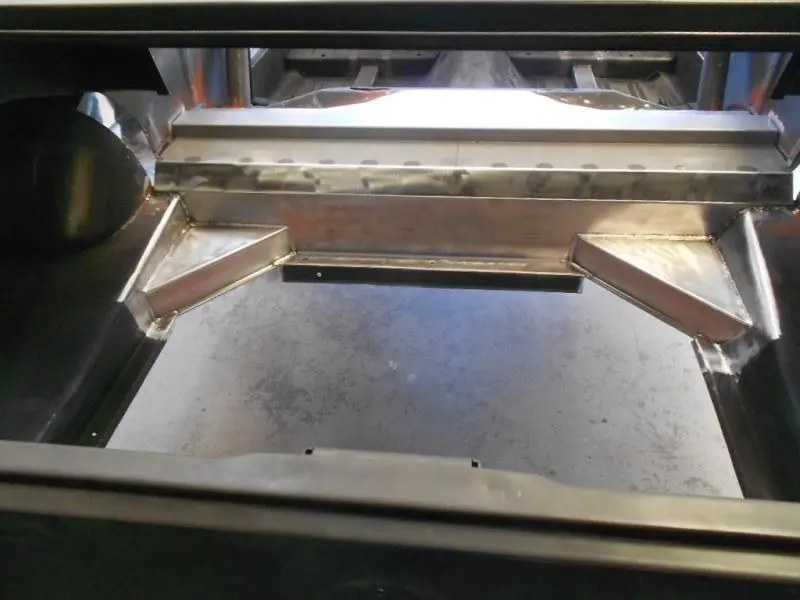

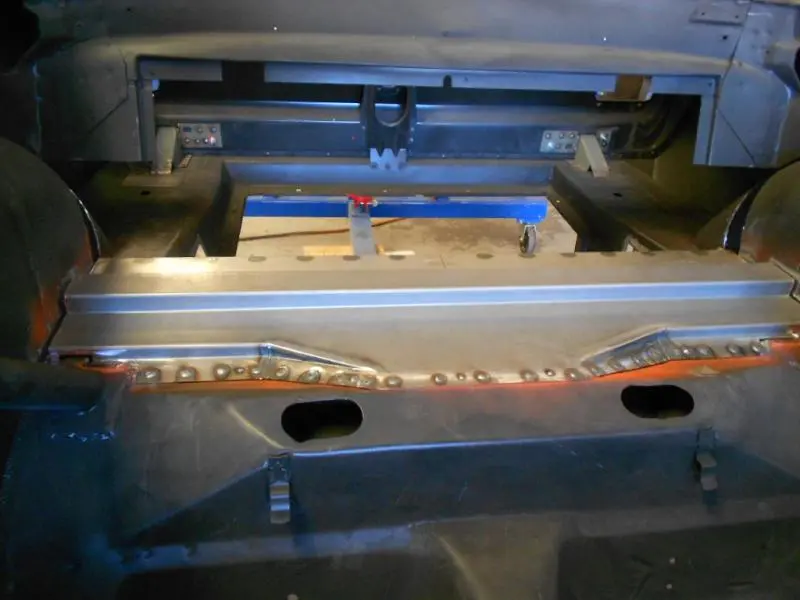

    Installing the new DSE floor





    #12
  13. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

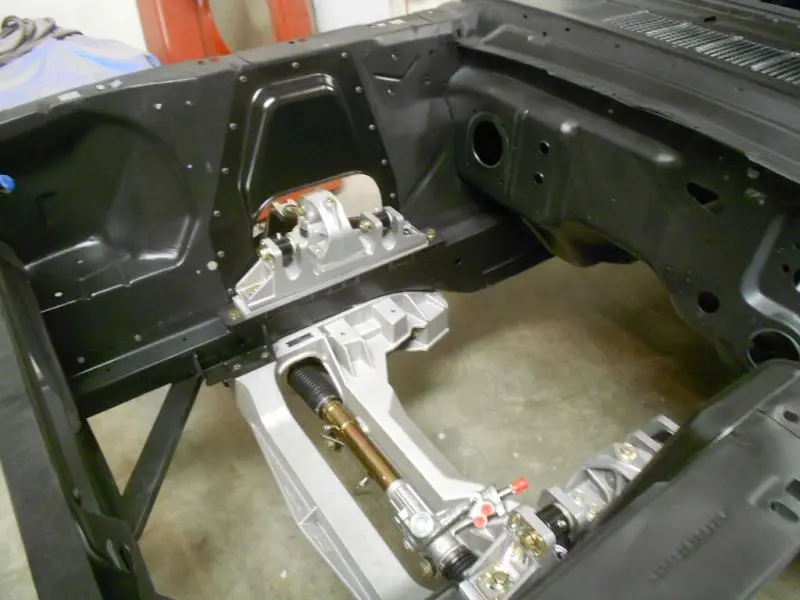

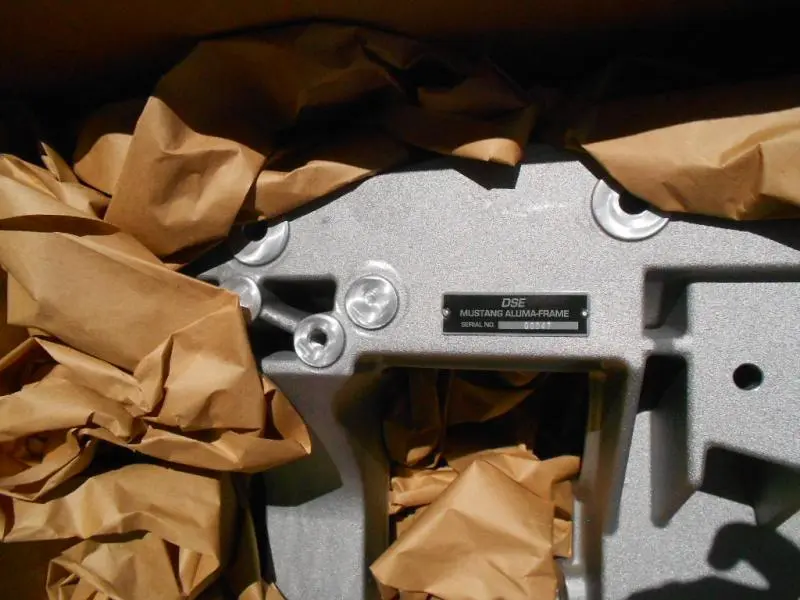

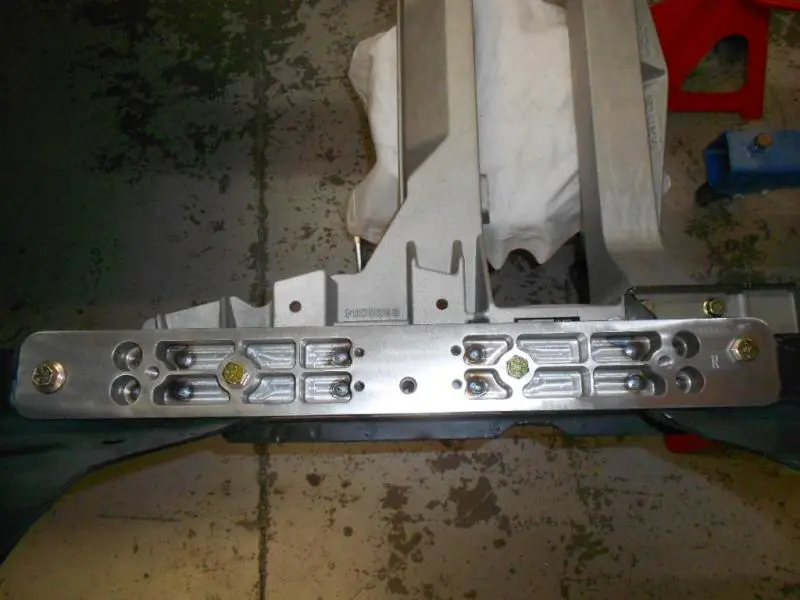

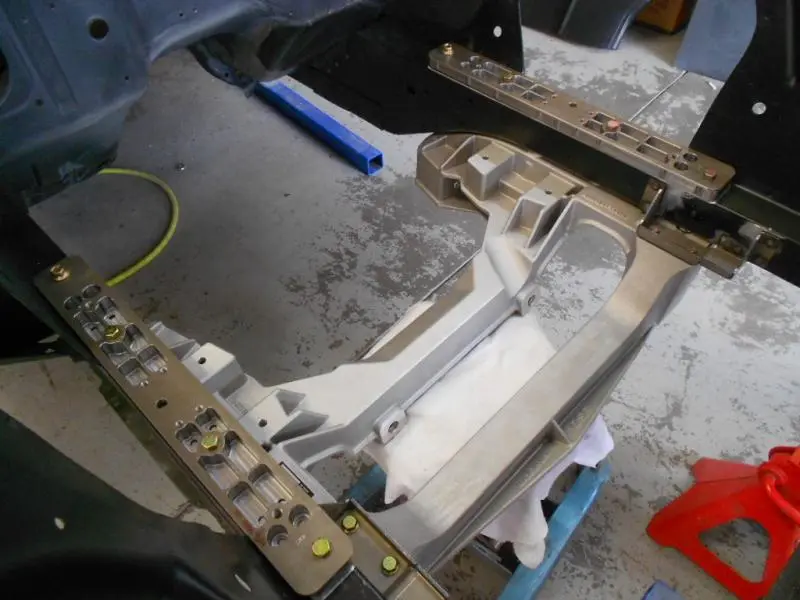

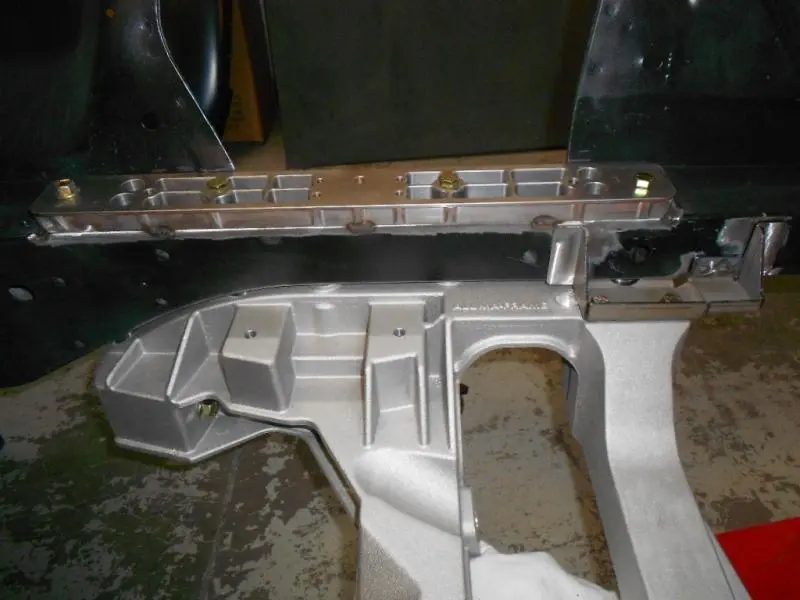

    Front cradle bolted in place and new DSE front mounts welded in place of the stock sway bar mount

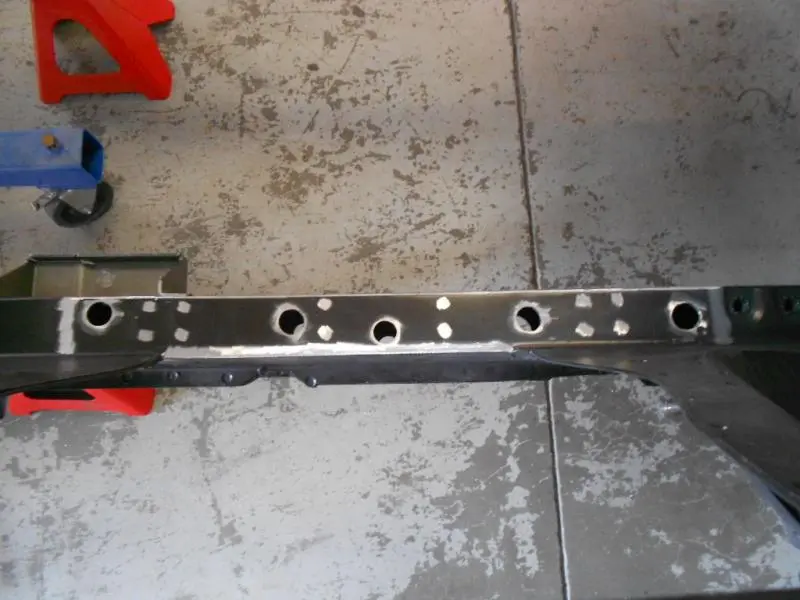

    Holes drilled in frame

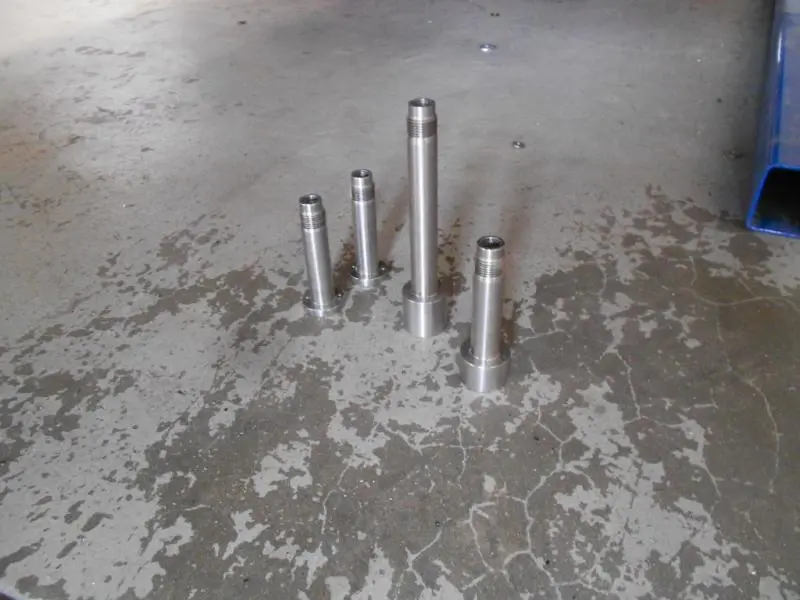

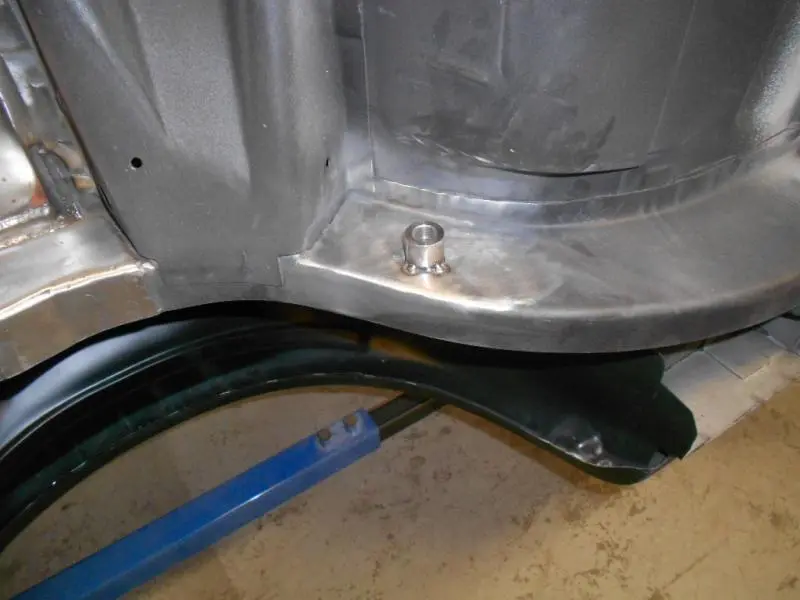

    Crush tubes that go in the frame


    Crush tubes bolt to the upper mount and will be welded to the frame



    Top bracket plug & tack welded in place



    #13
  14. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

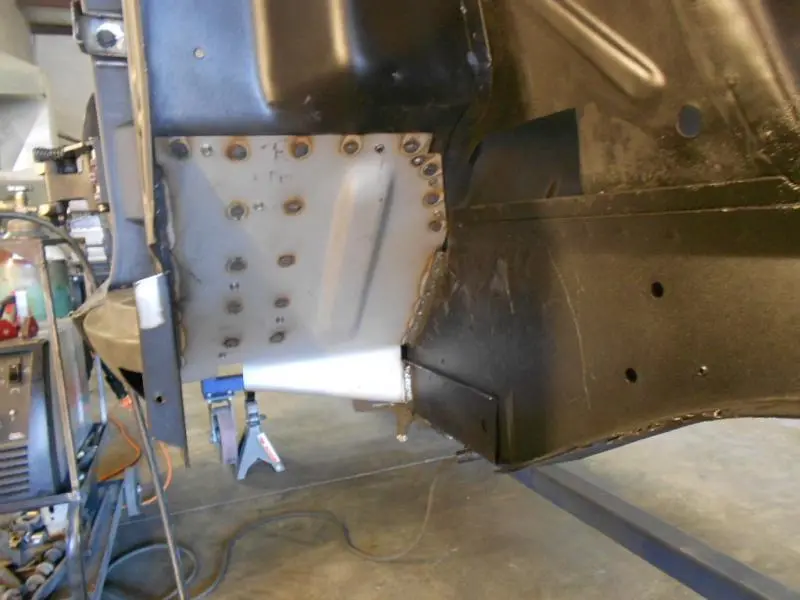

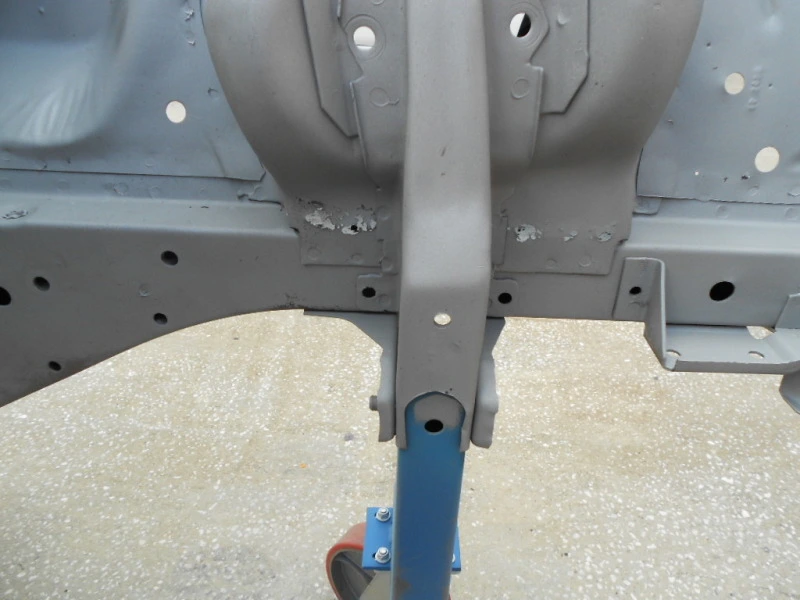

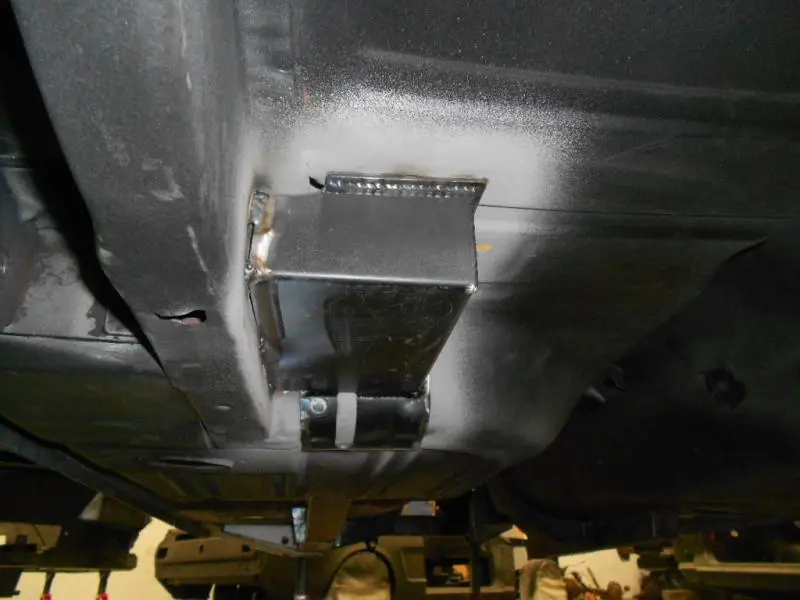

    You have to weld a snubber bracket to the frame rail

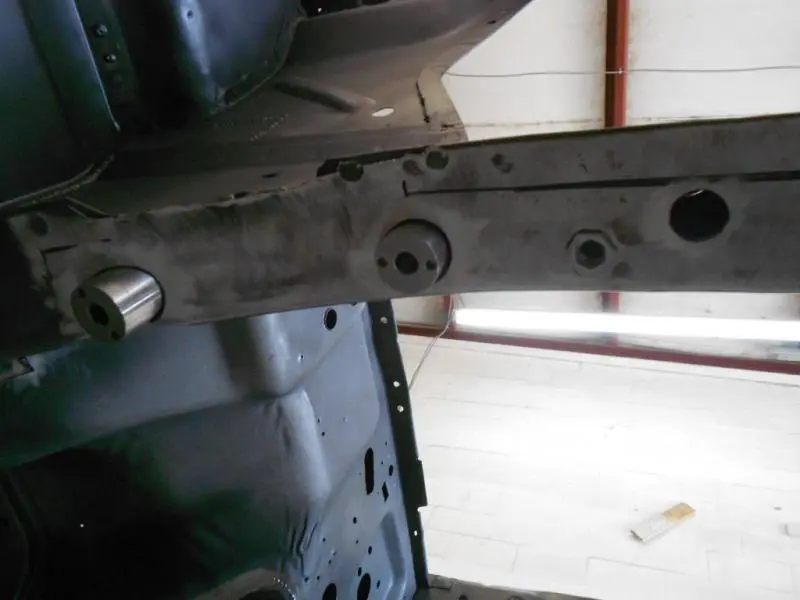

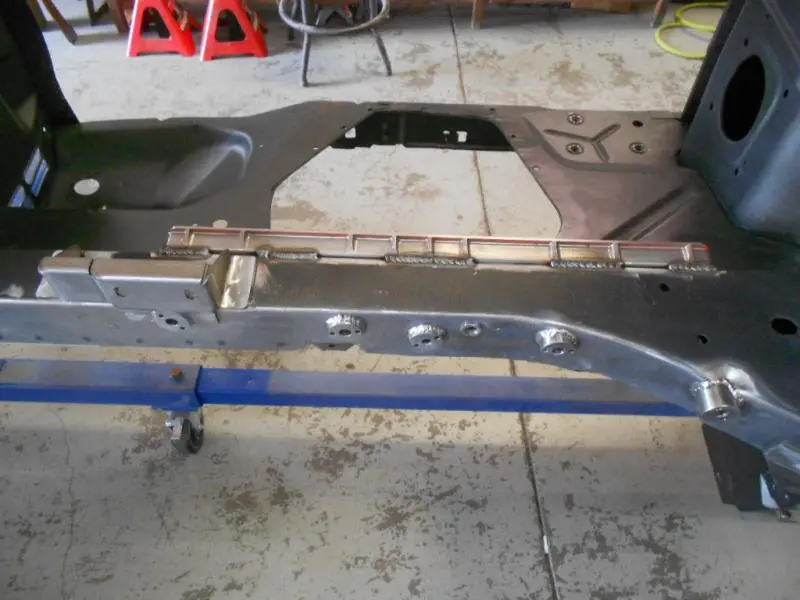

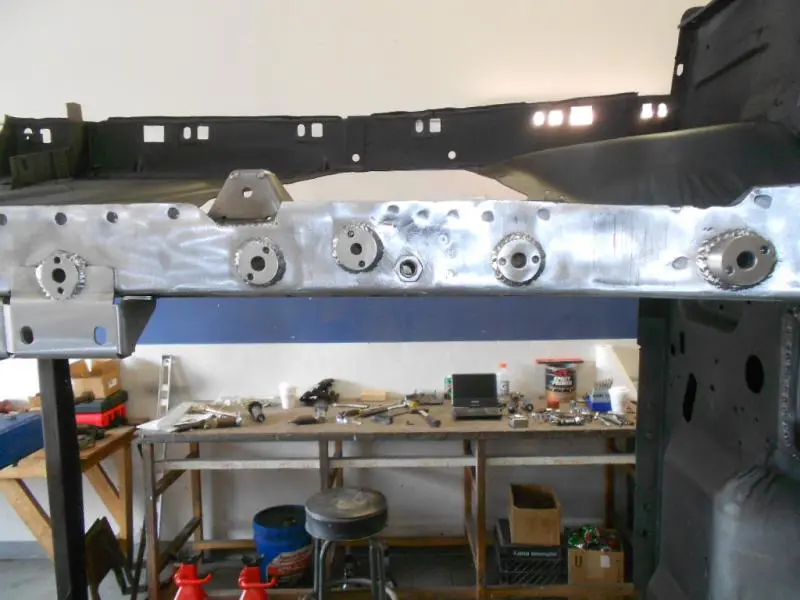

    Crush tubes welded in place

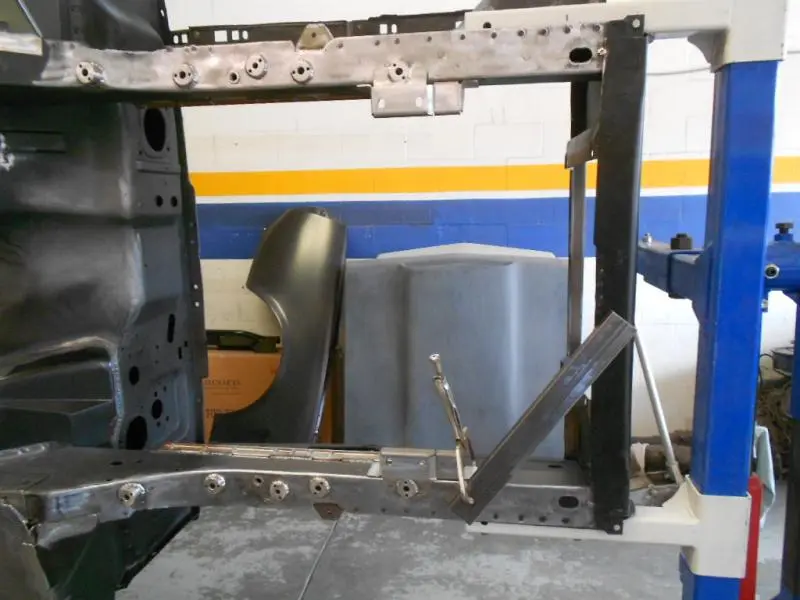

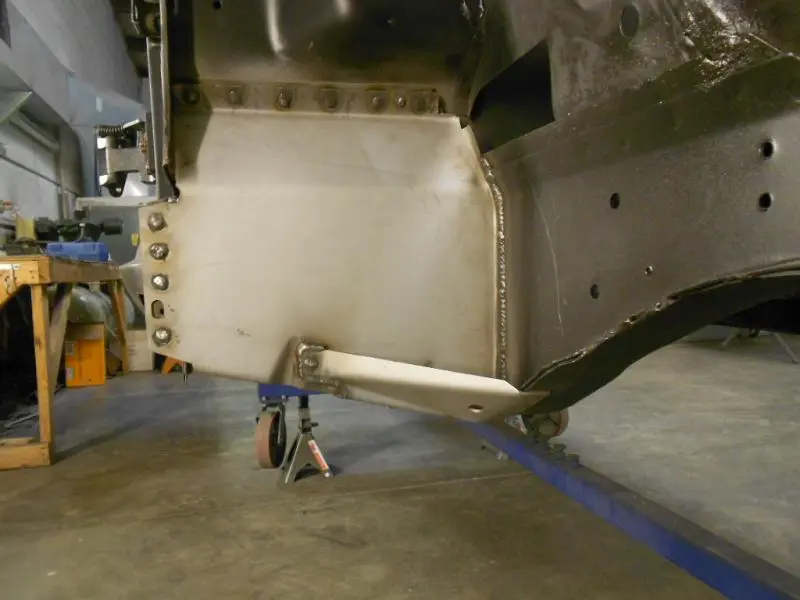

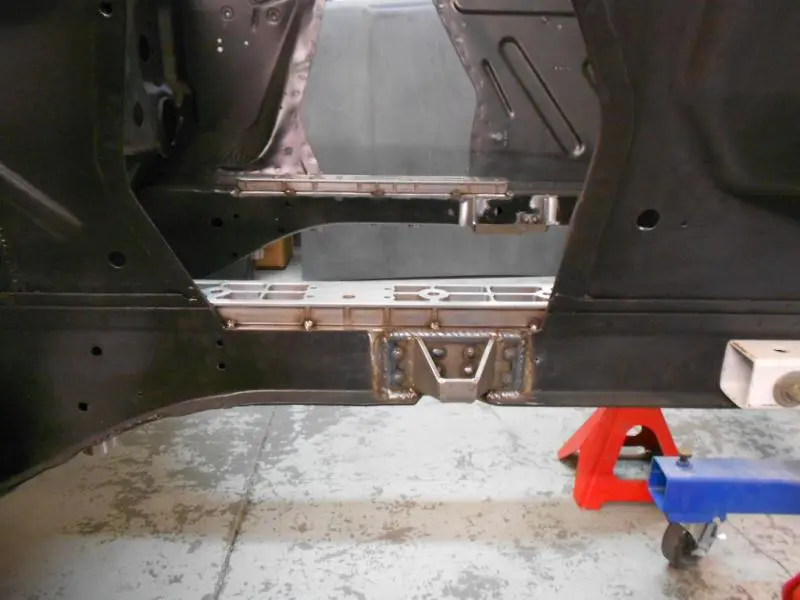

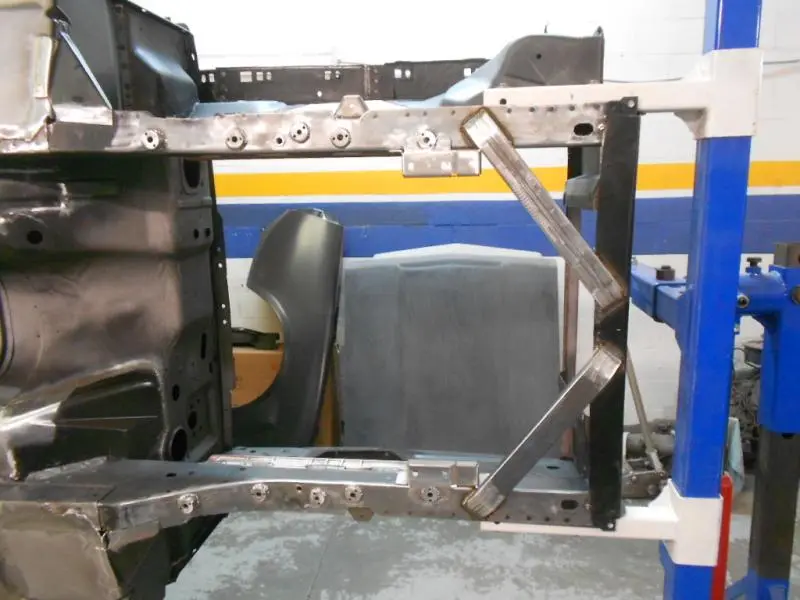

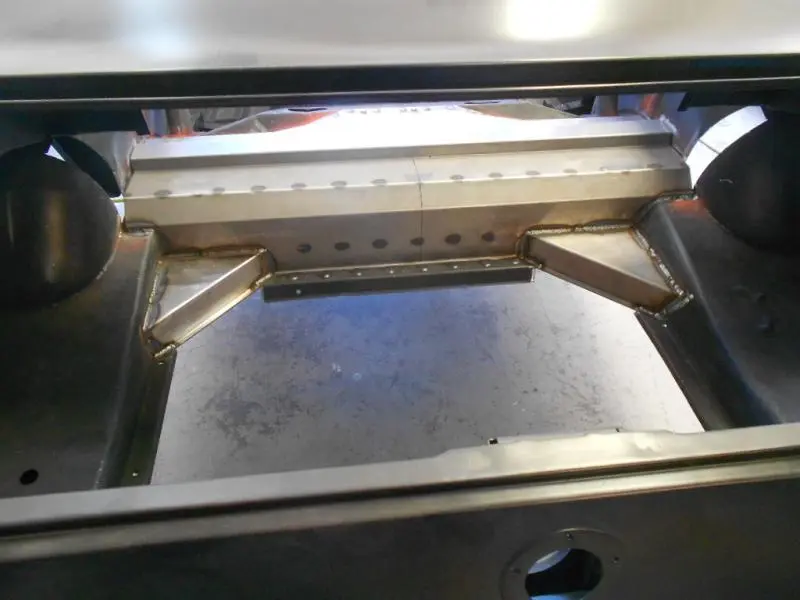

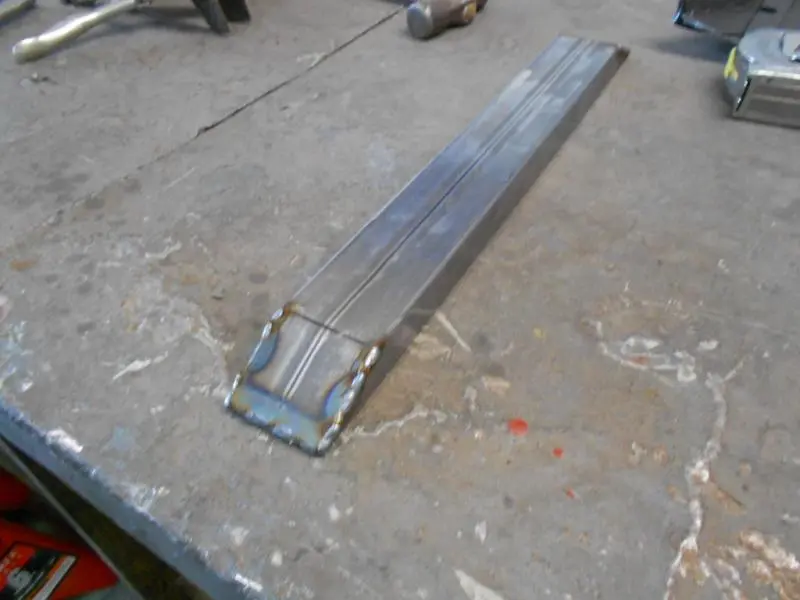

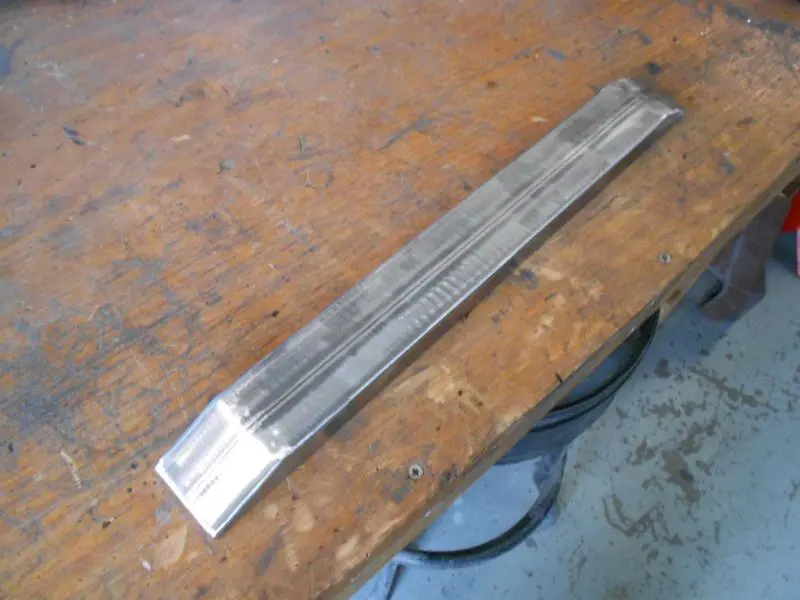

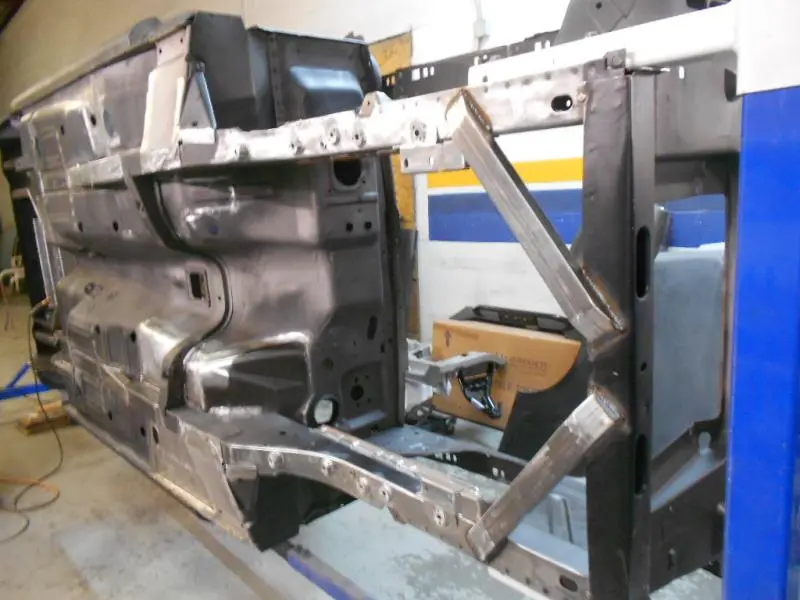

    Starting to fabricate a brace. DSE leaves the stock strut rod brackets but I like this better plus it gives you somewhere to place a jack.






    #14
  15. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

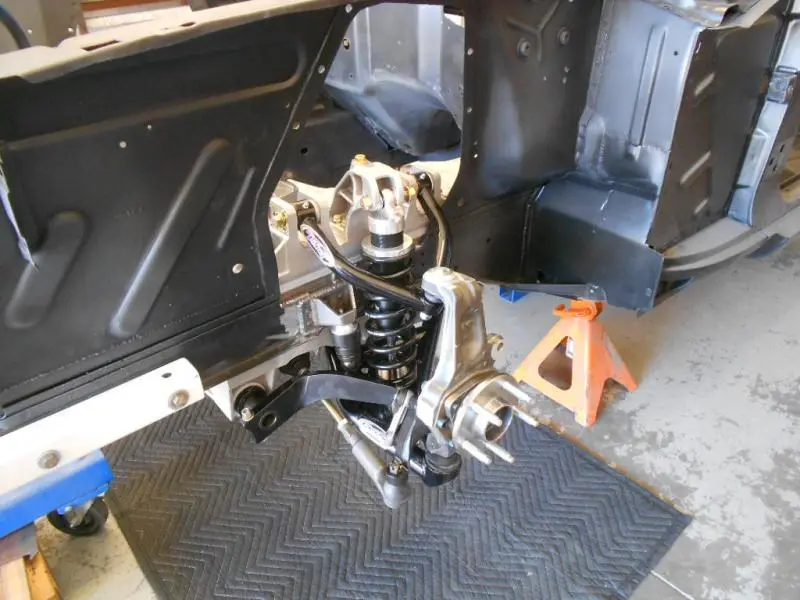

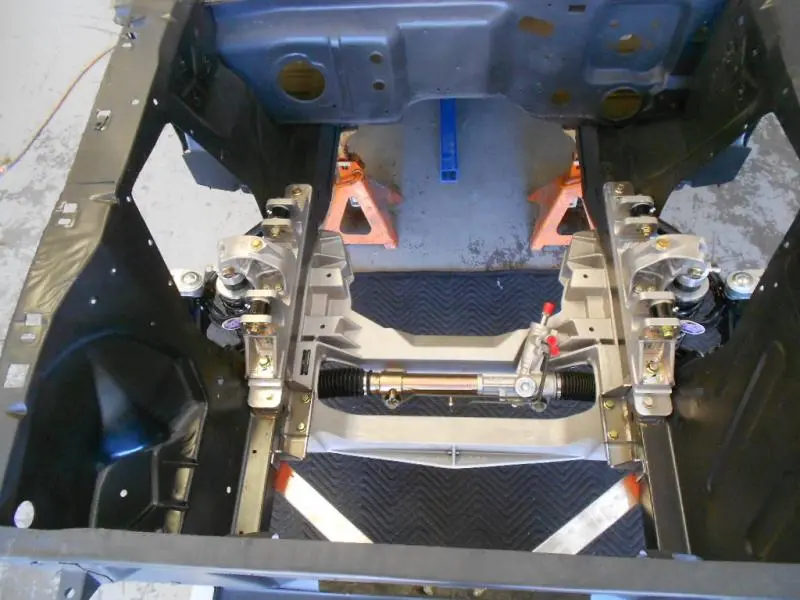

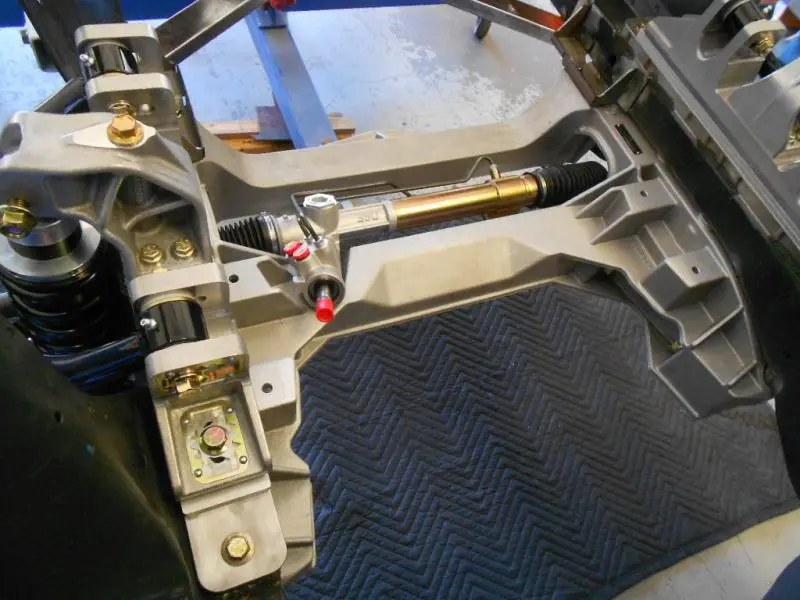

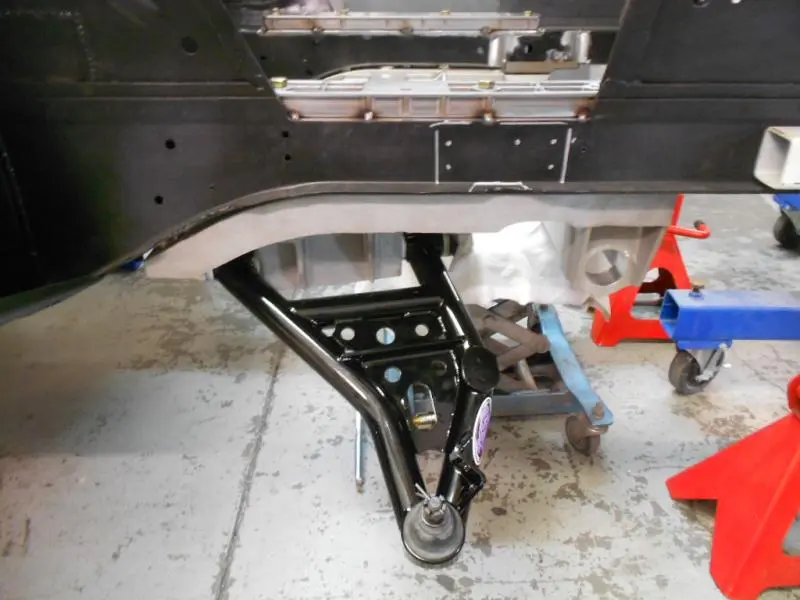

    Test fitting the front suspension




    #15
  16. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

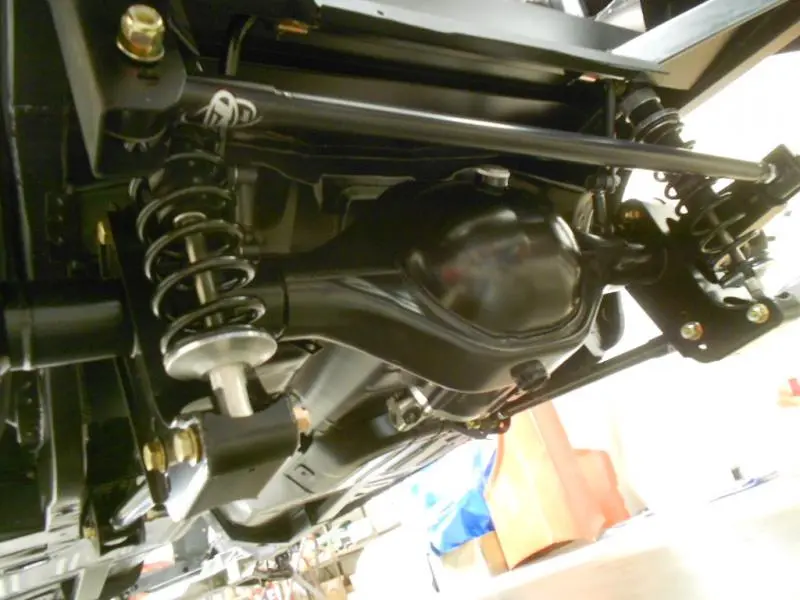

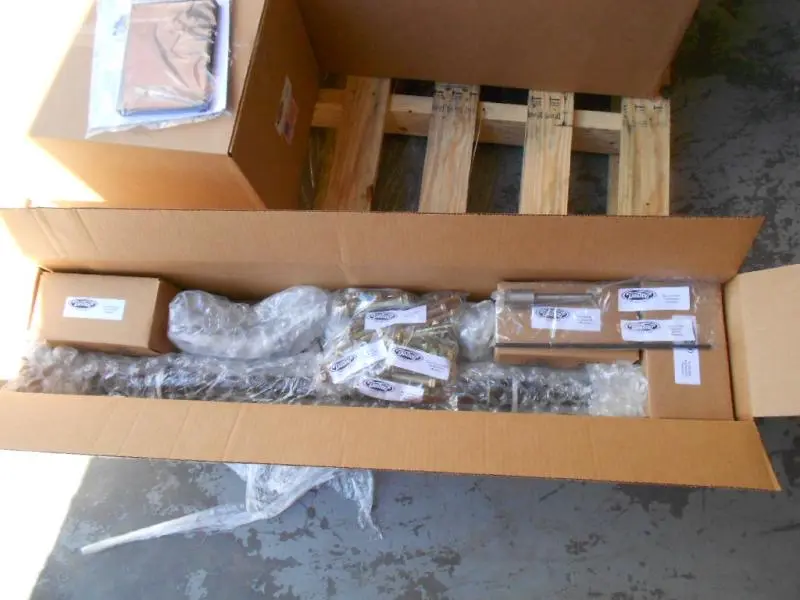

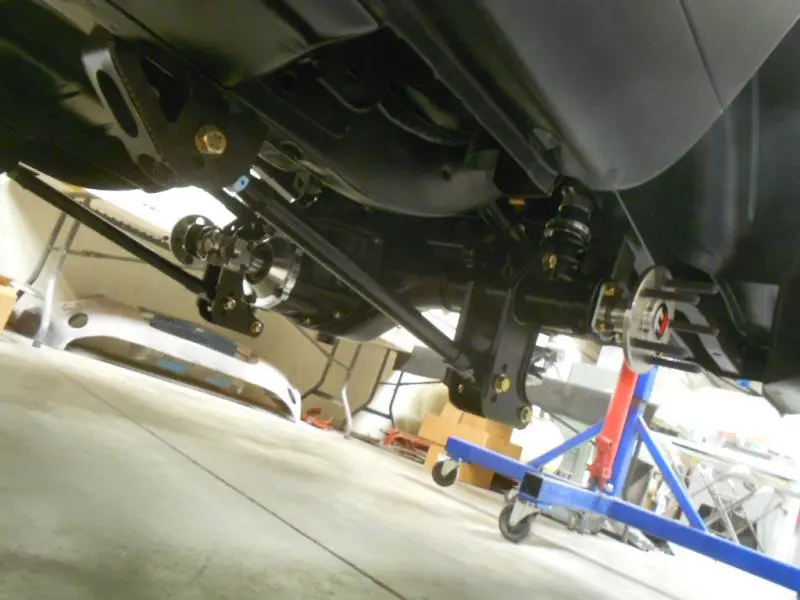

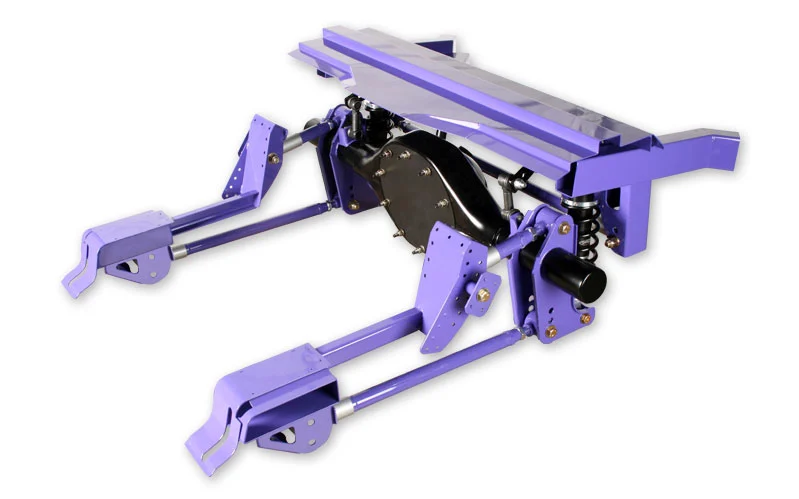

    The next on our list was to install the DSE rear suspension. It is a good thing they send a video and Brian bought a portable DVD player. This is what he is starting with.


    #16
  17. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

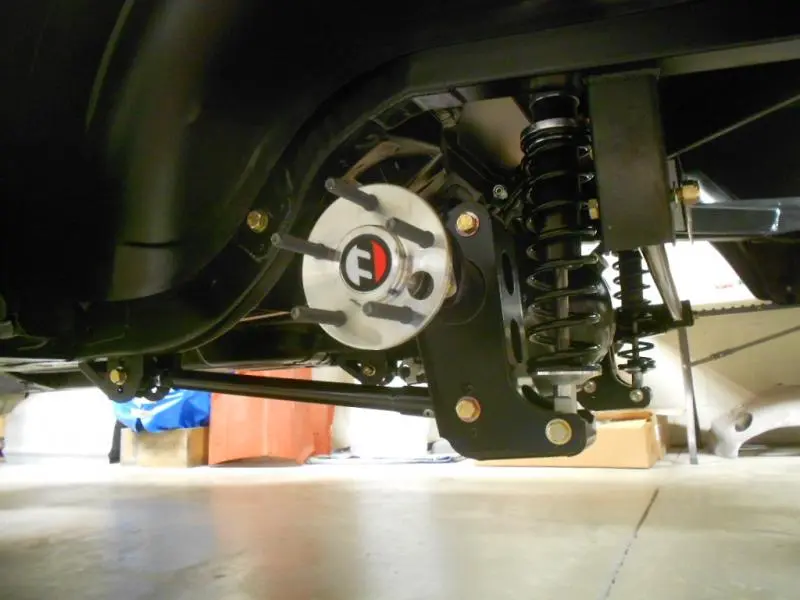

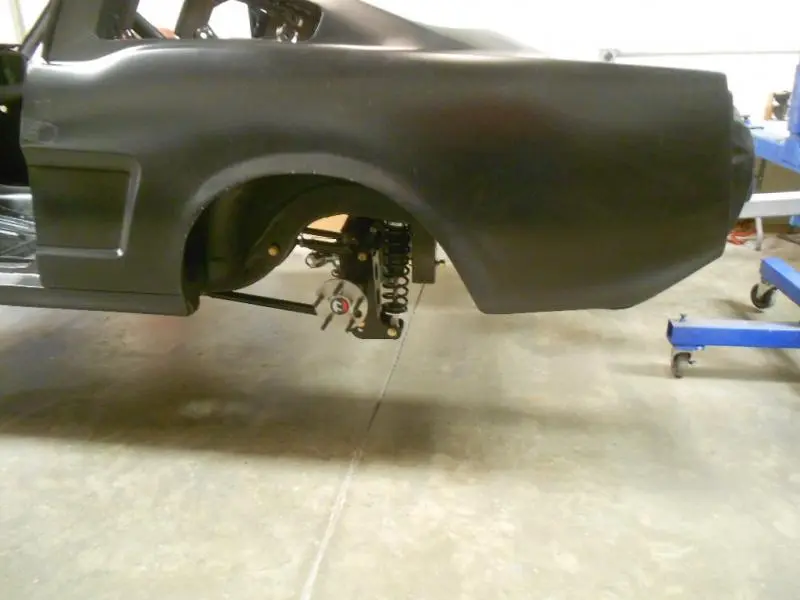

    It has been awhile since Brian started installing the DSE rear suspension.

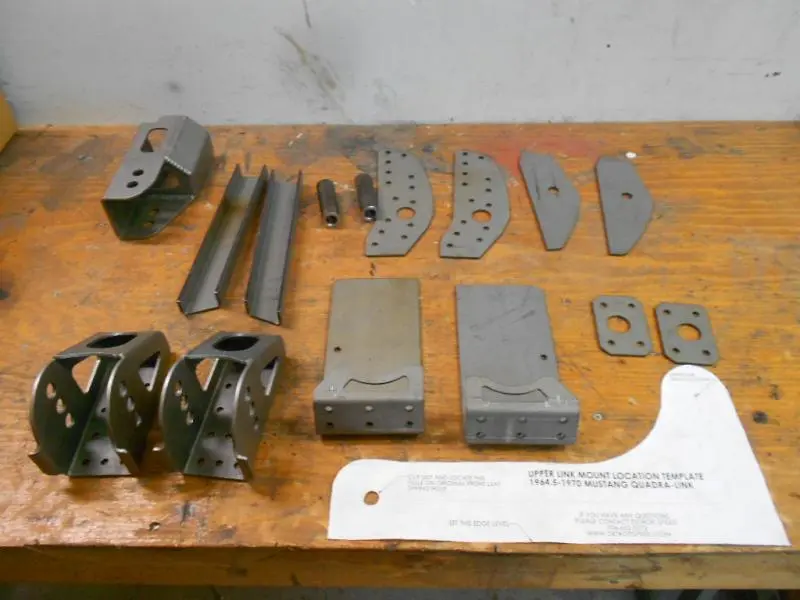

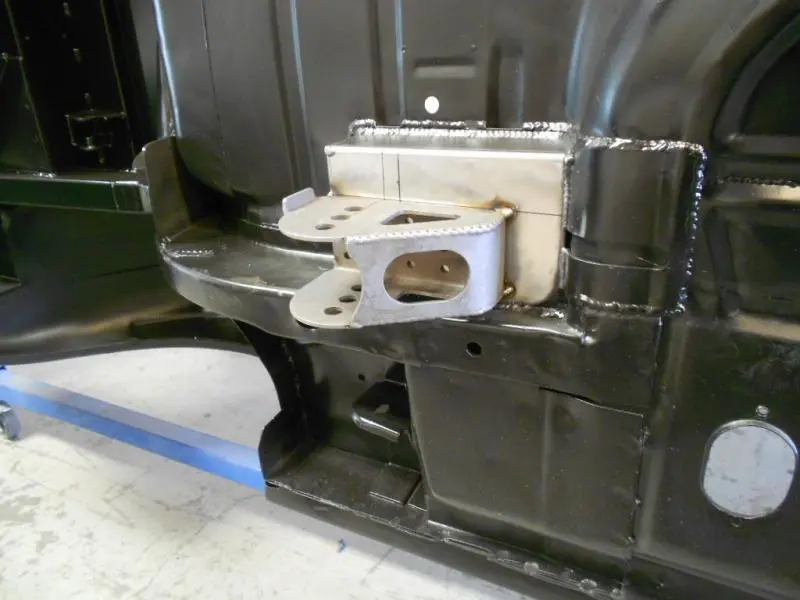

    You have to assemble the upper control arm bracket.

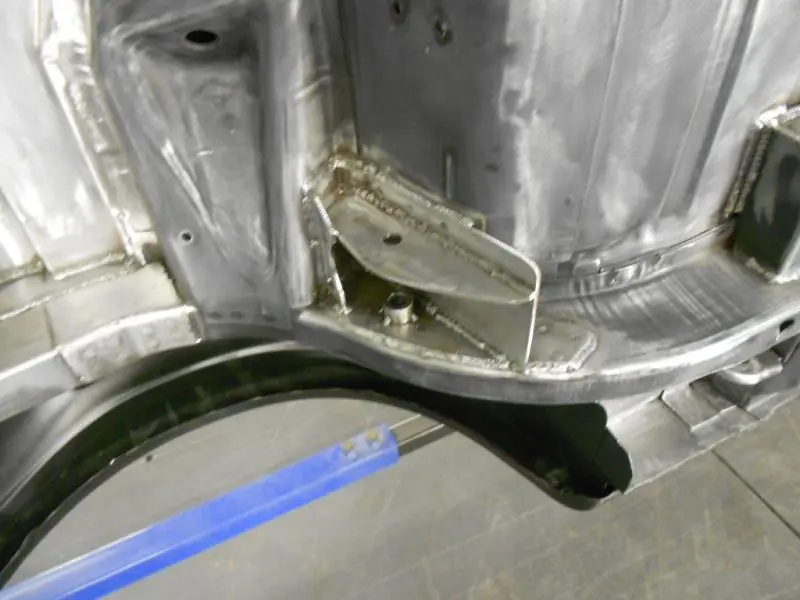

    Shock mounting bracket also welded in place



    #17
  18. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 29, 1999
    Messages:
    4,919
    Likes Received:
    322
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    That is some sweet work there Rusty . Brian is truly the master of metal :hail:

    #18
  19. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    Before Brian started the bottom brackets I sprayed a couple coats of epoxy

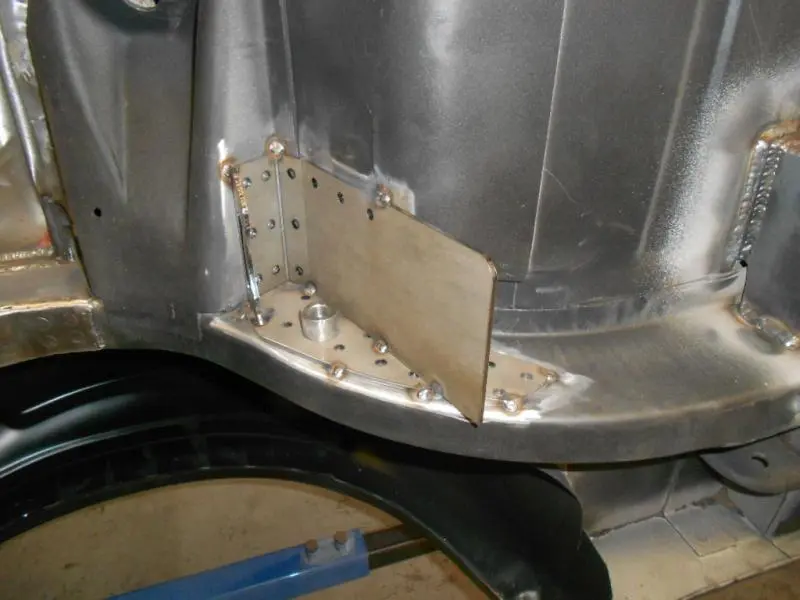

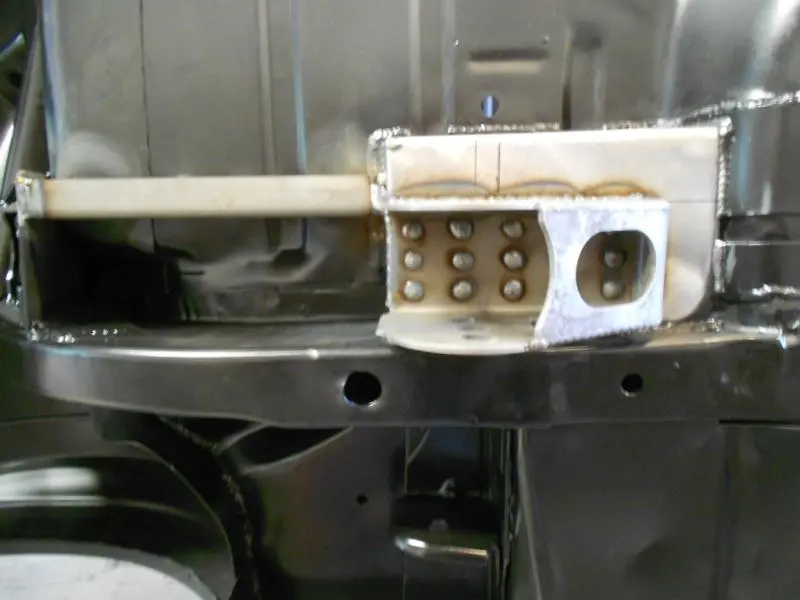

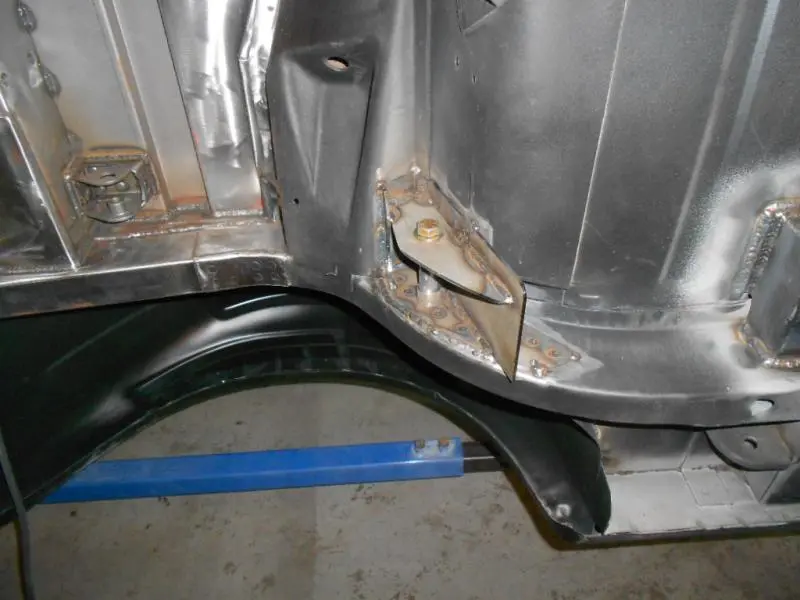

    The lower bracket is tack welded to the DSE torque box.

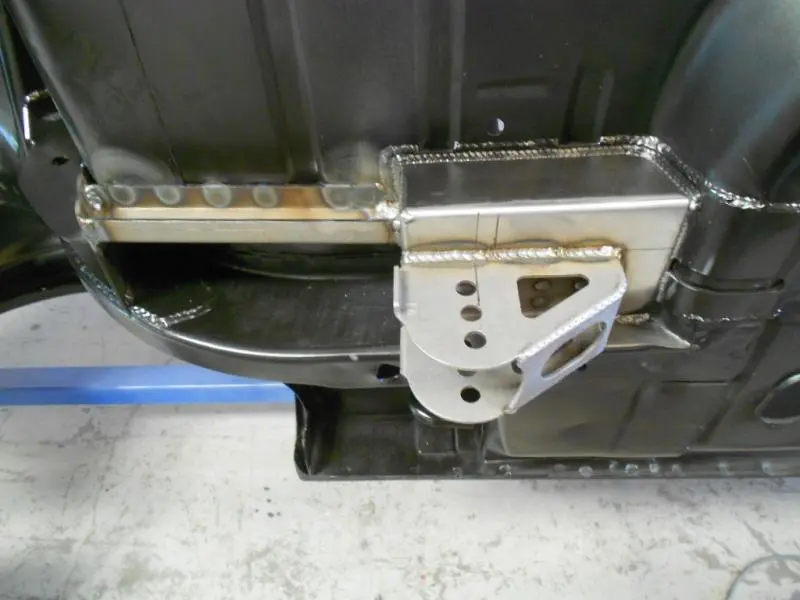

    Welded in place along with another bracket




    #19
