Ac And Smog Delete Without Moving Ps

Discussion in 'Fox 5.0 Mustang Tech' started by Dave2000GT, Aug 7, 2013.


  1. Dave2000GT

    Dave2000GT Active Member

    Joined:
    Oct 4, 2005
    Messages:
    140
    Likes Received:
    17
    Trophy Points:
    29
    Location:
    Seattle

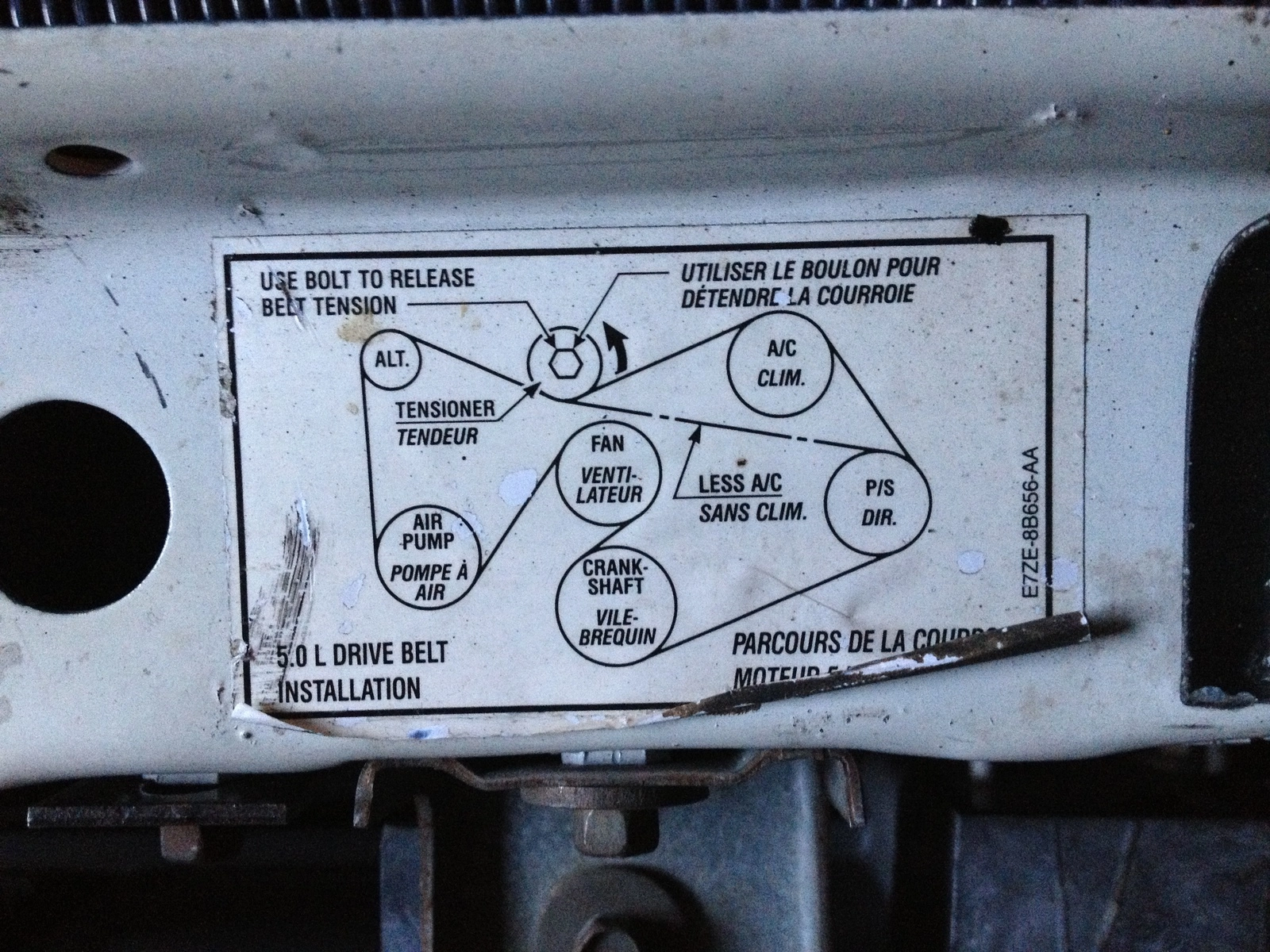

    Ok so according to the pic on my radiator shroud this should be a legit setup. Has anyone done this and can anyone tell me the belt length that will work for this ?

    In the pic it shows it with the AC just bypassed - so it follows that I can have both the AC and smog bypassed and use the same routing.

    Attached Files:

    #1
  2. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,900
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,094
    Trophy Points:
    144
    Location:
    In the garage
  3. Dave2000GT

    Dave2000GT Active Member

    Joined:
    Oct 4, 2005
    Messages:
    140
    Likes Received:
    17
    Trophy Points:
    29
    Location:
    Seattle
    I'm not talking about any of those belt configs. Look back up at the pic in my opening post. I'm looking for info about running basically the last setup in your pic, with the purple belt except with the PS in the factory location.
    #3
  4. f8tlfiveo

    f8tlfiveo My wife likes my spool and blow-off valve.

    Joined:
    Aug 9, 2007
    Messages:
    1,425
    Likes Received:
    75
    Trophy Points:
    49
    Location:
    Lancaster, PA
    I would be surprised if the belt tension would be enough with the way you are talking. The factory non ac cars were not like the pic. They were up higher, use a piece of string to see if it is feasible. Then cut the string, measure it, and buy s belt.
    #4
  5. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,632
    Likes Received:
    307
    Trophy Points:
    124
    Location:
    Massachusetts
    You need the Ford Racing A/C eliminator kit to run the belt like on the sticker.

    Yes, i'm aware the sticker doesn't show the pulley, but that's not the intent of the sticker. It merely shows how the belt is routed, not the physical location of each pulley.

    If you want to bypass smog and a/c, you need to buy the Ford Racing kit, and run the belt as shown in the purple diagram
    #5
  6. Dave2000GT

    Dave2000GT Active Member

    Joined:
    Oct 4, 2005
    Messages:
    140
    Likes Received:
    17
    Trophy Points:
    29
    Location:
    Seattle
    Cool that makes sense. I was thinking it might work without but I'll just spring for the kit. In fact I'll go a step further and do the offroad racing kit from LRS which includes underdrives and the belt too.
    #6
