  1. cheddarbacon

    cheddarbacon New Member

    Joined:
    Apr 17, 2005
    Messages:
    82
    Likes Received:
    0
    Trophy Points:
    0
    Bbq

    Bar ba que sauce

    #61
  2. dvs bullet

    dvs bullet New Member

    Joined:
    Feb 20, 2004
    Messages:
    327
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ontario, Canada
    WOOOOOHOOOOOOOOO!!!!!!!!! Thanks Jrichker, every one else!!!!! my Idle prob is cured!!! My mass air meter was filthy! and I needed a new IAC motor. The combination between the two really made a mess!! thanks every one for your all advice :nice:

    #62
  3. RYC CUKR

    Founding Member

    Joined:
    May 20, 2002
    Messages:
    1,442
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Orlando
    Well here is what I did to cure the surging idle.

    Pulled codes

    O2 sensors were going out so I replaced them
    Cleaned my IAC, TB and MAF and ACT
    Went around motor to check for vacuum leaks, found several specifically around throttle body to EGR spacer and upper intake. Used a can of starting fluid to spray around gaskets and hoses. Fixed all of my vacuum leaks.
    Car now pulls 16" of vacuum at idle

    Now the car idles pretty smoothly still a hiccup here and there. Might just go ahead and replace the IAC in the near future.

    A big thanks to jrichker for starting this thread and to Hissin for makin it sticky :nice:

    #63
  4. Ranchero5.0

    Ranchero5.0 The Voice of Reason

    Joined:
    Jan 1, 1999
    Messages:
    5,307
    Likes Received:
    0
    Trophy Points:
    76
    Location:
    Hagerstown MD

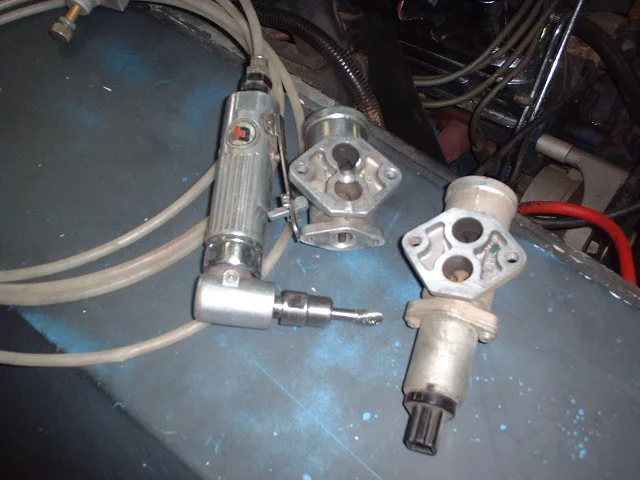

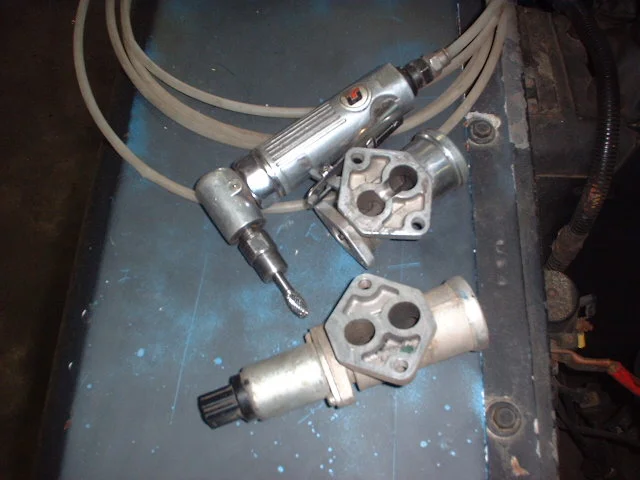

    Here are a couple quick pics of an IAC with the port mod sitting next to a stocker and the air die grinder I do it with.

    For an elaboration on the o2's. The two white wires on the o2 sensor are for a the o2 heater. Without them working ,especially on longtubes the o2's cool off at idle and slow cruise and stop working correctly and the puter flips out. Use a paper clip or two and check for 12dvc between the two wires. No voltage, no heaters. Ford actually made a change and put the fusible link on the outside of the harness in the early 90's

    Jamie


    Attached Files:

    #64
  5. Champ10187

    Founding Member

    Joined:
    Dec 31, 2001
    Messages:
    770
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Detroit, MI
    could a bad ground be cause for idle problems?

    #65
  6. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,912
    Likes Received:
    411
    Trophy Points:
    134
    Location:
    Dublin GA
    Bad grounds in a computer controlled engine will make all sorts of strange problems.

    Here's the ground fixit test path...

    1.) The main power ground is from engine block to battery: it is the power ground for the starter & alternator.

    2.) The secondary power ground is between the back of the intake manifold and the driver's side firewall. It is often missing or loose. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges. Any car that has a 3G alternator needs a 4 gauge ground wire running from the block to the chassis ground where the battery pigtail ground connects.

    3.) The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire.

    4.) All the sensors have a common separate ground. This includes the TPS, ACT, EGE, BAP, & VSS

    5.) The O2 sensor heaters have their own ground (HEGO ground) coming from the computer. This is different and separate from the O2 sensor ground. It is in the fuel injector wiring harness and comes out under the throttle body. It gets connected to a manifold or head bolt.

    6.) The TFI module has 2 grounds: one for the foil shield around the wires and another for the module itself.

    7.) The computer takes the shield ground for the TFI module and runs it from pin 20 to the chassis near the computer.

    8.) The computer's main power ground (the one that comes from the battery ground wire) uses pins 40 & 60 for all the things it controls internally.

    See http://www.fluke.com/application_notes/automotive/circuit.asp?AGID=1&SID=103#volt for help troubleshooting voltage drops across grounds

    #66
  7. 90FoxBody

    90FoxBody New Member

    Joined:
    Apr 5, 2005
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ohio
    For the kind of idle that surges when the clutch is engaged, or stays the same when the clutch is engaged and then raises to around 2500 RPM at the stop in neutral, I used this site to fix my problem and IT WORKED! I had a combination of a filthy IAC valve and throttle body as well as ten pin connectors. Thanks very much for your posts, they really did the trick for me. I wish you all the best of luck with your idling situations.

    #67
  8. big_tiger15

    big_tiger15 New Member

    Joined:
    Sep 13, 2004
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Arlington, Texas
    I went out to look for theses salt and pepper shakers, and found nothing. I have a converted 4cyl and I didn't swap the motor. My car idles around 750 with a mild cam, but idles crappy when its not warm. O2 sensors maybe? Also I have the battery mounted in the back and I only have one 4 gauge ground running to the battery (bolted to the intake manifold). Is that enough?

    #68
  9. bluestang65

    bluestang65 New Member

    Joined:
    Jan 11, 2004
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    0
    Two thoughts:
    Ford had a TSB for this where they would do one of two things...they would put a 6 inch jumper harness in the salt and pepper shakers, claiming that they were perhaps too tight resulting in a bad connection. IMHO this is perhaps not the best idea because you are adding two new connectors to the mix and thus two new potential sources of problems. I took mine out of the harness I am working with.
    The other thing I know Ford used to do is put the IAB spacer in to allow for a little adjustment. If you go to a pick-n-pull salvage yard and paroose the Ford section, you might find one accompanied by a little yellow sticker somewhere under the hood. These help to get a little more air in and they are adjustable. Should be a Ford service part availiable from the dealer...they have a Ford p/n on them.

    #69
  10. DouglasOhio

    DouglasOhio New Member

    Joined:
    Jul 25, 2004
    Messages:
    116
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Canton Ohio
    Fix= Bad 02's/dirty 02 harness, Dirty MAF, Dirty IAB, Dirty TB.
    Awesome thread.

    #70
  11. davs5.0

    Founding Member

    Joined:
    Jul 11, 2002
    Messages:
    921
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    windsor,ontario,canada
    anyone know the ford part number for the idle adjustment plate?

    #71
  12. willys1

    willys1 Banned

    Joined:
    Dec 2, 2003
    Messages:
    2,557
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    New Jersey
    I will look around for it.I bought one and put it on,my idle shot up to 1500rpm,,LOL,,I gave it to some guy on this web site.I'LL let you know by tomorrow if I find it...JRICHKER,,I have an idle problem..Just started happening,I just cleaned out my IAB and it still happens.When I start it in the morning it revs past a 1000rpm's then stalls..On the 2nd try it idle's fine..When its warmed up it idle's fine too(no surge) but if Im at a light or stuck in traffic it will be fine for 30 seconds then the rpm drops way down,,it stalls when in drive,if I put it in nuetral it idles at like 550-600rpm..This always happens now,,any ideas?(Its an aod,stock motor with bolt ons)

    #72
  13. davs5.0

    Founding Member

    Joined:
    Jul 11, 2002
    Messages:
    921
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    windsor,ontario,canada
    Willys, thanks anyways but I found it and ordered one. should have it today or tomorrow. I'll post up my results.

    #73
  14. willys1

    willys1 Banned

    Joined:
    Dec 2, 2003
    Messages:
    2,557
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    New Jersey
    Awsome :nice: I couldnt find it,but someone here on SN gave it to me so I knew it would show up!!,,My idle seemed fine today..I guess it needed a full cool down to compinsate for the cleaned IAB :shrug: But it still stalls when I start it in the morning.....This thread is a great idea :nice:

    #74
  15. willys1

    willys1 Banned

    Joined:
    Dec 2, 2003
    Messages:
    2,557
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    New Jersey
    Well its back again :bang: Everything was fine until I nailed it from a stop to 80mph..Then when I got to town it started in again,only now it doesnt go away :shrug:

    #75
  16. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,912
    Likes Received:
    411
    Trophy Points:
    134
    Location:
    Dublin GA
    Check & clean the IAB electrical contacts & the 10 pin connectors too. If that doesn't fix it, I would look into replacing the IAB. The cold stalling is a clue to a non-functional IAB.

    #76
  17. blown93feature

    blown93feature New Member

    Joined:
    Dec 10, 2003
    Messages:
    153
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    living on edge like the motor
    Hey guys, I read through the posts on this subject and I used the some of the technics to help find my gremlins.
    Thanks, Joey.

    #77
  18. 2dr_sedan

    2dr_sedan New Member

    Joined:
    May 25, 2005
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    0
    $7 fuel filter, now my car runs smooth as silk... All this time it's been the freakin fuel filter... :(

    #78
  19. ImportEater98

    ImportEater98 New Member

    Joined:
    Mar 17, 2003
    Messages:
    709
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Worcester, MA
    My 89 LX idles right at 900-1000 steady on a cold start.....closed loop.
    As soon as it hits operating temperature it starts bouncing 700-900 rpm.
    From there the idle sort of "bucks". Soon it becomes such a "buck" that it stalls the car. I have an E-303 cam and i know someone mentioned that they are notorious for that problem.
    Now that i know the problem is only in "Open Loop" operation, is there anything i can eliminate right off the bat as i try to trouble shoot?
    It can't be a vaccum leak or it would happen in both open and closed loop, correct?

    #79
  20. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    I might be loopie (well, we know that), but I think you have your loops backwards.
    OL is when O2's are not used (Cold motor, WOT, etc).

    CL is when the motor is warmed up a little and O2's are used.

    I wanted to make this distinction - people who reply would probably want clarification. good luck.

    #80
