Need AC Wiring Diagram

[Bullitt]

Need an AC wiring diagram for a '67. I've got a Sanden compressor and need to get it wired in properly with the evaporator core switch...

My car had original in-dash AC and everything is factory except the compressor. Wiring diagram help?

Thanks!



[bnickel]

IIRC the sanden compressor should wire up exactly like the original compressor, just one wire. can't help on the diagram though



[Bullitt]

That's all it's got - 1 wire. Problem is, none of the original underhood harness remains from the previous owner.

Also, I've looked on the factory AC controls and I see nothing that seems to tie into the compressor, just blower motor wires. Perhaps the AC is controlled off one of those?????



[bnickel]

on my car there was one lone female bullet type connector coming out of the firewall below all of the other harnesses and that was the compressor wire, i'd be willing to bet your's is similar



[BarnStang]

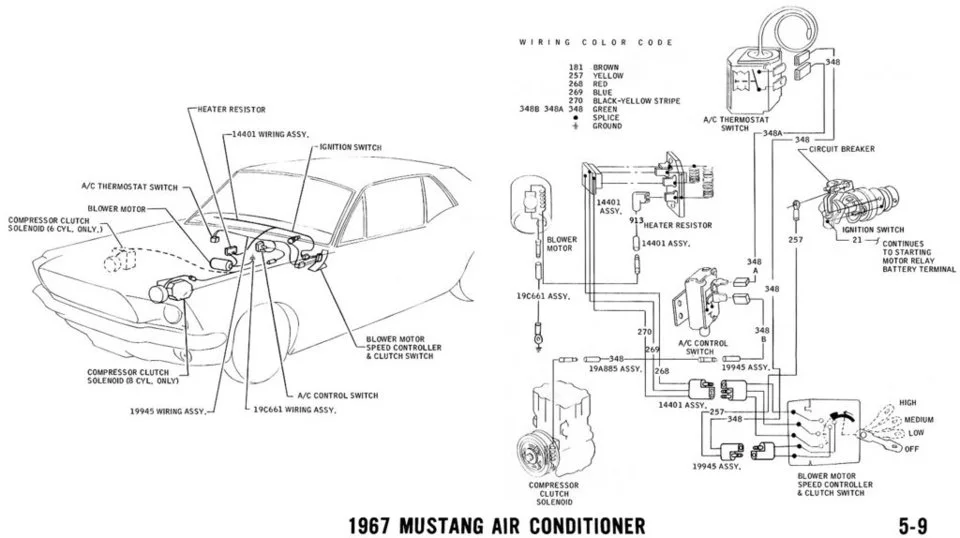

Here is the 67 A/C diagram. You may need to run a new wire



[bnickel]

well if you can post a pic of the drivers side firewall area to about the middle of the firewall i can try to help you pick out which one it is, provided it's still there



[Bullitt]

What Barnstang got me is exactly what I needed. I should have been more specific in stating I need the under-dash part of wiring.

Thanks!!



[ghostreconjs]

Here is the 67 A/C diagram. You may need to run a new wire

can you get one for a 69,please?



[BarnStang]

Here is a link. Not the best diagrams. I haven't found a digital copy of the booklet yet.

Vintage Mustang Wiring Diagrams
