Progress Thread Project Fury 2

Discussion in 'Fox 5.0 Mustang Tech' started by Fredmatic, Oct 5, 2012.

  1. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

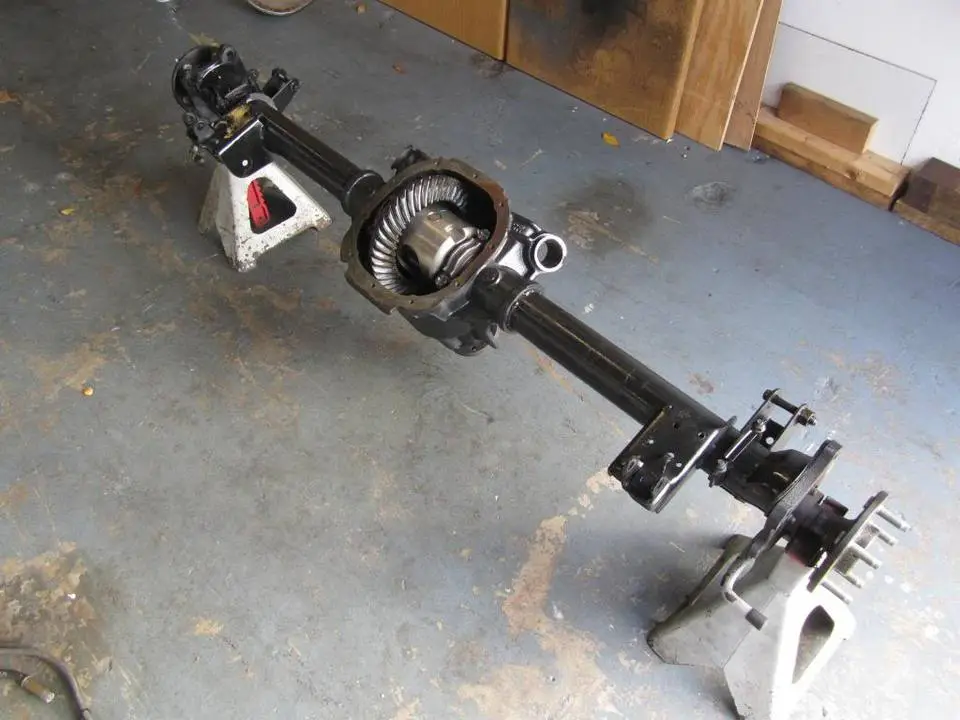

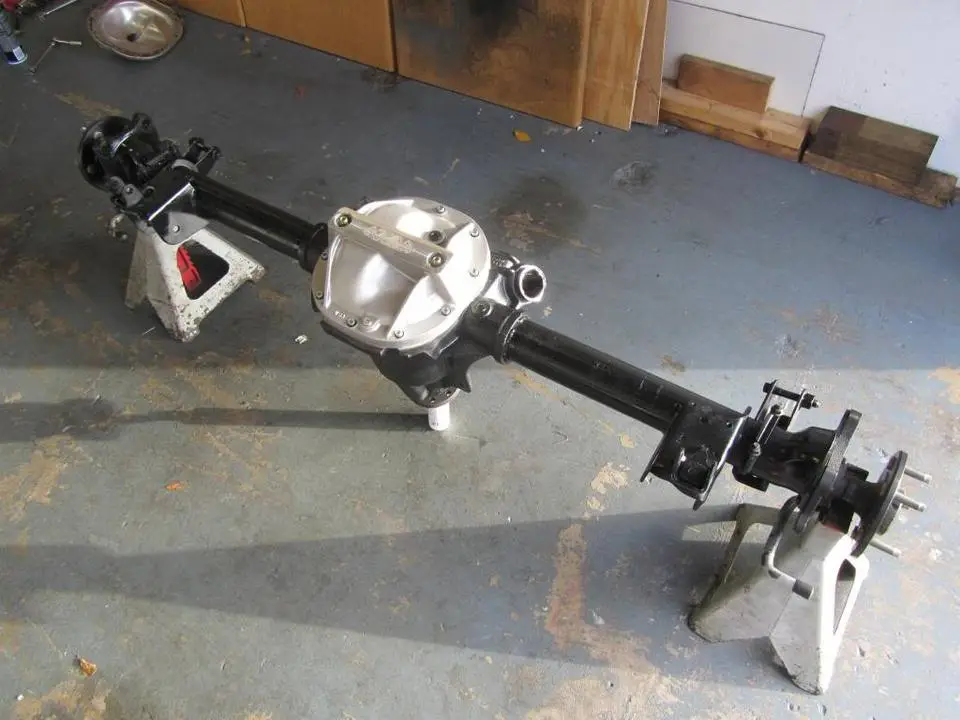

    Time for the rear suspnsion goodies. Rear end is all assembled with 3:55 cogs, Eaton Diff, 31 spline axles, new bearings & seals.

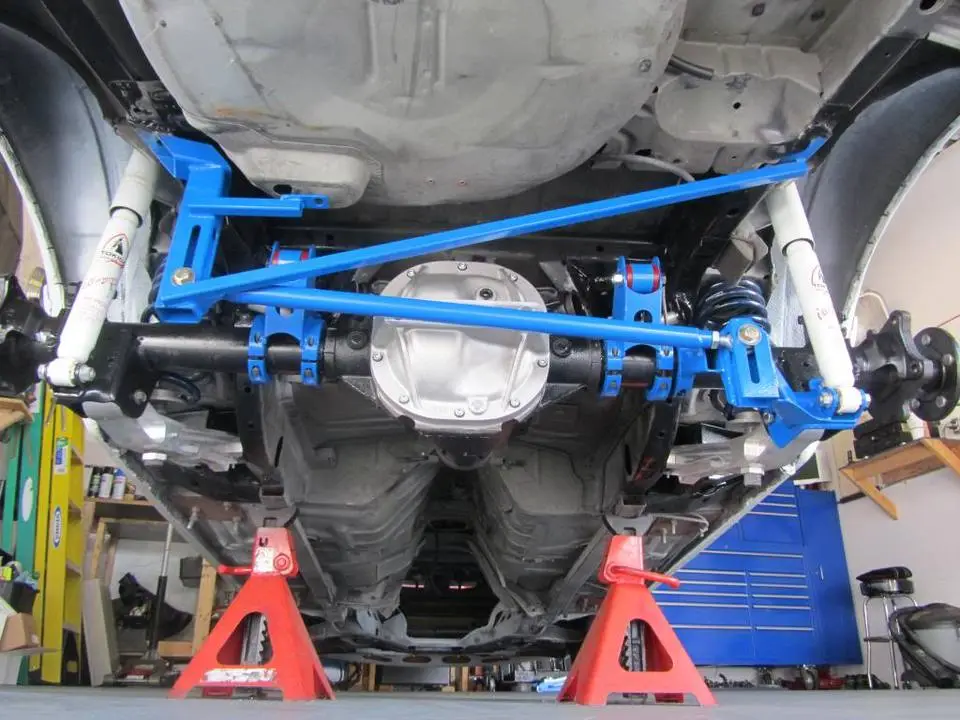

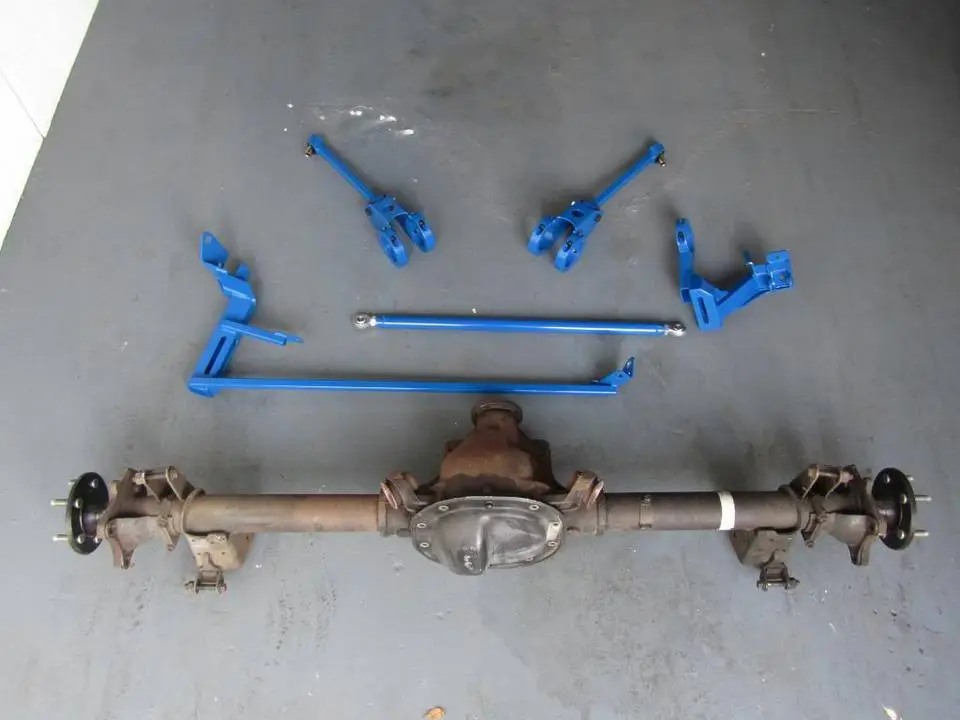

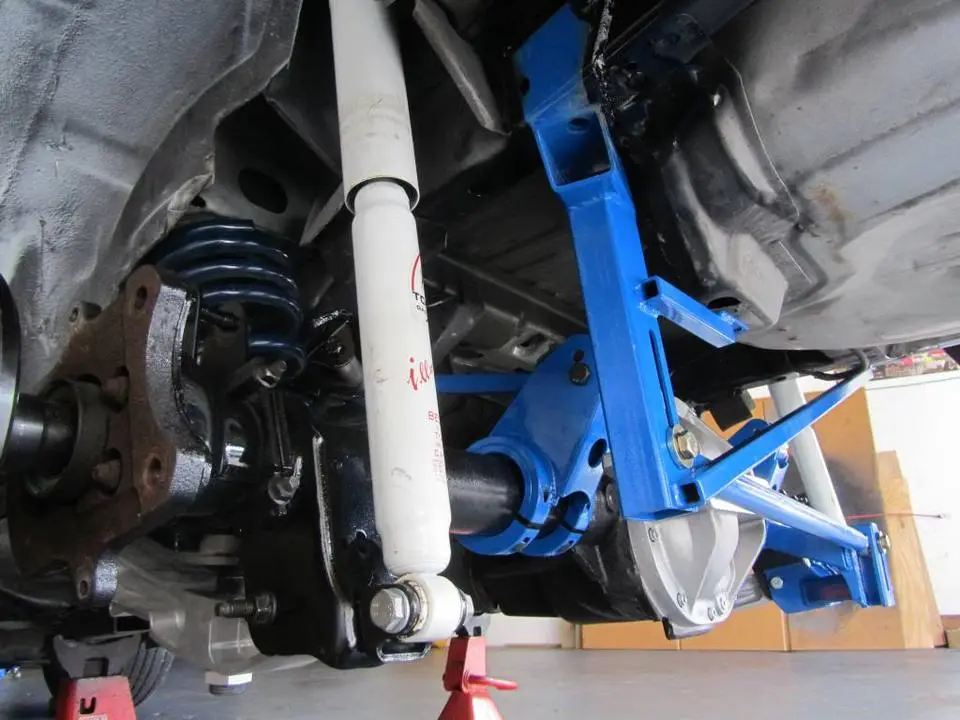

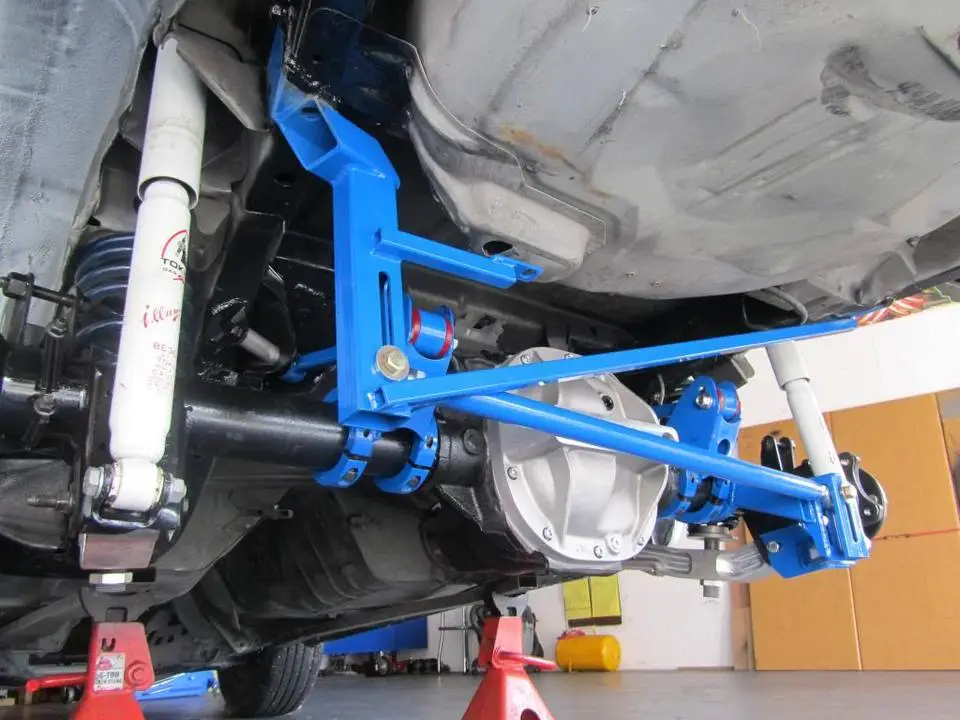

    Steeda 5 Link II going in, along with UPR Battle Boxes, Tokico 5 Ways, and Steeda Billet Weight Jacker LCA's

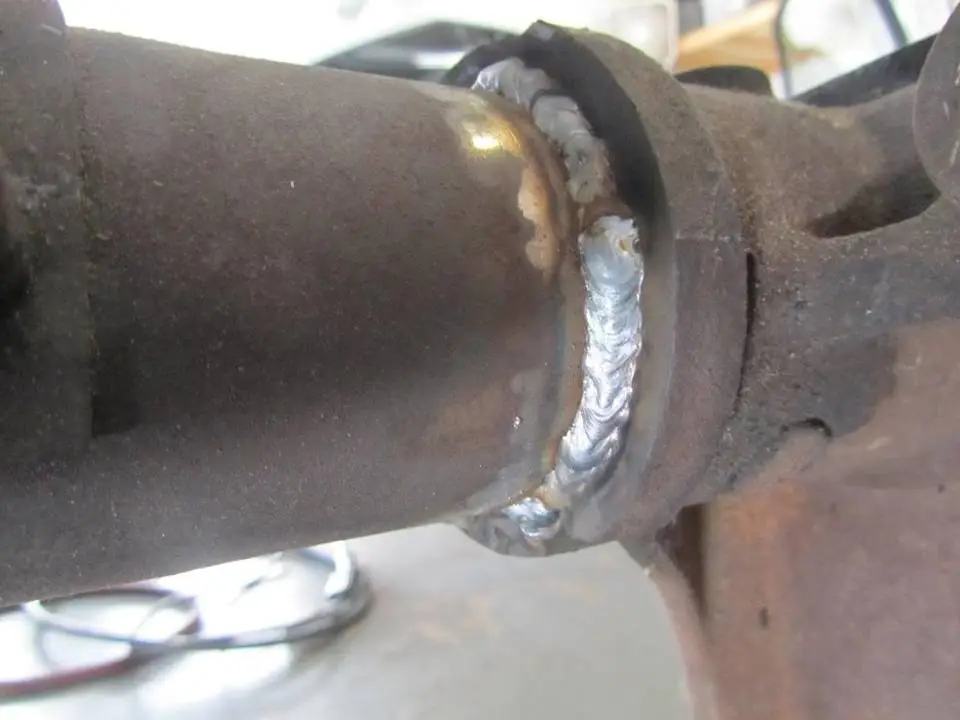

    Lets weld the axle tubes too.

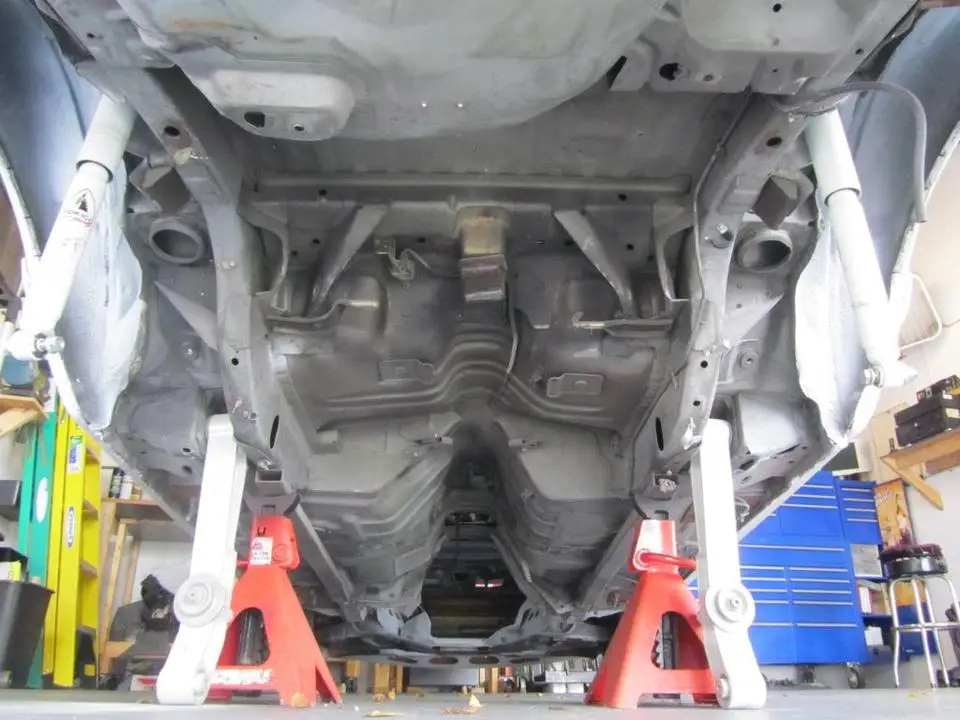

    Fresh coat of black paint
    Stud girdle on

    stangboy likes this.
  2. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

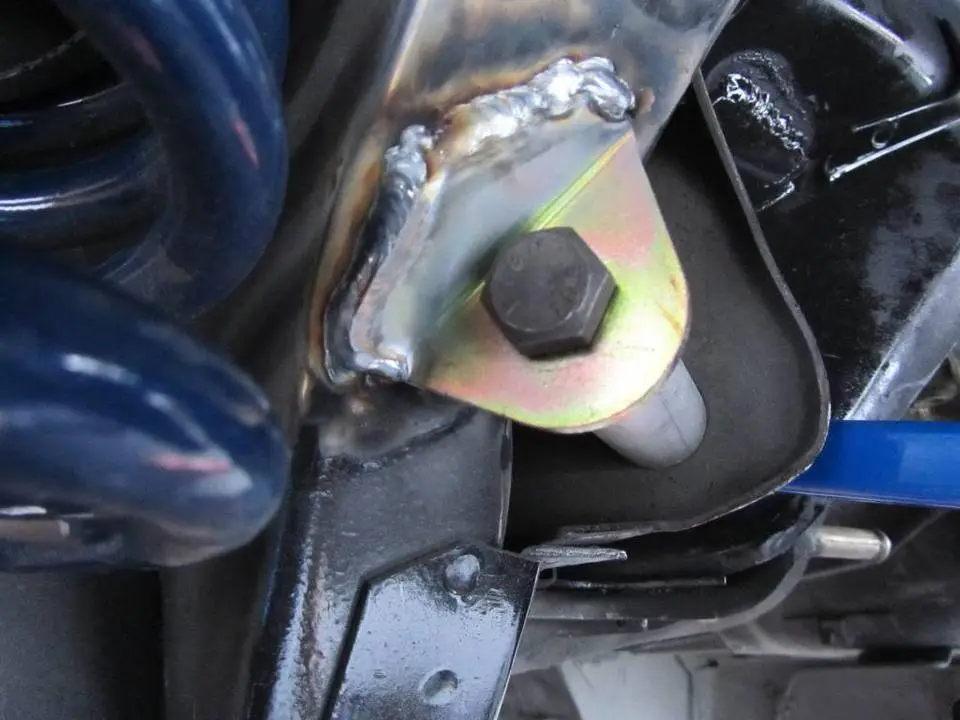

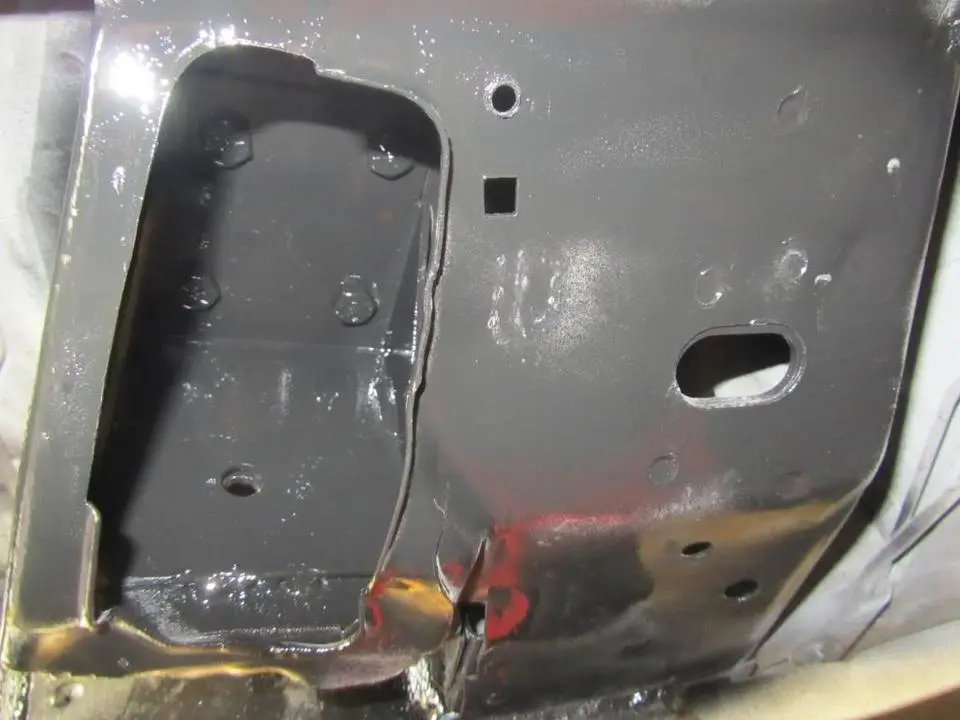

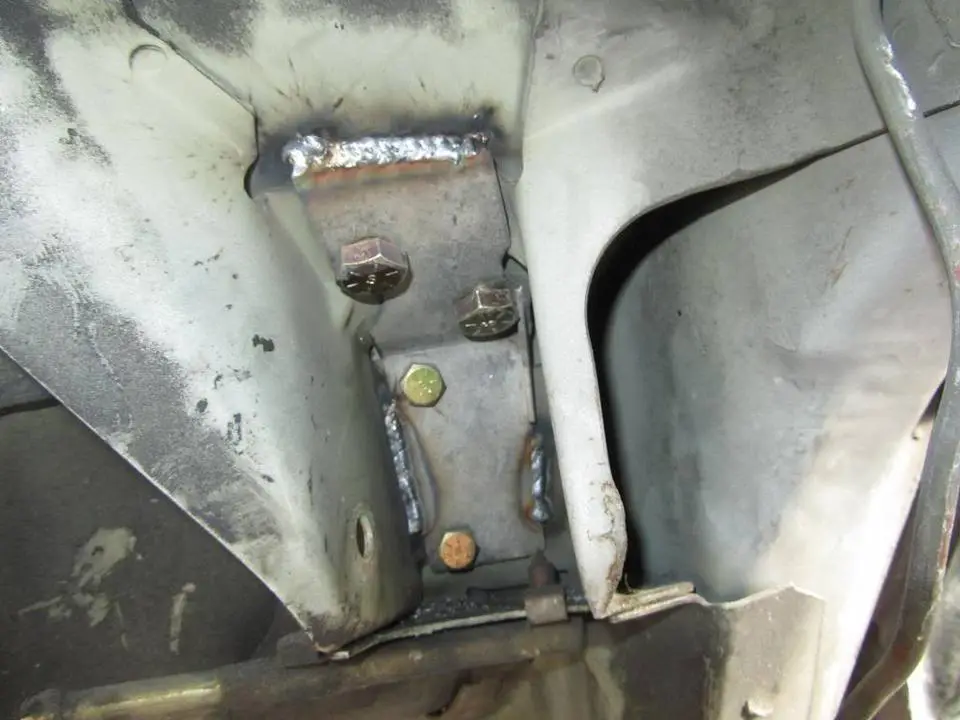

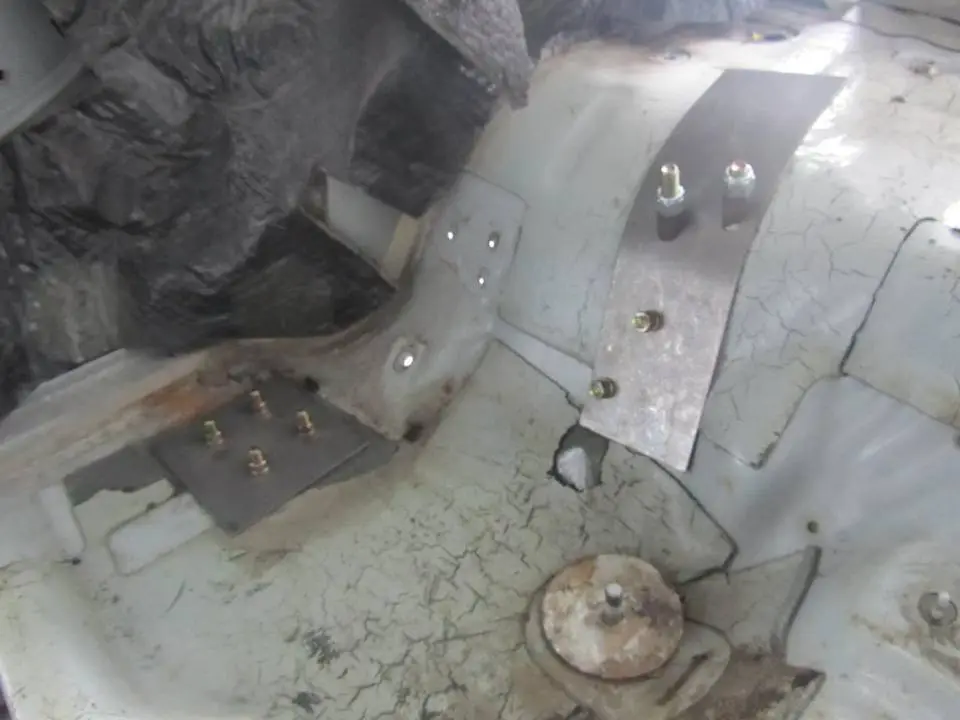

    Mounting tabs welded in, for the new postions of the 5 Link's upper control arms

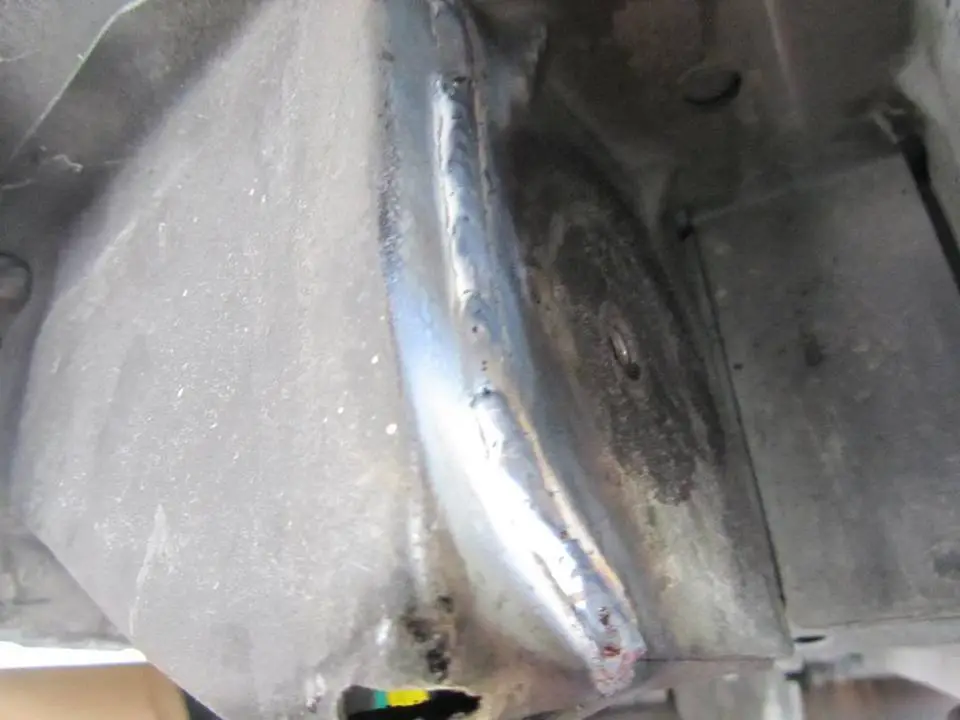

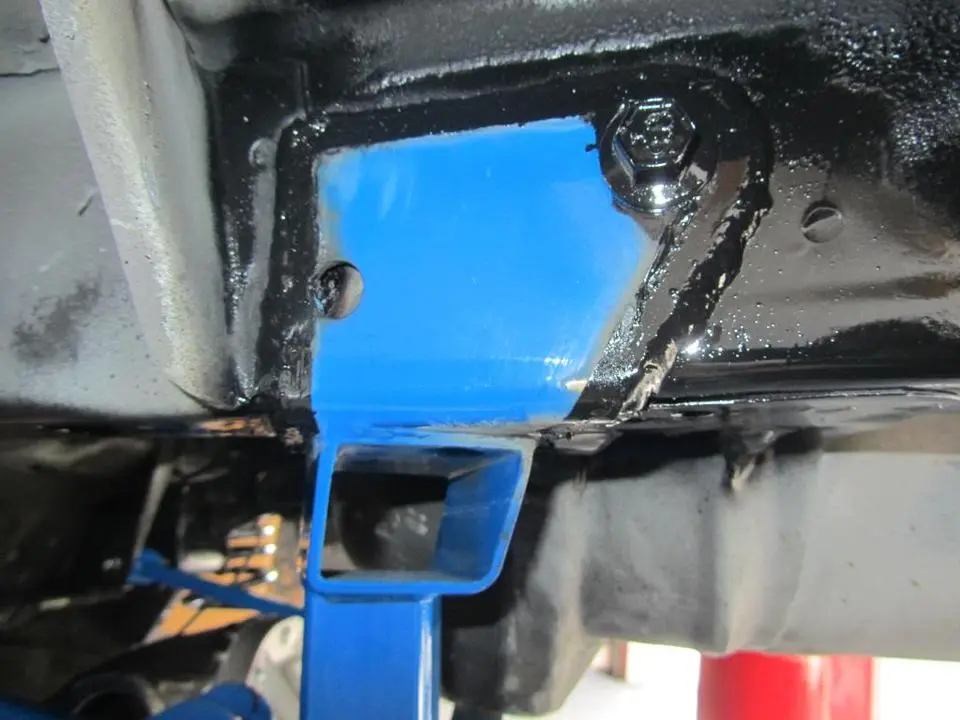

    Upper brace welded

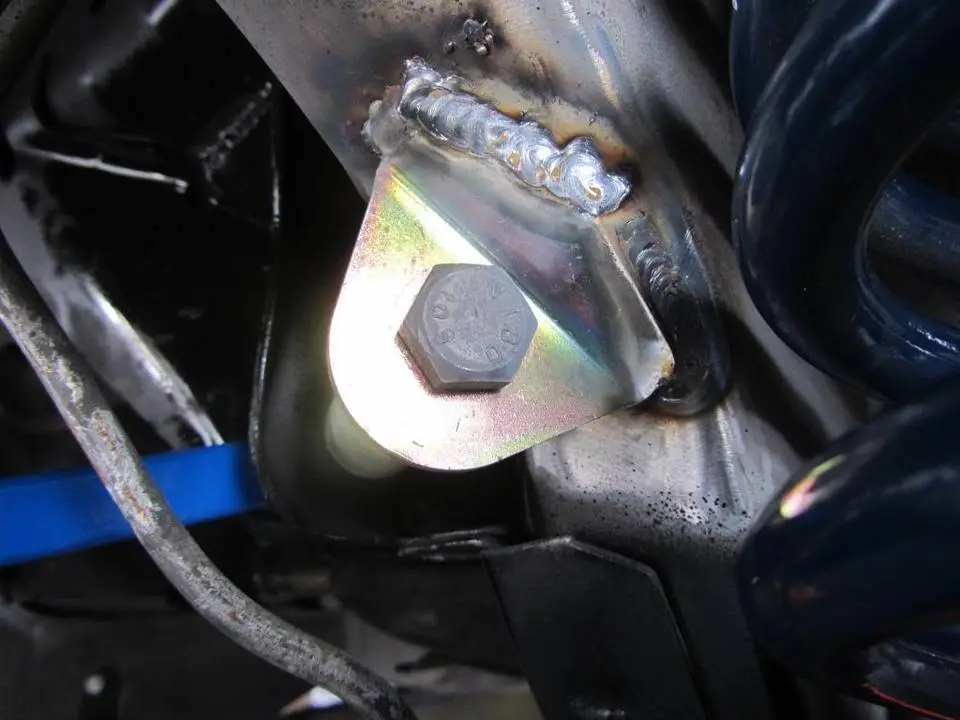

    Welded in mount

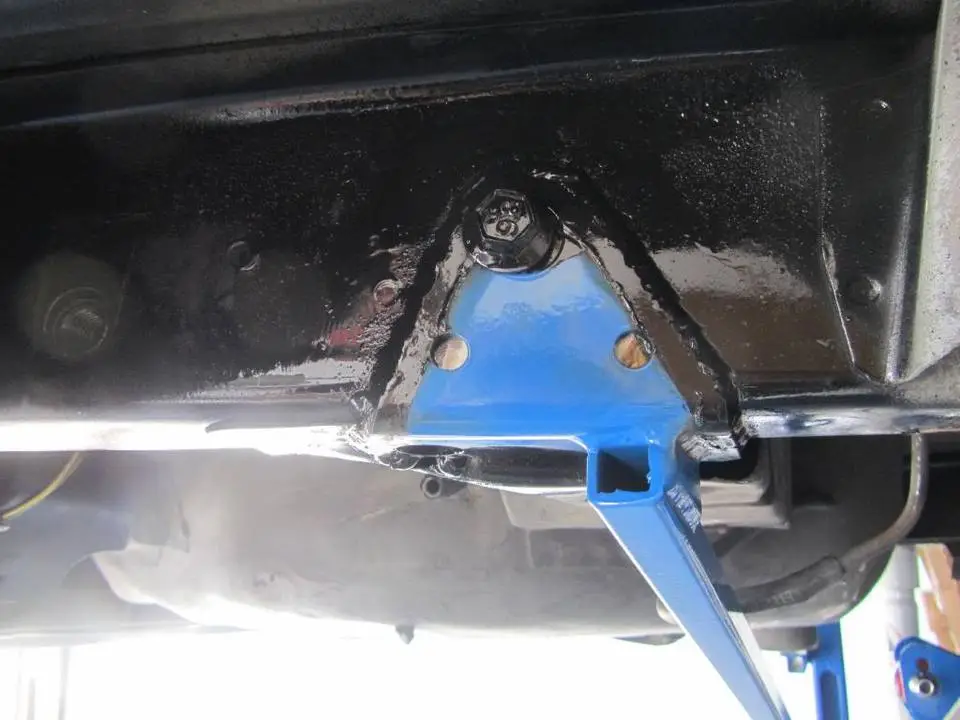

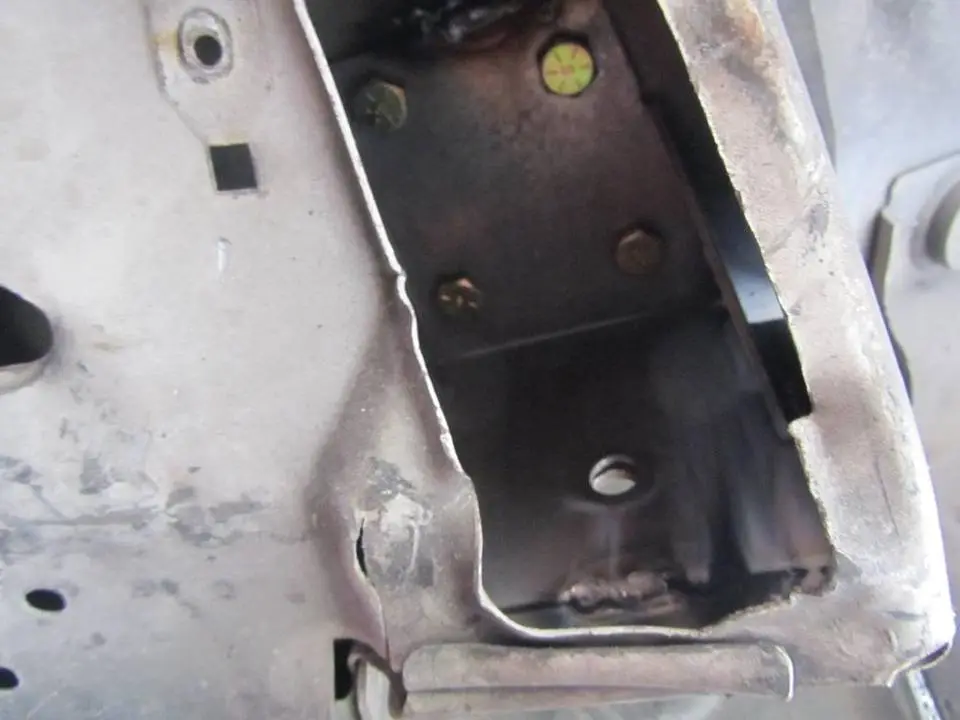

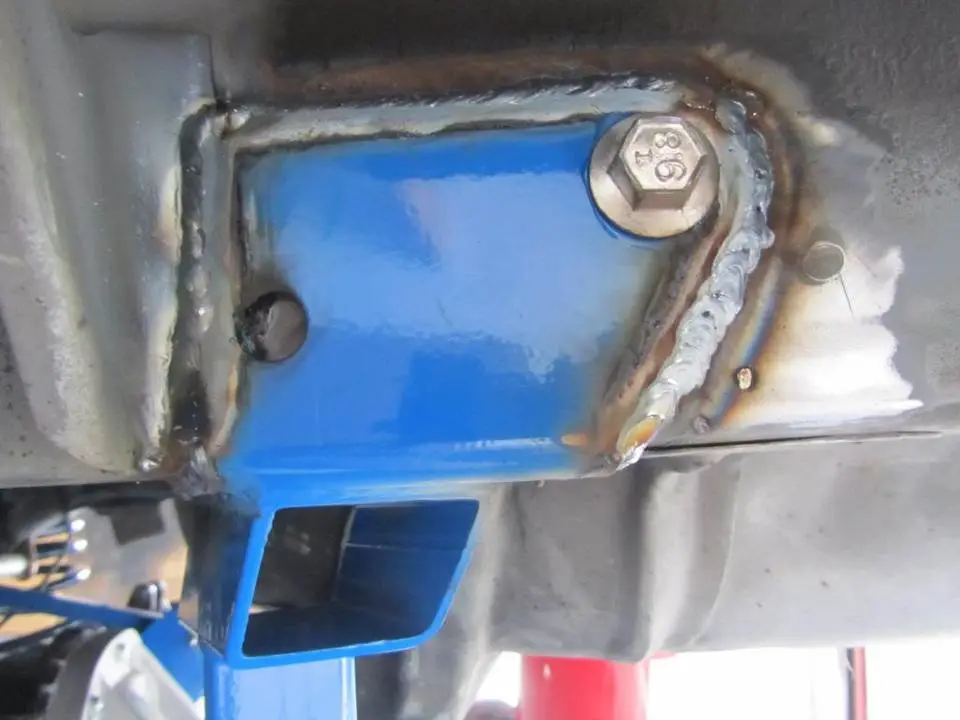

    Other mounting tab, with HD hardware

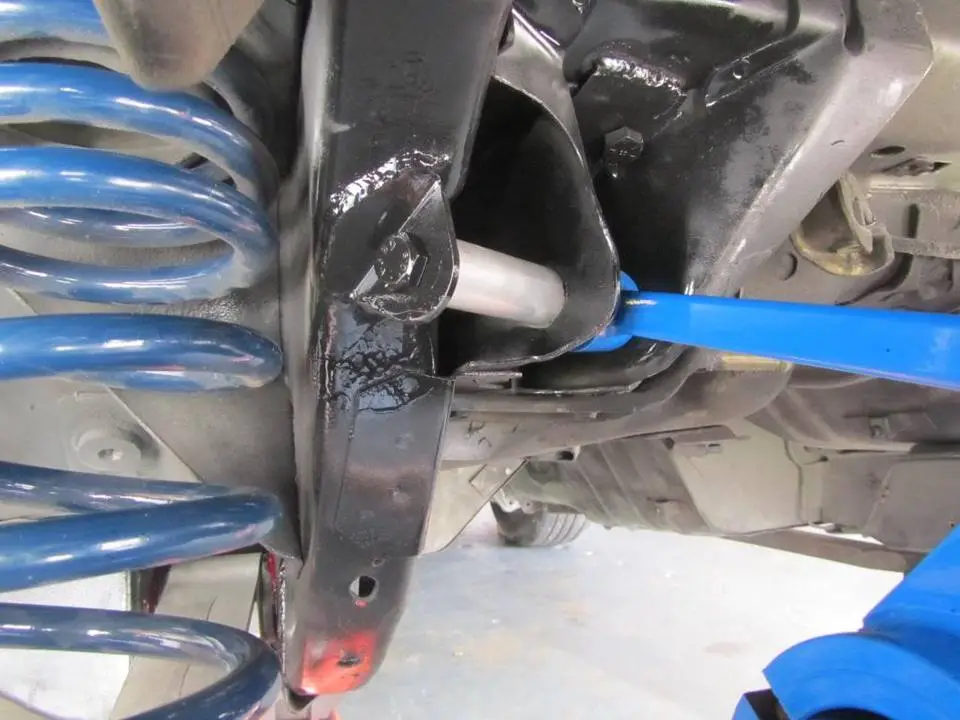

    Better shot of the upper control arm mounting position. also new 400 lb rate rear springs
    Almost finished. Need a set of rear isolaters, rear swaybar, then tighten everything up, set pinion angle after engine and rest of drivetrain installed

    stangboy likes this.
  3. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

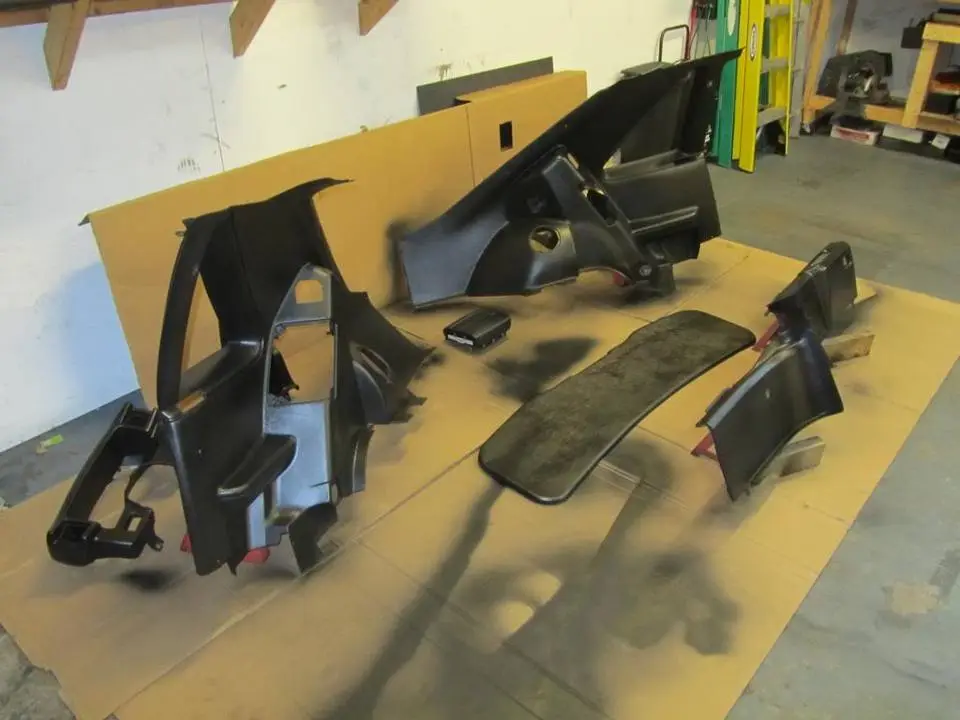

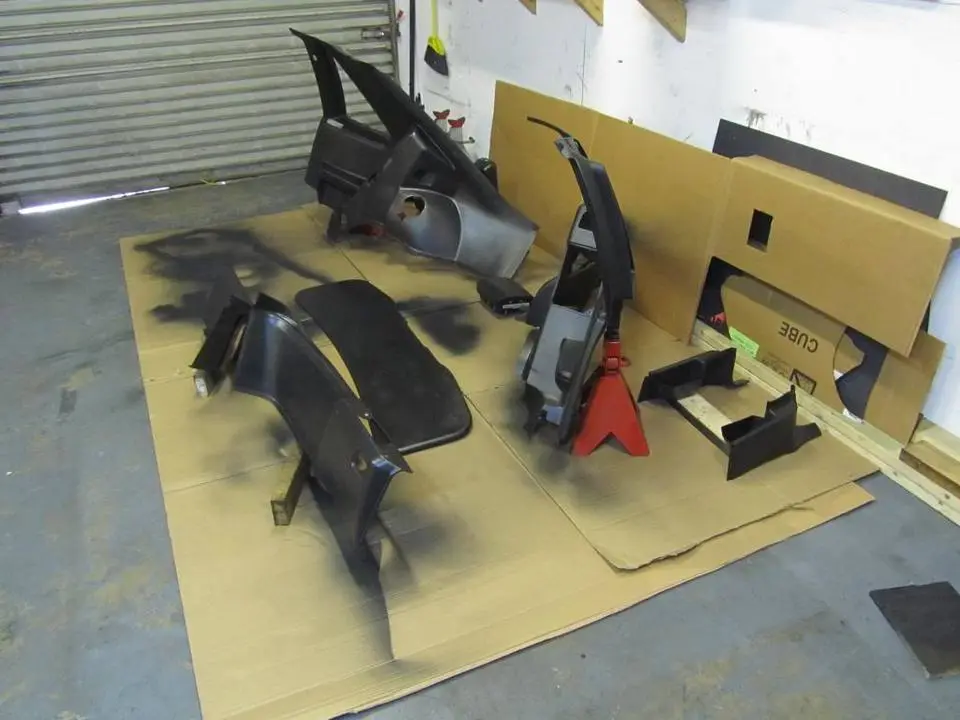

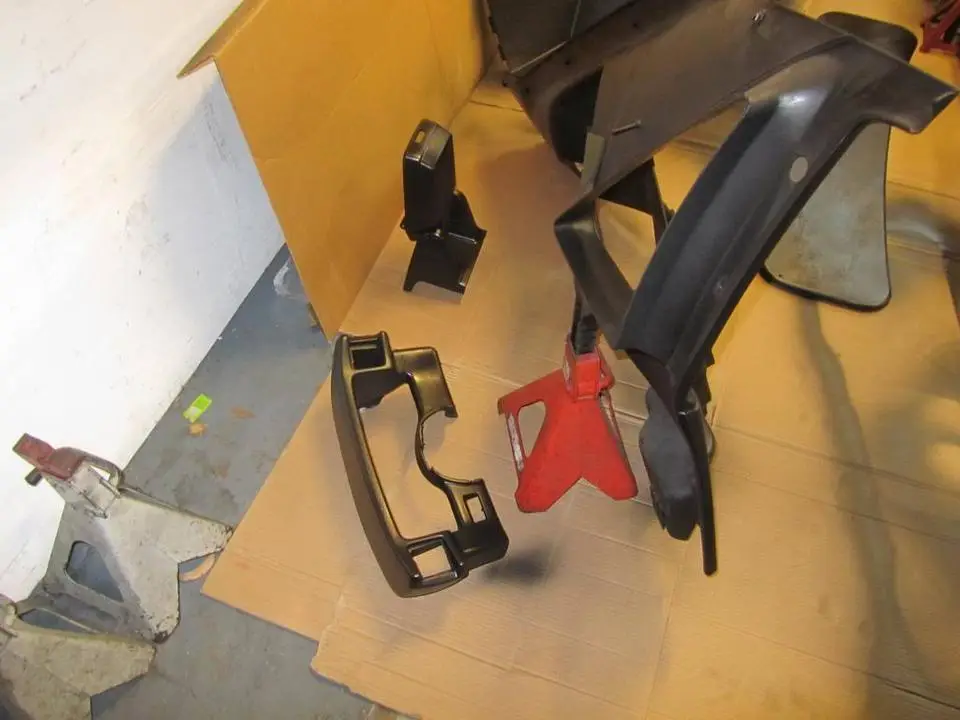

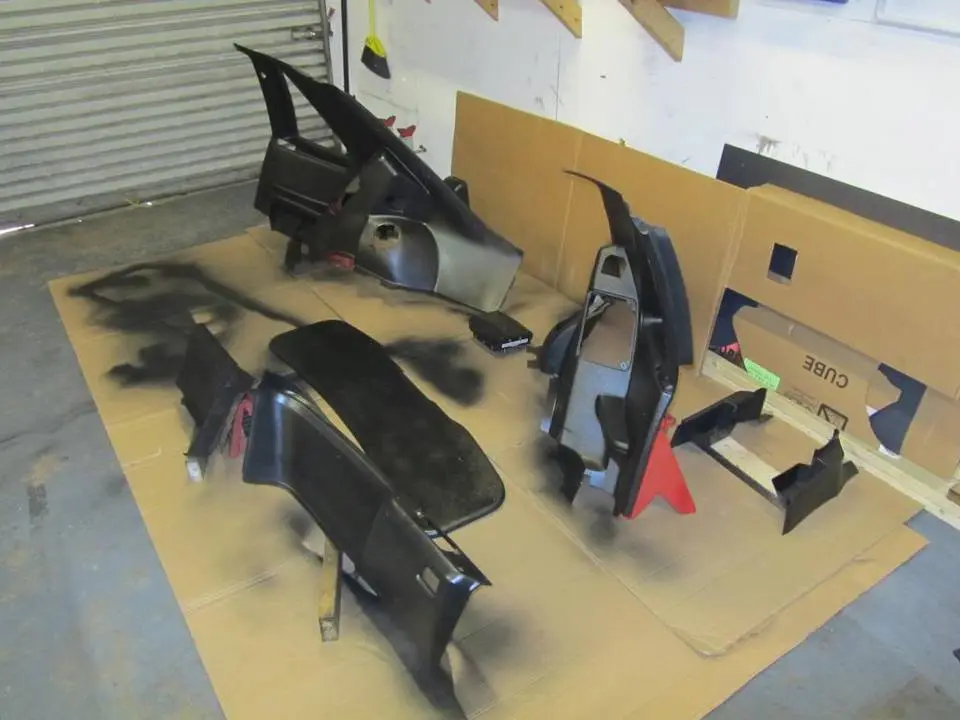

    More interior reconditioning and dying:
    Now on to some engine bay work. Out comes the stock steering shaft.

    #63 Fredmatic, Feb 23, 2014
    Last edited: Feb 23, 2014
    stangboy likes this.
  4. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

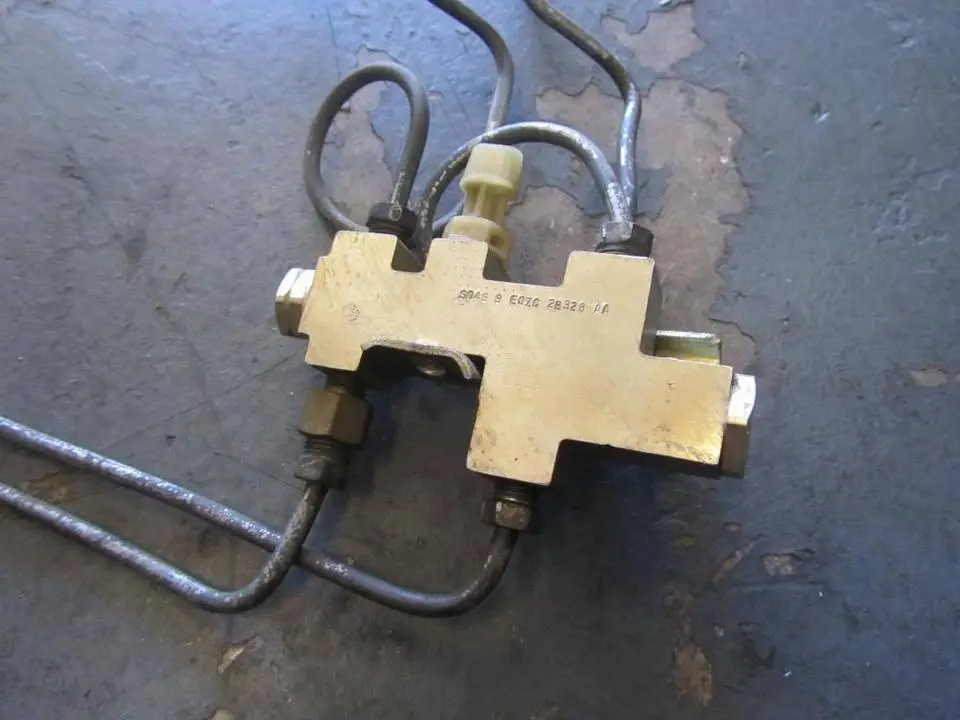

    Distribution block getting refurbished

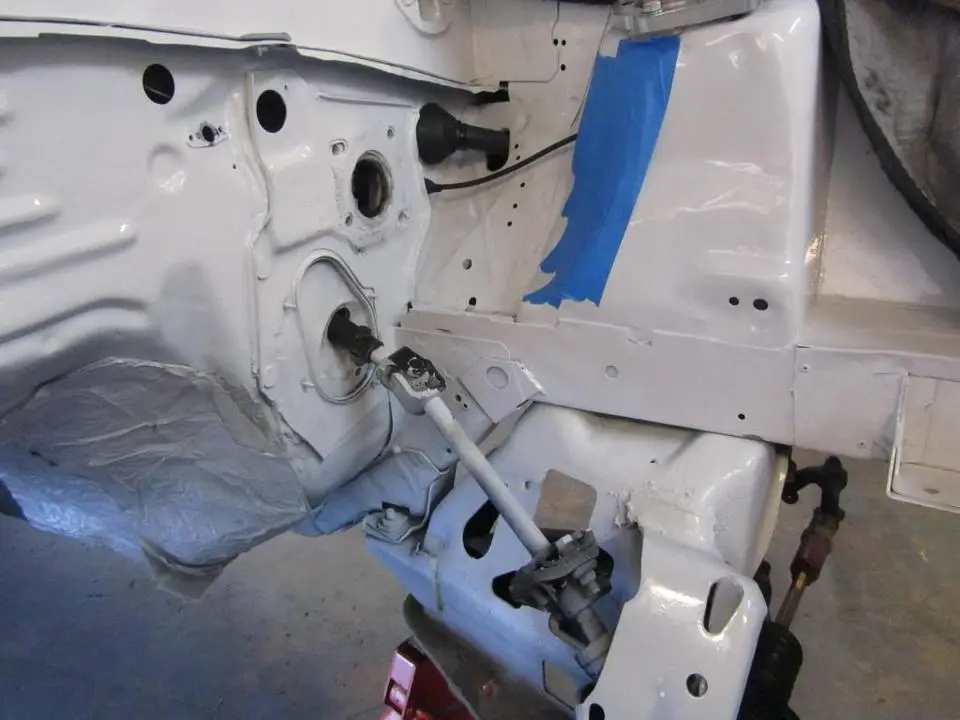

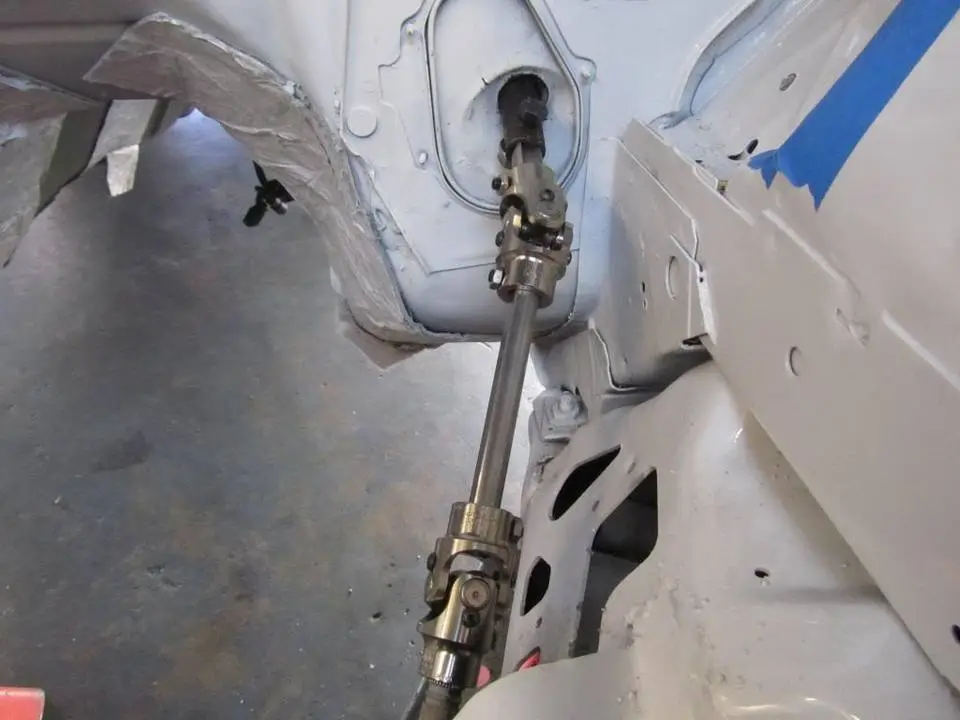

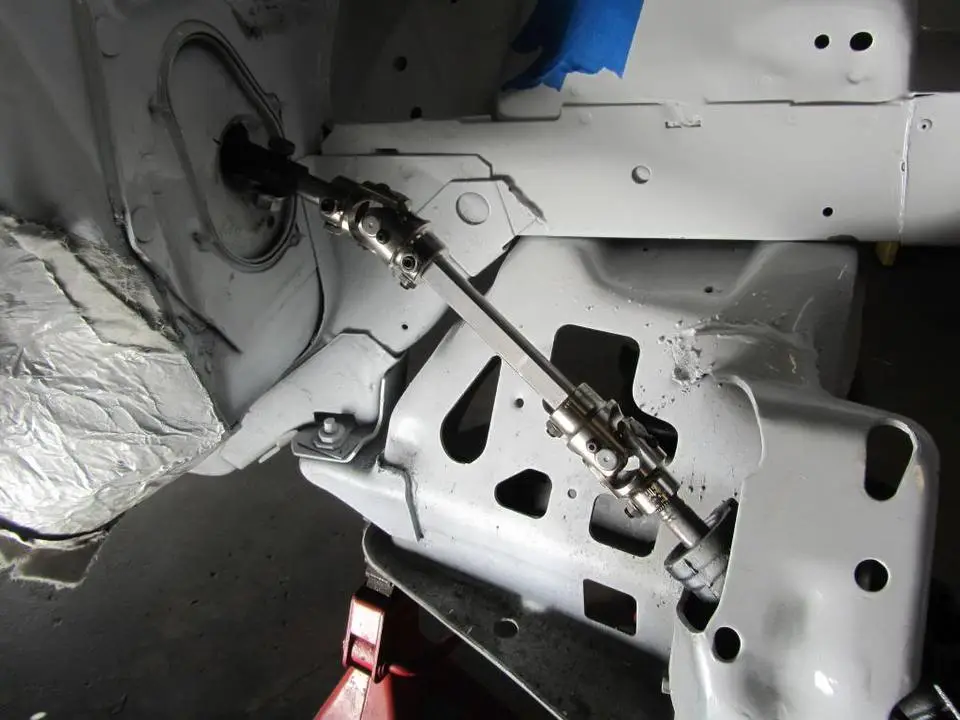

    Flaming River steering shaft in

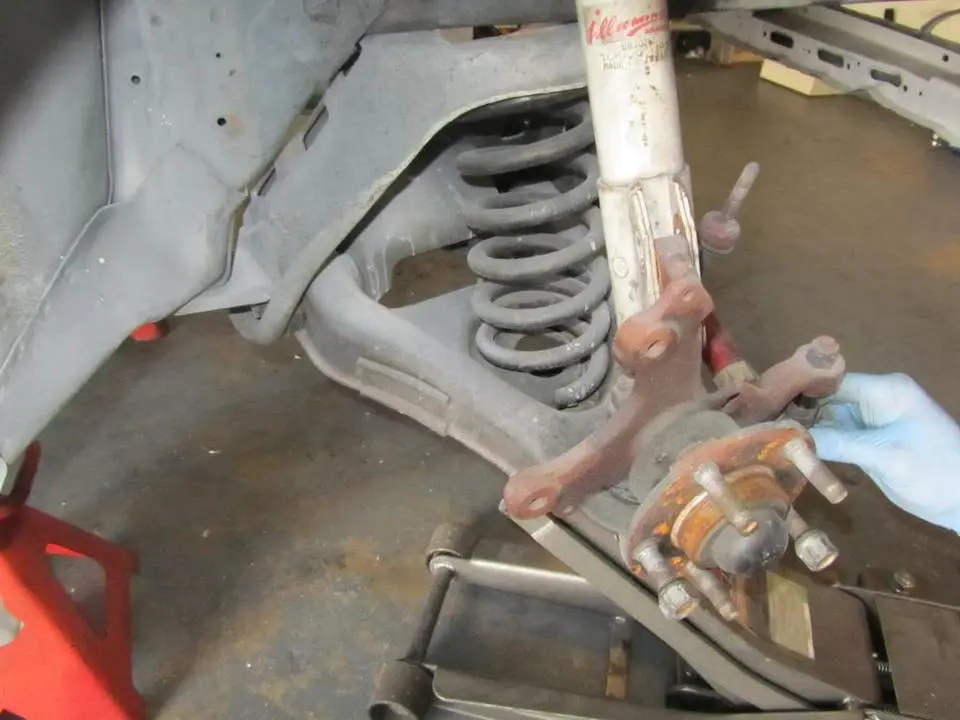

    Front suspension dis-assembly, clean up, and rebuild.

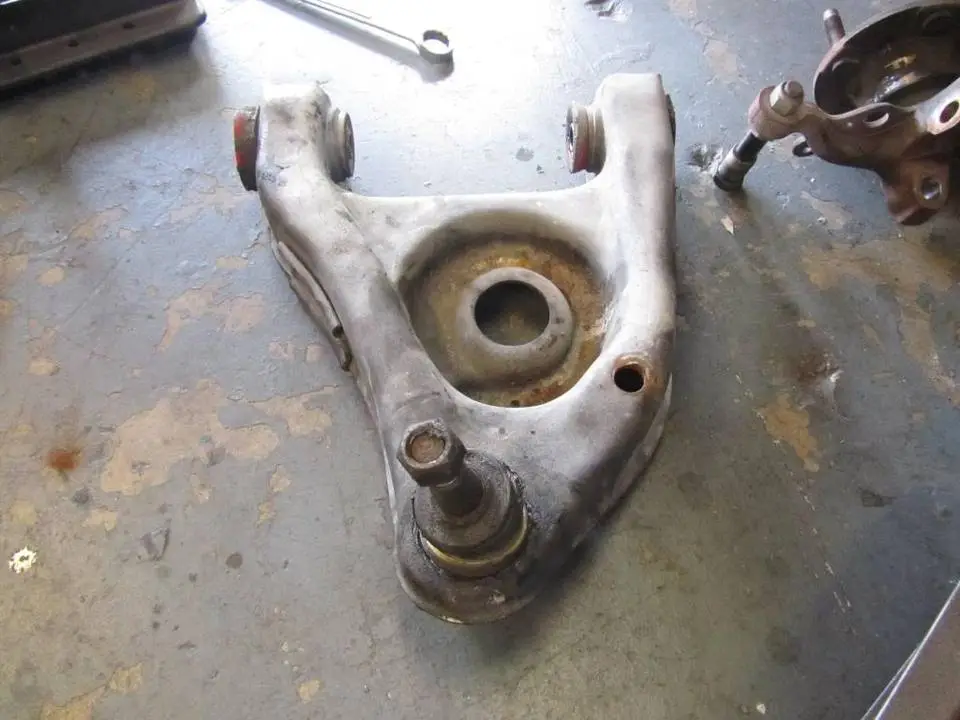

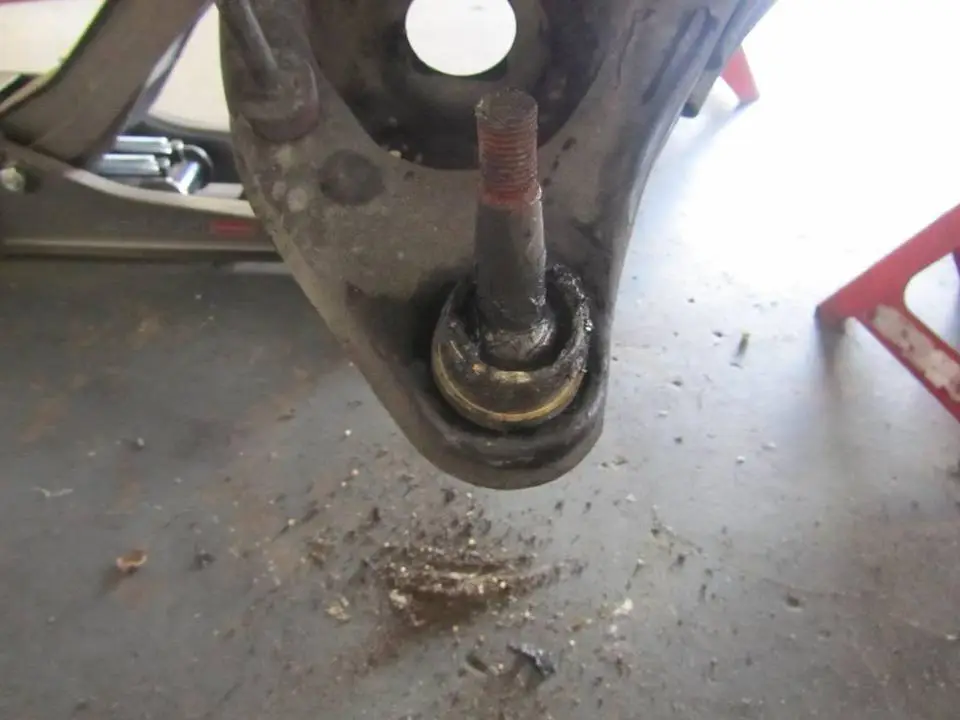

    Old ball joints coming out

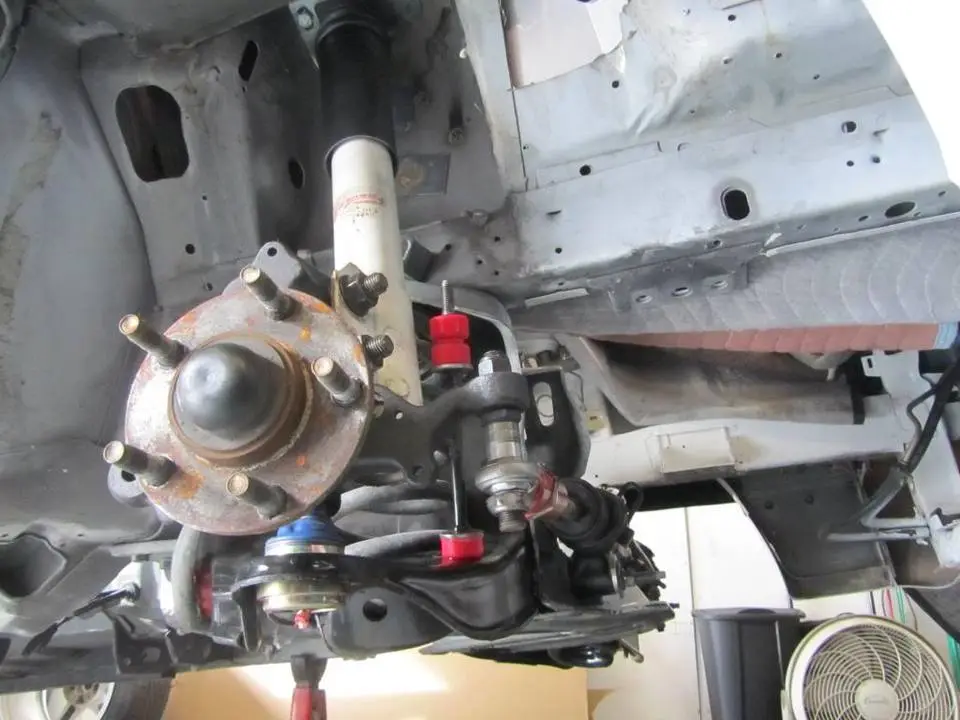

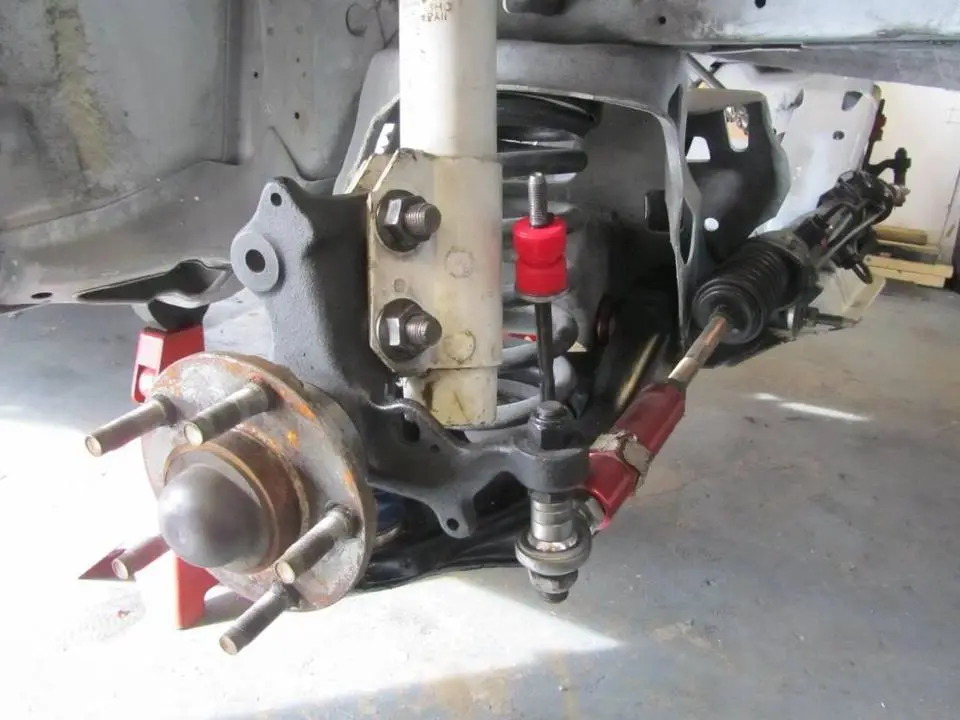

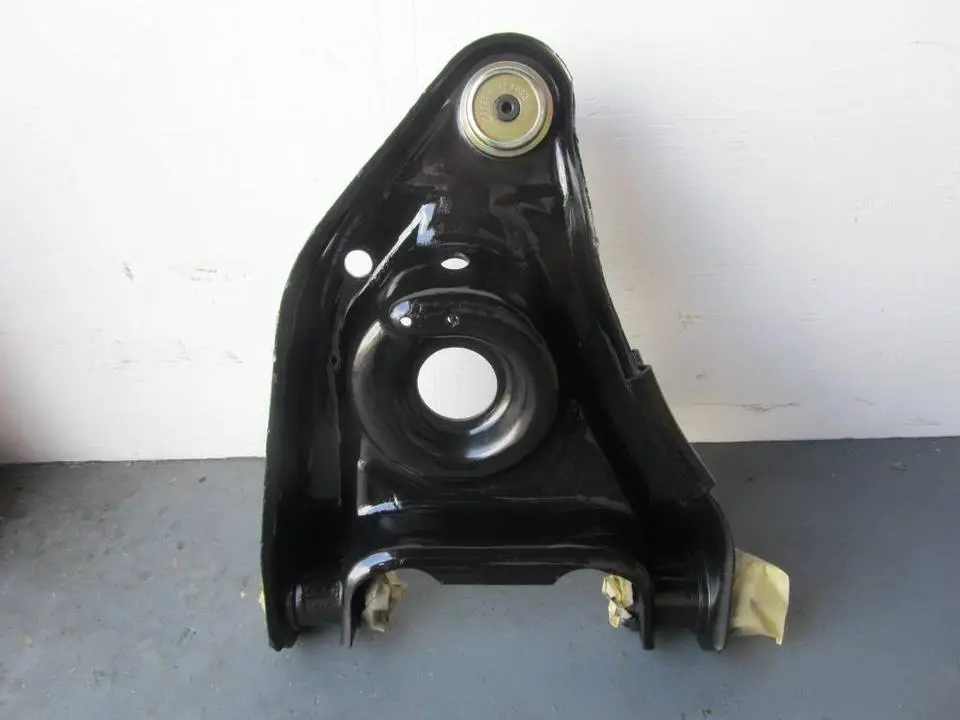

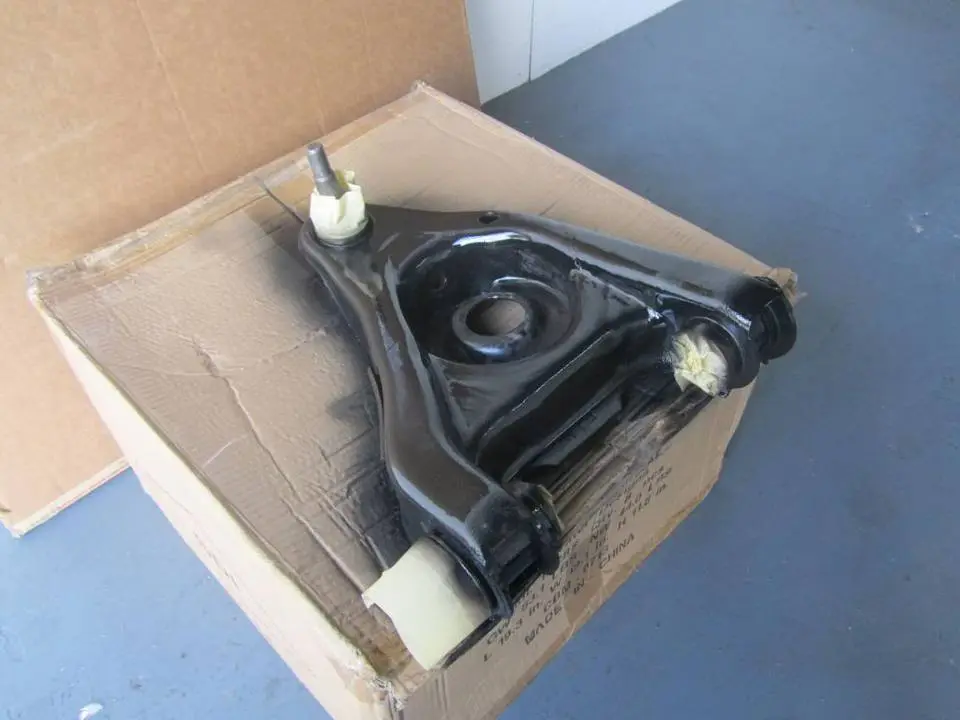

    Painted up, with Steeda X2 ball joints, ond offset urethane bushings.

    stangboy likes this.
  5. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

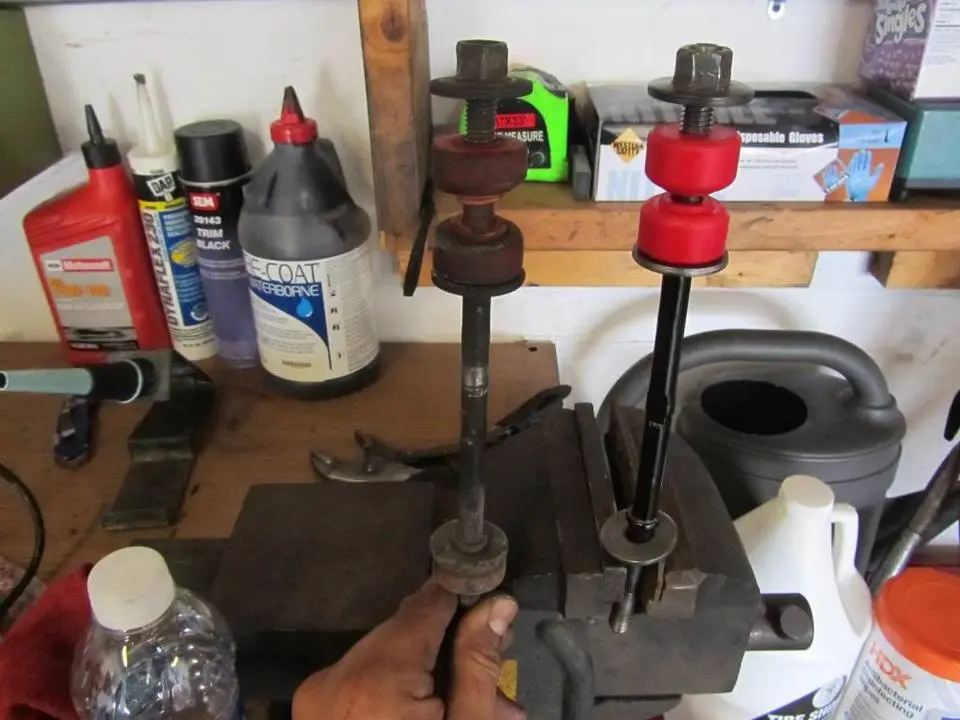

    Swaybar endlinks cleaned up, with new urethane bushings
    Going back together. Struts were in good shape, so we cleaned up the dust boots, painted them, & reconditioned the studs up top for a clean look.
    Held off on installing the new Seeda 1000lb front springs, as we need the motor in the car.

    stangboy likes this.
  6. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

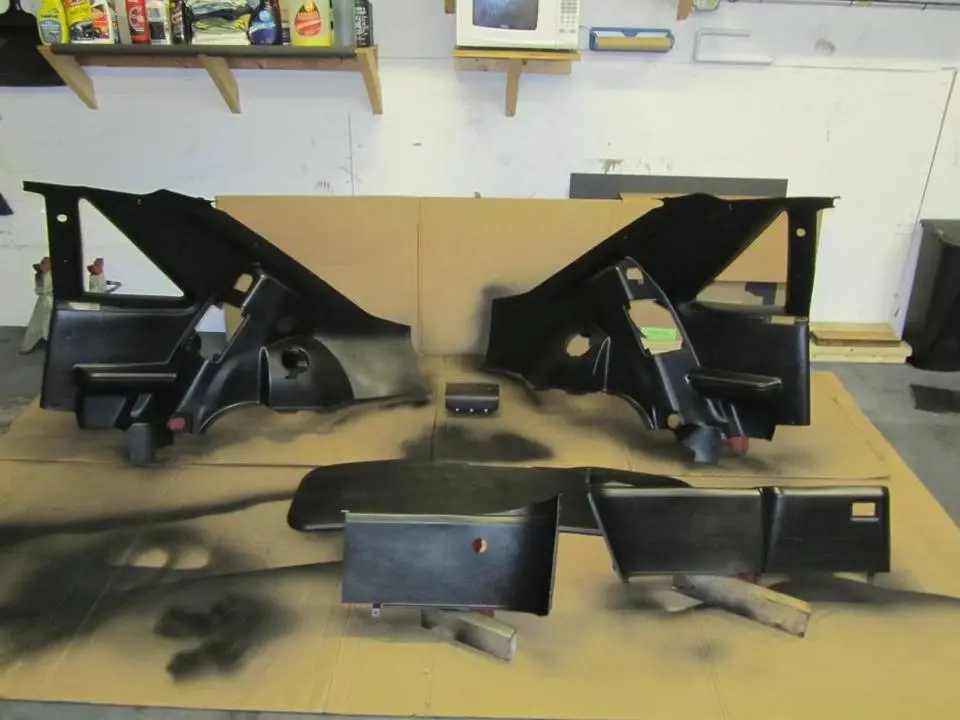

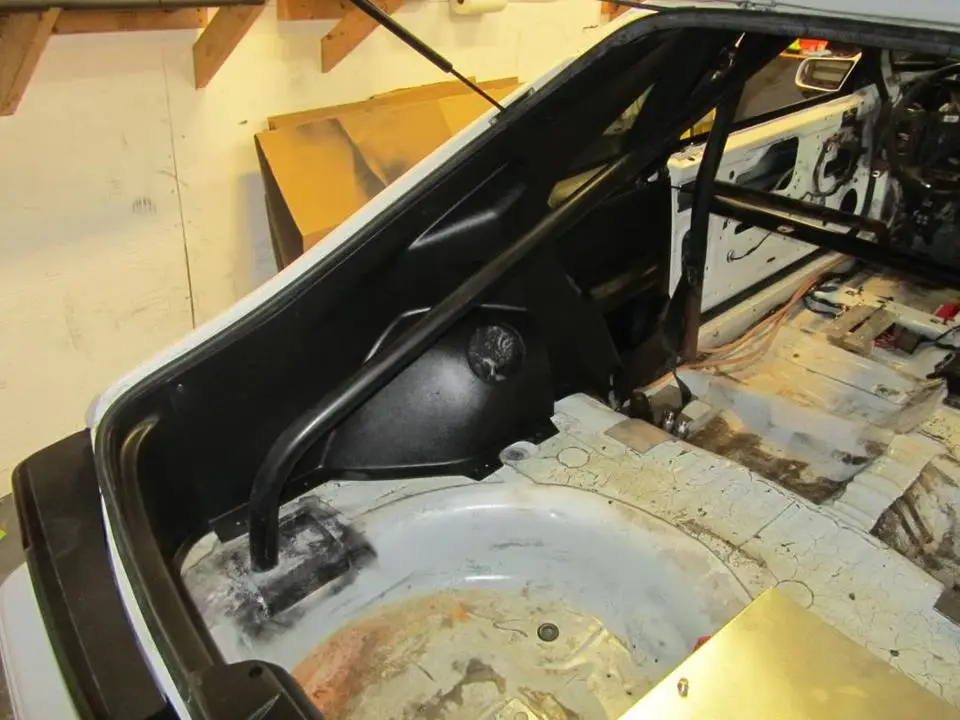

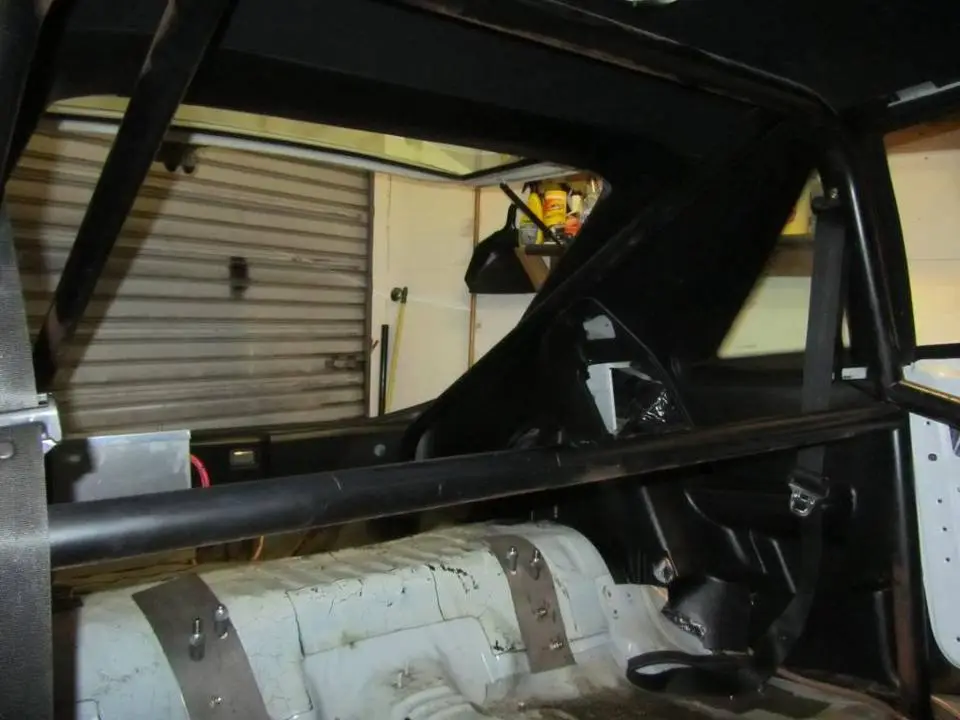

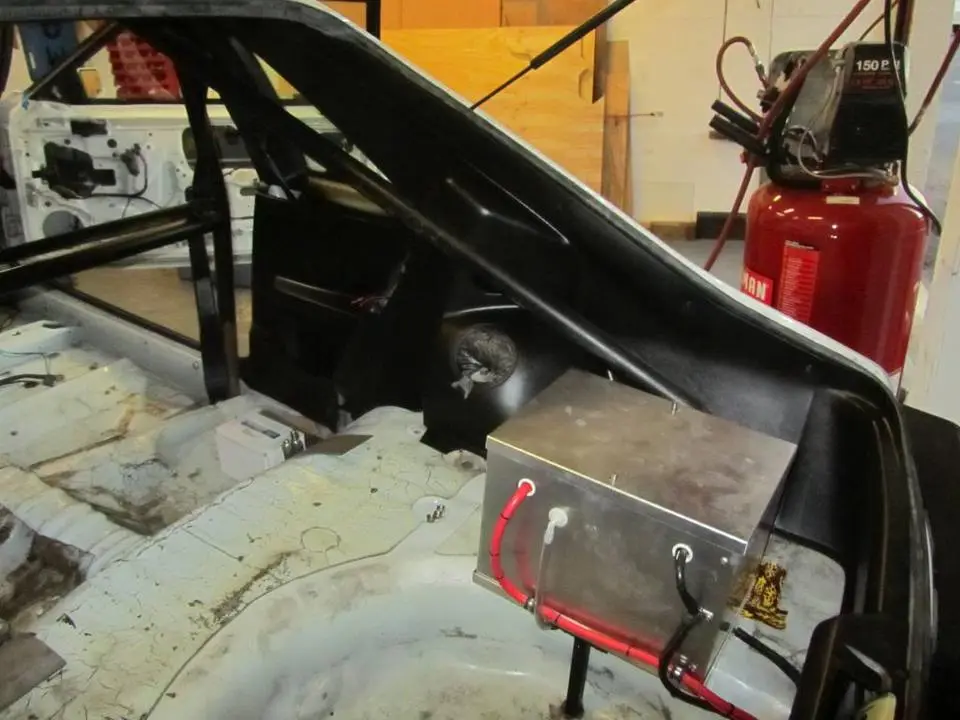

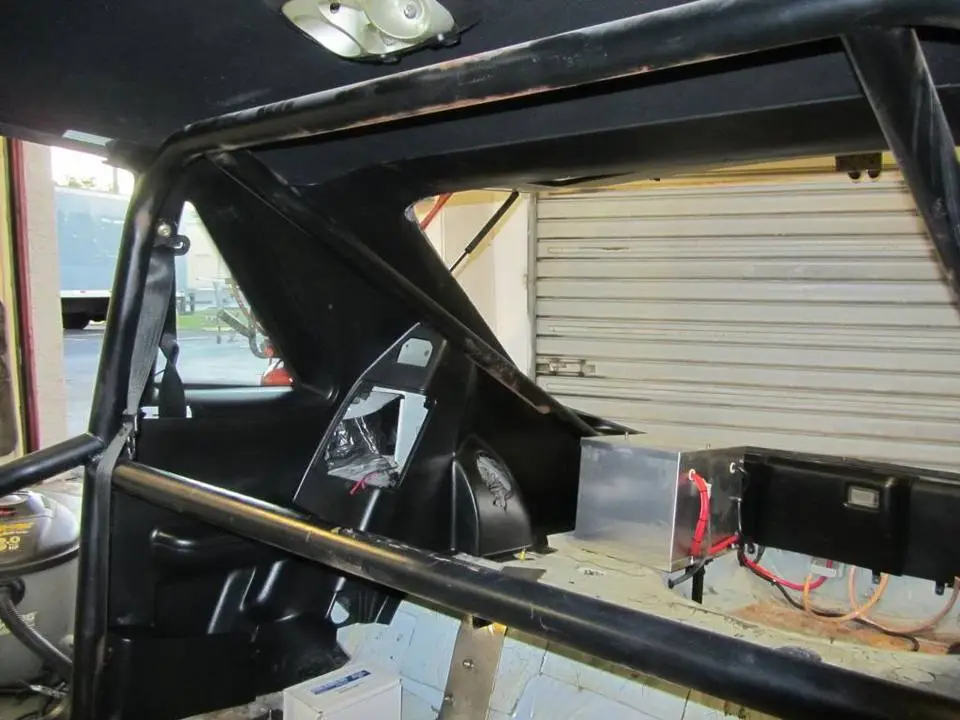

    Rear interior panles are in. A painstaking process when you have a 6 pt roll cage. Happy to report, no scuffs!
    IMG_4023_zpsbca27b48.jpg IMG_4020_zpsea14a1e2.jpg

    stangboy likes this.
  7. Old Skooler

    Founding Member

    Joined:
    Feb 27, 2012
    Messages:
    245
    Likes Received:
    39
    Trophy Points:
    39
    How hard was the dash board to remove and re-install if you've done it already? I really need to do it on my car but have been slightly intimidated, I'm concerned with lining the heat back up and everything working.

  8. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL
    In this case, removing and re-installng the dash wasnt too hard, since I got the car back with most of the interior gone.
    Good thing is, plenty of how to's and tutorials out there, with pics to make the project not as intimidating as it may seem.
    Did a quick Google search, and here is what I found:

    https://www.google.com/#q=remove+dashboard+fox+mustang

  9. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor
    Admin Dude

    Joined:
    Jan 4, 1985
    Messages:
    15,073
    Likes Received:
    1,569
    Trophy Points:
    174
    Location:
    Box behind Walmart

    Even better is the age that we live in. The HARDEST part is recalling where everything goes. Takes LOTS of pictures as you take it apart. These will serve as a reference when/if the head scratching begins.

    That aside, it's a very time consuming process. One that should include replacing the heater core with an OEM replacement FROM FORD. If you have an aluminum radiator then I'd be inclined to opt for a QUALITY aluminum heater core over the OEM piece, but just barely. The OEM core last for how long? Yeah... it's a good piece.

    Your local parts store is NOT a good place to get a replacement heater core. They are very hit and miss in quality.

    @Fredmatic

    This is coming along very nicely! I love to see this kind of build. I can't wait to see/hear how this suspension package reacts to the car vs. the stock 4-link! :nice:

    stangboy likes this.
  10. Old Skooler

    Founding Member

    Joined:
    Feb 27, 2012
    Messages:
    245
    Likes Received:
    39
    Trophy Points:
    39
    Thanks for the advise guys. Fredmatic the build is coming along nicely, keep us posted

  11. smkshw

    smkshw Active Member

    Joined:
    Feb 12, 2010
    Messages:
    524
    Likes Received:
    74
    Trophy Points:
    39
    nice build!....thanks for the read....keep it coming looks great...!

  12. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

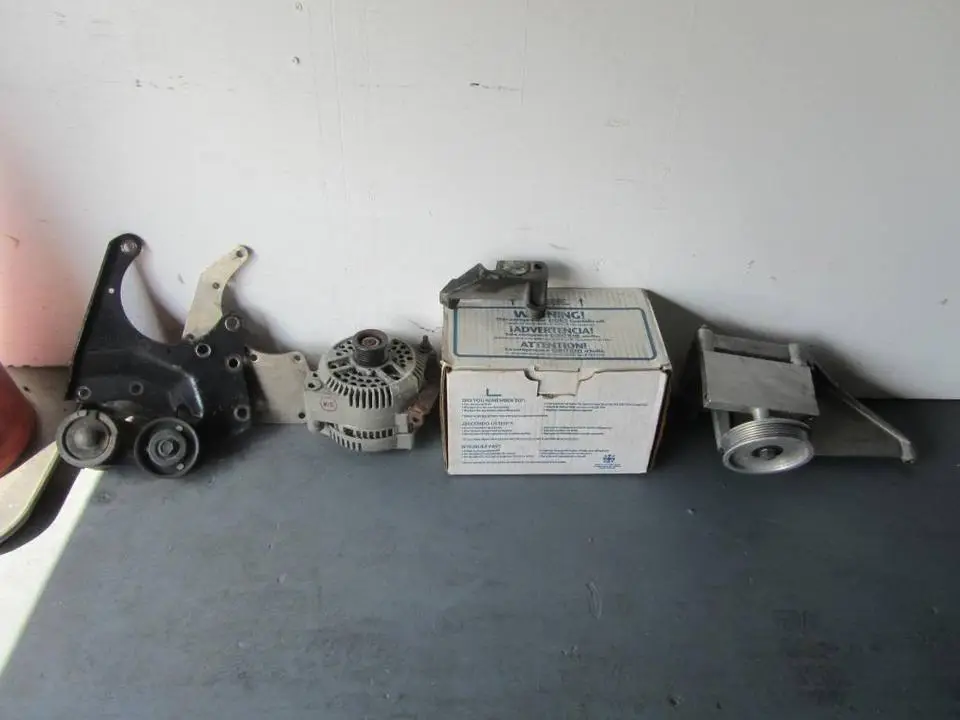

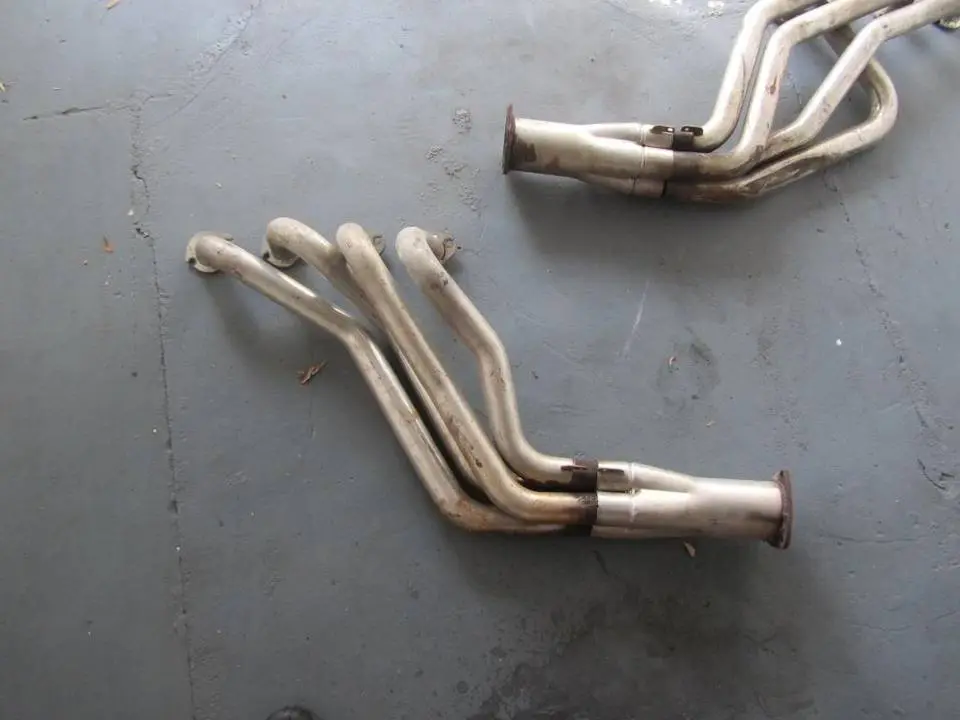

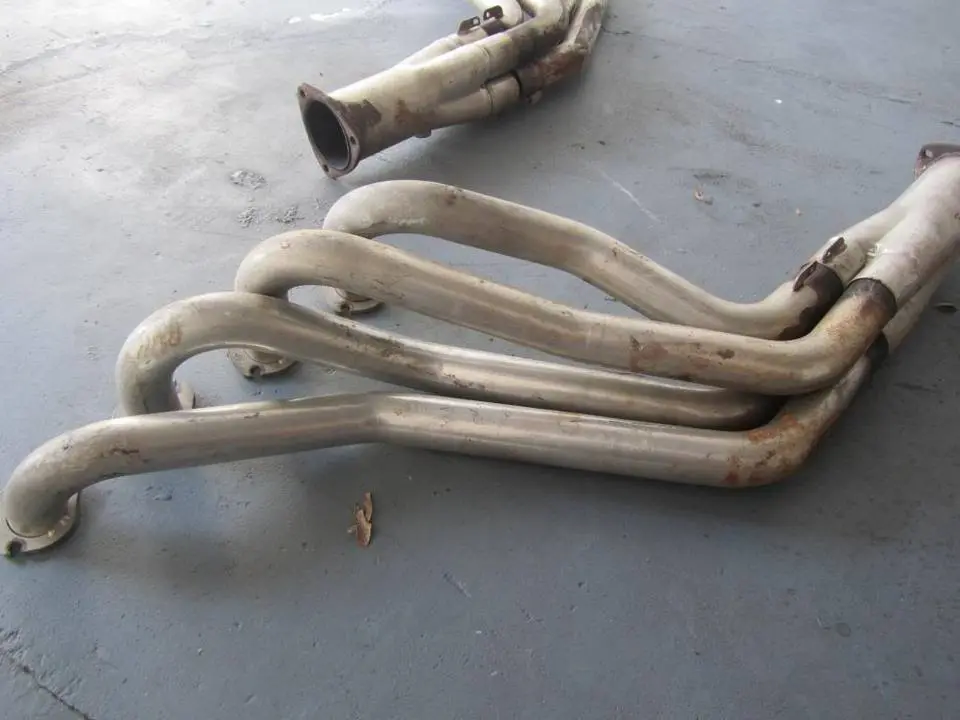

    Headers and accesory brackets going out to the coaters

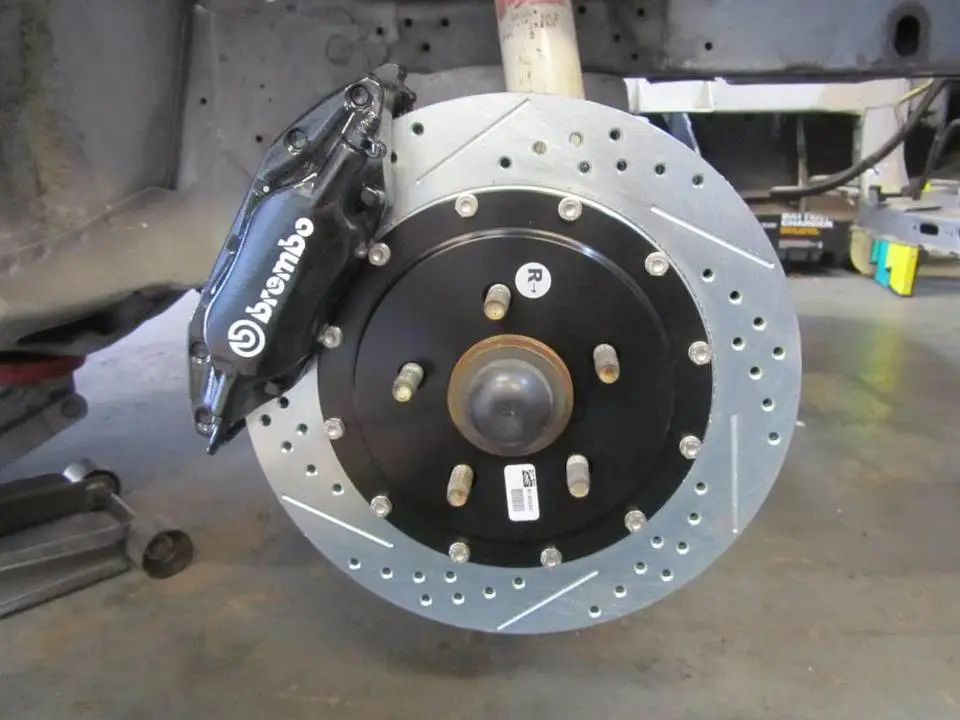

    Front brakes hung. Brembo 4 pistons with 13" rotors

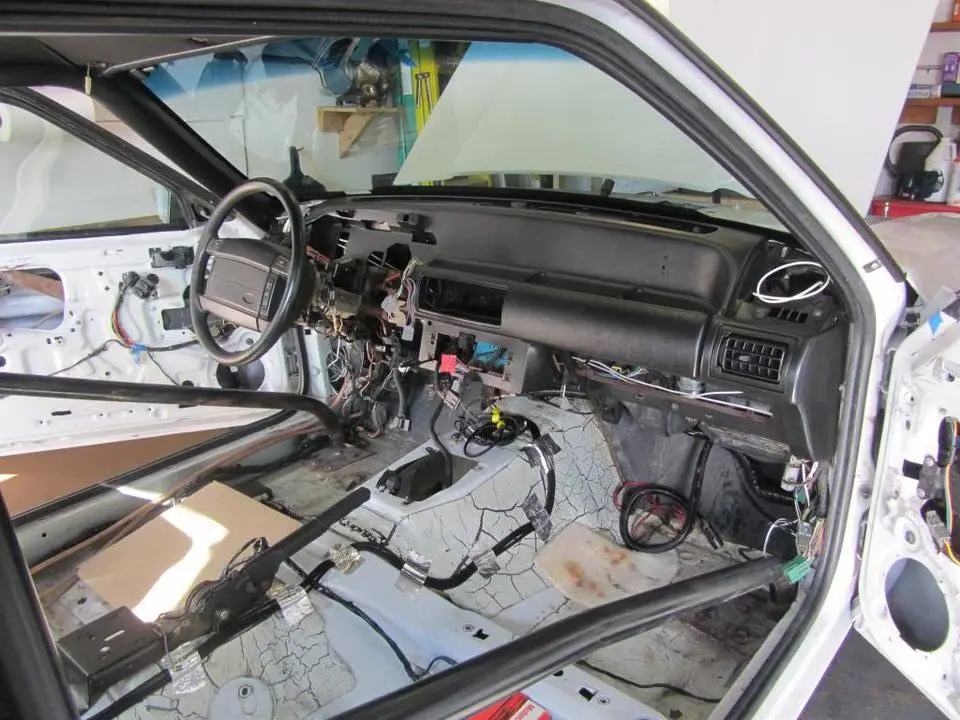

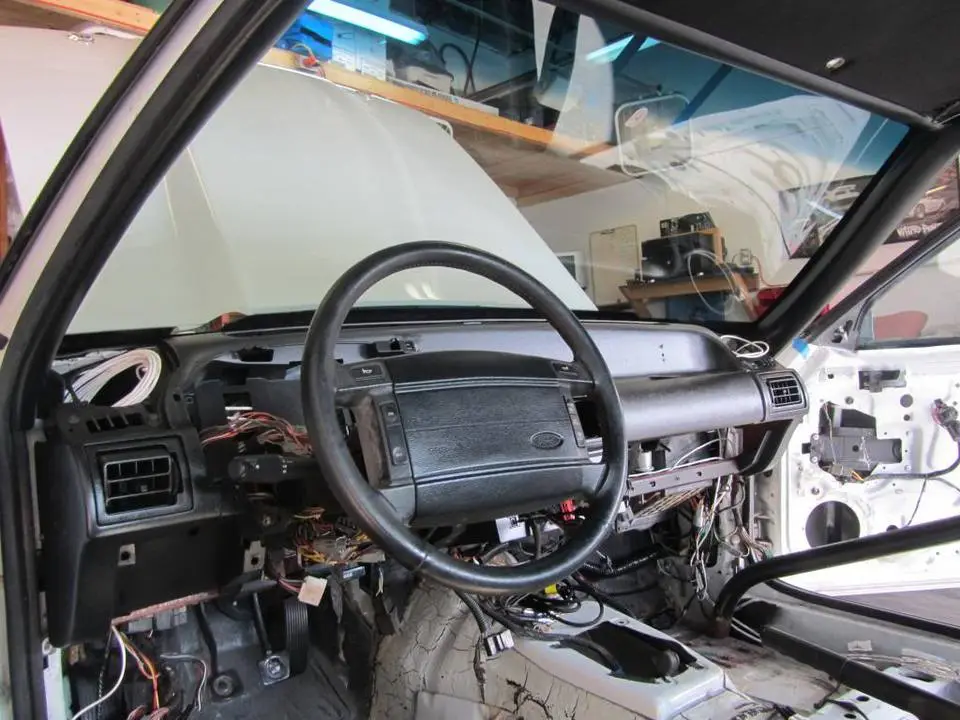

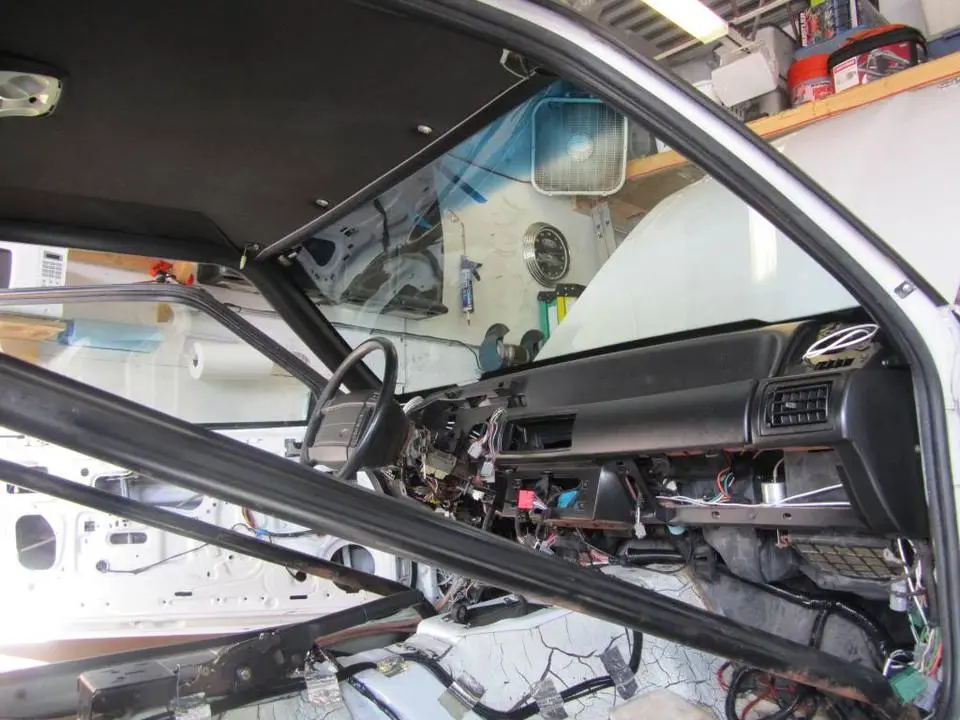

    Dashboard in
    Old steering wheel on for now. Refurbished one will be installed later.

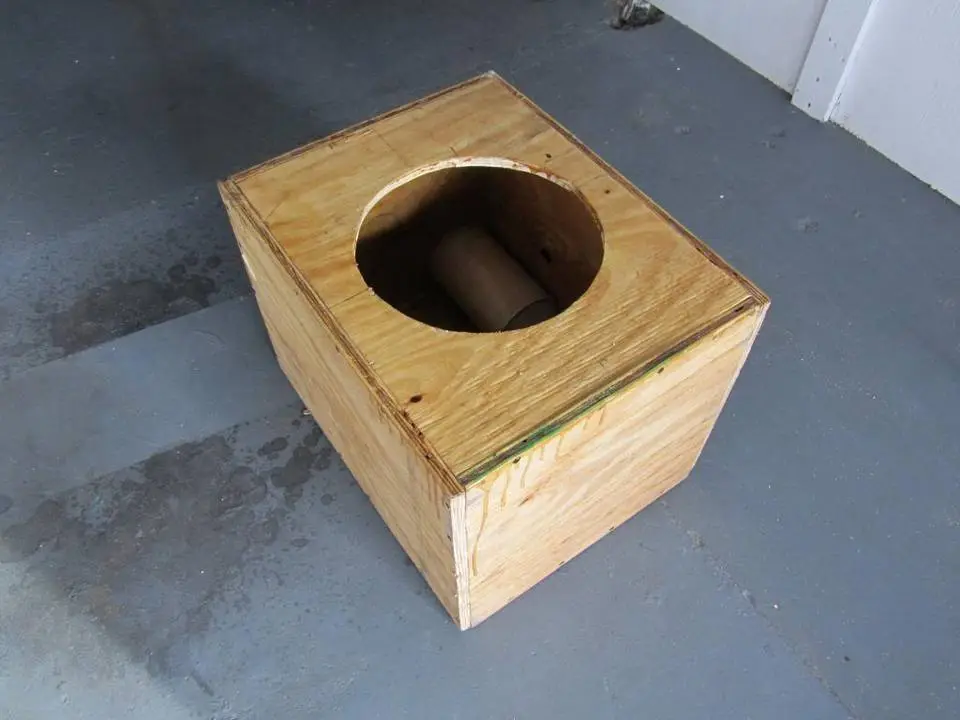

    Speaker box building

  13. stangboy

    Founding Member

    Joined:
    Aug 31, 1999
    Messages:
    3,591
    Likes Received:
    131
    Trophy Points:
    84
    Location:
    New Orleans, LA
    You should use MDF to build your speaker box. You'll get better sound out of it.

  14. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL
    I actually posted the wrong pic. That was the older box, we used as the template for building the new box DOH. We are using MDF material

    stangboy likes this.
  15. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL
    Also headers, brackets, and powerpipe back from coating.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  16. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

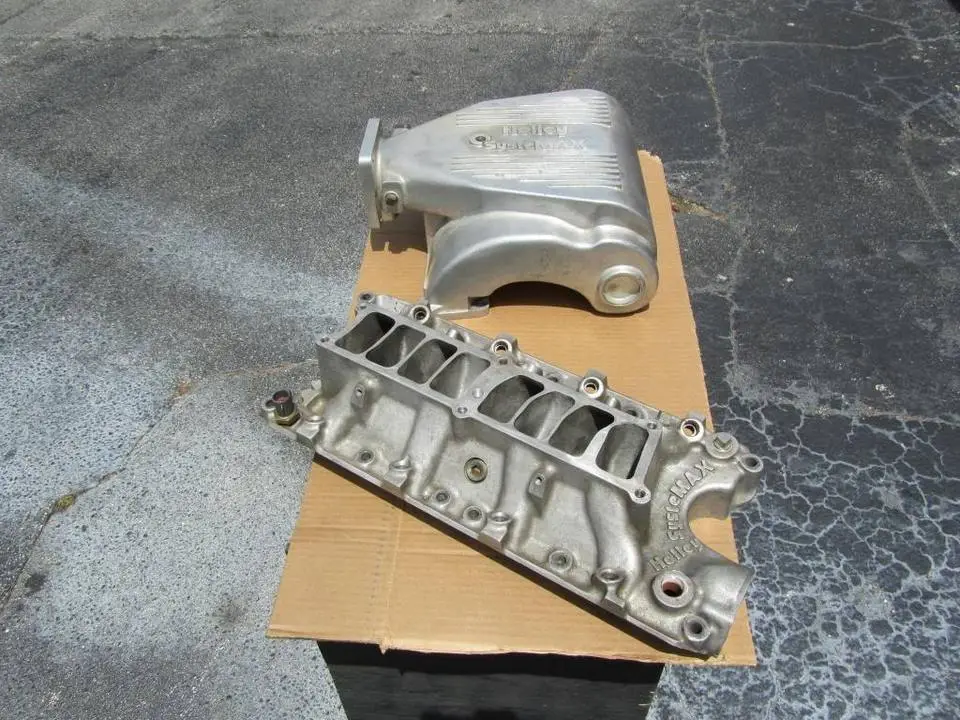

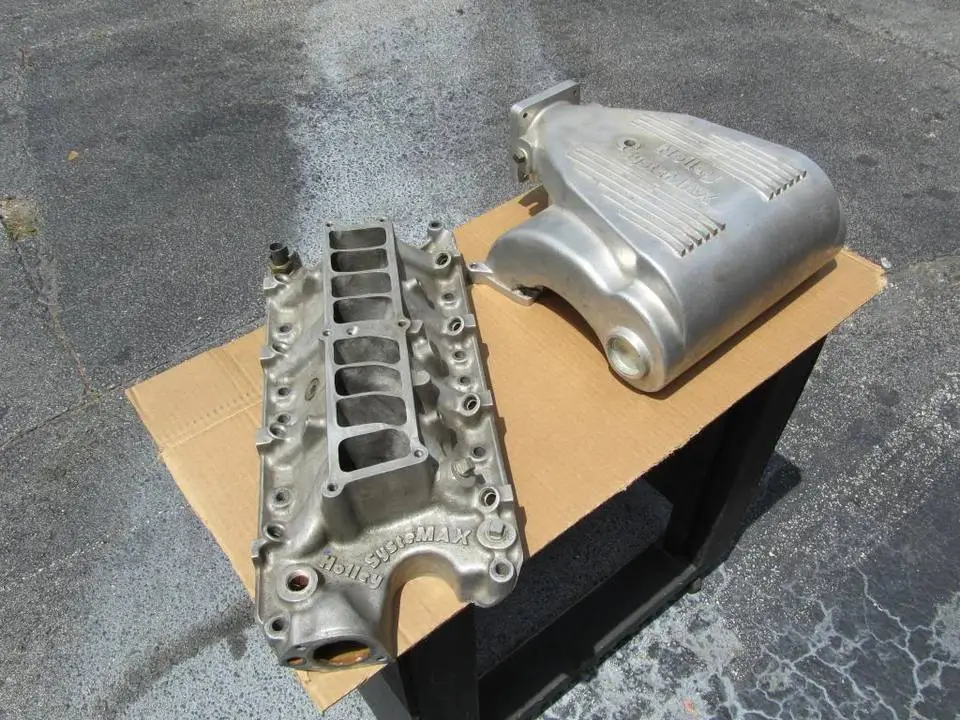

    Located a Holley Systemax off Ebay. Headed off for some port work, then cleaning/coating for bling.

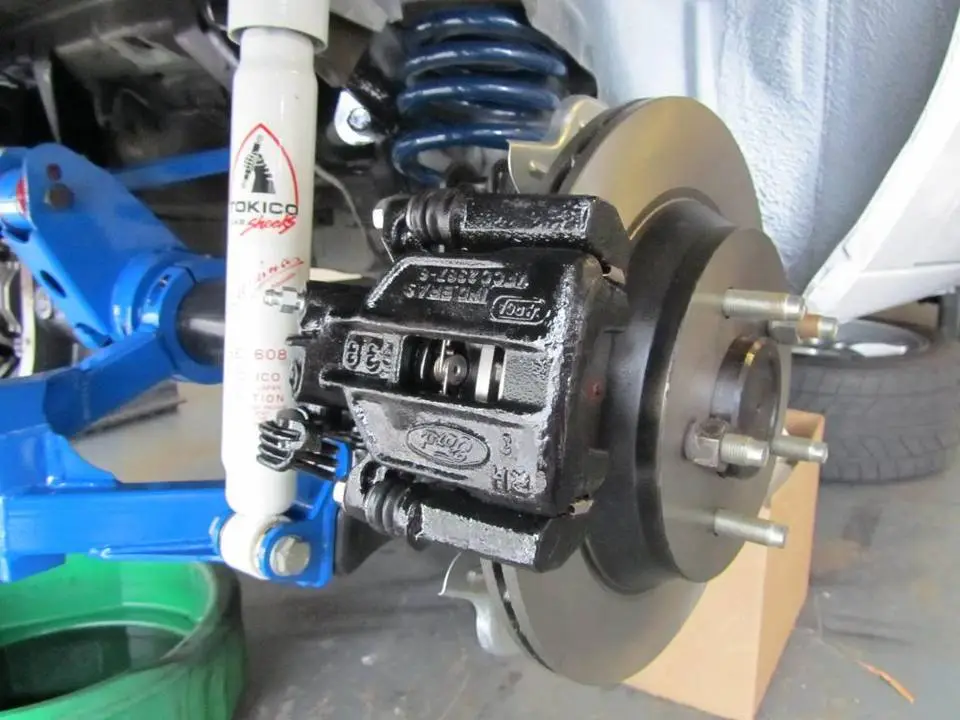

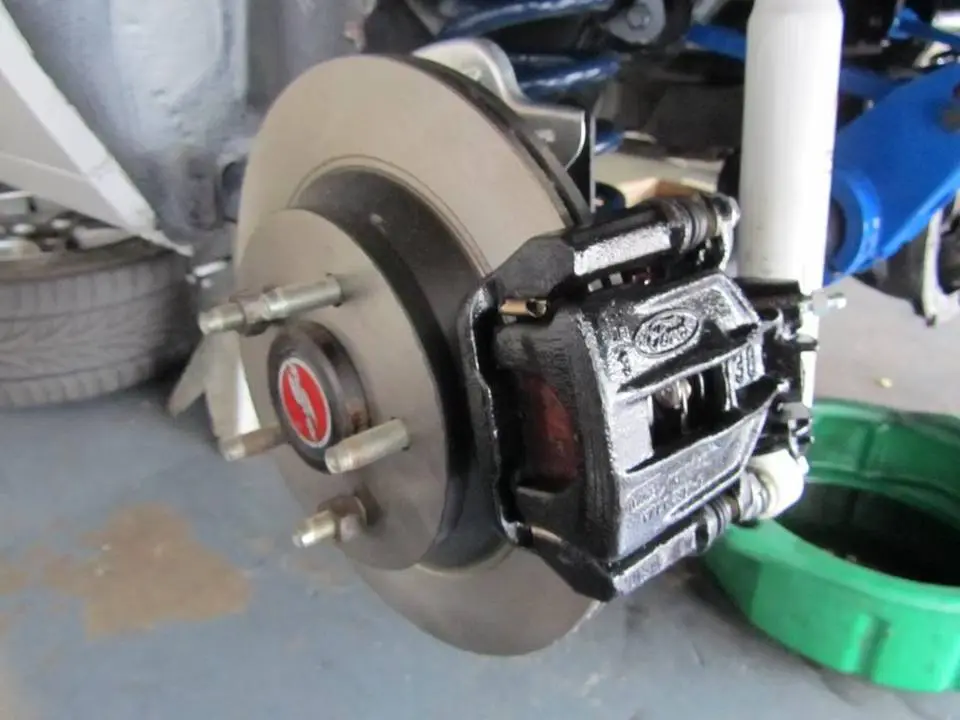

    Finished hanging the rear Cobra brakes. 11.65 rear vented rotors, getting the squeeze from Cobra-specific calipers.


  17. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL
    Got the updated front door speakers, and the rest of the stereo hooked up. Sound is AMAZING ! Thanks again to Kicker for their support, and well engineered complete system.

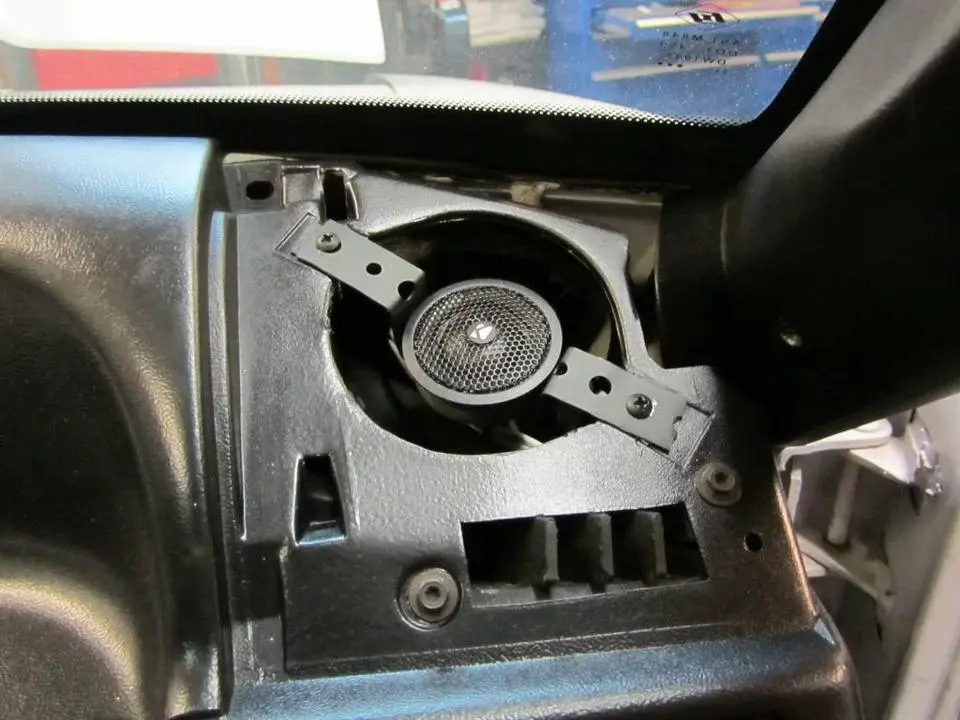

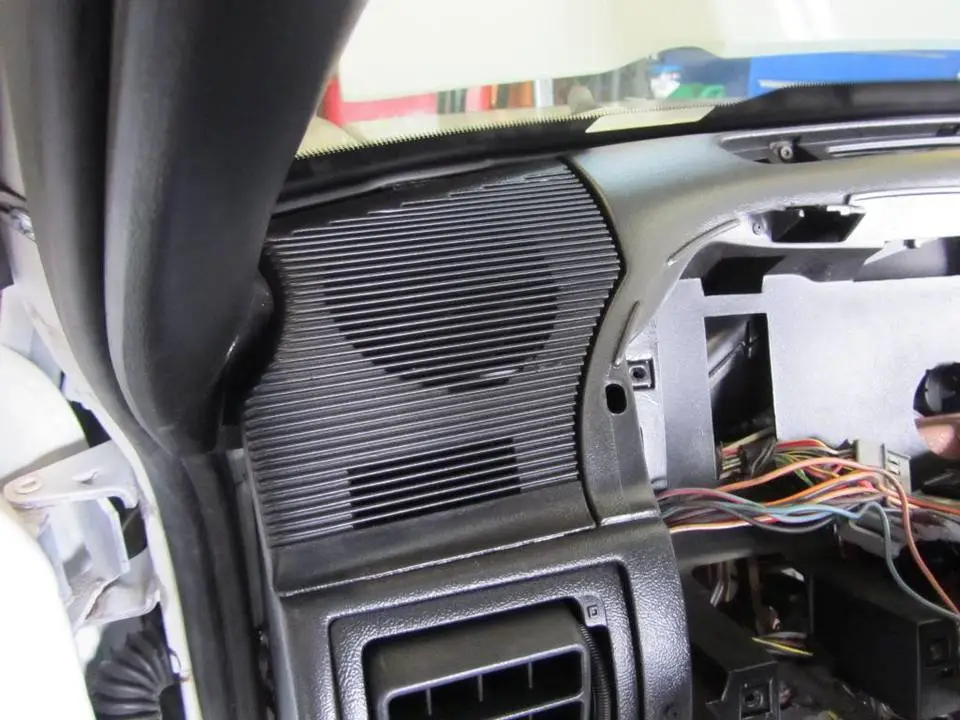

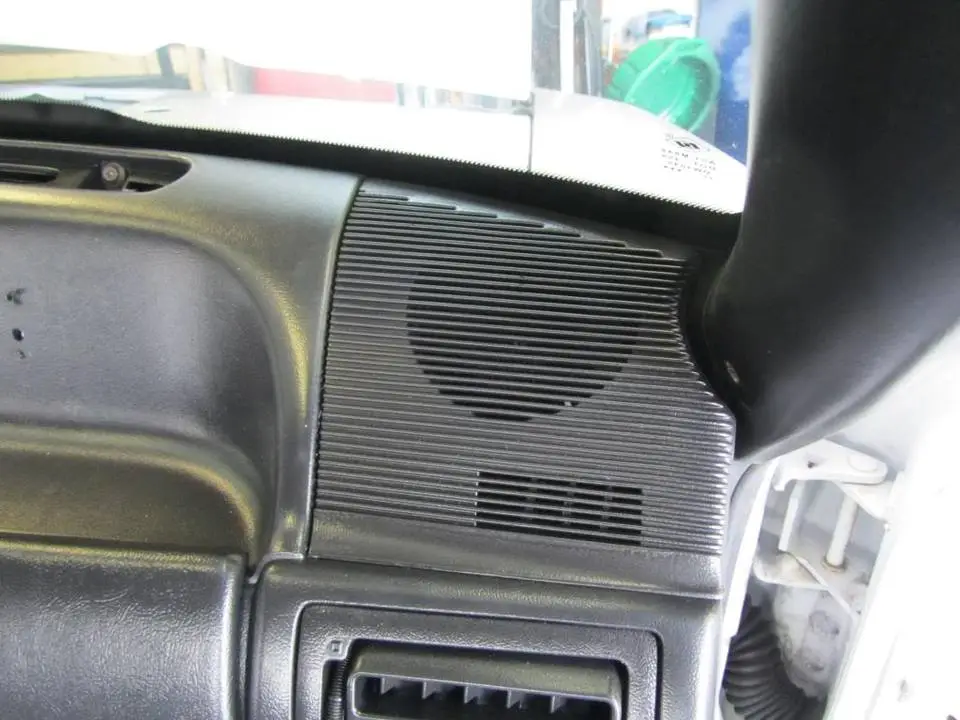

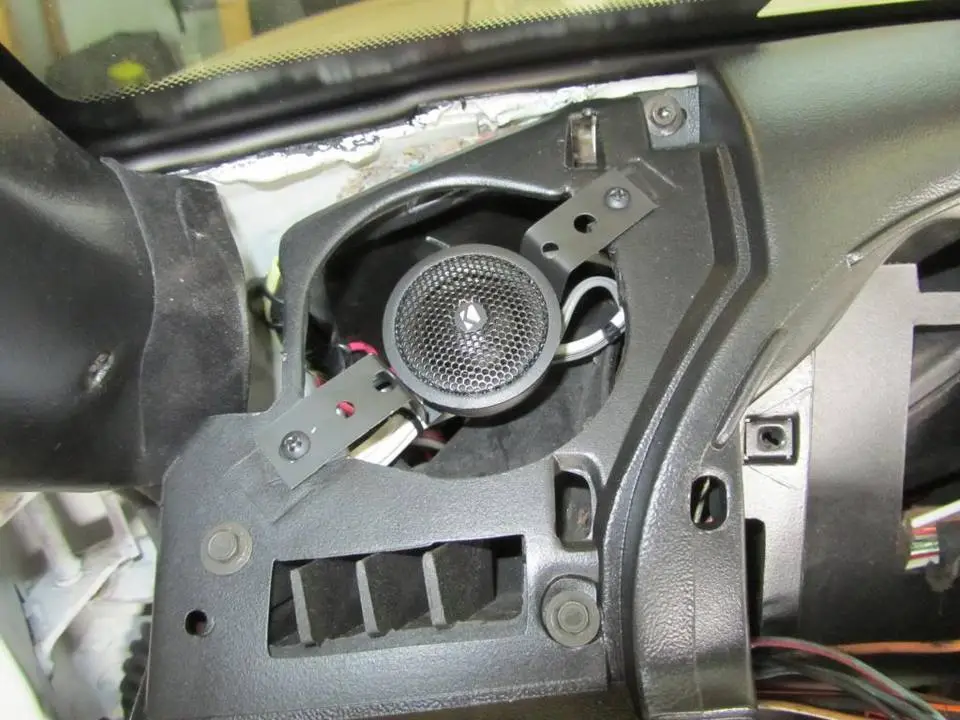

    Dash tweeters

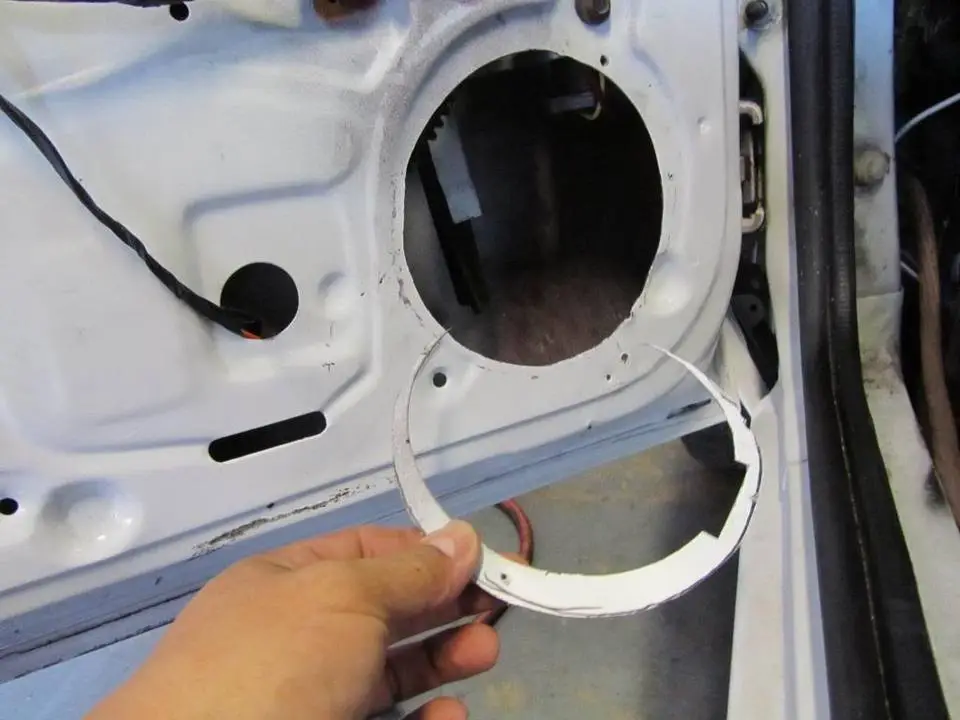

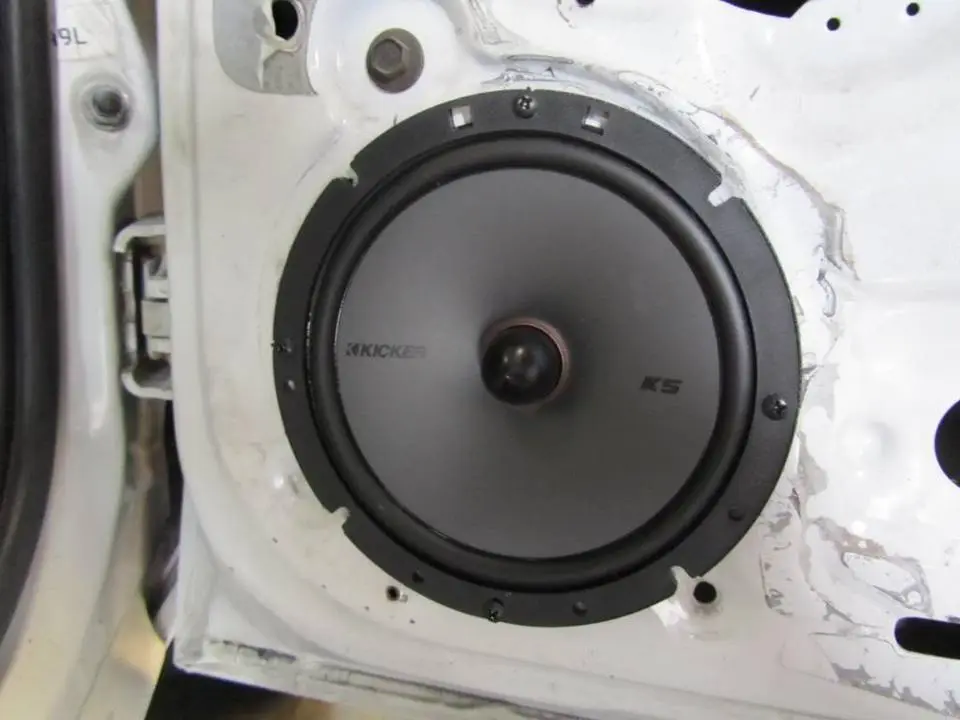

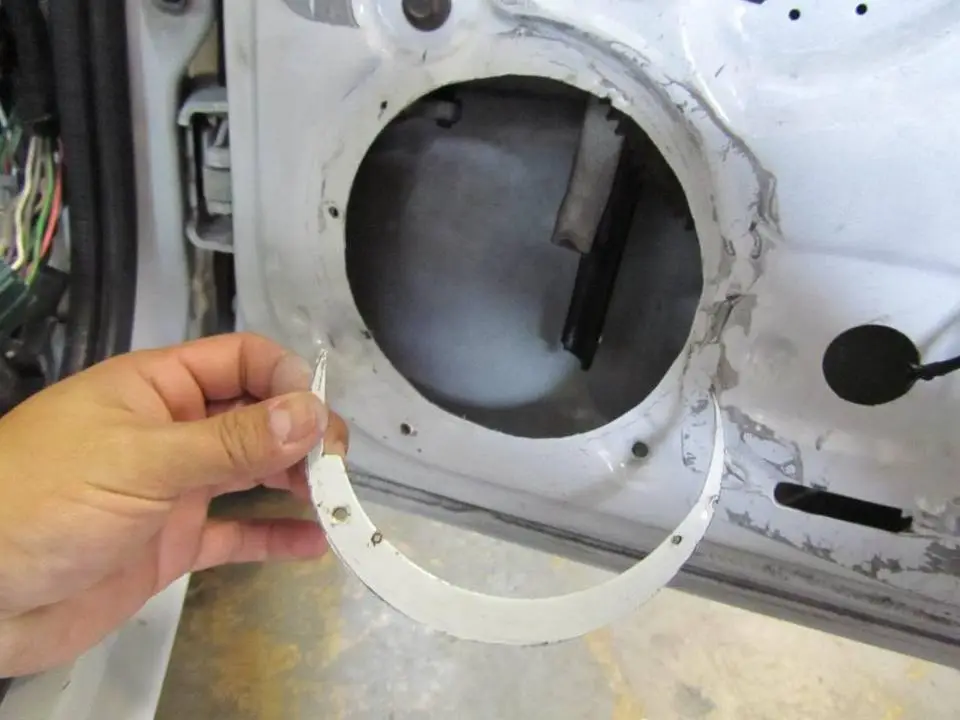

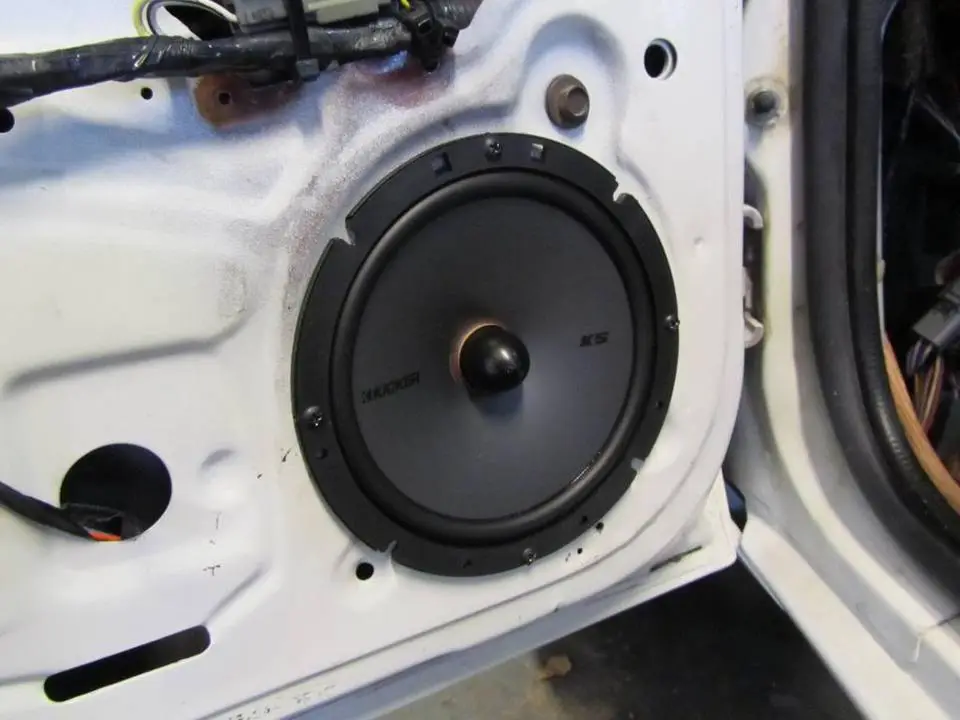

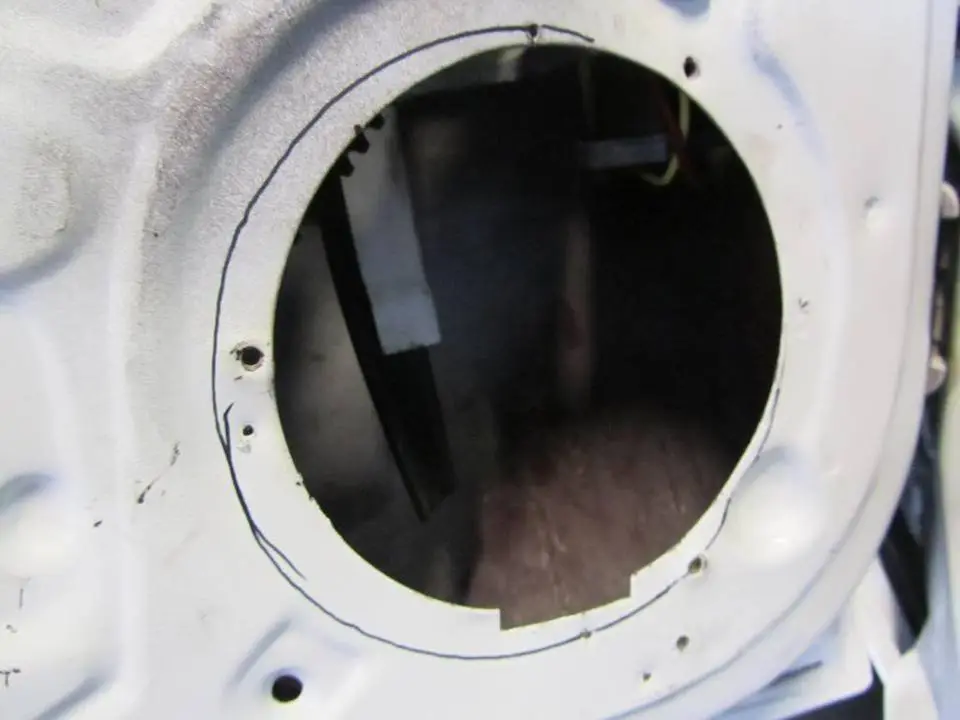

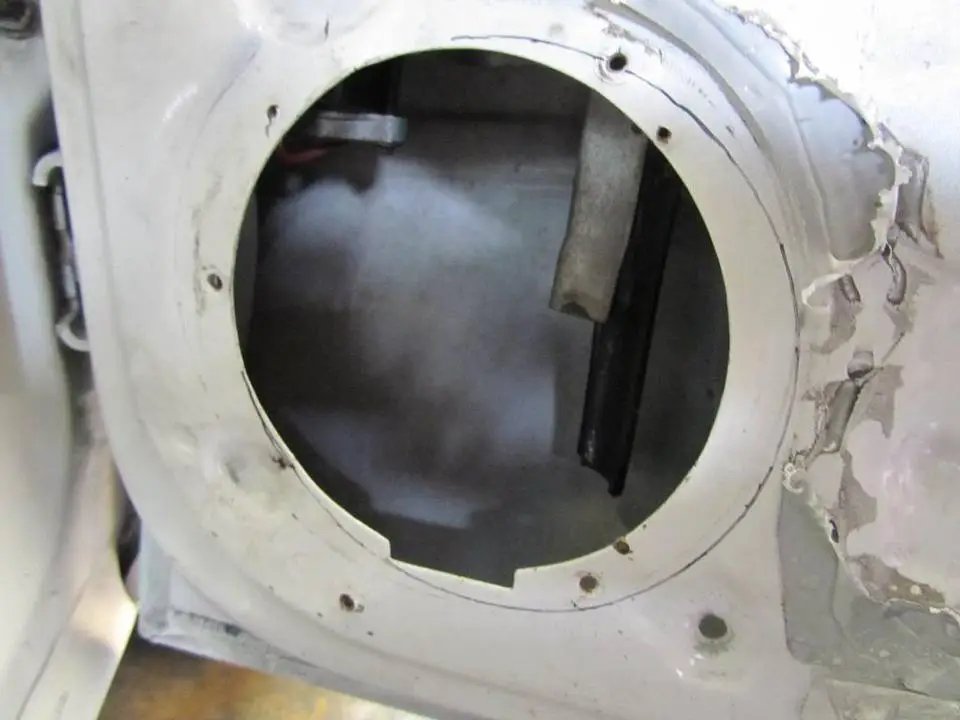

    Front door speakers required slight metal surgery, but no other mods to fit.

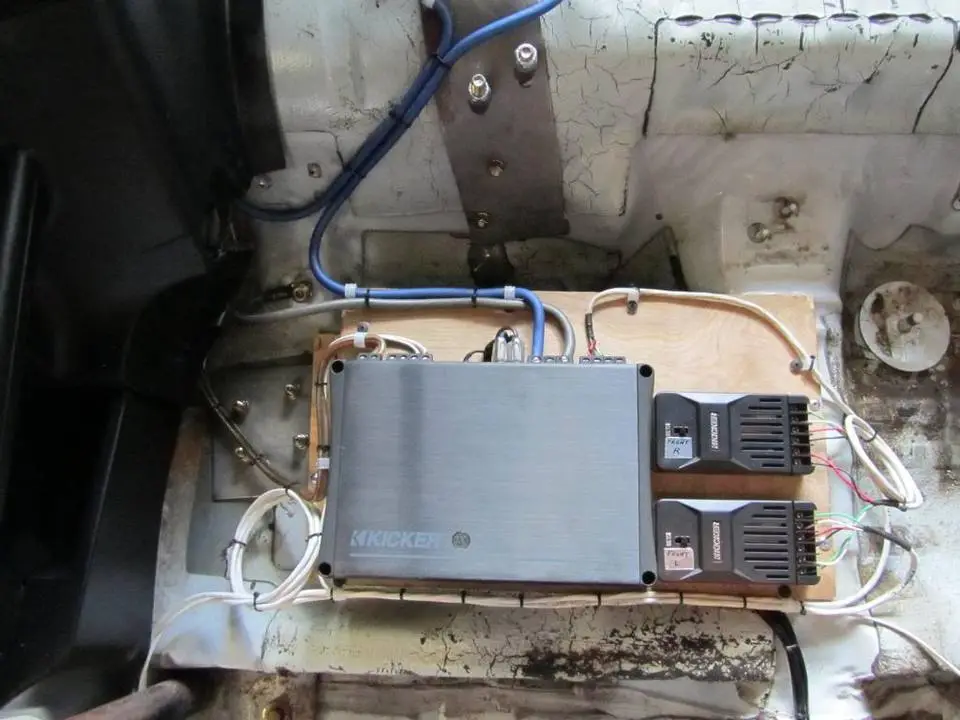

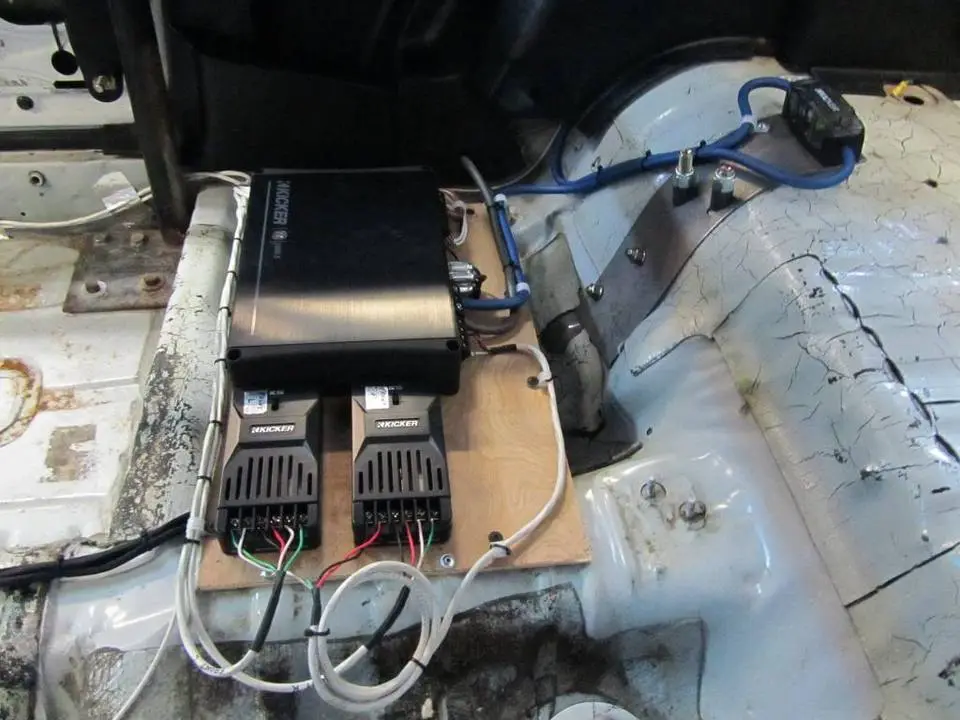

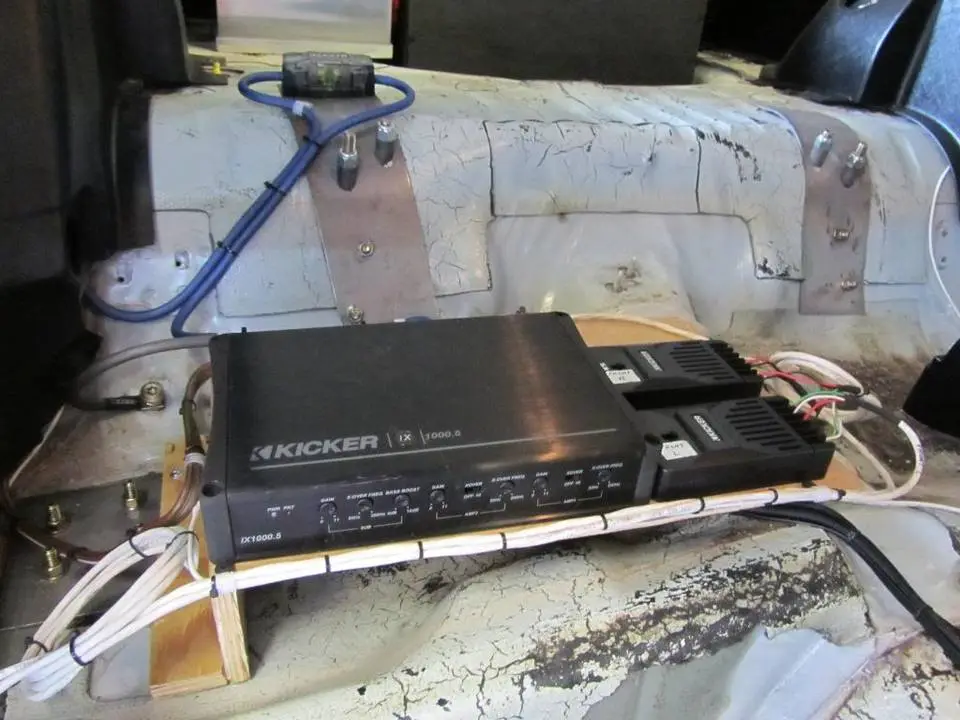

    The guts of the system

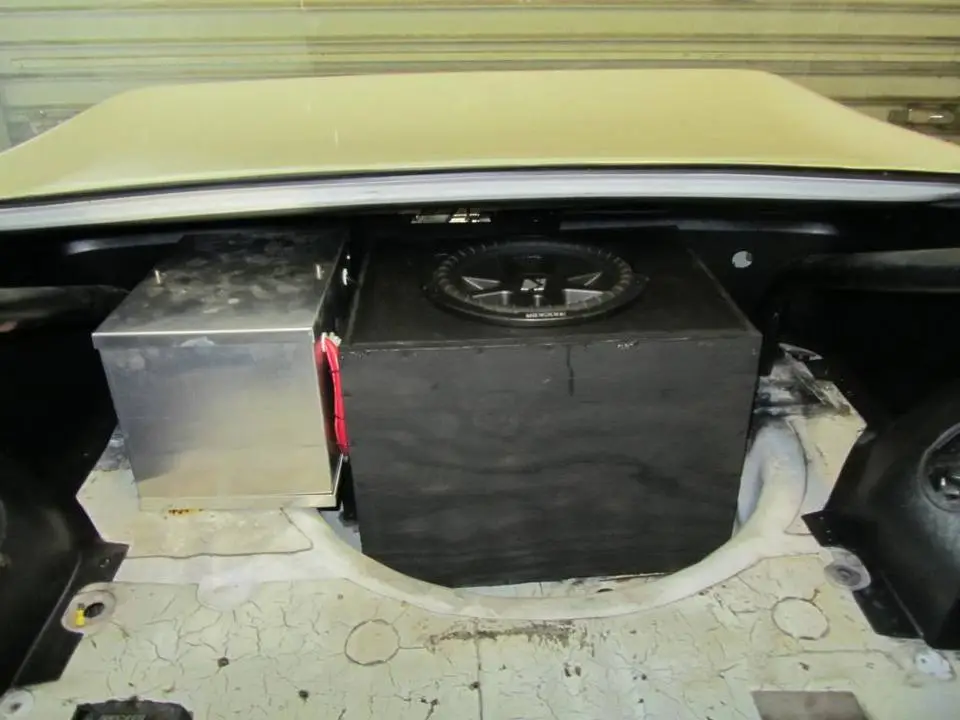

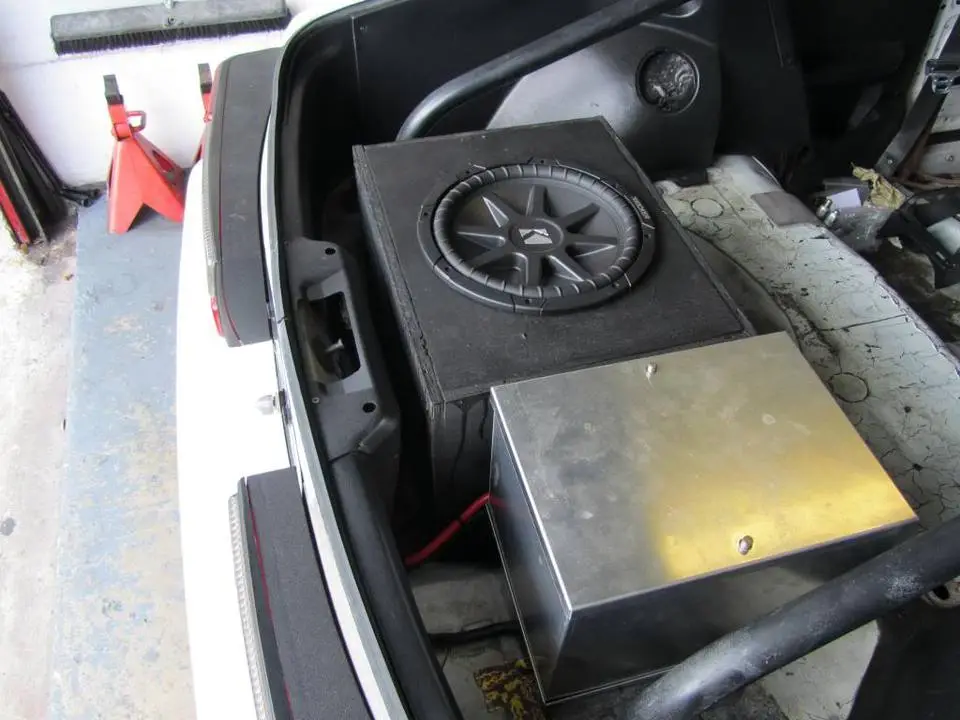

    Sub is in and tuned.

    Now, on to the custom rear seat delete, panels, and interior completion

  18. elarm1

    elarm1 Advanced Member

    Joined:
    Dec 17, 2010
    Messages:
    966
    Likes Received:
    261
    Trophy Points:
    74
    Location:
    N.Va
    Nice work! Can't wait for the finished product

  19. 89oem

    89oem Active Member

    Joined:
    Dec 18, 2013
    Messages:
    756
    Likes Received:
    165
    Trophy Points:
    54
    nice sound system

    kicker kit/setup ... can you list the items?

    rear seat speakers?

    Thanks!

  20. Fredmatic

    Premium Sponsor

    Joined:
    Dec 29, 2010
    Messages:
    58
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Palm Coast FL

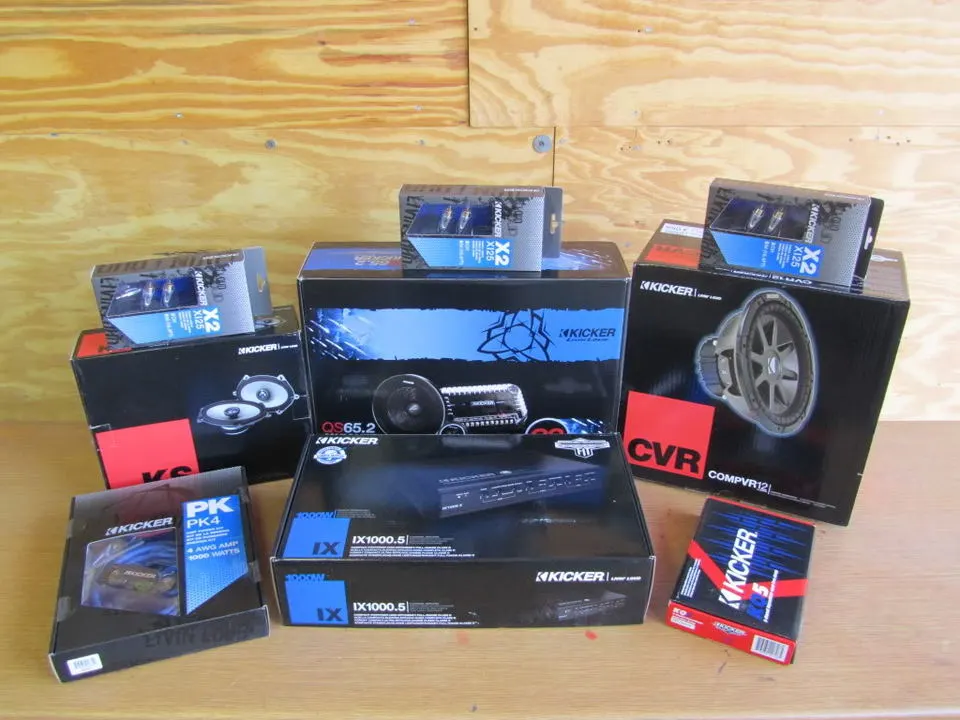

    Here is the pic of what they sent me originally. Only deviation from this was the subwoofer, and we changed front door speakers. I will find out later what the part#'s are.
