Vaccum line through Driverside fender

[mavmavv]

Where does the vaccum line that goes through the driverside fender end up? I have a few more things to check and fix before I smog this bitch.

Still have that stupid wiring gremlin and I want to make absolutely sure I dont have even the slightest vaccum leak, I have a tiny miss at idle when cold.



[jrichker]

I think that there is a vacuum reservoir up in there

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel pump, alternator, ignition & A/C wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Computer, actuator & sensor wiring
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Fuse panel layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

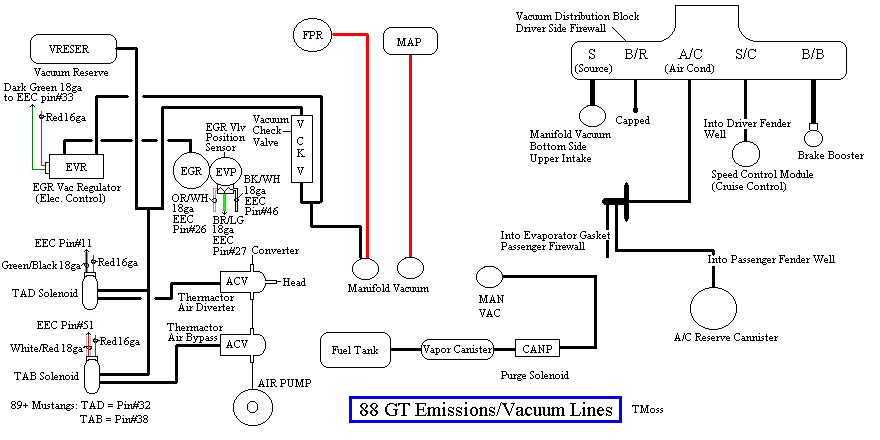

Vacuum routing
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg



[GT_Rich]

Into the driver's side fender is cruise control. Passenger side is the reservoir.



[ttop88]

Into the driver's side fender is cruise control. Passenger side is the reservoir.

Yeah, what he said.



[mavmavv]

Hrmm... I must have some funny routing, maybe it was an old washer wiper fluid line.
