Hi there!
I’m in need of the functions of the headlight switch terminals.
I need it for a project, if someone can fill me in on this, it will be much appreciated!!

what I have is an original Mustang II lightswitch, Motorcraft, I would like to know the functions of the terminals, so that I can blend it in in my project.

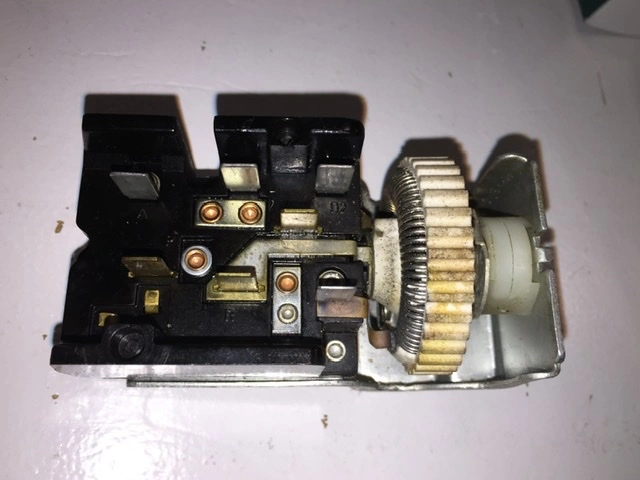

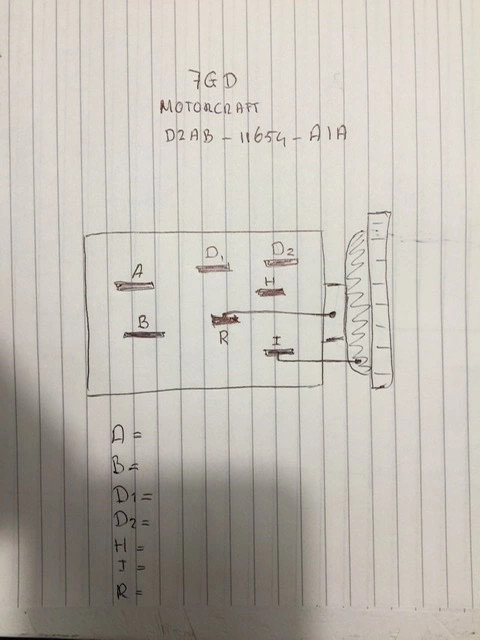

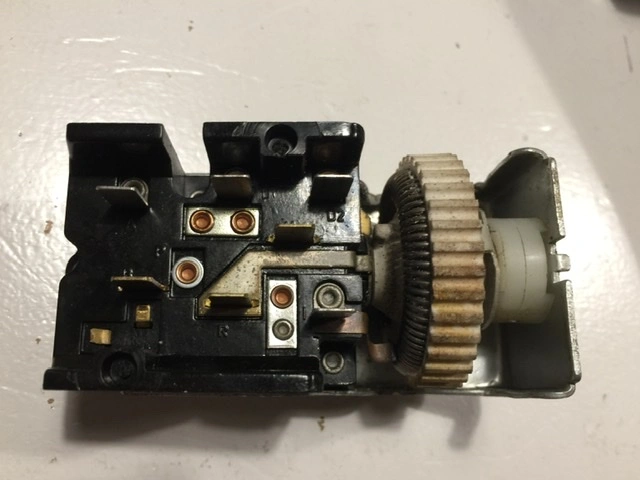

Please take a look at the pics and drawing and you’ll know what I mean.

Thanks in advance!!

grtz from Holland,
Kees


Attachments

  • A107136B-E570-4FB8-8C92-D34591A107E5.jpeg
    75.3 KB · Views: 99
  • EC364F68-E09C-43F0-9A54-43BA02712D5A.jpeg
    73.6 KB · Views: 110
  • 54CA1F5B-76C5-484B-BEF0-242EFD5CA79C.jpeg
    66.2 KB · Views: 128
  • Sponsors(?)


LILCBRA

I wish I didn't have all of these balls in the air
15 Year Member
Dec 6, 2005
3,127
2,198
174
49
Marietta, Ga
I can't speak from personal experience but I found a resource that may help out. They are looking at the 8 terminal switch but I'd imagine that the letter designations are the same. It is located in post #7 here:


Hope this helps!


Rockinkees

Member
Mar 28, 2018
40
16
18
55
Thank you!
There is some similarity, so maybe I can use this.
But if someone has it for this switch?


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,894
1,821
133
53
Oahu
Aloha to you in Holland
In your picture you list D2AB = original application was a 72 ford?

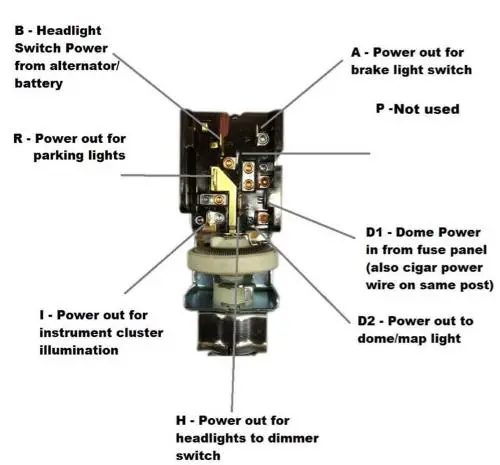

Heres a 77bronco but close



Rockinkees

Member
Mar 28, 2018
40
16
18
55
This is what I was looking for! Thank you very much!!

’72 Ford is possible, don’t know. It came out of a ‘77 Mustang. We replaced it with a new one, but the problem then wasn’t this light switch but the ignition switch. So this one is a spare I‘m going to use.
ThankS again 2Blue2, appreciate it!!


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,894
1,821
133
53
Oahu
This is what I was looking for! Thank you very much!!

Your very welcome :D :nice: ;)
It was a 77 as you said but 72 is first use of part application, lots of 65 mustang parts carry 63-64 falcon part codes from there first intended use.


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,894
1,821
133
53
Oahu
Still want a picture of your project mustang or otherwise.


Rockinkees

Member
Mar 28, 2018
40
16
18
55
Ah okay.
I assumed it was an original to the car because it said Motorcraft, and that’s Ford right?
The car it came out from is my son’s Mustang.

The project it’s going to, well, you don’t want to know....
That’s my car, a ‘57 Chevy 210 Wagon, sorry.
it needs new wiring, I make that myself and it can use a new lightswitch and we have this on the shelf.
If you want to see a Chevy, I post it here ;-)


MustangIIMatt

Easy there, this ain't a dating site.
Mod Dude
Mar 7, 2002
9,443
5,092
224
youtu.be
Ah okay.
I assumed it was an original to the car because it said Motorcraft, and that’s Ford right?
The car it came out from is my son’s Mustang.

The project it’s going to, well, you don’t want to know....
That’s my car, a ‘57 Chevy 210 Wagon, sorry.
it needs new wiring, I make that myself and it can use a new lightswitch and we have this on the shelf.
If you want to see a Chevy, I post it here ;-)
Lefler's Law #36: You gotta go with what works.

There's a reason there's a Chevy alternator and a Jeep air cleaner hat on my Mustang, they're what work. It'll be getting Toyota power steering when I re-wire the car and do the super-secret powertrain swap.

Yes we want to see the Chevy.

  • Like
Reactions: 1 user

Rockinkees

Member
Mar 28, 2018
40
16
18
55
You’re absolutely right, use what works!
I never understood the Ford - Chevy war, I think we are all in the same hobby, what difference does a name make??
So here is my project:
it has got a 350V8, TH350 automatic, powersteering and powerbrakes with discs up front.
But, to build this in the Netherlands you must have a lot of money or being creative!
That last one is me...

221B71F0-8DB0-436C-9B5D-E06A9BA773C1.jpeg 049057B5-D673-42C7-9CEE-6C9CDA94D073.jpeg B80D5C8B-688A-475C-AB15-D844E06D19EC.jpeg

  • Like
Reactions: 1 users

LILCBRA

I wish I didn't have all of these balls in the air
15 Year Member
Dec 6, 2005
3,127
2,198
174
49
Marietta, Ga
To build them here in the states requires the same - a lot of money or an abundance of creativity. They're all expensive! :rlaugh:
Speaking from a little bit of experience as I have a 55 Chevy 150 wagon:


While the pic is over 12 years old my wagon hasn't changed. I'm hopeful that I can actually begin work on it in the next couple years. Nice to see someone else working on an old long roof! :nice:


Rockinkees

Member
Mar 28, 2018
40
16
18
55
Nice ’55 Handyman!
These Trifives are indeed expensive. You can go all the way on them!! But I am not looking to build a showcar, I build a driver, just like my old ‘59 Chevy Apache.
Drove that truck daily. I was the only lunatic in my town :)
