New Member - Body wiring Issues

Frankjbwr1

Member
Oct 4, 2019
3
1
13
70
Trenton NJ

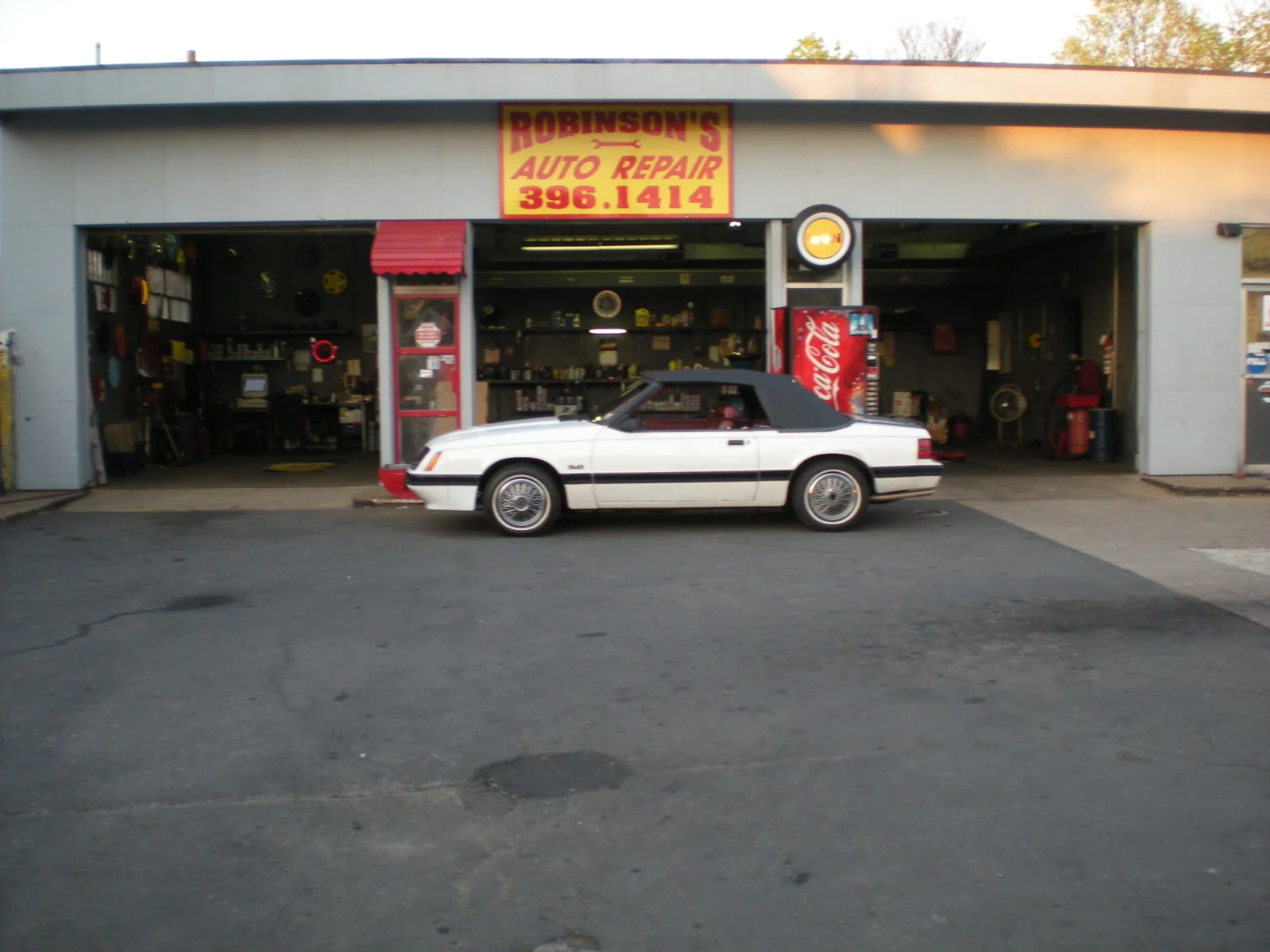

Just turned 70 today. Wow! Found this web page looking for a wiring diagram for my 1986 mustang l/x convertible with a 5.0 Just got it back from the body shop they really messed up a lot of stuff. When I hit the switch for passenger f/t window the door lock actuator makes noise window won't go down. It did before. They put a used door on drivers side and I guess the messed up the wires. Don't want it back in that shop so little by little I will figure it out. Retired mechanic.


Attachments

  • Like
Reactions: General karthief
  • Sponsors(?)


Olivethefet

Slap me as well as point and laugh
May 17, 2018
1,709
1,122
123
39
Enterprise AL

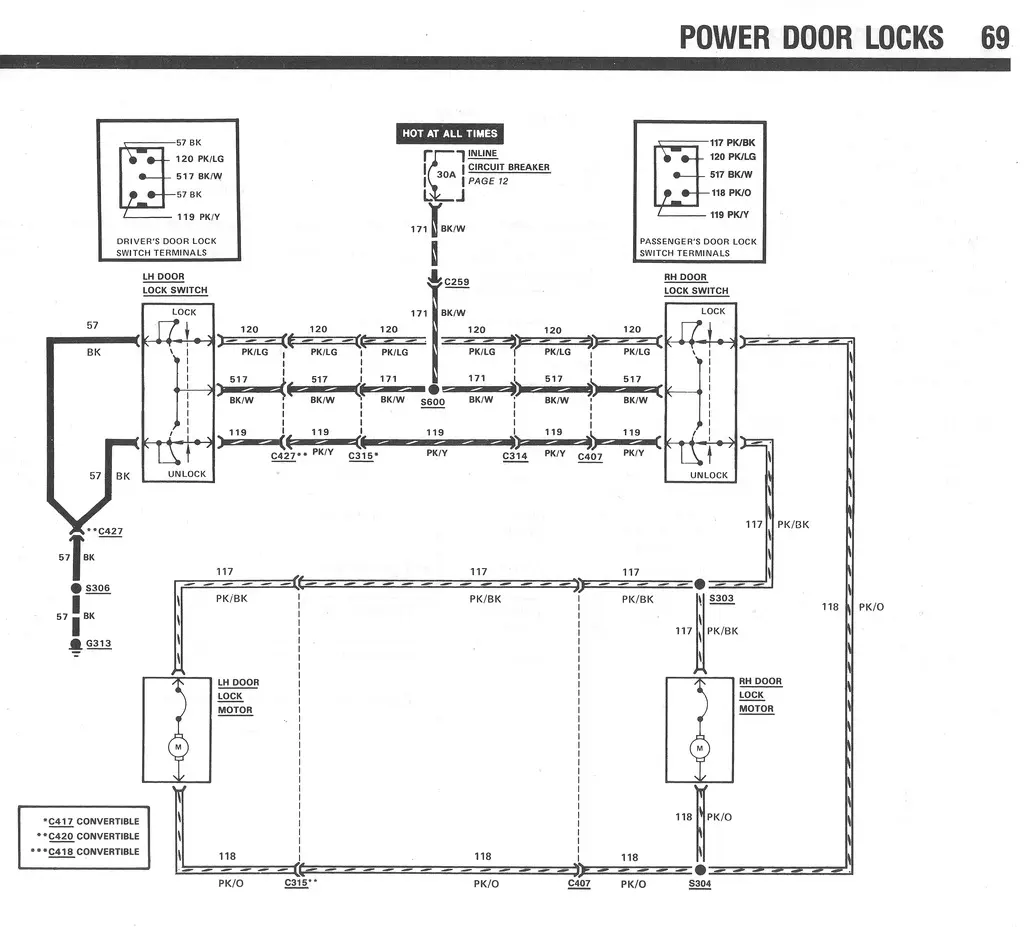

I have a 92 that I recently installed remote keyless entry on. I had install relays in the wiring harness. I'm not sure if the wiring for the 86 is the same or that similar, but I though this might help you out. Good luck.



General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
16,940
5,415
193
polk county florida
A lot of wiring changes between 86 and 92.
Veryuseful.com has some diagrams but really you may need to get an assembly manual.
Here is a wiring manual from ebay


Gs87GT

Active Member
Sep 25, 2019
213
65
38
Penn's Woods
Happy birthday! Lord willing l will still be able to turn wrenches if I make it to 70.

Sorry for your issues but if your a retired tech you'll get it ironed out. You and I come from an era when techs could actually diagnose issues (without a laptop and just swap parts)


evintho

Member
Nov 12, 2003
294
11
18
64
Santa Rosa, CA.
Visit site
Happy birthday!
This is what you need. Factory wiring diagram with the fold out pages. Ford techs used 'em back in the day. Cheaper than the EVTM and much more thorough too.
