Fox Passenger Window Not Working And Door Lock Problem

0690stangGT

New Member
Feb 23, 2015
3
0
1
29
A couple of days ago my passenger window decided to stop rolling down. The switch on the drivers side doesn't work at all, but the switch on the passenger side only works when you push up. You can hear and feel the motor engage. I've taken the door panel off and confirmed that the motor does work, at least going up. I've tried switching the switches from the working drivers side window (as the drivers window works perfectly) and still nothing. Suggestions? Also the door locks don't work when the drivers door is open. Once I open the door more than a quarter of the way the locks stop responding. Upon discovering this I tried to lock and unlock the doors from the passengers side lock switch, the passengers side stops working too when the drivers door is open. But the unlock switches work when the drivers door is closed and passenger door is open. Maybe some binding of wires in the driver door that have caused both problems?

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,350
2,823
234
74
Dublin GA
lowendmac.com
Diagrams courtesy of Tmoss & Stang&2birds

Power widows diagram


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

T5 Cutaway showing T5 internal parts
http://www.veryuseful.com/mustang/tech/engine/images/5_Speed_Cutaway_Illustrated.jpg

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg

  • Like
Reactions: TROY7

TROY7

Member
Feb 23, 2015
37
3
8
any where I roam
A couple of days ago my passenger window decided to stop rolling down. The switch on the drivers side doesn't work at all, but the switch on the passenger side only works when you push up. You can hear and feel the motor engage. I've taken the door panel off and confirmed that the motor does work, at least going up. I've tried switching the switches from the working drivers side window (as the drivers window works perfectly) and still nothing. Suggestions? Also the door locks don't work when the drivers door is open. Once I open the door more than a quarter of the way the locks stop responding. Upon discovering this I tried to lock and unlock the doors from the passengers side lock switch, the passengers side stops working too when the drivers door is open. But the unlock switches work when the drivers door is closed and passenger door is open. Maybe some binding of wires in the driver door that have caused both problems?
I had the same issue with a 97 Cobra found broken wires inside the boot between the body and the door


TROY7

Member
Feb 23, 2015
37
3
8
any where I roam
That's what I'm fearing. Anyway to easily get at it without cutting it off?

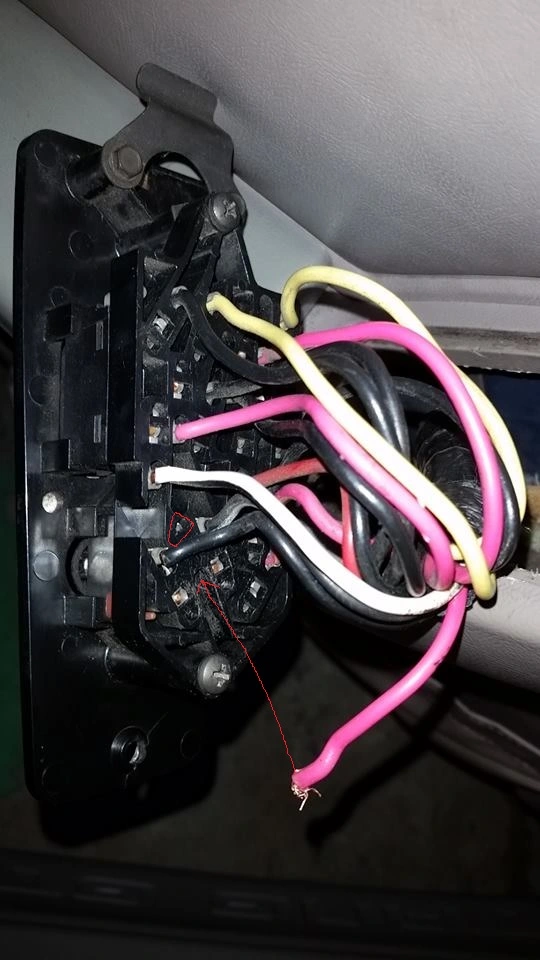

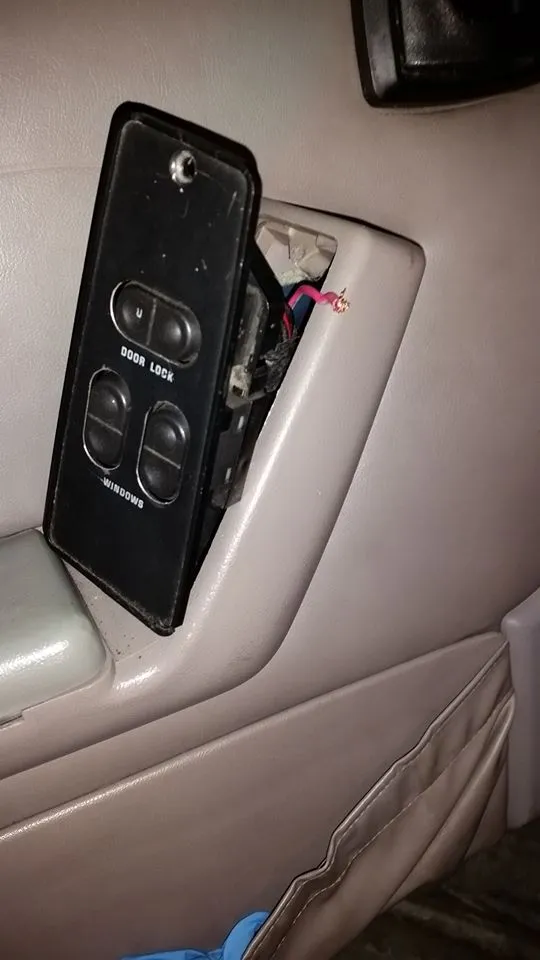

I was in the process of changing the door, I had to remove all the wires from the switches in the door , when I took the boot out that's when I found the broken wires...it's not all that difficult to remove the door just unbolt the hinges, just be sure to realign it when you put it back on


0690stangGT

New Member
Feb 23, 2015
3
0
1
29
Ya just went into the garage and started pressing against the wires in the boot. And both the locks and windows started working. Door removal is pretty easy, at least removing one from the junk yard was haha. But now worried about getting at the wires and fixing it. Thank a lot!


TROY7

Member
Feb 23, 2015
37
3
8
any where I roam
Ya just went into the garage and started pressing against the wires in the boot. And both the locks and windows started working. Door removal is pretty easy, at least removing one from the junk yard was haha. But now worried about getting at the wires and fixing it. Thank a lot!
Glad to help, now if I can just figure out my sons 96 mustang electrical issues ....
