Build Thread 1990 Lx 5.0 Restomod Build

Discussion in 'Fox 5.0 Mustang Tech' started by boostfrk, Aug 6, 2012.

  1. 88LX5.Oh

    88LX5.Oh Advanced Member

    Joined:
    Dec 30, 2011
    Messages:
    1,442
    Likes Received:
    206
    Trophy Points:
    74
    Location:
    Arkansas
    Hey you can get a Summit brand 70 mm EGR spacer for like $50 or something like that. That's not too bad of a price for one really.

    #241
  2. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    Oh I will. Guaran-freaking-teed. Unfortunately I'm adding multiple power adders at once which is almost sacrilegious.

    Shorty headers, ported lower intake, 70mm MAF, 65mm throttle body with matched EGR spacer. Will be hard to tell how much each modification helped, but I'm hoping the combination of all the mods will be pretty nice.

    #242
  3. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    I think I might have found a guy relatively local to do it. Waiting to hear back.

    #243
  4. tca7291

    tca7291 I can see your wieners.

    Joined:
    Sep 1, 2011
    Messages:
    1,765
    Likes Received:
    543
    Trophy Points:
    133
    Location:
    Raleigh, NC
    Break out the jig-saw!!!:p

    #244
    88LX5.Oh likes this.
  5. FoxMustangLvr

    FoxMustangLvr Mustang Master

    Joined:
    Oct 14, 2012
    Messages:
    1,582
    Likes Received:
    586
    Trophy Points:
    124
    Location:
    Spokane, Wa
    With all those mods going in pretty much at the same time I think you're going to have a smile from ear to ear the first time you goose it down the street! You probably just bolted on a minimum of 20+ hp so you should see be a big difference in sound and acceleration.

    #245
  6. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    So, perhaps a slight change of plans. The throttle body came off OK, along with gobs and gobs of sludge from the coolant line but the EGR spacer will not budge. At all. I'm fearful of breaking off the studs from the intake as I've heard happening so I've put it back together for the time being. I measured the throttle body and EGR spacer diameter and all are 62mm:shrug:.

    For an extra 3mm I didn't want to cause myself more problems than is worth it. So, I might just install the MAF and leave it at that.

    Now I just have to sell the Explorer throttle body...

    #246
  7. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 11, 2011
    Messages:
    2,057
    Likes Received:
    400
    Trophy Points:
    104
    Location:
    Waldorf, MD
    You can use a double nut method tighten them against one another and that will make the stud like a bolt and you can take the stud out then there will be no problem with getting her out

    #247
    88LX5.Oh likes this.
  8. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado

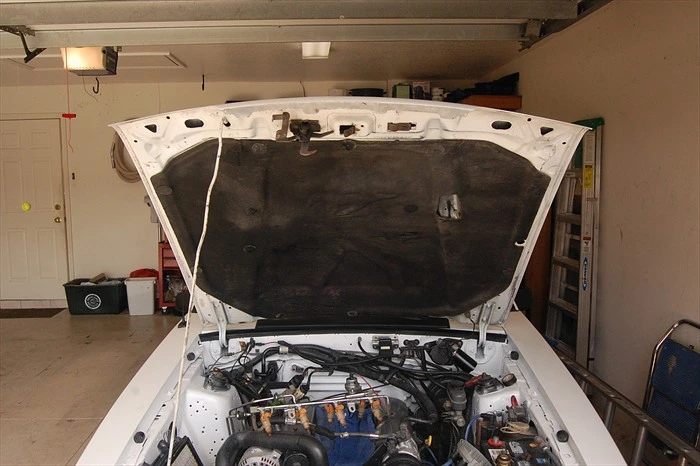

    Hood insulation liner installed from yesterday's junkyard trip. Not perfect, but for $5.99 you can't beat it.

    0_0_860c8e3ba28771be30f0bd579ef79675_1

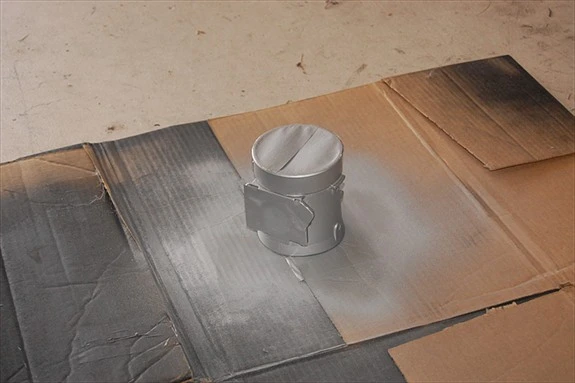

    MAF modified for slip connections and getting a fresh coat of paint

    0_0_74f6cf4f759a28c4df73e561b2b1d64a_1

    #248
  9. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    I thought about this and then read several instances of people snapping the stud off flush with the intake. The more I thought about it, the more I questioned if it was really worth it.

    #249
  10. FoxMustangLvr

    FoxMustangLvr Mustang Master

    Joined:
    Oct 14, 2012
    Messages:
    1,582
    Likes Received:
    586
    Trophy Points:
    124
    Location:
    Spokane, Wa

    Captain Obvious says NO!! It's not worth it. :nono:

    #250
  11. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 11, 2011
    Messages:
    2,057
    Likes Received:
    400
    Trophy Points:
    104
    Location:
    Waldorf, MD
    Put lube on it jeez don't be scared if it breaks drill it out and re thread and thread a bushing in it

    #251
  12. FoxMustangLvr

    FoxMustangLvr Mustang Master

    Joined:
    Oct 14, 2012
    Messages:
    1,582
    Likes Received:
    586
    Trophy Points:
    124
    Location:
    Spokane, Wa
    It's nothing to be scared of for sure but I don't think he wants to deal with the potential headache of it just for gaining only a handful of millimeters.

    #252
  13. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado
    I knew my reponse would illicit this kind of response. :cool: I've got several friends that are like that; back when we were all younger they were pulling and re-building their engines, boosting them, then blowing them up a couple months later. Rinse and repeat. I don't know why but I'm not built like that. I hate breaking s*** and having to fix it, especially when I don't always have the right tools to do it.

    More power to those kinds of people though; I wish I was more like that.

    #253
  14. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 11, 2011
    Messages:
    2,057
    Likes Received:
    400
    Trophy Points:
    104
    Location:
    Waldorf, MD
    Haha I was only saying I mean its not hard and ppl who break studs probably bear down on them to much at one time go a little bit and lube it some go a little lube it some

    #254
  15. tca7291

    tca7291 I can see your wieners.

    Joined:
    Sep 1, 2011
    Messages:
    1,765
    Likes Received:
    543
    Trophy Points:
    133
    Location:
    Raleigh, NC
    That's what she said!!!





    Sorry, couldn't help myself...:nonono:

    #255
    MikeH686 likes this.
  16. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 11, 2011
    Messages:
    2,057
    Likes Received:
    400
    Trophy Points:
    104
    Location:
    Waldorf, MD
    Giggity

    #256
  17. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado

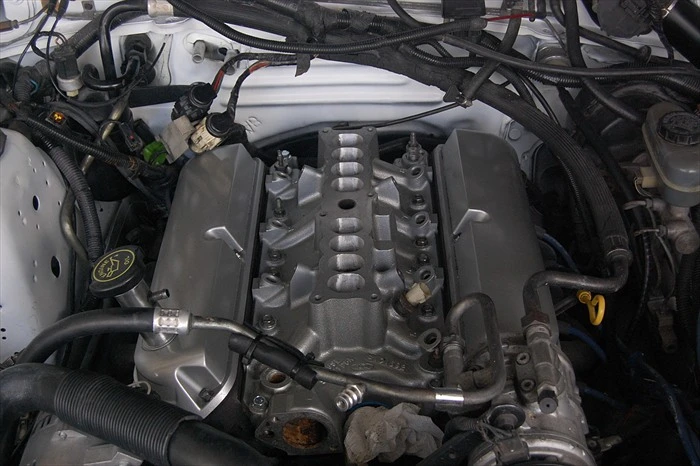

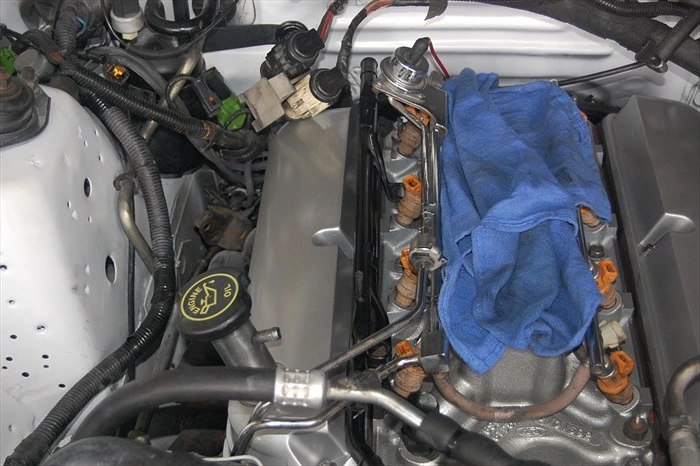

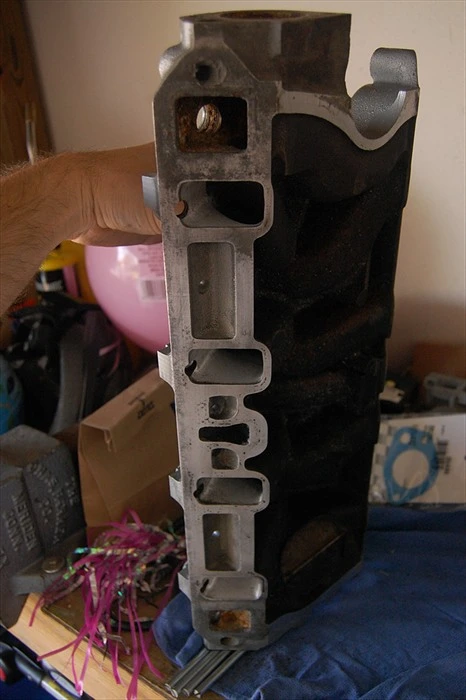

    Finally have had some time at home without having to travel for work. I got the intake surfaces cleaned as best I could and got the lower intake installed last Friday. I used the trick of installing (4) bolts with the heads cut off to help guide the lower intake into place so the gaskets didn't move. Worked great!

    0_0_84939cd4ea841f4fcb0b1cbb153c9908_1

    0_0_4572dbe4426413593dd4989635d96015_1

    0_0_4b287a4295d155bf518550251460953d_1

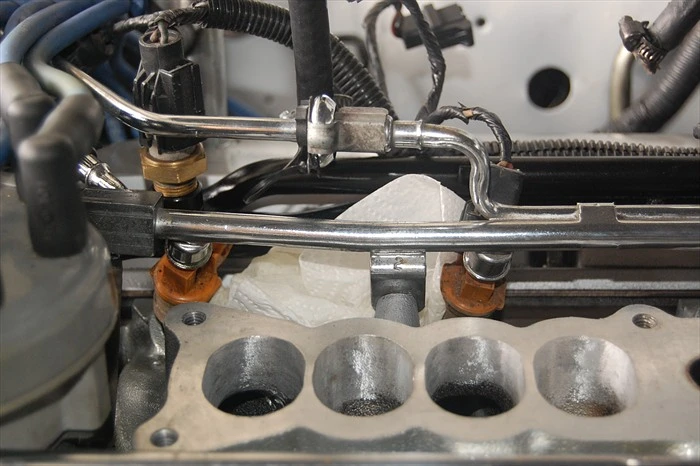

    I got the upper installed yesterday, but didn't think to prime the fuel system before I bolted everything up and found out I had an injector leaking at the fuel rail. Looking at it some more I see that it's bent, up and towards the passenger's side slightly. This was causing the injector for #1 not to seat all the way in the fuel rail since everything wasn't lined up. So....I took the upper back off and spent this morning convincing the passenger side fuel rail to bend back to it's original form, or close, and get the injector to seat properly. I went ahead and replaced the upper o-rings on the passenger side injectors since I kept pulling them in and out of the fuel rail.

    0_0_9baab04046d46cca3aa00a64194e8b56_1

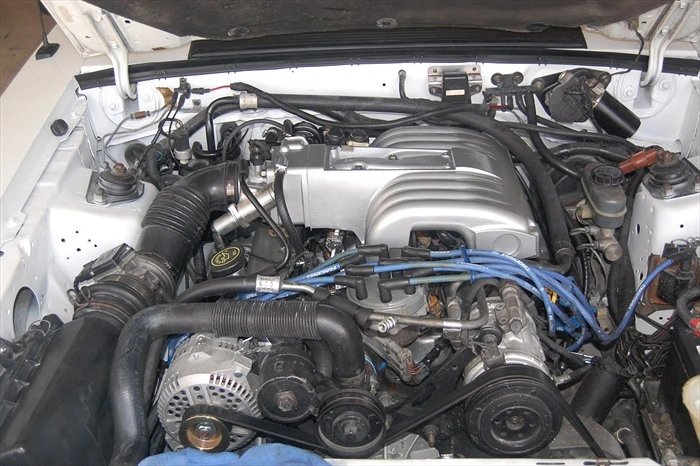

    All the major components bolted back up; fuel rails (properly now), upper intake manifold, wiring harnesses, connectors/plugs, etc. Still have some miscellaneous items like the distributor boot and 5.0 intake plate, but functionally it works. Car ran for about 5 minutes this afternoon; no leaks except where the hose connects to the heater tube from the EGR spacer. Just need to tighten the clamp a bit more I think.

    0_0_5f999d683dc5e2c64488444079846d43_1

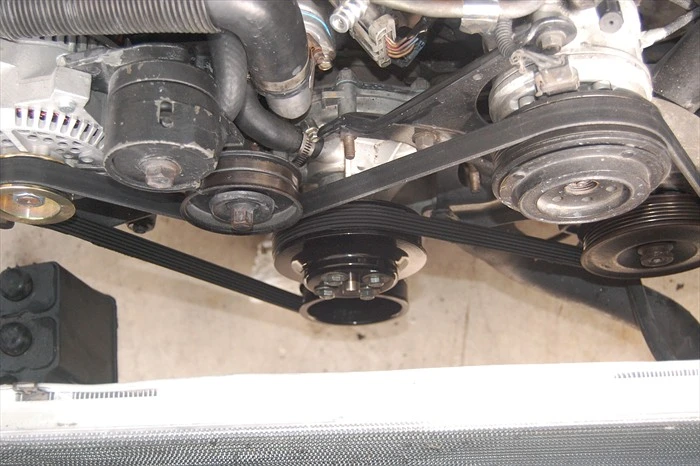

    Lastly, with the fan removed I swapped on a set of underdrive pulleys for the crank and water pump. The lip of my existing crank pulley was bent so I figured why not get UDP's.

    0_0_6e41fa6baa8eee821873ea2d44f6402c_1

    #257
  18. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor
    Admin Dude

    Joined:
    Jan 4, 1985
    Messages:
    14,870
    Likes Received:
    1,524
    Trophy Points:
    174
    Location:
    Box behind Walmart
    Lookin good man. Not a fan of UDPs but let me know how they do.

    #258
  19. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado

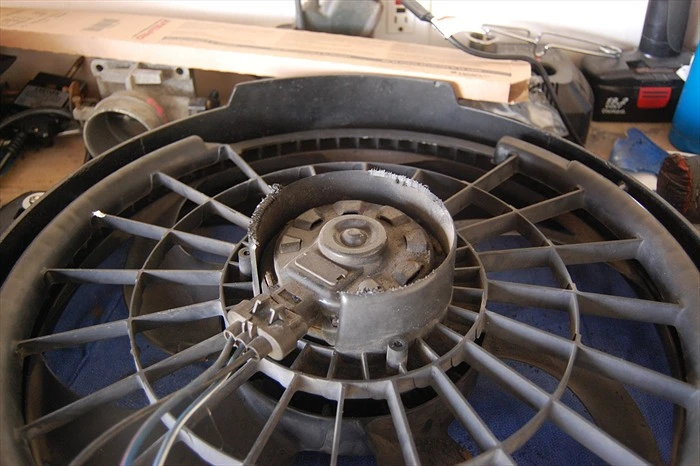

    Finally finished wiring up the new fan this morning, and got the fan itself installed with the shroud. I had a good 1/4"-1/2" clearance between the fan motor and the water pump pulley; that was after the dremmeled out part of the cover that went over the fan motor.

    0_0_85d446ce9f7906dd549f7e043b82e672_1

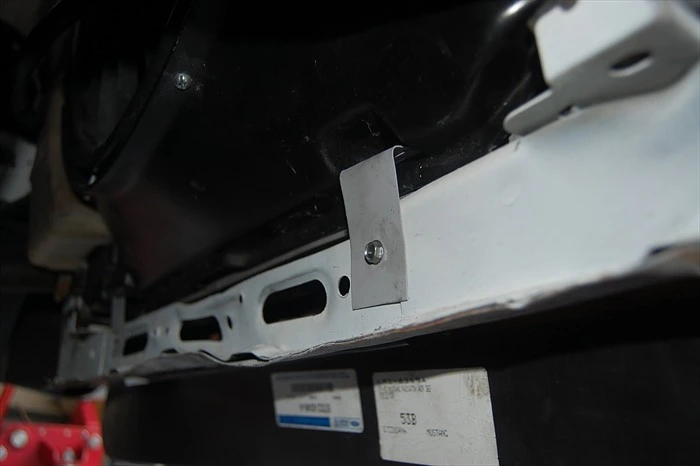

    After I got the top of the fan bolted to the radiator the bottom was still loose and could move a little bit. I fabbed up some L-shaped brackets that I could attach to the lower radiator support and then they have a rolled edge that rests against the fan shroud and prevents it from moving. With all that clearance between the WP pulley and fan motor :D I wanted to make sure the fan didn't move.

    0_0_19b94474565575aa1d766dfa0b656ac9_1

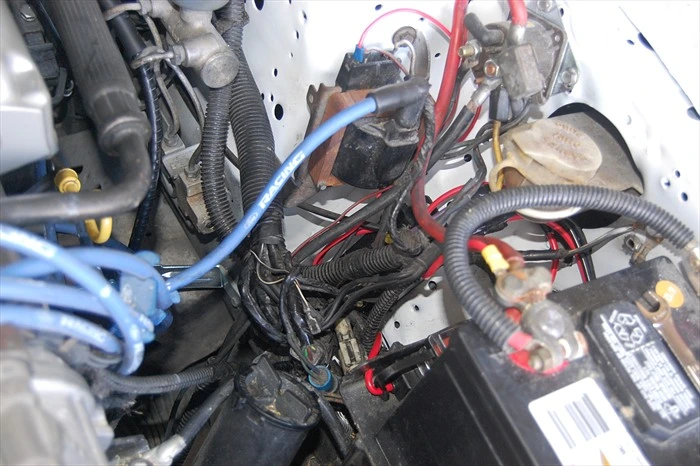

    I tucked the FAL controller underneath the bird's nest of wires by the starter solenoid and coil. The 40A fuse is mounted to the bottom of the battery tray in between the battery and the washer reservoir. Anyone have a coil cover laying around they're not using?:cool:

    0_0_eb6cbe309a3abed33a5d50c246402193_1

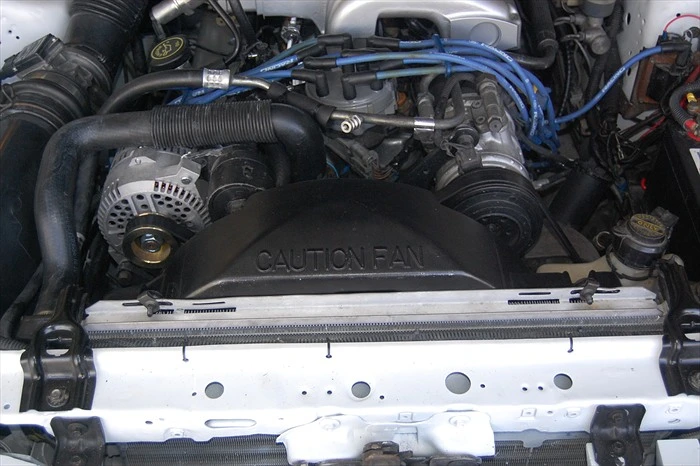

    Fan installed
    0_0_12a1fe51f0a749388b72bdd893477dcd_1

    #259
  20. boostfrk

    boostfrk Active Member

    Joined:
    Aug 30, 2011
    Messages:
    685
    Likes Received:
    58
    Trophy Points:
    29
    Location:
    Colorado

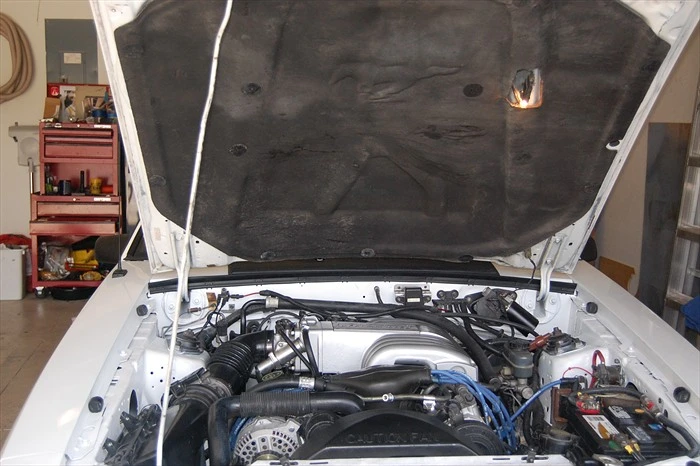

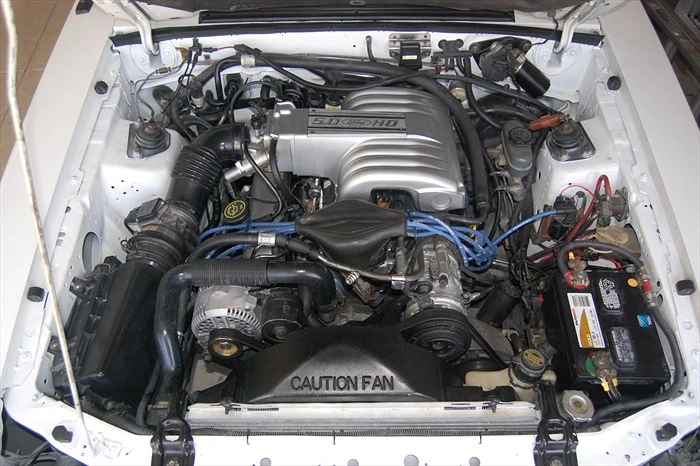

    With that, the engine bay should be completed. What's that you say, it looks stock? Thank you very much. I even found the underhood light in working order.

    0_0_9348977060a33269730f02e8e56fd385_1

    0_0_5da3bef8c8df632b7b938488755fc527_1
