DIY Shifter T-Handle ( 20 Pix )

[Casey4s]

It was rainig outside this afternoon so I decided to mak a "T" handle for my recently installed TCI ratchet shifter. I looked around the garage and found some scraps of clear and black plexi glass. I glued them together with Contact cement and shaped the handle when the glue set.

This is what I wanted it to more or less look like.

View attachment 256605

The plexi scraps....

View attachment 256606

Apply the Cement...

View attachment 256607


Clamp till dry...

View attachment 256608

While the glue was setting I made a wood mock-up...

View attachment 256609

Traced the shape onto the plexy bundle...

View attachment 256610

Drilled out the finger notches..

View attachment 256611

View attachment 256612

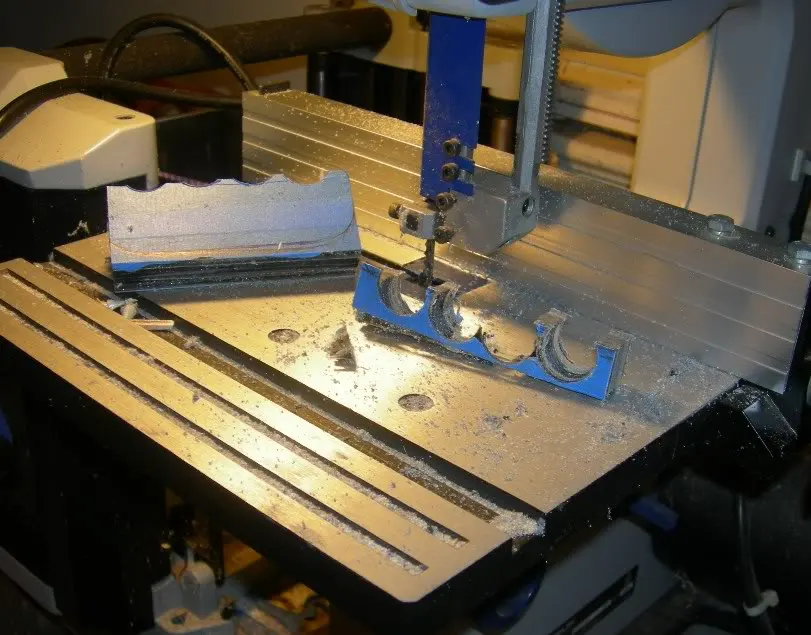

Cut the basic shape on the band saw...

Shaping on the belt sander...

View attachment 256614

And a small drum sander...

View attachment 256615

Hand sanded with 320 grit and 600 grit wet paper..

View attachment 256616

Rubbing compound, then polishing comnpound...

View attachment 256617


A final buffing...

View attachment 256618

Drilled the hole to mount on the shifter shaft...

View attachment 256619

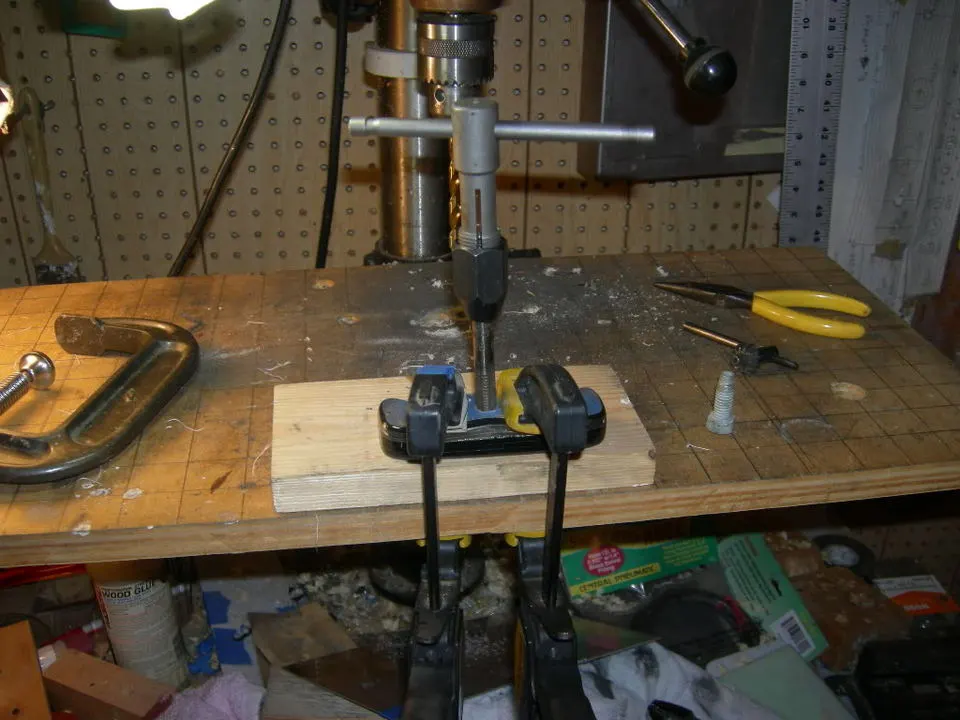

Tapped the hole (3/8 - 16)

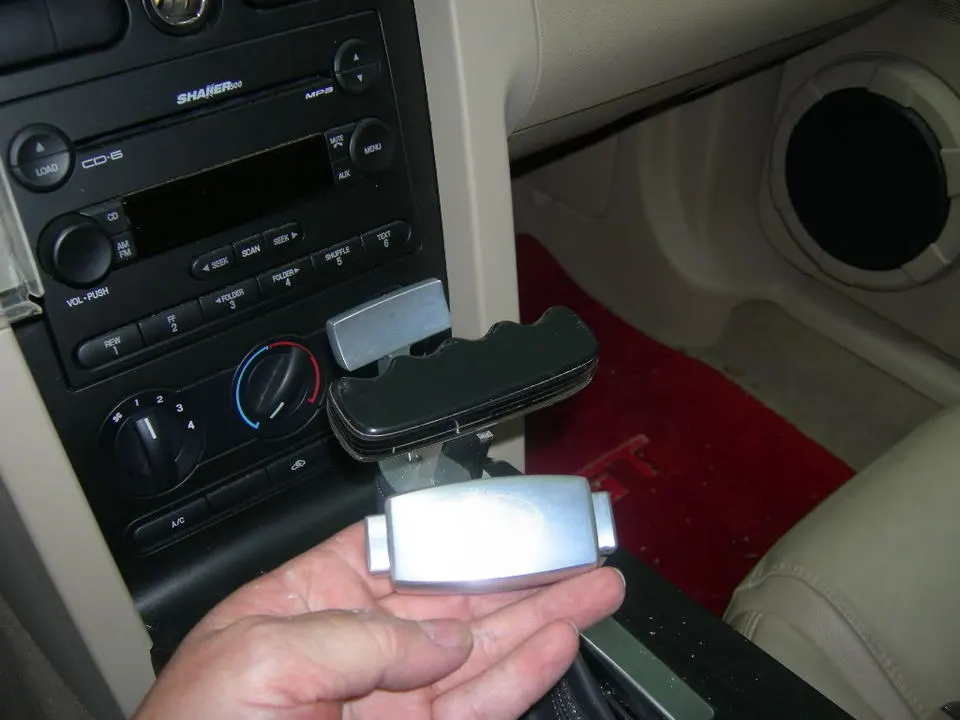

Finished product...

View attachment 256621


View attachment 256622

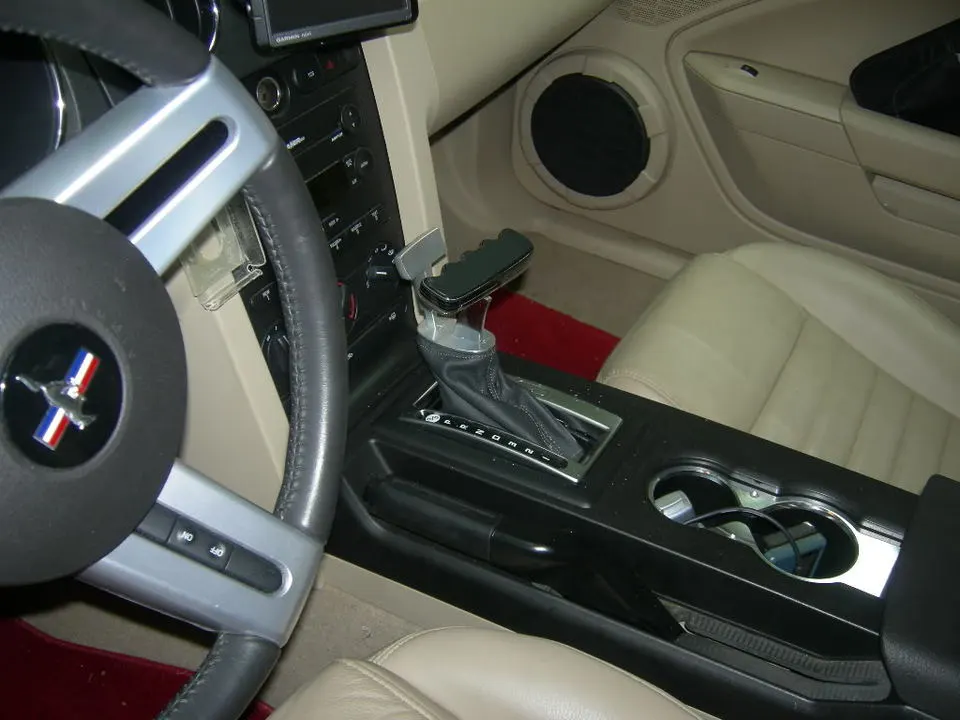

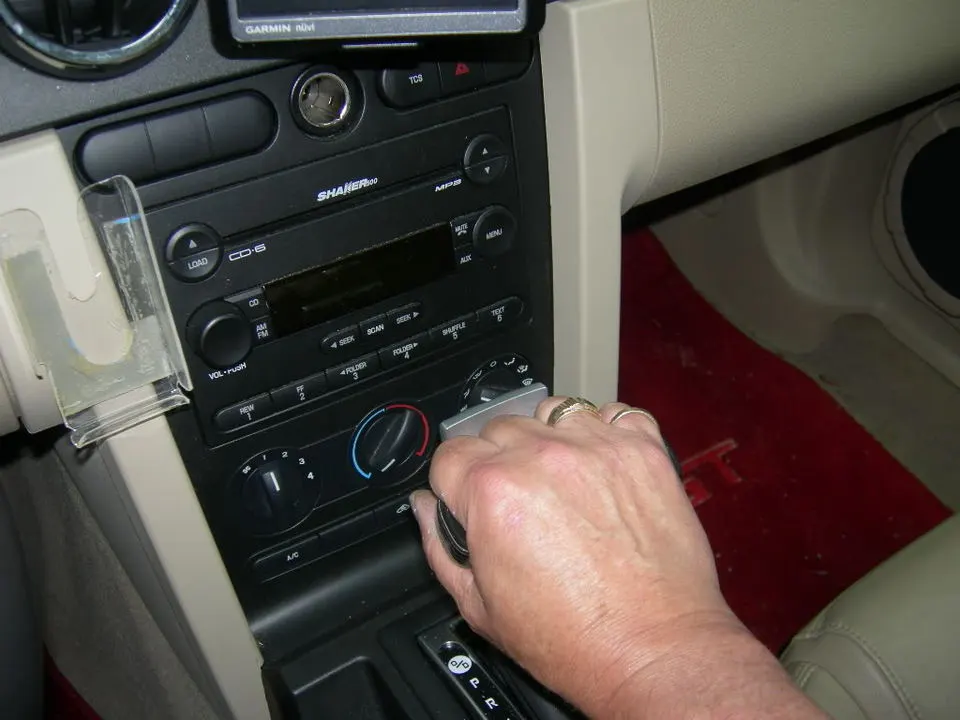

Finall installed in the car...

There are layers of Black and Clear plexi to make the thickness I wanted.

Took me about 3 hours on a rainy day...

Not perfect, but clos enough.



[autumn_again]

pretty sweet, although i was kinda hoping you were going for this style.

definitely a nice touch though



[Casey4s]

I did think about that style but I didn't think the plexi would hold totegher tapped in the end like that. But if I decide to install a "line lock" I might make another one with a button someplace like that one.

It was mostly something to kill a rainy day...



[autumn_again]

yeah i know what you mean. it definitely looks good, and i'm sure it kept you occupied hah.

hell. i'm starting to rip apart a car right now that i was gunna sell, just because i want to have a project and don't really have anything into the car.



[The Fang]

I made a pair of pistol grips out of pvc pipe with a sawzall and grinder once. It is amazing what you can make with a lil ingian in you.
Looks nice tho, good job!



[Casey4s]

I made a pair of pistol grips out of pvc pipe with a sawzall and grinder once. It is amazing what you can make with a lil ingian in you.
Looks nice tho, good job!

Yeah, I get a big kick out of fabricating stuff just for grins.



[kooldawg6]

Looks pretty nice How did the radiator cover piece you were working on hold up?



[Casey4s]

Looks pretty nice How did the radiator cover piece you were working on hold up?

Thanx KD,

The radiator cover is doing fine, so I got a SS battery cover and jewelled that too it's kind of a nice touch under the hood.



[kooldawg6]

Awesome! That sure is some great craftsmanship



[Casey4s]

Awesome! That sure is some great craftsmanship

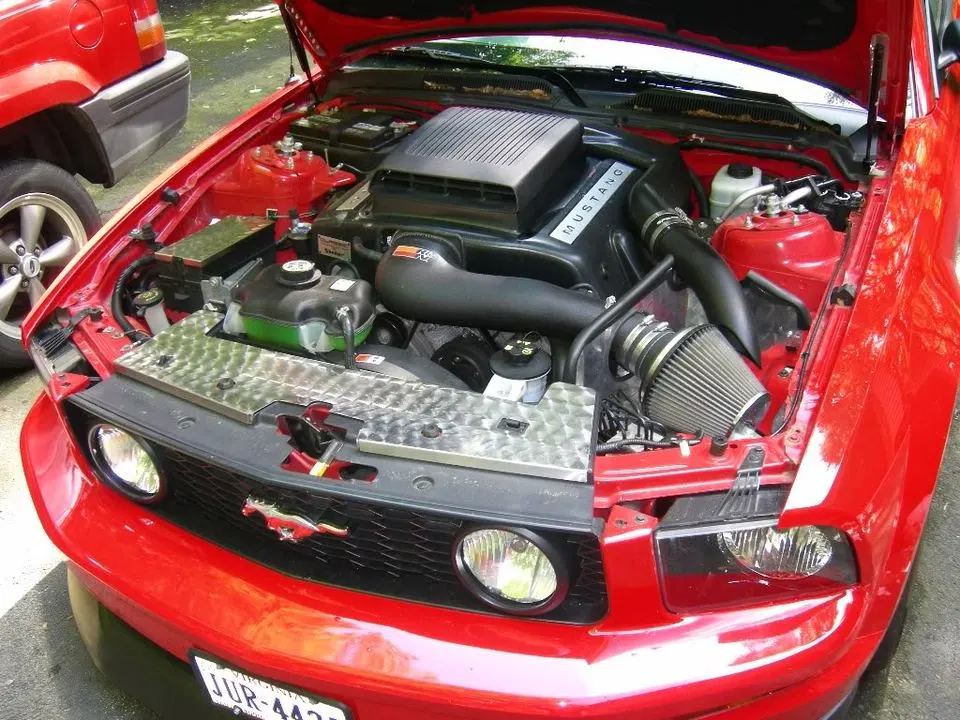

Here's all three pieces that i've done so far...



[walter]

That is a NICE garage dude, you got yourself a real shop in there.



[gashog]

Nice work, now I want to see the bullits on your jeep.



[kooldawg6]

Nice work, now I want to see the bullits on your jeep.

They look funny (knowing they are Stang wheels) while at the same time look decent. The thing that makes them look out of place is that they are still wearing the 235/55-17 tires...hehehehe



[gashog]

They look funny (knowing they are Stang wheels) while at the same time look decent. The thing that makes them look out of place is that they are still wearing the 235/55-17 tires...hehehehe

I love the fact he is still rocking the ford center caps too.



[Casey4s]

Thanx KD,

The radiator cover is doing fine, so I got a SS battery cover and jewelled that too it's kind of a nice touch under the hood.

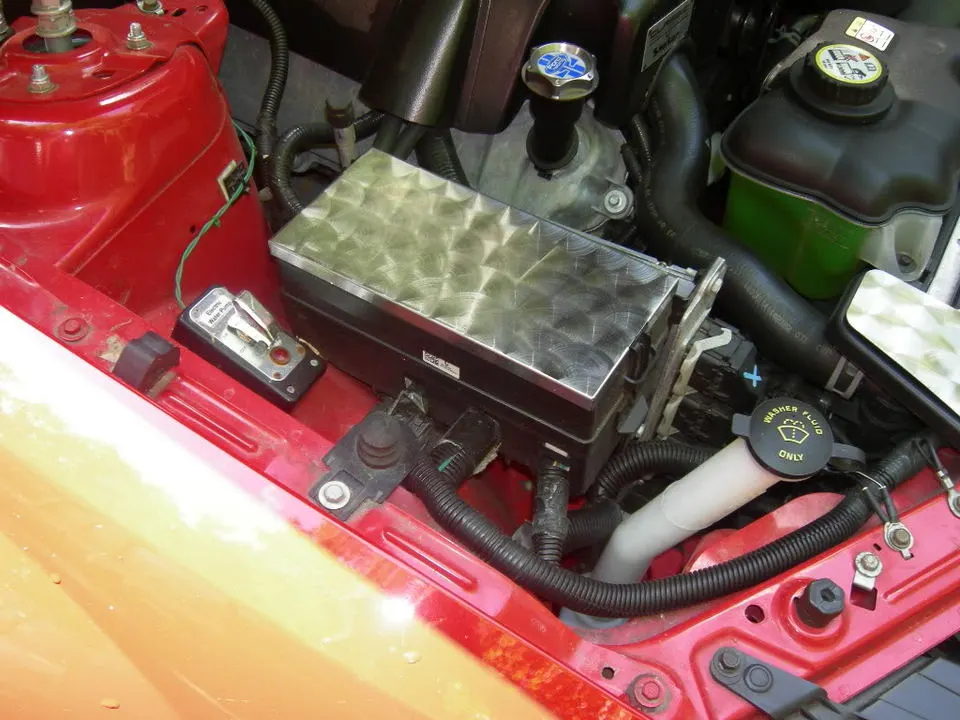

I just discovered a typo in the reply above, I should have said I got a "SS Fuse box cover"



[Casey4s]

They look funny (knowing they are Stang wheels) while at the same time look decent. The thing that makes them look out of place is that they are still wearing the 235/55-17 tires...hehehehe

Yeah they do look a little odd, but I needed new tires for the Jeep and had two sets of 17" Mustang Wheels and tires sitting around doing nothing. So I can live whith the strange looks.

My other set of wheels and tires is in our classified section for sale cheap.
